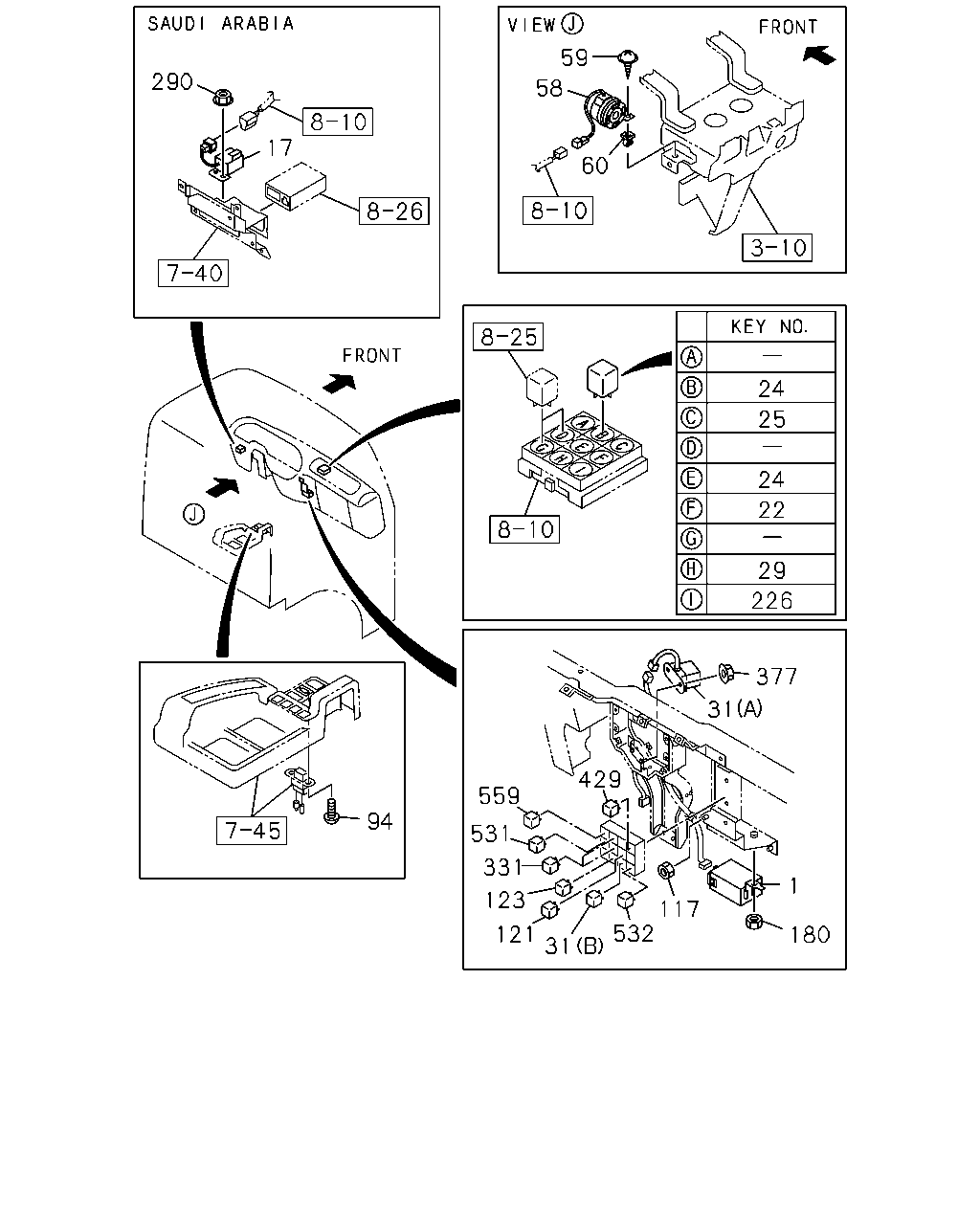

8-28 — CHASSIS ELECTRICAL (#38369) — 97 parça

59 290 58 17 60 24 25 24 22 29 226 377 31 429 559 94 531 331 1 123 117 532 31 121 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-060-1	01	1	9510-
17	TIMER; SEAT BELT SAUDI ARABIA EQUIPMENT(WH1)	1-82550-183-1	01	1	9510-
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9510-0111
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9510-0111
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9510-0111
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	9510-0111
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
31	RELAY; PTO CONT PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> (A) 24V	1-82550-187-1	01	1	9510-0004
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V	1-82550-187-1	01	1	0005-
31	RELAY; PTO CONT PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> (B) 24V 12.5A MITUBA	8-97062-815-1	01	1	9510-0004
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9510-0004
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0005-0612
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-865-0	01	1	0701-
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	9904-0004
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9510-0604
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-
60	GROMMET; SCREW,BUZZER D=8.6X7.7 L=7.5	8-94279-078-0	01	1	9510-
94	SCREW; CONSENT TO BLIND PNL M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9510-9810
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9811-0604
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-
117	NUT; RELAY FIX M6 FLANGE	0-91150-106-0	01	1	9510-9510
121	RELAY; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A MITUBA	8-97062-815-1	01	1	9510-0111
121	RELAY; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
123	RELAY; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA	8-97062-815-1	01	1	9510-0111
123	RELAY; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9510-0602
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9510-0111
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
290	NUT SAUDI ARABIA EQUIPMENT(WH1) M6 FLANGE	0-91150-106-0	02	1	9510-0602
290	NUT SAUDI ARABIA EQUIPMENT(WH1) M6 FLANGE	0-91180-106-0	02	1	0603-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	9510-0111
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
377	NUT; RELAY PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> M6 FLANGE	0-91150-106-0	02	1	9510-0004
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91150-106-0	02	1	0005-0602
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	02	1	0603-
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	9710-0010
429	RELAY; POWER CUT 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	0011-0111
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	0011-0111
429	RELAY; POWER CUT 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
531	RELAY; MAIN 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	0011-0111
531	RELAY; MAIN 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
532	RELAY; SEAT BELT WARNING SAUDI ARABIA EQUIPMENT(WH1) 24V 12.5A MITUBA	8-97062-815-1	01	1	9510-0111
532	RELAY; SEAT BELT WARNING SAUDI ARABIA EQUIPMENT(WH1) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
559	RELAY; MAG VLV 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	0011-0111
559	RELAY; MAG VLV 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-

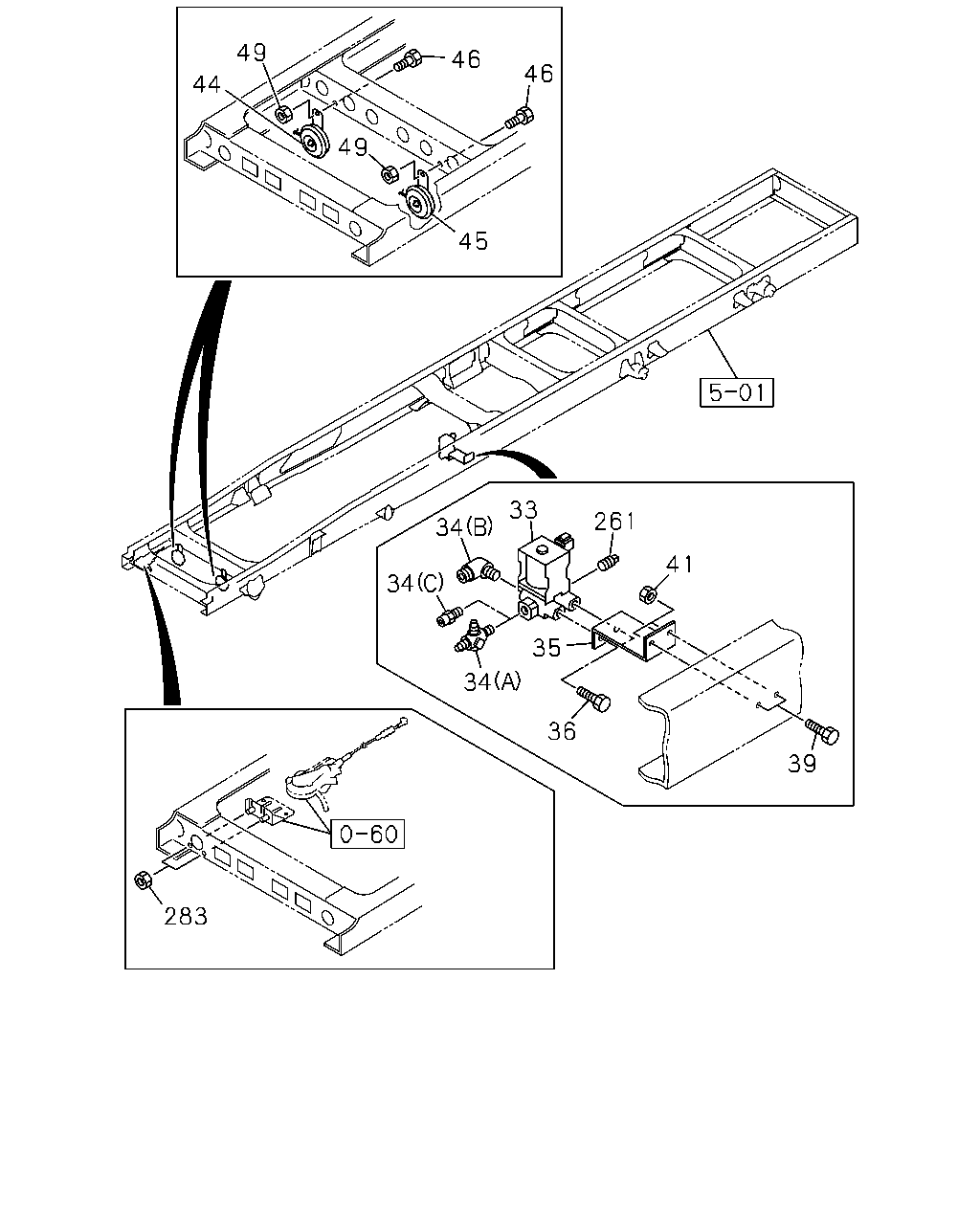

49 46 46 44 49 45 33 261 34 41 34 35 34 36 39 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6>	1-82563-600-4	01	1	9510-0004
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-600-5	01	1	0005-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9510-9802
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9803-9804
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> (C) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9805-0004
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (C) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0005-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9510-9802
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9803-0004
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0005-
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6>	1-47477-462-0	01	1	9510-9704
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6>	1-47477-953-0	01	1	9705-0004
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-47477-953-1	01	1	0005-
36	BOLT; MAG VLV,PTO CONT PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	9510-9810
36	BOLT; MAG VLV,PTO CONT PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	9811-0004
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	0005-0512
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
39	BOLT; BRKT,MAG VLV PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> M8X30 FLANGE	0-28680-830-0	02	1	9607-0004
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28680-830-0	02	1	0005-0512
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28650-830-0	02	1	0601-
41	NUT; BRKT,MAG VLV PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> M8	9-09110-408-0	02	1	9510-9606
41	NUT; BRKT,MAG VLV PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> M8 FLANGE	0-91150-108-0	02	1	9607-0004
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91150-108-0	02	1	0005-0602
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0603-
44	HORN; HIGH NOTE SAUDI ARABIA EQUIPMENT(WH1)	1-83410-061-1	01	1	9510-9710
44	HORN; HIGH NOTE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-061-1	01	1	9711-
44	HORN; HIGH NOTE EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-83410-057-1	01	1	9510-9710
44	HORN; HIGH NOTE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-057-1	01	1	9711-0210
44	HORN; HIGH NOTE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-065-1	01	1	0211-
45	HORN; LOW NOTE SAUDI ARABIA EQUIPMENT(WH1)	1-83410-062-1	01	1	9510-9710
45	HORN; LOW NOTE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-062-1	01	1	9711-
45	HORN; LOW NOTE EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-83410-058-1	01	1	9510-9710
45	HORN; LOW NOTE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-058-1	01	1	9711-0210
45	HORN; LOW NOTE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-064-1	01	1	0211-
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28080-825-0	02	1	9510-9606
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	9607-0512
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0601-
49	NUT; HORN TO BODY M8 FLANGE	5-09440-005-0	02	1	9510-9606
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	9607-0602
49	NUT; HORN TO BODY M8 FLANGE	0-91180-108-0	02	1	0603-
261	PLUG; MAG VLV PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	9510-0004
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0005-
283	NUT; BRKT M8 FLANGE	5-09440-005-0	02	1	9510-9606
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0602
283	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
