◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10701 - FSR(LHD) EXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#38364) — 470 parça
çizim 151862
224 224 224 224 224 513 530 503 178 178 178 178 503 510
BalonParca AdiParca NoAdetTipApplied Date
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9510-
178 GROMMET; HARNESS
HEAVY DUTY PACKAGE TRUCK<RD2> (C) ID=28 OD=35 T=25 		1-09332-011-1 02 1 9510-
178 GROMMET; HARNESS
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 9510-
178 GROMMET; HARNESS
LOW ROOF<6XQ> (D) ID=32 OD=48 T=5 		9-09575-232-0 01 1 9510-
224 SLEEVE; RUBBER,HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (A) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0005-
224 SLEEVE; RUBBER,HARNESS
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0005-
224 SLEEVE; RUBBER,HARNESS
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0005-
224 SLEEVE; RUBBER,HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (D) ID=29 OD=39 L=100 		1-09337-022-0 01 1 0007-0007
224 SLEEVE; RUBBER,HARNESS
EURO2 SPECIFICATION<THN> (D) ID=29 OD=39 L=100 		1-09337-022-0 01 1 0007-0007
224 SLEEVE; RUBBER,HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (E) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0007-
224 SLEEVE; RUBBER,HARNESS
EURO2 SPECIFICATION<THN> (E) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0007-
503 CONNECTOR
EXC. AIR DRYER<PS7> (B) 		1-82690-668-0 01 1 9510-9608
503 CONNECTOR
EXC. AIR DRYER<PS7> (B) 		1-82690-668-0 01 1 9609-9802
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 9609-9802
503 CONNECTOR
EXC. AIR DRYER<PS7> (B) 		1-82690-668-0 01 1 9803-0004
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60),EURO2 SPECIFICATION<THN> (B) 		1-82690-668-0 01 1 9803-0004
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 0005-0109
503 CONNECTOR
(B) 		1-82690-668-0 01 1 0005-0109
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 0110-
503 CONNECTOR
EXC. AIR DRYER<PS7> (B) 		1-82690-668-0 01 1 0110-
503 CONNECTOR
STARTER SWITCH DELETION<E5D> (A) 		1-82690-666-0 01 1 0212-
510 GROMMET; SCREW
EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8 		8-94222-314-0 01 1 9710-
513 TAPE; SOFT,HARNESS
100X30 		1-72498-014-1 02 1 9709-9709
513 TAPE; SOFT,HARNESS
100X30 		1-72498-014-1 02 1 9710-9903
513 TAPE; SOFT,HARNESS
EURO2 SPECIFICATION<THN> 100X30 		1-72498-014-1 02 1 9710-9903
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 02 1 9904-0002
513 TAPE; SOFT,HARNESS
EURO2 SPECIFICATION<THN> 100X40 		1-72498-022-0 02 1 9904-0002
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 02 1 0003-0004
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 02 1 0005-0101
513 TAPE; SOFT,HARNESS
EURO2 SPECIFICATION<THN> 100X40 		1-72498-022-0 02 1 0005-0101
513 TAPE; SOFT,HARNESS
EURO2 SPECIFICATION<THN> 100X40 		1-72498-022-1 02 1 0102-
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 0407-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0102-

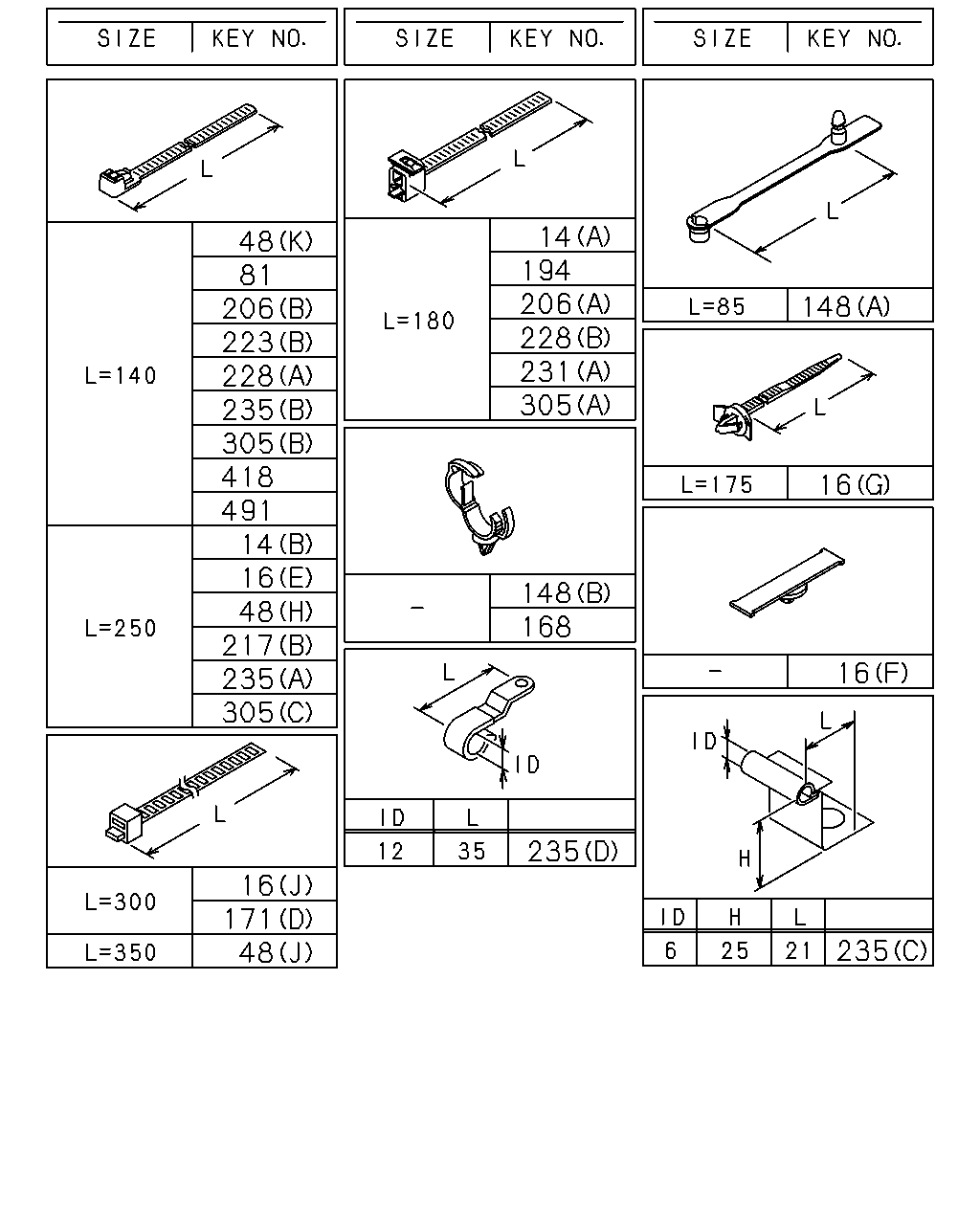

çizim 151887
14 194 206 228 231 305 48 81 206 223 228 235 305 418 491 14 16 48 217 235 305 148 16 148 168 16 235 16 171 48 235
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=180 		1-09707-162-1 01 1 9803-
14 CLIP; BAND,HARNESS
6HE1 TCN ENG(58L) ENGINE OIL TEMPERATURE GAUGE<UG3> (B) L=250 		5-09707-030-1 01 1 0002-0004
14 CLIP; BAND,HARNESS
6HH1 STD ENG(65L) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (B) L=250 		5-09707-030-1 01 1 0002-0004
14 CLIP; BAND,HARNESS
6HE1 TC ENG(57L) (B) L=250 		5-09707-030-1 01 1 0002-0004
14 CLIP; BAND,HARNESS
6HH1 STD ENG(65L),6HH1 N ENG(66L) (B) L=250 		5-09707-030-1 01 1 0005-1205
14 CLIP; BAND,HARNESS
6HH1 STD ENG(65L),6HH1 N ENG(66L) (B) L=250 		8-98216-430-0 01 1 1206-
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (R) ID=23 L=32 		1-09700-346-0 01 1 0307-
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9510-
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 02 1 9510-9802
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9803-0403
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0404-
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0404-
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9510-
16 CLIP; HARNESS
(N) ID=25 L=50 		1-09701-019-0 01 1 9510-9709
16 CLIP; HARNESS
(N) ID=25 L=50 		1-09701-019-0 01 1 9710-0306
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (N) ID=25 L=50 		1-09701-019-0 01 1 9710-0306
16 CLIP; HARNESS
(N) ID=25 L=50 		1-09701-019-0 01 1 0307-
16 CLIP; HARNESS
(I) ID=19 H=33 L=45 		1-09701-045-0 01 1 9510-9801
16 CLIP; HARNESS
(C) ID=19 H=21 L=50 		1-09700-910-1 01 1 9802-
16 CLIP; HARNESS
(J) L=300 		1-09707-001-1 01 1 9510-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 9510-
16 CLIP; HARNESS
(K) ID=19 L=32 		9-09525-866-0 01 1 9510-0606
16 CLIP; HARNESS
(K) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (L) ID=28 L=45 		1-09700-825-1 01 1 0005-0302
16 CLIP; HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (L) ID=28 L=45 		1-09700-825-1 01 1 0303-
16 CLIP; HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (M) ID=24 L=40 		1-09701-139-0 01 1 0005-
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (M) ID=24 L=40 		1-09701-139-0 01 1 0005-
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (M) ID=24 L=40 		1-09701-139-0 01 1 9710-0004
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (O) ID=25 H=30 L=35 		1-09700-875-0 01 1 0005-0006
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (F) L=55 		8-94432-655-0 06 1 9510-9802
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (F) L=55 		8-94432-655-0 03 1 9803-9909
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 03 1 9910-0004
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 03 1 9910-0004
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (F) L=55 		8-94432-655-0 03 1 0005-0101
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 03 1 0102-
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 03 1 0102-
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 9510-9904
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 04 1 9905-9909
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 9910-0004
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 02 1 9910-0004
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 0005-0101
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 0102-0211
16 CLIP; HARNESS
EXC. FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 0102-0211
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 0212-
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 02 1 0212-
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 9905-9909
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 9905-9909
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 04 1 9910-0004
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 04 1 0005-0101
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 04 1 0102-
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (F) L=55 		8-94432-655-0 06 1 9510-9909
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 04 1 9510-9904
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 06 1 9905-9909
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (F) L=55 		8-94432-655-0 06 1 0005-0101
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 06 1 0005-0101
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (H) ID=31 H=30 L=35 		1-09700-994-0 01 1 0005-0006
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (P) ID=29 L=35 		5-09700-293-1 01 1 0005-
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (Q) ID=24 L=32 		1-09700-766-1 01 1 0005-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (P) ID=23 L=32 		1-09700-346-0 01 1 0307-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9510-
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 9510-
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 9510-0606
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 02 1 9510-0004
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 01 1 0005-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 9510-9511
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 01 1 9512-0004
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 04 1 0005-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 9510-9511
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9512-0004
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0005-
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9510-
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 03 1 9512-0004
48 CLIP; FRAME HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (O) ID=28 L=45 		1-09700-825-1 01 1 0005-0302
48 CLIP; FRAME HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (O) ID=28 L=45 		1-09700-825-1 01 1 0303-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (L) ID=25 H=30 L=35 		1-09700-875-0 01 1 9710-9910
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (L) ID=25 H=30 L=35 		1-09700-875-0 01 1 9911-0004
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (M) ID=24 H=40 L=24 		1-09701-243-0 01 1 0005-0006
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (M) ID=24 H=40 L=24 		1-09701-243-0 01 1 0007-0010
48 CLIP; FRAME HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (M) ID=24 H=40 L=24 		1-09701-243-1 01 1 0011-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (M) ID=24 H=40 L=24 		1-09701-243-1 01 1 0011-
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (M) ID=24 H=40 L=24 		1-09701-243-1 01 1 0011-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (I) ID=25 L=50 		1-09700-976-0 02 1 9710-0306
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (I) ID=25 L=50 		1-09700-976-0 01 1 0307-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (M) ID=24 H=40 L=24 		1-09701-243-0 01 1 9710-0004
48 CLIP; FRAME HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (N) ID=28 H=45 L=30 		1-09700-948-0 02 1 0005-0006
48 CLIP; FRAME HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (N) ID=28 H=45 L=30 		1-09700-948-0 03 1 0007-0302
48 CLIP; FRAME HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (N) ID=28 H=45 L=30 		1-09700-948-0 03 1 0303-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (H) L=250 		5-09707-030-1 01 1 9710-0004
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (K) L=140 		5-09707-031-1 03 1 0005-
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (A) ID=20 L=50 		9-09917-430-0 11 1 9510-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (A) ID=20 L=50 		9-09917-430-0 14 1 9510-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (A) ID=20 L=50 		9-09917-430-0 17 1 9510-
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (J) L=350 		1-09707-183-0 01 1 0005-
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L),6HH1 N ENG(66L) EURO2 SPECIFICATION<THN> (L) ID=25 H=30 L=35 		1-09700-875-0 02 1 9911-0004
48 CLIP; FRAME HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (L) ID=25 H=30 L=35 		1-09700-875-0 01 1 0005-0006
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (L) ID=25 H=30 L=35 		1-09700-875-0 01 1 0005-0006
48 CLIP; FRAME HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (M) ID=24 H=40 L=24 		1-09701-243-0 02 1 0007-0010
48 CLIP; FRAME HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (M) ID=24 H=40 L=24 		1-09701-243-1 02 1 0011-
48 CLIP; FRAME HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (H) L=250 		5-09707-030-1 01 1 0007-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (H) L=250 		5-09707-030-1 01 1 0007-
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (H) L=250 		5-09707-030-1 01 1 0007-
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 9510-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 9510-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 9510-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 9510-
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 9510-
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 9510-0606
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 04 1 0607-
171 CLIP; STARTER HARNESS
(D) L=300 		1-09707-001-1 01 1 0005-
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y> EURO2 SPECIFICATION<THN> (C) ID=21 L=30 H=40 		1-09700-991-1 01 1 9810-0004
171 CLIP; STARTER HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (C) ID=21 L=30 H=40 		1-09700-991-1 01 1 0005-
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 9510-0004
194 CLIP; BAND
EXC. DUAL AIR GAUGE<UG2> L=180 		1-09707-162-1 01 1 0005-
194 CLIP; BAND
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=180 		1-09707-162-1 02 1 9510-0004
194 CLIP; BAND
DUAL AIR GAUGE<UG2> L=180 		1-09707-162-1 02 1 0005-
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 02 1 9510-
206 CLIP; FUEL TANK HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=180 		1-09707-162-0 01 1 9510-9802
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9510-0208
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9510-
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 9510-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 9510-
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 01 1 9510-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 9510-
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 9510-9909
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 04 1 9910-
228 CLIP; COOLER HARNESS
(A) L=140 		5-09707-031-1 01 1 9510-0112
228 CLIP; COOLER HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-1 01 1 0201-0405
228 CLIP; COOLER HARNESS
(A) L=140 		5-09707-031-1 01 1 0406-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180 		1-09707-162-1 01 1 0201-0405
231 CLIP; BAND,OIL PRESS
(A) L=180 		1-09707-162-1 01 1 9510-0001
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HE1 TCC ENG(76L) EXC. EURO2 SPECIFICATION<THN> (A) L=180 		1-09707-162-1 01 1 0002-0004
231 CLIP; BAND,OIL PRESS
6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) L=180 		1-09707-162-1 01 1 0002-0004
231 CLIP; BAND,OIL PRESS
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) L=180 		1-09707-162-1 01 1 0005-
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. EURO2 SPECIFICATION<THN> (A) L=180 		1-09707-162-1 01 1 0005-
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (B) OD=9 H=6 		1-09709-178-0 01 1 0002-0004
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (B) OD=9 H=6 		1-09709-178-0 01 1 0005-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 		5-09707-030-0 01 1 9510-9802
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=140 		5-09707-031-1 01 1 9510-
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6 M/T<X9Y> (C) ID=6 H=25 L=21 		1-09700-432-0 01 1 9703-9802
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6 M/T<X9Y> (D) ID=12 L=35 		5-09700-206-0 01 1 9803-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-0 01 1 9510-9709
305 CLIP; ENG HARNESS
EXC. EURO2 SPECIFICATION<THN> (A) L=180 		1-09707-162-1 01 1 9710-0001
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0002-
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-0 01 1 9510-9709
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 9710-0001
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<THN> (B) L=140 		5-09707-031-1 01 1 9710-0001
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<THN> (B) L=140 		5-09707-031-1 01 1 9710-0001
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 0002-
305 CLIP; ENG HARNESS
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) L=140 		5-09707-031-1 04 1 0005-
305 CLIP; ENG HARNESS
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) L=250 		5-09707-030-1 02 1 0005-
418 CLIP; LAMP HARNESS
RADIO CLARION(SK2) L=140 		5-09707-031-1 01 1 0703-
491 CLIP; BAND,HTR HOSE & HARNESS
FIRE TRUCK(RA9) L=140 		5-09707-031-1 01 1 9510-0004
çizim 151904
119 64 210 423 520 184 133 209 524 219 294 219 294
BalonParca AdiParca NoAdetTipApplied Date
64 SCREW; CLIP
EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 9710-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 9510-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9510-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 9908-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9510-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9908-
219 NUT
(A) M8 		9-09110-408-0 02 1 9510-9609
219 NUT
(B) M8 FLANGE 		0-91150-108-0 04 1 9610-9709
219 NUT
(B) M8 FLANGE 		0-91150-108-0 04 1 9710-0004
219 NUT
EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 04 1 9710-0004
219 NUT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8 FLANGE 		0-91150-108-0 04 1 0005-0602
219 NUT
EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 04 1 0005-0602
219 NUT
(B) M8 FLANGE 		0-91150-108-0 04 1 0005-0602
219 NUT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8 FLANGE 		0-91180-108-0 04 1 0603-
219 NUT
EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91180-108-0 04 1 0603-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 04 1 0603-
219 NUT
(A) M8 		9-09110-408-0 04 1 9510-9606
219 NUT
(B) M8 FLANGE 		0-91150-108-0 04 1 9607-9609
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9610-0602
219 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 01 1 0011-0602
219 NUT
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
(A) M8 		9-09110-408-0 02 1 9510-9606
294 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-0602
294 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-
294 NUT
PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (B) M8 FLANGE 		0-91150-108-0 01 1 9703-0602
294 NUT
PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (B) M8 FLANGE 		0-91180-108-0 01 1 0603-1006
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 9908-9909
423 WASHER; HARNESS,EARTH
EURO2 SPECIFICATION<THN> ID=8.4 		1-09503-264-0 01 1 9908-9909
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9908-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 9510-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-
çizim 151924
312 335 312 53 154 154 59
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
EURO2 SPECIFICATION<THN> 		1-47476-812-1 01 1 9710-0004
53 BRACKET; HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-47476-812-1 01 1 0005-
53 BRACKET; HARNESS
EURO2 SPECIFICATION<THN> 		1-47476-812-1 01 1 0005-
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 9510-
154 BRACKET; STARTER EARTH CABLE
(A) 		1-47465-518-0 01 1 9510-0004
154 BRACKET; STARTER EARTH CABLE
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) 		1-47465-518-0 01 1 0005-0009
154 BRACKET; STARTER EARTH CABLE
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (A) 		1-47465-518-0 01 1 0005-0009
154 BRACKET; STARTER EARTH CABLE
(A) 		1-47465-518-0 01 1 0010-0205
154 BRACKET; STARTER EARTH CABLE
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) 		1-47465-518-0 01 1 0206-0306
154 BRACKET; STARTER EARTH CABLE
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) 		1-47465-518-0 01 1 0206-0306
154 BRACKET; STARTER EARTH CABLE
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) 		1-47465-518-0 01 1 0307-
154 BRACKET; STARTER EARTH CABLE
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (A) 		1-47465-518-0 01 1 0307-
154 BRACKET; STARTER EARTH CABLE
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		1-47475-868-0 01 1 0005-0009
312 BRACKET; CLIP HARNESS
PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (A) 		1-82699-588-0 01 1 9703-0302
312 BRACKET; CLIP HARNESS
PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (B) 		1-47478-981-0 01 1 0303-
335 BRACKET; CONNECTOR 1-82699-517-0 01 1 9510-9910
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 9911-

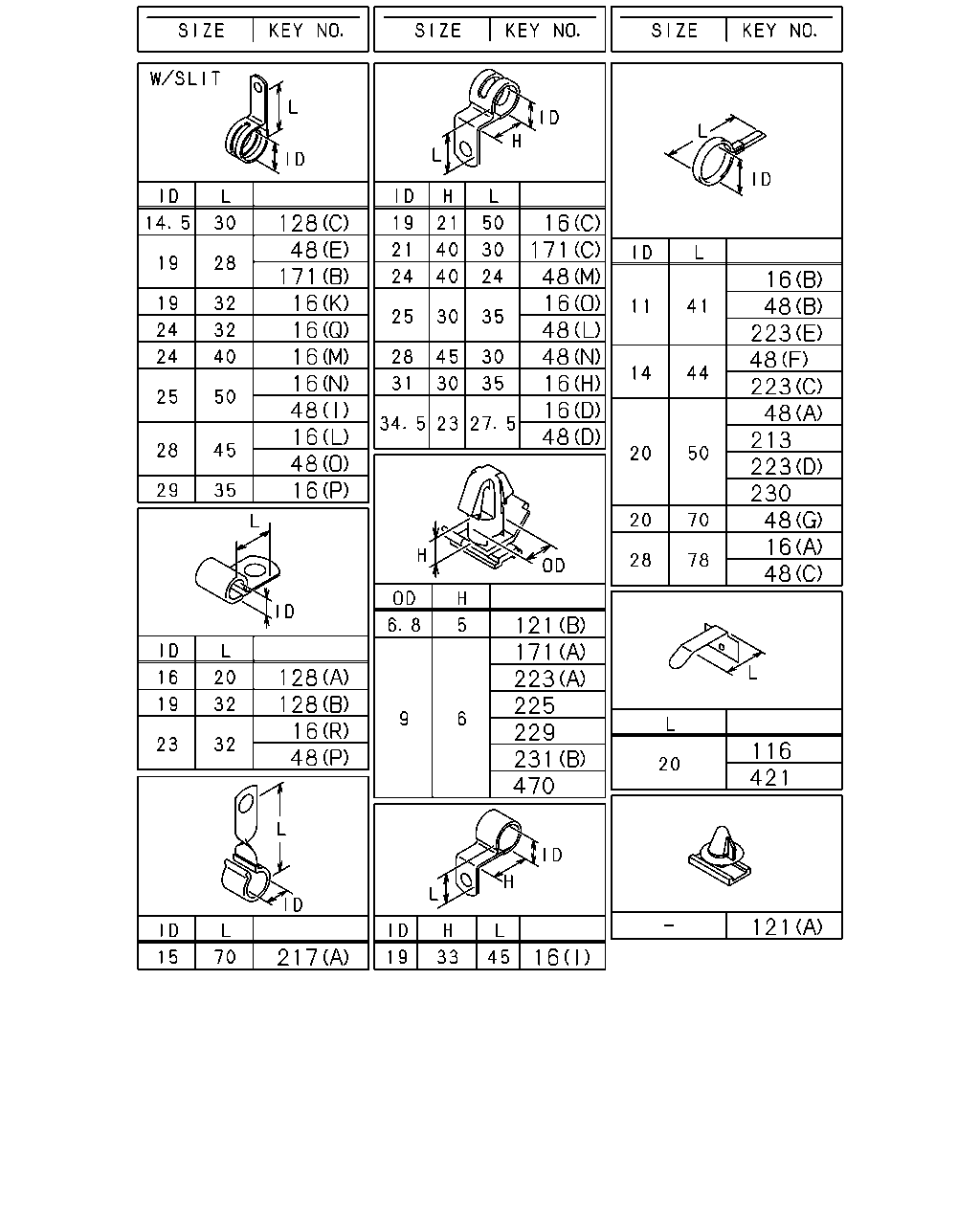

çizim 151928
128 48 171 16 16 16 16 48 16 48 16 16 171 48 16 48 48 16 16 48 16 48 223 48 223 48 213 223 230 48 16 48 121 171 223 225 229 231 470 128 128 16 48 116 421 121 217 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (R) ID=23 L=32 		1-09700-346-0 01 1 0307-
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9510-
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 02 1 9510-9802
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9803-0403
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0404-
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0404-
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9510-
16 CLIP; HARNESS
(N) ID=25 L=50 		1-09701-019-0 01 1 9510-9709
16 CLIP; HARNESS
(N) ID=25 L=50 		1-09701-019-0 01 1 9710-0306
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (N) ID=25 L=50 		1-09701-019-0 01 1 9710-0306
16 CLIP; HARNESS
(N) ID=25 L=50 		1-09701-019-0 01 1 0307-
16 CLIP; HARNESS
(I) ID=19 H=33 L=45 		1-09701-045-0 01 1 9510-9801
16 CLIP; HARNESS
(C) ID=19 H=21 L=50 		1-09700-910-1 01 1 9802-
16 CLIP; HARNESS
(J) L=300 		1-09707-001-1 01 1 9510-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 9510-
16 CLIP; HARNESS
(K) ID=19 L=32 		9-09525-866-0 01 1 9510-0606
16 CLIP; HARNESS
(K) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (L) ID=28 L=45 		1-09700-825-1 01 1 0005-0302
16 CLIP; HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (L) ID=28 L=45 		1-09700-825-1 01 1 0303-
16 CLIP; HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (M) ID=24 L=40 		1-09701-139-0 01 1 0005-
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (M) ID=24 L=40 		1-09701-139-0 01 1 0005-
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (M) ID=24 L=40 		1-09701-139-0 01 1 9710-0004
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (O) ID=25 H=30 L=35 		1-09700-875-0 01 1 0005-0006
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (F) L=55 		8-94432-655-0 06 1 9510-9802
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (F) L=55 		8-94432-655-0 03 1 9803-9909
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 03 1 9910-0004
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 03 1 9910-0004
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (F) L=55 		8-94432-655-0 03 1 0005-0101
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 03 1 0102-
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 03 1 0102-
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 9510-9904
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 04 1 9905-9909
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 9910-0004
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 02 1 9910-0004
16 CLIP; HARNESS
(G) L=175 		8-97110-167-0 02 1 0005-0101
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 0102-0211
16 CLIP; HARNESS
EXC. FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 0102-0211
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 0212-
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 02 1 0212-
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 9905-9909
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 9905-9909
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 04 1 9910-0004
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 04 1 0005-0101
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 04 1 0102-
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (F) L=55 		8-94432-655-0 06 1 9510-9909
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 04 1 9510-9904
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 06 1 9905-9909
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (F) L=55 		8-94432-655-0 06 1 0005-0101
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 06 1 0005-0101
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (H) ID=31 H=30 L=35 		1-09700-994-0 01 1 0005-0006
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (P) ID=29 L=35 		5-09700-293-1 01 1 0005-
16 CLIP; HARNESS
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (Q) ID=24 L=32 		1-09700-766-1 01 1 0005-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (P) ID=23 L=32 		1-09700-346-0 01 1 0307-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9510-
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 9510-
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 9510-0606
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 02 1 9510-0004
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 01 1 0005-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 9510-9511
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 01 1 9512-0004
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 04 1 0005-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 9510-9511
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9512-0004
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0005-
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9510-
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 03 1 9512-0004
48 CLIP; FRAME HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (O) ID=28 L=45 		1-09700-825-1 01 1 0005-0302
48 CLIP; FRAME HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (O) ID=28 L=45 		1-09700-825-1 01 1 0303-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (L) ID=25 H=30 L=35 		1-09700-875-0 01 1 9710-9910
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (L) ID=25 H=30 L=35 		1-09700-875-0 01 1 9911-0004
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (M) ID=24 H=40 L=24 		1-09701-243-0 01 1 0005-0006
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (M) ID=24 H=40 L=24 		1-09701-243-0 01 1 0007-0010
48 CLIP; FRAME HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (M) ID=24 H=40 L=24 		1-09701-243-1 01 1 0011-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (M) ID=24 H=40 L=24 		1-09701-243-1 01 1 0011-
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (M) ID=24 H=40 L=24 		1-09701-243-1 01 1 0011-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (I) ID=25 L=50 		1-09700-976-0 02 1 9710-0306
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (I) ID=25 L=50 		1-09700-976-0 01 1 0307-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (M) ID=24 H=40 L=24 		1-09701-243-0 01 1 9710-0004
48 CLIP; FRAME HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (N) ID=28 H=45 L=30 		1-09700-948-0 02 1 0005-0006
48 CLIP; FRAME HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (N) ID=28 H=45 L=30 		1-09700-948-0 03 1 0007-0302
48 CLIP; FRAME HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (N) ID=28 H=45 L=30 		1-09700-948-0 03 1 0303-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (H) L=250 		5-09707-030-1 01 1 9710-0004
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (K) L=140 		5-09707-031-1 03 1 0005-
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (A) ID=20 L=50 		9-09917-430-0 11 1 9510-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (A) ID=20 L=50 		9-09917-430-0 14 1 9510-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (A) ID=20 L=50 		9-09917-430-0 17 1 9510-
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (J) L=350 		1-09707-183-0 01 1 0005-
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L),6HH1 N ENG(66L) EURO2 SPECIFICATION<THN> (L) ID=25 H=30 L=35 		1-09700-875-0 02 1 9911-0004
48 CLIP; FRAME HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (L) ID=25 H=30 L=35 		1-09700-875-0 01 1 0005-0006
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (L) ID=25 H=30 L=35 		1-09700-875-0 01 1 0005-0006
48 CLIP; FRAME HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (M) ID=24 H=40 L=24 		1-09701-243-0 02 1 0007-0010
48 CLIP; FRAME HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (M) ID=24 H=40 L=24 		1-09701-243-1 02 1 0011-
48 CLIP; FRAME HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (H) L=250 		5-09707-030-1 01 1 0007-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (H) L=250 		5-09707-030-1 01 1 0007-
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (H) L=250 		5-09707-030-1 01 1 0007-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> EXC. MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-2 02 1 9510-0009
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> EXC. MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-2 03 1 0010-1409
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> EXC. MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-2 04 1 1410-
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 05 1 9510-0009
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-2 05 1 9510-0009
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0010-0112
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0010-0112
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-1409
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-1409
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
121 CLIP; FACIA HARNESS
FRONT FENDER WIDE<SA4> EXC. POWER WINDOW<A30> (A) OD=7 H=1.2 		8-94364-750-0 02 1 9510-
121 CLIP; FACIA HARNESS
EXC. FRONT FENDER WIDE<SA4> (B) OD=6.8 H=5 		8-97082-051-0 02 1 9510-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9510-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9510-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 9510-
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 9510-0606
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 04 1 0607-
171 CLIP; STARTER HARNESS
(D) L=300 		1-09707-001-1 01 1 0005-
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y> EURO2 SPECIFICATION<THN> (C) ID=21 L=30 H=40 		1-09700-991-1 01 1 9810-0004
171 CLIP; STARTER HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (C) ID=21 L=30 H=40 		1-09700-991-1 01 1 0005-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9510-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9510-0208
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9510-
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 9510-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 9510-
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 01 1 9510-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 9510-
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 9510-9909
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 04 1 9910-
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> OD=9 H=6 		1-09709-178-0 01 1 9510-0004
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> OD=9 H=6 		1-09709-178-0 01 1 0110-
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9510-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 9510-
231 CLIP; BAND,OIL PRESS
(A) L=180 		1-09707-162-1 01 1 9510-0001
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HE1 TCC ENG(76L) EXC. EURO2 SPECIFICATION<THN> (A) L=180 		1-09707-162-1 01 1 0002-0004
231 CLIP; BAND,OIL PRESS
6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) L=180 		1-09707-162-1 01 1 0002-0004
231 CLIP; BAND,OIL PRESS
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HH1 N ENG(66L) (A) L=180 		1-09707-162-1 01 1 0005-
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. EURO2 SPECIFICATION<THN> (A) L=180 		1-09707-162-1 01 1 0005-
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (B) OD=9 H=6 		1-09709-178-0 01 1 0002-0004
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (B) OD=9 H=6 		1-09709-178-0 01 1 0005-
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 9510-9708
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 9709-0101
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102-0406
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 9510-

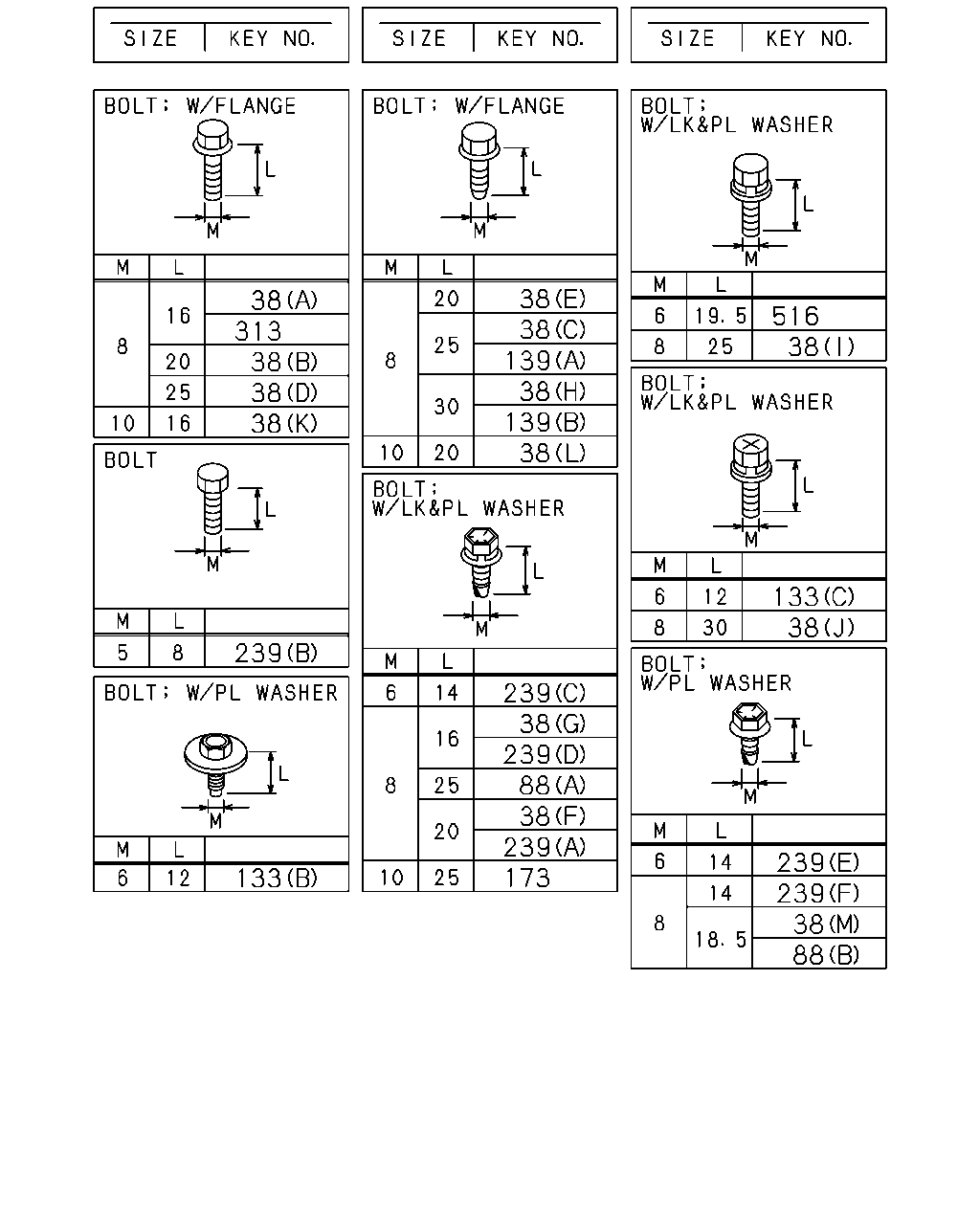

çizim 151931
38 38 139 38 139 38 38 313 38 38 38 516 38 133 38 239 239 38 239 88 38 239 173 239 239 38 88 133
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28080-816-0 02 1 0404-0512
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 9510-0512
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28080-820-0 04 1 9510-9606
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0512
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28080-825-0 04 1 9510-9606
38 BOLT; CLIP,HARNESS
(E) M8X20 FLANGE 		0-28680-820-0 02 1 9607-0004
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0005-0006
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) (A) M8X16 FLANGE 		0-28080-816-0 01 1 0007-0403
38 BOLT; CLIP,HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28080-816-0 01 1 0007-0403
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) (A) M8X16 FLANGE 		0-28080-816-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) (A) M8X16 FLANGE 		0-28080-816-0 01 1 0601-0601
38 BOLT; CLIP,HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28080-816-0 01 1 0601-0601
38 BOLT; CLIP,HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28080-816-0 01 1 0601-0601
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
38 BOLT; CLIP,HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
38 BOLT; CLIP,HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9510-9709
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9710-9907
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9710-9907
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-9909
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (G) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-9909
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9910-0004
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9910-0004
38 BOLT; CLIP,HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0005-0010
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0005-0010
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0005-0010
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0011-1201
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0011-1201
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0011-1201
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (M) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202-
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (M) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202-
38 BOLT; CLIP,HARNESS
(M) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202-
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28680-830-0 02 1 9607-0512
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(I) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9607-9702
38 BOLT; CLIP,HARNESS
(J) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9703-0512
38 BOLT; CLIP,HARNESS
(J) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (E) M8X20 FLANGE 		0-28680-820-0 04 1 9710-9910
38 BOLT; CLIP,HARNESS
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (E) M8X20 FLANGE 		0-28680-820-0 04 1 9911-0004
38 BOLT; CLIP,HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (E) M8X20 FLANGE 		0-28680-820-0 04 1 0005-0512
38 BOLT; CLIP,HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (E) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (C) M8X25 FLANGE 		0-28680-825-0 03 1 9710-0004
38 BOLT; CLIP,HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) M8X25 FLANGE 		0-28680-825-0 03 1 0005-0512
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (C) M8X25 FLANGE 		0-28680-825-0 03 1 0005-0512
38 BOLT; CLIP,HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) M8X25 FLANGE 		0-28650-825-0 03 1 0601-
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (C) M8X25 FLANGE 		0-28650-825-0 03 1 0601-
38 BOLT; CLIP,HARNESS
MLD6 M/T<X9Y> (K) M10X16 FLANGE 		0-28081-016-0 01 1 9703-9802
38 BOLT; CLIP,HARNESS
MLD6 M/T<X9Y> (L) M10X20 FLANGE 		0-28781-020-0 01 1 9803-0512
38 BOLT; CLIP,HARNESS
MLD6 M/T<X9Y> (L) M10X20 FLANGE 		0-28751-020-0 01 1 0601-
38 BOLT; CLIP,HARNESS
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> MLD6 M/T<X9Y> (A) M8X16 FLANGE 		0-28080-816-0 01 1 9810-0004
38 BOLT; CLIP,HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0006
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L),6HH1 N ENG(66L) EURO2 SPECIFICATION<THN> (E) M8X20 FLANGE 		0-28680-820-0 05 1 9911-0004
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) (E) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0010
38 BOLT; CLIP,HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0010
38 BOLT; CLIP,HARNESS
(E) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0010
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (E) M8X20 FLANGE 		0-28680-820-0 02 1 0011-0512
38 BOLT; CLIP,HARNESS
(E) M8X20 FLANGE 		0-28680-820-0 02 1 0011-0512
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (E) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(E) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) (B) M8X20 FLANGE 		0-28080-820-0 01 1 0005-0006
38 BOLT; CLIP,HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8X20 FLANGE 		0-28080-820-0 01 1 0005-0006
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) (B) M8X20 FLANGE 		0-28080-820-0 02 1 0007-0010
38 BOLT; CLIP,HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8X20 FLANGE 		0-28080-820-0 02 1 0007-0010
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) (B) M8X20 FLANGE 		0-28080-820-0 02 1 0011-0512
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (E) M8X20 FLANGE 		0-28680-820-0 01 1 0011-0512
38 BOLT; CLIP,HARNESS
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (E) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
88 BOLT; DOOR HARNESS EARTH
DOOR WINDOW MANUAL CONT<SKF> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9510-1007
88 BOLT; DOOR HARNESS EARTH
DOOR WINDOW MANUAL CONT<SKF> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008-
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9510-1007
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9510-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 9607-0512
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9510-
239 BOLT; GRAND
(B) M5X8 		0-20800-508-0 01 1 9510-
239 BOLT; GRAND
(C) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9510-1007
239 BOLT; GRAND
(E) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9510-9907
239 BOLT; GRAND
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-1201
239 BOLT; GRAND
(F) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
313 BOLT; BRKT
PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> M8X16 FLANGE 		0-28080-816-0 01 1 9703-0512
313 BOLT; BRKT
PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> M8X16 FLANGE 		0-28050-816-0 01 1 0601-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
