Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#38360) — 191 parça

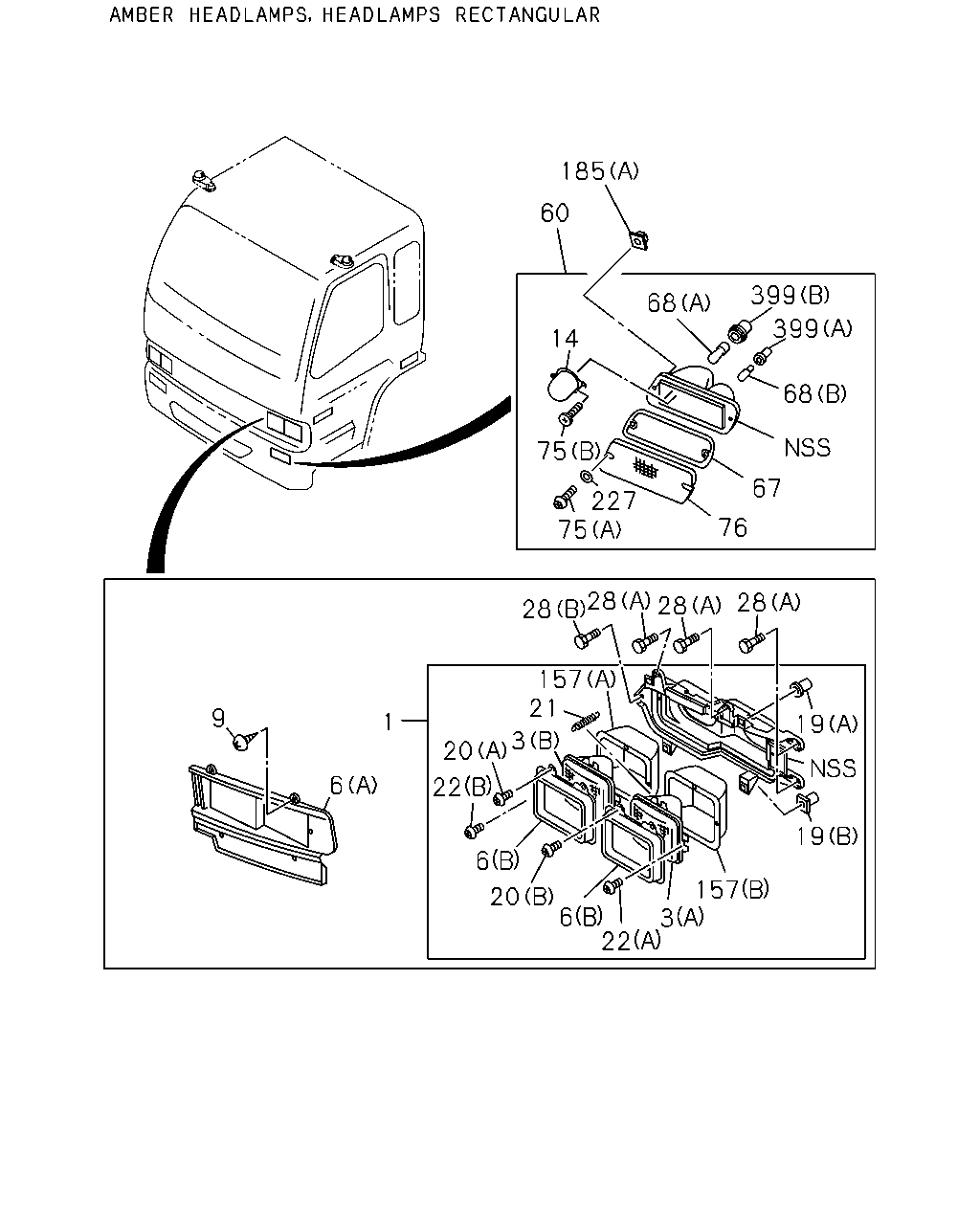

185 60 399 68 399 14 68 75 227 75 67 76 28 28 28 28 157 21 9 3 1 19 20 6 22 19 6 157 20 6 22 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD AMBER HEADLAMPS<T75>	1-82110-314-0	01	1	9510-0004
1	LAMP ASM; HEAD AMBER HEADLAMPS<T75>	1-82110-313-0	01	1	9510-0004
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4>	1-86830-174-1	01	1	9510-0004
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4>	1-86830-173-1	01	1	9510-0004
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-176-4	01	1	9510-0210
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82110-440-0	01	1	0211-
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-175-4	01	1	9510-0210
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82110-439-0	01	1	0211-
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA>	1-86830-124-4	01	1	9510-
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA>	1-86830-123-4	01	1	9510-
3	SEALED BEAM; HEADLAMP AMBER HEADLAMPS<T75> (A) TYPE2 24V 75/70W	1-82113-015-0	02	1	9510-0004
3	SEALED BEAM; HEADLAMP AMBER HEADLAMPS<T75> (B) TYPE1 24V 70W	1-82113-016-0	02	1	9510-0004
3	SEALED BEAM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A) 24V 50/65W	8-94111-275-0	02	1	9510-0004
3	SEALED BEAM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) 24V 55W	8-94111-276-0	02	1	9510-0004
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B)	8-94165-573-0	04	1	9510-0004
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A)	1-71118-746-1	01	1	9510-0004
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A)	1-71118-745-1	01	1	9510-0004
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-006-5	01	1	0005-
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-005-5	01	1	0005-
9	SCREW; HEADLAMP RIM HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> M4X20 TAPPING W/PL WASHER	0-74110-420-0	08	1	9511-0004
14	CAP; BULB,LAMP HEADLAMPS RECTANGULAR<TR4>	1-82219-030-0	02	1	9609-9705
14	CAP; BULB,LAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82219-030-0	02	1	9706-0004
14	CAP; BULB,LAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-148-0	02	1	9510-
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A)	1-82119-117-0	08	1	9510-0004
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B)	8-97044-618-0	08	1	9510-0004
20	SCREW; HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) M4X20 TAPPING W/PL WASHER	0-74110-420-0	08	1	9510-9510
20	SCREW; HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) M4X8	8-94165-886-0	16	1	9510-0004
21	SPRING; ADJ HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82119-120-0	04	1	9510-0004
22	SCREW; ADJ,HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) RH, LH UPPER & OUTER SIDE	1-82119-118-0	07	1	9510-0004
22	SCREW; ADJ,HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) LH INNER SIDE	1-82119-119-0	01	1	9510-0004
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) M6X16 FLANGE	0-28650-616-0	04	1	0709-
28	BOLT; HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9510-0004
28	BOLT; HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9510-0004
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9510-0708
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0709-
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	1-82210-211-0	01	1	9510-9608
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82210-221-0	01	1	9609-0004
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	1-82210-210-0	01	1	9510-9608
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82210-220-0	01	1	9609-0004
67	GASKET; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>	1-82216-033-0	02	1	9510-9705
67	GASKET; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82216-033-0	02	1	9706-0004
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (A) 24V 21W	1-82194-036-0	02	1	9510-9705
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) 24V 21W	1-82194-036-0	02	1	9706-0004
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (B) 24V 5W	8-94135-397-0	02	1	9510-9705
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) 24V 5W	8-94135-397-0	02	1	9706-0004
75	SCREW; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-82219-026-0	04	1	9510-9705
75	SCREW; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A)	1-82219-026-0	04	1	9706-0004
75	SCREW; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82219-031-0	04	1	9609-9705
75	SCREW; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B)	1-82219-031-0	04	1	9706-0004
76	LENS; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> ORANGE	1-82215-065-0	01	1	9510-9608
76	LENS; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82215-071-0	01	1	9609-0004
76	LENS; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> ORANGE	1-82215-064-0	01	1	9510-9608
76	LENS; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82215-070-0	01	1	9609-0004
157	RING; MTG,HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B)	1-82119-032-0	01	1	9510-0004
157	RING; MTG,HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A)	1-82119-033-0	01	1	9510-0004
157	RING; MTG,HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A)	1-82119-031-0	01	1	9510-0004
157	RING; MTG,HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B)	1-82119-034-0	01	1	9510-0004
185	GROMMET; SCREW (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9510-
185	GROMMET; SCREW FRONT FENDER WIDE<SA4> (B) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9510-9709
185	GROMMET; SCREW FRONT FENDER WIDE<SA4> (B) D=8.6X7.7 L=7.5	1-09983-177-0	02	1	9710-9807
227	SEAT; SET SCREW,FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>	1-82216-032-0	04	1	9510-9705
227	SEAT; SET SCREW,FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82216-032-0	04	1	9706-0004
399	SOCKET; TURN SIGNAL (B)	1-82219-034-0	02	1	9510-
399	SOCKET; TURN SIGNAL HEADLAMPS RECTANGULAR<TR4> (A)	1-82219-033-0	02	1	9510-9705
399	SOCKET; TURN SIGNAL HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A)	1-82219-033-0	02	1	9706-0004

82 83 292 174 84 256 327 91 185 321 133 344 104 327 91 321 350 121 344 133 104 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

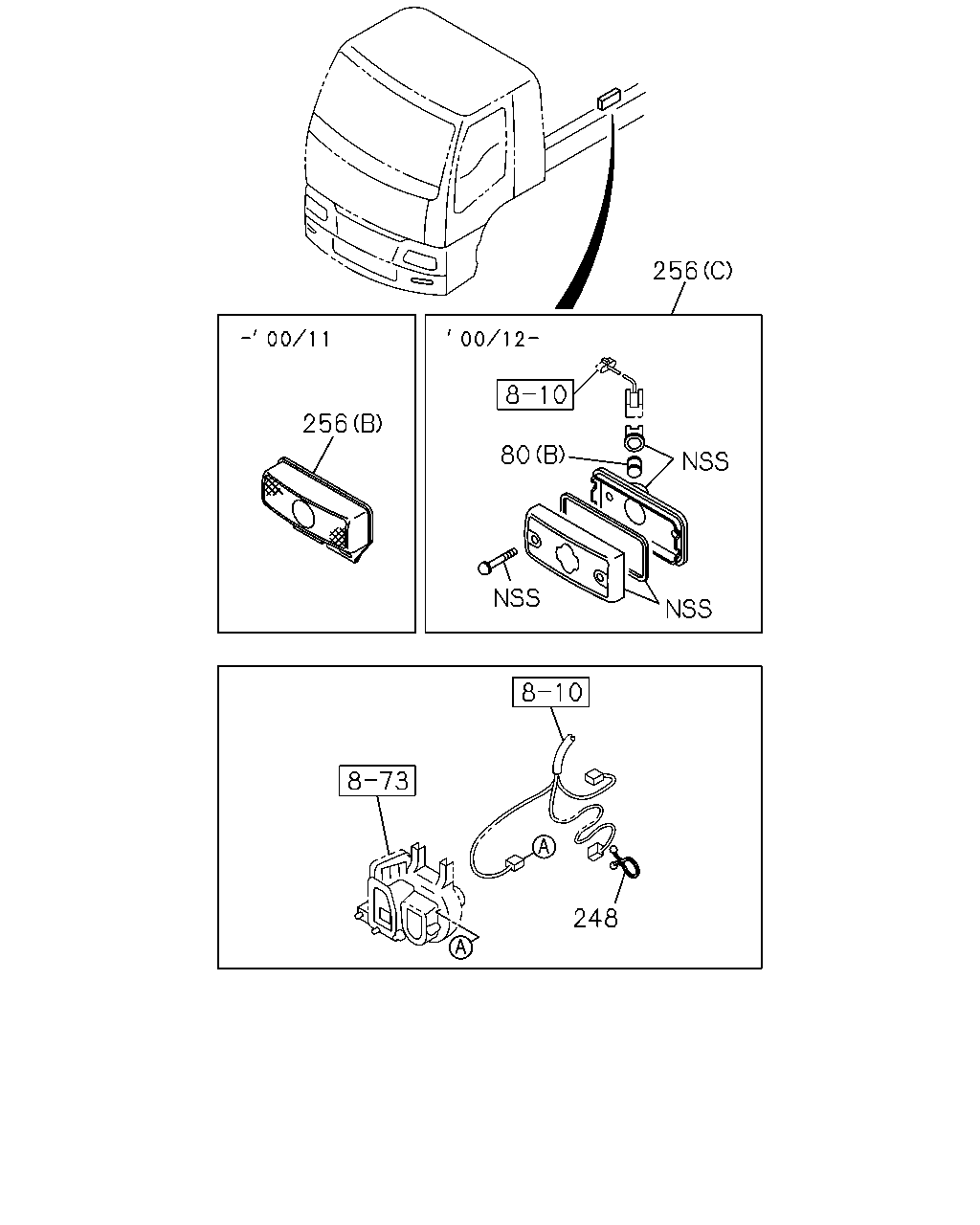

80	BULB; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A) 24V 5W	8-94135-397-0	02	1	0005-
80	BULB; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A) 12V 5W	1-82194-053-0	02	1	9510-0004
80	BULB; MARKER LAMP LIGHTING SYSTEM ECE<SLC> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) SIDE MARKER 24V 3W	1-82219-035-0	06	1	0012-
82	SCREW; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82219-011-0	04	1	9510-
83	LENS; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82215-046-0	02	1	9510-
84	GASKET; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-86830-288-0	04	1	9510-
91	BULB; SIDE TURN SIGNAL 24V 10W	1-82194-037-0	02	1	9510-9809
91	BULB; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 24V 10W	1-82194-037-0	02	1	9810-0004
91	BULB; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 24V 21W	1-82194-036-0	02	1	0005-
91	BULB; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 24V 12W	1-82194-030-0	02	1	9810-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	9510-
121	REFLECTOR; REFLEX LIGHTING SYSTEM SAUDI<JAQ>	1-82290-061-0	02	1	0306-
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	9510-0206
133	WASHER; PL,SIDE FLASHER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-86830-150-0	02	1	0207-
174	BOLT LAMPS TWO ROOF MARKER<TEC> M6X25 W/PL WASHER	1-09039-006-1	04	1	9510-0906
174	BOLT LAMPS TWO ROOF MARKER<TEC> M6X25 W/PL WASHER	8-98064-173-0	04	1	0907-
185	GROMMET; SCREW (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9510-
185	GROMMET; SCREW FRONT FENDER WIDE<SA4> (B) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9510-9709
185	GROMMET; SCREW FRONT FENDER WIDE<SA4> (B) D=8.6X7.7 L=7.5	1-09983-177-0	02	1	9710-9807
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-293-0	01	1	9510-
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-292-0	01	1	9510-
256	LAMP; MARKER LIGHTING SYSTEM ECE<SLC> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-82210-241-0	06	1	0005-0011
256	LAMP; MARKER LIGHTING SYSTEM ECE<SLC> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-82210-244-0	06	1	0012-
292	WASHER; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82219-012-0	04	1	9510-
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	9510-0004
321	HARNESS; SIDE FLASHER LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-253-0	02	1	0005-
321	HARNESS; SIDE FLASHER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82218-002-0	02	1	0005-
327	LAMP ASM; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-86830-265-1	01	1	9510-0004
327	LAMP ASM; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-82210-228-2	01	1	0005-
327	LAMP ASM; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-86830-264-1	01	1	9510-0004
327	LAMP ASM; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-82210-227-2	01	1	0005-
327	LAMP ASM; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-86830-263-0	01	1	9510-9809
327	LAMP ASM; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-86830-011-6	01	1	9810-
327	LAMP ASM; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-86830-262-0	01	1	9510-9809
327	LAMP ASM; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-86830-007-6	01	1	9810-
344	LAMP UNIT; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-86830-267-1	01	1	9510-0004
344	LAMP UNIT; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82213-021-0	01	1	0005-
344	LAMP UNIT; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-86830-266-1	01	1	9510-0004
344	LAMP UNIT; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82213-020-0	01	1	0005-
344	LAMP UNIT; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-241-1	01	1	9510-
344	LAMP UNIT; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-240-1	01	1	9510-
350	COVER; SIDE TURN HOLE FRONT FENDER WIDE<SA4>	1-79998-944-1	01	1	0005-0209
350	COVER; SIDE TURN HOLE FRONT FENDER WIDE<SA4>	1-79996-607-0	01	1	0210-
350	COVER; SIDE TURN HOLE FRONT FENDER WIDE<SA4>	1-79998-943-1	01	1	9510-0209
350	COVER; SIDE TURN HOLE FRONT FENDER WIDE<SA4>	1-79996-606-0	01	1	0210-

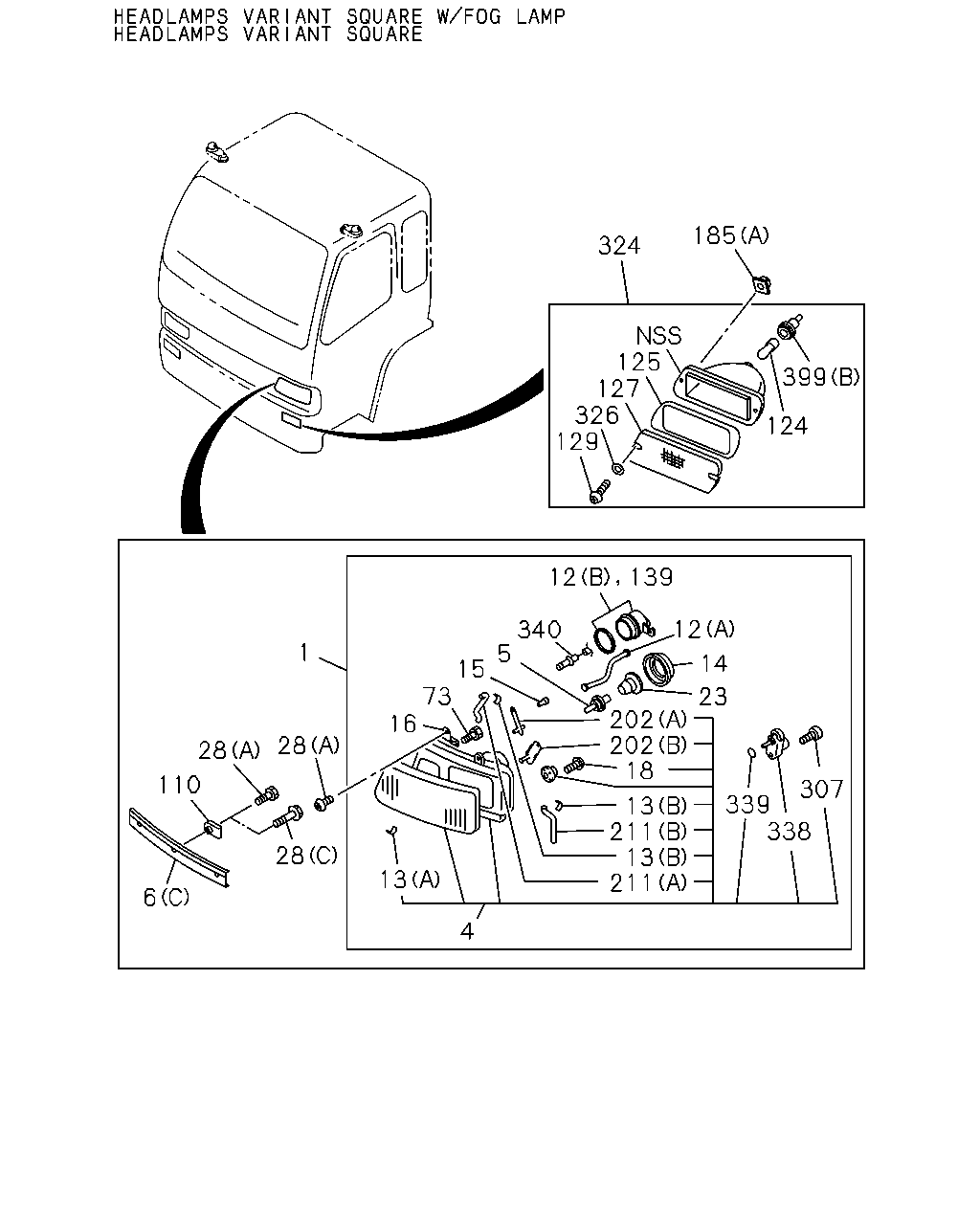

185 324 125 127 326 129 399 124 12 139 12 340 5 1 14 15 73 16 23 202 202 18 28 28 110 307 339 338 13 211 13 211 28 13 6 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD AMBER HEADLAMPS<T75>	1-82110-314-0	01	1	9510-0004
1	LAMP ASM; HEAD AMBER HEADLAMPS<T75>	1-82110-313-0	01	1	9510-0004
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4>	1-86830-174-1	01	1	9510-0004
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4>	1-86830-173-1	01	1	9510-0004
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-176-4	01	1	9510-0210
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82110-440-0	01	1	0211-
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-175-4	01	1	9510-0210
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82110-439-0	01	1	0211-
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA>	1-86830-124-4	01	1	9510-
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA>	1-86830-123-4	01	1	9510-
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-198-1	01	1	9510-0210
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82119-205-0	01	1	0211-
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-197-1	01	1	9510-0210
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82119-204-0	01	1	0211-
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE<TEA>	1-86830-196-1	01	1	9510-
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE<TEA>	1-86830-195-1	01	1	9510-
5	BULB; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA> 24V 75/70W	8-94405-657-0	02	1	9803-
5	BULB; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 75/70W	1-82194-063-0	02	1	9510-9802
5	BULB; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 75/70W	1-82194-063-0	02	1	9803-
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B)	8-94165-573-0	04	1	9510-0004
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A)	1-71118-746-1	01	1	9510-0004
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A)	1-71118-745-1	01	1	9510-0004
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-006-5	01	1	0005-
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-005-5	01	1	0005-
12	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA> (B)	1-86830-199-0	02	1	0005-
12	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-145-0	02	1	9510-
12	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA> (B)	1-86830-199-0	02	1	9510-0004
13	CLIP; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82119-084-0	04	1	9510-
13	CLIP; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	8-94381-588-0	14	1	9510-
14	CAP; BULB,LAMP HEADLAMPS RECTANGULAR<TR4>	1-82219-030-0	02	1	9609-9705
14	CAP; BULB,LAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82219-030-0	02	1	9706-0004
14	CAP; BULB,LAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-148-0	02	1	9510-
15	BULB; FOG LAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 55W	1-82194-079-0	02	1	9510-
16	BRACKET; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-076-0	01	1	9510-
16	BRACKET; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-075-0	01	1	9510-
18	SCREW; GEAR CASE HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING	1-82119-067-0	08	1	9510-
23	COVER; BULB,HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-147-0	02	1	9510-
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) M6X16 FLANGE	0-28650-616-0	04	1	0709-
28	BOLT; HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9510-0004
28	BOLT; HEADLAMP HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9510-0004
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9510-0708
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0709-
73	BOLT; BRKT,HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	8-94332-050-0	04	1	9510-
110	CLIP; RIM,HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-213-1	04	1	9510-
124	BULB; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W	1-82194-036-0	02	1	9510-
125	GASKET; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82216-033-0	02	1	9510-
127	LENS; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE	1-82215-065-0	01	1	9510-
127	LENS; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE	1-82215-064-0	01	1	9510-
129	SCREW; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82219-026-0	04	1	9510-
139	COVER; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>	1-82119-224-0	02	1	0005-
185	GROMMET; SCREW (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9510-
185	GROMMET; SCREW FRONT FENDER WIDE<SA4> (B) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9510-9709
185	GROMMET; SCREW FRONT FENDER WIDE<SA4> (B) D=8.6X7.7 L=7.5	1-09983-177-0	02	1	9710-9807
202	GEAR UNIT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) OUTER	1-86830-139-0	02	1	9510-
202	GEAR UNIT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) INNER	1-86830-140-0	02	1	9510-
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-142-0	01	1	9510-9911
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-329-0	01	1	9912-0105
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-141-0	01	1	9510-9911
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-328-0	01	1	9912-0105
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-86830-143-0	01	1	9510-9911
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-86830-330-0	01	1	9912-
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-86830-144-0	01	1	9803-9911
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-86830-331-0	01	1	9912-
307	SCREW; TAPPING,HEAD LAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING	1-82119-067-0	02	1	0211-
324	LAMP; FRT FLASHER HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82210-203-1	01	1	9510-
324	LAMP; FRT FLASHER HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82210-202-1	01	1	9510-
326	WASHER; PL,FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82216-032-0	04	1	9510-
338	LEVELING; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-138-0	02	1	0211-
339	GASKET; LEVELING HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-158-0	02	1	0211-
340	BULB; POSITION HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W	1-82194-042-0	02	1	9510-
399	SOCKET; TURN SIGNAL (B)	1-82219-034-0	02	1	9510-
399	SOCKET; TURN SIGNAL HEADLAMPS RECTANGULAR<TR4> (A)	1-82219-033-0	02	1	9510-9705
399	SOCKET; TURN SIGNAL HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (A)	1-82219-033-0	02	1	9706-0004

256 256 80 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	BULB; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A) 24V 5W	8-94135-397-0	02	1	0005-
80	BULB; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A) 12V 5W	1-82194-053-0	02	1	9510-0004
80	BULB; MARKER LAMP LIGHTING SYSTEM ECE<SLC> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) SIDE MARKER 24V 3W	1-82219-035-0	06	1	0012-
248	CLIP; HARNESS VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=11.5	1-09709-083-0	01	1	9510-
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-293-0	01	1	9510-
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-292-0	01	1	9510-
256	LAMP; MARKER LIGHTING SYSTEM ECE<SLC> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-82210-241-0	06	1	0005-0011
256	LAMP; MARKER LIGHTING SYSTEM ECE<SLC> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-82210-244-0	06	1	0012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
