7-10 — CAUTION PLATE AND LABEL (#38351) — 78 parça

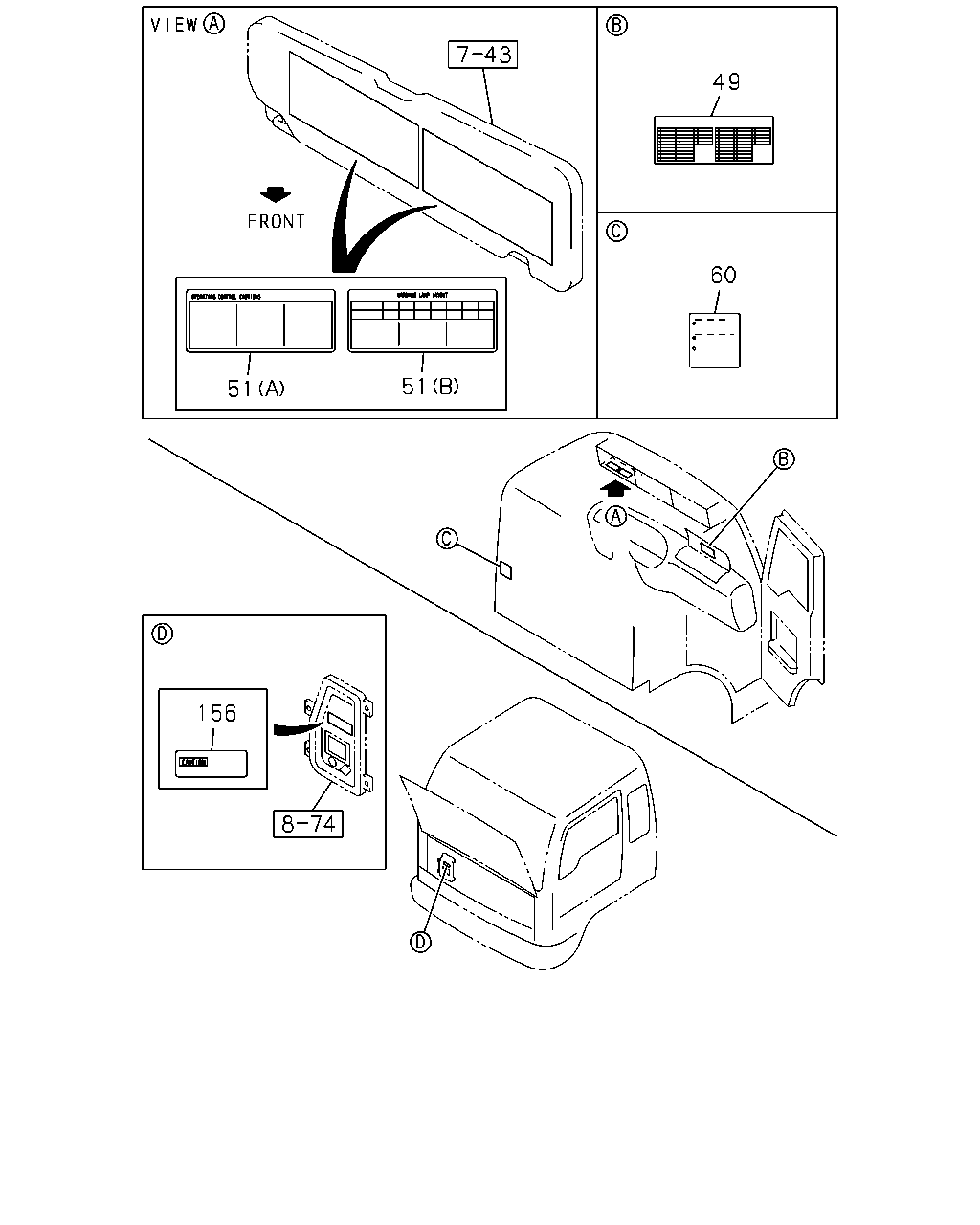

49 60 51 51 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85888-558-0	01	1	9510-0109
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85878-224-0	01	1	0110-
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85888-555-0	01	1	9510-0004
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85878-281-1	01	1	0005-0109
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85878-341-0	01	1	0110-
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85888-554-2	01	1	9510-9802
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85877-623-0	01	1	9803-0004
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85878-278-0	01	1	0005-
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	1-85888-557-0	01	1	9510-
49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	1-85888-556-0	01	1	9510-0805
49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	1-85878-460-0	01	1	0806-
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-710-0	01	1	9510-9601
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-709-1	01	1	9602-
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-560-2	01	1	9510-0004
51	PLATE; CAUTION,WARNING TAIWAN EQUIPMENT(WW5) (B)	1-85888-560-2	01	1	9510-0004
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-560-2	01	1	0005-
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, TAIWAN EQUIPMENT(WW5) (B)	1-85888-559-2	01	1	9510-0004
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-559-2	01	1	0005-
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (A)	1-85880-708-1	01	1	9510-
51	PLATE; CAUTION,WARNING EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (A)	1-85880-707-1	01	1	9510-
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-709-0	01	1	9510-9601
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-710-1	01	1	9602-
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7>	1-85883-172-0	01	1	9510-
60	PLATE; CAUTION,CAB TILT CAUTIONS CHINESE<SL7>	1-85883-171-0	01	1	9510-
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85883-169-0	01	1	9510-
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8>	1-85883-173-0	01	1	9510-
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1>	1-85883-170-0	01	1	9510-
156	PLATE; CAUTION,A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-97065-990-0	01	1	9510-0504

119 193 4 4 7 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	LABEL; ENG MAINTENANCE COSTARICA EQUIPMENT(TBL) (B)	8-94391-006-0	01	1	9607-9802
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) CAUTIONS SPANISH<YN1> (B)	8-94391-006-0	01	1	9803-0004
4	LABEL; ENG MAINTENANCE 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-97600-807-0	01	1	0005-
4	LABEL; ENG MAINTENANCE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94390-593-0	01	1	9803-0004
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94390-593-0	01	1	0005-
4	LABEL; ENG MAINTENANCE 6HE1 TC ENG(57L) CAUTIONS SPANISH<YN1> (B)	8-94390-957-0	01	1	9704-
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (A)	8-97600-783-0	01	1	9911-0004
4	LABEL; ENG MAINTENANCE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (A)	8-97600-783-0	01	1	0005-
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (C)	8-97601-293-0	01	1	0003-0004
4	LABEL; ENG MAINTENANCE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (B)	8-97601-293-0	01	1	0005-
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L),6HH1 N ENG(66L) CAUTIONS SPANISH<YN1> EXC. COSTARICA EQUIPMENT(TBL) (B)	8-94395-936-0	01	1	9510-0004
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L),6HH1 N ENG(66L) CAUTIONS SPANISH<YN1> (B)	8-94395-936-0	01	1	0005-0306
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L),6HH1 N ENG(66L) CAUTIONS SPANISH<YN1> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94395-936-0	01	1	0307-
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. COSTARICA EQUIPMENT(TBL),CAUTIONS SPANISH<YN1> (A)	8-94395-931-0	01	1	9510-9802
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, CAUTIONSSPANISH<YN1> (A)	8-94395-931-0	01	1	9803-
4	LABEL; ENG MAINTENANCE 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A)	8-97601-727-0	01	1	0011-
7	LABEL; EMISSION 6HH1 STD ENG(65L) EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-418-0	01	1	9803-
119	PLATE; CAUTION,HAND BRK LEVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85881-726-0	01	1	9510-9606
119	PLATE; CAUTION,HAND BRK LEVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85881-759-0	01	1	9607-
193	PLATE; CAUTION,EGR 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	8-97601-728-0	01	1	0011-

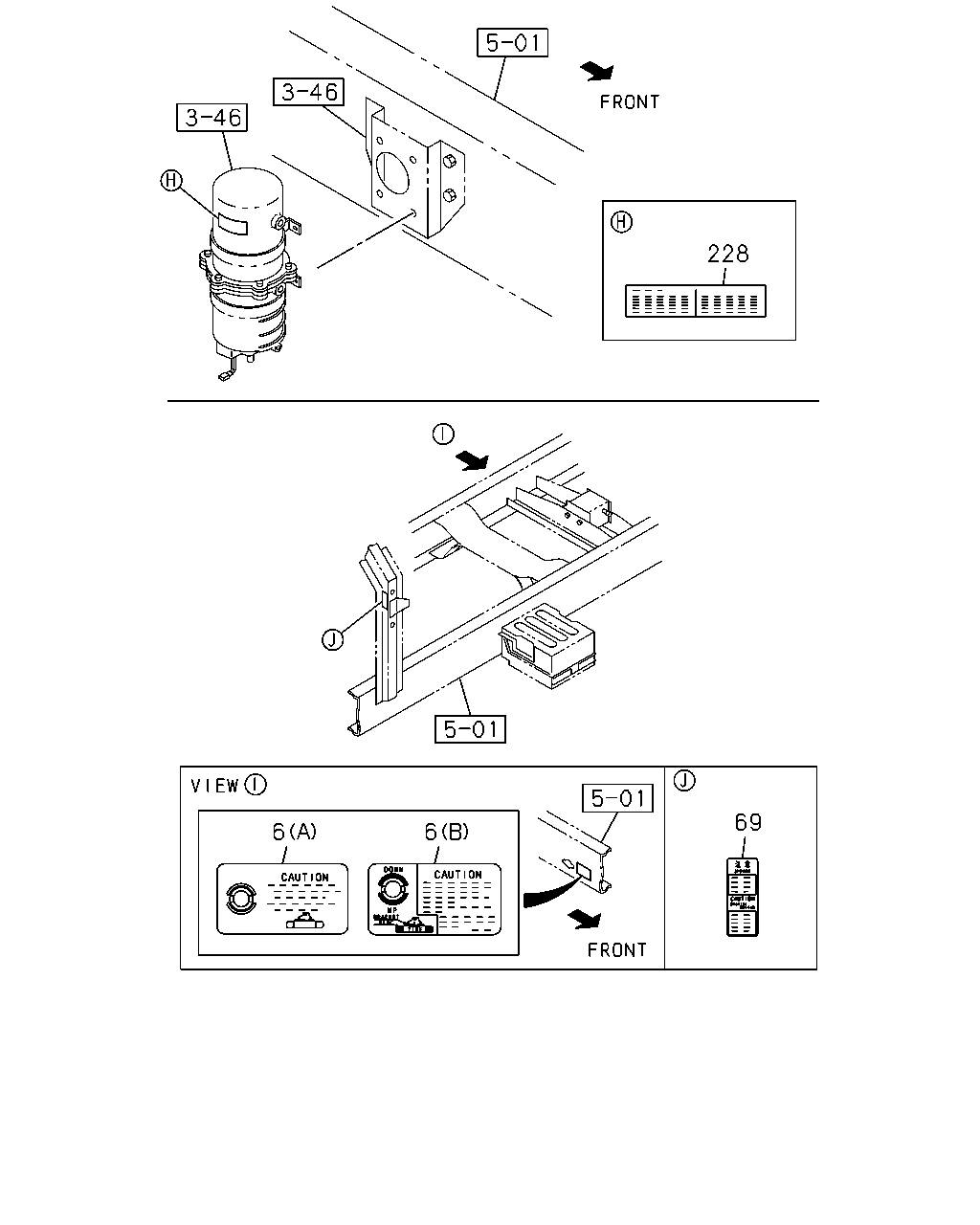

228 69 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> EXC. TAIWAN EQUIPMENT(WW5) (A)	1-85883-114-0	01	1	9510-0004
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (A)	1-85883-114-0	01	1	0005-0708
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (B)	8-98082-441-0	01	1	0709-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS CHINESE<SL7> (A)	1-85883-113-0	01	1	9510-0012
6	PLATE; CAUTION,SPARE TIRE CAUTIONS CHINESE<SL7> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A)	1-85883-113-0	01	1	0101-0708
6	PLATE; CAUTION,SPARE TIRE CAUTIONS CHINESE<SL7> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B)	8-98082-438-0	01	1	0709-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT(WW5),CAUTIONS SPANISH<YN1> (A)	1-53639-004-0	01	1	9510-0004
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> TAIWAN EQUIPMENT(WW5) (A)	1-53639-004-0	01	1	9510-0004
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (A)	1-53639-004-0	01	1	0005-0708
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B)	8-98082-437-0	01	1	0709-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> (A)	1-85883-108-0	01	1	9510-0708
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> (B)	8-98082-440-0	01	1	0709-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> (A)	1-53639-005-0	01	1	9510-0708
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> (B)	8-98082-439-0	01	1	0709-
69	PLATE; CAUTION,STARTER SW CAUTIONS ARABIAN<WJ7>	1-85887-537-0	01	1	9510-0302
69	PLATE; CAUTION,STARTER SW CAUTIONS ARABIAN<WJ7> EXC. STARTER SWITCH DELETION<E5D>	1-85887-537-0	01	1	0303-
69	PLATE; CAUTION,STARTER SW CAUTIONS CHINESE<SL7>	1-85887-536-0	01	1	9510-0302
69	PLATE; CAUTION,STARTER SW CAUTIONS CHINESE<SL7> EXC. STARTER SWITCH DELETION<E5D>	1-85887-536-0	01	1	0303-
69	PLATE; CAUTION,STARTER SW EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85887-389-0	01	1	9510-0302
69	PLATE; CAUTION,STARTER SW EXC. STARTER SWITCH DELETION<E5D>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85887-389-0	01	1	0303-
69	PLATE; CAUTION,STARTER SW CAUTIONS FRENCH<WJ8>	1-85887-535-0	01	1	9510-0302
69	PLATE; CAUTION,STARTER SW CAUTIONS FRENCH<WJ8> EXC. STARTER SWITCH DELETION<E5D>	1-85887-535-0	01	1	0303-
69	PLATE; CAUTION,STARTER SW CAUTIONS SPANISH<YN1>	9-83999-419-0	01	1	9510-0302
69	PLATE; CAUTION,STARTER SW CAUTIONS SPANISH<YN1> EXC. STARTER SWITCH DELETION<E5D>	9-83999-419-0	01	1	0303-
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS CHINESE<SL7>	1-48199-324-0	01	1	9803-0004
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS CHINESE<SL7>	1-48199-324-0	01	1	0110-1001
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>	1-48199-325-0	01	1	9803-0004
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>	1-48199-325-0	01	1	0110-1001
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS FRENCH<WJ8>	1-48199-326-0	01	1	9803-0004
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS FRENCH<WJ8>	1-48199-326-0	01	1	0110-1001
