◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10701 - FSR(LHD) EXC.EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#38350) — 40 parça

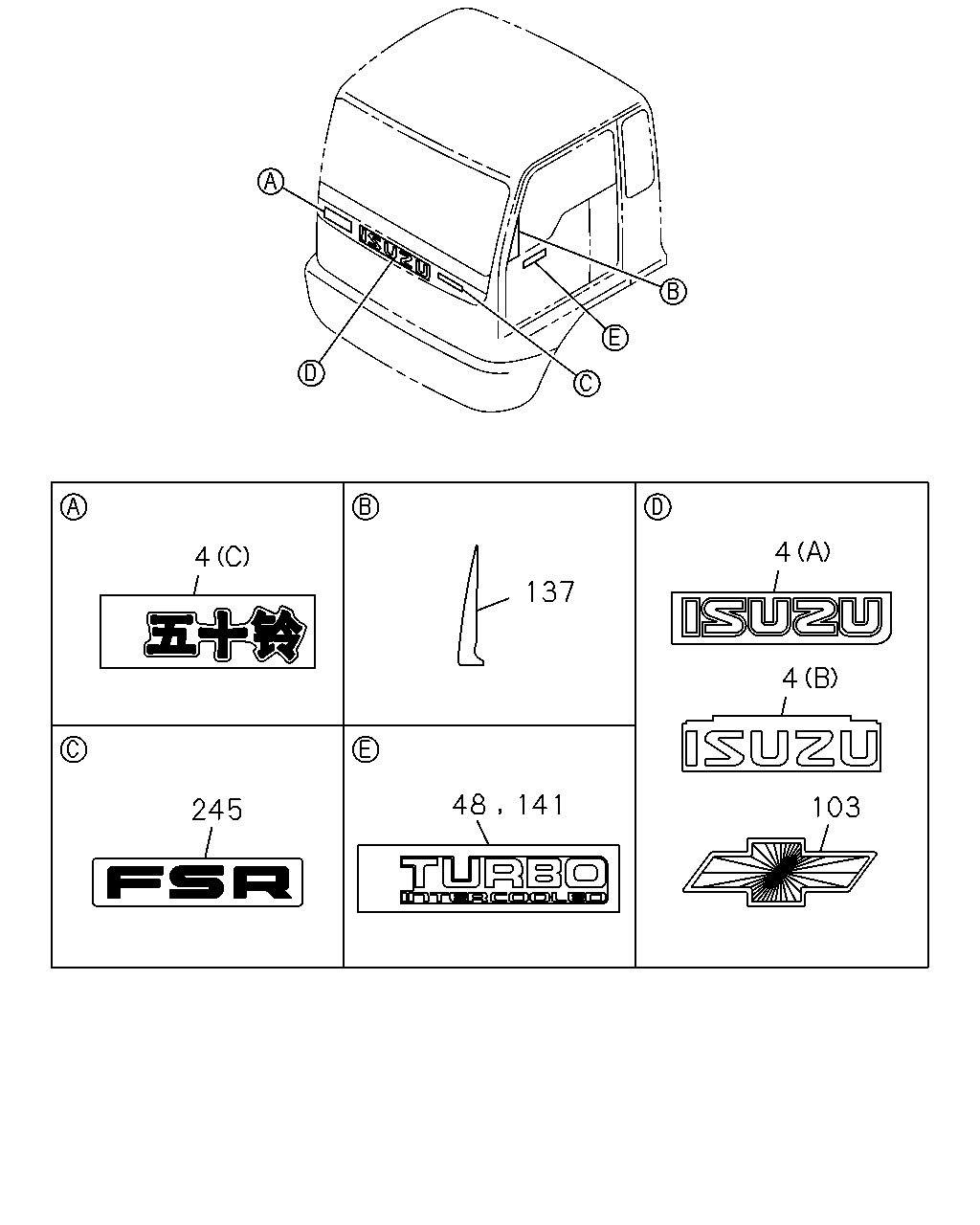

çizim 151806
4 4 137 4 48 141 103 245
BalonParca AdiParca NoAdetTipApplied Date
4 EMBLEM; RAD GRILLE
(A) 		1-76210-634-0 01 1 9510-9705
4 EMBLEM; RAD GRILLE
EXC. CHEV BRAND PACKAGE<PS2> (A) 		1-76210-634-0 01 1 9706-9802
4 EMBLEM; RAD GRILLE
EXC. CHEV BRAND PACKAGE<PS2> (B) 		1-76210-668-2 01 1 9803-0006
4 EMBLEM; RAD GRILLE
EXC. CHEV BRAND PACKAGE<PS2>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-76210-668-3 01 1 0007-
4 EMBLEM; RAD GRILLE
BODY COLOR ARC WHITE(729) FRONT PANEL CARGO FACE<NGD> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-76210-689-1 02 1 0009-0403
4 EMBLEM; RAD GRILLE
BODY COLOR ARC WHITE(729) FRONT PANEL CARGO FACE<NGD> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-76210-691-0 02 1 0404-0411
4 EMBLEM; RAD GRILLE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-76210-691-0 01 1 0412-
4 EMBLEM; RAD GRILLE
BODY COLOR HIGHWAY ORANGE(944) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-76210-689-0 01 1 0009-0207
4 EMBLEM; RAD GRILLE
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR PURUTAMINA BLUE(918) FRONT PANEL CARGO FACE<NGD> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-76210-689-0 01 1 0009-0207
4 EMBLEM; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR PURUTAMINA BLUE(918) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FRONT PANEL CARGO FACE<NGD> (B) 		1-76210-689-0 01 1 0009-0207
4 EMBLEM; RAD GRILLE
BODY COLOR FIRE RED(915) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-76210-689-1 01 1 0208-0403
4 EMBLEM; RAD GRILLE
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904) FRONT PANEL CARGO FACE<NGD> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-76210-689-1 01 1 0208-0403
4 EMBLEM; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FRONT PANEL CARGO FACE<NGD> (B) 		1-76210-689-1 01 1 0208-0403
4 EMBLEM; RAD GRILLE
BODY COLOR FIRE RED(915) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-76210-691-0 01 1 0404-0411
4 EMBLEM; RAD GRILLE
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904) FRONT PANEL CARGO FACE<NGD> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-76210-691-0 01 1 0404-0411
4 EMBLEM; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FRONT PANEL CARGO FACE<NGD> (B) 		1-76210-691-0 01 1 0404-0411
4 EMBLEM; RAD GRILLE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 		1-76218-106-0 01 1 9510-
48 DECAL; TURBOCHARGER
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) CHEV BRAND PACKAGE<PS2> 		1-76218-114-0 01 1 9706-9802
48 DECAL; TURBOCHARGER
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HE1 TCC ENG(76L) 		1-76218-114-0 01 1 9803-0004
48 DECAL; TURBOCHARGER
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 		1-76218-114-0 01 1 0005-
103 EMBLEM; "CHEVROLET"
CHEV BRAND PACKAGE<PS2> 		8-97865-065-1 01 1 9706-
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 9510-
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 9510-
141 EMBLEM; "TURBO"
6HE1 TCN ENG(58L) 		1-76218-114-0 01 1 9510-9701
141 EMBLEM; "TURBO"
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) 		1-76218-114-0 01 1 9702-9705
141 EMBLEM; "TURBO"
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) EXC. CHEV BRAND PACKAGE<PS2> 		1-76218-114-0 01 1 9706-9802
245 DECAL; MODEL 1-76218-109-0 01 1 9510-0006
245 DECAL; MODEL
BODY COLOR ARC WHITE(729) FRONT PANEL CARGO FACE<NGD> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-76218-109-0 02 1 0007-0411
245 DECAL; MODEL 1-76218-109-0 01 1 0412-
245 DECAL; MODEL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-76218-109-0 01 1 0007-0207
245 DECAL; MODEL
BODY COLOR HIGHWAY ORANGE(944) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-76218-109-0 01 1 0007-0207
245 DECAL; MODEL
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR PURUTAMINA BLUE(918) FRONT PANEL CARGO FACE<NGD> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-76218-109-0 01 1 0007-0207
245 DECAL; MODEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR PURUTAMINA BLUE(918) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FRONT PANEL CARGO FACE<NGD> 		1-76218-109-0 01 1 0007-0207
245 DECAL; MODEL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-76218-109-0 01 1 0208-0411
245 DECAL; MODEL
BODY COLOR FIRE RED(915) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-76218-109-0 01 1 0208-0411
245 DECAL; MODEL
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904) FRONT PANEL CARGO FACE<NGD> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-76218-109-0 01 1 0208-0411
245 DECAL; MODEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FRONT PANEL CARGO FACE<NGD> 		1-76218-109-0 01 1 0208-0411
çizim 151918
128 128 110
BalonParca AdiParca NoAdetTipApplied Date
110 EMBLEM; "ISUZU",RR BODY 1-76210-663-0 01 1 9510-0004
128 RIVET; POP,NAME PLATE
ENGINE NO PLATE<E6D> 		5-09734-001-0 04 1 9510-
128 RIVET; POP,NAME PLATE 5-09734-001-0 04 1 9510-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
