◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10701 - FSR(LHD) EXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#38348) — 28 parça

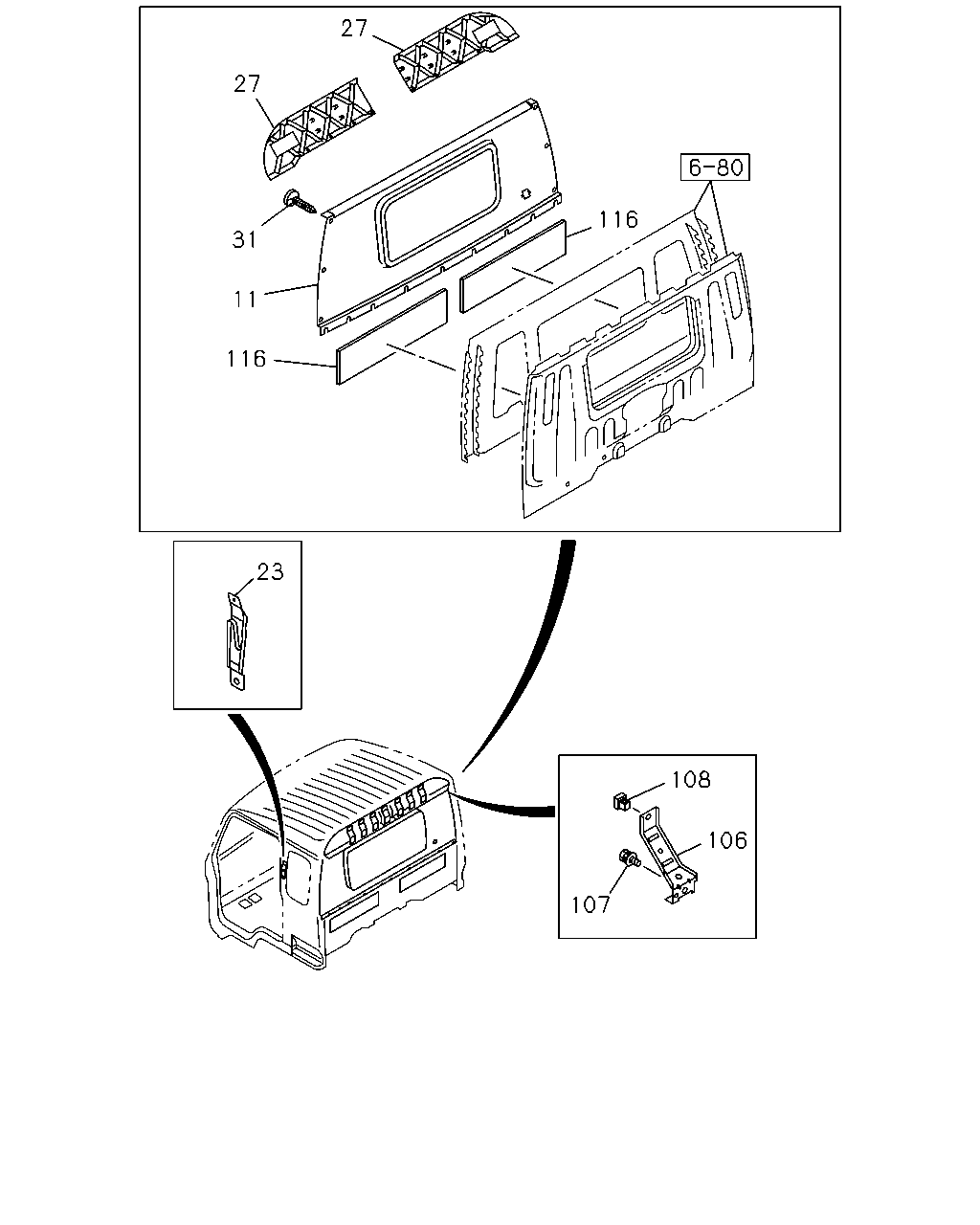

çizim 151813
27 27 116 31 11 116 23 108 106 107
BalonParca AdiParca NoAdetTipApplied Date
11 TRIM; ROOM,BACK INNER
PROVISIONAL PACKAGE<NLY> EXC. LOW ROOF<6XQ> 		8-97893-967-1 01 1 0301-
11 TRIM; ROOM,BACK INNER 1-73348-874-3 01 1 9510-0004
11 TRIM; ROOM,BACK INNER
LOW ROOF<6XQ> 		1-73348-968-1 01 1 0005-
11 TRIM; ROOM,BACK INNER
EXC. LOW ROOF<6XQ> 		1-73348-942-1 01 1 0005-0212
11 TRIM; ROOM,BACK INNER
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-942-3 01 1 0301-
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 9510-
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 9510-
27 COVER; TRIM,BACK
HIGH ROOF<S2F> 		1-73348-888-0 01 1 9510-9802
27 COVER; TRIM,BACK
HIGH ROOF<S2F> 		1-73348-887-1 01 1 9510-9802
31 CLIP; TRIM PAD
D6X23 BEIGE 		1-09987-225-0 04 1 9510-0004
31 CLIP; TRIM PAD
D6X23 LIGHT GRAY 		1-73318-629-0 27 1 0005-
31 CLIP; TRIM PAD
D6X23 DARK GRAY 		1-09987-238-0 23 1 9510-0004
106 BRACKET; BACK TRIM
HIGH ROOF<S2F> 		1-73348-411-4 07 1 9510-9802
107 SCREW; BRKT
HIGH ROOF<S2F> M5X20 		5-09981-059-0 14 1 9510-9802
108 GROMMET; SCREW
HIGH ROOF<S2F> D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 14 1 9510-9708
108 GROMMET; SCREW
HIGH ROOF<S2F> D=8.6X7.7 L=7.5 		8-94279-078-0 14 1 9709-9802
116 INSULATOR; BACK PANEL 1-73368-002-2 02 1 9510-

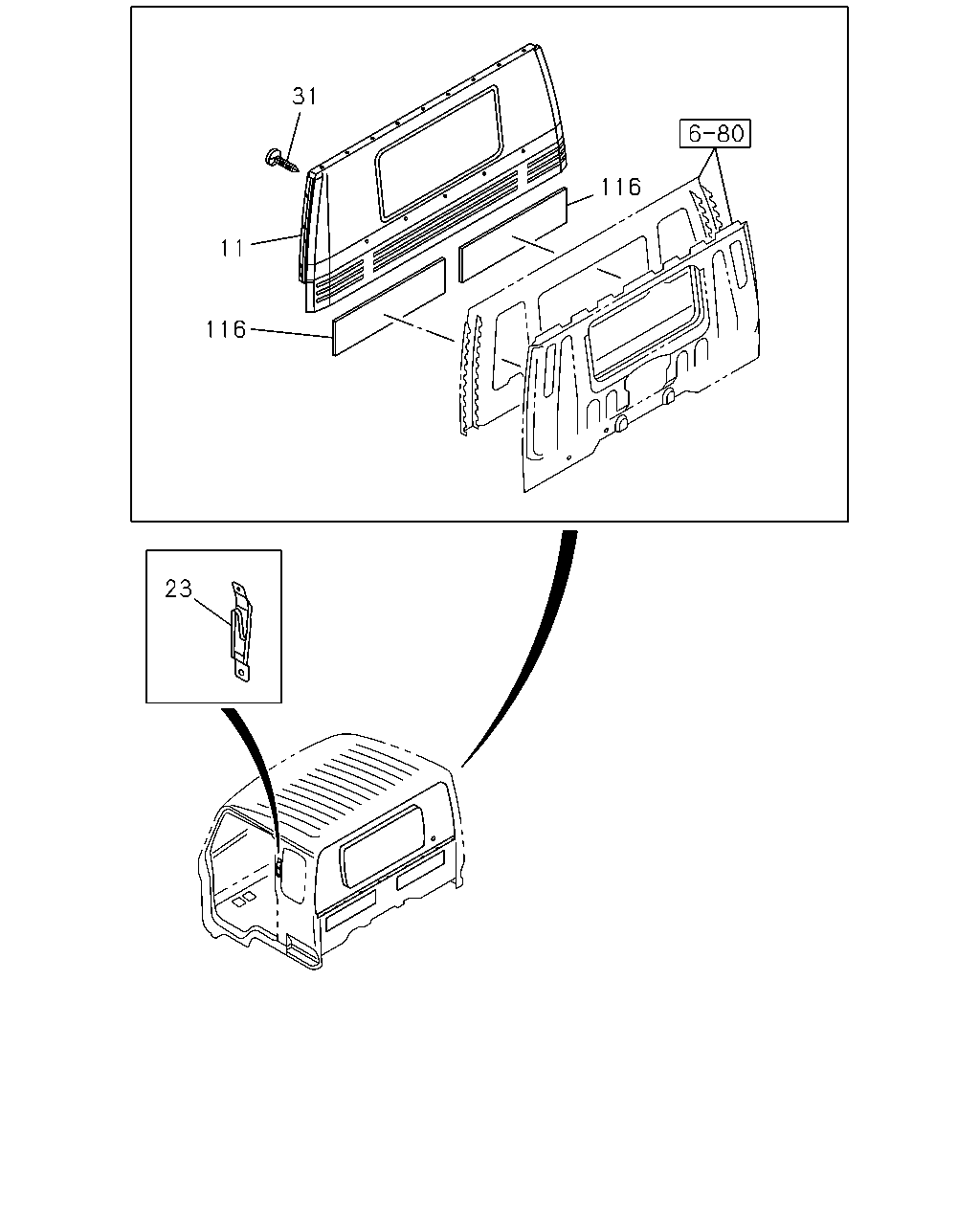

çizim 151923
31 116 11 116 23
BalonParca AdiParca NoAdetTipApplied Date
11 TRIM; ROOM,BACK INNER
PROVISIONAL PACKAGE<NLY> EXC. LOW ROOF<6XQ> 		8-97893-967-1 01 1 0301-
11 TRIM; ROOM,BACK INNER 1-73348-874-3 01 1 9510-0004
11 TRIM; ROOM,BACK INNER
LOW ROOF<6XQ> 		1-73348-968-1 01 1 0005-
11 TRIM; ROOM,BACK INNER
EXC. LOW ROOF<6XQ> 		1-73348-942-1 01 1 0005-0212
11 TRIM; ROOM,BACK INNER
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-942-3 01 1 0301-
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 9510-
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 9510-
31 CLIP; TRIM PAD
D6X23 BEIGE 		1-09987-225-0 04 1 9510-0004
31 CLIP; TRIM PAD
D6X23 LIGHT GRAY 		1-73318-629-0 27 1 0005-
31 CLIP; TRIM PAD
D6X23 DARK GRAY 		1-09987-238-0 23 1 9510-0004
116 INSULATOR; BACK PANEL 1-73368-002-2 02 1 9510-
