◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10701 - FSR(LHD) EXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#38342) — 36 parça

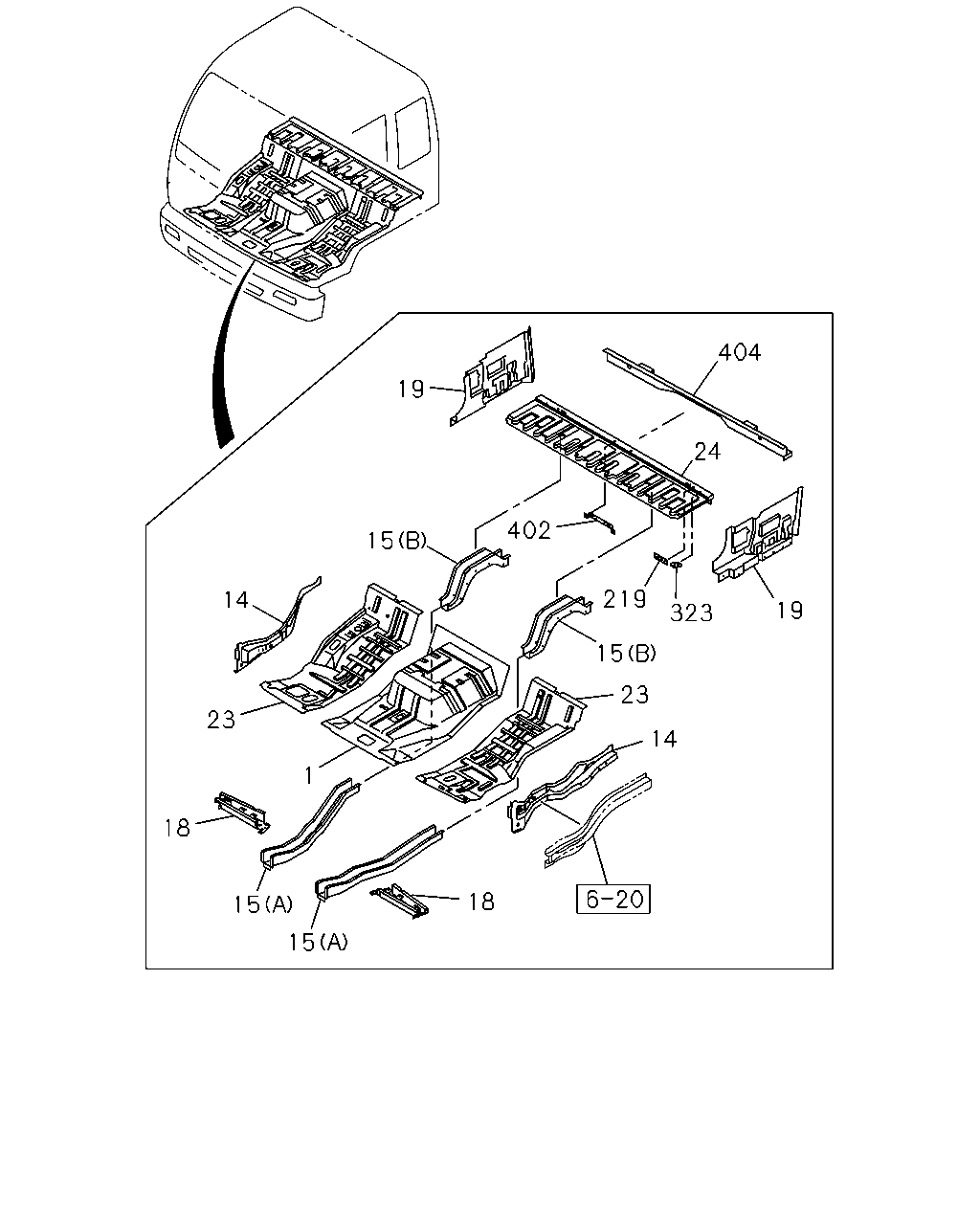

çizim 151807
404 19 24 402 15 219 14 19 323 15 23 23 14 1 18 18 15 15
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 1-62183-532-0 01 1 0005-
1 PANEL; FLOOR 1-62183-139-9 01 1 9510-9904
1 PANEL; FLOOR 1-62183-532-0 01 1 9905-0004
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9510-
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9510-
15 FRAME; UNDER
(A) 		1-62483-083-3 01 1 9510-
15 FRAME; UNDER
(B) 		1-62483-160-0 01 1 9510-0012
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 0101-
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 9510-0103
15 FRAME; UNDER
(A) 		1-62483-333-1 01 1 0104-
15 FRAME; UNDER
(B) 		1-62483-159-0 01 1 9510-0012
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 0101-
18 FRAME; FLOOR,CENTER SIDE 1-62483-105-5 01 1 9510-
18 FRAME; FLOOR,CENTER SIDE 1-62483-096-5 01 1 9510-
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 9510-
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 9510-
23 PANEL; FLOOR,SIDE 1-62183-126-4 01 1 9510-
23 PANEL; FLOOR,SIDE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-62183-127-6 01 1 9510-0004
23 PANEL; FLOOR,SIDE
EXC. TRANSMISSION FRONT PTO(RC2),DUMP CONTROL LEVER<RC4> 		1-62183-127-6 01 1 9510-0004
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4> 		1-62183-127-7 01 1 0005-
23 PANEL; FLOOR,SIDE
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> 		1-62183-207-6 01 1 9510-0004
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62183-207-6 01 1 9510-0004
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62183-207-7 01 1 0005-
24 PANEL; BED PAN 1-62182-940-9 01 1 9510-
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62172-780-2 01 1 0005-
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 9510-
220 PATCH 1-62183-191-2 01 1 0005-
323 PATCH; HAND LEVER 1-62182-961-0 01 1 9510-
374 NUT; FLOOR
M6 		1-09984-110-0 05 1 0005-
402 PATCH; CAB LOCK
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-62183-327-0 01 1 9510-0004
402 PATCH; CAB LOCK
EXC. TRANSMISSION FRONT PTO(RC2),DUMP CONTROL LEVER<RC4> 		1-62183-327-0 01 1 9510-0004
402 PATCH; CAB LOCK
EXC. DUMP CONTROL LEVER<RC4> 		1-62183-327-0 01 1 0005-
402 PATCH; CAB LOCK
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> 		1-62182-947-2 01 1 9510-0004
402 PATCH; CAB LOCK
DUMP CONTROL LEVER<RC4> 		1-62182-947-2 01 1 9510-0004
402 PATCH; CAB LOCK
DUMP CONTROL LEVER<RC4> 		1-62182-947-2 01 1 0005-
404 RAIL ASM; MTG,RR 1-62482-955-4 01 1 9510-
