Isuzu WW
▶
TRUCKS
▶
FVR
▶
10705 - FVR(LHD) EXC.EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-03 - RADIATOR GRILLE
▶
6-03 — RADIATOR GRILLE
(#3834) — 35 parça
Tümü
A - FVR6MF
B - FVR6MC
◀

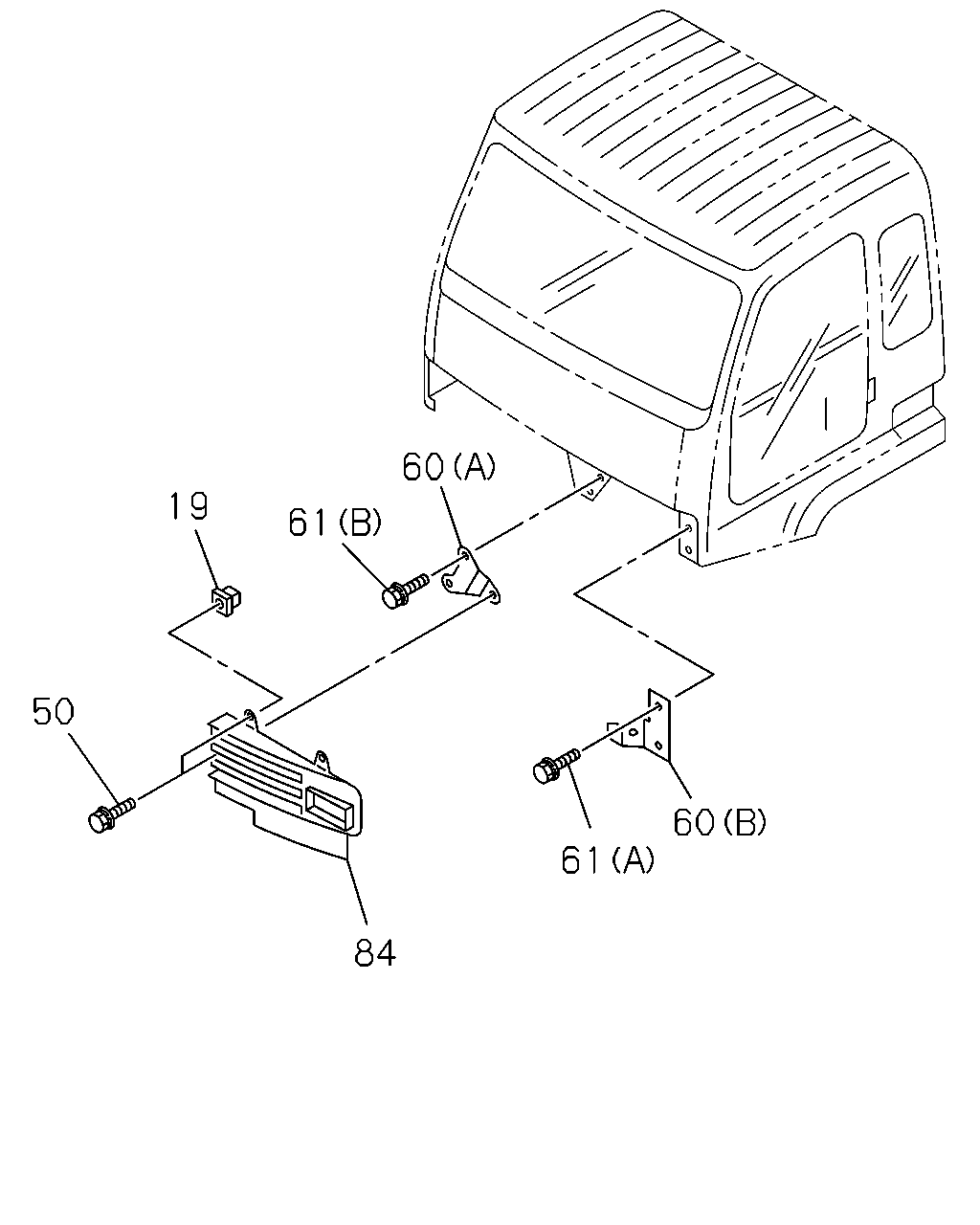

[603A] BUMPER W/HEADLAMPS (17 parça)
[603A] RADIATOR GRILLE (18 parça)
▶
60
19
61
50
60
61
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
19
GROMMET; SCREW,RAD GRILLE
BUMPER W/HEADLAMPS<SLB> D=7.5X7.5 L=7
8-94430-147-0
04
1
9601-
●
50
BOLT; GRILLE
BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER
8-94279-201-0
08
1
9601-0602
●
50
BOLT; GRILLE
BUMPER W/HEADLAMPS<SLB> EXC. SAUDI ARABIA EQUIPMENT(WH1) M6X19.5 W/LK&PL WASHER
8-94279-201-0
08
1
0603-
●
60
BRACKET; RAD GRILLE SIDE
BUMPER W/HEADLAMPS<SLB> (B)
1-71118-776-1
01
1
9601-
●
60
BRACKET; RAD GRILLE SIDE
BUMPER W/HEADLAMPS<SLB> (A)
1-71118-785-1
01
1
9601-1112
●
60
BRACKET; RAD GRILLE SIDE
BUMPER W/HEADLAMPS<SLB> EXC. SAUDI ARABIA EQUIPMENT(WH1) (A)
1-71118-785-1
01
1
1201-
●
60
BRACKET; RAD GRILLE SIDE
BUMPER W/HEADLAMPS<SLB> (A)
1-71118-752-1
01
1
9601-1112
●
60
BRACKET; RAD GRILLE SIDE
BUMPER W/HEADLAMPS<SLB> EXC. SAUDI ARABIA EQUIPMENT(WH1) (A)
1-71118-752-1
01
1
1201-
●
60
BRACKET; RAD GRILLE SIDE
BUMPER W/HEADLAMPS<SLB> (B)
1-71118-775-1
01
1
9601-
●
61
BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
9601-
●
61
BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> (B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
9601-0904
●
61
BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> (B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
0905-1112
●
61
BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
1201-
●
84
GRILLE; RAD SIDE
BUMPER W/HEADLAMPS<SLB>
1-71118-769-3
01
1
9601-0409
●
84
GRILLE; RAD SIDE
BUMPER W/HEADLAMPS<SLB> EXC. SAUDI ARABIA EQUIPMENT(WH1)
1-71118-769-3
01
1
0410-
●
84
GRILLE; RAD SIDE
BUMPER W/HEADLAMPS<SLB>
1-71118-768-3
01
1
9601-0409
●
84
GRILLE; RAD SIDE
BUMPER W/HEADLAMPS<SLB> EXC. SAUDI ARABIA EQUIPMENT(WH1)
1-71118-768-3
01
1
0410-
●
1
8
40
9
1
8
38
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GRILLE; RAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)
1-71118-702-3
01
1
9601-0004
●
●
1
GRILLE; RAD
FRONT PANEL CARGO FACE<NGD> EXC. BUMPER W/HEADLAMPS<SLB> (A)
1-71118-702-3
01
1
0005-
●
●
1
GRILLE; RAD
BUMPER W/HEADLAMPS<SLB> SAUDI ARABIA EQUIPMENT(WH1) (A)
1-71118-702-3
01
1
0005-
●
1
GRILLE; RAD
EXC. FRONT PANEL CARGO FACE<NGD>,BUMPER W/HEADLAMPS<SLB> (A) WHITE
1-71118-818-1
01
1
0005-
●
●
1
GRILLE; RAD
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> (B) BLACK
1-71118-766-1
01
1
9601-0004
●
●
1
GRILLE; RAD
BUMPER W/HEADLAMPS<SLB> (B) BLACK
1-71118-766-1
01
1
0005-0409
●
1
GRILLE; RAD
BUMPER W/HEADLAMPS<SLB> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) BLACK
1-71118-766-1
01
1
0410-
●
8
GROMMET; SCREW,RAD GRILLE
8-94279-704-0
01
1
9601-
●
●
9
SCREW; RAD GRILLE
M5X16 W/PL WASHER TAPPING
8-94279-123-0
01
1
9601-
●
●
38
CLIP; GRILLE
HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75> BLACK
8-94218-027-0
06
1
9601-0004
●
●
38
CLIP; GRILLE
BUMPER W/HEADLAMPS<SLB> BLACK
8-94218-027-0
06
1
0005-0409
●
38
CLIP; GRILLE
BUMPER W/HEADLAMPS<SLB> EXC. SAUDI ARABIA EQUIPMENT(WH1) BLACK
8-94218-027-0
06
1
0410-
●
40
CLIP; RAD GRILLE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> BLACK
8-94218-027-0
06
1
9601-0004
●
●
40
CLIP; RAD GRILLE
BLACK
8-94218-027-0
06
1
0005-0409
●
40
CLIP; RAD GRILLE
EXC. BUMPER W/HEADLAMPS<SLB> BLACK
8-94218-027-0
06
1
0005-0409
●
40
CLIP; RAD GRILLE
BLACK
8-94218-027-0
06
1
0410-
●
40
CLIP; RAD GRILLE
BUMPER W/HEADLAMPS<SLB> SAUDI ARABIA EQUIPMENT(WH1) BLACK
8-94218-027-0
06
1
0410-
●
40
CLIP; RAD GRILLE
EXC. BUMPER W/HEADLAMPS<SLB> BLACK
8-94218-027-0
06
1
0410-
●
