◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10701 - FSR(LHD) EXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#38338) — 35 parça

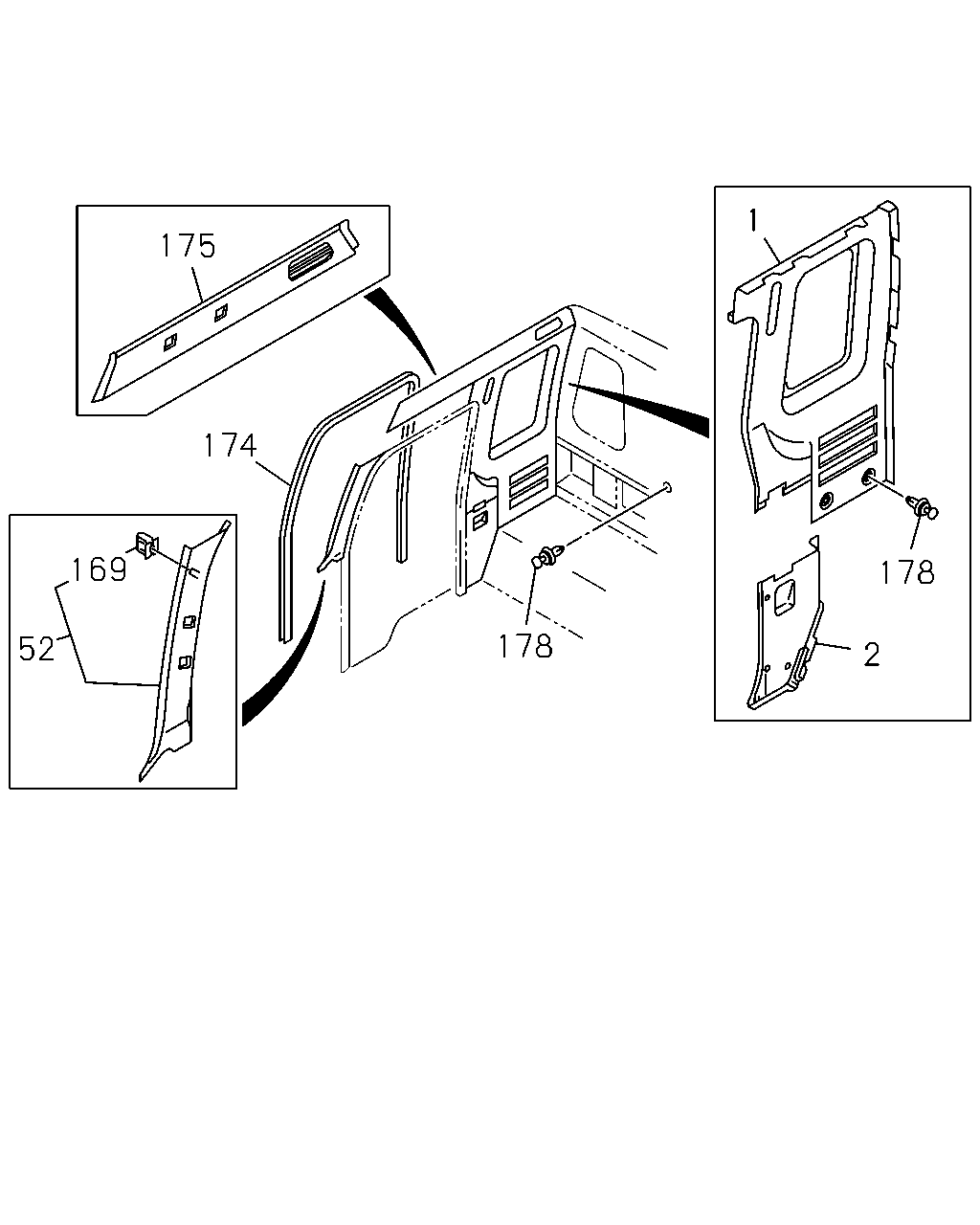

çizim 151795
1 175 174 169 178 178 52 2
BalonParca AdiParca NoAdetTipApplied Date
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-878-2 01 1 9510-0004
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> 		1-73348-965-1 01 1 0005-0212
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-965-3 01 1 0301-
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-965-3 01 1 0301-
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-877-2 01 1 9510-0004
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> 		1-73348-964-1 01 1 0005-0212
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-964-3 01 1 0301-
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-964-3 01 1 0301-
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. LOW ROOF<6XQ> 		1-73348-961-3 01 1 0005-0212
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-961-6 01 1 0301-
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. LOW ROOF<6XQ> 		1-73348-960-3 01 1 0005-0212
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-960-6 01 1 0301-
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-780-8 01 1 9510-0004
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> 		1-73348-978-1 01 1 0005-0212
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73348-978-2 01 1 0301-
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-978-2 01 1 0301-
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-779-8 01 1 9510-0004
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> 		1-73348-977-1 01 1 0005-0212
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73348-977-2 01 1 0301-
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-977-2 01 1 0301-
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. LOW ROOF<6XQ> 		1-73348-927-2 01 1 0005-0212
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-927-3 01 1 0301-
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. LOW ROOF<6XQ> 		1-73348-926-2 01 1 0005-0212
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-926-3 01 1 0301-
52 COVER; TRIM,FRT PILLAR 1-73348-484-3 01 1 9510-0004
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 0005-
52 COVER; TRIM,FRT PILLAR 1-73348-483-3 01 1 9510-0004
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 0005-
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 9510-
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 9510-
175 COVER; TRIM,SIDE
HIGH ROOF<S2F> 		1-73348-901-0 01 1 9510-9802
175 COVER; TRIM,SIDE
HIGH ROOF<S2F> 		1-73348-781-0 01 1 9510-9802
178 CLIP; TRIM COVER
HIGH ROOF<S2F> OD=6.2 DARK GRAY 		1-09983-167-0 09 1 9510-9705
178 CLIP; TRIM COVER
OD=6.2 DARK GRAY 		1-09983-167-0 09 1 9706-0004
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 09 1 0005-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
