◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10701 - FSR(LHD) EXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#38336) — 101 parça

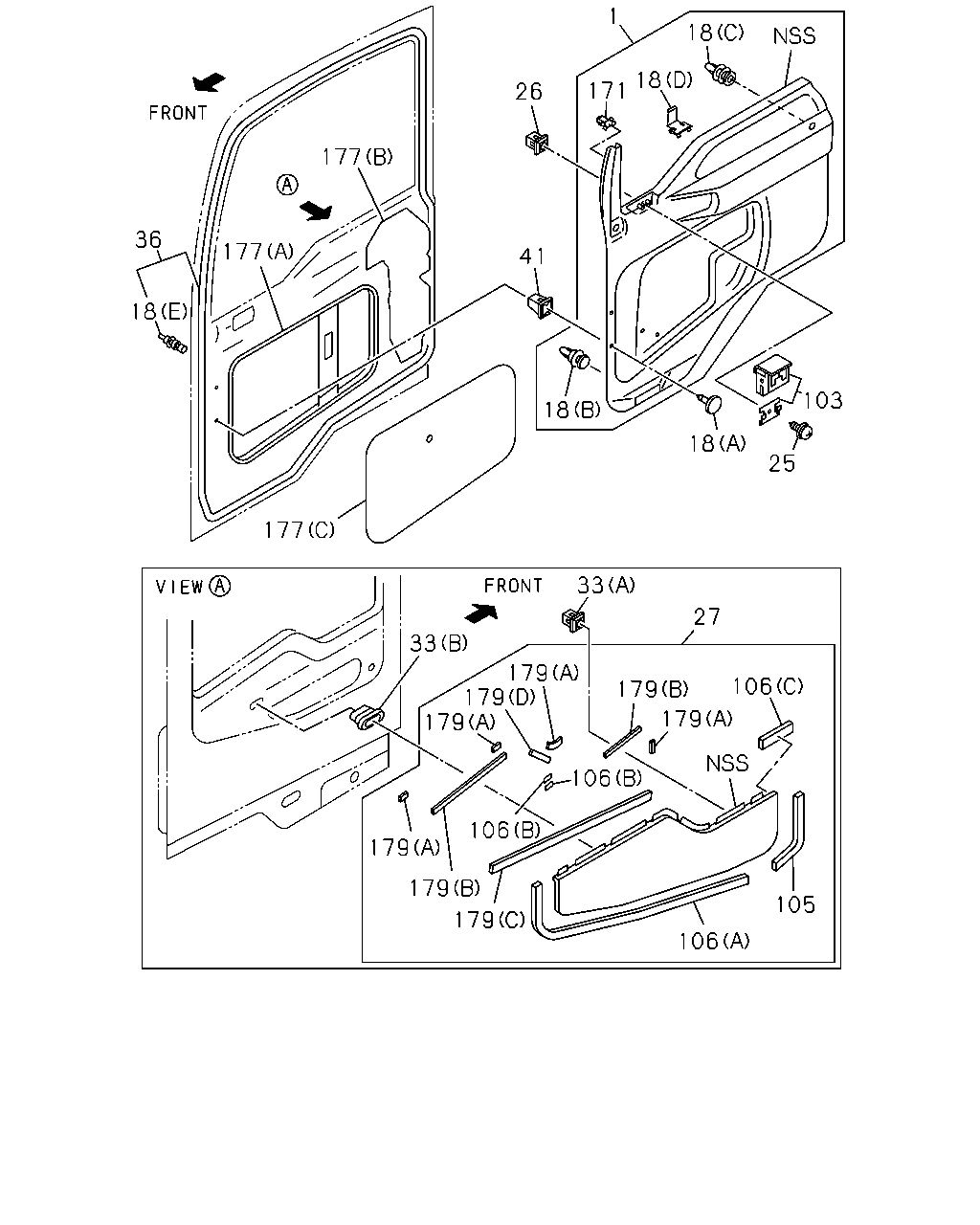

çizim 151816
177 26 1 171 18 18 41 177 36 18 177 18 18 25 103 27 33 33 179 179 179 179 179 179 106 106 179 106 179 105 106
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-449-4 01 1 9510-0004
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-506-0 01 1 0005-0012
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-538-0 01 1 0101-0702
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-515-1 01 1 0703-
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-467-4 01 1 9510-0004
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-485-0 01 1 0005-0012
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-510-0 01 1 0101-0702
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-514-1 01 1 0703-
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-466-4 01 1 9510-0004
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-509-0 01 1 0005-0012
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-539-0 01 1 0101-0702
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-516-1 01 1 0703-
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-465-4 01 1 9510-0004
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-484-0 01 1 0005-0012
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-509-0 01 1 0101-0702
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-513-1 01 1 0703-
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 04 1 9510-0004
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0005-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 46 1 9510-
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 08 1 9510-0005
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0006-0010
18 CLIP; DOOR PAD
POWER WINDOW<A30> (D) 		1-09987-262-0 05 1 0011-
18 CLIP; DOOR PAD
POWER WINDOW<A30> (D) 		1-09987-262-0 05 1 0011-
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 9510-0010
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-94126-768-0 05 1 0011-0012
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-94126-768-0 05 1 0011-0012
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101-
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 9510-0010
18 CLIP; DOOR PAD
POWER WINDOW<A30> (C) OD=7.9 BLACK 		8-94279-974-1 01 1 0011-
18 CLIP; DOOR PAD
POWER WINDOW<A30> (C) OD=7.9 BLACK 		8-94279-974-1 01 1 0011-
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (D) 		1-09987-262-0 10 1 0011-
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (B) OD=8.5 GRAY 		8-94126-768-0 10 1 0011-0012
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (B) OD=8.5 GRAY 		8-97893-482-0 10 1 0101-
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (C) OD=7.9 BLACK 		8-94279-974-1 02 1 0011-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9510-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9510-
27 PANEL; ORNAMENT,DOOR 1-76218-096-7 01 1 9510-
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> 		1-76218-125-5 01 1 9510-0303
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> 		1-76218-125-5 01 1 0304-0307
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> 		1-76218-125-7 01 1 0308-1210
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> 		8-98229-329-0 01 1 1211-
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW WIDE<WU4> 		1-76218-095-5 01 1 9510-0303
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW WIDE<WU4> 		1-76218-095-5 01 1 0304-0307
27 PANEL; ORNAMENT,DOOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> 		1-76218-095-7 01 1 0308-1210
27 PANEL; ORNAMENT,DOOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2) 		1-76218-095-7 01 1 0308-1210
27 PANEL; ORNAMENT,DOOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> 		8-98229-328-0 01 1 1211-
27 PANEL; ORNAMENT,DOOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2) 		8-98229-328-0 01 1 1211-
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 9510-0802
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803-
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 9510-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 9510-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 9510-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 9510-
103 TRAY ASM; ASH,DOOR 1-76458-070-6 01 1 9510-9802
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 9803-0004
103 TRAY ASM; ASH,DOOR 1-76457-054-0 01 1 0005-0111
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0112-
103 TRAY ASM; ASH,DOOR 1-76458-069-5 01 1 9510-9802
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 9803-0004
103 TRAY ASM; ASH,DOOR 1-76457-053-0 01 1 0005-0111
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0112-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 9510-0303
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 0304-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 0304-
106 SEAL; DOOR ORNAMENT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> (C) 		8-98226-642-0 01 1 1211-
106 SEAL; DOOR ORNAMENT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2) (C) 		8-98226-642-0 01 1 1211-
106 SEAL; DOOR ORNAMENT
MIR O/S RR VIEW WIDE<WU4> (C) 		8-98226-642-0 01 1 1211-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 9510-0303
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 0304-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 0304-
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW WIDE<WU4> (B) 		1-76218-104-0 02 1 9510-0303
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9510-0303
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW WIDE<WU4> (B) 		1-76218-104-0 02 1 0304-0307
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0304-0307
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0308-
106 SEAL; DOOR ORNAMENT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> (B) 		1-76218-104-0 02 1 0308-
106 SEAL; DOOR ORNAMENT
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2) (B) 		1-76218-104-0 02 1 0308-
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 9510-0010
171 RETAINER; DOOR PAD
POWER WINDOW<A30> 		1-09987-264-0 01 1 0011-
171 RETAINER; DOOR PAD
POWER WINDOW<A30> 		1-09987-264-0 01 1 0011-
171 RETAINER; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> 		1-09987-264-0 02 1 0011-
177 SEAL; WATER,DOOR
(B) 		1-76778-036-1 02 1 9510-9511
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9512-
177 SEAL; WATER,DOOR
DOOR WINDOW MANUAL CONT<SKF> (C) 		1-76778-047-3 02 1 9510-
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-052-2 01 1 9510-
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-035-6 01 1 9510-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-1 08 1 9510-0303
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 0304-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 0304-
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-1 02 1 9510-0303
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 01 1 0304-
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 01 1 0304-
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-0 02 1 9510-0303
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 01 1 0304-
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 01 1 0304-
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-0 04 1 9510-0303
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 02 1 0304-
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 02 1 0304-
