Isuzu WW
▶
TRUCKS
▶
FSR
▶
10701 - FSR(LHD) EXC.EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

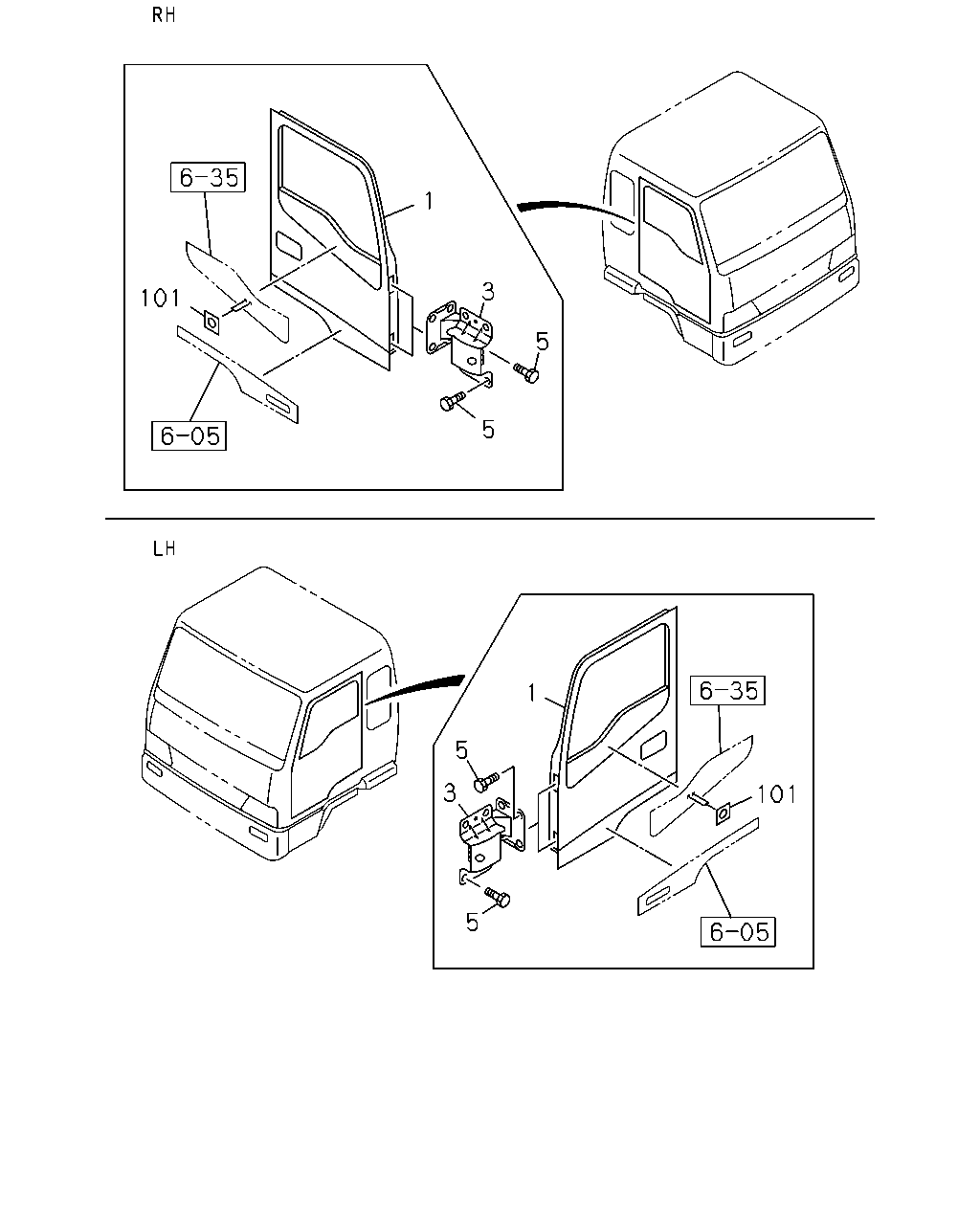

6-30 — FRONT DOOR AND HINGE
(#38333) — 18 parça
1
3
101
5
5
1
5
3
101
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
1-64080-326-0
01
1
9510-9901
1
DOOR ASM; FRT,WO/TRIM
1-64080-391-2
01
1
9902-
1
DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW WIDE<WU4> PRIMER
1-64080-333-0
01
1
9510-9901
1
DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW WIDE<WU4>
1-64080-388-1
01
1
9902-0303
1
DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW WIDE<WU4>
1-64080-388-1
01
1
0304-0307
1
DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW WIDE<WU4>
1-64080-388-2
01
1
0308-
1
DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW WIDE<WU4>
1-64080-325-0
01
1
9510-9901
1
DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW WIDE<WU4>
1-64080-390-1
01
1
9902-0303
1
DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW WIDE<WU4>
1-64080-390-1
01
1
0304-0307
1
DOOR ASM; FRT,WO/TRIM
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN>
1-64080-390-2
01
1
0308-
1
DOOR ASM; FRT,WO/TRIM
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), MIR O/S RR VIEW WIDE<WU4>,CHINA EQUIPMENT(YT2)
1-64080-390-2
01
1
0308-
3
HINGE; DOOR FRT
UPPER
1-64780-088-3
02
1
9510-
3
HINGE; DOOR FRT
LOWER
1-64780-089-4
02
1
9510-
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
16
1
9510-0303
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
0304-
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
16
1
9510-
101
SEAL; BODY METAL
MIR O/S RR VIEW WIDE<WU4> 14X14 ID=10 T=0.7
1-61281-427-0
02
1
9510-9809
101
SEAL; BODY METAL
EXC. MIR O/S RR VIEW WIDE<WU4> 14X14 ID=10 T=0.7
1-61281-427-0
04
1
9510-9809
