◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10701 - FSR(LHD) EXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#38332) — 84 parça

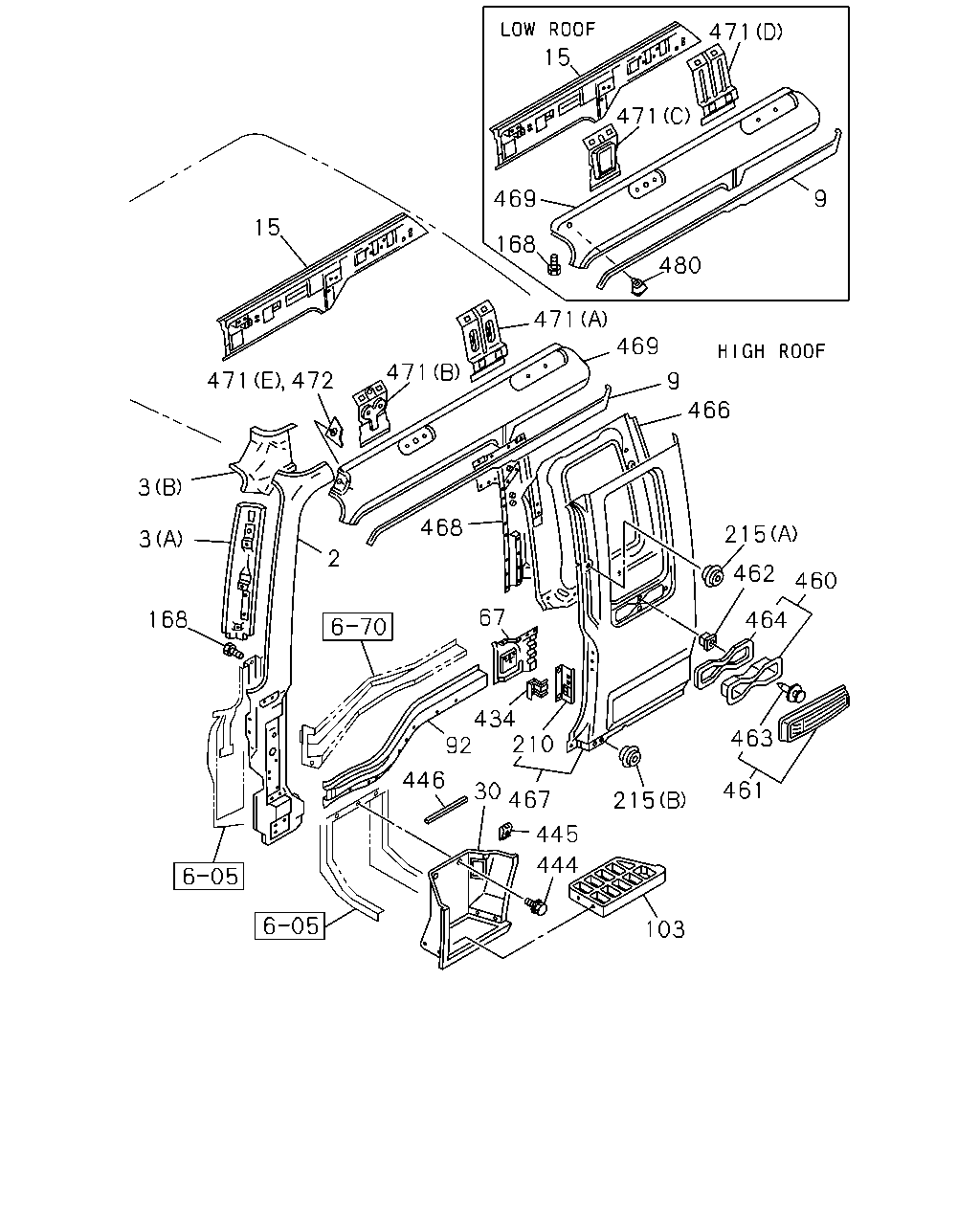

çizim 151803
471 15 471 469 9 15 168 480 471 469 471 9 466 3 468 215 3 2 462 460 67 168 464 434 92 210 463 446 461 30 467 215 445 444 103 472 471
BalonParca AdiParca NoAdetTipApplied Date
2 PILLAR; FRT 1-61281-410-2 01 1 9510-
2 PILLAR; FRT 1-61281-409-2 01 1 9510-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 9510-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 9510-
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-170-5 01 1 9510-
3 PANEL; CLOSING,FRT PILLAR
HIGH ROOF<S2F> (B) 		1-61281-169-5 01 1 9510-
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-250-4 01 1 9510-
3 PANEL; CLOSING,FRT PILLAR
LOW ROOF<6XQ> (B) 		1-61281-249-4 01 1 9510-
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 9510-
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 9510-
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-178-8 01 1 9510-
15 PANEL; CANT RAIL SIDE
HIGH ROOF<S2F> 		1-61281-177-8 01 1 9510-
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-254-5 01 1 9510-
15 PANEL; CANT RAIL SIDE
LOW ROOF<6XQ> 		1-61281-253-5 01 1 9510-
30 CLOSING; SIDE STEP 1-71998-878-7 01 1 9510-
30 CLOSING; SIDE STEP 1-71998-877-7 01 1 9510-
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 9510-
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 9510-
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 9510-
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 9510-
103 PLATE; STEP 1-71998-868-1 01 1 9510-9607
103 PLATE; STEP 1-71996-174-0 01 1 9608-
103 PLATE; STEP 1-71998-867-1 01 1 9510-9607
103 PLATE; STEP 1-71996-173-0 01 1 9608-
168 BOLT; BODY SIDE PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9510-9702
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9510-9702
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9703-0512
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28080-610-0 04 1 9703-0512
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601-
168 BOLT; BODY SIDE PANEL
LOW ROOF<6XQ> M6X10 FLANGE 		0-28050-610-0 04 1 0601-
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 0005-
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-155-0 02 1 9510-9709
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 9710-
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 9510-
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 9510-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9510-0904
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905-
445 NUT; CLOSING 8-94279-723-0 02 1 9510-0404
445 NUT; CLOSING
FRONT FENDER WIDE<SA4> 		8-94279-723-0 02 1 0405-0405
445 NUT; CLOSING 8-94279-723-0 02 1 0405-0405
445 NUT; CLOSING 8-94279-723-0 02 1 0405-0601
445 NUT; CLOSING
FRONT FENDER WIDE<SA4> 		8-94279-723-0 02 1 0602-0609
445 NUT; CLOSING 8-94279-723-0 02 1 0610-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9510-
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 9510-
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 9510-
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 9510-
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 9510-
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9510-
464 SEAL; VENTILATOR 1-76378-299-0 02 1 9510-
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 9510-
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 9510-
467 PANEL; OUTER,BACK CORNER
COUNTRY ALGERIA<D2G> LOW ROOF<6XQ> 		1-61281-477-3 01 1 1205-
467 PANEL; OUTER,BACK CORNER
HIGH ROOF<S2F> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. ENGINE NO PLATE<E6D> 		1-61281-478-5 01 1 0005-
467 PANEL; OUTER,BACK CORNER
SAUDI ARABIA EQUIPMENT(WH1) LOW ROOF<6XQ> EXC. ENGINE NO PLATE<E6D> 		1-61281-478-5 01 1 0005-
467 PANEL; OUTER,BACK CORNER
ENGINE NO PLATE<E6D> HIGH ROOF<S2F>,LOW ROOF<6XQ> 		1-61281-478-5 01 1 0005-
467 PANEL; OUTER,BACK CORNER 1-61281-203-4 01 1 9510-1204
467 PANEL; OUTER,BACK CORNER
LOW ROOF<6XQ> EXC. COUNTRY ALGERIA<D2G> 		1-61281-203-4 01 1 1205-
467 PANEL; OUTER,BACK CORNER
HIGH ROOF<S2F> 		1-61281-203-4 01 1 1205-
467 PANEL; OUTER,BACK CORNER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-61281-476-0 01 1 9510-9510
467 PANEL; OUTER,BACK CORNER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. ENGINE NO PLATE<E6D> 		1-61281-476-1 01 1 9511-0004
467 PANEL; OUTER,BACK CORNER
ENGINE NO PLATE<E6D> 		1-61281-476-1 01 1 9511-0004
467 PANEL; OUTER,BACK CORNER
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-61281-204-1 01 1 9510-9510
467 PANEL; OUTER,BACK CORNER
EXC. ENGINE NO PLATE<E6D>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1), CHINA EQUIPMENT(YT2) 		1-61281-204-4 01 1 9511-
468 REINFORCEMENT; SEAT BELT ANCHOR
HIGH ROOF<S2F> 		1-61281-418-2 01 1 9510-
468 REINFORCEMENT; SEAT BELT ANCHOR
HIGH ROOF<S2F> 		1-61281-417-2 01 1 9510-
468 REINFORCEMENT; SEAT BELT ANCHOR
LOW ROOF<6XQ> 		1-61281-435-2 01 1 9510-
468 REINFORCEMENT; SEAT BELT ANCHOR
LOW ROOF<6XQ> 		1-61281-434-2 01 1 9510-
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-199-8 01 1 9510-
469 ROOF; SIDE
HIGH ROOF<S2F> 		1-61281-198-8 01 1 9510-
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-268-6 01 1 9510-
469 ROOF; SIDE
LOW ROOF<6XQ> 		1-61281-267-6 01 1 9510-
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (A) 		1-61281-202-3 02 1 9510-
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-201-3 01 1 9510-
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (E) 		1-61281-233-4 01 1 9510-0812
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (E) 		8-98132-463-0 01 1 0901-
471 PATCH; AIR DEFLECTOR
HIGH ROOF<S2F> (B) 		1-61281-200-3 01 1 9510-
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (D) 		1-61281-273-3 02 1 9510-
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-270-3 01 1 9510-
471 PATCH; AIR DEFLECTOR
LOW ROOF<6XQ> (C) 		1-61281-269-3 01 1 9510-
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61281-232-3 01 1 9510-9910
472 PATCH; STAY,ROOF
HIGH ROOF<S2F> 		1-61270-943-1 01 1 9911-
480 REINFORCEMENT ASM; STAY ROOF
LOW ROOF<6XQ> 		1-61180-997-3 01 1 9510-
480 REINFORCEMENT ASM; STAY ROOF
LOW ROOF<6XQ> 		1-61180-996-3 01 1 9510-
