Sayfa 6-01 - Isuzu EPC

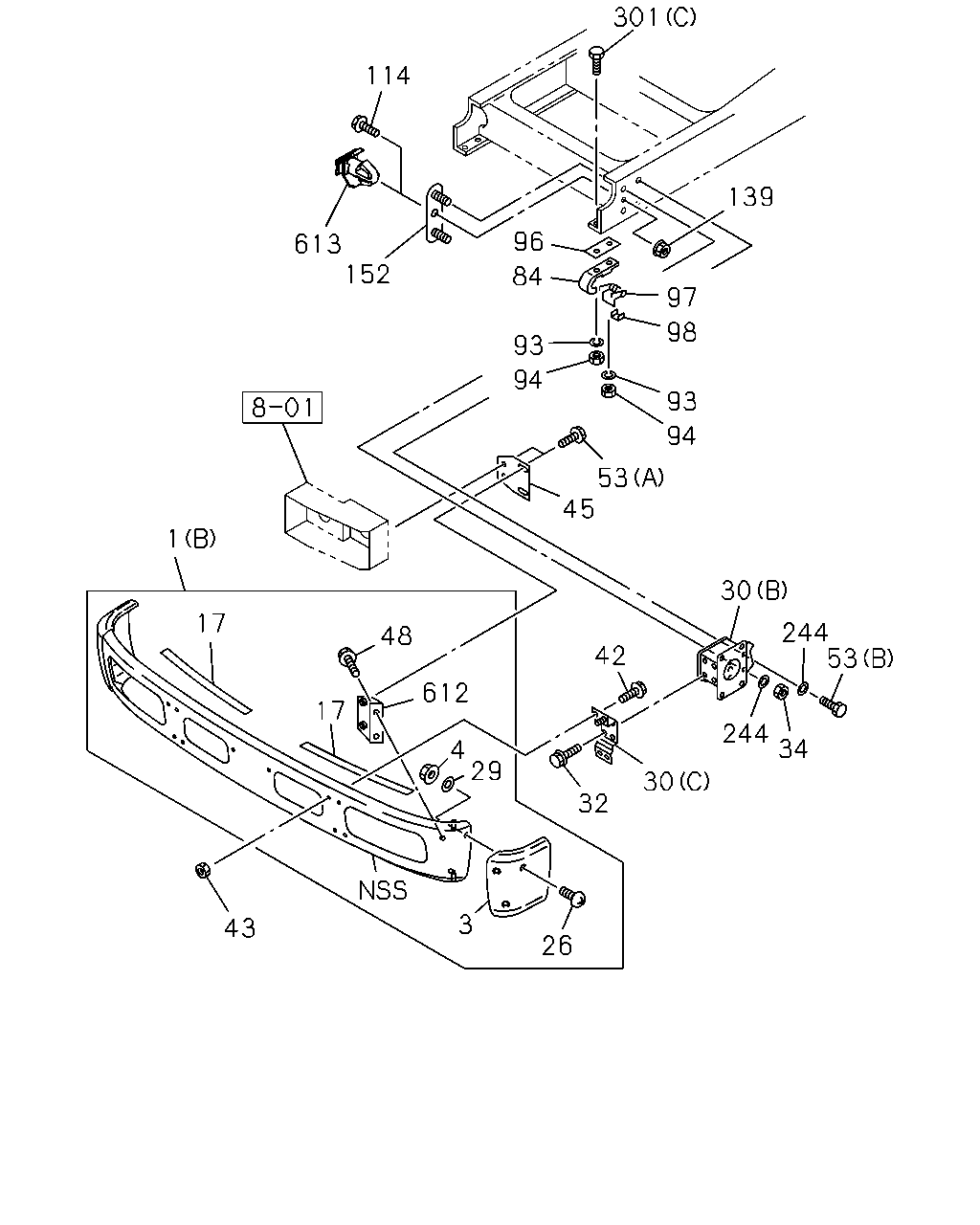

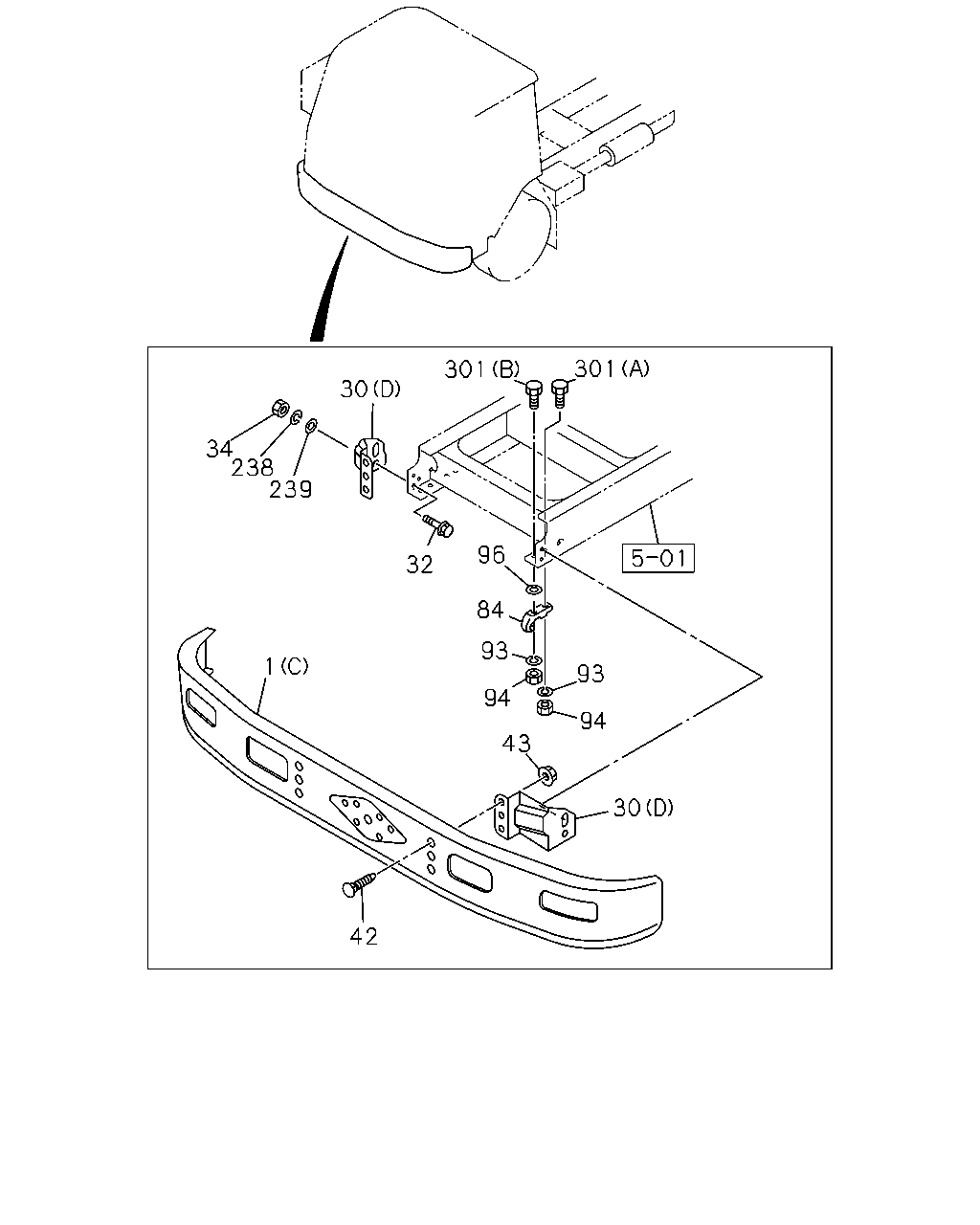

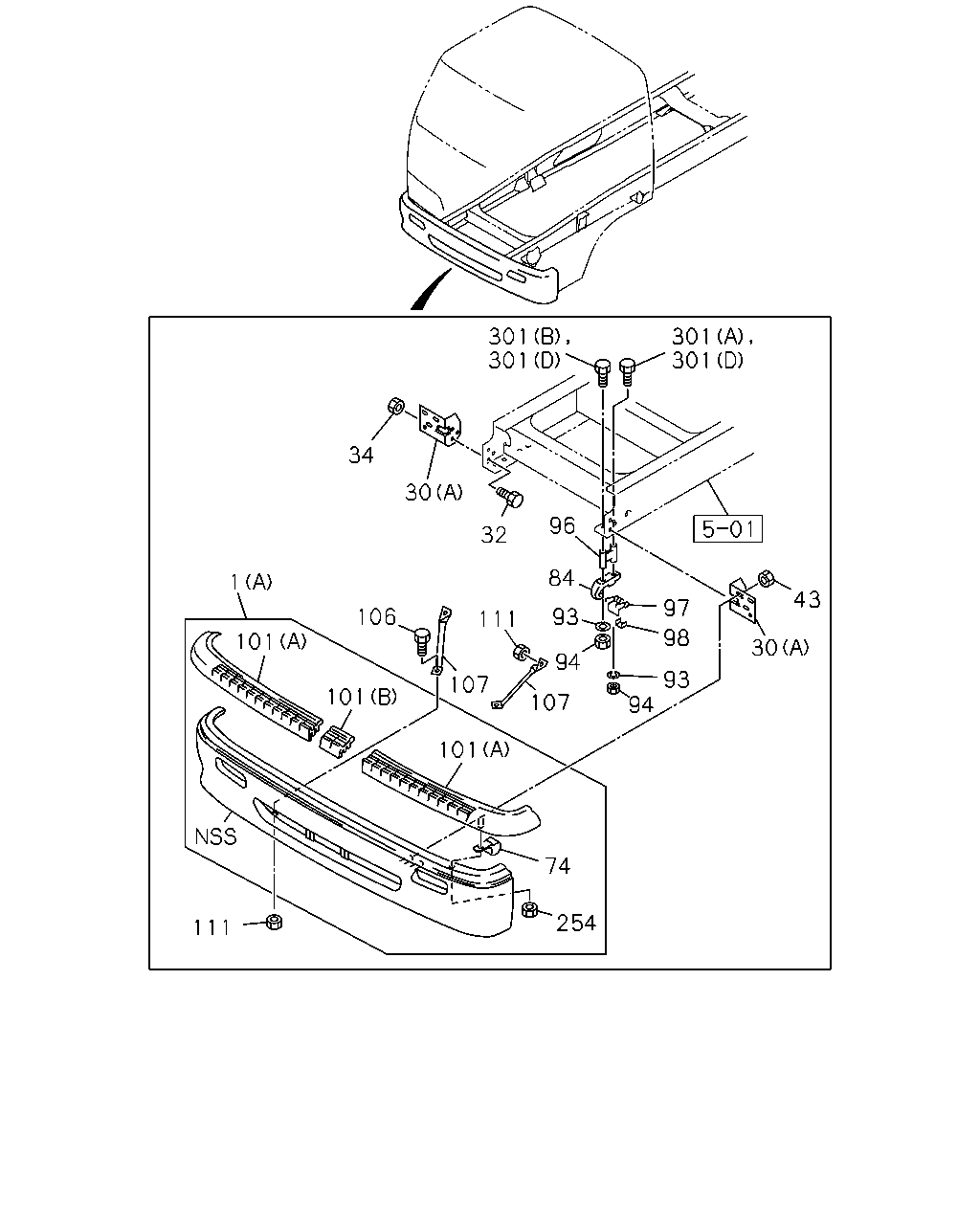

6-01 — FRONT BUMPER (#3833) — 462 parça

301 301 301 301 34 30 96 32 84 43 97 106 93 111 98 101 30 94 93 107 101 107 94 101 74 254 111 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT (A) WHITE	1-71210-661-0	01	1	9601-9902	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB> (A) WHITE	1-71210-661-0	01	1	9601-9902		●
1	BUMPER ASM; FRT (A) WHITE	1-71210-661-0	01	1	9903-0004	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) WHITE	1-71210-661-0	01	1	9903-0004		●
1	BUMPER ASM; FRT FRONT PANEL CARGO FACE<NGD> EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) WHITE	1-71210-661-2	01	1	0005-	●	●
1	BUMPER ASM; FRT EXC. FRONT PANEL CARGO FACE<NGD>,BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) WHITE	1-71210-846-3	01	1	0005-	●	●
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (B)	1-71210-691-0	01	1	9601-9803		●
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (B)	1-71210-843-1	01	1	9804-		●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (C)	1-71210-918-2	01	1	9903-	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	9601-9902	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71230-208-3	01	1	9601-9902		●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-208-3	01	1	9903-0612	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-208-3	01	1	9903-0612		●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	0701-	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-208-3	01	1	0701-		●
30	BRACKET; FRT BUMPER (A)	1-71230-207-3	01	1	9601-9902	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71230-207-3	01	1	9601-9902		●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-207-3	01	1	9903-0111	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-207-3	01	1	9903-0111		●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-568-1	01	1	0112-0612	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-568-1	01	1	0112-0612		●
30	BRACKET; FRT BUMPER (A)	1-71230-568-1	01	1	0701-	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-568-1	01	1	0701-		●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (D)	1-71230-138-0	01	1	9903-0612	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (D)	1-71230-138-0	01	1	0701-		●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (D)	1-71230-130-0	01	1	9903-0612	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (D)	1-71230-130-0	01	1	0701-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-320-1	01	1	9601-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-352-1	01	1	9601-9606		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-426-0	01	1	9607-0210		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-576-0	01	1	0211-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-321-1	01	1	9601-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-353-1	01	1	9601-9606		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-427-0	01	1	9607-0210		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-577-0	01	1	0211-		●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28081-030-0	06	1	9601-9606	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10X30 FLANGE	0-28081-030-0	06	1	9601-9606		●
32	BOLT; BRKT,BUMPER M10X35 FLANGE	0-28681-035-0	06	1	9607-9608	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10X35 FLANGE	0-28681-035-0	06	1	9607-9608		●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	9609-9902	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10X30 FLANGE	0-28681-030-0	06	1	9609-9902		●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28681-030-0	06	1	9903-0512	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28681-030-0	06	1	9903-0512		●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28651-030-0	06	1	0601-0612	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28651-030-0	06	1	0601-0612		●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	06	1	0701-	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28651-030-0	06	1	0701-		●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X50	0-20801-650-0	04	1	9903-0512	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X50	0-20851-650-0	04	1	0601-0612	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X50	0-20851-650-0	04	1	0701-		●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X30 FLANGE	0-28081-030-0	08	1	9601-9606		●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X35 FLANGE	0-28681-035-0	08	1	9607-0409		●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X30 FLANGE	0-28681-030-0	08	1	0410-0512		●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X30 FLANGE	0-28651-030-0	08	1	0601-		●
34	NUT; BRKT,BUMPER M10	9-09110-510-0	06	1	9601-9606	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10	9-09110-510-0	06	1	9601-9606		●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91150-210-0	06	1	9607-9902	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-210-0	06	1	9607-9902		●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	06	1	9903-0602	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	06	1	9903-0602		●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0603-0612	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0603-0612		●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	06	1	0701-	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0701-		●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	04	1	9903-0512	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	0-91110-516-0	04	1	0601-0612	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	0-91110-516-0	04	1	0701-		●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14 FLANGE	0-91150-114-0	04	1	9601-0409		●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14	9-99110-514-0	04	1	0410-0512		●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14	0-91110-514-0	04	1	0601-		●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-110-0	06	1	9601-9606	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-110-0	06	1	9601-9606		●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	9607-9902	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-210-0	06	1	9607-9902		●
43	NUT; BRKT TO BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	06	1	9903-0602	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	06	1	9903-0602		●
43	NUT; BRKT TO BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0603-0612	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0603-0612		●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	06	1	0701-	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0701-		●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	06	1	9903-0612	●	●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	06	1	0701-		●
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> M10 CAP NUT	1-09650-480-0	08	1	9601-		●
74	CLIP; FOG LAMP HARNESS	1-09701-203-0	05	1	9601-9902	●
74	CLIP; FOG LAMP HARNESS EXC. BUMPER W/HEADLAMPS<SLB>	1-09701-203-0	05	1	9601-9902		●
74	CLIP; FOG LAMP HARNESS EXC. REINFORCEMENT BUMPER<VG7>	1-09701-203-0	05	1	9903-	●
74	CLIP; FOG LAMP HARNESS EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-09701-203-0	05	1	9903-		●
84	HOOK	1-57181-027-1	01	1	9601-0208	●	●
84	HOOK TOW HOOK<V76>	1-57181-027-1	01	1	0209-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9601-0208	●	●
93	WASHER; LK,HOOK TOW HOOK<V76> ID=16.2	9-09150-516-0	02	1	0209-0603	●	●
93	WASHER; LK,HOOK TOW HOOK<V76> ID=16.2	0-91510-516-0	02	1	0604-	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	9601-0206	●	●
94	NUT; HOOK M16	9-99110-516-0	02	1	0207-0208	●	●
94	NUT; HOOK TOW HOOK<V76> M16	9-99110-516-0	02	1	0209-0512	●	●
94	NUT; HOOK TOW HOOK<V76> M16	0-91110-516-0	02	1	0601-	●	●
96	PLATE; DIST,HOOK	1-57189-193-0	01	1	9601-9803	●
96	PLATE; DIST,HOOK EXC. BUMPER W/HEADLAMPS<SLB>	1-57189-193-0	01	1	9601-9803		●
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7>	9-09857-022-0	01	1	9903-0208	●	●
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7> TOW HOOK<V76>	9-09857-022-0	01	1	0209-0612	●	●
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7> TOW HOOK<V76>	9-09857-022-0	01	1	0701-		●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>	1-57189-190-0	01	1	9601-9701		●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>	1-53497-595-0	01	1	9702-0208		●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> TOW HOOK<V76>	1-53497-595-0	01	1	0209-		●
97	SPRING; FRT HOOK	9-53519-003-0	01	1	9601-9803	●	●
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	9804-0208		●
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB> TOW HOOK<V76>	9-53519-003-0	01	1	0209-		●
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	9601-9803	●	●
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	9804-0208		●
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB> TOW HOOK<V76>	9-53519-006-0	01	1	0209-		●
101	STEP; BUMPER (B)	1-71260-082-1	01	1	9601-9902	●
101	STEP; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-082-1	01	1	9601-9902		●
101	STEP; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71260-082-1	01	1	9903-	●
101	STEP; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71260-082-1	01	1	9903-		●
101	STEP; BUMPER (A)	1-71260-081-1	01	1	9601-9902	●
101	STEP; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-081-1	01	1	9601-9902		●
101	STEP; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71260-081-1	01	1	9903-	●
101	STEP; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71260-081-1	01	1	9903-		●
101	STEP; BUMPER (A)	1-71260-080-1	01	1	9601-9902	●
101	STEP; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-080-1	01	1	9601-9902		●
101	STEP; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71260-080-1	01	1	9903-	●
101	STEP; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71260-080-1	01	1	9903-		●
106	BOLT; AIR DAM M10X16 FLANGE	0-28081-016-0	02	1	9601-9602	●
106	BOLT; AIR DAM EXC. BUMPER W/HEADLAMPS<SLB> M10X16 FLANGE	0-28081-016-0	02	1	9601-9602		●
106	BOLT; AIR DAM M10X20 FLANGE	0-28081-020-0	02	1	9603-9606	●
106	BOLT; AIR DAM EXC. BUMPER W/HEADLAMPS<SLB> M10X20 FLANGE	0-28081-020-0	02	1	9603-9606		●
106	BOLT; AIR DAM M10X25 FLANGE	0-28681-025-0	02	1	9607-0004	●
106	BOLT; AIR DAM EXC. BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE	0-28681-025-0	02	1	9607-0004		●
106	BOLT; AIR DAM EXC. REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28681-025-0	02	1	0005-0512	●
106	BOLT; AIR DAM EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28681-025-0	02	1	0005-0512		●
106	BOLT; AIR DAM EXC. REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28651-025-0	02	1	0601-0612	●
106	BOLT; AIR DAM EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28651-025-0	02	1	0601-0612		●
106	BOLT; AIR DAM M10X25 FLANGE	0-28651-025-0	02	1	0701-	●
106	BOLT; AIR DAM EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28651-025-0	02	1	0701-		●
107	STAY; AIR DAM	1-71260-132-1	01	1	9601-0004	●
107	STAY; AIR DAM EXC. BUMPER W/HEADLAMPS<SLB>	1-71260-132-1	01	1	9601-0004		●
107	STAY; AIR DAM EXC. REINFORCEMENT BUMPER<VG7>	1-71260-132-1	01	1	0005-0612	●
107	STAY; AIR DAM EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71260-132-1	01	1	0005-0612		●
107	STAY; AIR DAM	1-71260-132-1	01	1	0701-	●
107	STAY; AIR DAM EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71260-132-1	01	1	0701-		●
107	STAY; AIR DAM	1-71260-131-1	01	1	9601-0004	●
107	STAY; AIR DAM EXC. BUMPER W/HEADLAMPS<SLB>	1-71260-131-1	01	1	9601-0004		●
107	STAY; AIR DAM EXC. REINFORCEMENT BUMPER<VG7>	1-71260-131-1	01	1	0005-0612	●
107	STAY; AIR DAM EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71260-131-1	01	1	0005-0612		●
107	STAY; AIR DAM	1-71260-131-1	01	1	0701-	●
107	STAY; AIR DAM EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71260-131-1	01	1	0701-		●
111	NUT; STAY M10 FLANGE	0-91150-110-0	04	1	9601-9606	●
111	NUT; STAY EXC. BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-110-0	04	1	9601-9606		●
111	NUT; STAY M10 FLANGE	0-91150-210-0	04	1	9607-0004	●
111	NUT; STAY EXC. BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-210-0	04	1	9607-0004		●
111	NUT; STAY EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	04	1	0005-0602	●
111	NUT; STAY EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	04	1	0005-0602		●
111	NUT; STAY EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	04	1	0603-0612	●
111	NUT; STAY EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	04	1	0603-0612		●
111	NUT; STAY M10 FLANGE	0-91180-210-0	04	1	0701-	●
111	NUT; STAY EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	04	1	0701-		●
254	NUT; STEP M8 FLANGE	0-91150-108-0	11	1	9601-9902	●
254	NUT; STEP EXC. BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	11	1	9601-9902		●
254	NUT; STEP EXC. REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	11	1	9903-0602	●
254	NUT; STEP EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	11	1	9903-0602		●
254	NUT; STEP EXC. REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91180-108-0	11	1	0603-	●
254	NUT; STEP EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91180-108-0	11	1	0603-		●
301	BOLT; HOOK TO FRAME (D) M16X147	5-51361-003-3	02	1	9601-9803	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> (D) M16X147	5-51361-003-3	02	1	9601-9803		●
301	BOLT; HOOK TO FRAME (B) M16X70	0-10811-670-0	01	1	9804-0208	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> (B) M16X70	0-10811-670-0	01	1	9804-0208		●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> (B) M16X70	0-10811-670-0	01	1	0209-0512	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> EXC. BUMPER W/HEADLAMPS<SLB> (B) M16X70	0-10811-670-0	01	1	0209-0512		●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> (B) M16X70	0-10861-670-0	01	1	0601-	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> EXC. BUMPER W/HEADLAMPS<SLB> (B) M16X70	0-10861-670-0	01	1	0601-		●
301	BOLT; HOOK TO FRAME (A) M16X60	0-10811-660-0	01	1	9804-0208	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> (A) M16X60	0-10811-660-0	01	1	9804-0208		●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> (A) M16X60	0-10811-660-0	01	1	0209-0512	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> EXC. BUMPER W/HEADLAMPS<SLB> (A) M16X60	0-10811-660-0	01	1	0209-0512		●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> (A) M16X60	0-10861-660-0	01	1	0601-	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> EXC. BUMPER W/HEADLAMPS<SLB> (A) M16X60	0-10861-660-0	01	1	0601-		●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> (C) M16X80	0-10811-680-0	02	1	9601-0208		●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> TOW HOOK<V76> (C) M16X80	0-10811-680-0	02	1	0209-0512		●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> TOW HOOK<V76> (C) M16X80	0-10861-680-0	02	1	0601-		●

301 301 30 34 238 239 96 32 84 93 1 93 94 94 43 30 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT (A) WHITE	1-71210-661-0	01	1	9601-9902	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB> (A) WHITE	1-71210-661-0	01	1	9601-9902		●
1	BUMPER ASM; FRT (A) WHITE	1-71210-661-0	01	1	9903-0004	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) WHITE	1-71210-661-0	01	1	9903-0004		●
1	BUMPER ASM; FRT FRONT PANEL CARGO FACE<NGD> EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) WHITE	1-71210-661-2	01	1	0005-	●	●
1	BUMPER ASM; FRT EXC. FRONT PANEL CARGO FACE<NGD>,BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) WHITE	1-71210-846-3	01	1	0005-	●	●
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (B)	1-71210-691-0	01	1	9601-9803		●
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (B)	1-71210-843-1	01	1	9804-		●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (C)	1-71210-918-2	01	1	9903-	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	9601-9902	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71230-208-3	01	1	9601-9902		●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-208-3	01	1	9903-0612	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-208-3	01	1	9903-0612		●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	0701-	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-208-3	01	1	0701-		●
30	BRACKET; FRT BUMPER (A)	1-71230-207-3	01	1	9601-9902	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71230-207-3	01	1	9601-9902		●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-207-3	01	1	9903-0111	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-207-3	01	1	9903-0111		●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-568-1	01	1	0112-0612	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-568-1	01	1	0112-0612		●
30	BRACKET; FRT BUMPER (A)	1-71230-568-1	01	1	0701-	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-568-1	01	1	0701-		●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (D)	1-71230-138-0	01	1	9903-0612	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (D)	1-71230-138-0	01	1	0701-		●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (D)	1-71230-130-0	01	1	9903-0612	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (D)	1-71230-130-0	01	1	0701-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-320-1	01	1	9601-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-352-1	01	1	9601-9606		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-426-0	01	1	9607-0210		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-576-0	01	1	0211-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-321-1	01	1	9601-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-353-1	01	1	9601-9606		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-427-0	01	1	9607-0210		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-577-0	01	1	0211-		●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28081-030-0	06	1	9601-9606	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10X30 FLANGE	0-28081-030-0	06	1	9601-9606		●
32	BOLT; BRKT,BUMPER M10X35 FLANGE	0-28681-035-0	06	1	9607-9608	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10X35 FLANGE	0-28681-035-0	06	1	9607-9608		●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	9609-9902	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10X30 FLANGE	0-28681-030-0	06	1	9609-9902		●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28681-030-0	06	1	9903-0512	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28681-030-0	06	1	9903-0512		●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28651-030-0	06	1	0601-0612	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28651-030-0	06	1	0601-0612		●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	06	1	0701-	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28651-030-0	06	1	0701-		●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X50	0-20801-650-0	04	1	9903-0512	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X50	0-20851-650-0	04	1	0601-0612	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X50	0-20851-650-0	04	1	0701-		●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X30 FLANGE	0-28081-030-0	08	1	9601-9606		●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X35 FLANGE	0-28681-035-0	08	1	9607-0409		●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X30 FLANGE	0-28681-030-0	08	1	0410-0512		●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X30 FLANGE	0-28651-030-0	08	1	0601-		●
34	NUT; BRKT,BUMPER M10	9-09110-510-0	06	1	9601-9606	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10	9-09110-510-0	06	1	9601-9606		●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91150-210-0	06	1	9607-9902	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-210-0	06	1	9607-9902		●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	06	1	9903-0602	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	06	1	9903-0602		●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0603-0612	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0603-0612		●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	06	1	0701-	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0701-		●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	04	1	9903-0512	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	0-91110-516-0	04	1	0601-0612	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	0-91110-516-0	04	1	0701-		●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14 FLANGE	0-91150-114-0	04	1	9601-0409		●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14	9-99110-514-0	04	1	0410-0512		●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14	0-91110-514-0	04	1	0601-		●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	06	1	9903-0612	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	06	1	0701-		●
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X20 FLANGE	0-28081-020-0	06	1	9601-0210		●
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE	0-28681-025-0	06	1	0211-0212		●
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE	0-28681-025-0	07	1	0301-0512		●
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE	0-28651-025-0	07	1	0601-		●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-110-0	06	1	9601-9606	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-110-0	06	1	9601-9606		●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	9607-9902	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-210-0	06	1	9607-9902		●
43	NUT; BRKT TO BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	06	1	9903-0602	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	06	1	9903-0602		●
43	NUT; BRKT TO BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0603-0612	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0603-0612		●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	06	1	0701-	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0701-		●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	06	1	9903-0612	●	●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	06	1	0701-		●
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> M10 CAP NUT	1-09650-480-0	08	1	9601-		●
84	HOOK	1-57181-027-1	01	1	9601-0208	●	●
84	HOOK TOW HOOK<V76>	1-57181-027-1	01	1	0209-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9601-0208	●	●
93	WASHER; LK,HOOK TOW HOOK<V76> ID=16.2	9-09150-516-0	02	1	0209-0603	●	●
93	WASHER; LK,HOOK TOW HOOK<V76> ID=16.2	0-91510-516-0	02	1	0604-	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	9601-0206	●	●
94	NUT; HOOK M16	9-99110-516-0	02	1	0207-0208	●	●
94	NUT; HOOK TOW HOOK<V76> M16	9-99110-516-0	02	1	0209-0512	●	●
94	NUT; HOOK TOW HOOK<V76> M16	0-91110-516-0	02	1	0601-	●	●
96	PLATE; DIST,HOOK	1-57189-193-0	01	1	9601-9803	●
96	PLATE; DIST,HOOK EXC. BUMPER W/HEADLAMPS<SLB>	1-57189-193-0	01	1	9601-9803		●
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7>	9-09857-022-0	01	1	9903-0208	●	●
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7> TOW HOOK<V76>	9-09857-022-0	01	1	0209-0612	●	●
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7> TOW HOOK<V76>	9-09857-022-0	01	1	0701-		●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>	1-57189-190-0	01	1	9601-9701		●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>	1-53497-595-0	01	1	9702-0208		●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> TOW HOOK<V76>	1-53497-595-0	01	1	0209-		●
238	WASHER; LK,BUMPER BRKT REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	04	1	9903-0603	●	●
238	WASHER; LK,BUMPER BRKT REINFORCEMENT BUMPER<VG7> ID=16.2	0-91510-516-0	04	1	0604-0612	●	●
238	WASHER; LK,BUMPER BRKT REINFORCEMENT BUMPER<VG7> ID=16.2	0-91510-516-0	04	1	0701-		●
239	WASHER; PL,BRKT REINFORCEMENT BUMPER<VG7>	9-09160-716-0	04	1	9903-0612	●	●
239	WASHER; PL,BRKT REINFORCEMENT BUMPER<VG7> ID=17 OD=30	0-91610-516-0	04	1	0701-		●
301	BOLT; HOOK TO FRAME (D) M16X147	5-51361-003-3	02	1	9601-9803	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> (D) M16X147	5-51361-003-3	02	1	9601-9803		●
301	BOLT; HOOK TO FRAME (B) M16X70	0-10811-670-0	01	1	9804-0208	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> (B) M16X70	0-10811-670-0	01	1	9804-0208		●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> (B) M16X70	0-10811-670-0	01	1	0209-0512	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> EXC. BUMPER W/HEADLAMPS<SLB> (B) M16X70	0-10811-670-0	01	1	0209-0512		●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> (B) M16X70	0-10861-670-0	01	1	0601-	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> EXC. BUMPER W/HEADLAMPS<SLB> (B) M16X70	0-10861-670-0	01	1	0601-		●
301	BOLT; HOOK TO FRAME (A) M16X60	0-10811-660-0	01	1	9804-0208	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> (A) M16X60	0-10811-660-0	01	1	9804-0208		●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> (A) M16X60	0-10811-660-0	01	1	0209-0512	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> EXC. BUMPER W/HEADLAMPS<SLB> (A) M16X60	0-10811-660-0	01	1	0209-0512		●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> (A) M16X60	0-10861-660-0	01	1	0601-	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> EXC. BUMPER W/HEADLAMPS<SLB> (A) M16X60	0-10861-660-0	01	1	0601-		●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> (C) M16X80	0-10811-680-0	02	1	9601-0208		●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> TOW HOOK<V76> (C) M16X80	0-10811-680-0	02	1	0209-0512		●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> TOW HOOK<V76> (C) M16X80	0-10861-680-0	02	1	0601-		●

301 114 139 96 613 152 84 97 98 93 94 93 94 53 45 1 30 17 244 53 48 42 612 17 244 34 4 29 30 32 3 43 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT (A) WHITE	1-71210-661-0	01	1	9601-9902	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB> (A) WHITE	1-71210-661-0	01	1	9601-9902		●
1	BUMPER ASM; FRT (A) WHITE	1-71210-661-0	01	1	9903-0004	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) WHITE	1-71210-661-0	01	1	9903-0004		●
1	BUMPER ASM; FRT FRONT PANEL CARGO FACE<NGD> EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) WHITE	1-71210-661-2	01	1	0005-	●	●
1	BUMPER ASM; FRT EXC. FRONT PANEL CARGO FACE<NGD>,BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) WHITE	1-71210-846-3	01	1	0005-	●	●
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (B)	1-71210-691-0	01	1	9601-9803		●
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (B)	1-71210-843-1	01	1	9804-		●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (C)	1-71210-918-2	01	1	9903-	●	●
3	BUMPER; FRT,SIDE BUMPER W/HEADLAMPS<SLB>	1-71210-642-0	01	1	9804-		●
3	BUMPER; FRT,SIDE BUMPER W/HEADLAMPS<SLB>	1-71210-641-0	01	1	9804-		●
4	NUT; CTR BUMPER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	06	1	9804-0602		●
4	NUT; CTR BUMPER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91180-108-0	06	1	0603-		●
17	PROTECTOR; FRT BUMPER BUMPER W/HEADLAMPS<SLB>	1-71260-178-0	02	1	9804-		●
26	BOLT; CTR BUMPER BUMPER W/HEADLAMPS<SLB>	1-09060-008-0	06	1	9804-		●
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> ID=8.4 OD=22	9-09160-708-0	06	1	9804-0605		●
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> ID=8.4 OD=22	0-91610-708-0	06	1	0606-		●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	9601-9902	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71230-208-3	01	1	9601-9902		●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-208-3	01	1	9903-0612	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-208-3	01	1	9903-0612		●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	0701-	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-208-3	01	1	0701-		●
30	BRACKET; FRT BUMPER (A)	1-71230-207-3	01	1	9601-9902	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71230-207-3	01	1	9601-9902		●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-207-3	01	1	9903-0111	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-207-3	01	1	9903-0111		●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-568-1	01	1	0112-0612	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-568-1	01	1	0112-0612		●
30	BRACKET; FRT BUMPER (A)	1-71230-568-1	01	1	0701-	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-568-1	01	1	0701-		●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (D)	1-71230-138-0	01	1	9903-0612	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (D)	1-71230-138-0	01	1	0701-		●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (D)	1-71230-130-0	01	1	9903-0612	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (D)	1-71230-130-0	01	1	0701-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-320-1	01	1	9601-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-352-1	01	1	9601-9606		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-426-0	01	1	9607-0210		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-576-0	01	1	0211-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-321-1	01	1	9601-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-353-1	01	1	9601-9606		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-427-0	01	1	9607-0210		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-577-0	01	1	0211-		●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28081-030-0	06	1	9601-9606	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10X30 FLANGE	0-28081-030-0	06	1	9601-9606		●
32	BOLT; BRKT,BUMPER M10X35 FLANGE	0-28681-035-0	06	1	9607-9608	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10X35 FLANGE	0-28681-035-0	06	1	9607-9608		●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	9609-9902	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10X30 FLANGE	0-28681-030-0	06	1	9609-9902		●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28681-030-0	06	1	9903-0512	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28681-030-0	06	1	9903-0512		●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28651-030-0	06	1	0601-0612	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28651-030-0	06	1	0601-0612		●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	06	1	0701-	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28651-030-0	06	1	0701-		●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X50	0-20801-650-0	04	1	9903-0512	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X50	0-20851-650-0	04	1	0601-0612	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X50	0-20851-650-0	04	1	0701-		●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X30 FLANGE	0-28081-030-0	08	1	9601-9606		●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X35 FLANGE	0-28681-035-0	08	1	9607-0409		●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X30 FLANGE	0-28681-030-0	08	1	0410-0512		●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X30 FLANGE	0-28651-030-0	08	1	0601-		●
34	NUT; BRKT,BUMPER M10	9-09110-510-0	06	1	9601-9606	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10	9-09110-510-0	06	1	9601-9606		●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91150-210-0	06	1	9607-9902	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-210-0	06	1	9607-9902		●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	06	1	9903-0602	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	06	1	9903-0602		●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0603-0612	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0603-0612		●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	06	1	0701-	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0701-		●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	04	1	9903-0512	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	0-91110-516-0	04	1	0601-0612	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	0-91110-516-0	04	1	0701-		●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14 FLANGE	0-91150-114-0	04	1	9601-0409		●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14	9-99110-514-0	04	1	0410-0512		●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14	0-91110-514-0	04	1	0601-		●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	06	1	9903-0612	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	06	1	0701-		●
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X20 FLANGE	0-28081-020-0	06	1	9601-0210		●
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE	0-28681-025-0	06	1	0211-0212		●
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE	0-28681-025-0	07	1	0301-0512		●
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE	0-28651-025-0	07	1	0601-		●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-110-0	06	1	9601-9606	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-110-0	06	1	9601-9606		●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	9607-9902	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-210-0	06	1	9607-9902		●
43	NUT; BRKT TO BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	06	1	9903-0602	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	06	1	9903-0602		●
43	NUT; BRKT TO BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0603-0612	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0603-0612		●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	06	1	0701-	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0701-		●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	06	1	9903-0612	●	●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	06	1	0701-		●
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> M10 CAP NUT	1-09650-480-0	08	1	9601-		●
45	BRACKET; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB>	1-71230-350-1	02	1	9601-		●
48	BOLT; SUPPORT BUMPER W/HEADLAMPS<SLB> M10X16 FLANGE	0-28081-016-0	04	1	9601-0512		●
48	BOLT; SUPPORT BUMPER W/HEADLAMPS<SLB> M10X16 FLANGE	0-28051-016-0	04	1	0601-		●
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> (A) M10X20 FLANGE	0-28081-020-0	08	1	9601-9606		●
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> (A) M10X25 FLANGE	0-28681-025-0	08	1	9607-0512		●
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> (A) M10X25 FLANGE	0-28651-025-0	08	1	0601-		●
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> (B) M14X35	0-28081-435-0	04	1	9601-0409		●
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> (B) M14X40	0-20801-440-0	04	1	0410-0512		●
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> (B) M14X40	0-20851-440-0	04	1	0601-		●
84	HOOK	1-57181-027-1	01	1	9601-0208	●	●
84	HOOK TOW HOOK<V76>	1-57181-027-1	01	1	0209-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9601-0208	●	●
93	WASHER; LK,HOOK TOW HOOK<V76> ID=16.2	9-09150-516-0	02	1	0209-0603	●	●
93	WASHER; LK,HOOK TOW HOOK<V76> ID=16.2	0-91510-516-0	02	1	0604-	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	9601-0206	●	●
94	NUT; HOOK M16	9-99110-516-0	02	1	0207-0208	●	●
94	NUT; HOOK TOW HOOK<V76> M16	9-99110-516-0	02	1	0209-0512	●	●
94	NUT; HOOK TOW HOOK<V76> M16	0-91110-516-0	02	1	0601-	●	●
96	PLATE; DIST,HOOK	1-57189-193-0	01	1	9601-9803	●
96	PLATE; DIST,HOOK EXC. BUMPER W/HEADLAMPS<SLB>	1-57189-193-0	01	1	9601-9803		●
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7>	9-09857-022-0	01	1	9903-0208	●	●
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7> TOW HOOK<V76>	9-09857-022-0	01	1	0209-0612	●	●
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7> TOW HOOK<V76>	9-09857-022-0	01	1	0701-		●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>	1-57189-190-0	01	1	9601-9701		●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>	1-53497-595-0	01	1	9702-0208		●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> TOW HOOK<V76>	1-53497-595-0	01	1	0209-		●
97	SPRING; FRT HOOK	9-53519-003-0	01	1	9601-9803	●	●
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	9804-0208		●
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB> TOW HOOK<V76>	9-53519-003-0	01	1	0209-		●
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	9601-9803	●	●
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	9804-0208		●
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB> TOW HOOK<V76>	9-53519-006-0	01	1	0209-		●
114	BOLT BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE	0-28680-820-0	02	1	0410-0512		●
114	BOLT BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
139	NUT; BRKT FIX BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	02	1	0410-0602		●
139	NUT; BRKT FIX BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91180-108-0	02	1	0603-		●
152	PLATE; FRT BUMPER BUMPER W/HEADLAMPS<SLB>	1-53497-544-1	02	1	9601-		●
244	WASHER; LK,BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> ID=14.2	9-09150-814-0	08	1	0410-0603		●
244	WASHER; LK,BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> ID=14.2	0-91510-814-0	08	1	0604-		●
301	BOLT; HOOK TO FRAME (D) M16X147	5-51361-003-3	02	1	9601-9803	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> (D) M16X147	5-51361-003-3	02	1	9601-9803		●
301	BOLT; HOOK TO FRAME (B) M16X70	0-10811-670-0	01	1	9804-0208	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> (B) M16X70	0-10811-670-0	01	1	9804-0208		●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> (B) M16X70	0-10811-670-0	01	1	0209-0512	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> EXC. BUMPER W/HEADLAMPS<SLB> (B) M16X70	0-10811-670-0	01	1	0209-0512		●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> (B) M16X70	0-10861-670-0	01	1	0601-	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> EXC. BUMPER W/HEADLAMPS<SLB> (B) M16X70	0-10861-670-0	01	1	0601-		●
301	BOLT; HOOK TO FRAME (A) M16X60	0-10811-660-0	01	1	9804-0208	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> (A) M16X60	0-10811-660-0	01	1	9804-0208		●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> (A) M16X60	0-10811-660-0	01	1	0209-0512	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> EXC. BUMPER W/HEADLAMPS<SLB> (A) M16X60	0-10811-660-0	01	1	0209-0512		●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> (A) M16X60	0-10861-660-0	01	1	0601-	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> EXC. BUMPER W/HEADLAMPS<SLB> (A) M16X60	0-10861-660-0	01	1	0601-		●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> (C) M16X80	0-10811-680-0	02	1	9601-0208		●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> TOW HOOK<V76> (C) M16X80	0-10811-680-0	02	1	0209-0512		●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> TOW HOOK<V76> (C) M16X80	0-10861-680-0	02	1	0601-		●
612	SUPPORT BUMPER W/HEADLAMPS<SLB>	1-71230-351-0	02	1	9601-		●
613	CLIP BUMPER W/HEADLAMPS<SLB> OD=9 H=17.5	1-09709-181-0	02	1	9602-0409		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
