◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10701 - FSR(LHD) EXC.EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#38319) — 58 parça

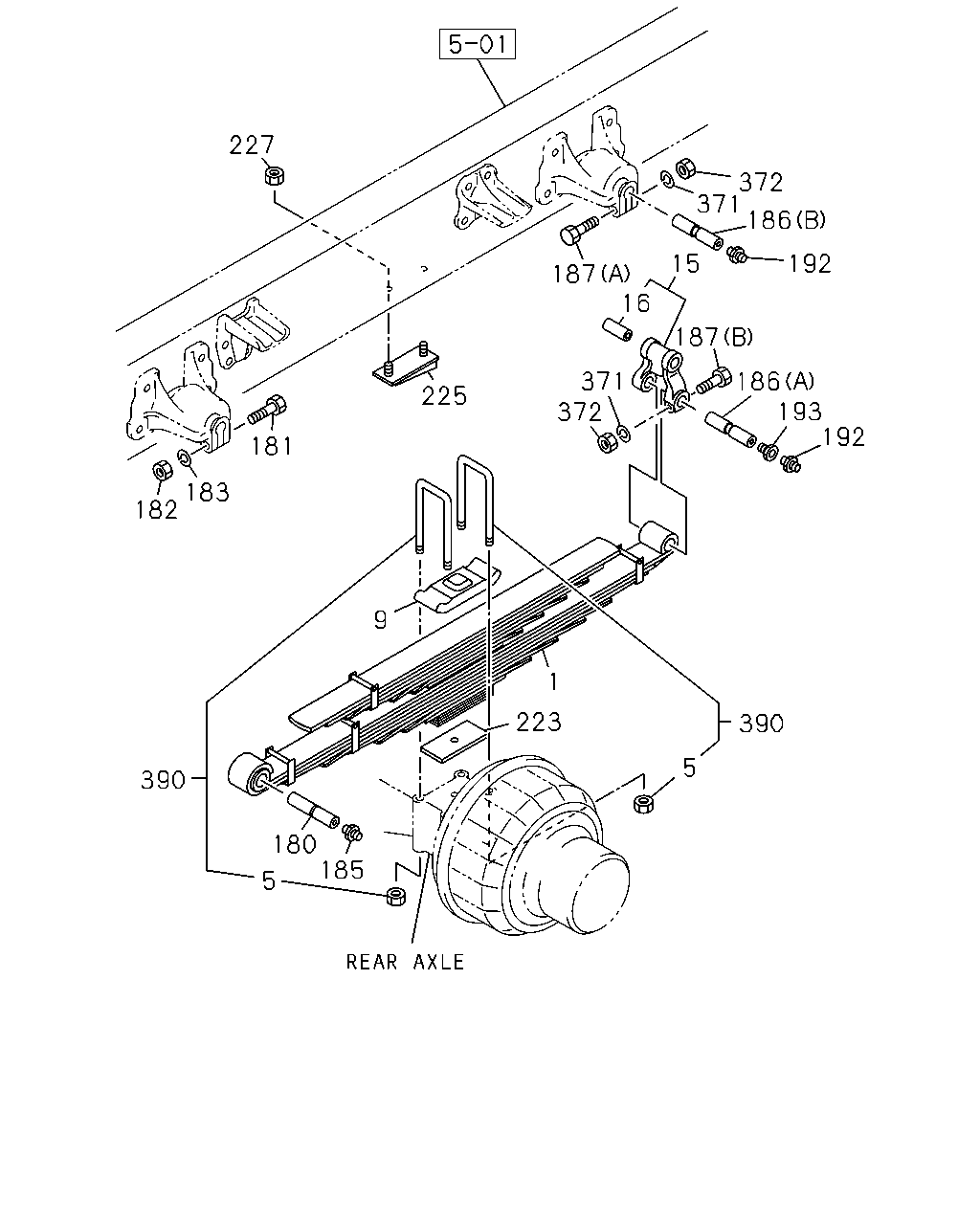

çizim 151780
227 372 371 186 192 15 187 16 187 371 372 186 193 192 225 181 183 182 9 1 223 390 5 390 180 185 5
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR2(F41) 13-LEAF 		1-51300-333-2 02 1 9510-
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY VAR2(F41) 14-LEAF 		1-51300-524-1 02 1 9510-
5 NUT; U-BOLT,RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) M24 		9-99112-824-0 08 1 9510-0512
5 NUT; U-BOLT,RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) M24 		0-91112-824-0 08 1 0601-
5 NUT; U-BOLT,RR SPR
EXC. SUSPENSION HEAVY DUTY VAR2(F41) M18 FLANGE 		1-09440-039-1 08 1 9510-
9 PAD; U BOLT,RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) 		1-51372-048-1 02 1 9510-
9 PAD; U BOLT,RR SPR
EXC. SUSPENSION HEAVY DUTY VAR2(F41) 		1-51372-059-0 02 1 9510-
15 SHACKLE; RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) 		1-51362-049-2 02 1 9510-
15 SHACKLE; RR SPR
EXC. SUSPENSION HEAVY DUTY VAR2(F41) 		1-51362-038-2 02 1 9510-
16 BUSHING; SHACKLE,RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) 		9-51351-019-2 02 1 9510-0902
16 BUSHING; SHACKLE,RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) 		8-98081-830-0 02 1 0903-
16 BUSHING; SHACKLE,RR SPR
EXC. SUSPENSION HEAVY DUTY VAR2(F41) ID=25 		9-51151-032-0 02 1 9510-0902
16 BUSHING; SHACKLE,RR SPR
EXC. SUSPENSION HEAVY DUTY VAR2(F41) ID=25 		8-98082-176-0 02 1 0903-
16 BUSHING; SHACKLE,RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) BEST VALUE PARTS 		1-87610-163-0 02 1 0903-
180 PIN; RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) DO=28 L=131 PT1/8 		1-51361-015-0 02 1 9510-
180 PIN; RR SPR
EXC. SUSPENSION HEAVY DUTY VAR2(F41) DO=25 L=115 PT1/8 		1-51361-016-0 02 1 9510-
181 BOLT; SPR & SHACKLE
SUSPENSION HEAVY DUTY VAR2(F41) M14X65 		0-10811-465-0 02 1 9510-
181 BOLT; SPR & SHACKLE
EXC. SUSPENSION HEAVY DUTY VAR2(F41) M12X55 		0-10811-255-0 02 1 9510-
182 NUT; PIN,RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) M14 		9-99110-414-0 02 1 9510-0512
182 NUT; PIN,RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) M14 		0-91110-514-0 02 1 0601-
182 NUT; PIN,RR SPR
EXC. SUSPENSION HEAVY DUTY VAR2(F41) M12 		9-99110-512-0 02 1 9510-0512
182 NUT; PIN,RR SPR
EXC. SUSPENSION HEAVY DUTY VAR2(F41) M12 		0-91110-512-0 02 1 0601-
183 WASHER; LK,PIN,RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) ID=14.2 		9-09150-514-0 02 1 9510-0603
183 WASHER; LK,PIN,RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) ID=14.2 		0-91510-514-0 02 1 0604-
183 WASHER; LK,PIN,RR SPR
EXC. SUSPENSION HEAVY DUTY VAR2(F41) ID=12.2 		9-09150-612-0 02 1 9510-0603
183 WASHER; LK,PIN,RR SPR
EXC. SUSPENSION HEAVY DUTY VAR2(F41) ID=12.2 		0-91510-612-0 02 1 0604-
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9510-0512
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601-
186 PIN; SHACKLE,RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) (A),(B) DO=28 L=131 PT1/8 		1-51361-015-0 04 1 9510-
186 PIN; SHACKLE,RR SPR
EXC. SUSPENSION HEAVY DUTY VAR2(F41) (A) DO=25 L=115 PT1/8 		1-51361-016-0 02 1 9510-
186 PIN; SHACKLE,RR SPR
EXC. SUSPENSION HEAVY DUTY VAR2(F41) (B) DO=25 L=115 M12 		1-51361-017-0 02 1 9510-
187 BOLT; SPR & SHACKLE
SUSPENSION HEAVY DUTY VAR2(F41) (A),(B) M14X65 		0-10811-465-0 04 1 9510-
187 BOLT; SPR & SHACKLE
EXC. SUSPENSION HEAVY DUTY VAR2(F41) (A),(B) M12X65 		0-10811-265-0 04 1 9510-9701
187 BOLT; SPR & SHACKLE
EXC. SUSPENSION HEAVY DUTY VAR2(F41) (B) M12X65 		0-10811-265-0 02 1 9702-
187 BOLT; SPR & SHACKLE
EXC. SUSPENSION HEAVY DUTY VAR2(F41) (A) M12X55 		0-10811-255-0 02 1 9702-
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9510-0512
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601-
193 ATTACHMENT; GREASE NIPPLE
EXC. SUSPENSION HEAVY DUTY VAR2(F41) 		9-43165-001-0 02 1 9510-
223 SPACER; U BOLT,RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) 		1-51377-166-0 02 1 9510-
223 SPACER; U BOLT,RR SPR
WHEEL BASE 3700MM(37W) 		1-51377-333-1 02 1 9510-0612
223 SPACER; U BOLT,RR SPR
6HE1 TCC ENG(76L) WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<THN> EXC. SUSPENSION HEAVY DUTY VAR2(F41) 		1-51377-333-1 02 1 0701-
223 SPACER; U BOLT,RR SPR
WHEEL BASE 3700MM(37W) 		1-51377-333-1 02 1 0701-
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. SUSPENSION HEAVY DUTY VAR2(F41) 		1-51377-329-1 02 1 9510-0612
223 SPACER; U BOLT,RR SPR
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L) WHEEL BASE 4200MM(42W) EXC. SUSPENSION HEAVY DUTY VAR2(F41) 		1-51377-329-1 02 1 0701-
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4800MM(48W) EXC. SUSPENSION HEAVY DUTY VAR2(F41) 		1-51377-329-1 02 1 0701-
225 RUBBER; CUSHION,RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) 		1-53366-102-1 02 1 9510-0106
227 NUT; CUSHION RUBBER
SUSPENSION HEAVY DUTY VAR2(F41) M10 		9-09110-510-0 04 1 9510-9611
227 NUT; CUSHION RUBBER
SUSPENSION HEAVY DUTY VAR2(F41) M10 FLANGE 		0-91150-210-0 04 1 9612-0106
371 WASHER; LK,SHACKLE
SUSPENSION HEAVY DUTY VAR2(F41) ID=14.2 		9-09150-514-0 04 1 9510-0603
371 WASHER; LK,SHACKLE
SUSPENSION HEAVY DUTY VAR2(F41) ID=14.2 		0-91510-514-0 04 1 0604-
371 WASHER; LK,SHACKLE
EXC. SUSPENSION HEAVY DUTY VAR2(F41) ID=12.2 		9-09150-612-0 04 1 9510-0603
371 WASHER; LK,SHACKLE
EXC. SUSPENSION HEAVY DUTY VAR2(F41) ID=12.2 		0-91510-612-0 04 1 0604-
372 NUT; SHACKLE
SUSPENSION HEAVY DUTY VAR2(F41) M14 		9-99110-414-0 04 1 9510-0512
372 NUT; SHACKLE
SUSPENSION HEAVY DUTY VAR2(F41) M14 		0-91110-514-0 04 1 0601-
372 NUT; SHACKLE
EXC. SUSPENSION HEAVY DUTY VAR2(F41) M12 		9-99110-512-0 04 1 9510-0512
372 NUT; SHACKLE
EXC. SUSPENSION HEAVY DUTY VAR2(F41) M12 		0-91110-512-0 04 1 0601-
390 U-BOLT SET; RR SPRING
SUSPENSION HEAVY DUTY VAR2(F41) L=455 		1-87870-268-1 04 1 9510-
390 U-BOLT SET; RR SPRING
EXC. SUSPENSION HEAVY DUTY VAR2(F41) L=390 		1-87870-399-0 04 1 9510-
