4-36 — POWER STEERING CONTROL; ENGINE SIDE (#38314) — 85 parça

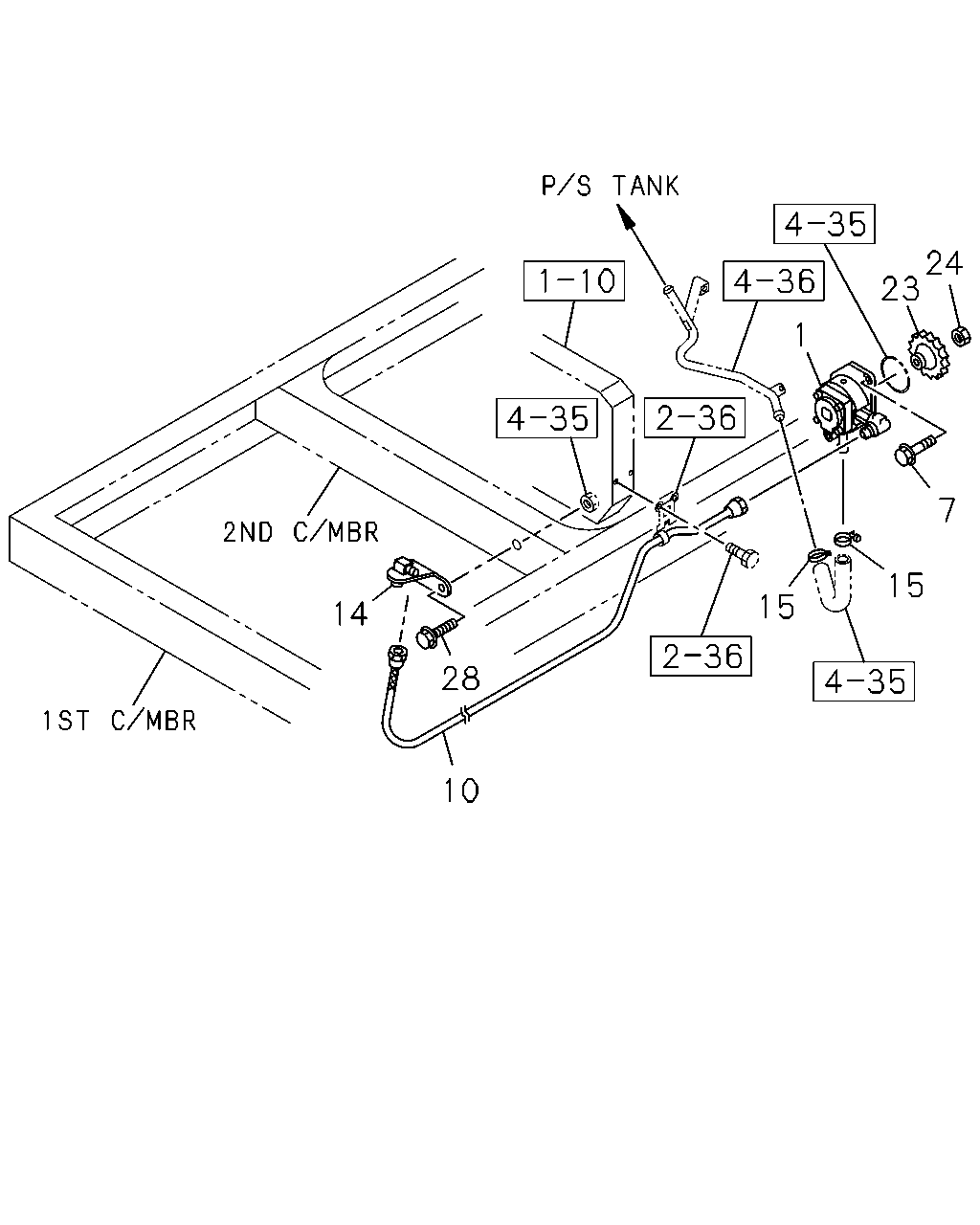

24 23 1 7 15 15 14 28 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-465-0	01	1	9510-9709
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TCC ENG(76L)	1-19500-466-0	01	1	9710-9710
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L)	1-19500-465-0	01	1	9710-9710
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-465-0	01	1	9711-0009
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L)	1-19500-465-0	01	1	0010-0202
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	1-19500-465-0	01	1	0010-0202
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L)	1-19500-589-1	01	1	0203-1112
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	1-19500-589-1	01	1	0203-1112
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L)	8-98202-666-0	01	1	1201-
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	8-98202-666-0	01	1	1201-
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	1-19500-538-2	01	1	0011-
7	BOLT; OIL PUMP,P/S M10X55 FLANGE	8-94399-863-1	02	1	9510-0208
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L) M10X55 FLANGE	8-94399-863-1	02	1	0209-0805
7	BOLT; OIL PUMP,P/S 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-94399-863-1	02	1	0209-0805
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L) M10X55 FLANGE	8-97365-449-0	02	1	0806-1007
7	BOLT; OIL PUMP,P/S 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-97365-449-0	02	1	0806-1007
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) M10X55 FLANGE	8-97365-449-0	02	1	1008-
7	BOLT; OIL PUMP,P/S 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-97365-449-0	02	1	1008-
10	HOSE; FLEX,P/S OIL PUMP,INL L=810	1-09364-808-2	01	1	9510-9802
10	HOSE; FLEX,P/S OIL PUMP,INL L=820	1-09364-931-0	01	1	9803-0004
10	HOSE; FLEX,P/S OIL PUMP,INL L=820	1-09365-128-0	01	1	0005-
14	UNION; FLEX HOSE,P/S	1-47470-394-3	01	1	9510-
15	CLIP; OIL PIPE SUCTION ID=32	1-09704-085-0	02	1	9510-0009
15	CLIP; OIL PIPE SUCTION 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) ID=32	1-09704-085-0	02	1	0010-
15	CLIP; OIL PIPE SUCTION 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> ID=32	1-09704-085-0	02	1	0010-
15	CLIP; OIL PIPE SUCTION 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	1-09701-210-0	02	1	0011-
23	GEAR; OIL PUMP Z=30	8-94396-957-3	01	1	9510-0009
23	GEAR; OIL PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) Z=30	8-94396-957-3	01	1	0010-
23	GEAR; OIL PUMP 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> Z=30	8-94396-957-3	01	1	0010-
23	GEAR; OIL PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> Z=30	8-94390-842-1	01	1	0011-
24	NUT; GEAR,P/S PUMP M14 FLANGE	0-91150-114-0	01	1	9510-0009
24	NUT; GEAR,P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) M14 FLANGE	0-91150-114-0	01	1	0010-0712
24	NUT; GEAR,P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M14 FLANGE	0-91150-114-0	01	1	0010-0712
24	NUT; GEAR,P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) M14 FLANGE	0-91180-114-0	01	1	0801-
24	NUT; GEAR,P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M14 FLANGE	0-91180-114-0	01	1	0801-
24	NUT; GEAR,P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M12 FLANGE	0-91150-112-0	01	1	0011-0602
24	NUT; GEAR,P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M12 FLANGE	0-91180-112-0	01	1	0603-
28	BOLT; BRKT,FLEX HOSE,P/S M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
28	BOLT; BRKT,FLEX HOSE,P/S M8X25 FLANGE	0-28680-825-0	02	1	9607-9801
28	BOLT; BRKT,FLEX HOSE,P/S M8X20 FLANGE	0-28680-820-0	02	1	9802-0512
28	BOLT; BRKT,FLEX HOSE,P/S M8X20 FLANGE	0-28650-820-0	02	1	0601-

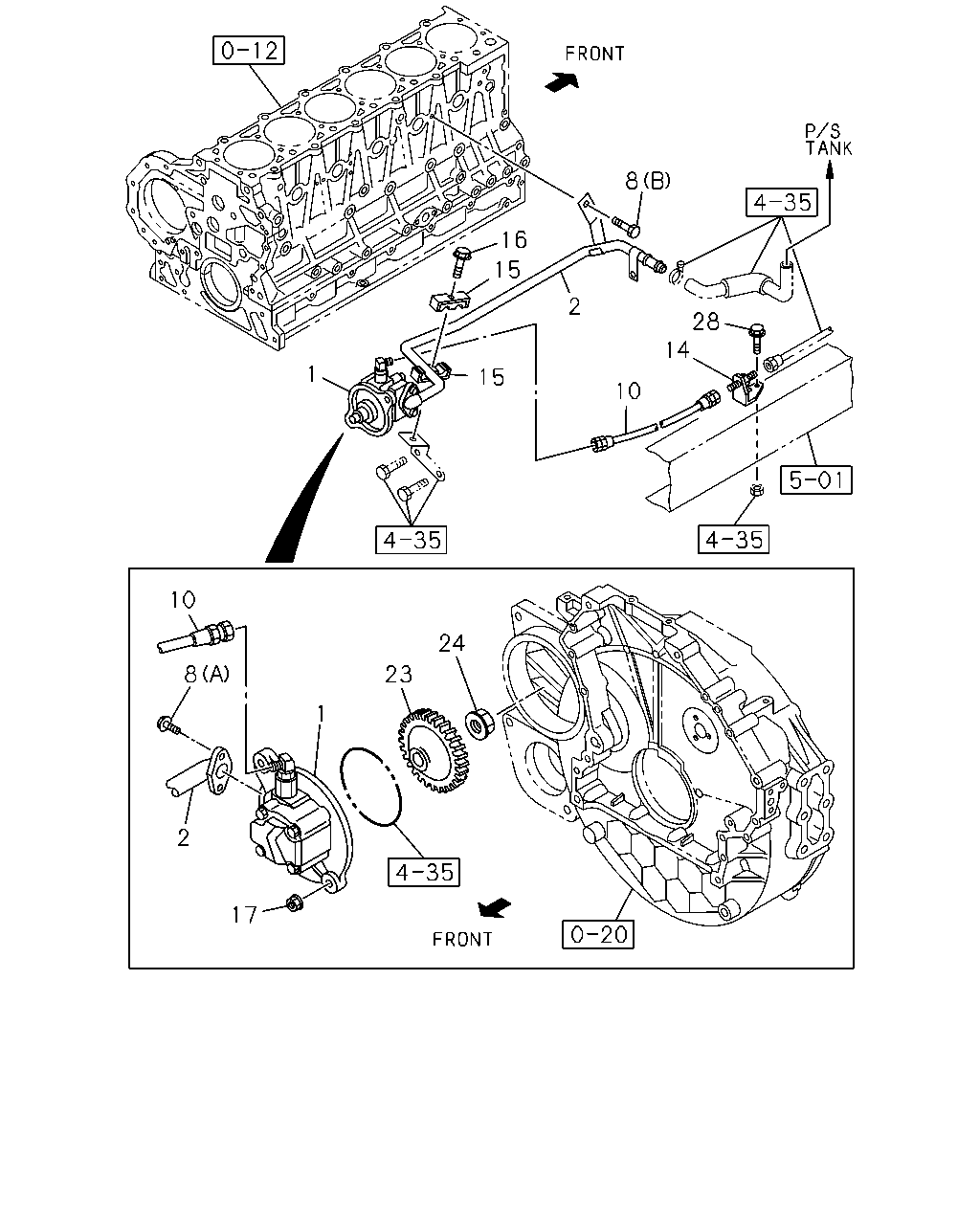

8 16 15 2 28 14 1 15 10 10 24 8 23 1 2 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-465-0	01	1	9510-9709
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TCC ENG(76L)	1-19500-466-0	01	1	9710-9710
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L),6HH1 N ENG(66L)	1-19500-465-0	01	1	9710-9710
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-465-0	01	1	9711-0009
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L)	1-19500-465-0	01	1	0010-0202
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	1-19500-465-0	01	1	0010-0202
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L)	1-19500-589-1	01	1	0203-1112
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	1-19500-589-1	01	1	0203-1112
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L)	8-98202-666-0	01	1	1201-
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	8-98202-666-0	01	1	1201-
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	1-19500-538-2	01	1	0011-
2	PIPE ASM; OIL,SUCTION 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	8-97600-079-1	01	1	0011-0207
2	PIPE ASM; OIL,SUCTION 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	8-97602-615-0	01	1	0208-
8	BOLT; OIL PIPE 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE	0-28080-816-0	01	1	0011-0512
8	BOLT; OIL PIPE 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-
8	BOLT; OIL PIPE 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X30 FLANGE	0-28080-830-0	02	1	0011-0512
8	BOLT; OIL PIPE 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X30 FLANGE	0-28050-830-0	02	1	0601-
10	HOSE; FLEX,P/S OIL PUMP,INL L=810	1-09364-808-2	01	1	9510-9802
10	HOSE; FLEX,P/S OIL PUMP,INL L=820	1-09364-931-0	01	1	9803-0004
10	HOSE; FLEX,P/S OIL PUMP,INL L=820	1-09365-128-0	01	1	0005-
14	UNION; FLEX HOSE,P/S	1-47470-394-3	01	1	9510-
15	CLIP; OIL PIPE SUCTION ID=32	1-09704-085-0	02	1	9510-0009
15	CLIP; OIL PIPE SUCTION 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) ID=32	1-09704-085-0	02	1	0010-
15	CLIP; OIL PIPE SUCTION 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> ID=32	1-09704-085-0	02	1	0010-
15	CLIP; OIL PIPE SUCTION 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	1-09701-210-0	02	1	0011-
16	BOLT; STAY,P/S OIL PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M6X45 FLANGE	0-28080-645-0	01	1	0011-0512
16	BOLT; STAY,P/S OIL PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M6X45 FLANGE	0-28050-645-0	01	1	0601-
17	NUT; POWER STRG PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M10 FLANGE	0-91150-110-0	02	1	0011-0602
17	NUT; POWER STRG PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M10 FLANGE	0-91180-110-0	02	1	0603-
23	GEAR; OIL PUMP Z=30	8-94396-957-3	01	1	9510-0009
23	GEAR; OIL PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) Z=30	8-94396-957-3	01	1	0010-
23	GEAR; OIL PUMP 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> Z=30	8-94396-957-3	01	1	0010-
23	GEAR; OIL PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> Z=30	8-94390-842-1	01	1	0011-
24	NUT; GEAR,P/S PUMP M14 FLANGE	0-91150-114-0	01	1	9510-0009
24	NUT; GEAR,P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) M14 FLANGE	0-91150-114-0	01	1	0010-0712
24	NUT; GEAR,P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M14 FLANGE	0-91150-114-0	01	1	0010-0712
24	NUT; GEAR,P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) M14 FLANGE	0-91180-114-0	01	1	0801-
24	NUT; GEAR,P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M14 FLANGE	0-91180-114-0	01	1	0801-
24	NUT; GEAR,P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M12 FLANGE	0-91150-112-0	01	1	0011-0602
24	NUT; GEAR,P/S PUMP 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M12 FLANGE	0-91180-112-0	01	1	0603-
28	BOLT; BRKT,FLEX HOSE,P/S M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
28	BOLT; BRKT,FLEX HOSE,P/S M8X25 FLANGE	0-28680-825-0	02	1	9607-9801
28	BOLT; BRKT,FLEX HOSE,P/S M8X20 FLANGE	0-28680-820-0	02	1	9802-0512
28	BOLT; BRKT,FLEX HOSE,P/S M8X20 FLANGE	0-28650-820-0	02	1	0601-
