4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#38313) — 129 parça

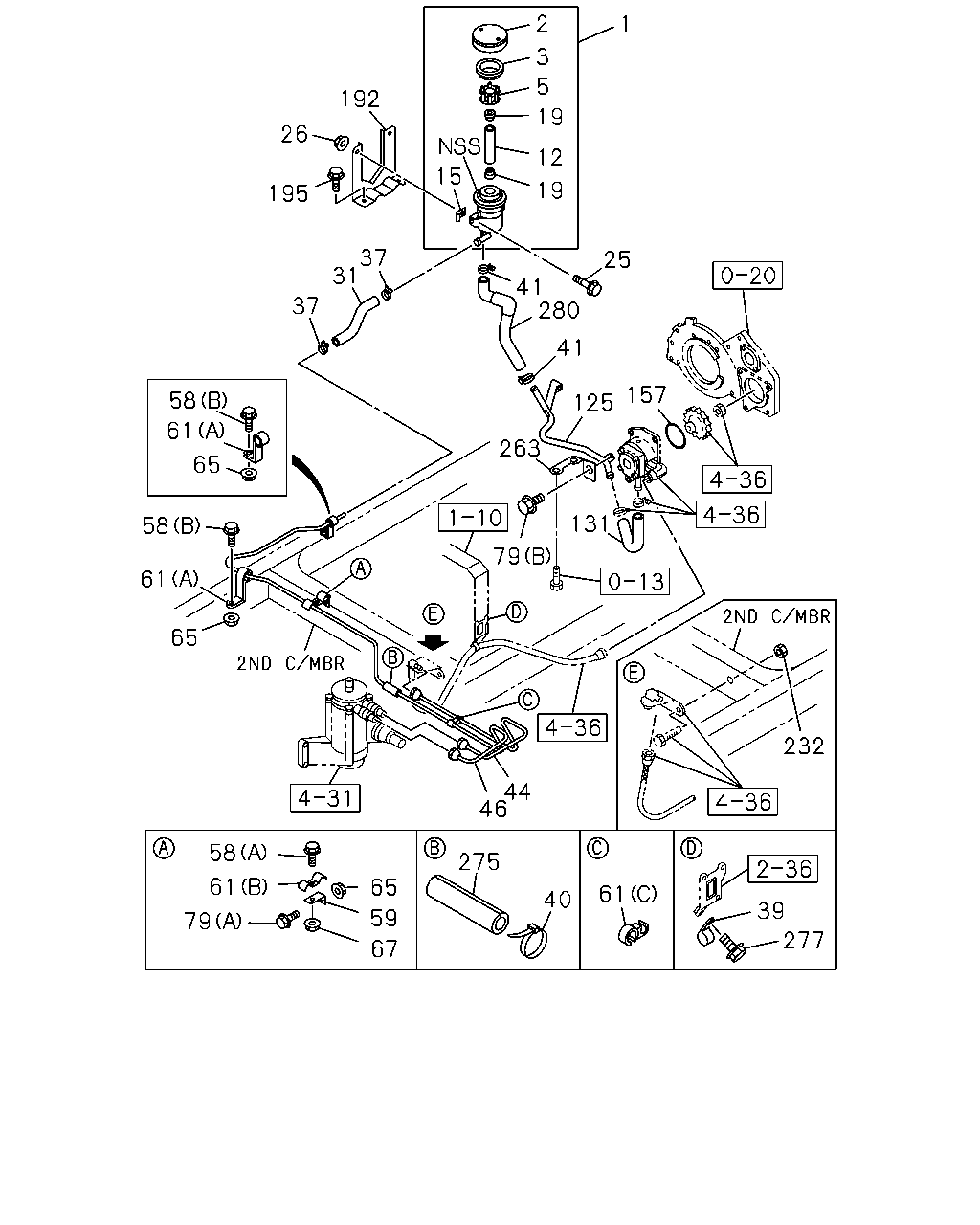

çizim 151764
2 1 3 5 192 19 26 12 15 19 195 37 31 25 41 280 37 41 157 58 125 61 263 65 131 58 79 61 65 232 44 46 58 275 61 65 61 40 39 59 79 277 67
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 9510-0508
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0509-1006
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1007-
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 9510-1006
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007-
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 9510-
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 9510-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 9510-
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 9510-0508
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0509-
19 SEAT; OIL TANK 1-21249-004-0 02 1 9510-
25 BOLT; OIL TANK BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0512
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
26 NUT; OIL TANK TO BRKT
M8 		9-09110-408-0 02 1 9510-9606
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0602
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 0404-
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 9510-0403
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 9510-
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 9510-
40 CLIP; BAND
L=140 		5-09707-031-1 02 1 9901-
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 9510-
44 PIPE; OIL,P/S UNIT TO NIPPLE
FRONT AXLE F049(FS4) 		1-21115-428-0 01 1 9510-9901
44 PIPE; OIL,P/S UNIT TO NIPPLE
FRONT AXLE F049(FS4) 		1-21116-342-0 01 1 9902-
44 PIPE; OIL,P/S UNIT TO NIPPLE
EXC. FRONT AXLE F049(FS4) 		1-21115-426-0 01 1 9510-9901
44 PIPE; OIL,P/S UNIT TO NIPPLE
EXC. FRONT AXLE F049(FS4) 		1-21116-341-0 01 1 9902-
46 PIPE; OIL,P/S UNIT TO OIL TANK
FRONT AXLE F049(FS4) 		1-21115-429-0 01 1 9510-9712
46 PIPE; OIL,P/S UNIT TO OIL TANK
FRONT AXLE F049(FS4) 		1-21116-022-0 01 1 9801-9802
46 PIPE; OIL,P/S UNIT TO OIL TANK
FRONT AXLE F049(FS4) 		1-21116-026-1 01 1 9803-9809
46 PIPE; OIL,P/S UNIT TO OIL TANK
FRONT AXLE F049(FS4) 		1-21116-206-0 01 1 9810-
46 PIPE; OIL,P/S UNIT TO OIL TANK
EXC. FRONT AXLE F049(FS4) 		1-21115-427-0 01 1 9510-9712
46 PIPE; OIL,P/S UNIT TO OIL TANK
EXC. FRONT AXLE F049(FS4) 		1-21116-021-0 01 1 9801-9802
46 PIPE; OIL,P/S UNIT TO OIL TANK
EXC. FRONT AXLE F049(FS4) 		1-21116-025-1 01 1 9803-9809
46 PIPE; OIL,P/S UNIT TO OIL TANK
EXC. FRONT AXLE F049(FS4) 		1-21116-205-0 01 1 9810-
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606
58 BOLT; CLIP
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9802
58 BOLT; CLIP
(A),(B) M8X25 FLANGE 		0-28680-825-0 03 1 9803-0512
58 BOLT; CLIP
(A),(B) M8X25 FLANGE 		0-28650-825-0 03 1 0601-
58 BOLT; CLIP
(B) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606
58 BOLT; CLIP
(B) M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 9510-
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 02 1 9510-
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 9510-
61 CLIP; OIL PIPE
(C) ID=12 & 15 		1-09709-281-1 01 1 9510-
65 NUT; BRKT
M8 		9-09110-408-0 03 1 9510-9606
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 9607-0602
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603-
67 NUT; BRKT
M8 		9-09110-408-0 01 1 9510-9606
67 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9607-0602
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
79 BOLT; BRKT
(B) M8X12 FLANGE 		0-28080-812-0 02 1 9510-0009
79 BOLT; BRKT
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) (B) M8X12 FLANGE 		0-28080-812-0 02 1 0010-0512
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE 		0-28080-812-0 02 1 0010-0512
79 BOLT; BRKT
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) (B) M8X12 FLANGE 		0-28050-812-0 02 1 0601-
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE 		0-28050-812-0 02 1 0601-
79 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606
79 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9801
79 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9802-0512
79 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M10X16 FLANGE 		0-28181-016-0 01 1 0011-0512
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M10X16 FLANGE 		0-28151-016-0 01 1 0601-
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M14X20 FLANGE 		0-28881-420-0 01 1 0011-0512
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M14X20 FLANGE 		0-28851-420-0 01 1 0601-
125 CONNECTOR; P/S PUMP 8-94394-319-0 01 1 9510-9605
125 CONNECTOR; P/S PUMP 8-94390-310-0 01 1 9606-9802
125 CONNECTOR; P/S PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94394-319-1 01 1 9803-9901
125 CONNECTOR; P/S PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ANTI NOISE EQUIPMENT VAR2<TAK> 		8-97600-115-0 01 1 9902-9907
125 CONNECTOR; P/S PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> 		8-97600-115-0 01 1 9908-0004
125 CONNECTOR; P/S PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> ANTI NOISE EQUIPMENT ECE<SLK> 		8-97600-115-0 01 1 0005-0212
125 CONNECTOR; P/S PUMP
6HH1 STD ENG(65L) ANTI NOISE EQUIPMENT ECE<SLK> 		8-97600-115-0 01 1 0301-
125 CONNECTOR; P/S PUMP
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-97600-115-0 01 1 0301-
125 CONNECTOR; P/S PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94390-310-0 01 1 9803-9901
125 CONNECTOR; P/S PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94390-310-0 01 1 9803-9901
125 CONNECTOR; P/S PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-97600-113-0 01 1 9902-9911
125 CONNECTOR; P/S PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ANTI NOISE EQUIPMENT VAR2<TAK> 		8-97600-113-0 01 1 9902-9911
125 CONNECTOR; P/S PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,ANTI NOISE EQUIPMENT ECE<SLK> 		8-97600-113-0 01 1 9912-0205
125 CONNECTOR; P/S PUMP
6HH1 STD ENG(65L),6HH1 N ENG(66L) EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		8-97600-113-0 01 1 0206-
125 CONNECTOR; P/S PUMP
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 		8-97600-113-0 01 1 0206-
125 CONNECTOR; P/S PUMP
6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> 		8-97600-113-0 01 1 0206-
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 9510-0009
131 HOSE; RUBBER,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) 		8-94396-331-1 01 1 0010-
131 HOSE; RUBBER,P/S
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-94396-331-1 01 1 0010-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 9510-0009
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) ID=96.4 		1-09623-178-0 01 1 0010-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> ID=96.4 		1-09623-178-0 01 1 0010-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> ID=105.6 		1-09623-247-0 01 1 0011-0412
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> ID=105.6 		8-97386-295-0 01 1 0501-
192 BRACKET; P/S OIL TANK 1-21119-129-0 01 1 9510-
195 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 02 1 9510-9606
195 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 9607-0406
195 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 02 1 0407-0512
195 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 02 1 0601-
232 NUT; BRKT
M8 		9-09110-408-0 02 1 9510-9606
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0602
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
263 BRACKET; P/S PIPE 8-94393-981-0 01 1 9510-9901
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 9902-0009
263 BRACKET; P/S PIPE
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) 		8-97600-117-0 01 1 0010-
263 BRACKET; P/S PIPE
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-97600-117-0 01 1 0010-
263 BRACKET; P/S PIPE
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-97600-076-0 01 1 0011-
275 SLEEVE; RUBBER
L=1300 		1-09360-677-1 01 1 9901-
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9510-0512
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
280 HOSE; P/S OIL PUMP,INL 1-21115-230-1 01 1 9510-0004
280 HOSE; P/S OIL PUMP,INL 1-21116-695-0 01 1 0005-

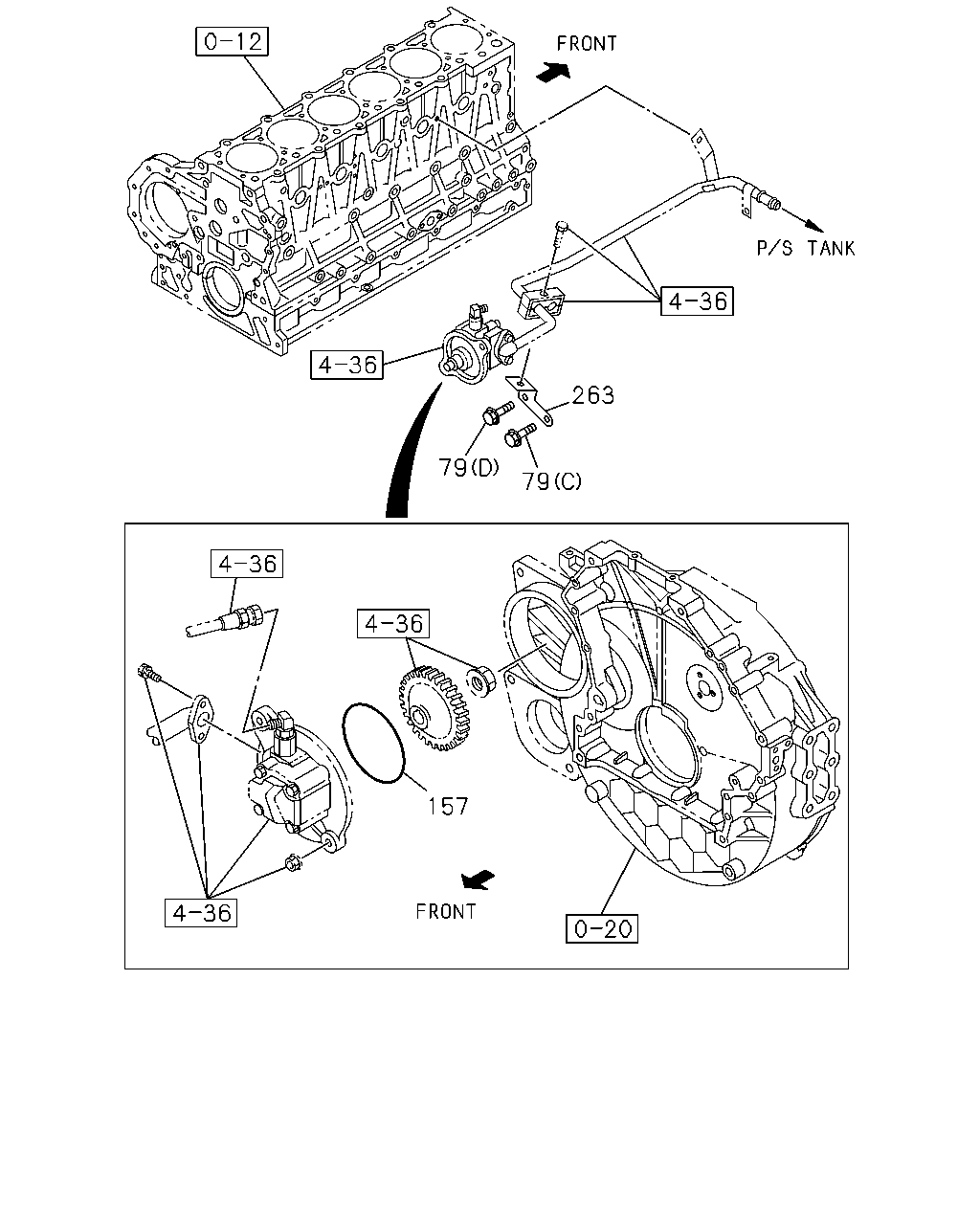

çizim 151927
263 79 79 157
BalonParca AdiParca NoAdetTipApplied Date
79 BOLT; BRKT
(B) M8X12 FLANGE 		0-28080-812-0 02 1 9510-0009
79 BOLT; BRKT
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) (B) M8X12 FLANGE 		0-28080-812-0 02 1 0010-0512
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE 		0-28080-812-0 02 1 0010-0512
79 BOLT; BRKT
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) (B) M8X12 FLANGE 		0-28050-812-0 02 1 0601-
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE 		0-28050-812-0 02 1 0601-
79 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606
79 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9801
79 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9802-0512
79 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M10X16 FLANGE 		0-28181-016-0 01 1 0011-0512
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M10X16 FLANGE 		0-28151-016-0 01 1 0601-
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M14X20 FLANGE 		0-28881-420-0 01 1 0011-0512
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M14X20 FLANGE 		0-28851-420-0 01 1 0601-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 9510-0009
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) ID=96.4 		1-09623-178-0 01 1 0010-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> ID=96.4 		1-09623-178-0 01 1 0010-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> ID=105.6 		1-09623-247-0 01 1 0011-0412
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> ID=105.6 		8-97386-295-0 01 1 0501-
263 BRACKET; P/S PIPE 8-94393-981-0 01 1 9510-9901
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 9902-0009
263 BRACKET; P/S PIPE
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) 		8-97600-117-0 01 1 0010-
263 BRACKET; P/S PIPE
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-97600-117-0 01 1 0010-
263 BRACKET; P/S PIPE
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-97600-076-0 01 1 0011-
