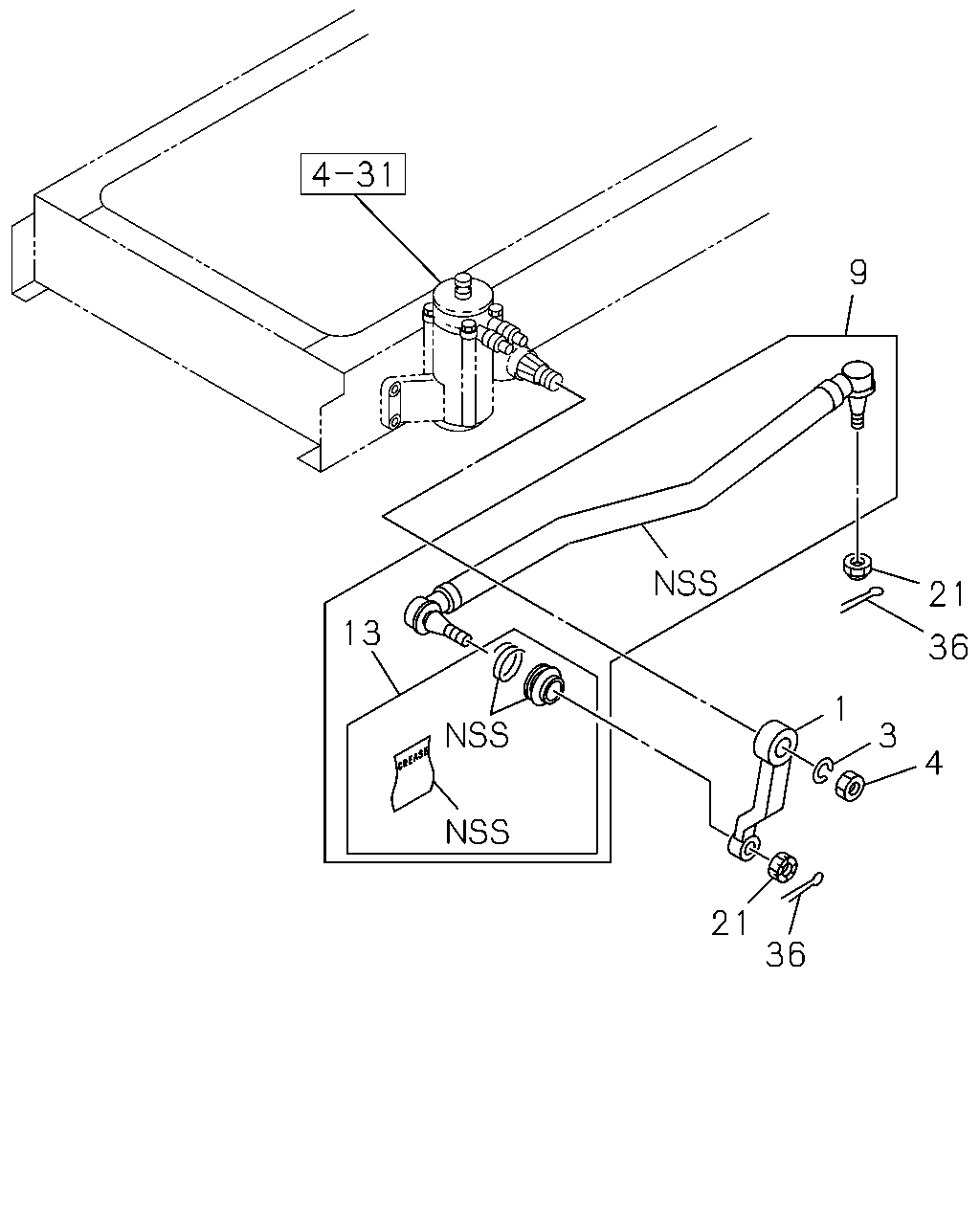

4-33 — STEERING LINKAGE (#38312) — 47 parça

9 21 13 36 1 3 4 21 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; PITMAN,STRG FRONT AXLE F049(FS4)	1-44341-310-3	01	1	9510-
1	ARM; PITMAN,STRG EXC. FRONT AXLE F049(FS4)	1-44341-447-0	01	1	9510-0211
1	ARM; PITMAN,STRG EXC. FRONT AXLE F049(FS4)	1-44341-481-1	01	1	0212-
3	WASHER; LK,PITMAN ARM ID=30.5	1-09500-026-0	01	1	9510-0805
3	WASHER; LK,PITMAN ARM ID=30.5	1-09500-055-0	01	1	0806-
4	NUT; PITMAN ARM M30	1-09400-050-0	01	1	9510-0805
4	NUT; PITMAN ARM M30	1-09400-166-0	01	1	0806-
9	LINK; DRAG FRONT AXLE F049(FS4)	1-44380-084-1	01	1	9510-
9	LINK; DRAG EXC. FRONT AXLE F049(FS4)	1-44380-134-0	01	1	9510-0004
9	LINK; DRAG EXC. FRONT AXLE F049(FS4)	1-44380-239-0	01	1	0005-0109
9	LINK; DRAG EXC. FRONT AXLE F049(FS4)	1-44380-134-0	01	1	0110-
13	BOOT; DRAG LINK EXC. FRONT AXLE F049(FS4) DUST SEAL SET	1-85574-046-0	02	1	9510-
21	NUT; LK,JOINT BALL FRONT AXLE F049(FS4) M24 SLOTTED	1-09442-020-0	02	1	9510-0805
21	NUT; LK,JOINT BALL FRONT AXLE F049(FS4) M24	1-09442-032-0	02	1	0806-
21	NUT; LK,JOINT BALL EXC. FRONT AXLE F049(FS4) M16 SLOTTED	1-09442-021-1	02	1	9510-0805
21	NUT; LK,JOINT BALL EXC. FRONT AXLE F049(FS4) M16 SLOTTED	1-09442-031-0	02	1	0806-
36	PIN; SPLIT,DRAG LINK FRONT AXLE F049(FS4) OD=4.6 L=35	9-08115-035-0	02	1	9510-0606
36	PIN; SPLIT,DRAG LINK FRONT AXLE F049(FS4) OD=4.6 L=35	0-81125-035-0	02	1	0607-
36	PIN; SPLIT,DRAG LINK EXC. FRONT AXLE F049(FS4) OD=3.7 L=25	9-08114-025-0	02	1	9510-0606
36	PIN; SPLIT,DRAG LINK EXC. FRONT AXLE F049(FS4) OD=3.7 L=25	0-81124-025-0	02	1	0607-

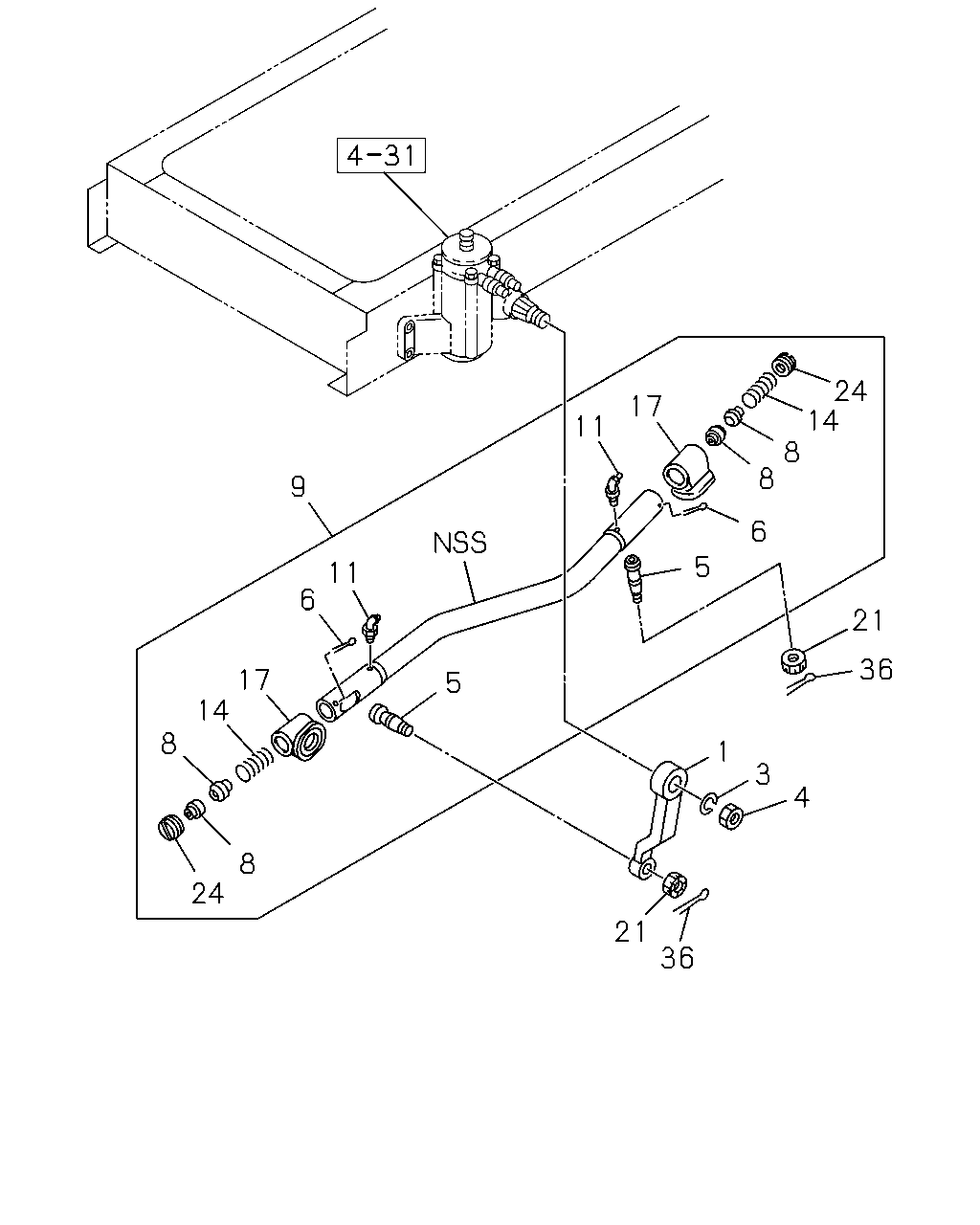

24 14 8 8 17 11 9 6 5 11 6 21 36 17 14 5 8 1 3 4 8 24 21 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; PITMAN,STRG FRONT AXLE F049(FS4)	1-44341-310-3	01	1	9510-
1	ARM; PITMAN,STRG EXC. FRONT AXLE F049(FS4)	1-44341-447-0	01	1	9510-0211
1	ARM; PITMAN,STRG EXC. FRONT AXLE F049(FS4)	1-44341-481-1	01	1	0212-
3	WASHER; LK,PITMAN ARM ID=30.5	1-09500-026-0	01	1	9510-0805
3	WASHER; LK,PITMAN ARM ID=30.5	1-09500-055-0	01	1	0806-
4	NUT; PITMAN ARM M30	1-09400-050-0	01	1	9510-0805
4	NUT; PITMAN ARM M30	1-09400-166-0	01	1	0806-
5	BALL; JOINT,DRAG LINK FRONT AXLE F049(FS4)	1-44361-110-1	02	1	9510-
6	PIN; SPLIT,ADJ SCREW FRONT AXLE F049(FS4)	9-08115-065-0	03	1	9510-
8	SEAT; SPR,ROD END FRONT AXLE F049(FS4) OD=36	9-09881-340-0	04	1	9510-
9	LINK; DRAG FRONT AXLE F049(FS4)	1-44380-084-1	01	1	9510-
9	LINK; DRAG EXC. FRONT AXLE F049(FS4)	1-44380-134-0	01	1	9510-0004
9	LINK; DRAG EXC. FRONT AXLE F049(FS4)	1-44380-239-0	01	1	0005-0109
9	LINK; DRAG EXC. FRONT AXLE F049(FS4)	1-44380-134-0	01	1	0110-
11	NIPPLE; GREASE,DRAG LINK FRONT AXLE F049(FS4) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9510-0512
11	NIPPLE; GREASE,DRAG LINK FRONT AXLE F049(FS4) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-
14	SPRING; COIL,DRAG LINK FRONT AXLE F049(FS4)	9-09940-639-1	02	1	9510-
17	GUARD; MUD,DRAG LINK FRONT AXLE F049(FS4)	1-44365-020-0	02	1	9510-
21	NUT; LK,JOINT BALL FRONT AXLE F049(FS4) M24 SLOTTED	1-09442-020-0	02	1	9510-0805
21	NUT; LK,JOINT BALL FRONT AXLE F049(FS4) M24	1-09442-032-0	02	1	0806-
21	NUT; LK,JOINT BALL EXC. FRONT AXLE F049(FS4) M16 SLOTTED	1-09442-021-1	02	1	9510-0805
21	NUT; LK,JOINT BALL EXC. FRONT AXLE F049(FS4) M16 SLOTTED	1-09442-031-0	02	1	0806-
24	PLUG; ADJ,DRAG LINK FRONT AXLE F049(FS4)	9-44375-021-0	02	1	9510-
36	PIN; SPLIT,DRAG LINK FRONT AXLE F049(FS4) OD=4.6 L=35	9-08115-035-0	02	1	9510-0606
36	PIN; SPLIT,DRAG LINK FRONT AXLE F049(FS4) OD=4.6 L=35	0-81125-035-0	02	1	0607-
36	PIN; SPLIT,DRAG LINK EXC. FRONT AXLE F049(FS4) OD=3.7 L=25	9-08114-025-0	02	1	9510-0606
36	PIN; SPLIT,DRAG LINK EXC. FRONT AXLE F049(FS4) OD=3.7 L=25	0-81124-025-0	02	1	0607-
