◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10705 - FVR(LHD) EXC.EURO4 ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#3831) — 70 parça

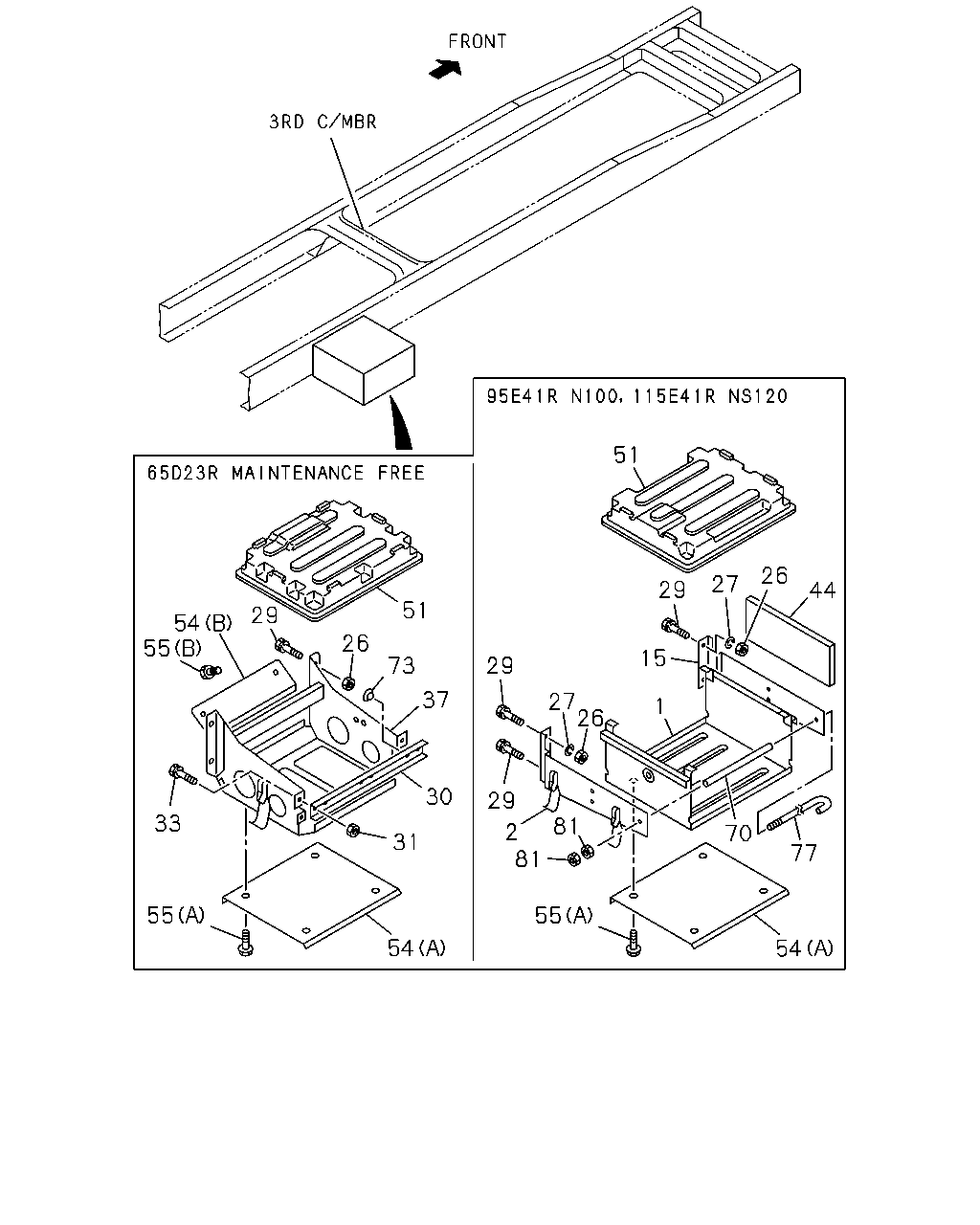

çizim 40332
51 26 27 29 44 51 29 54 55 26 15 29 73 37 27 26 1 30 29 33 81 2 81 70 31 77 55 55 54 54
BalonParca AdiParca NoAdetTipApplied Date A B
1 CARRIER; BATTERY
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		9-53613-584-3 01 1 9601-9806 ● ●
1 CARRIER; BATTERY
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		9-53613-584-3 01 1 9807-0004 ● ●
1 CARRIER; BATTERY
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		9-53613-584-3 01 1 0005-0607 ● ●
1 CARRIER; BATTERY
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		9-53613-584-3 01 1 0608- ● ●
1 CARRIER; BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-398-1 01 1 9601- ● ●
2 BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-339-3 01 1 9601- ● ●
15 BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-340-3 01 1 9601- ● ●
26 NUT; BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M10 FLANGE 		0-91150-210-0 04 1 9607-9608 ● ●
26 NUT; BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M10 		9-09110-510-0 04 1 9609-0512 ● ●
26 NUT; BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M10 		0-91110-510-0 04 1 0601- ● ●
26 NUT; BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14 		9-99110-414-0 04 1 9601-0512 ● ●
26 NUT; BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14 		0-91110-514-0 04 1 0601- ● ●
27 WASHER; LK,BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2 		9-09150-514-0 04 1 9601-0603 ● ●
27 WASHER; LK,BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2 		0-91510-514-0 04 1 0604- ● ●
29 BOLT; BRKT TO FRAME
BATTERY 65D23R MAINTENANCE FREE<WL4> M10X30 FLANGE 		0-28081-030-0 04 1 9601-9606 ● ●
29 BOLT; BRKT TO FRAME
BATTERY 65D23R MAINTENANCE FREE<WL4> M10X35 FLANGE 		0-28681-035-0 04 1 9607-0512 ● ●
29 BOLT; BRKT TO FRAME
BATTERY 65D23R MAINTENANCE FREE<WL4> M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ●
29 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X40 		0-20801-440-0 04 1 9601-0512 ● ●
29 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X40 		0-20851-440-0 04 1 0601- ● ●
30 PLATE; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53616-046-3 01 1 9601- ● ●
31 NUT; PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4> M8 FLANGE 		0-91150-108-0 02 1 9607-9608 ● ●
31 NUT; PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4> M8 		9-09110-408-0 02 1 9609-0512 ● ●
31 NUT; PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4> M8 		0-91110-508-0 02 1 0601- ● ●
33 BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ● ●
33 BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M8X25 FLANGE 		0-28680-825-0 02 1 9607-9709 ● ●
33 BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE 		0-28680-820-0 02 1 9710-0512 ● ●
33 BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
37 BRACKET; BATTERY
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53613-354-3 01 1 9601-9806 ● ●
37 BRACKET; BATTERY
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53613-354-3 01 1 9807-0004 ● ●
37 BRACKET; BATTERY
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53613-354-3 01 1 0005-0607 ● ●
37 BRACKET; BATTERY
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53613-354-3 01 1 0608- ● ●
37 BRACKET; BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53613-407-0 01 1 9601- ● ●
44 SPACER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53619-006-0 02 1 9601- ● ●
51 COVER; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53612-019-1 01 1 9601- ● ●
51 COVER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53612-029-1 01 1 9601- ● ●
54 PROTECTOR; HEAT,BATTERY
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BATTERY 65D23R MAINTENANCE FREE<WL4> (B) 		1-53619-069-1 01 1 9601-9806 ● ●
54 PROTECTOR; HEAT,BATTERY
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BATTERY 65D23R MAINTENANCE FREE<WL4> (B) 		1-53619-069-1 01 1 9807-0004 ● ●
54 PROTECTOR; HEAT,BATTERY
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BATTERY 65D23R MAINTENANCE FREE<WL4> (B) 		1-53619-069-1 01 1 0005-0607 ● ●
54 PROTECTOR; HEAT,BATTERY
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) BATTERY 65D23R MAINTENANCE FREE<WL4> (B) 		1-53619-069-1 01 1 0608- ● ●
54 PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) 		1-53619-083-2 01 1 9601-9709 ● ●
54 PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L) EXC. EURO2 SPECIFICATION<THN> (A) 		1-53619-083-2 01 1 9710-9806 ● ●
54 PROTECTOR; HEAT,BATTERY
6SD1 STD ENG(37L) (A) 		1-53619-083-2 01 1 9710-9806 ● ●
54 PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. EURO2 SPECIFICATION<THN> (A) 		1-53619-083-2 01 1 9807-0004 ● ●
54 PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L) VERTICAL TAIL PIPE<NC4> CHILE EQUIPMENT(TDK),COLOMBIA EQUIPMENT(WJ2) EURO2 SPECIFICATION<THN> (A) 		1-53619-083-2 01 1 9807-0004 ● ●
54 PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. EURO2 SPECIFICATION<THN> (A) 		1-53619-083-3 01 1 0005-0612 ● ●
54 PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L) VERTICAL TAIL PIPE<NC4> EURO2 SPECIFICATION<THN> (A) 		1-53619-083-3 01 1 0005-0612 ● ●
54 PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. EURO2 SPECIFICATION<THN> (A) 		1-53619-083-3 01 1 0701- ● ●
55 BOLT; HEAT PROTECTOR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BATTERY 65D23R MAINTENANCE FREE<WL4> (B) M8X16 FLANGE 		0-28280-816-0 02 1 9601-9606 ● ●
55 BOLT; HEAT PROTECTOR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BATTERY 65D23R MAINTENANCE FREE<WL4> (B) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9806 ● ●
55 BOLT; HEAT PROTECTOR
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BATTERY 65D23R MAINTENANCE FREE<WL4> (B) M8X20 FLANGE 		0-28680-820-0 02 1 9807-0004 ● ●
55 BOLT; HEAT PROTECTOR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BATTERY 65D23R MAINTENANCE FREE<WL4> (B) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ●
55 BOLT; HEAT PROTECTOR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BATTERY 65D23R MAINTENANCE FREE<WL4> (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0607 ● ●
55 BOLT; HEAT PROTECTOR
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) BATTERY 65D23R MAINTENANCE FREE<WL4> (B) M8X20 FLANGE 		0-28650-820-0 02 1 0608- ● ●
55 BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) M8X16 FLANGE 		0-28280-816-0 04 1 9601-9606 ● ●
55 BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) M8X20 FLANGE 		0-28680-820-0 04 1 9607-9709 ● ●
55 BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L) EXC. EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28680-820-0 04 1 9710-9806 ● ●
55 BOLT; HEAT PROTECTOR
6SD1 STD ENG(37L) (A) M8X20 FLANGE 		0-28680-820-0 04 1 9710-9806 ● ●
55 BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28680-820-0 04 1 9807-0004 ● ●
55 BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L) VERTICAL TAIL PIPE<NC4> CHILE EQUIPMENT(TDK),COLOMBIA EQUIPMENT(WJ2) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28680-820-0 04 1 9807-0004 ● ●
55 BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28680-820-0 04 1 0005-0512 ● ●
55 BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L) VERTICAL TAIL PIPE<NC4> EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28680-820-0 04 1 0005-0512 ● ●
55 BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-0612 ● ●
55 BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L) VERTICAL TAIL PIPE<NC4> EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-0612 ● ●
55 BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28650-820-0 04 1 0701- ● ●
70 SPACER; BATTERY CARRIER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53619-023-0 01 1 9609- ● ●
73 RUBBER; CUSHION,PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-09337-002-0 04 1 9601- ● ●
77 BOLT; BATTERY BRKT,FRT TO RR
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53616-101-0 02 1 9601- ● ●
81 NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE 		0-91150-108-0 04 1 9607-9710 ● ●
81 NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 04 1 9711-0512 ● ●
81 NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		0-91110-508-0 04 1 0601- ● ●
