◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10701 - FSR(LHD) EXC.EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#38309) — 895 parça

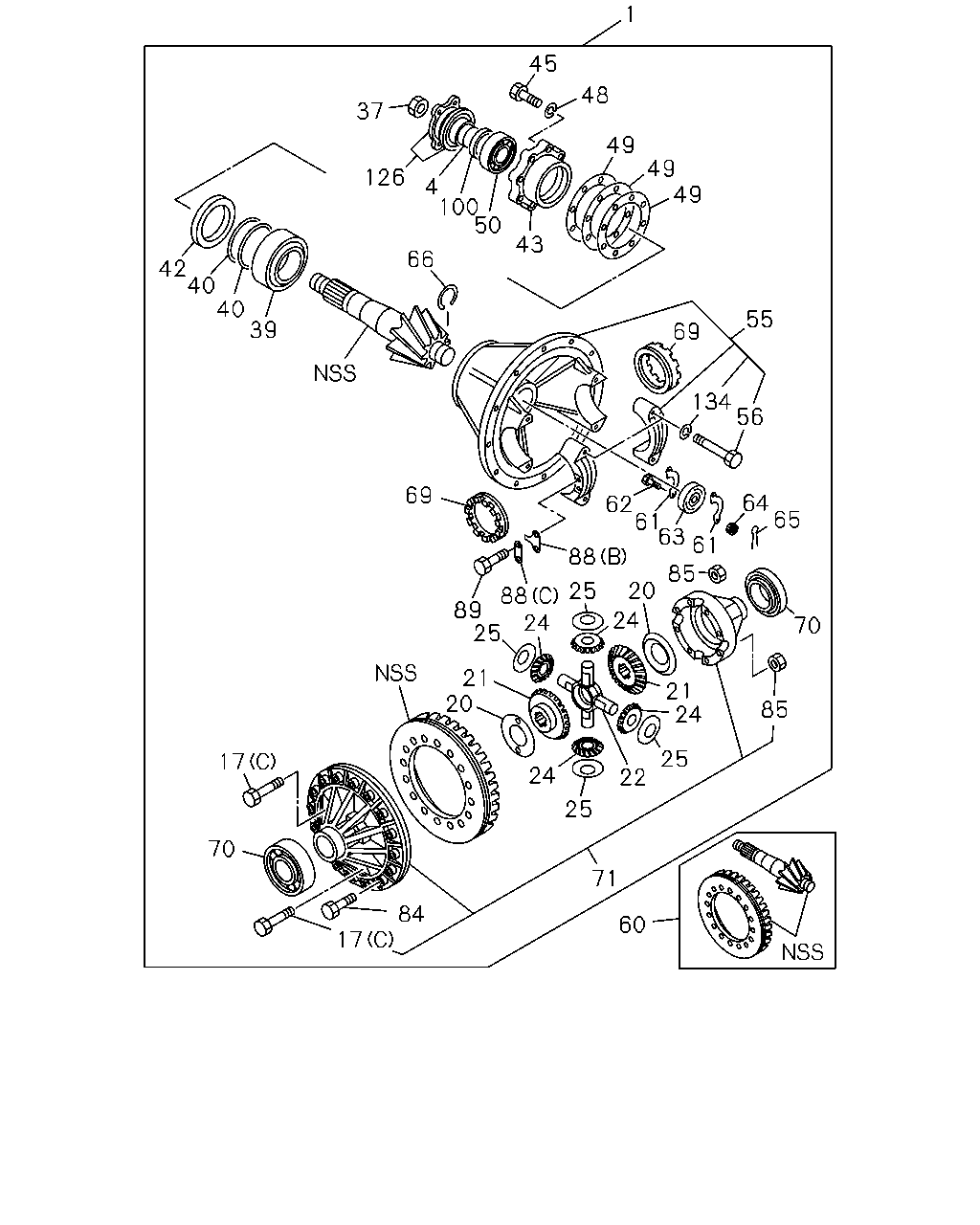

çizim 151762
1 45 48 37 49 49 49 126 4 100 50 43 66 42 40 40 39 55 69 134 56 69 64 65 62 61 63 61 85 88 20 25 88 24 89 25 24 70 21 20 21 24 85 25 17 24 22 25 70 71 84 17 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 43/7 		1-41001-608-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 43/7 		1-41001-030-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 39/7 		1-41001-585-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 39/7 		1-41001-133-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 39/6 		1-41001-768-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 39/6 		1-41001-765-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 39/8 		1-41001-586-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 39/8 		1-41001-683-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 41/8 		1-41001-378-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 41/8 		1-41001-682-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
43/7 		1-41001-307-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
41/8 		1-41001-306-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 39/9 		1-41001-333-0 01 1 9703-9802 ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 39/9 		1-41001-684-0 01 1 9703-9802 ●
4 GASKET; FLANGE,FINAL PINION
ID=37.5 T=4 		1-09623-582-0 01 1 9510-9702 ● ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=37.5 T=4 		1-09623-582-0 01 1 9703-9802 ● ● ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=37.5 T=4 		1-09623-582-0 01 1 9803- ● ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		1-09623-475-0 01 1 9510-0208 ● ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		9-09921-116-0 01 1 0209- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 04 1 9510-9702 ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 04 1 9703-9802 ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 04 1 9803- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M14X95 FLANGE 		1-09044-007-0 04 1 9510-9702 ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M14X95 FLANGE 		1-09044-007-0 04 1 9703-9802 ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M14X95 FLANGE 		1-09044-007-0 04 1 9803- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(C) M14X95 FLANGE 		1-09044-007-0 12 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=2.80 		1-41562-061-0 AR 1 9510-9702 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=2.80 		1-41562-061-0 AR 1 9703-9802 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=2.80 		1-41562-061-0 AR 1 9803- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.00 		1-41562-062-0 AR 1 9510-9702 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.00 		1-41562-062-0 AR 1 9703-9802 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.00 		1-41562-062-0 AR 1 9803- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.20 		1-41562-063-0 AR 1 9510-9702 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.20 		1-41562-063-0 AR 1 9703-9802 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.20 		1-41562-063-0 AR 1 9803- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.40 		1-41562-064-0 AR 1 9510-9702 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.40 		1-41562-064-0 AR 1 9703-9802 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.40 		1-41562-064-0 AR 1 9803- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=2.90 		1-41562-080-0 AR 1 9510-9702 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=2.90 		1-41562-080-0 AR 1 9703-9802 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=2.90 		1-41562-080-0 AR 1 9803- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.10 		1-41562-081-0 AR 1 9510-9702 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.10 		1-41562-081-0 AR 1 9703-9802 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.10 		1-41562-081-0 AR 1 9803- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.30 		1-41562-082-0 AR 1 9510-9702 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.30 		1-41562-082-0 AR 1 9703-9802 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.30 		1-41562-082-0 AR 1 9803- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.75 		1-41562-139-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-140-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.85 		1-41562-141-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-142-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.95 		1-41562-143-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-144-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.05 		1-41562-145-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-146-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.15 		1-41562-147-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-148-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.25 		1-41562-149-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-150-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.35 		1-41562-151-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-152-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.45 		1-41562-153-0 AR 1 9510- ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=16 		1-41561-107-0 02 1 9510-9702 ● ● ● ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=16 		1-41561-107-0 02 1 9703-9802 ● ● ● ● ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=16 		1-41561-107-0 02 1 9803-0407 ● ● ● ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=16 		1-41561-135-0 02 1 0408-0905 ● ● ● ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=16 		1-41561-155-0 02 1 0906- ● ● ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-075-0 02 1 9510-0407 ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-127-0 02 1 0408-0903 ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-160-0 02 1 0904- ● ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF(G86) 		1-41521-050-0 01 1 9510-9702 ● ● ● ● ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF(G86) 		1-41521-050-0 01 1 9703-9802 ● ● ● ● ● ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF(G86) 		1-41521-050-2 01 1 9803- ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-014-1 01 1 9510-0408 ● ●
22 SPIDER; DIFF PINION 1-41521-061-0 01 1 0409- ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=10 		1-41551-032-0 04 1 9510-9702 ● ● ● ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=10 		1-41551-032-0 04 1 9703-9802 ● ● ● ● ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=10 		1-41551-032-0 04 1 9803-0407 ● ● ● ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=10 		1-41551-042-0 04 1 0408-0905 ● ● ● ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=10 		1-41551-049-0 04 1 0906- ● ● ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-010-2 04 1 9510-0407 ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-041-0 04 1 0408-0903 ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-051-0 04 1 0904- ● ●
25 WASHER; THRUST,PINION
EXC. LIMITED SLIP DIFF(G86) ID=29 OD=60 		1-41562-119-0 04 1 9510-9702 ● ● ● ● ●
25 WASHER; THRUST,PINION
EXC. LIMITED SLIP DIFF(G86) ID=29 OD=60 		1-41562-119-0 04 1 9703-9802 ● ● ● ● ● ●
25 WASHER; THRUST,PINION
EXC. LIMITED SLIP DIFF(G86) ID=29 OD=60 		1-41562-119-0 04 1 9803- ● ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-012-0 04 1 9510- ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-058-2 01 1 9510-9702 ● ● ● ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-058-2 01 1 9703-9802 ● ● ● ● ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-058-2 01 1 9803-0804 ● ● ● ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-083-0 01 1 0805- ● ● ● ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-067-0 01 1 9510- ● ●
39 BEARING; FINAL PINION
JTEKT 		5-09812-062-1 01 1 1001- ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-026-0 01 1 9510-9702 ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-026-0 01 1 9703-9802 ● ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-026-0 01 1 9803-1001 ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		5-09812-063-0 01 1 1002- ● ● ● ● ●
39 BEARING; FINAL PINION
NTN 		1-09812-007-0 01 1 9510-9612 ● ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-218-0 01 1 9701- ● ●
40 SHIM; FINAL PINION
T=1.60 		1-41229-179-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.60 		1-41229-179-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.60 		1-41229-179-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.61 		1-41229-180-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.61 		1-41229-180-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.61 		1-41229-180-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.62 		1-41229-181-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.62 		1-41229-181-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.62 		1-41229-181-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.63 		1-41229-182-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.63 		1-41229-182-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.63 		1-41229-182-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.64 		1-41229-183-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.64 		1-41229-183-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.64 		1-41229-183-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.65 		1-41229-184-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.65 		1-41229-184-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.65 		1-41229-184-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.66 		1-41229-185-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.66 		1-41229-185-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.66 		1-41229-185-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.67 		1-41229-186-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.67 		1-41229-186-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.67 		1-41229-186-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.68 		1-41229-187-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.68 		1-41229-187-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.68 		1-41229-187-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.69 		1-41229-188-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.69 		1-41229-188-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.69 		1-41229-188-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.70 		1-41229-189-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.70 		1-41229-189-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.70 		1-41229-189-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-256-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-257-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-258-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-259-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-260-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-261-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-262-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-263-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-264-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-265-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-266-0 AR 1 9510- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.40 		1-41229-267-0 AR 1 9510- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-268-0 AR 1 9510- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-269-0 AR 1 9510- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-270-0 AR 1 9510- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-271-0 AR 1 9510- ● ●
43 CAGE; FINAL PINION 1-41151-027-0 01 1 9510-9702 ● ● ● ● ●
43 CAGE; FINAL PINION 1-41151-027-0 01 1 9703-9802 ● ● ● ● ● ●
43 CAGE; FINAL PINION 1-41151-027-0 01 1 9803- ● ● ● ● ●
43 CAGE; FINAL PINION 1-41151-028-1 01 1 9510- ● ●
45 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 9510-9702 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 9703-9802 ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 9803- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
M14X50 		0-16806-450-0 08 1 9510- ● ●
48 WASHER; LK,FINAL PINION
ID=12.2 		9-09150-512-0 06 1 9510-9702 ● ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=12.2 		9-09150-512-0 06 1 9703-9802 ● ● ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=12.2 		9-09150-512-0 06 1 9803-0603 ● ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=12.2 		0-91510-512-0 06 1 0604- ● ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 		9-09150-514-0 08 1 9510-0603 ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 		0-91510-514-0 08 1 0604- ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 9510-9702 ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 9703-9802 ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 9803- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 9510-9702 ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 9703-9802 ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 9803- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 9510-9702 ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 9703-9802 ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 9803- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 9510-9702 ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 9703-9802 ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 9803- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-063-0 AR 1 9510- ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-064-0 AR 1 9510- ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		9-41154-013-0 AR 1 9510- ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		9-41154-014-0 AR 1 9510- ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 0612- ● ● ● ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 9510-9702 ● ● ● ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 9703-9802 ● ● ● ● ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 9803- ● ● ● ● ● ● ●
55 CARRIER; DIFF 1-41110-048-0 01 1 9510-9702 ● ● ● ● ●
55 CARRIER; DIFF 1-41110-048-0 01 1 9703-9802 ● ● ● ● ● ●
55 CARRIER; DIFF 1-41110-048-1 01 1 9803-1006 ● ● ● ● ●
55 CARRIER; DIFF 1-41110-129-0 01 1 1007- ● ● ● ● ●
55 CARRIER; DIFF 1-41110-052-0 01 1 9510- ● ●
56 BOLT; BRG CAP
M16X100 		9-91661-600-0 04 1 9510-9702 ● ● ● ● ●
56 BOLT; BRG CAP
M16X100 		9-91661-600-0 04 1 9703-9802 ● ● ● ● ● ●
56 BOLT; BRG CAP
M16X100 		9-91661-600-0 04 1 9803-0104 ● ● ● ● ●
56 BOLT; BRG CAP
M16X100 FLANGE 		1-09070-047-0 04 1 0105- ● ● ● ● ●
56 BOLT; BRG CAP
M18X107 		1-09050-002-1 04 1 9510- ● ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-392-2 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-391-2 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
39/6 		1-41210-394-2 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
39/8 		1-41210-454-0 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-453-0 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-277-3 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-279-3 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
39/9 		1-41210-455-0 01 1 9703-9802 ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 9510-9702 ● ● ● ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 9703-9802 ● ● ● ● ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 9803- ● ● ● ● ● ● ●
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-034-0 02 1 9510-9702 ● ● ● ● ●
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-034-0 02 1 9703-9802 ● ● ● ● ● ●
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-034-0 02 1 9803-0804 ● ● ● ● ●
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-046-0 02 1 0805- ● ● ● ● ●
62 BOLT; RET
M8X36 W/PIN HOLE 		1-09042-035-0 02 1 9510- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-073-1 01 1 9510-9702 ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-073-1 01 1 9703-9802 ● ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-073-2 01 1 9803- ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-074-1 01 1 9510-9702 ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-074-1 01 1 9703-9802 ● ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-074-1 01 1 9803- ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 9510- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 9510- ● ●
64 NUT; RET
M8 		9-09117-408-0 02 1 9510-9702 ● ● ● ● ● ● ●
64 NUT; RET
M8 		9-09117-408-0 02 1 9703-9707 ● ● ● ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9708-9802 ● ● ● ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9803-0512 ● ● ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0601- ● ● ● ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9510-9702 ● ● ● ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9703-9802 ● ● ● ● ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9803-0805 ● ● ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 0806- ● ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-066-1 01 1 9510-9702 ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-066-1 01 1 9703-9802 ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-066-1 01 1 9803-1109 ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-214-0 01 1 1110- ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 9510- ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=30 		1-41121-015-0 01 1 9510-9702 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=30 		1-41121-015-0 01 1 9703-9802 ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=30 		1-41121-015-0 01 1 9803- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=22 		1-41121-013-0 01 1 9510-9702 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=22 		1-41121-013-0 01 1 9703-9802 ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=22 		1-41121-013-0 01 1 9803- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=29 		1-41121-006-0 01 1 9510-0603 ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=29 		1-41121-006-0 01 1 0604- ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=24 		1-41121-005-0 01 1 9510-0603 ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=24 		1-41121-005-0 01 1 0604- ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 		1-09812-058-0 01 1 9510-9702 ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 		1-09812-058-0 01 1 9703-9802 ● ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 		1-09812-058-1 01 1 9803- ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=33.3 		1-09812-056-0 01 1 9510-9702 ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=33.3 		1-09812-056-0 01 1 9703-9802 ● ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=33.3 		1-09812-056-1 01 1 9803- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3 		1-09812-063-1 01 1 9911-0704 ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3 		1-09812-249-0 01 1 0705- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=33.3 		1-09812-062-2 01 1 9911- ● ● ● ● ●
70 BEARING; DIFF CAGE
NACHI ID=80 OD=140 T=35.3 		1-09812-144-0 02 1 9510-0911 ● ●
70 BEARING; DIFF CAGE
NACHI 		1-09812-151-0 02 1 0912- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=80 OD=140 T=35.3 		1-09812-145-0 02 1 9510-0911 ● ●
70 BEARING; DIFF CAGE
NSK ID=80 OD=140 T=35.3 		1-09812-146-0 02 1 9510-1002 ● ●
70 BEARING; DIFF CAGE
NSK 		1-09812-150-0 02 1 1003- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-127-0 01 1 0601- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-112-0 01 1 9510-9702 ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-112-0 01 1 9703-9802 ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-112-0 01 1 9803-1006 ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-343-0 01 1 1007- ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-127-0 01 1 9510-0509 ● ●
84 BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE 		9-09802-575-0 16 1 9510-9702 ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE 		9-09802-575-0 16 1 9703-9802 ● ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE 		9-09802-575-1 16 1 9803- ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		9-09802-561-0 16 1 9510-9804 ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 9805- ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 08 1 9510-9702 ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 08 1 9703-9802 ● ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 08 1 9803- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 9510- ● ●
88 PLATE; LK,ADJ NUT
(A) T=2.3 		9-41124-015-0 02 1 9510-9702 ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=2.3 		9-41124-015-0 02 1 9703-9802 ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=2.3 		9-41124-015-0 02 1 9803- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9510-9702 ● ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9703-9802 ● ● ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9803- ● ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(C) T=2.3 		1-41124-002-0 02 1 9510- ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9510-9702 ● ● ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9703-9802 ● ● ● ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9803-0512 ● ● ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0601- ● ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
TKK 		1-09625-432-0 01 1 9510-9702 ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
TKK 		1-09625-432-0 01 1 9703-9802 ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
TKK 		1-09625-432-0 01 1 9803-9908 ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
TKK 		1-09625-637-0 01 1 9909- ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-0 01 1 9510-9702 ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-0 01 1 9703-9802 ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-1 01 1 9803- ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 9510- ● ●
126 COUPLING; DRIVING PINION 1-37245-069-5 01 1 9510-9702 ● ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-069-5 01 1 9703-9802 ● ● ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-069-6 01 1 9803- ● ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-215-3 01 1 9510-0208 ● ●
126 COUPLING; DRIVING PINION 1-37245-388-0 01 1 0209- ● ●
134 WASHER; LK,BRG CAP
ID=16.2 		9-09150-516-0 04 1 9510-9702 ● ● ● ● ●
134 WASHER; LK,BRG CAP
ID=16.2 		9-09150-516-0 04 1 9703-9802 ● ● ● ● ● ●
134 WASHER; LK,BRG CAP
ID=16.2 		9-09150-516-0 04 1 9803-0104 ● ● ● ● ●
134 WASHER; LK,BRG CAP
ID=18.2 		9-09150-518-0 04 1 9510-0603 ● ●
134 WASHER; LK,BRG CAP
ID=18.2 		0-91510-518-0 04 1 0604- ● ●

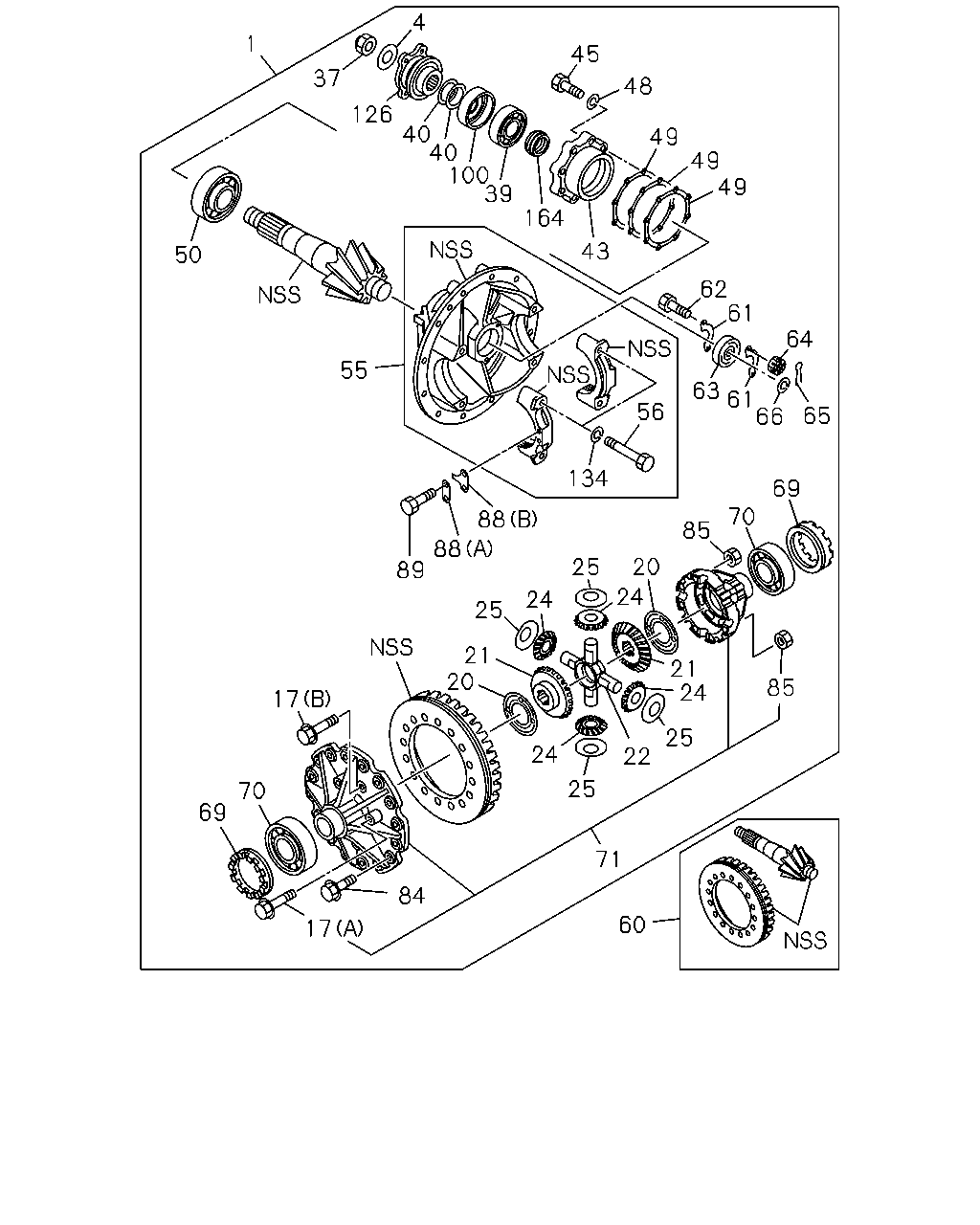

çizim 151763
4 1 45 37 48 126 40 40 100 39 49 49 49 164 43 50 62 61 64 55 63 61 66 56 65 134 69 70 88 85 88 89 20 25 24 24 25 21 20 21 24 85 17 25 24 22 25 70 69 71 84 60 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 43/7 		1-41001-608-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 43/7 		1-41001-030-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 39/7 		1-41001-585-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 39/7 		1-41001-133-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 39/6 		1-41001-768-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 39/6 		1-41001-765-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 39/8 		1-41001-586-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 39/8 		1-41001-683-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 41/8 		1-41001-378-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 41/8 		1-41001-682-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
43/7 		1-41001-307-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
41/8 		1-41001-306-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 39/9 		1-41001-333-0 01 1 9703-9802 ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 39/9 		1-41001-684-0 01 1 9703-9802 ●
4 GASKET; FLANGE,FINAL PINION
ID=37.5 T=4 		1-09623-582-0 01 1 9510-9702 ● ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=37.5 T=4 		1-09623-582-0 01 1 9703-9802 ● ● ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=37.5 T=4 		1-09623-582-0 01 1 9803- ● ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		1-09623-475-0 01 1 9510-0208 ● ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		9-09921-116-0 01 1 0209- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 04 1 9510-9702 ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 04 1 9703-9802 ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 04 1 9803- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M14X95 FLANGE 		1-09044-007-0 04 1 9510-9702 ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M14X95 FLANGE 		1-09044-007-0 04 1 9703-9802 ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M14X95 FLANGE 		1-09044-007-0 04 1 9803- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(C) M14X95 FLANGE 		1-09044-007-0 12 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=2.80 		1-41562-061-0 AR 1 9510-9702 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=2.80 		1-41562-061-0 AR 1 9703-9802 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=2.80 		1-41562-061-0 AR 1 9803- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.00 		1-41562-062-0 AR 1 9510-9702 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.00 		1-41562-062-0 AR 1 9703-9802 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.00 		1-41562-062-0 AR 1 9803- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.20 		1-41562-063-0 AR 1 9510-9702 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.20 		1-41562-063-0 AR 1 9703-9802 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.20 		1-41562-063-0 AR 1 9803- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.40 		1-41562-064-0 AR 1 9510-9702 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.40 		1-41562-064-0 AR 1 9703-9802 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.40 		1-41562-064-0 AR 1 9803- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=2.90 		1-41562-080-0 AR 1 9510-9702 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=2.90 		1-41562-080-0 AR 1 9703-9802 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=2.90 		1-41562-080-0 AR 1 9803- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.10 		1-41562-081-0 AR 1 9510-9702 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.10 		1-41562-081-0 AR 1 9703-9802 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.10 		1-41562-081-0 AR 1 9803- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.30 		1-41562-082-0 AR 1 9510-9702 ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.30 		1-41562-082-0 AR 1 9703-9802 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.30 		1-41562-082-0 AR 1 9803- ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.75 		1-41562-139-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-140-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.85 		1-41562-141-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-142-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.95 		1-41562-143-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-144-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.05 		1-41562-145-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-146-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.15 		1-41562-147-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-148-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.25 		1-41562-149-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-150-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.35 		1-41562-151-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-152-0 AR 1 9510- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.45 		1-41562-153-0 AR 1 9510- ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=16 		1-41561-107-0 02 1 9510-9702 ● ● ● ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=16 		1-41561-107-0 02 1 9703-9802 ● ● ● ● ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=16 		1-41561-107-0 02 1 9803-0407 ● ● ● ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=16 		1-41561-135-0 02 1 0408-0905 ● ● ● ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=16 		1-41561-155-0 02 1 0906- ● ● ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-075-0 02 1 9510-0407 ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-127-0 02 1 0408-0903 ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-160-0 02 1 0904- ● ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF(G86) 		1-41521-050-0 01 1 9510-9702 ● ● ● ● ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF(G86) 		1-41521-050-0 01 1 9703-9802 ● ● ● ● ● ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF(G86) 		1-41521-050-2 01 1 9803- ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-014-1 01 1 9510-0408 ● ●
22 SPIDER; DIFF PINION 1-41521-061-0 01 1 0409- ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=10 		1-41551-032-0 04 1 9510-9702 ● ● ● ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=10 		1-41551-032-0 04 1 9703-9802 ● ● ● ● ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=10 		1-41551-032-0 04 1 9803-0407 ● ● ● ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=10 		1-41551-042-0 04 1 0408-0905 ● ● ● ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=10 		1-41551-049-0 04 1 0906- ● ● ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-010-2 04 1 9510-0407 ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-041-0 04 1 0408-0903 ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-051-0 04 1 0904- ● ●
25 WASHER; THRUST,PINION
EXC. LIMITED SLIP DIFF(G86) ID=29 OD=60 		1-41562-119-0 04 1 9510-9702 ● ● ● ● ●
25 WASHER; THRUST,PINION
EXC. LIMITED SLIP DIFF(G86) ID=29 OD=60 		1-41562-119-0 04 1 9703-9802 ● ● ● ● ● ●
25 WASHER; THRUST,PINION
EXC. LIMITED SLIP DIFF(G86) ID=29 OD=60 		1-41562-119-0 04 1 9803- ● ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-012-0 04 1 9510- ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-058-2 01 1 9510-9702 ● ● ● ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-058-2 01 1 9703-9802 ● ● ● ● ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-058-2 01 1 9803-0804 ● ● ● ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-083-0 01 1 0805- ● ● ● ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-067-0 01 1 9510- ● ●
39 BEARING; FINAL PINION
JTEKT 		5-09812-062-1 01 1 1001- ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-026-0 01 1 9510-9702 ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-026-0 01 1 9703-9802 ● ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-026-0 01 1 9803-1001 ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		5-09812-063-0 01 1 1002- ● ● ● ● ●
39 BEARING; FINAL PINION
NTN 		1-09812-007-0 01 1 9510-9612 ● ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-218-0 01 1 9701- ● ●
40 SHIM; FINAL PINION
T=1.60 		1-41229-179-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.60 		1-41229-179-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.60 		1-41229-179-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.61 		1-41229-180-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.61 		1-41229-180-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.61 		1-41229-180-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.62 		1-41229-181-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.62 		1-41229-181-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.62 		1-41229-181-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.63 		1-41229-182-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.63 		1-41229-182-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.63 		1-41229-182-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.64 		1-41229-183-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.64 		1-41229-183-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.64 		1-41229-183-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.65 		1-41229-184-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.65 		1-41229-184-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.65 		1-41229-184-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.66 		1-41229-185-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.66 		1-41229-185-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.66 		1-41229-185-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.67 		1-41229-186-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.67 		1-41229-186-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.67 		1-41229-186-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.68 		1-41229-187-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.68 		1-41229-187-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.68 		1-41229-187-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.69 		1-41229-188-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.69 		1-41229-188-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.69 		1-41229-188-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.70 		1-41229-189-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.70 		1-41229-189-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.70 		1-41229-189-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-256-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-257-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-258-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-259-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-260-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-261-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-262-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-263-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-264-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-265-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-266-0 AR 1 9510- ● ●
43 CAGE; FINAL PINION 1-41151-027-0 01 1 9510-9702 ● ● ● ● ●
43 CAGE; FINAL PINION 1-41151-027-0 01 1 9703-9802 ● ● ● ● ● ●
43 CAGE; FINAL PINION 1-41151-027-0 01 1 9803- ● ● ● ● ●
43 CAGE; FINAL PINION 1-41151-028-1 01 1 9510- ● ●
45 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 9510-9702 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 9703-9802 ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 9803- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
M14X50 		0-16806-450-0 08 1 9510- ● ●
48 WASHER; LK,FINAL PINION
ID=12.2 		9-09150-512-0 06 1 9510-9702 ● ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=12.2 		9-09150-512-0 06 1 9703-9802 ● ● ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=12.2 		9-09150-512-0 06 1 9803-0603 ● ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=12.2 		0-91510-512-0 06 1 0604- ● ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 		9-09150-514-0 08 1 9510-0603 ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 		0-91510-514-0 08 1 0604- ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 9510-9702 ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 9703-9802 ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 9803- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 9510-9702 ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 9703-9802 ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 9803- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 9510-9702 ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 9703-9802 ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 9803- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 9510-9702 ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 9703-9802 ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 9803- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-063-0 AR 1 9510- ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-064-0 AR 1 9510- ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		9-41154-013-0 AR 1 9510- ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		9-41154-014-0 AR 1 9510- ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 0612- ● ● ● ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 9510-9702 ● ● ● ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 9703-9802 ● ● ● ● ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 9803- ● ● ● ● ● ● ●
55 CARRIER; DIFF 1-41110-048-0 01 1 9510-9702 ● ● ● ● ●
55 CARRIER; DIFF 1-41110-048-0 01 1 9703-9802 ● ● ● ● ● ●
55 CARRIER; DIFF 1-41110-048-1 01 1 9803-1006 ● ● ● ● ●
55 CARRIER; DIFF 1-41110-129-0 01 1 1007- ● ● ● ● ●
55 CARRIER; DIFF 1-41110-052-0 01 1 9510- ● ●
56 BOLT; BRG CAP
M16X100 		9-91661-600-0 04 1 9510-9702 ● ● ● ● ●
56 BOLT; BRG CAP
M16X100 		9-91661-600-0 04 1 9703-9802 ● ● ● ● ● ●
56 BOLT; BRG CAP
M16X100 		9-91661-600-0 04 1 9803-0104 ● ● ● ● ●
56 BOLT; BRG CAP
M16X100 FLANGE 		1-09070-047-0 04 1 0105- ● ● ● ● ●
56 BOLT; BRG CAP
M18X107 		1-09050-002-1 04 1 9510- ● ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-392-2 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-391-2 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
39/6 		1-41210-394-2 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
39/8 		1-41210-454-0 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-453-0 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-277-3 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-279-3 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
39/9 		1-41210-455-0 01 1 9703-9802 ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 9510-9702 ● ● ● ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 9703-9802 ● ● ● ● ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 9803- ● ● ● ● ● ● ●
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-034-0 02 1 9510-9702 ● ● ● ● ●
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-034-0 02 1 9703-9802 ● ● ● ● ● ●
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-034-0 02 1 9803-0804 ● ● ● ● ●
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-046-0 02 1 0805- ● ● ● ● ●
62 BOLT; RET
M8X36 W/PIN HOLE 		1-09042-035-0 02 1 9510- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-073-1 01 1 9510-9702 ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-073-1 01 1 9703-9802 ● ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-073-2 01 1 9803- ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-074-1 01 1 9510-9702 ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-074-1 01 1 9703-9802 ● ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-074-1 01 1 9803- ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 9510- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 9510- ● ●
64 NUT; RET
M8 		9-09117-408-0 02 1 9510-9702 ● ● ● ● ● ● ●
64 NUT; RET
M8 		9-09117-408-0 02 1 9703-9707 ● ● ● ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9708-9802 ● ● ● ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9803-0512 ● ● ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0601- ● ● ● ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9510-9702 ● ● ● ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9703-9802 ● ● ● ● ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9803-0805 ● ● ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 0806- ● ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-066-1 01 1 9510-9702 ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-066-1 01 1 9703-9802 ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-066-1 01 1 9803-1109 ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-214-0 01 1 1110- ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 9510- ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=30 		1-41121-015-0 01 1 9510-9702 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=30 		1-41121-015-0 01 1 9703-9802 ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=30 		1-41121-015-0 01 1 9803- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=22 		1-41121-013-0 01 1 9510-9702 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=22 		1-41121-013-0 01 1 9703-9802 ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=22 		1-41121-013-0 01 1 9803- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=29 		1-41121-006-0 01 1 9510-0603 ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=29 		1-41121-006-0 01 1 0604- ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=24 		1-41121-005-0 01 1 9510-0603 ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=24 		1-41121-005-0 01 1 0604- ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 		1-09812-058-0 01 1 9510-9702 ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 		1-09812-058-0 01 1 9703-9802 ● ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 		1-09812-058-1 01 1 9803- ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=33.3 		1-09812-056-0 01 1 9510-9702 ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=33.3 		1-09812-056-0 01 1 9703-9802 ● ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=33.3 		1-09812-056-1 01 1 9803- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3 		1-09812-063-1 01 1 9911-0704 ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3 		1-09812-249-0 01 1 0705- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=33.3 		1-09812-062-2 01 1 9911- ● ● ● ● ●
70 BEARING; DIFF CAGE
NACHI ID=80 OD=140 T=35.3 		1-09812-144-0 02 1 9510-0911 ● ●
70 BEARING; DIFF CAGE
NACHI 		1-09812-151-0 02 1 0912- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=80 OD=140 T=35.3 		1-09812-145-0 02 1 9510-0911 ● ●
70 BEARING; DIFF CAGE
NSK ID=80 OD=140 T=35.3 		1-09812-146-0 02 1 9510-1002 ● ●
70 BEARING; DIFF CAGE
NSK 		1-09812-150-0 02 1 1003- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-127-0 01 1 0601- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-112-0 01 1 9510-9702 ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-112-0 01 1 9703-9802 ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-112-0 01 1 9803-1006 ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-343-0 01 1 1007- ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-127-0 01 1 9510-0509 ● ●
84 BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE 		9-09802-575-0 16 1 9510-9702 ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE 		9-09802-575-0 16 1 9703-9802 ● ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE 		9-09802-575-1 16 1 9803- ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		9-09802-561-0 16 1 9510-9804 ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 9805- ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 08 1 9510-9702 ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 08 1 9703-9802 ● ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 08 1 9803- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 9510- ● ●
88 PLATE; LK,ADJ NUT
(A) T=2.3 		9-41124-015-0 02 1 9510-9702 ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=2.3 		9-41124-015-0 02 1 9703-9802 ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=2.3 		9-41124-015-0 02 1 9803- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9510-9702 ● ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9703-9802 ● ● ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9803- ● ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(C) T=2.3 		1-41124-002-0 02 1 9510- ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9510-9702 ● ● ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9703-9802 ● ● ● ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9803-0512 ● ● ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0601- ● ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
TKK 		1-09625-432-0 01 1 9510-9702 ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
TKK 		1-09625-432-0 01 1 9703-9802 ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
TKK 		1-09625-432-0 01 1 9803-9908 ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
TKK 		1-09625-637-0 01 1 9909- ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-0 01 1 9510-9702 ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-0 01 1 9703-9802 ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-1 01 1 9803- ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 9510- ● ●
126 COUPLING; DRIVING PINION 1-37245-069-5 01 1 9510-9702 ● ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-069-5 01 1 9703-9802 ● ● ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-069-6 01 1 9803- ● ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-215-3 01 1 9510-0208 ● ●
126 COUPLING; DRIVING PINION 1-37245-388-0 01 1 0209- ● ●
134 WASHER; LK,BRG CAP
ID=16.2 		9-09150-516-0 04 1 9510-9702 ● ● ● ● ●
134 WASHER; LK,BRG CAP
ID=16.2 		9-09150-516-0 04 1 9703-9802 ● ● ● ● ● ●
134 WASHER; LK,BRG CAP
ID=16.2 		9-09150-516-0 04 1 9803-0104 ● ● ● ● ●
134 WASHER; LK,BRG CAP
ID=18.2 		9-09150-518-0 04 1 9510-0603 ● ●
134 WASHER; LK,BRG CAP
ID=18.2 		0-91510-518-0 04 1 0604- ● ●
164 COLLAR; DIST,PINION
T=10.70 		1-36355-031-0 01 1 9510-9702 ● ● ● ● ●
164 COLLAR; DIST,PINION
T=10.70 		1-36355-031-0 01 1 9703-9802 ● ● ● ● ● ●
164 COLLAR; DIST,PINION
T=10.70 		1-36355-031-0 01 1 9803- ● ● ● ● ●
164 COLLAR; DIST,PINION
T=10.90 		1-36355-033-0 01 1 9510-9702 ● ● ● ● ●
164 COLLAR; DIST,PINION
T=10.90 		1-36355-033-0 01 1 9703-9802 ● ● ● ● ● ●
164 COLLAR; DIST,PINION
T=10.90 		1-36355-033-0 01 1 9803- ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.10 		1-36355-035-0 01 1 9510-9702 ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.10 		1-36355-035-0 01 1 9703-9802 ● ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.10 		1-36355-035-0 01 1 9803- ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.30 		1-36355-037-0 01 1 9510-9702 ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.30 		1-36355-037-0 01 1 9703-9802 ● ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.30 		1-36355-037-0 01 1 9803- ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.50 		1-36355-039-0 01 1 9510-9702 ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.50 		1-36355-039-0 01 1 9703-9802 ● ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.50 		1-36355-039-0 01 1 9803- ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.70 		1-36355-041-0 01 1 9510-9702 ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.70 		1-36355-041-0 01 1 9703-9802 ● ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.70 		1-36355-041-0 01 1 9803- ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.90 		1-36355-043-0 01 1 9510-9702 ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.90 		1-36355-043-0 01 1 9703-9802 ● ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.90 		1-36355-043-0 01 1 9803- ● ● ● ● ●
164 COLLAR; DIST,PINION
T=12.10 		1-36355-045-0 01 1 9510-9702 ● ● ● ● ●
164 COLLAR; DIST,PINION
T=12.10 		1-36355-045-0 01 1 9703-9802 ● ● ● ● ● ●
164 COLLAR; DIST,PINION
T=12.10 		1-36355-045-0 01 1 9803- ● ● ● ● ●
164 COLLAR; DIST,PINION
T=12.30 		1-36355-047-0 01 1 9510-9702 ● ● ● ● ●
164 COLLAR; DIST,PINION
T=12.30 		1-36355-047-0 01 1 9703-9802 ● ● ● ● ● ●
164 COLLAR; DIST,PINION
T=12.30 		1-36355-047-0 01 1 9803- ● ● ● ● ●
çizim 151767
4 1 45 37 48 126 49 40 40 100 39 164 49 49 43 50 62 61 64 55 63 61 66 65 56 134 88 106 108 107 109 107 108 106 105 88 89 105 104 17 69 70 84 85 60 70 69 85 17 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 43/7 		1-41001-608-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 43/7 		1-41001-030-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 39/7 		1-41001-585-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 39/7 		1-41001-133-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 39/6 		1-41001-768-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 39/6 		1-41001-765-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 39/8 		1-41001-586-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 39/8 		1-41001-683-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 41/8 		1-41001-378-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 41/8 		1-41001-682-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
43/7 		1-41001-307-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
41/8 		1-41001-306-0 01 1 9510- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 39/9 		1-41001-333-0 01 1 9703-9802 ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 39/9 		1-41001-684-0 01 1 9703-9802 ●
4 GASKET; FLANGE,FINAL PINION
ID=37.5 T=4 		1-09623-582-0 01 1 9510-9702 ● ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=37.5 T=4 		1-09623-582-0 01 1 9703-9802 ● ● ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=37.5 T=4 		1-09623-582-0 01 1 9803- ● ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		1-09623-475-0 01 1 9510-0208 ● ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		9-09921-116-0 01 1 0209- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 04 1 9510-9702 ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 04 1 9703-9802 ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 04 1 9803- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M14X95 FLANGE 		1-09044-007-0 04 1 9510-9702 ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M14X95 FLANGE 		1-09044-007-0 04 1 9703-9802 ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M14X95 FLANGE 		1-09044-007-0 04 1 9803- ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(C) M14X95 FLANGE 		1-09044-007-0 12 1 9510- ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-058-2 01 1 9510-9702 ● ● ● ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-058-2 01 1 9703-9802 ● ● ● ● ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-058-2 01 1 9803-0804 ● ● ● ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-083-0 01 1 0805- ● ● ● ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-067-0 01 1 9510- ● ●
39 BEARING; FINAL PINION
JTEKT 		5-09812-062-1 01 1 1001- ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-026-0 01 1 9510-9702 ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-026-0 01 1 9703-9802 ● ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-026-0 01 1 9803-1001 ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		5-09812-063-0 01 1 1002- ● ● ● ● ●
39 BEARING; FINAL PINION
NTN 		1-09812-007-0 01 1 9510-9612 ● ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-218-0 01 1 9701- ● ●
40 SHIM; FINAL PINION
T=1.60 		1-41229-179-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.60 		1-41229-179-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.60 		1-41229-179-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.61 		1-41229-180-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.61 		1-41229-180-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.61 		1-41229-180-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.62 		1-41229-181-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.62 		1-41229-181-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.62 		1-41229-181-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.63 		1-41229-182-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.63 		1-41229-182-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.63 		1-41229-182-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.64 		1-41229-183-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.64 		1-41229-183-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.64 		1-41229-183-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.65 		1-41229-184-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.65 		1-41229-184-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.65 		1-41229-184-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.66 		1-41229-185-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.66 		1-41229-185-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.66 		1-41229-185-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.67 		1-41229-186-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.67 		1-41229-186-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.67 		1-41229-186-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.68 		1-41229-187-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.68 		1-41229-187-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.68 		1-41229-187-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.69 		1-41229-188-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.69 		1-41229-188-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.69 		1-41229-188-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.70 		1-41229-189-0 AR 1 9510-9702 ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.70 		1-41229-189-0 AR 1 9703-9802 ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=1.70 		1-41229-189-0 AR 1 9803- ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-256-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-257-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-258-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-259-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-260-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-261-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-262-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-263-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-264-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-265-0 AR 1 9510- ● ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-266-0 AR 1 9510- ● ●
43 CAGE; FINAL PINION 1-41151-027-0 01 1 9510-9702 ● ● ● ● ●
43 CAGE; FINAL PINION 1-41151-027-0 01 1 9703-9802 ● ● ● ● ● ●
43 CAGE; FINAL PINION 1-41151-027-0 01 1 9803- ● ● ● ● ●
43 CAGE; FINAL PINION 1-41151-028-1 01 1 9510- ● ●
45 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 9510-9702 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 9703-9802 ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 9803- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
M14X50 		0-16806-450-0 08 1 9510- ● ●
48 WASHER; LK,FINAL PINION
ID=12.2 		9-09150-512-0 06 1 9510-9702 ● ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=12.2 		9-09150-512-0 06 1 9703-9802 ● ● ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=12.2 		9-09150-512-0 06 1 9803-0603 ● ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=12.2 		0-91510-512-0 06 1 0604- ● ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 		9-09150-514-0 08 1 9510-0603 ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 		0-91510-514-0 08 1 0604- ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 9510-9702 ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 9703-9802 ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 9803- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 9510-9702 ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 9703-9802 ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 9803- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 9510-9702 ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 9703-9802 ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 9803- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 9510-9702 ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 9703-9802 ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 9803- ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-063-0 AR 1 9510- ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-064-0 AR 1 9510- ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		9-41154-013-0 AR 1 9510- ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		9-41154-014-0 AR 1 9510- ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 0612- ● ● ● ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 9510-9702 ● ● ● ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 9703-9802 ● ● ● ● ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 9803- ● ● ● ● ● ● ●
55 CARRIER; DIFF 1-41110-048-0 01 1 9510-9702 ● ● ● ● ●
55 CARRIER; DIFF 1-41110-048-0 01 1 9703-9802 ● ● ● ● ● ●
55 CARRIER; DIFF 1-41110-048-1 01 1 9803-1006 ● ● ● ● ●
55 CARRIER; DIFF 1-41110-129-0 01 1 1007- ● ● ● ● ●
55 CARRIER; DIFF 1-41110-052-0 01 1 9510- ● ●
56 BOLT; BRG CAP
M16X100 		9-91661-600-0 04 1 9510-9702 ● ● ● ● ●
56 BOLT; BRG CAP
M16X100 		9-91661-600-0 04 1 9703-9802 ● ● ● ● ● ●
56 BOLT; BRG CAP
M16X100 		9-91661-600-0 04 1 9803-0104 ● ● ● ● ●
56 BOLT; BRG CAP
M16X100 FLANGE 		1-09070-047-0 04 1 0105- ● ● ● ● ●
56 BOLT; BRG CAP
M18X107 		1-09050-002-1 04 1 9510- ● ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-392-2 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-391-2 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
39/6 		1-41210-394-2 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
39/8 		1-41210-454-0 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-453-0 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-277-3 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-279-3 01 1 9510- ●
60 GEAR SET; FINAL DRIVE,RR
39/9 		1-41210-455-0 01 1 9703-9802 ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 9510-9702 ● ● ● ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 9703-9802 ● ● ● ● ● ● ● ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 9803- ● ● ● ● ● ● ●
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-034-0 02 1 9510-9702 ● ● ● ● ●
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-034-0 02 1 9703-9802 ● ● ● ● ● ●
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-034-0 02 1 9803-0804 ● ● ● ● ●
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-046-0 02 1 0805- ● ● ● ● ●
62 BOLT; RET
M8X36 W/PIN HOLE 		1-09042-035-0 02 1 9510- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-073-1 01 1 9510-9702 ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-073-1 01 1 9703-9802 ● ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-073-2 01 1 9803- ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-074-1 01 1 9510-9702 ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-074-1 01 1 9703-9802 ● ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-074-1 01 1 9803- ● ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 9510- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 9510- ● ●
64 NUT; RET
M8 		9-09117-408-0 02 1 9510-9702 ● ● ● ● ● ● ●
64 NUT; RET
M8 		9-09117-408-0 02 1 9703-9707 ● ● ● ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9708-9802 ● ● ● ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9803-0512 ● ● ● ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0601- ● ● ● ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9510-9702 ● ● ● ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9703-9802 ● ● ● ● ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9803-0805 ● ● ● ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 0806- ● ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-066-1 01 1 9510-9702 ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-066-1 01 1 9703-9802 ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-066-1 01 1 9803-1109 ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-214-0 01 1 1110- ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 9510- ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=30 		1-41121-015-0 01 1 9510-9702 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=30 		1-41121-015-0 01 1 9703-9802 ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=30 		1-41121-015-0 01 1 9803- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=22 		1-41121-013-0 01 1 9510-9702 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=22 		1-41121-013-0 01 1 9703-9802 ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=22 		1-41121-013-0 01 1 9803- ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=29 		1-41121-006-0 01 1 9510-0603 ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=29 		1-41121-006-0 01 1 0604- ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=24 		1-41121-005-0 01 1 9510-0603 ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=24 		1-41121-005-0 01 1 0604- ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 		1-09812-058-0 01 1 9510-9702 ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 		1-09812-058-0 01 1 9703-9802 ● ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 		1-09812-058-1 01 1 9803- ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=33.3 		1-09812-056-0 01 1 9510-9702 ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=33.3 		1-09812-056-0 01 1 9703-9802 ● ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=33.3 		1-09812-056-1 01 1 9803- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3 		1-09812-063-1 01 1 9911-0704 ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3 		1-09812-249-0 01 1 0705- ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=33.3 		1-09812-062-2 01 1 9911- ● ● ● ● ●
70 BEARING; DIFF CAGE
NACHI ID=80 OD=140 T=35.3 		1-09812-144-0 02 1 9510-0911 ● ●
70 BEARING; DIFF CAGE
NACHI 		1-09812-151-0 02 1 0912- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=80 OD=140 T=35.3 		1-09812-145-0 02 1 9510-0911 ● ●
70 BEARING; DIFF CAGE
NSK ID=80 OD=140 T=35.3 		1-09812-146-0 02 1 9510-1002 ● ●
70 BEARING; DIFF CAGE
NSK 		1-09812-150-0 02 1 1003- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-127-0 01 1 0601- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-112-0 01 1 9510-9702 ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-112-0 01 1 9703-9802 ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-112-0 01 1 9803-1006 ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-343-0 01 1 1007- ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-127-0 01 1 9510-0509 ● ●
84 BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE 		9-09802-575-0 16 1 9510-9702 ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE 		9-09802-575-0 16 1 9703-9802 ● ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE 		9-09802-575-1 16 1 9803- ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		9-09802-561-0 16 1 9510-9804 ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 9805- ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 08 1 9510-9702 ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 08 1 9703-9802 ● ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 08 1 9803- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 9510- ● ●
88 PLATE; LK,ADJ NUT
(A) T=2.3 		9-41124-015-0 02 1 9510-9702 ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=2.3 		9-41124-015-0 02 1 9703-9802 ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=2.3 		9-41124-015-0 02 1 9803- ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9510-9702 ● ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9703-9802 ● ● ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9803- ● ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(C) T=2.3 		1-41124-002-0 02 1 9510- ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9510-9702 ● ● ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9703-9802 ● ● ● ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9803-0512 ● ● ● ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0601- ● ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
TKK 		1-09625-432-0 01 1 9510-9702 ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
TKK 		1-09625-432-0 01 1 9703-9802 ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
TKK 		1-09625-432-0 01 1 9803-9908 ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
TKK 		1-09625-637-0 01 1 9909- ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-0 01 1 9510-9702 ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-0 01 1 9703-9802 ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-1 01 1 9803- ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 9510- ● ●
104 DIFF ASM; NO SPIN
LIMITED SLIP DIFF(G86) 		1-41530-025-0 01 1 9510-9702 ● ● ● ● ●
104 DIFF ASM; NO SPIN
LIMITED SLIP DIFF(G86) 		1-41530-025-0 01 1 9703-9802 ● ● ● ● ● ●
104 DIFF ASM; NO SPIN
LIMITED SLIP DIFF(G86) 		1-41530-025-0 01 1 9803- ● ● ● ● ●
105 GEAR; SIDE
LIMITED SLIP DIFF(G86) 		1-41539-018-0 02 1 9510-9702 ● ● ● ● ●
105 GEAR; SIDE
LIMITED SLIP DIFF(G86) 		1-41539-018-0 02 1 9703-9802 ● ● ● ● ● ●
105 GEAR; SIDE
LIMITED SLIP DIFF(G86) 		1-41539-018-0 02 1 9803- ● ● ● ● ●
106 SPRING; NO SPIN DIFF
LIMITED SLIP DIFF(G86) 		1-41539-006-0 02 1 9510-9702 ● ● ● ● ●
106 SPRING; NO SPIN DIFF
LIMITED SLIP DIFF(G86) 		1-41539-006-0 02 1 9703-9802 ● ● ● ● ● ●
106 SPRING; NO SPIN DIFF
LIMITED SLIP DIFF(G86) 		1-41539-006-0 02 1 9803- ● ● ● ● ●
107 CLUTCH; DRIVEN
LIMITED SLIP DIFF(G86) 		1-41539-003-0 02 1 9510-9702 ● ● ● ● ●
107 CLUTCH; DRIVEN
LIMITED SLIP DIFF(G86) 		1-41539-003-0 02 1 9703-9802 ● ● ● ● ● ●
107 CLUTCH; DRIVEN
LIMITED SLIP DIFF(G86) 		1-41539-003-0 02 1 9803- ● ● ● ● ●
108 RING; HOLD OUT
LIMITED SLIP DIFF(G86) 		1-41539-004-0 02 1 9510-9702 ● ● ● ● ●
108 RING; HOLD OUT
LIMITED SLIP DIFF(G86) 		1-41539-004-0 02 1 9703-9802 ● ● ● ● ● ●
108 RING; HOLD OUT
LIMITED SLIP DIFF(G86) 		1-41539-004-0 02 1 9803- ● ● ● ● ●
109 SPIDER; DIFF
LIMITED SLIP DIFF(G86) 		1-41539-014-0 01 1 9510-9702 ● ● ● ● ●
109 SPIDER; DIFF
LIMITED SLIP DIFF(G86) 		1-41539-014-0 01 1 9703-9802 ● ● ● ● ● ●
109 SPIDER; DIFF
LIMITED SLIP DIFF(G86) 		1-41539-014-0 01 1 9803- ● ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-069-5 01 1 9510-9702 ● ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-069-5 01 1 9703-9802 ● ● ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-069-6 01 1 9803- ● ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-215-3 01 1 9510-0208 ● ●
126 COUPLING; DRIVING PINION 1-37245-388-0 01 1 0209- ● ●
134 WASHER; LK,BRG CAP
ID=16.2 		9-09150-516-0 04 1 9510-9702 ● ● ● ● ●
134 WASHER; LK,BRG CAP
ID=16.2 		9-09150-516-0 04 1 9703-9802 ● ● ● ● ● ●
134 WASHER; LK,BRG CAP
ID=16.2 		9-09150-516-0 04 1 9803-0104 ● ● ● ● ●
134 WASHER; LK,BRG CAP
ID=18.2 		9-09150-518-0 04 1 9510-0603 ● ●
134 WASHER; LK,BRG CAP
ID=18.2 		0-91510-518-0 04 1 0604- ● ●
164 COLLAR; DIST,PINION
T=10.70 		1-36355-031-0 01 1 9510-9702 ● ● ● ● ●
164 COLLAR; DIST,PINION
T=10.70 		1-36355-031-0 01 1 9703-9802 ● ● ● ● ● ●
164 COLLAR; DIST,PINION
T=10.70 		1-36355-031-0 01 1 9803- ● ● ● ● ●
164 COLLAR; DIST,PINION
T=10.90 		1-36355-033-0 01 1 9510-9702 ● ● ● ● ●
164 COLLAR; DIST,PINION
T=10.90 		1-36355-033-0 01 1 9703-9802 ● ● ● ● ● ●
164 COLLAR; DIST,PINION
T=10.90 		1-36355-033-0 01 1 9803- ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.10 		1-36355-035-0 01 1 9510-9702 ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.10 		1-36355-035-0 01 1 9703-9802 ● ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.10 		1-36355-035-0 01 1 9803- ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.30 		1-36355-037-0 01 1 9510-9702 ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.30 		1-36355-037-0 01 1 9703-9802 ● ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.30 		1-36355-037-0 01 1 9803- ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.50 		1-36355-039-0 01 1 9510-9702 ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.50 		1-36355-039-0 01 1 9703-9802 ● ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.50 		1-36355-039-0 01 1 9803- ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.70 		1-36355-041-0 01 1 9510-9702 ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.70 		1-36355-041-0 01 1 9703-9802 ● ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.70 		1-36355-041-0 01 1 9803- ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.90 		1-36355-043-0 01 1 9510-9702 ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.90 		1-36355-043-0 01 1 9703-9802 ● ● ● ● ● ●
164 COLLAR; DIST,PINION
T=11.90 		1-36355-043-0 01 1 9803- ● ● ● ● ●
164 COLLAR; DIST,PINION
T=12.10 		1-36355-045-0 01 1 9510-9702 ● ● ● ● ●
164 COLLAR; DIST,PINION
T=12.10 		1-36355-045-0 01 1 9703-9802 ● ● ● ● ● ●
164 COLLAR; DIST,PINION
T=12.10 		1-36355-045-0 01 1 9803- ● ● ● ● ●
164 COLLAR; DIST,PINION
T=12.30 		1-36355-047-0 01 1 9510-9702 ● ● ● ● ●
164 COLLAR; DIST,PINION
T=12.30 		1-36355-047-0 01 1 9703-9802 ● ● ● ● ● ●
164 COLLAR; DIST,PINION
T=12.30 		1-36355-047-0 01 1 9803- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
