1 |

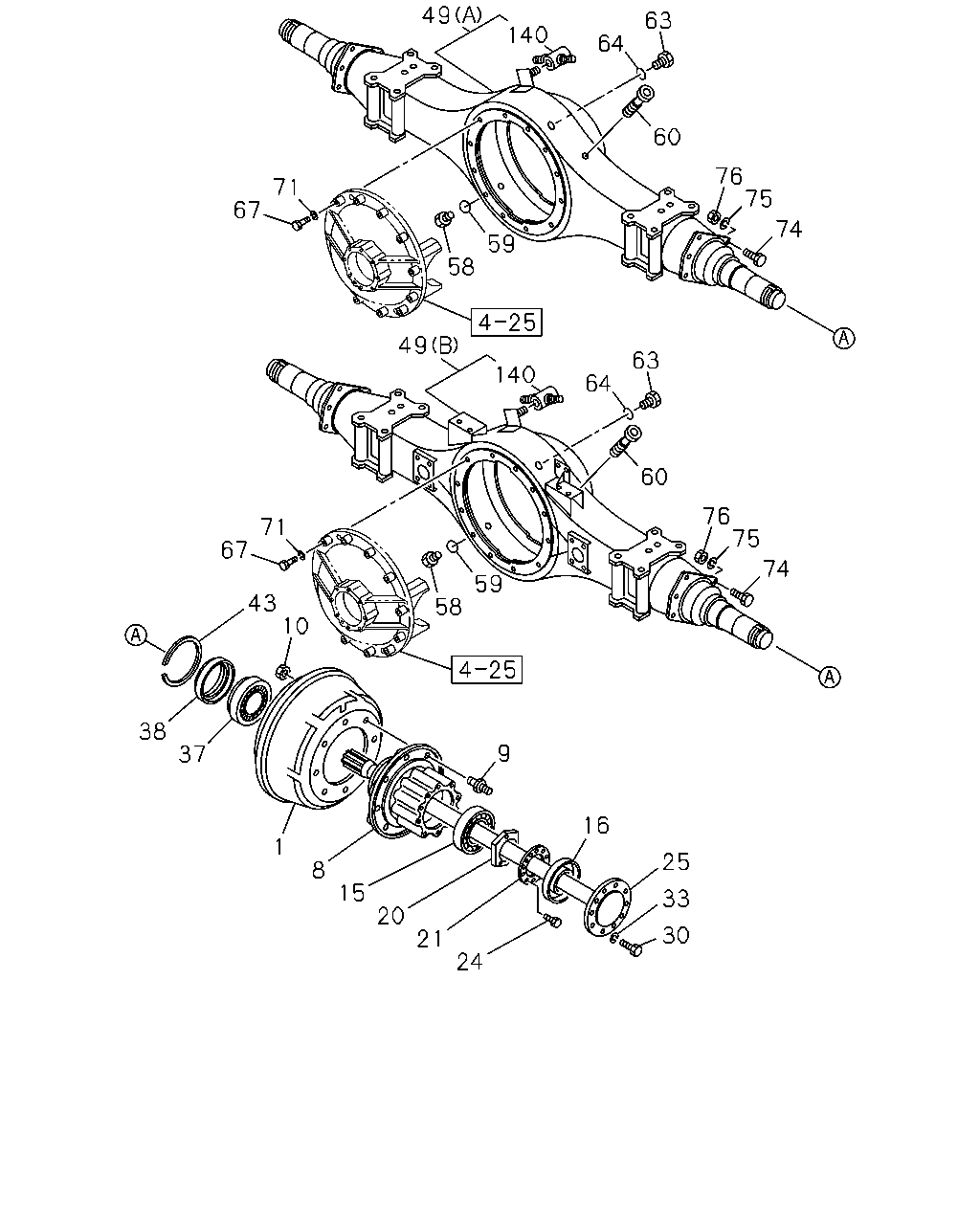

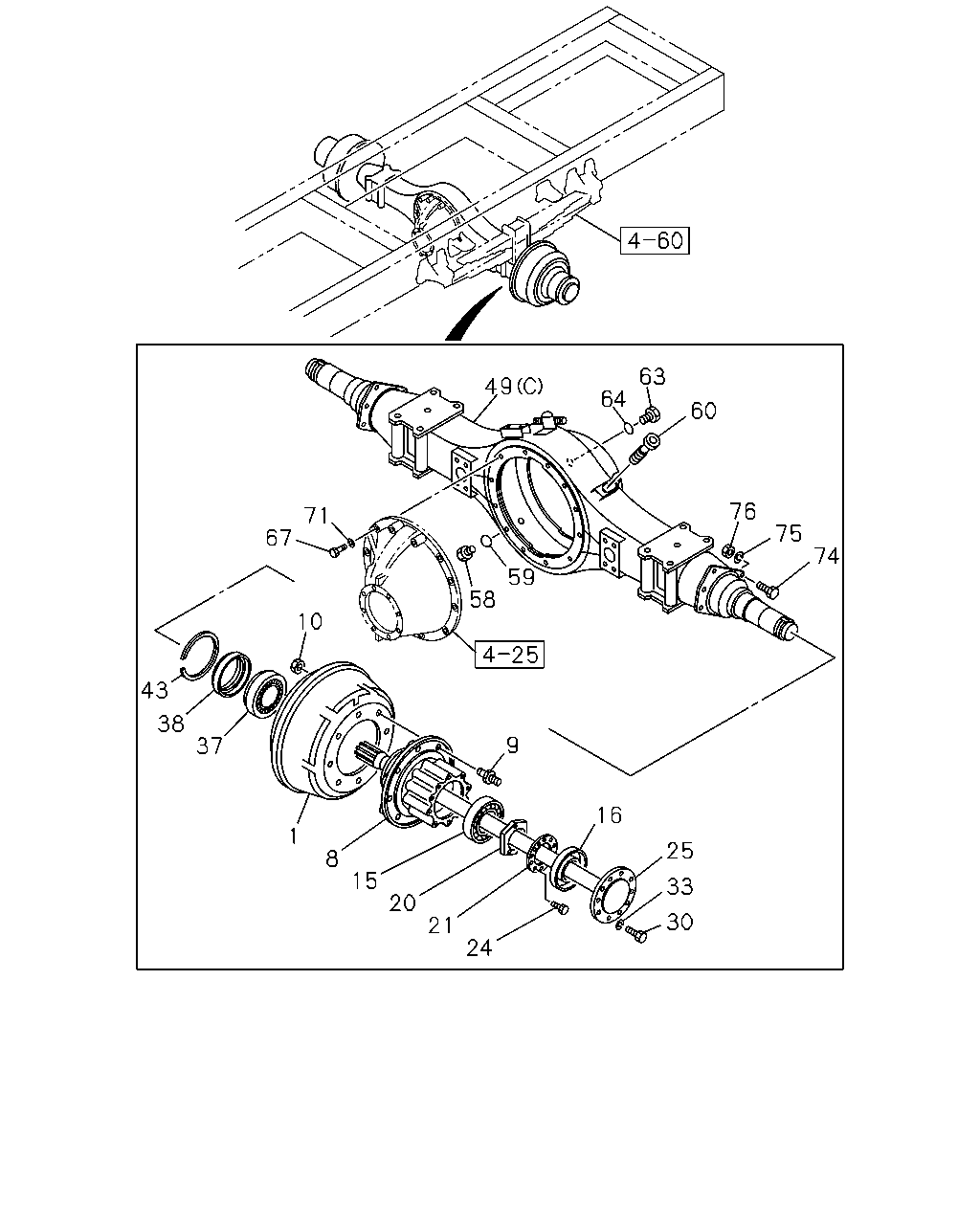

DRUM; BRK,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-42315-266-1 |
02 |
1 |
9510-9702 |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
|
1-42315-266-1 |
02 |
1 |
9703-9802 |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-42315-266-1 |
02 |
1 |
9803-9902 |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-42315-362-1 |
02 |
1 |
9903- |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
H=195
|
1-42315-208-2 |
02 |
1 |
9510- |
| |
8 |
HUB; RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-42311-021-1 |
02 |
1 |
9510-9702 |
| |
8 |
HUB; RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
|
1-42311-021-1 |
02 |
1 |
9703-9802 |
| |
8 |
HUB; RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-42311-021-1 |
02 |
1 |
9803- |
| |
8 |
HUB; RR AXLE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
|
1-42311-092-0 |
02 |
1 |
9510- |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-2 |
08 |
1 |
9510- |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-2 |
08 |
1 |
9510- |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22
|
9-09110-522-0 |
16 |
1 |
9510-9609 |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22 FLANGE
|
1-09440-055-0 |
16 |
1 |
9610-9902 |
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
M22 FLANGE
|
1-09440-055-0 |
16 |
1 |
9903-9904 |
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
9903-9904 |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
9905- |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
JTEKT
|
1-09812-049-0 |
02 |
1 |
9510-9702 |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
JTEKT
|
1-09812-049-0 |
02 |
1 |
9703-9802 |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
JTEKT
|
1-09812-049-0 |
02 |
1 |
9803-1002 |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
JTEKT
|
8-98156-814-0 |
02 |
1 |
1003- |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
NSK
|
9-00093-159-0 |
02 |
1 |
9510-9702 |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
NSK
|
9-00093-159-0 |
02 |
1 |
9703-9802 |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
NSK
|
9-00093-159-0 |
02 |
1 |
9803- |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
NSK
|
1-09812-153-0 |
02 |
1 |
9510- |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
JTEKT
|
1-09812-154-0 |
02 |
1 |
9510- |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
BEST VALUE PARTS
|
1-87610-160-0 |
02 |
1 |
1003- |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
TKK
|
1-09625-331-0 |
02 |
1 |
9510-9702 |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
TKK
|
1-09625-331-0 |
02 |
1 |
9703-9802 |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
TKK
|
1-09625-331-1 |
02 |
1 |
9803- |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
NOK
|
9-09924-468-0 |
02 |
1 |
9510- |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
TKK
|
9-09924-470-0 |
02 |
1 |
9510-0509 |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
JTEKT
|
9-09924-499-0 |
02 |
1 |
9510-0509 |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
M64
|
9-09843-721-2 |
02 |
1 |
9510-9702 |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
M64
|
9-09843-721-2 |
02 |
1 |
9703-9802 |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
M64
|
9-09843-721-2 |
02 |
1 |
9803- |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
M74.6
|
9-09843-064-2 |
02 |
1 |
9510- |
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
ID=64
|
9-09854-122-0 |
02 |
1 |
9510-9702 |
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
ID=64
|
9-09854-122-0 |
02 |
1 |
9703-9802 |
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
ID=64
|
9-09854-122-0 |
02 |
1 |
9803- |
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
ID=74.6
|
1-09533-008-0 |
02 |
1 |
9510- |
| |
24 |
BOLT; LK WASHER
M6X16 W/LK WASHER
|
0-50040-616-0 |
06 |
1 |
9510-9701 |
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28680-616-0 |
06 |
1 |
9702-0512 |
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28650-616-0 |
06 |
1 |
0601- |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-42171-361-0 |
02 |
1 |
9510-9607 |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
L=921.5
|
1-42171-484-0 |
02 |
1 |
9608-9702 |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
L=921.5
|
1-42171-484-0 |
02 |
1 |
9703-9802 |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
L=921.5
|
1-42171-484-0 |
02 |
1 |
9803- |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
L=986
|
1-42171-280-0 |
02 |
1 |
9510-9609 |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
L=986
|
1-42171-499-0 |
02 |
1 |
9610- |
| |
30 |
BOLT; HUB TO AXLE SHAFT
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
M12X45
|
9-09804-239-1 |
20 |
1 |
9510-9702 |
| |
30 |
BOLT; HUB TO AXLE SHAFT
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
M12X45
|
9-09804-239-1 |
20 |
1 |
9703-9802 |
| |
30 |
BOLT; HUB TO AXLE SHAFT
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
M12X45
|
9-09804-239-1 |
20 |
1 |
9803- |
| |
30 |
BOLT; HUB TO AXLE SHAFT
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
M14X58
|
1-09000-582-0 |
20 |
1 |
9510- |
| |
33 |
WASHER; AXLE SHAFT
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
ID=12.2
|
9-09150-812-0 |
20 |
1 |
9510-9702 |
| |
33 |
WASHER; AXLE SHAFT
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
ID=12.2
|
9-09150-812-0 |
20 |
1 |
9703-9802 |
| |
33 |
WASHER; AXLE SHAFT
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
ID=12.2
|
9-09150-812-0 |
20 |
1 |
9803-0603 |
| |
33 |
WASHER; AXLE SHAFT
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
ID=12.2
|
0-91510-812-0 |
20 |
1 |
0604- |
| |
33 |
WASHER; AXLE SHAFT
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
ID=14.2
|
9-09150-814-0 |
20 |
1 |
9510-0603 |
| |
33 |
WASHER; AXLE SHAFT
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
ID=14.2
|
0-91510-814-0 |
20 |
1 |
0604- |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
JTEKT
|
1-09812-044-0 |
02 |
1 |
9510-9702 |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
JTEKT
|
1-09812-044-0 |
02 |
1 |
9703-9802 |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
JTEKT
|
1-09812-044-0 |
02 |
1 |
9803-1002 |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
JTEKT
|
1-09812-154-0 |
02 |
1 |
1003- |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
NACHI
|
1-09812-053-0 |
02 |
1 |
9510-9702 |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
NACHI
|
1-09812-053-0 |
02 |
1 |
9703-9802 |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
NACHI
|
1-09812-053-0 |
02 |
1 |
9803-1002 |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
NSK
|
9-00093-161-0 |
02 |
1 |
9510-9702 |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
NSK
|
9-00093-161-0 |
02 |
1 |
9703-9802 |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
NSK
|
9-00093-161-0 |
02 |
1 |
9803-1002 |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
NSK
|
1-09812-153-0 |
02 |
1 |
1003- |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
NSK
|
1-09812-150-0 |
02 |
1 |
9510- |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
NACHI
|
1-09812-151-0 |
02 |
1 |
9510- |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
TKK
|
1-09625-569-0 |
02 |
1 |
9510-9702 |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
TKK
|
1-09625-569-0 |
02 |
1 |
9703-9802 |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
TKK
|
1-09625-569-0 |
02 |
1 |
9803- |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
TKK
|
9-09924-415-0 |
02 |
1 |
9510- |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
NOK
|
9-09924-416-0 |
02 |
1 |
9510-0111 |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
JTEKT
|
9-09924-417-0 |
02 |
1 |
9510-0111 |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
9-09950-201-0 |
02 |
1 |
9510-9702 |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
|
9-09950-201-0 |
02 |
1 |
9703-9802 |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
9-09950-201-0 |
02 |
1 |
9803- |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
OD=150
|
9-09950-147-0 |
02 |
1 |
9510- |
| |
49 |
CASE; RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-42150-960-0 |
01 |
1 |
9510-9702 |
| |
49 |
CASE; RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-42150-960-0 |
01 |
1 |
9703-9802 |
| |
49 |
CASE; RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-42160-150-1 |
01 |
1 |
9510- |
| |
49 |
CASE; RR AXLE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
(C)
|
1-42160-153-0 |
01 |
1 |
9510- |
| |
49 |
CASE; RR AXLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-42150-960-0 |
01 |
1 |
9803- |
| |
58 |
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
9510- |
| |
59 |
GASKET; DRAIN PLUG
ID=26.8
|
9-09920-605-0 |
01 |
1 |
9510- |
| |
60 |
BREATHER; RR AXLE CASE
FINAL GEAR 14.5"<B2V>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09893-003-0 |
01 |
1 |
9510-0004 |
| |
60 |
BREATHER; RR AXLE CASE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09893-003-0 |
01 |
1 |
9510-0004 |
| |
60 |
BREATHER; RR AXLE CASE
FINAL GEAR 14.5"<B2V>
|
1-09893-003-0 |
01 |
1 |
0005- |
| |
60 |
BREATHER; RR AXLE CASE
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09893-016-0 |
01 |
1 |
9510-0004 |
| |
60 |
BREATHER; RR AXLE CASE
FINAL GEAR 15.5"<B2X>
|
1-09893-016-0 |
01 |
1 |
0005- |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
9510- |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=26.8
|
9-09920-605-0 |
01 |
1 |
9510- |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
M12X55
|
9-91066-255-0 |
04 |
1 |
9510-9702 |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
M12X55
|
9-91066-255-0 |
04 |
1 |
9703-9802 |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
M12X55
|
9-91066-255-0 |
04 |
1 |
9803- |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
M12X35
|
9-92061-235-0 |
08 |
1 |
9510-9702 |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
M12X35
|
9-92061-235-0 |
08 |
1 |
9703-9802 |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
M12X35
|
9-92061-235-0 |
08 |
1 |
9803-0512 |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
M12X35
|
0-20951-235-0 |
08 |
1 |
0601- |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
M14X65
|
9-91066-465-0 |
04 |
1 |
9510-0108 |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
M14X65
|
9-92061-465-0 |
04 |
1 |
0109- |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
M14X40
|
9-92061-440-0 |
08 |
1 |
9510-0512 |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
M14X40
|
0-20951-440-0 |
08 |
1 |
0601- |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
ID=12.2
|
9-09150-812-0 |
12 |
1 |
9510-9702 |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
ID=12.2
|
9-09150-812-0 |
12 |
1 |
9703-9802 |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
ID=12.2
|
9-09150-812-0 |
12 |
1 |
9803-0603 |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
ID=12.2
|
0-91510-812-0 |
12 |
1 |
0604- |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9510-0603 |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
ID=14.2
|
0-91510-814-0 |
12 |
1 |
0604- |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M14X56
|
1-09060-004-0 |
04 |
1 |
9510-9702 |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M14X56
|
1-09060-004-0 |
04 |
1 |
9703-9802 |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M14X56
|
1-09060-004-0 |
04 |
1 |
9803- |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M14X50
|
9-92061-450-0 |
12 |
1 |
9510-0512 |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M14X50
|
0-20951-450-0 |
12 |
1 |
0601- |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
M14X50
|
1-09040-066-0 |
16 |
1 |
9510- |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
9-09150-814-0 |
16 |
1 |
9510-0603 |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
0-91510-814-0 |
16 |
1 |
0604- |
| |
76 |
NUT; RR BRK ASM SETTING
M14
|
9-99110-514-0 |
16 |
1 |
9510-0512 |
| |
76 |
NUT; RR BRK ASM SETTING
M14
|
0-91110-514-0 |
16 |
1 |
0601- |
| |
140 |
CONNECTOR; AXLE CASE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-09656-239-3 |
01 |
1 |
9510-9702 |
| |
140 |
CONNECTOR; AXLE CASE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
|
1-09656-239-3 |
01 |
1 |
9703-9802 |
| |
140 |
CONNECTOR; AXLE CASE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-09656-239-3 |
01 |
1 |
9803- |
