4-11 — FRONT HUB AND DRUM OR ROTOR (#38307) — 122 parça

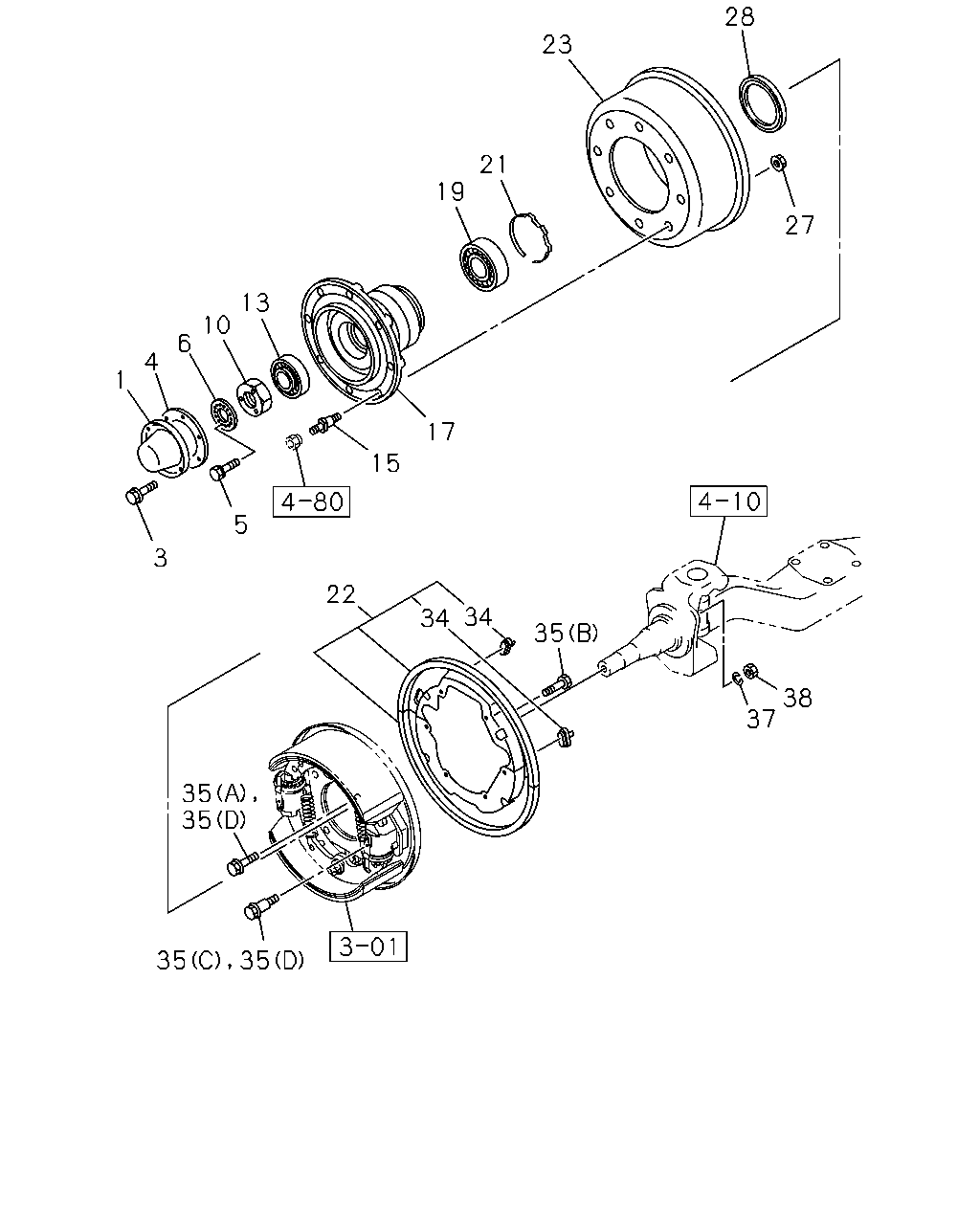

28 23 21 19 27 13 10 6 4 1 17 15 5 3 22 34 34 35 38 37 35 35 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAP; HUB,FRT AXLE FRONT AXLE F049(FS4) OD=136	1-42313-007-1	02	1	9510-
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F049(FS4)	1-42313-019-1	02	1	9510-0507
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F049(FS4)	1-42313-029-0	02	1	0508-0704
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F049(FS4)	1-42313-030-0	02	1	0705-1511
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F049(FS4)	8-98331-640-0	02	1	1512-
3	BOLT; HUB CAP,FRT WHEEL FRONT AXLE F049(FS4) M8X12 FLANGE	0-28080-812-0	12	1	9510-0512
3	BOLT; HUB CAP,FRT WHEEL FRONT AXLE F049(FS4) M8X12 FLANGE	0-28050-812-0	12	1	0601-
4	GASKET; HUB CAP,FRT WHEEL FRONT AXLE F049(FS4)	1-42319-028-0	02	1	9510-
5	BOLT; LK WASHER FRONT AXLE F049(FS4) M6X16 HEX SOCKET	8-98084-271-0	04	1	0708-1201
5	BOLT; LK WASHER FRONT AXLE F049(FS4) M6X16 HEX SOCKET	8-98200-943-0	04	1	1202-
5	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	04	1	9510-9701
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9702-0512
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-0707
5	BOLT; LK WASHER EXC. FRONT AXLE F049(FS4) M6X16 FLANGE	0-28650-616-0	04	1	0708-
6	WASHER; LK,FRT HUB FRONT AXLE F049(FS4) ID=39	8-98086-313-0	02	1	0708-
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	9510-0707
6	WASHER; LK,FRT HUB EXC. FRONT AXLE F049(FS4) ID=39	1-09841-003-0	02	1	0708-
10	NUT; FRT HUB BRG M39	1-09840-019-1	02	1	9510-
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049(FS4) NSK	9-00093-146-0	02	1	9510-
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049(FS4) JTEKT	9-00093-147-1	02	1	9510-
13	BEARING; HUB OUTER,FRT AXLE EXC. FRONT AXLE F049(FS4) NSK	1-09812-064-0	02	1	9510-
13	BEARING; HUB OUTER,FRT AXLE EXC. FRONT AXLE F049(FS4) JTEKT	1-09812-065-0	02	1	9510-
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049(FS4) M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	08	1	9510-
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049(FS4) M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	08	1	9510-
15	PIN; WHEEL,FRT AXLE EXC. FRONT AXLE F049(FS4) M24X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-132-1	08	1	9510-
15	PIN; WHEEL,FRT AXLE EXC. FRONT AXLE F049(FS4) M24X37.5,M22X55.5 RH THREAD	1-42331-132-1	08	1	9510-
17	HUB; FRT AXLE FRONT AXLE F049(FS4)	1-42312-113-0	02	1	9510-
17	HUB; FRT AXLE EXC. FRONT AXLE F049(FS4)	1-42312-036-2	02	1	9510-
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F049(FS4) NSK	8-98143-848-0	02	1	0907-
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F049(FS4) JTEKT	9-00093-114-0	02	1	9510-
19	BEARING; HUB INNER,FRT AXLE EXC. FRONT AXLE F049(FS4) NSK	9-00093-031-1	02	1	9510-1002
19	BEARING; HUB INNER,FRT AXLE EXC. FRONT AXLE F049(FS4) JTEKT	9-00093-205-1	02	1	9510-1002
19	BEARING; HUB INNER,FRT AXLE EXC. FRONT AXLE F049(FS4) JTEKT	1-09812-206-0	02	1	1003-
21	RING; SNAP,HUB FRONT AXLE F049(FS4) OD=132	9-09950-164-0	02	1	9510-
21	RING; SNAP,HUB EXC. FRONT AXLE F049(FS4) OD=117	1-09587-001-0	02	1	9510-
22	COVER SET; FRT BRK DRUM SUSPENSION HEAVY DUTY VAR2(F41) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-47151-458-1	02	1	9510-9802
22	COVER SET; FRT BRK DRUM HEAVY DUTY PACKAGE TRUCK<RD2>	1-47151-458-1	02	1	9803-
23	DRUM; BRK,FRT EXC. FRONT AXLE F049(FS4)	1-42315-278-1	02	1	9510-
23	DRUM; BRK,FRT SUSPENSION HEAVY DUTY VAR2(F41) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) H=195	1-42315-208-1	02	1	9510-9802
23	DRUM; BRK,FRT HEAVY DUTY PACKAGE TRUCK<RD2> H=195	1-42315-208-2	02	1	9803-
23	DRUM; BRK,FRT SUSPENSION HEAVY DUTY VAR2(F41) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-42315-138-2	02	1	9510-9802
23	DRUM; BRK,FRT FRONT SPRING HEAVY DUTY<F60>	1-42315-138-2	02	1	9510-9802
23	DRUM; BRK,FRT FRONT AXLE F049(FS4) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-42315-138-2	02	1	9803-
27	NUT; WHEEL PIN,FRT AXLE M22	9-09110-522-0	16	1	9510-9609
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-055-0	16	1	9610-9904
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	9905-
28	SEAL; OIL,FRT HUB FRONT AXLE F049(FS4) OD=128	1-09625-129-0	02	1	9510-
28	SEAL; OIL,FRT HUB EXC. FRONT AXLE F049(FS4)	1-09625-568-0	02	1	9510-
34	COVER; CHECK HOLE,DRUM COVER SUSPENSION HEAVY DUTY VAR2(F41) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-09333-151-0	04	1	9510-9802
34	COVER; CHECK HOLE,DRUM COVER HEAVY DUTY PACKAGE TRUCK<RD2>	1-09333-151-0	04	1	9803-
35	BOLT; DRUM COVER SUSPENSION HEAVY DUTY VAR2(F41) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M10X16 W/LK WASHER	0-50041-016-0	12	1	9510-9802
35	BOLT; DRUM COVER HEAVY DUTY PACKAGE TRUCK<RD2> (B) M10X16 W/LK WASHER	0-50041-016-0	12	1	9803-0906
35	BOLT; DRUM COVER HEAVY DUTY PACKAGE TRUCK<RD2> (B) M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-
35	BOLT; DRUM COVER SUSPENSION HEAVY DUTY VAR2(F41) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) M16X61	1-09040-058-1	04	1	9510-9802
35	BOLT; DRUM COVER HEAVY DUTY PACKAGE TRUCK<RD2> (C) M16X61	1-09040-058-1	04	1	9803-
35	BOLT; DRUM COVER SUSPENSION HEAVY DUTY VAR2(F41) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M16X52	1-09044-001-1	04	1	9510-9802
35	BOLT; DRUM COVER HEAVY DUTY PACKAGE TRUCK<RD2> (A) M16X52	1-09044-001-2	04	1	9803-0805
35	BOLT; DRUM COVER HEAVY DUTY PACKAGE TRUCK<RD2> (A) M16X52	1-09044-120-0	04	1	0806-
35	BOLT; DRUM COVER SUSPENSION HEAVY DUTY VAR2(F41) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (D) M16X50	0-20801-650-0	08	1	9510-9802
35	BOLT; DRUM COVER FRONT SPRING HEAVY DUTY<F60> (D) M16X50	0-20801-650-0	08	1	9510-9802
35	BOLT; DRUM COVER FRONT AXLE F049(FS4) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D) M16X50	0-20801-650-0	08	1	9803-0512
35	BOLT; DRUM COVER FRONT AXLE F049(FS4) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D) M16X50	0-20851-650-0	08	1	0601-
37	WASHER; LK,BACK PLATE FRONT AXLE F049(FS4) ID=16.2	9-09150-816-0	08	1	9510-0603
37	WASHER; LK,BACK PLATE FRONT AXLE F049(FS4) ID=16.2	0-91510-816-0	08	1	0604-
37	WASHER; LK,BACK PLATE EXC. FRONT AXLE F049(FS4) ID=14.2	9-09150-814-0	08	1	9510-0603
37	WASHER; LK,BACK PLATE EXC. FRONT AXLE F049(FS4) ID=14.2	0-91510-814-0	08	1	0604-
38	NUT; BACK PLATE FRONT AXLE F049(FS4) M16	9-99110-416-0	08	1	9510-0512
38	NUT; BACK PLATE FRONT AXLE F049(FS4) M16	0-91110-516-0	08	1	0601-
38	NUT; BACK PLATE EXC. FRONT AXLE F049(FS4) M14	9-99110-514-0	08	1	9510-0512
38	NUT; BACK PLATE EXC. FRONT AXLE F049(FS4) M14	0-91110-514-0	08	1	0601-

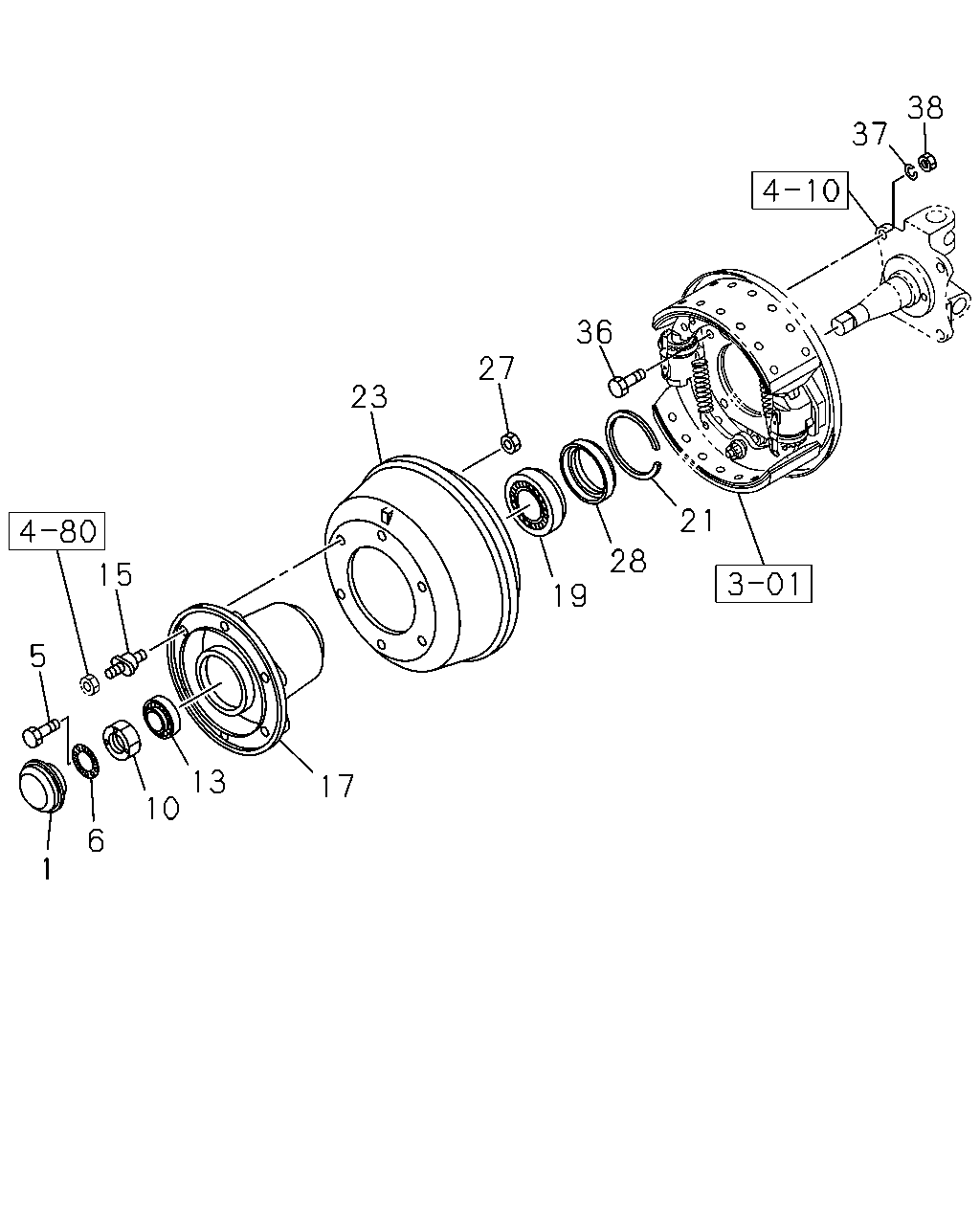

38 37 36 27 23 21 28 15 19 5 13 10 17 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAP; HUB,FRT AXLE FRONT AXLE F049(FS4) OD=136	1-42313-007-1	02	1	9510-
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F049(FS4)	1-42313-019-1	02	1	9510-0507
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F049(FS4)	1-42313-029-0	02	1	0508-0704
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F049(FS4)	1-42313-030-0	02	1	0705-1511
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F049(FS4)	8-98331-640-0	02	1	1512-
5	BOLT; LK WASHER FRONT AXLE F049(FS4) M6X16 HEX SOCKET	8-98084-271-0	04	1	0708-1201
5	BOLT; LK WASHER FRONT AXLE F049(FS4) M6X16 HEX SOCKET	8-98200-943-0	04	1	1202-
5	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	04	1	9510-9701
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9702-0512
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-0707
5	BOLT; LK WASHER EXC. FRONT AXLE F049(FS4) M6X16 FLANGE	0-28650-616-0	04	1	0708-
6	WASHER; LK,FRT HUB FRONT AXLE F049(FS4) ID=39	8-98086-313-0	02	1	0708-
6	WASHER; LK,FRT HUB ID=39	1-09841-003-0	02	1	9510-0707
6	WASHER; LK,FRT HUB EXC. FRONT AXLE F049(FS4) ID=39	1-09841-003-0	02	1	0708-
10	NUT; FRT HUB BRG M39	1-09840-019-1	02	1	9510-
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049(FS4) NSK	9-00093-146-0	02	1	9510-
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F049(FS4) JTEKT	9-00093-147-1	02	1	9510-
13	BEARING; HUB OUTER,FRT AXLE EXC. FRONT AXLE F049(FS4) NSK	1-09812-064-0	02	1	9510-
13	BEARING; HUB OUTER,FRT AXLE EXC. FRONT AXLE F049(FS4) JTEKT	1-09812-065-0	02	1	9510-
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049(FS4) M24X37.5 LH THREAD,M22X51.5 RH THREAD	1-42332-112-1	08	1	9510-
15	PIN; WHEEL,FRT AXLE FRONT AXLE F049(FS4) M24X37.5,M22X51.5 RH THREAD	1-42331-112-1	08	1	9510-
15	PIN; WHEEL,FRT AXLE EXC. FRONT AXLE F049(FS4) M24X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-132-1	08	1	9510-
15	PIN; WHEEL,FRT AXLE EXC. FRONT AXLE F049(FS4) M24X37.5,M22X55.5 RH THREAD	1-42331-132-1	08	1	9510-
17	HUB; FRT AXLE FRONT AXLE F049(FS4)	1-42312-113-0	02	1	9510-
17	HUB; FRT AXLE EXC. FRONT AXLE F049(FS4)	1-42312-036-2	02	1	9510-
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F049(FS4) NSK	8-98143-848-0	02	1	0907-
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F049(FS4) JTEKT	9-00093-114-0	02	1	9510-
19	BEARING; HUB INNER,FRT AXLE EXC. FRONT AXLE F049(FS4) NSK	9-00093-031-1	02	1	9510-1002
19	BEARING; HUB INNER,FRT AXLE EXC. FRONT AXLE F049(FS4) JTEKT	9-00093-205-1	02	1	9510-1002
19	BEARING; HUB INNER,FRT AXLE EXC. FRONT AXLE F049(FS4) JTEKT	1-09812-206-0	02	1	1003-
21	RING; SNAP,HUB FRONT AXLE F049(FS4) OD=132	9-09950-164-0	02	1	9510-
21	RING; SNAP,HUB EXC. FRONT AXLE F049(FS4) OD=117	1-09587-001-0	02	1	9510-
23	DRUM; BRK,FRT EXC. FRONT AXLE F049(FS4)	1-42315-278-1	02	1	9510-
23	DRUM; BRK,FRT SUSPENSION HEAVY DUTY VAR2(F41) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) H=195	1-42315-208-1	02	1	9510-9802
23	DRUM; BRK,FRT HEAVY DUTY PACKAGE TRUCK<RD2> H=195	1-42315-208-2	02	1	9803-
23	DRUM; BRK,FRT SUSPENSION HEAVY DUTY VAR2(F41) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-42315-138-2	02	1	9510-9802
23	DRUM; BRK,FRT FRONT SPRING HEAVY DUTY<F60>	1-42315-138-2	02	1	9510-9802
23	DRUM; BRK,FRT FRONT AXLE F049(FS4) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-42315-138-2	02	1	9803-
27	NUT; WHEEL PIN,FRT AXLE M22	9-09110-522-0	16	1	9510-9609
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-055-0	16	1	9610-9904
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	9905-
28	SEAL; OIL,FRT HUB FRONT AXLE F049(FS4) OD=128	1-09625-129-0	02	1	9510-
28	SEAL; OIL,FRT HUB EXC. FRONT AXLE F049(FS4)	1-09625-568-0	02	1	9510-
36	BOLT; BACK PLATE EXC. FRONT AXLE F049(FS4) M14X45	9-92061-445-0	08	1	9510-
37	WASHER; LK,BACK PLATE FRONT AXLE F049(FS4) ID=16.2	9-09150-816-0	08	1	9510-0603
37	WASHER; LK,BACK PLATE FRONT AXLE F049(FS4) ID=16.2	0-91510-816-0	08	1	0604-
37	WASHER; LK,BACK PLATE EXC. FRONT AXLE F049(FS4) ID=14.2	9-09150-814-0	08	1	9510-0603
37	WASHER; LK,BACK PLATE EXC. FRONT AXLE F049(FS4) ID=14.2	0-91510-814-0	08	1	0604-
38	NUT; BACK PLATE FRONT AXLE F049(FS4) M16	9-99110-416-0	08	1	9510-0512
38	NUT; BACK PLATE FRONT AXLE F049(FS4) M16	0-91110-516-0	08	1	0601-
38	NUT; BACK PLATE EXC. FRONT AXLE F049(FS4) M14	9-99110-514-0	08	1	9510-0512
38	NUT; BACK PLATE EXC. FRONT AXLE F049(FS4) M14	0-91110-514-0	08	1	0601-
