13 |

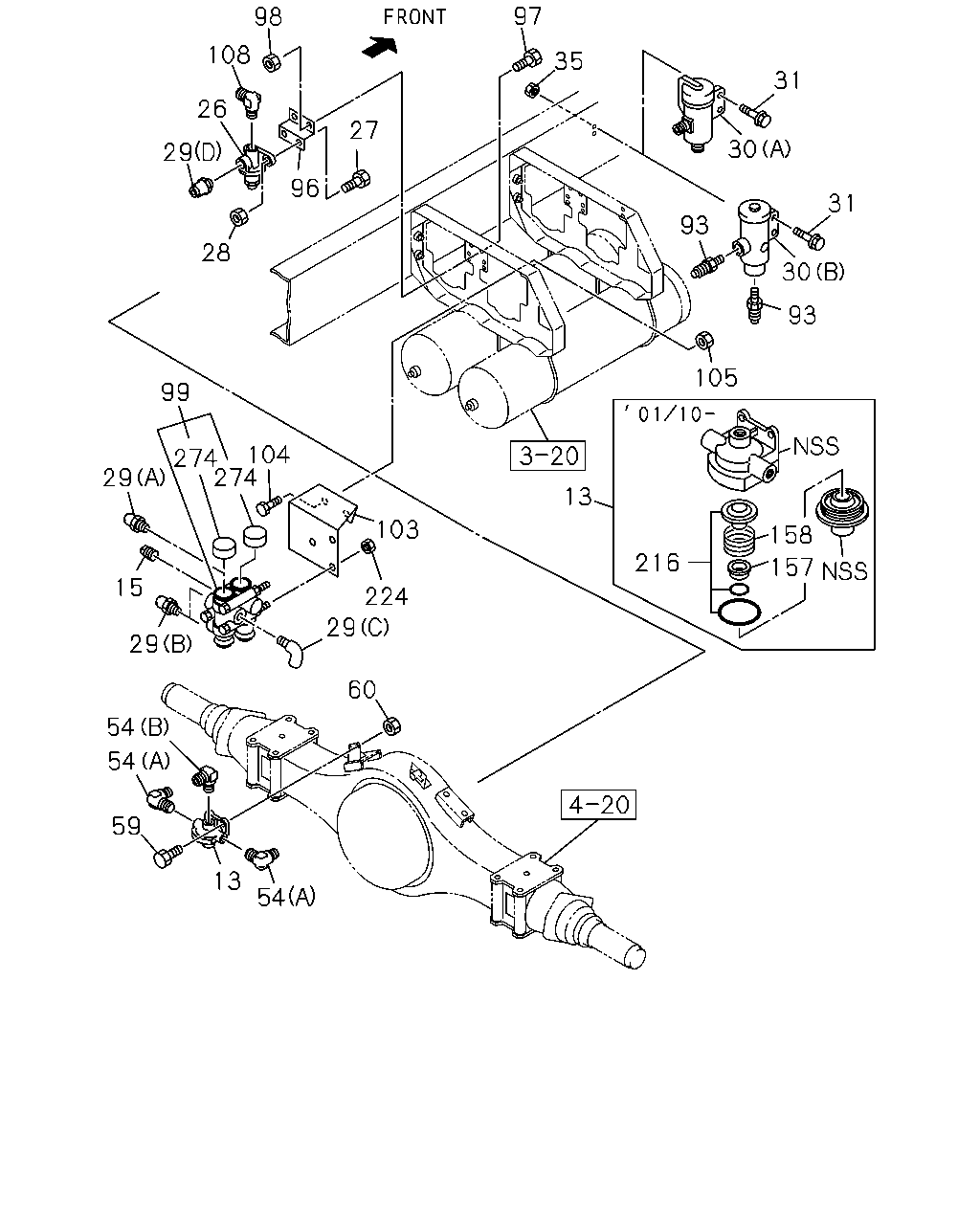

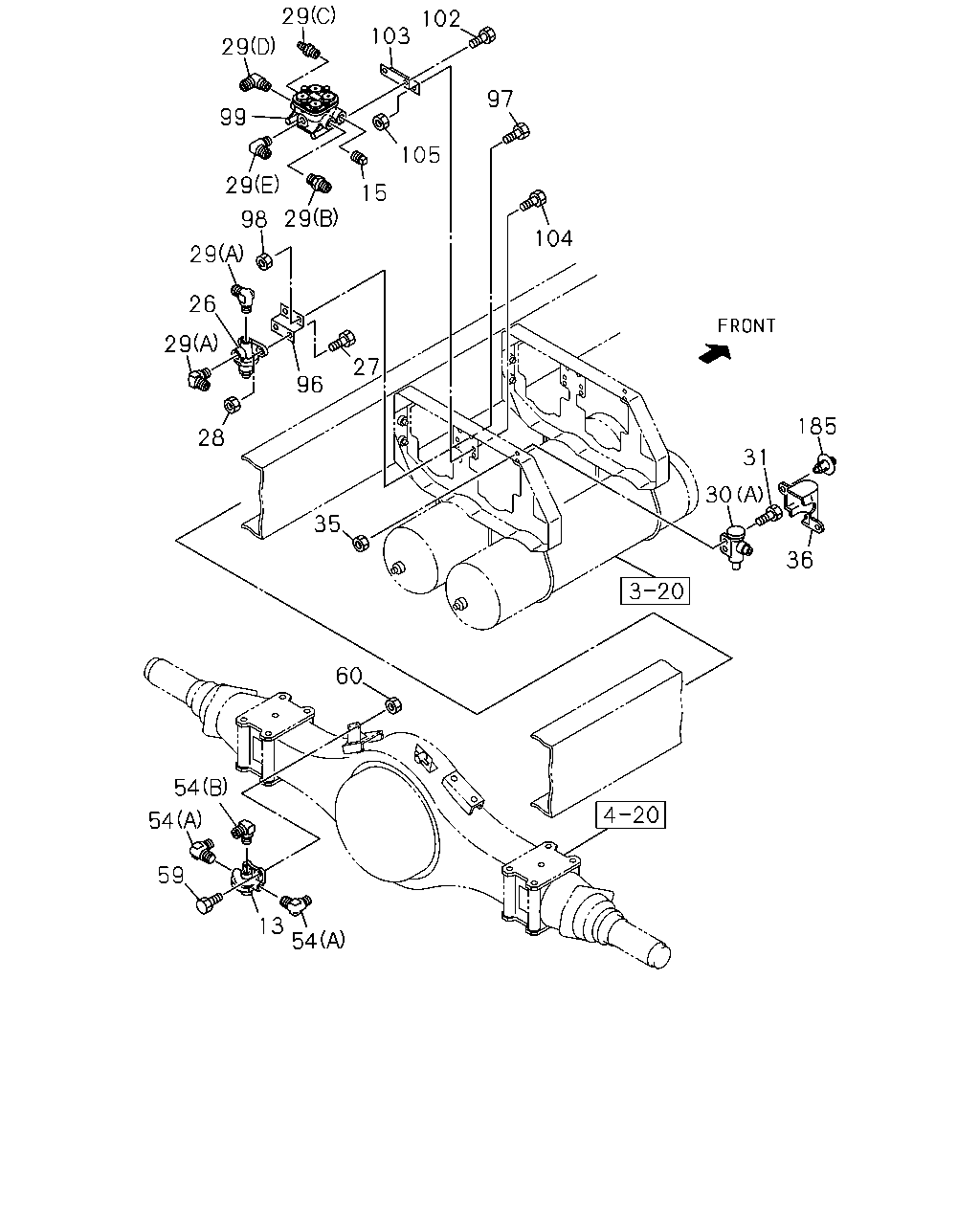

VALVE ASM; QUICK RELEASE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48410-320-0 |
01 |
1 |
9510-0109 |
| |
13 |
VALVE ASM; QUICK RELEASE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48410-659-0 |
01 |
1 |
0110- |
| |
15 |
PLUG; VALVE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
PT3/8
|
9-09204-517-0 |
01 |
1 |
9510- |
| |
26 |
VALVE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48110-006-1 |
01 |
1 |
9510- |
| |
27 |
BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9510-9606 |
| |
27 |
BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-0512 |
| |
27 |
BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X30 FLANGE
|
0-28650-830-0 |
04 |
1 |
0601- |
| |
28 |
NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
02 |
1 |
9510-9606 |
| |
28 |
NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-0602 |
| |
28 |
NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
| |
29 |
CONNECTOR; AIR VLV
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
M20 & PT3/8 STRAIGHT
|
1-09650-211-1 |
01 |
1 |
9510-9802 |
| |
29 |
CONNECTOR; AIR VLV
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
DIN8 & R3/8 STRAIGHT
|
1-09660-964-0 |
01 |
1 |
9803- |
| |
29 |
CONNECTOR; AIR VLV
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(C)
|
1-09650-283-1 |
01 |
1 |
9510-9802 |
| |
29 |
CONNECTOR; AIR VLV
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
02 |
1 |
9803- |
| |
29 |
CONNECTOR; AIR VLV
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(D)
M20 & PT3/8 ELBOW
|
1-09650-439-0 |
01 |
1 |
9510-9802 |
| |
29 |
CONNECTOR; AIR VLV
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(C)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
9803- |
| |
29 |
CONNECTOR; AIR VLV
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(E)
M20 & PT1/2 ELBOW
|
1-09650-443-0 |
01 |
1 |
9510-9802 |
| |
29 |
CONNECTOR; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M16 & PT1/4 ELBOW
|
1-09650-434-0 |
02 |
1 |
9510-9802 |
| |
29 |
CONNECTOR; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(D)
DIN12 & R1/4 STRAIGHT
|
1-09660-967-0 |
01 |
1 |
9803- |
| |
30 |
GOVERNOR; AIR CONT
(A)
|
1-48350-059-0 |
01 |
1 |
9510-9910 |
| |
30 |
GOVERNOR; AIR CONT
(B)
|
1-48350-063-2 |
01 |
1 |
9911- |
| |
31 |
BOLT; GOV TO FRAME
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9510-9702 |
| |
31 |
BOLT; GOV TO FRAME
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9703-9802 |
| |
31 |
BOLT; GOV TO FRAME
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9803-0004 |
| |
31 |
BOLT; GOV TO FRAME
M8X35 FLANGE
|
0-28680-835-0 |
02 |
1 |
0005-0512 |
| |
31 |
BOLT; GOV TO FRAME
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
0601- |
| |
35 |
NUT; GOV TO FRAME
M8
|
9-09110-408-0 |
02 |
1 |
9510-9609 |
| |
35 |
NUT; GOV TO FRAME
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9610-0602 |
| |
35 |
NUT; GOV TO FRAME
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
| |
54 |
CONNECTOR; QUICK RELEASE VLV
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M14 & PT3/8 ELBOW
|
1-09650-437-0 |
02 |
1 |
9510- |
| |
54 |
CONNECTOR; QUICK RELEASE VLV
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
M20 & PT3/8 ELBOW
|
1-09660-684-0 |
01 |
1 |
9510- |
| |
59 |
BOLT; RELEASE VALVE FIX
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
9510-0906 |
| |
59 |
BOLT; RELEASE VALVE FIX
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X20 W/LK WASHER
|
0-50540-820-0 |
02 |
1 |
0907- |
| |
60 |
NUT; RELEASE VALVE FIX
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
02 |
1 |
9510-0512 |
| |
60 |
NUT; RELEASE VALVE FIX
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
0-91110-508-0 |
02 |
1 |
0601- |
| |
93 |
CONNECTOR; GOV
M12 & PT1/4 STRAIGHT
|
1-09650-074-1 |
02 |
1 |
9911- |
| |
96 |
BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48495-053-1 |
01 |
1 |
9510-9802 |
| |
96 |
BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48495-201-0 |
01 |
1 |
9803-0001 |
| |
96 |
BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48495-224-0 |
01 |
1 |
0002- |
| |
97 |
BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9510-9606 |
| |
97 |
BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-0512 |
| |
97 |
BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
| |
98 |
NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
02 |
1 |
9510-9606 |
| |
98 |
NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-0602 |
| |
98 |
NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
| |
99 |
VALVE; PROTECTION
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
|
1-48110-079-0 |
01 |
1 |
9510-9802 |
| |
99 |
VALVE; PROTECTION
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
|
1-48110-114-4 |
01 |
1 |
9803-0004 |
| |
99 |
VALVE; PROTECTION
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
|
1-48110-113-5 |
01 |
1 |
0005- |
| |
103 |
BRACKET; PROTECTION VALVE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
|
1-47477-281-0 |
01 |
1 |
9510-9802 |
| |
103 |
BRACKET; PROTECTION VALVE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
|
1-47478-057-0 |
01 |
1 |
9803- |
| |
104 |
BOLT; BRKT,VALVE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
M10X20 FLANGE
|
0-28081-020-0 |
02 |
1 |
9510-9606 |
| |
104 |
BOLT; BRKT,VALVE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
9607-0512 |
| |
104 |
BOLT; BRKT,VALVE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
M10X25 FLANGE
|
0-28651-025-0 |
02 |
1 |
0601- |
| |
105 |
NUT; BRKT,VALVE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
M10
|
9-09110-510-0 |
02 |
1 |
9510-9606 |
| |
105 |
NUT; BRKT,VALVE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9607-0602 |
| |
105 |
NUT; BRKT,VALVE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
| |
108 |
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
DIN12 & R1/4 ELBOW
|
1-09660-958-0 |
01 |
1 |
9803- |
| |
157 |
RETAINER; VALVE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48419-020-0 |
01 |
1 |
0110- |
| |
158 |
SPRING; VALVE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-48419-003-0 |
01 |
1 |
0110- |
| |
216 |
REPAIR KIT; QUICK RELEASE VLV
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-85576-235-0 |
01 |
1 |
0110- |
| |
224 |
NUT; PROTECTION VALVE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9803-0602 |
| |
224 |
NUT; PROTECTION VALVE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
| |
274 |
COVER; DUST
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
|
1-48119-450-0 |
02 |
1 |
0005- |
