◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10701 - FSR(LHD) EXC.EURO4 ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#38290) — 66 parça
çizim 151689
97 46 45 324 218 46 45
BalonParca AdiParca NoAdetTipApplied Date
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9510-9812
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9901-
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		9-09525-535-0 02 1 9510-0606
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		0-95235-535-0 02 1 0607-
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09983-078-0 01 1 9510-9802
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09983-078-0 01 1 9811-
218 NUT; BRKT,PARKING BRK CABLE
M8 FLANGE 		8-94279-517-0 02 1 9510-9611
218 NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9612-
324 BRACKET 1-79996-260-2 01 1 9510-

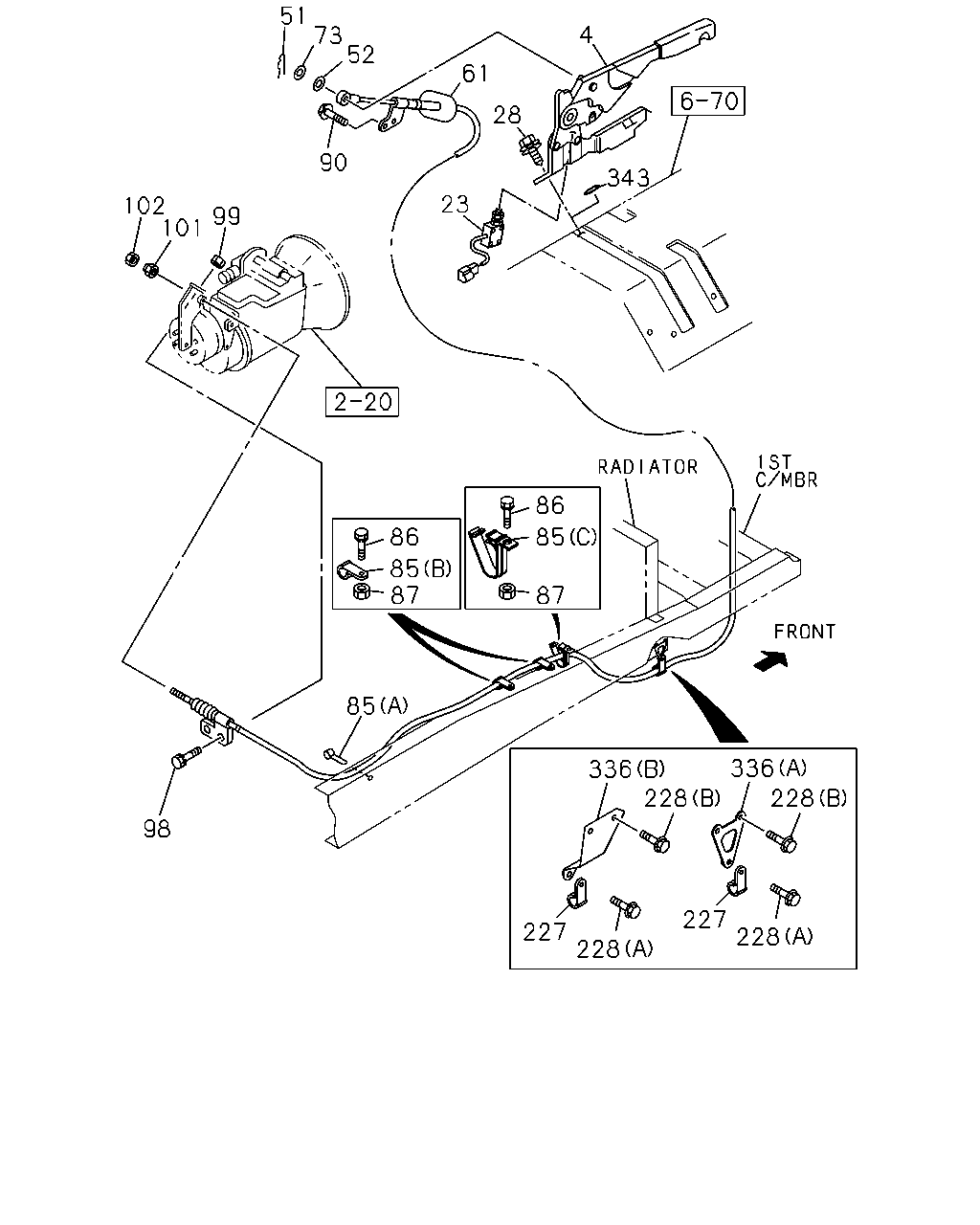

çizim 151729
51 4 73 52 61 28 90 343 23 102 101 99 86 85 86 85 87 87 85 336 336 228 228 98 227 228 227 228
BalonParca AdiParca NoAdetTipApplied Date
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-295-0 01 1 9510-9809
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-423-0 01 1 9810-9908
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-485-0 01 1 9909-9911
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-505-0 01 1 9912-0010
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-565-0 01 1 0011-
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 9510-
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9510-0904
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09987-243-1 01 1 9510-
52 WASHER; CURVED RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=19 		8-94206-429-1 02 1 9510-
61 CABLE; PARKING BRK
MBJ5 M/T<Y9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION FRONT PTO(RC2) L=4544 		1-79996-274-0 01 1 9510-9909
61 CABLE; PARKING BRK
MBJ5 M/T<Y9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION FRONT PTO(RC2) L=4544 		1-79996-476-0 01 1 9910-0004
61 CABLE; PARKING BRK
MBJ5 M/T<Y9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4544 		1-79996-476-3 01 1 0005-
61 CABLE; PARKING BRK
MBJ5 M/T<Y9A> TRANSMISSION FRONT PTO(RC2) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4944 		1-79996-313-0 01 1 9510-9909
61 CABLE; PARKING BRK
MBJ5 M/T<Y9A> TRANSMISSION FRONT PTO(RC2) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4944 		1-79996-462-0 01 1 9910-0004
61 CABLE; PARKING BRK
MBJ6 M/T<Y9B> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4644 		1-79996-226-1 01 1 9510-9909
61 CABLE; PARKING BRK
MBJ6 M/T<Y9B> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4644 		1-79996-458-3 01 1 9910-
61 CABLE; PARKING BRK
MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4405 		1-79996-275-0 01 1 9702-9909
61 CABLE; PARKING BRK
MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4694 		1-79996-461-3 01 1 9910-
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 		9-09160-516-0 01 1 9510-0605
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 OD=30 		0-91610-516-0 01 1 0606-
85 CLIP; BRKT
FIRE TRUCK(RA9) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20 		9-09525-235-0 01 1 9510-9606
85 CLIP; BRKT
FIRE TRUCK(RA9) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-09700-772-2 01 1 9607-0004
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 01 1 9510-0912
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 02 1 1001-
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=16 H=30 L=30 		1-09701-080-0 01 1 9510-
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=24 L=40 		1-09701-139-0 01 1 9510-1101
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14.5 L=40 		1-09701-014-0 01 1 1102-
86 BOLT
FIRE TRUCK(RA9) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE 		0-28080-816-0 01 1 9607-0004
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0512
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
87 NUT
FIRE TRUCK(RA9) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 01 1 9510-9606
87 NUT
FIRE TRUCK(RA9) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 01 1 9607-9607
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9510-0904
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE 		0-28081-025-0 02 1 9510-9606
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28681-030-0 02 1 9607-0512
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 		9-09110-510-0 02 1 9510-9702
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91150-210-0 02 1 9703-0602
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 0603-
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		1-46259-007-0 01 1 9510-
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 01 1 9510-9709
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 01 1 9710-0602
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0603-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20 		9-09525-235-0 01 1 9510-0606
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20 		0-95235-235-0 01 1 0607-
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE 		0-28080-816-0 01 1 9510-0512
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9510-
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-36183-162-1 01 1 9510-0004
336 BRACKET; RADIATOR
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURKEY EQUIPMENT(NAH),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-36183-162-1 01 1 0005-0212
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURKEY EQUIPMENT(NAH),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (A) 		1-36183-162-1 01 1 0301-
336 BRACKET; RADIATOR
TURKEY EQUIPMENT(NAH),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-36183-199-0 01 1 0005-0212
336 BRACKET; RADIATOR
TURKEY EQUIPMENT(NAH),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-36183-199-0 01 1 0301-
343 SEAL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 03 1 9510-
