Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#3829) — 190 parça

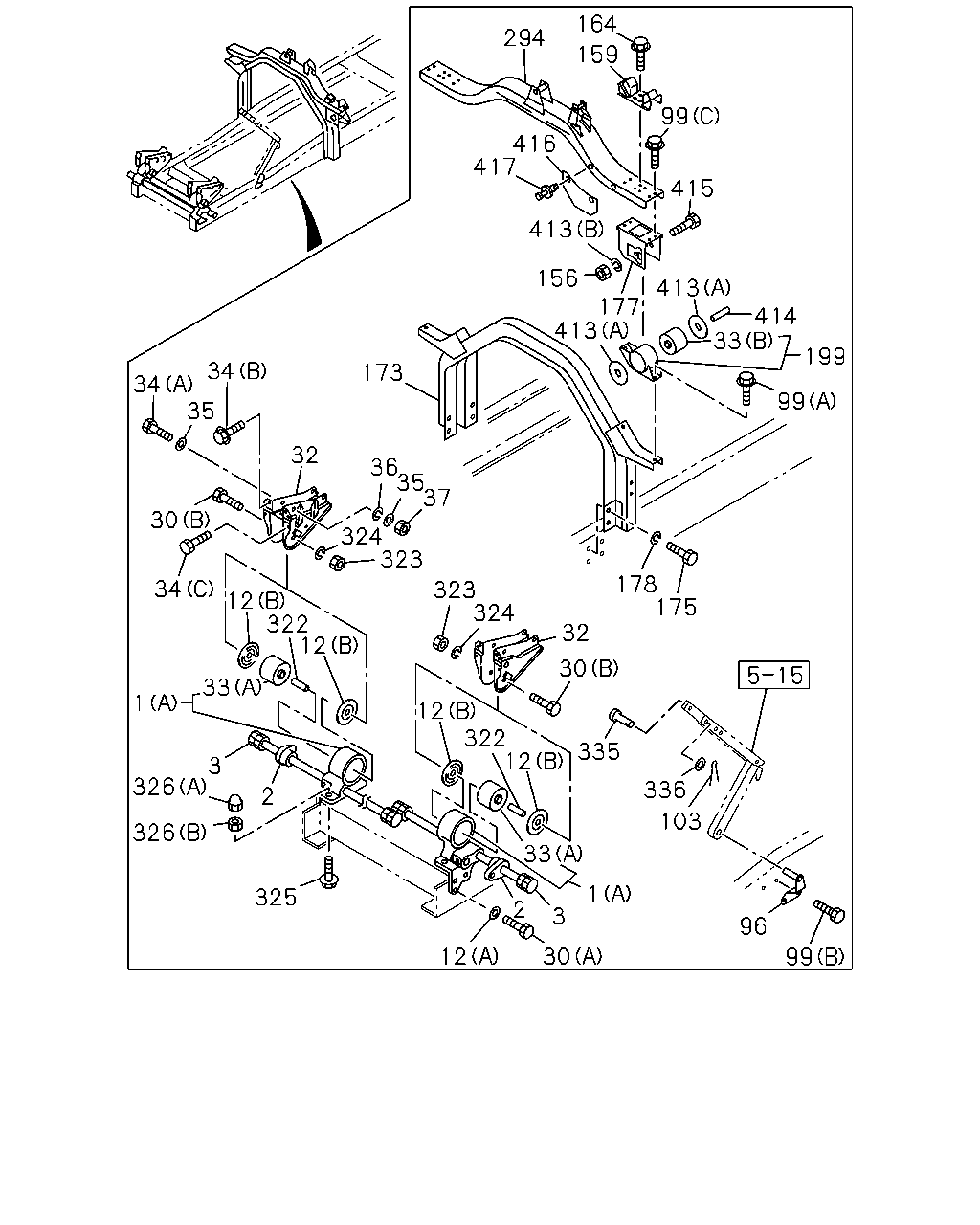

164 294 159 99 415 199 413 173 156 414 448 192 99 34 413 34 35 1 32 36 35 37 413 30 324 323 178 175 34 323 324 12 322 2 32 30 33 1 12 322 12 335 3 336 2 103 326 33 1 325 2 3 96 12 30 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG (A)	1-53453-266-0	01	1	9601-	●
1	BRACKET; CAB MTG EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-53453-266-0	01	1	9601-		●
1	BRACKET; CAB MTG (A)	1-53453-265-0	01	1	9601-	●
1	BRACKET; CAB MTG EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-53453-265-0	01	1	9601-		●
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	9804-	●	●
1	BRACKET; CAB MTG CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-53453-291-0	01	1	9601-		●
1	BRACKET; CAB MTG CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-53453-290-0	01	1	9601-		●
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	9601-	●	●
3	TORSION BAR	1-09585-130-0	01	1	9601-	●	●
3	TORSION BAR	1-09585-129-0	01	1	9601-	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	9601-0306	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53457-076-1	04	1	0307-	●	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9601-1201	●	●
12	WASHER; LK,BRKT (A) ID=15	8-98010-627-1	10	1	1202-	●	●
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	9601-	●	●
30	BOLT; CAB FRT FOOT (A) M14X50	9-92061-450-0	10	1	9601-0201	●	●
30	BOLT; CAB FRT FOOT (A) M14X45	9-92061-445-0	10	1	0202-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	9601-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-230-4	01	1	9601-0607	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-230-4	01	1	0608-	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	1-53458-634-0	02	1	9601-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-53458-634-0	02	1	9601-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	1-53458-635-0	02	1	9601-9803	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-53458-681-0	02	1	9601-		●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	9601-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	9601-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-0904	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9601-0904	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9601-	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9601-	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9601-	●	●
96	BRACKET; CAB STAY	1-62500-628-0	01	1	9601-	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28080-820-0	08	1	9601-9606	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	9607-0512	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	08	1	0601-	●	●
99	BOLT; BRKT (A) M12X25 FLANGE	0-28081-225-0	04	1	9601-9606	●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	9607-0512	●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0612	●	●
99	BOLT; BRKT (A) M12X25 FLANGE	0-28651-225-0	04	1	0701-	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28091-030-0	02	1	9601-9606	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	9607-0512	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-	●	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9601-	●	●
156	NUT; CAB MTG RR M16	9-99110-516-0	02	1	9601-0512	●	●
156	NUT; CAB MTG RR M16	0-91110-516-0	02	1	0601-	●	●
159	RUBBER; CUSHION,CAB MTG	1-53458-285-0	02	1	9601-	●	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28080-820-0	04	1	9601-9606	●	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28680-820-0	04	1	9607-0512	●	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
173	MEMBER; CAB MTG RR 6HK1 TCC ENG(81L)	1-53454-861-2	01	1	0608-		●
173	MEMBER; CAB MTG RR	1-53454-599-3	01	1	9601-9803	●	●
173	MEMBER; CAB MTG RR	1-53454-705-3	01	1	9804-0607	●	●
173	MEMBER; CAB MTG RR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-53454-705-3	01	1	0608-	●	●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9601-0512	●	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0601-	●	●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9601-0603	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91150-212-0	04	1	9804-0602	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	0603-	●	●
199	BRACKET; CAB RR MTG	1-53454-627-1	02	1	9601-9803	●	●
199	BRACKET; CAB RR MTG	1-53454-644-2	02	1	9804-0207	●	●
199	BRACKET; CAB RR MTG	1-53454-911-0	02	1	0208-1403	●	●
199	BRACKET; CAB RR MTG	8-98269-637-0	02	1	1404-	●	●
294	MEMBER; FLOATING	1-53454-602-0	01	1	9601-	●	●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	9601-	●	●
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	9601-0512	●	●
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-	●	●
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	9601-0603	●	●
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-	●	●
325	BOLT; GUIDE NUT M12X35 FLANGE	0-28081-235-0	02	1	9601-9606	●	●
325	BOLT; GUIDE NUT M12X35 FLANGE	0-28681-235-0	02	1	9607-9612	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	9701-0512	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●
326	NUT; GUIDE NUT (A) M12	1-53459-803-0	02	1	9601-9612	●	●
326	NUT; GUIDE NUT (B) M12	9-99110-512-0	02	1	9601-0109	●	●
326	NUT; GUIDE NUT (B) M12 SELF LOCK	8-97028-390-1	02	1	0110-	●	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9601-	●	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9601-	●	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53458-693-1	04	1	9601-0306	●	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53457-076-1	04	1	0307-	●	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	9-09150-816-0	02	1	9601-0603	●	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	0-91510-816-0	02	1	0604-	●	●
414	COLLAR; CAB MTG RR	1-53459-941-1	02	1	9601-	●	●
415	PIN; CAB MTG RR M16X115	5-51361-002-1	02	1	9601-	●	●
448	BUSHING; CAB MTG	1-53458-635-0	02	1	9804-	●	●

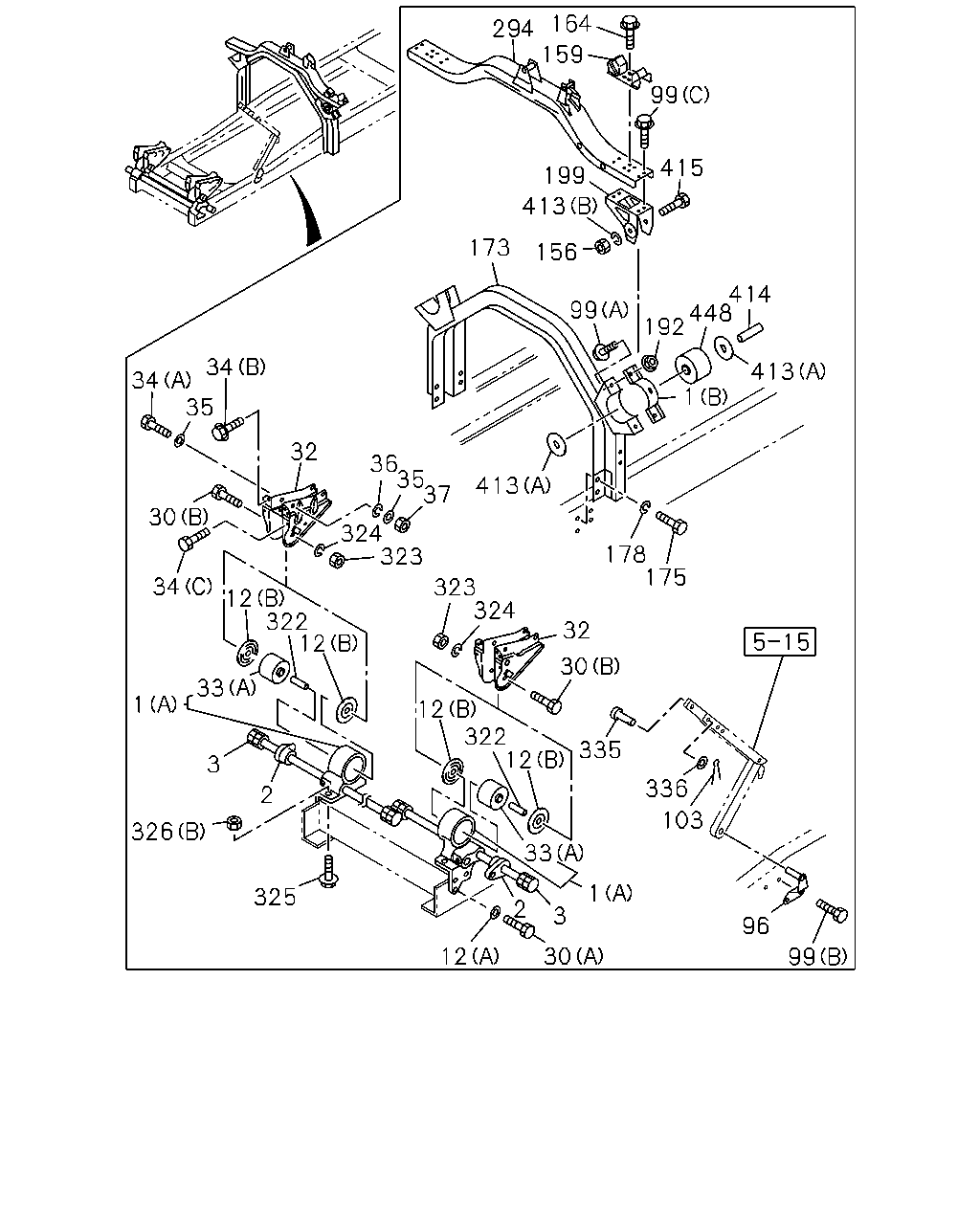

164 294 159 99 416 417 415 413 156 413 177 413 414 33 199 34 173 34 35 99 32 36 35 37 30 324 323 178 175 34 323 324 12 322 2 32 30 33 1 12 322 12 335 3 326 336 2 103 326 33 1 325 2 3 96 12 30 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG (A)	1-53453-266-0	01	1	9601-	●
1	BRACKET; CAB MTG EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-53453-266-0	01	1	9601-		●
1	BRACKET; CAB MTG (A)	1-53453-265-0	01	1	9601-	●
1	BRACKET; CAB MTG EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-53453-265-0	01	1	9601-		●
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	9804-	●	●
1	BRACKET; CAB MTG CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-53453-291-0	01	1	9601-		●
1	BRACKET; CAB MTG CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-53453-290-0	01	1	9601-		●
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	9601-	●	●
3	TORSION BAR	1-09585-130-0	01	1	9601-	●	●
3	TORSION BAR	1-09585-129-0	01	1	9601-	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	9601-0306	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53457-076-1	04	1	0307-	●	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9601-1201	●	●
12	WASHER; LK,BRKT (A) ID=15	8-98010-627-1	10	1	1202-	●	●
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	9601-	●	●
30	BOLT; CAB FRT FOOT (A) M14X50	9-92061-450-0	10	1	9601-0201	●	●
30	BOLT; CAB FRT FOOT (A) M14X45	9-92061-445-0	10	1	0202-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	9601-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-230-4	01	1	9601-0607	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-230-4	01	1	0608-	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	1-53458-634-0	02	1	9601-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-53458-634-0	02	1	9601-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	1-53458-635-0	02	1	9601-9803	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-53458-681-0	02	1	9601-		●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	9601-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	9601-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-0904	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9601-0904	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9601-	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9601-	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9601-	●	●
96	BRACKET; CAB STAY	1-62500-628-0	01	1	9601-	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28080-820-0	08	1	9601-9606	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	9607-0512	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	08	1	0601-	●	●
99	BOLT; BRKT (A) M12X25 FLANGE	0-28081-225-0	04	1	9601-9606	●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	9607-0512	●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0612	●	●
99	BOLT; BRKT (A) M12X25 FLANGE	0-28651-225-0	04	1	0701-	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28091-030-0	02	1	9601-9606	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	9607-0512	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-	●	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9601-	●	●
156	NUT; CAB MTG RR M16	9-99110-516-0	02	1	9601-0512	●	●
156	NUT; CAB MTG RR M16	0-91110-516-0	02	1	0601-	●	●
159	RUBBER; CUSHION,CAB MTG	1-53458-285-0	02	1	9601-	●	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28080-820-0	04	1	9601-9606	●	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28680-820-0	04	1	9607-0512	●	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
173	MEMBER; CAB MTG RR 6HK1 TCC ENG(81L)	1-53454-861-2	01	1	0608-		●
173	MEMBER; CAB MTG RR	1-53454-599-3	01	1	9601-9803	●	●
173	MEMBER; CAB MTG RR	1-53454-705-3	01	1	9804-0607	●	●
173	MEMBER; CAB MTG RR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-53454-705-3	01	1	0608-	●	●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9601-0512	●	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0601-	●	●
177	BRACKET; MEMBER	1-53454-529-1	01	1	9601-9803	●	●
177	BRACKET; MEMBER	1-53454-528-1	01	1	9601-9803	●	●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9601-0603	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-	●	●
199	BRACKET; CAB RR MTG	1-53454-627-1	02	1	9601-9803	●	●
199	BRACKET; CAB RR MTG	1-53454-644-2	02	1	9804-0207	●	●
199	BRACKET; CAB RR MTG	1-53454-911-0	02	1	0208-1403	●	●
199	BRACKET; CAB RR MTG	8-98269-637-0	02	1	1404-	●	●
294	MEMBER; FLOATING	1-53454-602-0	01	1	9601-	●	●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	9601-	●	●
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	9601-0512	●	●
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-	●	●
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	9601-0603	●	●
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-	●	●
325	BOLT; GUIDE NUT M12X35 FLANGE	0-28081-235-0	02	1	9601-9606	●	●
325	BOLT; GUIDE NUT M12X35 FLANGE	0-28681-235-0	02	1	9607-9612	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	9701-0512	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●
326	NUT; GUIDE NUT (A) M12	1-53459-803-0	02	1	9601-9612	●	●
326	NUT; GUIDE NUT (B) M12	9-99110-512-0	02	1	9601-0109	●	●
326	NUT; GUIDE NUT (B) M12 SELF LOCK	8-97028-390-1	02	1	0110-	●	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9601-	●	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9601-	●	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53458-693-1	04	1	9601-0306	●	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53457-076-1	04	1	0307-	●	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	9-09150-816-0	02	1	9601-0603	●	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	0-91510-816-0	02	1	0604-	●	●
414	COLLAR; CAB MTG RR	1-53459-941-1	02	1	9601-	●	●
415	PIN; CAB MTG RR M16X115	5-51361-002-1	02	1	9601-	●	●
416	RUBBER; SHUTTER 6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53446-730-0	02	1	9601-9803		●
417	RIVET 6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-09470-001-0	04	1	9601-9603		●
417	RIVET 6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-09470-001-0	04	1	9601-9603		●
417	RIVET 6HE1 TC ENG(57L) TAIWAN EQUIPMENT(WW5)	1-09470-001-0	04	1	9601-9603		●
417	RIVET 6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-09470-001-0	04	1	9604-9803		●

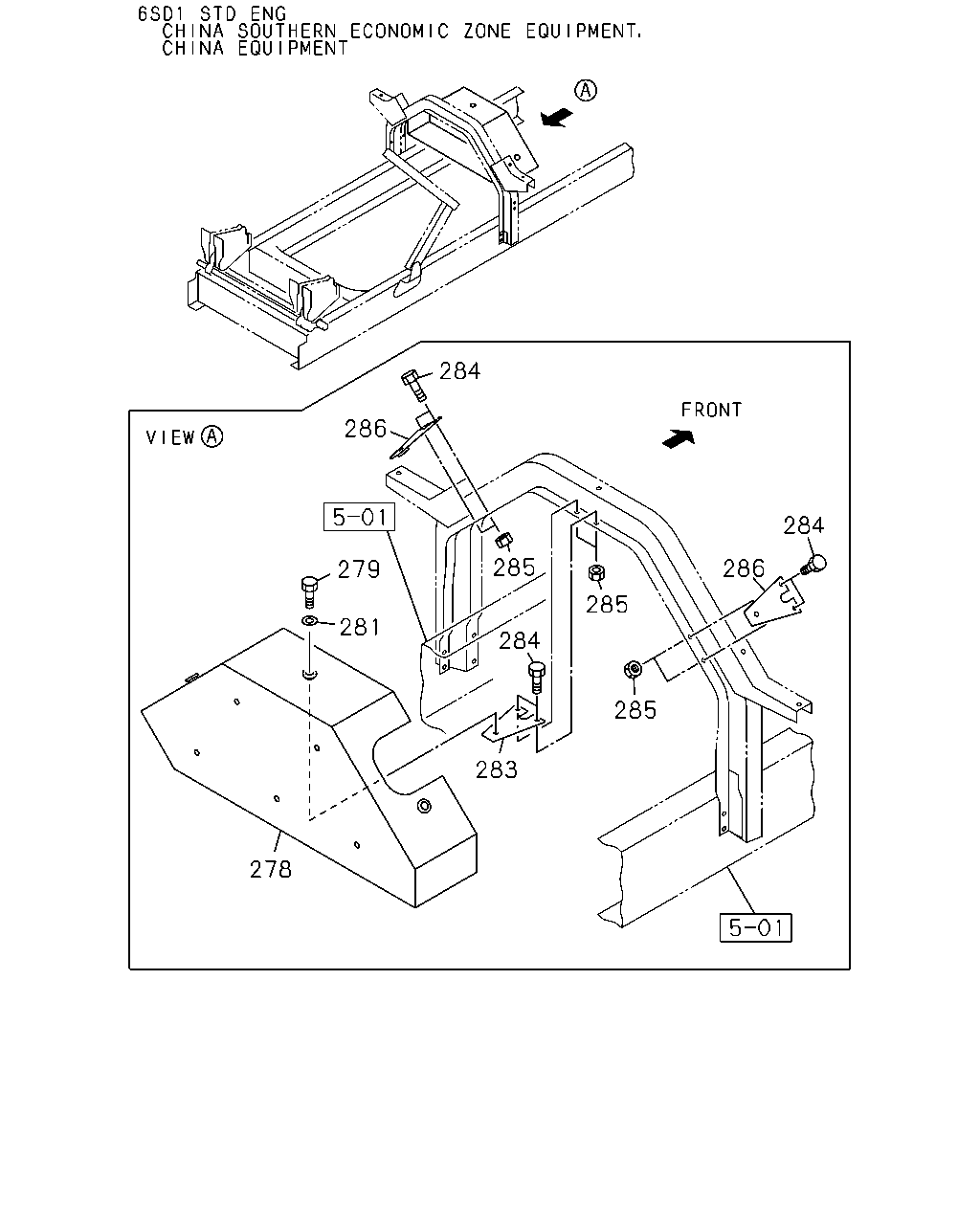

284 286 284 285 286 279 285 281 284 285 283 278

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
278	COVER 6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53192-945-1	01	1	9601-0004	●
279	BOLT 6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28080-830-0	03	1	9601-9606	●
279	BOLT 6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X35 FLANGE	0-28680-835-0	03	1	9607-0004	●
281	WASHER; PL,BACK COVER 6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=8.4 OD=26	9-09164-808-0	03	1	9601-0004	●
283	BRACKET; UPR 6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53447-006-0	01	1	9601-0004	●
284	BOLT; BRKT UPR 6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X20 FLANGE	0-28080-820-0	06	1	9601-9606	●
284	BOLT; BRKT UPR 6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X20 FLANGE	0-28680-820-0	04	1	9607-9803	●
284	BOLT; BRKT UPR 6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X20 FLANGE	0-28680-820-0	02	1	9607-9803	●
284	BOLT; BRKT UPR 6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X20 FLANGE	0-28680-820-0	06	1	9804-0004	●
285	NUT; BRKT UPR 6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8	9-09110-408-0	06	1	9601-9606	●
285	NUT; BRKT UPR 6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	06	1	9607-0004	●
286	BRACKET; LOW 6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-53447-006-0	02	1	9601-0004	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
