Sayfa 3-08 - Isuzu EPC

3-08 — PARKING BRAKE (#38288) — 224 parça

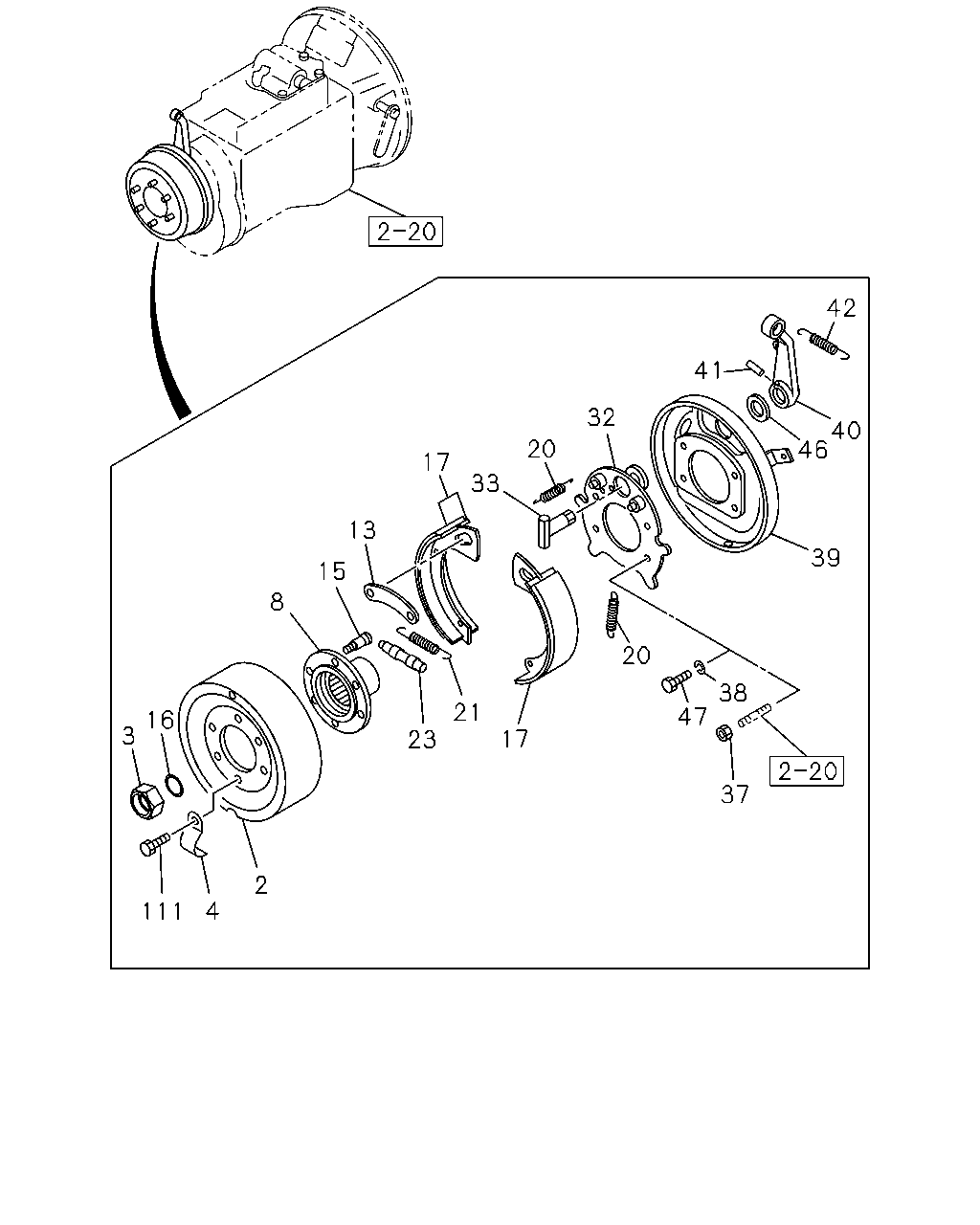

42 41 32 40 46 20 17 33 13 39 15 20 8 38 21 47 16 3 17 23 37 2 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	DRUM; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46211-020-0	01	1	9510-0004	●	●	●
2	DRUM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46211-020-1	01	1	0005-	●	●
2	DRUM; PARKING BRK	1-46211-019-0	01	1	9703-0004				●
2	DRUM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46211-019-0	01	1	0005-				●
3	NUT; LK PARKING BRAKE DRUM 8.5"(B1S) M30 FLANGE	1-09449-066-1	01	1	9510-9909	●	●	●
3	NUT; LK PARKING BRAKE DRUM 8.5"(B1S) M33 FLANGE	1-09449-077-0	01	1	9910-0004	●	●	●
3	NUT; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M33 FLANGE	1-09449-077-0	01	1	0005-	●	●
3	NUT; LK M36 FLANGE	1-09449-063-0	01	1	9703-0004				●
3	NUT; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	1-09449-063-0	01	1	0005-0805				●
3	NUT; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	8-98014-140-0	01	1	0806-				●
4	COVER; ADJ HOLE PARKING BRAKE DRUM 8.5"(B1S)	1-46219-018-0	02	1	9510-0004	●	●	●
4	COVER; ADJ HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46219-018-0	02	1	0005-	●	●
4	COVER; ADJ HOLE	1-46219-030-0	02	1	9703-0004				●
4	COVER; ADJ HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46219-030-0	02	1	0005-				●
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-37243-253-0	01	1	9510-0004	●	●	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-253-0	01	1	0005-	●	●
8	FLANGE; PARKING BRK	1-37243-235-0	01	1	9703-0004				●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-235-0	01	1	0005-1002				●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98153-193-0	01	1	1003-				●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-002-0	01	1	0412-				●
13	BRACE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	9-46239-003-0	01	1	9510-0004	●	●	●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-003-0	01	1	0005-	●	●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	9703-0004				●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-002-0	01	1	0005-0410				●
15	BOLT; FLANGE PARKING BRAKE DRUM 8.5"(B1S) M14X43 KNURL	1-09046-003-0	04	1	9510-0004	●	●	●
15	BOLT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	1-09046-003-0	04	1	0005-0707	●	●
15	BOLT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	0708-	●	●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	9703-0004				●
15	BOLT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X55	1-46219-039-0	04	1	0005-0707				●
15	BOLT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X55	8-98023-172-0	04	1	0708-				●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). PARKING BRAKE DRUM 8.5"(B1S) ID=35.7 T=5	1-09623-379-0	01	1	9510-0004	●	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=35.7 T=5	1-09623-379-0	01	1	0005-	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9703-0004				●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	0005-				●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-022-1	02	1	0412-				●
17	SHOE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46220-024-0	02	1	9510-0004	●	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-024-0	02	1	0005-0410	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-029-0	02	1	0411-	●	●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	9703-0004				●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-022-0	02	1	0005-0410				●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-434-0	02	1	0412-				●
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	9-09942-567-1	02	1	9510-0004	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-567-1	02	1	0005-	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	9703-0004				●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-434-0	02	1	0005-0410				●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-516-0	01	1	0412-				●
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE DRUM 8.5"(B1S)	1-09583-268-0	01	1	9510-0004	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-268-0	01	1	0005-	●	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	9703-0004				●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-516-0	01	1	0005-0410				●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46240-003-0	01	1	0412-				●
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE DRUM 8.5"(B1S)	9-46240-008-0	01	1	9510-0004	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46240-008-0	01	1	0005-	●	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	9703-0004				●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46240-003-0	01	1	0005-0410				●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-039-0	01	1	0412-				●
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-023-0	01	1	9510-0004	●	●	●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-023-0	01	1	0005-	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	9703-0004				●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-039-0	01	1	0005-0410				●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-010-0	01	1	0412-				●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46251-002-0	01	1	9510-0004	●	●	●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-002-0	01	1	0005-	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-006-0	01	1	9703-0004				●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-006-0	01	1	0005-0410				●
37	NUT; SUPPORT PLATE PARKING BRAKE DRUM 8.5"(B1S) M14 FLANGE	1-09440-048-0	01	1	9510-0004	●		●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	1-09440-048-0	01	1	0005-0604	●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	8-97365-444-0	01	1	0605-	●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	1-09440-048-0	04	1	9510-9702		●
37	NUT; SUPPORT PLATE PARKING BRAKE DRUM 8.5"(B1S) M14 FLANGE	1-09440-048-0	04	1	9703-0004		●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	04	1	9703-0004				●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	1-09440-048-0	04	1	0005-0604		●		●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	8-97365-444-0	04	1	0605-		●		●
38	WASHER; LK,SUPPORT PLATE PARKING BRAKE DRUM 8.5"(B1S) ID=14.2	9-09150-514-0	03	1	9510-0004	●		●
38	WASHER; LK,SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	03	1	0005-0603	●
38	WASHER; LK,SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-514-0	03	1	0604-	●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-038-0	01	1	0412-				●
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-067-0	01	1	9510-0004	●	●	●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-067-0	01	1	0005-	●	●
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	9703-0004				●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-038-0	01	1	0005-0410				●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-046-0	01	1	0412-				●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46252-003-0	01	1	9510-0004	●	●	●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-003-0	01	1	0005-	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-013-0	01	1	9703-0004				●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-013-0	01	1	0005-0410				●
41	PIN; KNOCK,LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09878-594-0	01	1	9510-0004	●	●	●
41	PIN; KNOCK,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09878-594-0	01	1	0005-	●	●
42	SPRING; RETURN,LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09942-592-0	01	1	9510-0004	●	●	●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-592-0	01	1	0005-	●	●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	9703-0004				●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-104-0	01	1	0005-				●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-362-0	01	1	0412-				●
46	WASHER; LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09855-367-0	01	1	9510-0004	●	●	●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-367-0	01	1	0005-	●	●
46	WASHER; LEVER	9-09855-362-0	01	1	9703-0004				●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-362-0	01	1	0005-0410				●
47	BOLT; SUPPORT PLATE PARKING BRAKE DRUM 8.5"(B1S) M14X32	0-23801-432-0	03	1	9510-0004	●		●
47	BOLT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X32	0-23801-432-0	03	1	0005-	●
111	BOLT; COVER,CHECK HOLE PARKING BRAKE DRUM 8.5"(B1S) M8X18 W/LK WASHER	0-50040-818-0	02	1	9510-0004	●	●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50040-818-0	02	1	0005-0906	●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50540-818-0	02	1	0907-	●	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	9703-0004				●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0005-0906				●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-1009				●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50740-820-0	02	1	1010-				●

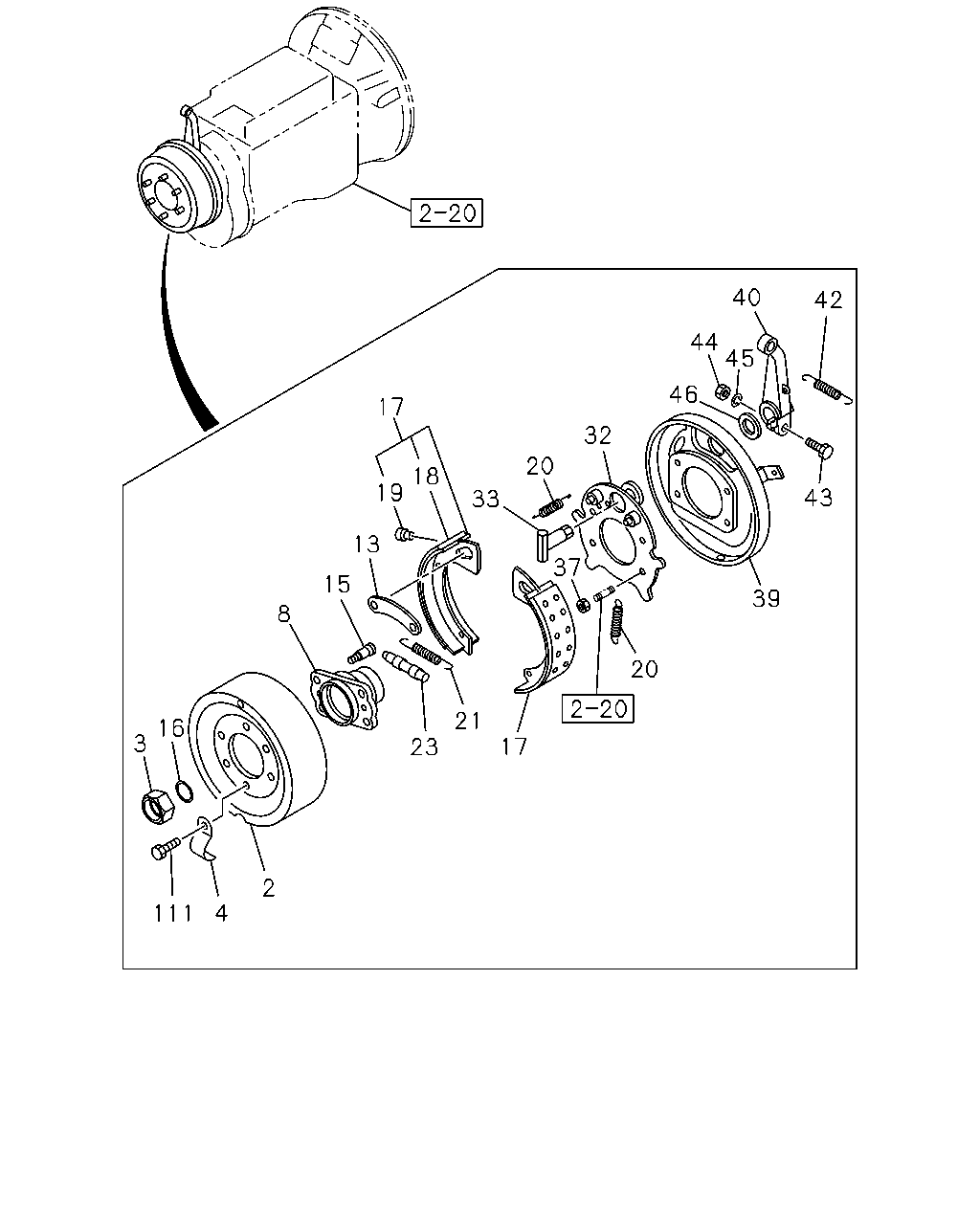

40 42 44 45 46 17 32 20 18 19 43 33 13 37 15 39 8 20 21 16 3 17 23 2 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	DRUM; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46211-020-0	01	1	9510-0004	●	●	●
2	DRUM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46211-020-1	01	1	0005-	●	●
2	DRUM; PARKING BRK	1-46211-019-0	01	1	9703-0004				●
2	DRUM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46211-019-0	01	1	0005-				●
3	NUT; LK PARKING BRAKE DRUM 8.5"(B1S) M30 FLANGE	1-09449-066-1	01	1	9510-9909	●	●	●
3	NUT; LK PARKING BRAKE DRUM 8.5"(B1S) M33 FLANGE	1-09449-077-0	01	1	9910-0004	●	●	●
3	NUT; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M33 FLANGE	1-09449-077-0	01	1	0005-	●	●
3	NUT; LK M36 FLANGE	1-09449-063-0	01	1	9703-0004				●
3	NUT; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	1-09449-063-0	01	1	0005-0805				●
3	NUT; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	8-98014-140-0	01	1	0806-				●
4	COVER; ADJ HOLE PARKING BRAKE DRUM 8.5"(B1S)	1-46219-018-0	02	1	9510-0004	●	●	●
4	COVER; ADJ HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46219-018-0	02	1	0005-	●	●
4	COVER; ADJ HOLE	1-46219-030-0	02	1	9703-0004				●
4	COVER; ADJ HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46219-030-0	02	1	0005-				●
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-37243-253-0	01	1	9510-0004	●	●	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-253-0	01	1	0005-	●	●
8	FLANGE; PARKING BRK	1-37243-235-0	01	1	9703-0004				●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-235-0	01	1	0005-1002				●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98153-193-0	01	1	1003-				●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-002-0	01	1	0412-				●
13	BRACE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	9-46239-003-0	01	1	9510-0004	●	●	●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-003-0	01	1	0005-	●	●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	9703-0004				●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-002-0	01	1	0005-0410				●
15	BOLT; FLANGE PARKING BRAKE DRUM 8.5"(B1S) M14X43 KNURL	1-09046-003-0	04	1	9510-0004	●	●	●
15	BOLT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	1-09046-003-0	04	1	0005-0707	●	●
15	BOLT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	0708-	●	●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	9703-0004				●
15	BOLT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X55	1-46219-039-0	04	1	0005-0707				●
15	BOLT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X55	8-98023-172-0	04	1	0708-				●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). PARKING BRAKE DRUM 8.5"(B1S) ID=35.7 T=5	1-09623-379-0	01	1	9510-0004	●	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=35.7 T=5	1-09623-379-0	01	1	0005-	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9703-0004				●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	0005-				●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-022-1	02	1	0412-				●
17	SHOE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46220-024-0	02	1	9510-0004	●	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-024-0	02	1	0005-0410	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-029-0	02	1	0411-	●	●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	9703-0004				●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-022-0	02	1	0005-0410				●
18	LINING; BRK,PARKING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46225-023-0	02	1	0412-				●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	9703-0004				●
18	LINING; BRK,PARKING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46225-023-0	02	1	0005-0410				●
19	RIVET; LINING,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-012-0	32	1	0412-0807				●
19	RIVET; LINING,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-058-0	32	1	0808-				●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	9703-0004				●
19	RIVET; LINING,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-012-0	32	1	0005-0410				●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-434-0	02	1	0412-				●
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	9-09942-567-1	02	1	9510-0004	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-567-1	02	1	0005-	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	9703-0004				●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-434-0	02	1	0005-0410				●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-516-0	01	1	0412-				●
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE DRUM 8.5"(B1S)	1-09583-268-0	01	1	9510-0004	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-268-0	01	1	0005-	●	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	9703-0004				●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-516-0	01	1	0005-0410				●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46240-003-0	01	1	0412-				●
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE DRUM 8.5"(B1S)	9-46240-008-0	01	1	9510-0004	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46240-008-0	01	1	0005-	●	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	9703-0004				●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46240-003-0	01	1	0005-0410				●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-039-0	01	1	0412-				●
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-023-0	01	1	9510-0004	●	●	●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-023-0	01	1	0005-	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	9703-0004				●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-039-0	01	1	0005-0410				●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-010-0	01	1	0412-				●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46251-002-0	01	1	9510-0004	●	●	●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-002-0	01	1	0005-	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-006-0	01	1	9703-0004				●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-006-0	01	1	0005-0410				●
37	NUT; SUPPORT PLATE PARKING BRAKE DRUM 8.5"(B1S) M14 FLANGE	1-09440-048-0	01	1	9510-0004	●		●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	1-09440-048-0	01	1	0005-0604	●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	8-97365-444-0	01	1	0605-	●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	1-09440-048-0	04	1	9510-9702		●
37	NUT; SUPPORT PLATE PARKING BRAKE DRUM 8.5"(B1S) M14 FLANGE	1-09440-048-0	04	1	9703-0004		●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	04	1	9703-0004				●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	1-09440-048-0	04	1	0005-0604		●		●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	8-97365-444-0	04	1	0605-		●		●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-038-0	01	1	0412-				●
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-067-0	01	1	9510-0004	●	●	●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-067-0	01	1	0005-	●	●
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	9703-0004				●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-038-0	01	1	0005-0410				●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-046-0	01	1	0412-				●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46252-003-0	01	1	9510-0004	●	●	●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-003-0	01	1	0005-	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-013-0	01	1	9703-0004				●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-013-0	01	1	0005-0410				●
42	SPRING; RETURN,LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09942-592-0	01	1	9510-0004	●	●	●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-592-0	01	1	0005-	●	●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	9703-0004				●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-104-0	01	1	0005-				●
43	BOLT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	0-10811-040-0	01	1	0412-0710				●
43	BOLT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98061-595-0	01	1	0711-				●
43	BOLT; LEVER TO CM/SHF	0-10811-040-0	01	1	9703-0004				●
43	BOLT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	0-10811-040-0	01	1	0005-0410				●
44	NUT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10	9-09111-410-0	01	1	0412-0512				●
44	NUT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10	0-91111-510-0	01	1	0601-				●
44	NUT; LEVER TO CM/SHF M10	9-09111-410-0	01	1	9703-0004				●
44	NUT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10	9-09111-410-0	01	1	0005-0410				●
45	WASHER; LK,LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	9-09150-510-0	01	1	0412-0603				●
45	WASHER; LK,LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	0-91510-510-0	01	1	0604-				●
45	WASHER; LK,LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	9-09150-510-0	01	1	0005-0410				●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	9-09150-510-0	01	1	9703-0004				●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-362-0	01	1	0412-				●
46	WASHER; LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09855-367-0	01	1	9510-0004	●	●	●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-367-0	01	1	0005-	●	●
46	WASHER; LEVER	9-09855-362-0	01	1	9703-0004				●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-362-0	01	1	0005-0410				●
111	BOLT; COVER,CHECK HOLE PARKING BRAKE DRUM 8.5"(B1S) M8X18 W/LK WASHER	0-50040-818-0	02	1	9510-0004	●	●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50040-818-0	02	1	0005-0906	●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50540-818-0	02	1	0907-	●	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	9703-0004				●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0005-0906				●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-1009				●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50740-820-0	02	1	1010-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
