1 |
SHOE; BRK,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-47110-982-0 |
04 |
1 |
9510-9702 |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
|
1-47110-982-0 |
04 |
1 |
9703-9802 |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-47120-629-0 |
04 |
1 |
9803-9810 |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47120-629-0 |
04 |
1 |
9811-0603 |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-47120-629-0 |
04 |
1 |
0604-0604 |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47120-629-0 |
04 |
1 |
0604-0604 |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47120-629-0 |
04 |
1 |
0604- |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-300-0 |
04 |
1 |
9811-0603 |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47170-436-0 |
04 |
1 |
0604-0604 |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47170-436-0 |
04 |
1 |
0604- |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
|
1-47110-962-0 |
04 |
1 |
9510-9802 |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
|
1-47120-706-0 |
04 |
1 |
9803- |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-88302-999-0 |
01 |
1 |
9510-9702 |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
|
1-88302-999-0 |
01 |
1 |
9703-9802 |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-88310-525-0 |
01 |
1 |
9803-9810 |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-88310-525-0 |
01 |
1 |
9811-0603 |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-88310-525-0 |
01 |
1 |
0604-0604 |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-88310-525-0 |
01 |
1 |
0604-0604 |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-88310-525-0 |
01 |
1 |
0604- |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-88310-297-0 |
01 |
1 |
9811-0603 |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-88311-357-0 |
01 |
1 |
0604-0604 |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-88311-357-0 |
01 |
1 |
0604- |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
|
1-88302-956-0 |
02 |
1 |
9510-9802 |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
|
1-88310-495-0 |
02 |
1 |
9803- |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
BEST VALUE PARTS
|
1-87610-130-0 |
01 |
1 |
9811-0603 |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
BEST VALUE PARTS
|
1-87610-130-0 |
01 |
1 |
0604-0604 |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
BEST VALUE PARTS
|
1-87610-130-0 |
01 |
1 |
0604-0604 |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
BEST VALUE PARTS
|
1-87610-130-0 |
01 |
1 |
0604- |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BEST VALUE PARTS
|
1-87610-125-0 |
01 |
1 |
9803- |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
BEST VALUE PARTS
|
1-87610-130-0 |
01 |
1 |
9803-9810 |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-88310-042-0 |
01 |
1 |
9510-9702 |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
|
1-88310-042-0 |
01 |
1 |
9703-9802 |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-88310-526-0 |
01 |
1 |
9803-9810 |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-88310-526-0 |
01 |
1 |
9811-0603 |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-88310-526-0 |
01 |
1 |
0604-0604 |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-88310-526-0 |
01 |
1 |
0604-0604 |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-88310-526-0 |
01 |
1 |
0604- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-88310-298-0 |
01 |
1 |
9811-0603 |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-88311-358-0 |
01 |
1 |
0604-0604 |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-88311-358-0 |
01 |
1 |
0604- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
|
1-88310-001-0 |
02 |
1 |
9510-9802 |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
|
1-88310-496-0 |
02 |
1 |
9803- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-47115-941-0 |
04 |
1 |
9510-9702 |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
|
1-47115-941-0 |
04 |
1 |
9703-9802 |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-47125-807-0 |
04 |
1 |
9803-9810 |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47125-807-0 |
04 |
1 |
9811-0603 |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-47125-807-0 |
04 |
1 |
0604-0604 |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47125-807-0 |
04 |
1 |
0604-0604 |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47125-807-0 |
04 |
1 |
0604- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47125-424-0 |
04 |
1 |
9811-0603 |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47126-763-0 |
04 |
1 |
0604-0604 |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47126-763-0 |
04 |
1 |
0604- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
|
1-47115-867-0 |
08 |
1 |
9510-9802 |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
|
1-47125-811-0 |
08 |
1 |
9803- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-47115-942-0 |
04 |
1 |
9510-9702 |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
|
1-47115-942-0 |
04 |
1 |
9703-9802 |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-47125-808-0 |
04 |
1 |
9803-9810 |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47125-808-0 |
04 |
1 |
9811-0603 |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-47125-808-0 |
04 |
1 |
0604-0604 |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47125-808-0 |
04 |
1 |
0604-0604 |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47125-808-0 |
04 |
1 |
0604- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47125-425-0 |
04 |
1 |
9811-0603 |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47126-764-0 |
04 |
1 |
0604-0604 |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47126-764-0 |
04 |
1 |
0604- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
|
1-47115-869-0 |
08 |
1 |
9510-9802 |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
|
1-47125-812-0 |
08 |
1 |
9803- |
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
D6X11.5
|
1-09732-019-0 |
80 |
1 |
9510-9702 |
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
D6X11.5
|
1-09732-019-0 |
80 |
1 |
9703-9802 |
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
D6X11.5
|
1-09732-019-0 |
80 |
1 |
9803- |
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
L=18.5
|
1-09732-034-0 |
80 |
1 |
9510- |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-09583-167-0 |
08 |
1 |
9510-9702 |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
|
1-09583-167-0 |
08 |
1 |
9703-9802 |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-09583-167-0 |
08 |
1 |
9803- |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
|
1-09583-175-0 |
02 |
1 |
9510- |
| |
26 |
PLATE; BACK,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)

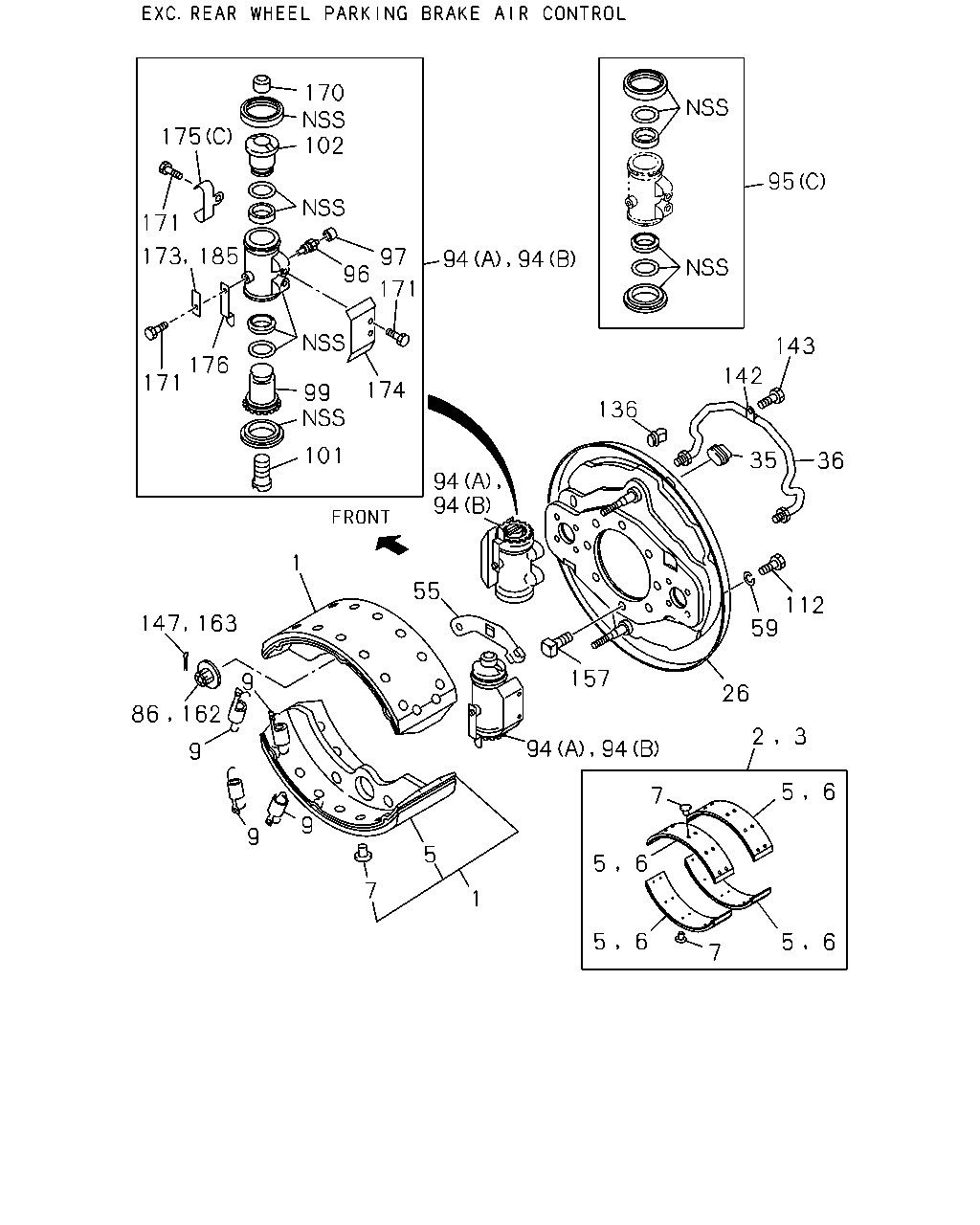

EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47150-443-0 |
01 |
1 |
9510-9702 |
| |
26 |
PLATE; BACK,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47150-443-0 |
01 |
1 |
9703-9802 |
| |
26 |
PLATE; BACK,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47150-443-0 |
01 |
1 |
9803- |
| |
26 |
PLATE; BACK,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47150-447-0 |
01 |
1 |
9510-9810 |
| |
26 |
PLATE; BACK,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47150-447-0 |
01 |
1 |
9811-0603 |
| |
26 |
PLATE; BACK,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47150-447-0 |
01 |
1 |
0604- |
| |
26 |
PLATE; BACK,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47150-442-0 |
01 |
1 |
9510-9702 |
| |
26 |
PLATE; BACK,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47150-442-0 |
01 |
1 |
9703-9802 |
| |
26 |
PLATE; BACK,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47150-442-0 |
01 |
1 |
9803- |
| |
26 |
PLATE; BACK,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47150-446-0 |
01 |
1 |
9510-9810 |
| |
26 |
PLATE; BACK,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47150-446-0 |
01 |
1 |
9811-0603 |
| |
26 |
PLATE; BACK,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47150-446-0 |
01 |
1 |
0604- |
| |
35 |
GROMMET; CHECK HOLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-09333-066-1 |
04 |
1 |
9510-9702 |
| |
35 |
GROMMET; CHECK HOLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
|
1-09333-066-1 |
04 |
1 |
9703-9802 |
| |
35 |
GROMMET; CHECK HOLE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-09333-066-1 |
04 |
1 |
9803- |
| |
36 |
PIPE; OIL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47416-356-0 |
02 |
1 |
9510-9702 |
| |
36 |
PIPE; OIL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47416-356-0 |
02 |
1 |
9703-9802 |
| |
36 |
PIPE; OIL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47416-356-0 |
02 |
1 |
9803- |
| |
36 |
PIPE; OIL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47415-139-0 |
01 |
1 |
9510-9810 |
| |
36 |
PIPE; OIL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47415-139-0 |
01 |
1 |
9811-0603 |
| |
36 |
PIPE; OIL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47415-139-0 |
01 |
1 |
0604- |
| |
36 |
PIPE; OIL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47415-138-0 |
01 |
1 |
9510-9810 |
| |
36 |
PIPE; OIL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47415-138-0 |
01 |
1 |
9811-0603 |
| |
36 |
PIPE; OIL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47415-138-0 |
01 |
1 |
0604- |
| |
55 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47139-068-0 |
04 |
1 |
9510-9702 |
| |
55 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47139-068-0 |
04 |
1 |
9703-9802 |
| |
55 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47139-068-0 |
04 |
1 |
9803- |
| |
55 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47619-032-0 |
04 |
1 |
9510-9810 |
| |
55 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47619-032-0 |
04 |
1 |
9811-0603 |
| |
55 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47619-032-0 |
04 |
1 |
0604- |
| |
55 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
|
1-47133-005-0 |
02 |
1 |
9510- |
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=14.2
|
9-09150-614-0 |
12 |
1 |
9510-9810 |
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
ID=14.2
|
9-09150-614-0 |
12 |
1 |
9811-0603 |
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
ID=14.2
|
9-09150-614-0 |
12 |
1 |
0604-0604 |
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
ID=14.2
|
0-91510-614-0 |
12 |
1 |
0604- |
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=14.2
|
9-09150-614-0 |
16 |
1 |
9510-9702 |
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=14.2
|
9-09150-614-0 |
16 |
1 |
9703-9802 |
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=14.2
|
9-09150-614-0 |
16 |
1 |
9803-0603 |
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=14.2
|
0-91510-614-0 |
16 |
1 |
0604- |
| |
71 |
WASHER; PL,JAW JOINT
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=10.5 OD=18
|
9-09160-510-0 |
02 |
1 |
9510-0605 |
| |
71 |
WASHER; PL,JAW JOINT
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=10.5
|
0-91610-510-0 |
02 |
1 |
0606- |
| |
72 |
PIN; SPLIT
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
OD=2.8 L=18
|
9-08113-018-0 |
02 |
1 |
9510-0606 |
| |
72 |
PIN; SPLIT
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
OD=2.8 L=18
|
0-81123-018-0 |
02 |
1 |
0607- |
| |
89 |
NUT; CHAMBER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M12
|
9-99110-512-0 |
04 |
1 |
9510-0512 |
| |
89 |
NUT; CHAMBER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M12
|
0-91110-512-0 |
04 |
1 |
0601- |
| |
90 |
BRACKET; CHAMBER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48258-157-0 |
01 |
1 |
9510- |
| |
90 |
BRACKET; CHAMBER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48258-121-4 |
01 |
1 |
9510- |
| |
91 |
BOLT; CHAMBER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M12X30
|
0-20801-230-0 |
04 |
1 |
9510- |
| |
92 |
WASHER; LK,CHAMBER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
9-09150-612-0 |
04 |
1 |
9510-0603 |
| |
92 |
WASHER; LK,CHAMBER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
0-91510-612-0 |
04 |
1 |
0604- |
| |
94 |

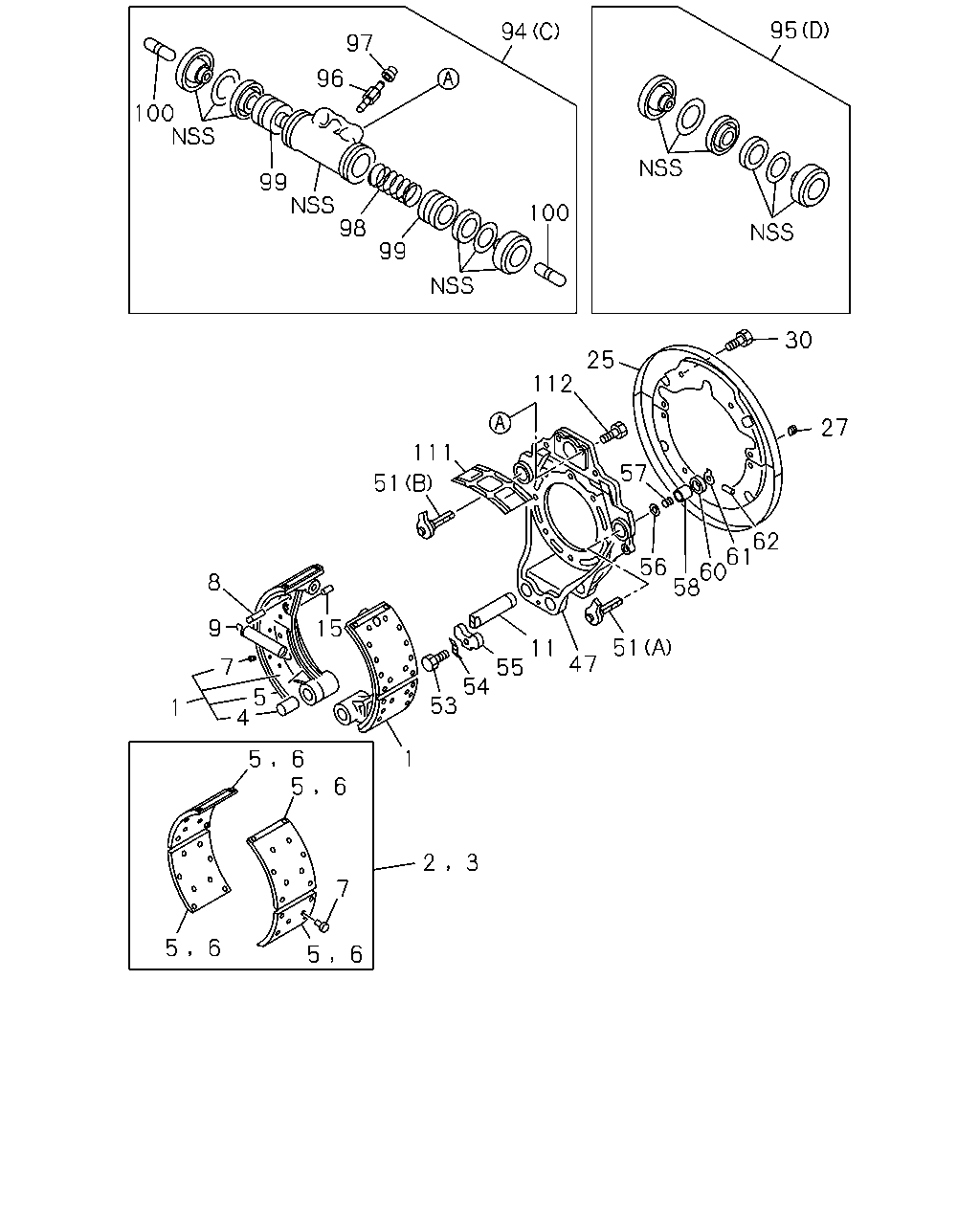

CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
(B) BACKWARD
|
1-47600-558-1 |
01 |
1 |
9510-9702 |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
(B) BACKWARD
|
1-47600-558-1 |
01 |
1 |
9703-9802 |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
(B) BACKWARD
|
1-47600-558-1 |
01 |
1 |
9803- |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A) FORWARD
|
1-47600-559-1 |
01 |
1 |
9510-9702 |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A) FORWARD
|
1-47600-559-1 |
01 |
1 |
9703-9802 |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A) FORWARD
|
1-47600-559-1 |
01 |
1 |
9803- |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A) FORWARD
|
1-47600-569-1 |
01 |
1 |
9510-9810 |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(A) FORWARD
|
1-47600-569-2 |
01 |
1 |
9811-0603 |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
(A) FORWARD
|
1-47600-569-2 |
01 |
1 |
0604- |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
(B) BACKWARD
|
1-47600-556-1 |
01 |
1 |
9510-9702 |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
(B) BACKWARD
|
1-47600-556-1 |
01 |
1 |
9703-9802 |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
(B) BACKWARD
|
1-47600-556-1 |
01 |
1 |
9803- |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A) FORWARD
|
1-47600-557-1 |
01 |
1 |
9510-9702 |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A) FORWARD
|
1-47600-557-1 |
01 |
1 |
9703-9802 |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A) FORWARD
|
1-47600-557-1 |
01 |
1 |
9803- |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A) FORWARD
|
1-47600-568-1 |
01 |
1 |
9510-9810 |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(A) FORWARD
|
1-47600-568-2 |
01 |
1 |
9811-0603 |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
(A) FORWARD
|
1-47600-568-2 |
01 |
1 |
0604- |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
(C)
|
1-47600-524-1 |
02 |
1 |
9510- |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-87830-553-0 |
02 |
1 |
9510-9810 |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(B)
|
1-87830-553-0 |
02 |
1 |
9811-0603 |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
(C)
|
1-87830-553-0 |
02 |
1 |
0604- |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
|
1-87830-553-0 |
04 |
1 |
9510-9702 |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
|
1-87830-553-0 |
04 |
1 |
9703-9802 |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
|
1-87830-553-0 |
04 |
1 |
9803- |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-87830-570-0 |
02 |
1 |
9510-9810 |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(A)
|
1-87830-570-0 |
02 |
1 |
9811-0603 |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
(A)
|
1-87830-570-0 |
02 |
1 |
0604- |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
(D)
|
1-87830-527-0 |
04 |
1 |
9510-0603 |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
(D)
|
1-87830-527-0 |
02 |
1 |
0604- |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
L=44
|
1-47615-007-0 |
02 |
1 |
9510-9702 |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
L=44
|
1-47615-007-0 |
02 |
1 |
9703-9802 |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
L=44
|
1-47615-007-0 |
02 |
1 |
9803- |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
L=66.5
|
1-47615-005-0 |
02 |
1 |
9510- |
| |
97 |
CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
OD=9.5
|
9-47619-005-0 |
02 |
1 |
9510-9702 |
| |
97 |
CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
OD=9.5
|
9-47619-005-0 |
02 |
1 |
9703-9802 |
| |
97 |
CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
OD=9.5
|
9-47619-005-0 |
02 |
1 |
9803- |
| |
97 |
CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
OD=12
|
1-47619-011-0 |
02 |
1 |
9510- |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-202-0 |
02 |
1 |
9510-9702 |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-202-0 |
02 |
1 |
9703-9802 |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-202-0 |
02 |
1 |
9803- |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BACKWARD
|
1-47624-202-0 |
01 |
1 |
9510-9810 |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
BACKWARD
|
1-47624-202-0 |
01 |
1 |
9811-0603 |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
BACKWARD
|
1-47624-202-0 |
01 |
1 |
0604- |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
FORWARD
|
1-47624-208-0 |
01 |
1 |
9510-9810 |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
FORWARD
|
1-47624-208-0 |
01 |
1 |
9811-0603 |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
FORWARD
|
1-47624-208-0 |
01 |
1 |
0604- |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-201-0 |
02 |
1 |
9510-9702 |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-201-0 |
02 |
1 |
9703-9802 |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-201-0 |
02 |
1 |
9803- |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BACKWARD
|
1-47624-201-0 |
01 |
1 |
9510-9810 |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
BACKWARD
|
1-47624-201-0 |
01 |
1 |
9811-0603 |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
BACKWARD
|
1-47624-201-0 |
01 |
1 |
0604- |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
FORWARD
|
1-47624-207-0 |
01 |
1 |
9510-9810 |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
FORWARD
|
1-47624-207-0 |
01 |
1 |
9811-0603 |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
FORWARD
|
1-47624-207-0 |
01 |
1 |
0604- |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
|
1-47624-043-0 |
04 |
1 |
9510-9701 |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
|
1-47624-302-0 |
04 |
1 |
9702- |
| |
101 |
SCREW; ADJ,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-47622-029-0 |
02 |
1 |
9510-9702 |
| |
101 |
SCREW; ADJ,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
|
1-47622-029-0 |
02 |
1 |
9703-9802 |
| |
101 |
SCREW; ADJ,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-47622-029-0 |
02 |
1 |
9803- |
| |
101 |
SCREW; ADJ,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-47622-028-0 |
02 |
1 |
9510-9702 |
| |
101 |
SCREW; ADJ,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
|
1-47622-028-0 |
02 |
1 |
9703-9802 |
| |
101 |
SCREW; ADJ,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-47622-028-0 |
02 |
1 |
9803- |
| |
102 |
PISTON; REAR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BACKWARD
|
1-47624-203-0 |
02 |
1 |
9510-9810 |
| |
102 |
PISTON; REAR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
BACKWARD
|
1-47624-203-0 |
02 |
1 |
9811-0603 |
| |
102 |
PISTON; REAR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
BACKWARD
|
1-47624-203-0 |
02 |
1 |
0604- |
| |
102 |
PISTON; REAR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-203-0 |
04 |
1 |
9510-9702 |
| |
102 |
PISTON; REAR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-203-0 |
04 |
1 |
9703-9802 |
| |
102 |
PISTON; REAR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-203-0 |
04 |
1 |
9803- |
| |
102 |
PISTON; REAR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
FORWARD
|
1-47624-206-0 |
02 |
1 |
9510-9810 |
| |
102 |
PISTON; REAR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
FORWARD
|
1-47624-206-0 |
02 |
1 |
9811-0603 |
| |
102 |
PISTON; REAR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
FORWARD
|
1-47624-206-0 |
02 |
1 |
0604- |
| |
103 |
SPRING; LK,RR WHEEL CYL,ADJ
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47629-057-0 |
02 |
1 |
9510-9810 |
| |
103 |
SPRING; LK,RR WHEEL CYL,ADJ
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47629-057-0 |
02 |
1 |
9811-0603 |
| |
103 |
SPRING; LK,RR WHEEL CYL,ADJ
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47629-057-0 |
02 |
1 |
0604- |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-92361-435-0 |
12 |
1 |
9510-9810 |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
9-92361-435-0 |
12 |
1 |
9811-0603 |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
9-92361-435-0 |
12 |
1 |
0604- |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-92361-435-0 |
16 |
1 |
9510-9702 |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-92361-435-0 |
16 |
1 |
9703-9802 |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-92361-435-0 |
16 |
1 |
9803- |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
M12X32 W/LK WASHER
|
0-50051-232-0 |
04 |
1 |
9510-0906 |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
M12X32 W/LK WASHER
|
0-50551-232-0 |
04 |
1 |
0907- |
| |
136 |
GROMMET
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-09333-065-2 |
04 |
1 |
9510-9702 |
| |
136 |
GROMMET
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
|
1-09333-065-2 |
04 |
1 |
9703-9802 |
| |
136 |
GROMMET
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-09333-065-2 |
04 |
1 |
9803- |
| |
138 |
SCREW; LOCK PLATE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M5X10 W/LK WASHER
|
9-03910-510-0 |
04 |
1 |
9510-9810 |
| |
138 |
SCREW; LOCK PLATE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
M5X10 W/LK WASHER
|
9-03910-510-0 |
04 |
1 |
9811-0603 |
| |
138 |
SCREW; LOCK PLATE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
M5X10 W/LK WASHER
|
9-03910-510-0 |
04 |
1 |
0604-0604 |
| |
138 |
SCREW; LOCK PLATE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
M5X10 W/LK WASHER
|
0-36220-510-0 |
04 |
1 |
0605- |
| |
142 |
CLAMP; OIL PIPE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-09700-454-0 |
02 |
1 |
9510-9702 |
| |
142 |
CLAMP; OIL PIPE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
|
1-09700-454-0 |
02 |
1 |
9703-9802 |
| |
142 |
CLAMP; OIL PIPE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-09700-454-0 |
02 |
1 |
9803- |
| |
143 |
BOLT; CLAMP,OIL PIPE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
M6X10
|
9-01900-610-0 |
02 |
1 |
9510-9702 |
| |
143 |
BOLT; CLAMP,OIL PIPE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
M6X10
|
9-01900-610-0 |
02 |
1 |
9703-9802 |
| |
143 |
BOLT; CLAMP,OIL PIPE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
M6X10
|
9-01900-610-0 |
02 |
1 |
9803- |
| |
146 |
NUT; HOLDER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09440-009-0 |
04 |
1 |
9510-9810 |
| |
146 |
NUT; HOLDER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-09440-009-0 |
04 |
1 |
9811-0603 |
| |
146 |
NUT; HOLDER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-09440-009-0 |
04 |
1 |
0604- |
| |
147 |
PIN; HOLDER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
OD=1.8 L=20
|
9-08112-020-0 |
04 |
1 |
9510-9810 |
| |
147 |
PIN; HOLDER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
OD=1.8 L=20
|
9-08112-020-0 |
04 |
1 |
9811-0603 |
| |
147 |
PIN; HOLDER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
OD=1.8 L=20
|
9-08112-020-0 |
04 |
1 |
0604-0606 |
| |
147 |
PIN; HOLDER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
OD=1.8 L=20
|
0-81122-020-0 |
04 |
1 |
0607- |
| |
147 |
PIN; HOLDER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
OD=1.8 L=20
|
9-08112-020-0 |
02 |
1 |
9510-9702 |
| |
147 |
PIN; HOLDER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
OD=1.8 L=20
|
9-08112-020-0 |
02 |
1 |
9703-9802 |
| |
147 |
PIN; HOLDER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
OD=1.8 L=20
|
9-08112-020-0 |
02 |
1 |
9803-0606 |
| |
147 |
PIN; HOLDER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
OD=1.8 L=20
|
0-81122-020-0 |
02 |
1 |
0607- |
| |
157 |
BOLT; RR BRK SET
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M14X56
|
1-09060-004-0 |
12 |
1 |
9510-9702 |
| |
157 |
BOLT; RR BRK SET
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M14X56
|
1-09060-004-0 |
12 |
1 |
9703-9802 |
| |
157 |
BOLT; RR BRK SET
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M14X56
|
1-09060-004-0 |
12 |
1 |
9803- |
| |
157 |
BOLT; RR BRK SET
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M14X50
|
9-92061-450-0 |
04 |
1 |
9510-9810 |
| |
157 |
BOLT; RR BRK SET
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
M14X50
|
9-92061-450-0 |
04 |
1 |
9811-0512 |
| |
157 |
BOLT; RR BRK SET
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
M14X50
|
0-20951-450-0 |
04 |
1 |
0601-0603 |
| |
157 |
BOLT; RR BRK SET
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
M14X50
|
0-20951-450-0 |
04 |
1 |
0604- |
| |
170 |
PIECE; ANCHOR,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47619-019-0 |
02 |
1 |
9510-9810 |
| |
170 |
PIECE; ANCHOR,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47619-019-0 |
02 |
1 |
9811-0603 |
| |
170 |
PIECE; ANCHOR,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47619-019-0 |
02 |
1 |
0604- |
| |
170 |
PIECE; ANCHOR,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47619-019-0 |
04 |
1 |
9510-9702 |
| |
170 |
PIECE; ANCHOR,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47619-019-0 |
04 |
1 |
9703-9802 |
| |
170 |
PIECE; ANCHOR,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47619-019-0 |
04 |
1 |
9803- |
| |
171 |
BOLT; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X8
|
0-20800-608-0 |
04 |
1 |
9510-9702 |
| |
171 |
BOLT; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X8
|
0-20800-608-0 |
04 |
1 |
9703-9802 |
| |
171 |
BOLT; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X8
|
0-20800-608-0 |
04 |
1 |
9803- |
| |
171 |
BOLT; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X18 W/LK WASHER
|
0-50040-818-0 |
04 |
1 |
9510-9810 |
| |
171 |
BOLT; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
M8X18 W/LK WASHER
|
0-50040-818-0 |
04 |
1 |
9811-0603 |
| |
171 |
BOLT; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
M8X18 W/LK WASHER
|
0-50040-818-0 |
04 |
1 |
0604-0906 |
| |
171 |
BOLT; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
M8X18 W/LK WASHER
|
0-50540-818-0 |
04 |
1 |
0907- |
| |
171 |
BOLT; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X18 W/LK WASHER
|
0-50040-818-0 |
08 |
1 |
9510-9702 |
| |
171 |
BOLT; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X18 W/LK WASHER
|
0-50040-818-0 |
08 |
1 |
9703-9802 |
| |
171 |
BOLT; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X18 W/LK WASHER
|
0-50040-818-0 |
08 |
1 |
9803-0906 |
| |
171 |
BOLT; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X18 W/LK WASHER
|
0-50540-818-0 |
08 |
1 |
0907- |
| |
171 |
BOLT; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X10
|
9-01900-610-0 |
20 |
1 |
9510-9810 |
| |
171 |
BOLT; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
M6X10
|
9-01900-610-0 |
20 |
1 |
9811-0603 |
| |
171 |
BOLT; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
M6X10
|
9-01900-610-0 |
20 |
1 |
0604- |
| |
171 |
BOLT; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X10
|
9-01900-610-0 |
12 |
1 |
9510-9702 |
| |
171 |
BOLT; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X10
|
9-01900-610-0 |
12 |
1 |
9703-9802 |
| |
171 |
BOLT; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X10
|
9-01900-610-0 |
12 |
1 |
9803- |
| |
174 |
COVER; CYL,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-47619-016-0 |
04 |
1 |
9510-9702 |
| |
174 |
COVER; CYL,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
|
1-47619-016-0 |
04 |
1 |
9703-9802 |
| |
174 |
COVER; CYL,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
|
1-47619-016-0 |
04 |
1 |
9803- |
| |
175 |
HANGER; RR WHEEL BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-47118-084-0 |
04 |
1 |
9510-9810 |
| |
175 |
HANGER; RR WHEEL BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(A)
|
1-47118-084-0 |
04 |
1 |
9811-0603 |
| |
175 |
HANGER; RR WHEEL BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
(C)
|
1-47118-084-0 |
04 |
1 |
0604- |
| |
175 |
HANGER; RR WHEEL BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
|
1-47118-084-0 |
08 |
1 |
9510-9702 |
| |
175 |
HANGER; RR WHEEL BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
|
1-47118-084-0 |
08 |
1 |
9703-9802 |
| |
175 |
HANGER; RR WHEEL BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(C)
|
1-47118-084-0 |
08 |
1 |
9803- |
| |
175 |
HANGER; RR WHEEL BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-47619-022-0 |
02 |
1 |
9510-9810 |
| |
175 |
HANGER; RR WHEEL BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
(B)
|
1-47619-022-0 |
02 |
1 |
9811-0603 |
| |
175 |
HANGER; RR WHEEL BRK
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
(B)
|
1-47619-022-0 |
02 |
1 |
0604- |
| |
176 |
STOPPER; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-008-0 |
02 |
1 |
9510-9810 |
| |
176 |
STOPPER; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47169-008-0 |
02 |
1 |
9811-0603 |
| |
176 |
STOPPER; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47169-008-0 |
02 |
1 |
0604- |
| |
176 |
STOPPER; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-008-0 |
04 |
1 |
9510-9702 |
| |
176 |
STOPPER; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-008-0 |
04 |
1 |
9703-9802 |
| |
176 |
STOPPER; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-008-0 |
04 |
1 |
9803- |
| |
178 |
WEDGE; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47640-002-0 |
02 |
1 |
9510-9810 |
| |
178 |
WEDGE; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47640-002-0 |
02 |
1 |
9811-0603 |
| |
178 |
WEDGE; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47640-002-0 |
02 |
1 |
0604- |
| |
179 |
COVER; WEDGE,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47649-009-0 |
02 |
1 |
9510-9810 |
| |
179 |
COVER; WEDGE,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47649-009-0 |
02 |
1 |
9811-0603 |
| |
179 |
COVER; WEDGE,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47649-009-0 |
02 |
1 |
0604- |
| |
180 |
GASKET; COVER,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47619-017-0 |
02 |
1 |
9510-9810 |
| |
180 |
GASKET; COVER,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47619-017-0 |
02 |
1 |
9811-0603 |
| |
180 |
GASKET; COVER,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47619-017-0 |
02 |
1 |
0604- |
| |
182 |
TAPPET; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47629-069-0 |
04 |
1 |
9510-9810 |
| |
182 |
TAPPET; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47629-069-0 |
04 |
1 |
9811-0603 |
| |
182 |
TAPPET; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47629-069-0 |
04 |
1 |
0604- |
| |
184 |
CONNECTOR; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09660-112-0 |
04 |
1 |
9510-9810 |
| |
184 |
CONNECTOR; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-09660-112-1 |
04 |
1 |
9811-0603 |
| |
184 |
CONNECTOR; RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-09660-112-1 |
04 |
1 |
0604- |
| |
185 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-009-0 |
04 |
1 |
9510-9810 |
| |
185 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47169-009-0 |
04 |
1 |
9811-0603 |
| |
185 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47169-009-0 |
04 |
1 |
0604- |
| |
185 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-009-0 |
02 |
1 |
9510-9702 |
| |
185 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F),FINAL GEAR 39/9 14.5" HYPOID(W4X)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-009-0 |
02 |
1 |
9703-9802 |
| |
185 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-009-0 |
02 |
1 |
9803- |
| |
187 |
SCREW; HANGER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-03065-616-0 |
04 |
1 |
9510-9810 |
| |
187 |
SCREW; HANGER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
9-03065-616-0 |
04 |
1 |
9811-0603 |
| |
187 |
SCREW; HANGER
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
9-03065-616-0 |
04 |
1 |
0604- |
| |
208 |
WASHER; BRKT
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=106
|
1-42129-028-3 |
04 |
1 |
9510- |
| |
209 |
SHIM; BRKT
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=106
|
1-42129-027-4 |
12 |
1 |
9510- |
| |
210 |
BOLT; BRKT FIX
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M12X25
|
0-20801-225-0 |
08 |
1 |
9510- |
| |
210 |
BOLT; BRKT FIX
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M12X38
|
0-20801-238-0 |
08 |
1 |
9510- |
| |
211 |
WASHER; LK,BRKT FIX
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
9-09150-612-0 |
16 |
1 |
9510-0603 |
| |
211 |
WASHER; LK,BRKT FIX
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
0-91510-612-0 |
16 |
1 |
0604- |
| |
212 |
STAY
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-48258-156-0 |
01 |
1 |
9510- |
| |
213 |
BOLT; STAY FIX
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M12X25
|
0-20801-225-0 |
02 |
1 |
9510- |
| |
214 |
NUT; STAY FIX
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M12
|
9-99111-512-0 |
02 |
1 |
9510-0512 |
| |
214 |
NUT; STAY FIX
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M12
|
0-91111-512-0 |
02 |
1 |
0601- |
| |
215 |
WASHER; LK,STAY FIX
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
9-09150-612-0 |
02 |
1 |
9510-0603 |
| |
215 |
WASHER; LK,STAY FIX
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
0-91510-612-0 |
02 |
1 |
0604- |
| |
216 |
PIN; STAY FIX
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-08234-038-0 |
02 |
1 |
9510- |
| |
266 |
ROLLER; WEDGE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47643-004-0 |
04 |
1 |
9510-9810 |
| |
266 |
ROLLER; WEDGE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47643-004-0 |
04 |
1 |
9811-0603 |
| |
266 |
ROLLER; WEDGE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47643-004-0 |
04 |
1 |
0604- |
| |
267 |
CAGE; WEDGE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47649-007-0 |
02 |
1 |
9510-9810 |
| |
267 |
CAGE; WEDGE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47649-007-0 |
02 |
1 |
9811-0603 |
| |
267 |
CAGE; WEDGE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47649-007-0 |
02 |
1 |
0604- |
| |
268 |
RETAINER; WEDGE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47649-008-0 |
02 |
1 |
9510-9610 |
| |
268 |
RETAINER; WEDGE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47649-016-0 |
02 |
1 |
9611-9810 |
| |
268 |
RETAINER; WEDGE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-47649-016-0 |
02 |
1 |
9811-0603 |
| |
268 |
RETAINER; WEDGE
FINAL GEAR 43/7 14.5" HYPOID(W1G),FINAL GEAR 39/7
14.5" HYPOID(W1H),FINAL GEAR 39/6 14.5" HYPOID(W1J),
FINAL GEAR 39/8 14.5" HYPOID(W1U),FINAL GEAR 41/8
14.5" HYPOID(W4F)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. BRK LINING MATERIAL L808 NON ASBESTOS<BHY>
|
1-47649-016-0 |
02 |
1 |
0604- |
