◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10701 - FSR(LHD) EXC.EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#38285) — 129 parça

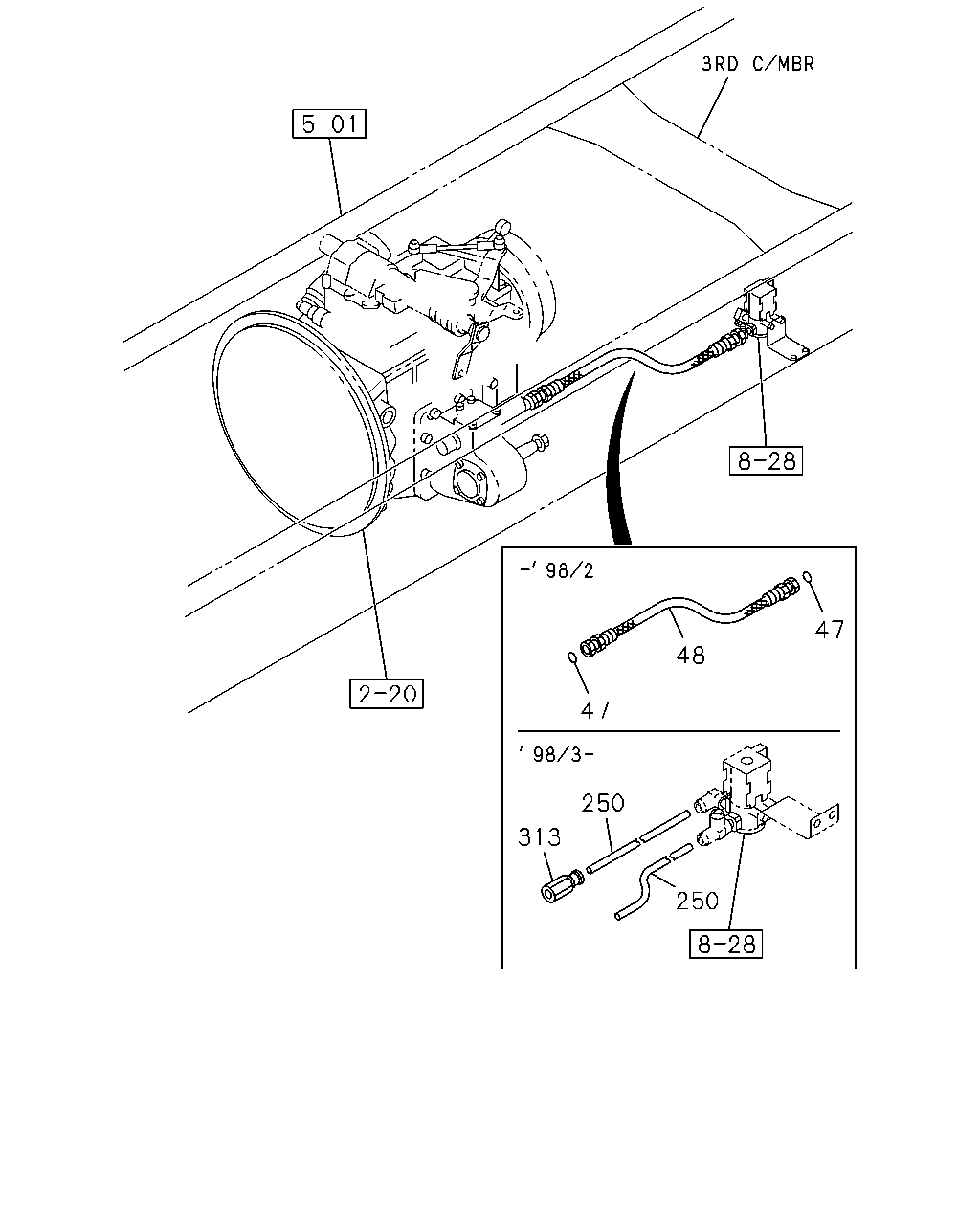

çizim 151675
47 48 47 250 313 250
BalonParca AdiParca NoAdetTipApplied Date A B C D
47 GASKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION FRONT PTO(RC2) ID=11 OD=18 		9-09572-510-0 02 1 9510-9802 ● ● ● ●
47 GASKET; FLEX HOSE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=11 OD=18 		9-09572-510-0 02 1 9510-9802 ● ●
47 GASKET; FLEX HOSE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=11 OD=18 		9-09572-510-0 02 1 9510-9802 ● ●
48 HOSE; FLEX,PTO
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=330 		0-07150-330-0 01 1 9510-9802 ● ●
48 HOSE; FLEX,PTO
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) L=630 		0-07150-630-0 01 1 9510-9802 ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION FRONT PTO(RC2) L=420 		0-07150-420-0 01 1 9510-9802 ● ● ● ●
250 TUBE; NYLON
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9804 ● ● ● ●
250 TUBE; NYLON
TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9804 ● ● ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9804 ● ● ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION FRONT PTO(RC2) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9804 ● ● ● ●
250 TUBE; NYLON
TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9804 ● ● ● ●
250 TUBE; NYLON
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-0004 ● ● ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION FRONT PTO(RC2) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-0004 ● ● ● ●
250 TUBE; NYLON
TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-0004 ● ● ● ●
250 TUBE; NYLON
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-0004 ● ● ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0212 ● ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0212 ● ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ● ●
313 ADAPTER
TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9803-0004 ● ● ● ●
313 ADAPTER
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9803-0004 ● ● ● ●
313 ADAPTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0007 ● ●
313 ADAPTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0008- ● ●
çizim 151681
3 3 1 55
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LEVER ASM; PTO & DUMP CONT
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> 		1-79996-256-1 01 1 9510-0004 ● ●
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 9510-0004 ● ● ● ●
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 0005- ● ● ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9510-0004 ● ● ● ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0005- ● ● ●
55 GROMMET; CABLE 1-09983-068-0 01 1 9510-9802 ● ●
55 GROMMET; CABLE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-09983-068-0 01 1 9510-9802 ●
55 GROMMET; CABLE
EXC. TRANSMISSION FRONT PTO(RC2) 		1-09983-068-0 01 1 9510-9802 ●
55 GROMMET; CABLE 1-09983-068-0 01 1 9803-0004 ● ● ●
55 GROMMET; CABLE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-09983-068-0 01 1 9803-0004 ●
55 GROMMET; CABLE
EXC. TRANSMISSION FRONT PTO(RC2) 		1-09983-068-0 01 1 9803-0004 ●
55 GROMMET; CABLE 1-09983-068-0 01 1 0005- ● ● ●

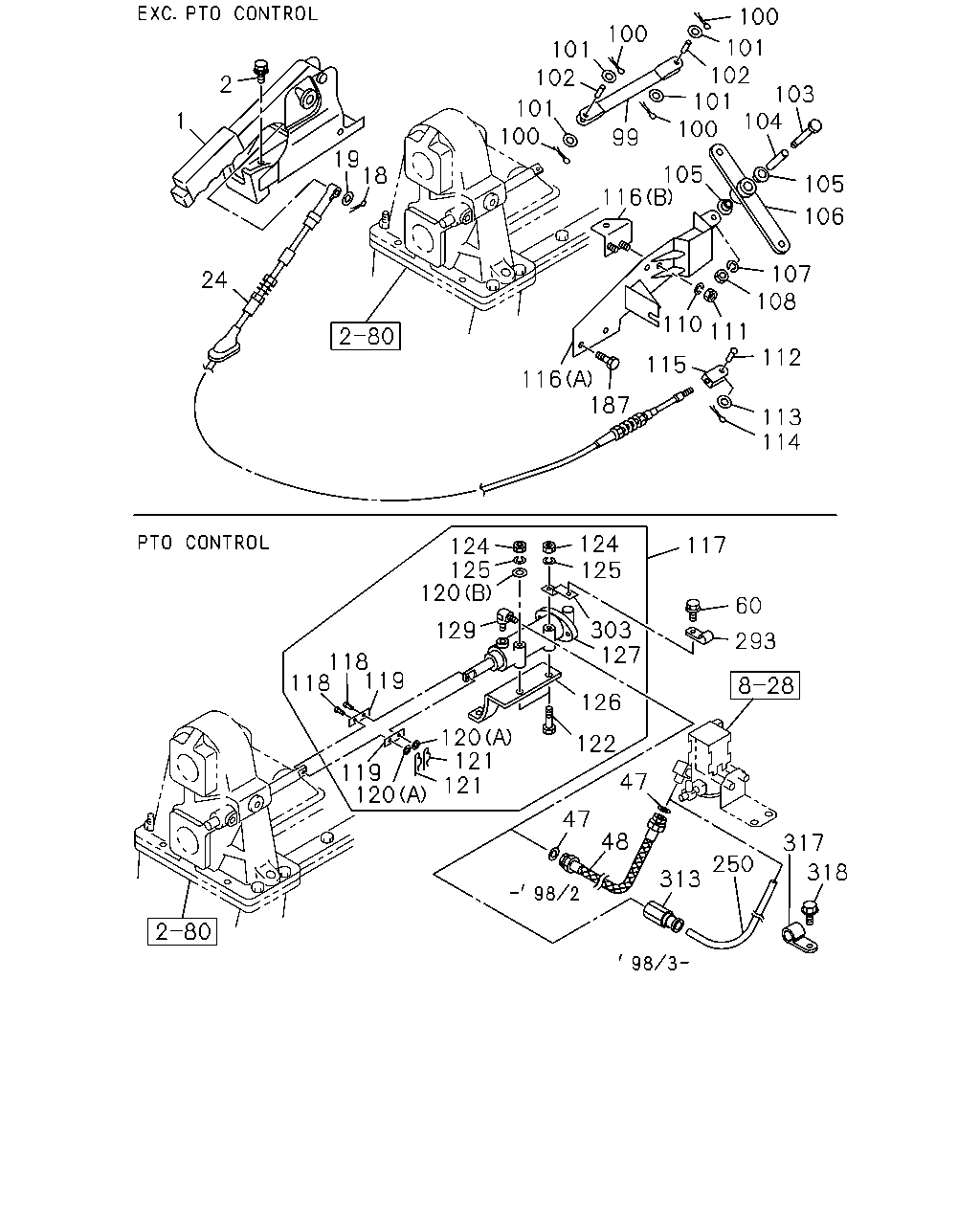

çizim 151684
100 100 101 102 101 100 101 102 2 103 104 101 100 1 99 19 18 105 116 105 106 107 108 24 110 111 112 115 116 187 113 114 124 125 117 124 125 120 60 303 127 129 293 118 118 119 126 120 121 121 122 119 120 47 47 48 317 250 318 313
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LEVER ASM; PTO & DUMP CONT
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> 		1-79996-256-1 01 1 9510-0004 ● ●
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 9510-0004 ● ● ● ●
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 0005- ● ● ●
2 BOLT; PTO CONT
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9510-0004 ● ●
18 PIN; SNAP,PTO CABLE
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> L=27.7 		1-09987-141-0 01 1 9510-0004 ● ●
19 WASHER; PL,PTO CABLE
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> ID=8.4 OD=18 		9-09160-608-0 01 1 9510-0004 ● ●
24 CABLE; PTO CONT
. TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> L=4581 		1-38319-041-0 01 1 9510-0004 ● ●
47 GASKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION FRONT PTO(RC2) ID=11 OD=18 		9-09572-510-0 02 1 9510-9802 ● ● ● ●
47 GASKET; FLEX HOSE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=11 OD=18 		9-09572-510-0 02 1 9510-9802 ● ●
47 GASKET; FLEX HOSE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=11 OD=18 		9-09572-510-0 02 1 9510-9802 ● ●
48 HOSE; FLEX,PTO
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=330 		0-07150-330-0 01 1 9510-9802 ● ●
48 HOSE; FLEX,PTO
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) L=630 		0-07150-630-0 01 1 9510-9802 ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION FRONT PTO(RC2) L=420 		0-07150-420-0 01 1 9510-9802 ● ● ● ●
60 BOLT; CLIP FIX
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 FLANGE 		0-28080-816-0 01 1 9510-9802 ●
99 LINK; CONT,FRT PTO
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> 		1-38323-007-0 01 1 9510-0004 ● ●
100 PIN; SPLIT
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> OD=1.8 L=15 		9-08112-015-0 04 1 9510-0004 ● ●
101 WASHER; PL,LINK
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> ID=8.4 		9-09160-508-0 04 1 9510-0004 ● ●
102 PIN; STRAIGHT,LINK FIX
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> 		9-08280-830-0 02 1 9510-0004 ● ●
103 BOLT; LEVER FIX
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M10X55 		0-10811-055-0 01 1 9510-0004 ● ●
104 SHAFT; CONT LEVER
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> 		1-38321-003-1 01 1 9510-0004 ● ●
105 BUSHING; CONT LEVER
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> 		1-09330-023-0 02 1 9510-0004 ● ●
106 LEVER; CONT,FRT PTO
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> 		1-38322-031-0 01 1 9510-0004 ● ●
107 WASHER; LK,LEVER
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> ID=10.2 		9-09150-510-0 01 1 9510-0004 ● ●
108 NUT; LEVER FIX
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M10 		9-09110-510-0 01 1 9510-0004 ● ●
110 WASHER; LK,BRKT
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> ID=10.2 		9-09150-510-0 02 1 9510-0004 ● ●
111 NUT; BRKT
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M10 		9-09110-410-0 02 1 9510-0004 ● ●
112 PIN; JAW JOINT
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> OD=10 L=28 		9-08224-028-0 01 1 9510-0004 ● ●
113 WASHER; PL,JAW JOINT
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> ID=10.5 OD=18 		9-09160-510-0 01 1 9510-0004 ● ●
114 PIN; SPLIT,JAW JOINT
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> OD=2.8 L=18 		9-08113-018-0 01 1 9510-0004 ● ●
115 JOINT; JAW,CONT CABLE
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> 		1-09768-015-0 01 1 9510-0004 ● ●
116 BRACKET; CONT,TRANS,FRT PTO
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> (B) 		1-38325-095-0 01 1 9510-0004 ● ●
116 BRACKET; CONT,TRANS,FRT PTO
TRANSMISSION FRONT PTO(RC2) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. PTO CONTROL<SV6> (A) 		1-38325-089-1 01 1 9510-0004 ● ●
116 BRACKET; CONT,TRANS,FRT PTO
TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6> (A) 		1-38325-090-1 01 1 9510-0004 ● ●
117 CYLINDER ASM; AIR
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-38370-006-2 01 1 9510-9802 ● ●
117 CYLINDER ASM; AIR
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-38370-009-0 01 1 9803-0004 ● ●
118 PIN; PLATE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		9-08213-620-0 02 1 9510-0004 ● ●
119 PLATE; FRT PTO,CONT LEVER
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-38379-011-0 02 1 9510-0004 ● ●
120 WASHER; PL,PLATE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> (A) ID=6.4 		9-09160-506-0 02 1 9510-0004 ● ●
120 WASHER; PL,PLATE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> (B) ID=10.5 OD=18 		9-09160-510-0 01 1 9510-0004 ● ●
121 RING; SNAP
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> ID=4 		9-09185-404-0 02 1 9510-0004 ● ●
122 BOLT; PLATE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> M10X60 		0-10806-060-0 02 1 9510-0004 ● ●
124 NUT; PLATE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> M10 		9-09110-410-0 02 1 9510-0004 ● ●
125 WASHER; LK,PLATE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> ID=10.2 		9-09150-510-0 02 1 9510-0004 ● ●
126 PLATE; AIR CYL
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-38379-024-2 01 1 9510-0004 ● ●
127 CYLINDER; AIR
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-38377-004-0 01 1 9510-0004 ● ●
129 NIPPLE; AIR CYL
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-38379-012-0 01 1 9510-9802 ● ●
129 NIPPLE; AIR CYL
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> M12 & PT1/8 		9-09224-306-2 01 1 9803-0004 ● ●
187 BOLT; BRKT,SIDE PTO,UPR
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE 		0-28181-022-0 02 1 9510-9510 ●
187 BOLT; BRKT,SIDE PTO,UPR
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE 		0-28181-022-0 02 1 9511-0004 ● ●
250 TUBE; NYLON
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9804 ● ● ● ●
250 TUBE; NYLON
TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9804 ● ● ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9804 ● ● ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION FRONT PTO(RC2) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9804 ● ● ● ●
250 TUBE; NYLON
TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9804 ● ● ● ●
250 TUBE; NYLON
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-0004 ● ● ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION FRONT PTO(RC2) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-0004 ● ● ● ●
250 TUBE; NYLON
TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-0004 ● ● ● ●
250 TUBE; NYLON
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-0004 ● ● ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0212 ● ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0212 ● ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ● ●
293 CLIP; HOSE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=13 L=20 		9-09525-235-0 01 1 9510-9802 ●
303 BRACKET; CLIP
PTO CONTROL<SV6> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38379-029-0 01 1 9510-9510 ●
303 BRACKET; CLIP
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-38379-029-0 01 1 9511-0004 ● ●
313 ADAPTER
TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9803-0004 ● ● ● ●
313 ADAPTER
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9803-0004 ● ● ● ●
313 ADAPTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0007 ● ●
313 ADAPTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0008- ● ●
317 CLIP; NYLON TUBE
TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=11 L=50 		9-09525-085-0 01 1 9805-0004 ● ● ● ●
318 BOLT; CLIP
TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28680-820-0 01 1 9805-0004 ● ● ● ●

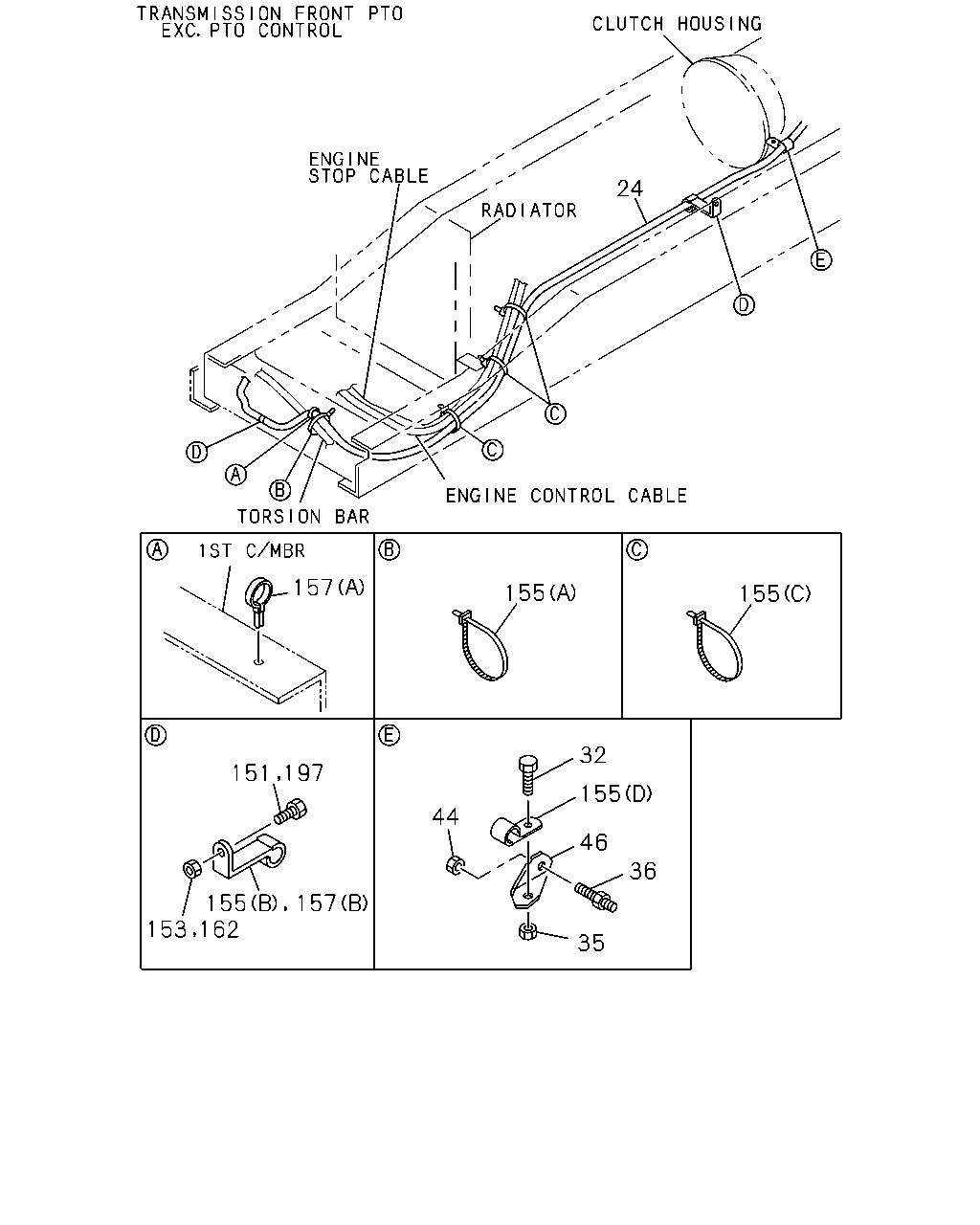

çizim 151692
24 157 155 155 32 151 197 155 44 46 36 155 153 157 35 162
BalonParca AdiParca NoAdetTipApplied Date A B C D
24 CABLE; PTO CONT
. TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> L=4581 		1-38319-041-0 01 1 9510-0004 ● ●
32 BOLT; CLIP,CABLE
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606 ● ●
32 BOLT; CLIP,CABLE
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M8X25 FLANGE 		0-28680-825-0 01 1 9607-0004 ● ●
35 NUT; CLIP,CABLE
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M8 		9-09110-408-0 01 1 9510-9606 ● ●
35 NUT; CLIP,CABLE
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ● ●
36 BOLT; PTO BRKT
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M10X20,M10X26 L=56 		1-09049-014-1 01 1 9510-0004 ● ●
44 NUT; BRKT
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> 		0-91150-110-0 01 1 9510-9608 ● ●
44 NUT; BRKT
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M10 FLANGE 		0-91150-210-0 01 1 9609-0004 ● ●
46 BRACKET; PTO,TRANS SIDE
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> 		1-38329-074-0 01 1 9510-0004 ● ●
151 BOLT; BRKT C
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M8X25 FLANGE 		0-28080-825-0 01 1 9510-9606 ● ●
151 BOLT; BRKT C
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M8X30 FLANGE 		0-28680-830-0 01 1 9607-0004 ● ●
153 NUT; CLIP
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M8 		9-09110-408-0 01 1 9510-9606 ● ●
153 NUT; CLIP
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ● ●
155 CLIP; CABLE
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> (B) ID=13 H=75 L=25 		1-09700-601-0 01 1 9510-0004 ● ●
155 CLIP; CABLE
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> (A) L=250 		5-09707-030-1 01 1 9510-0004 ● ●
155 CLIP; CABLE
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> (C) L=140 		5-09707-031-1 03 1 9510-0004 ● ●
155 CLIP; CABLE
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> (D) ID=11 L=28 		9-09525-055-0 01 1 9510-0004 ● ●
157 CLIP; CABLE,1ST C/MBR
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> (B) ID=11 H=34 L=27 		1-09701-023-0 01 1 9510-0004 ● ●
157 CLIP; CABLE,1ST C/MBR
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> (A) ID=13 L=40 		9-09525-276-0 01 1 9510-0004 ● ●
162 NUT; CLIP
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M8 		9-09110-408-0 02 1 9510-9606 ● ●
162 NUT; CLIP
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ●
197 BOLT; CLIP FIX,C/MBR
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
197 BOLT; CLIP FIX,C/MBR
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M8X30 FLANGE 		0-28680-830-0 02 1 9607-0004 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
