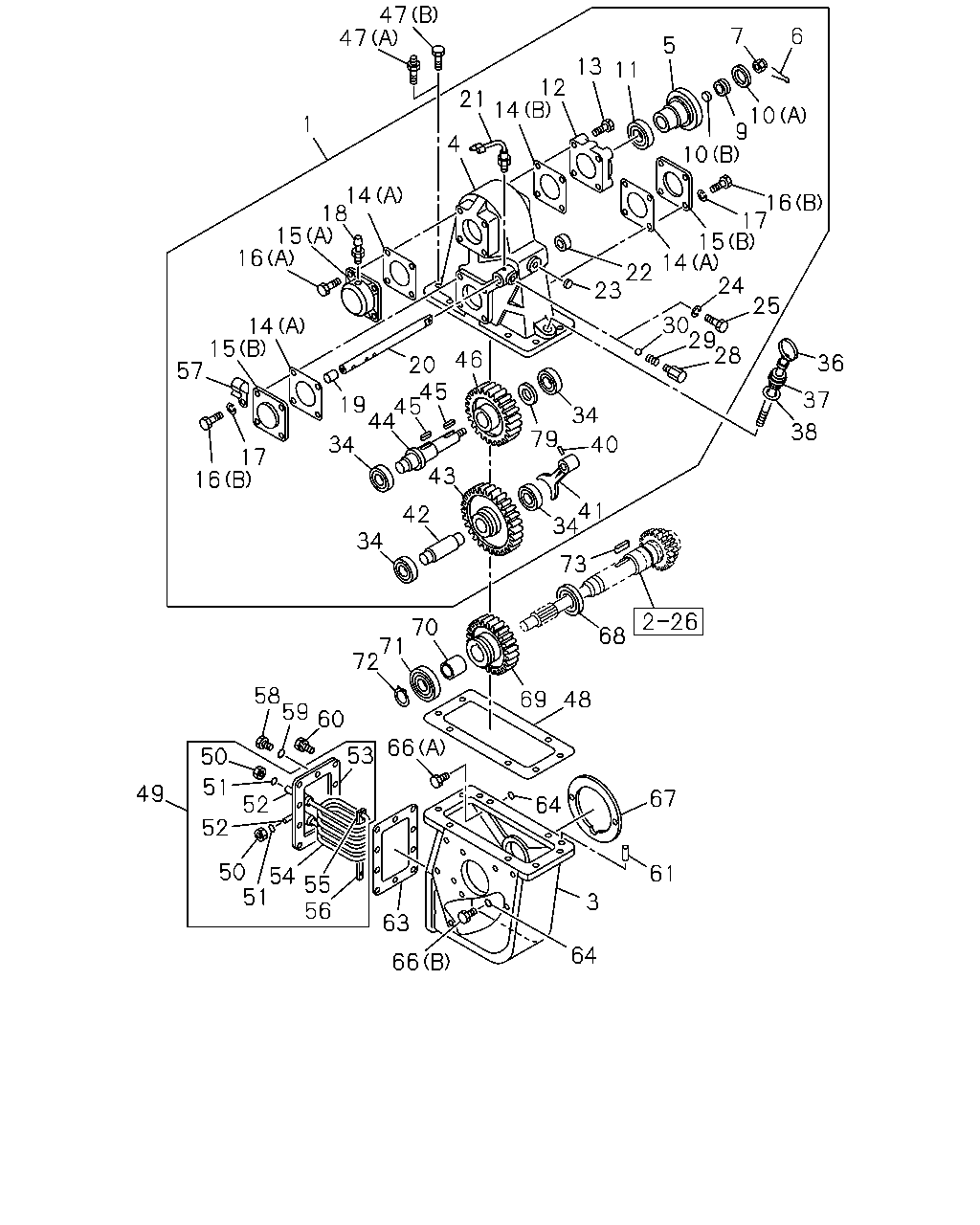

2-80 — POWER TAKE OFF; TRANSMISSION FRONT (#38283) — 75 parça

47 47 7 6 5 13 11 12 14 21 10 9 10 1 4 14 18 16 17 15 14 24 25 15 16 22 23 30 29 28 14 15 57 46 36 20 45 44 37 34 38 79 34 40 17 16 43 41 34 42 34 73 70 71 72 68 58 59 69 48 60 66 53 50 51 52 49 67 64 52 50 54 55 51 56 61 3 63 64 66 19 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE ASM; GEAR TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6>	1-38000-198-4	01	1	9510-9911	●	●
1	CASE ASM; GEAR TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6>	1-38000-365-0	01	1	9912-0004	●	●
1	CASE ASM; GEAR TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6>	1-38000-235-3	01	1	9510-9911	●	●
1	CASE ASM; GEAR TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6>	1-38000-366-0	01	1	9912-0004	●	●
3	CASE; GEAR TRANSMISSION FRONT PTO(RC2)	1-38111-066-0	01	1	9510-0004	●	●
4	CASE; GEAR,UPR,FRT PTO TRANSMISSION FRONT PTO(RC2)	1-38111-019-3	01	1	9510-0004	●	●
5	FLANGE; OUTPUT SHAFT,PTO TRANSMISSION FRONT PTO(RC2)	1-38512-014-0	01	1	9510-0004	●	●
6	PIN; SPLIT,OUTPUT SHAFT TRANSMISSION FRONT PTO(RC2) OD=3.7 L=30	9-08114-030-0	01	1	9510-0004	●	●
7	NUT; FLANGE FIX TRANSMISSION FRONT PTO(RC2) M18 SLOTTED	9-99116-418-0	01	1	9510-0004	●	●
9	WASHER; OUTPUT,FLANGE TRANSMISSION FRONT PTO(RC2)	1-38229-005-0	01	1	9510-0004	●	●
10	GASKET; OUTPUT SHAFT,FRT PTO TRANSMISSION FRONT PTO(RC2) (B) ID=17.8	9-09561-318-0	01	1	9510-0004	●	●
10	GASKET; OUTPUT SHAFT,FRT PTO TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> (A) ID=39.7	9-09561-240-0	01	1	9510-0004	●	●
11	SEAL; OIL,OUTPUT SHAFT TRANSMISSION FRONT PTO(RC2)	1-09625-159-0	01	1	9510-0004	●	●
12	RETAINER; UPR CASE TRANSMISSION FRONT PTO(RC2)	1-38175-002-0	01	1	9510-0004	●	●
13	BOLT; RET FIX TRANSMISSION FRONT PTO(RC2) M10X40 W/LK WASHER	0-50051-040-0	04	1	9510-0004	●	●
14	GASKET; BRG COVER TRANSMISSION FRONT PTO(RC2) (A)	1-38152-003-0	03	1	9510-0004	●	●
14	GASKET; BRG COVER TRANSMISSION FRONT PTO(RC2) (B)	1-38176-001-0	01	1	9510-0004	●	●
15	COVER; BRG,UPR CASE TRANSMISSION FRONT PTO(RC2) (B)	1-38151-006-0	02	1	9510-0004	●	●
15	COVER; BRG,UPR CASE TRANSMISSION FRONT PTO(RC2) (A)	1-38151-013-0	01	1	9510-0004	●	●
16	BOLT; BRG COVER FIX TRANSMISSION FRONT PTO(RC2) (B) M10X18	0-23801-018-0	08	1	9510-0004	●	●
16	BOLT; BRG COVER FIX TRANSMISSION FRONT PTO(RC2) (A) M10X22 W/LK WASHER	0-50051-022-0	04	1	9510-0004	●	●
17	WASHER; LK TRANSMISSION FRONT PTO(RC2) ID=10.2	9-09150-510-0	08	1	9510-0004	●	●
18	BREATHER TRANSMISSION FRONT PTO(RC2)	1-33547-004-2	01	1	9510-0004	●	●
19	COVER; SHIFT ROD TRANSMISSION FRONT PTO(RC2)	9-33545-001-0	01	1	9510-0004	●	●
20	ROD; GEAR SHIFTER TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6>	1-38371-042-0	01	1	9510-0004	●	●
20	ROD; GEAR SHIFTER TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6>	1-38371-016-1	01	1	9510-0004	●	●
21	SWITCH; EXH BRAKE,PTO TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6>	1-82440-050-1	01	1	9510-0004	●	●
22	SEAL; OIL,SHIFT ROD TRANSMISSION FRONT PTO(RC2)	1-09625-158-0	01	1	9510-0004	●	●
23	PLUG; PLATE TRANSMISSION FRONT PTO(RC2)	9-09201-328-0	01	1	9510-0004	●	●
24	WASHER; LK,ROD SHIFTER PTO CONTROL<SV6> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38379-008-0	01	1	9510-9510		●
24	WASHER; LK,ROD SHIFTER TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6>	1-38379-008-0	01	1	9511-0004	●	●
25	SCREW; ROD SHIFTER PTO CONTROL<SV6> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-06131-425-0	02	1	9510-9510		●
25	SCREW; ROD SHIFTER TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6>	9-06131-425-0	02	1	9511-0004	●	●
28	HOLDER; SPR,SHIFT ROD TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6>	1-38379-003-0	01	1	9510-0004	●	●
29	SPRING; SHIFTER ROD TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6>	9-09940-402-0	01	1	9510-0004	●	●
30	BALL; SHIFTER ROD TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6>	9-00097-009-0	01	1	9510-0004	●	●
34	BEARING; IDLE GEAR SHAFT,FRT PTO TRANSMISSION FRONT PTO(RC2)	1-09800-062-0	04	1	9510-0004	●	●
36	GAUGE; OIL LEVEL TRANSMISSION FRONT PTO(RC2)	1-38129-005-0	01	1	9510-0004	●	●
37	PLUG; OIL FILLER TRANSMISSION FRONT PTO(RC2)	1-09600-029-0	01	1	9510-0004	●	●
38	GASKET; LEVEL GAUGE TRANSMISSION FRONT PTO(RC2) ID=26.8	1-09623-058-0	01	1	9510-0004	●	●
40	PIN; SPR,SHIFTER ROD TRANSMISSION FRONT PTO(RC2)	9-09878-614-0	01	1	9510-0004	●	●
41	ARM; SHIFT,FRT PTO TRANSMISSION FRONT PTO(RC2)	1-38361-010-0	01	1	9510-0004	●	●
42	SPINDLE; IDLE GEAR TRANSMISSION FRONT PTO(RC2)	1-38211-002-0	01	1	9510-0004	●	●
43	GEAR; IDLE SHAFT,FRT PTO TRANSMISSION FRONT PTO(RC2) Z=57	1-38241-024-0	01	1	9510-0004	●	●
44	SHAFT; OUTPUT,FRT PTO TRANSMISSION FRONT PTO(RC2)	1-38221-018-0	01	1	9510-0004	●	●
45	KEY; FEATHER TRANSMISSION FRONT PTO(RC2)	9-08031-040-0	02	1	9510-0004	●	●
46	GEAR; OUTPUT,FRT PTO TRANSMISSION FRONT PTO(RC2) Z=43	1-38241-025-0	01	1	9510-0004	●	●
47	BOLT; UPR CASE FIX TRANSMISSION FRONT PTO(RC2) (B) M12X40 FLANGE	0-28181-240-0	07	1	9510-0004	●	●
47	BOLT; UPR CASE FIX TRANSMISSION FRONT PTO(RC2) (A)	1-09049-023-0	01	1	9510-0004	●	●
48	GASKET; GEAR CASE,UPR TO LWR TRANSMISSION FRONT PTO(RC2)	1-38113-005-0	01	1	9510-0004	●	●
49	PIPE ASM; WATER TRANSMISSION FRONT PTO(RC2)	1-38128-016-0	01	1	9510-0004	●	●
50	NUT; WATER PIPE CONN,FRT PTO TRANSMISSION FRONT PTO(RC2)	1-09660-067-0	02	1	9510-0004	●	●
51	GASKET; WATER PIPE TRANSMISSION FRONT PTO(RC2)	1-09635-009-0	02	1	9510-0004	●	●
52	CONNECTOR; WATER PIPE TRANSMISSION FRONT PTO(RC2)	1-09660-066-0	02	1	9510-0004	●	●
53	COVER; SIDE,FRT PTO TRANSMISSION FRONT PTO(RC2)	1-38182-006-0	01	1	9510-0004	●	●
54	PIPE; WATER,OIL COOLING TRANSMISSION FRONT PTO(RC2)	1-38128-017-0	01	1	9510-0004	●	●
55	HOLDER; WATER PIPE TRANSMISSION FRONT PTO(RC2)	1-38129-011-0	01	1	9510-0004	●	●
56	WIRE; PIPE HOLDER FIX TRANSMISSION FRONT PTO(RC2)	9-08351-616-0	01	1	9510-0004	●	●
57	CLIP TRANSMISSION FRONT PTO(RC2) ID=11 L=30	1-09701-002-0	01	1	9510-0004	●	●
58	PLUG; DRAIN,FRT PTO TRANSMISSION FRONT PTO(RC2) M16X12	1-09604-009-0	01	1	9510-0004	●	●
59	GASKET; DRAIN PLUG TRANSMISSION FRONT PTO(RC2) ID=16.2	9-09571-616-0	01	1	9510-0004	●	●
60	BOLT; SIDE COVER FIX TRANSMISSION FRONT PTO(RC2) M8X20 FLANGE	0-28080-820-0	10	1	9510-0004	●	●
61	PIN; KNOCK TRANSMISSION FRONT PTO(RC2) OD=10 L=20	9-08161-020-0	02	1	9510-0004	●	●
63	GASKET; SIDE COVER TRANSMISSION FRONT PTO(RC2)	1-38183-003-0	01	1	9510-0004	●	●
64	GASKET; PTO TO TRANS CASE TRANSMISSION FRONT PTO(RC2)	9-09561-116-0	06	1	9510-0004	●	●
66	BOLT; FRT PTO TO TRANS CASE TRANSMISSION FRONT PTO(RC2) (B) M14X40 W/LK&PL WASHER	0-50151-440-0	03	1	9510-0004	●	●
66	BOLT; FRT PTO TO TRANS CASE TRANSMISSION FRONT PTO(RC2) (A) M14X55	1-09033-016-0	02	1	9510-0004	●	●
67	GASKET; PTO CASE TO TRANS TRANSMISSION FRONT PTO(RC2)	1-38113-004-0	01	1	9510-0004	●	●
68	SEAL; OIL TRANSMISSION FRONT PTO(RC2) NOK	1-09625-173-0	01	1	9510-0004	●	●
69	GEAR; DRIVE,TRANS SHAFT,FRT PTO TRANSMISSION FRONT PTO(RC2) Z=52	1-38241-085-0	01	1	9510-0004	●	●
70	COLLAR; TOP GEAR SHAFT,FRT PTO TRANSMISSION FRONT PTO(RC2)	1-38216-001-0	01	1	9510-0004	●	●
71	BEARING; PTO,GEAR CASE,FRT TRANSMISSION FRONT PTO(RC2) NSK	1-09800-063-0	01	1	9510-0004	●	●
72	RETAINER; TRANS SHAFT PTO TRANSMISSION FRONT PTO(RC2) ID=45.8	9-09180-050-0	01	1	9510-0004	●	●
73	KEY; FEATHER TRANSMISSION FRONT PTO(RC2)	9-08031-040-0	01	1	9510-0004	●	●
79	COLLAR; DIST,OUTPUT SHAFT,FRT PTO TRANSMISSION FRONT PTO(RC2)	1-38226-038-0	01	1	9510-0004	●	●
