Sayfa 2-39 - Isuzu EPC

2-39 — POWER ASSISTOR (#38282) — 196 parça

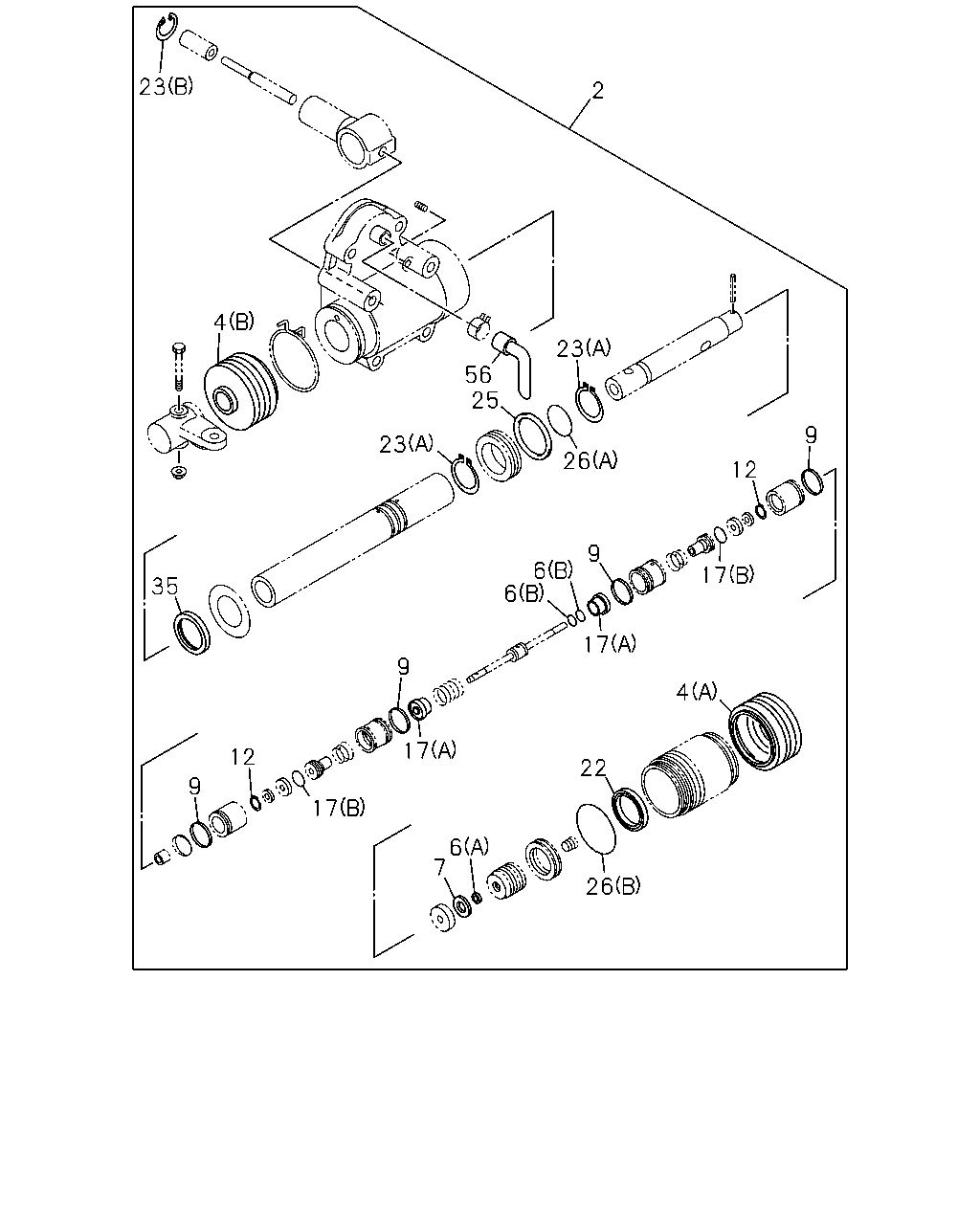

23 2 4 23 56 25 9 23 26 12 9 6 6 17 35 17 9 4 17 12 22 9 17 6 7 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-593-0	01	1	9703-9802
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-888-0	01	1	9803-9810
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-028-0	01	1	9811-0004
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	0005-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	9703-9802
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	9803-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-571-0	01	1	9703-9802
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	9803-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	9803-
6	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-013-0	01	1	9703-9802
6	GASKET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-583-0	02	1	9703-9802
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8>	1-33739-033-0	01	1	9703-9802
9	RING; SQUARE ASSISTOR SHIFT CONTROL<WX8>	1-33739-086-0	04	1	9703-9802
12	RING; RET ASSISTOR SHIFT CONTROL<WX8>	1-33739-016-0	02	1	9703-9802
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-584-0	02	1	9703-9802
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	9-83335-055-0	02	1	9703-9802
22	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9703-9802
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	9703-9802
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	9703-9802
25	RING; "X",PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-420-0	01	1	9703-9802
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-496-0	01	1	9703-9802
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-573-0	01	1	9703-9802
35	GASKET; CUP ASSISTOR SHIFT CONTROL<WX8>	1-33739-073-0	01	1	9703-9802
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-570-0	01	1	9703-9802
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	9803-

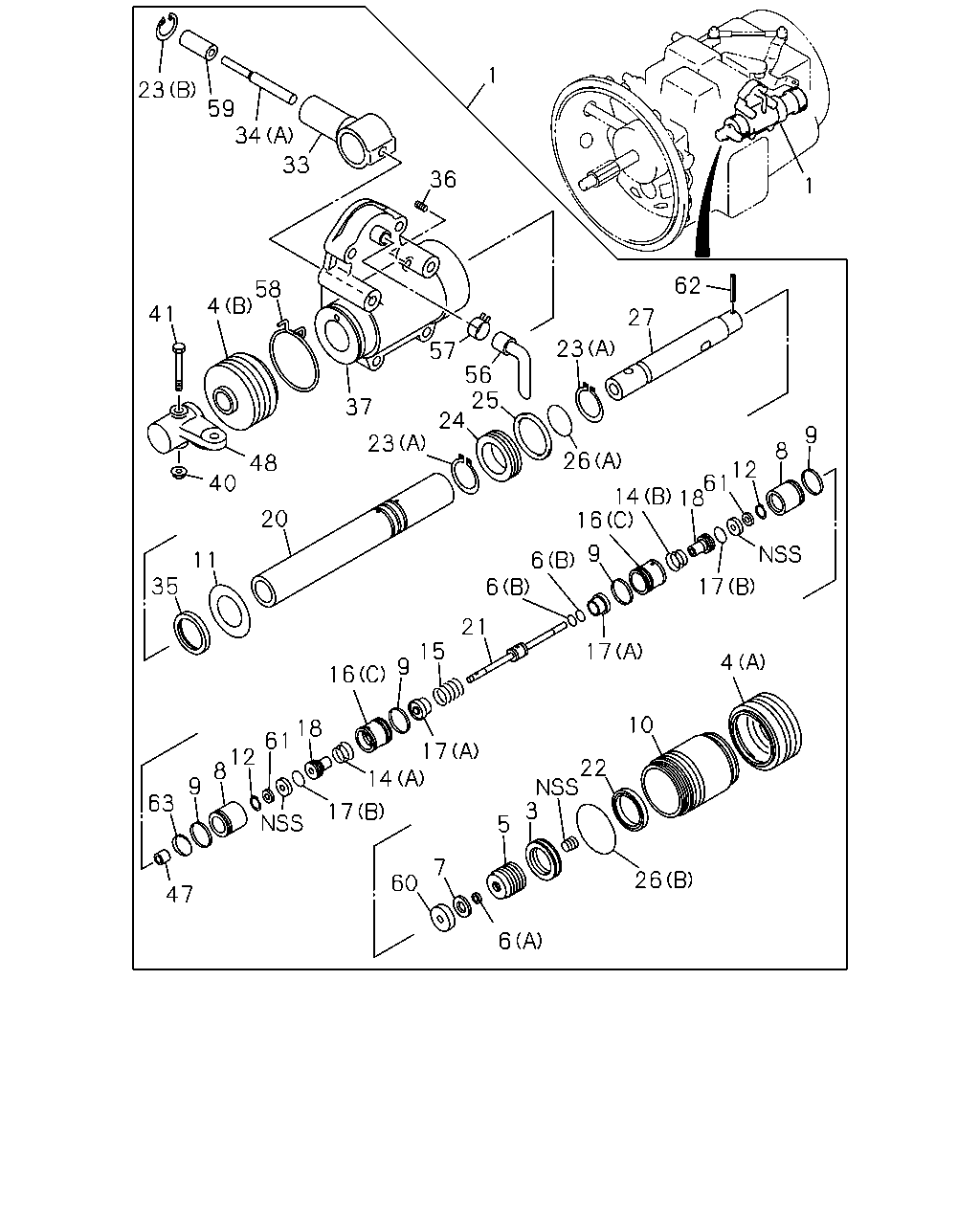

1 23 59 34 33 36 1 62 58 4 41 27 57 56 25 24 23 37 9 23 8 26 48 12 61 14 18 16 40 20 9 6 6 11 35 17 21 15 17 4 9 16 10 18 61 17 12 8 22 3 14 9 63 17 5 7 26 60 47 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-127-0	01	1	9703-9802
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-156-2	01	1	9803-9810
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-233-3	01	1	9811-0705
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	8-98022-843-0	01	1	0706-
3	NUT; LK,ROD ASSISTOR SHIFT CONTROL<WX8>	1-33739-025-0	01	1	9703-9802
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	9703-9802
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	9803-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-571-0	01	1	9703-9802
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	9803-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	9803-
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-017-0	01	1	9703-9802
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	9-09224-306-2	01	1	9811-0705
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	0-92124-306-0	01	1	0706-
6	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-013-0	01	1	9703-9802
6	GASKET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-583-0	02	1	9703-9802
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8>	1-33739-033-0	01	1	9703-9802
8	TUBE ASSISTOR SHIFT CONTROL<WX8>	1-33739-560-0	02	1	9703-9802
9	RING; SQUARE ASSISTOR SHIFT CONTROL<WX8>	1-33739-086-0	04	1	9703-9802
10	CYLINDER; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-572-0	01	1	9703-9802
11	PLATE; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-576-0	01	1	9703-9802
12	RING; RET ASSISTOR SHIFT CONTROL<WX8>	1-33739-016-0	02	1	9703-9802
14	SPRING; VALVE LIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-066-0	01	1	9703-9802
14	SPRING; VALVE LIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-568-0	01	1	9703-9802
15	SPRING; VALVE SEAL ASSISTOR SHIFT CONTROL<WX8>	1-33739-582-0	01	1	9703-9802
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-585-0	02	1	9703-9802
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-838-1	01	1	9803-0705
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	8-97388-032-0	01	1	0706-
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-839-1	01	1	9803-0705
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	8-97388-033-0	01	1	0706-
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-584-0	02	1	9703-9802
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	9-83335-055-0	02	1	9703-9802
18	LIFTER; VALVE ASSISTOR SHIFT CONTROL<WX8>	1-33739-586-0	02	1	9703-9802
20	ROD ASM; W/CAP ASSISTOR SHIFT CONTROL<WX8>	1-33739-765-0	01	1	9703-9802
21	PIPE; AIR,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-587-0	01	1	9703-9802
22	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9703-9802
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	9703-9802
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	9703-9802
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-578-0	01	1	9703-9802
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	9803-
25	RING; "X",PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-420-0	01	1	9703-9802
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-496-0	01	1	9703-9802
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-573-0	01	1	9703-9802
27	ROD; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-580-0	01	1	9703-9802
33	STRIKER; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-577-0	01	1	9703-9802
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-575-0	01	1	9703-9802
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-845-0	01	1	9803-9810
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	9811-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	9803-
35	GASKET; CUP ASSISTOR SHIFT CONTROL<WX8>	1-33739-073-0	01	1	9703-9802
36	SCREW; SET ASSISTOR SHIFT CONTROL<WX8>	1-33739-040-0	01	1	9703-9802
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-574-0	01	1	9703-9802
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-831-1	01	1	9803-9810
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	9811-
40	NUT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33739-363-0	01	1	9703-9802
41	BOLT; SET,LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33739-339-0	01	1	9703-9802
47	BUSHING; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-567-0	01	1	9703-9802
48	LEVER; CONT,CABLE ASSISTOR SHIFT CONTROL<WX8>	1-33739-559-0	01	1	9703-9802
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-570-0	01	1	9703-9802
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	9803-
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-569-0	01	1	9703-9802
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-849-0	01	1	9803-
58	CLAMP; BOOT ASSISTOR SHIFT CONTROL<WX8>	1-33739-562-0	01	1	9703-9802
59	SHIM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-563-0	01	1	9703-9802
60	COLLAR; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-561-0	01	1	9703-9802
61	PLATE; VLV LIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-581-0	02	1	9703-9802
62	PIN; PIPE ASSISTOR SHIFT CONTROL<WX8>	1-33739-566-0	01	1	9703-9802
63	CLAMP; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-565-0	01	1	9703-9802

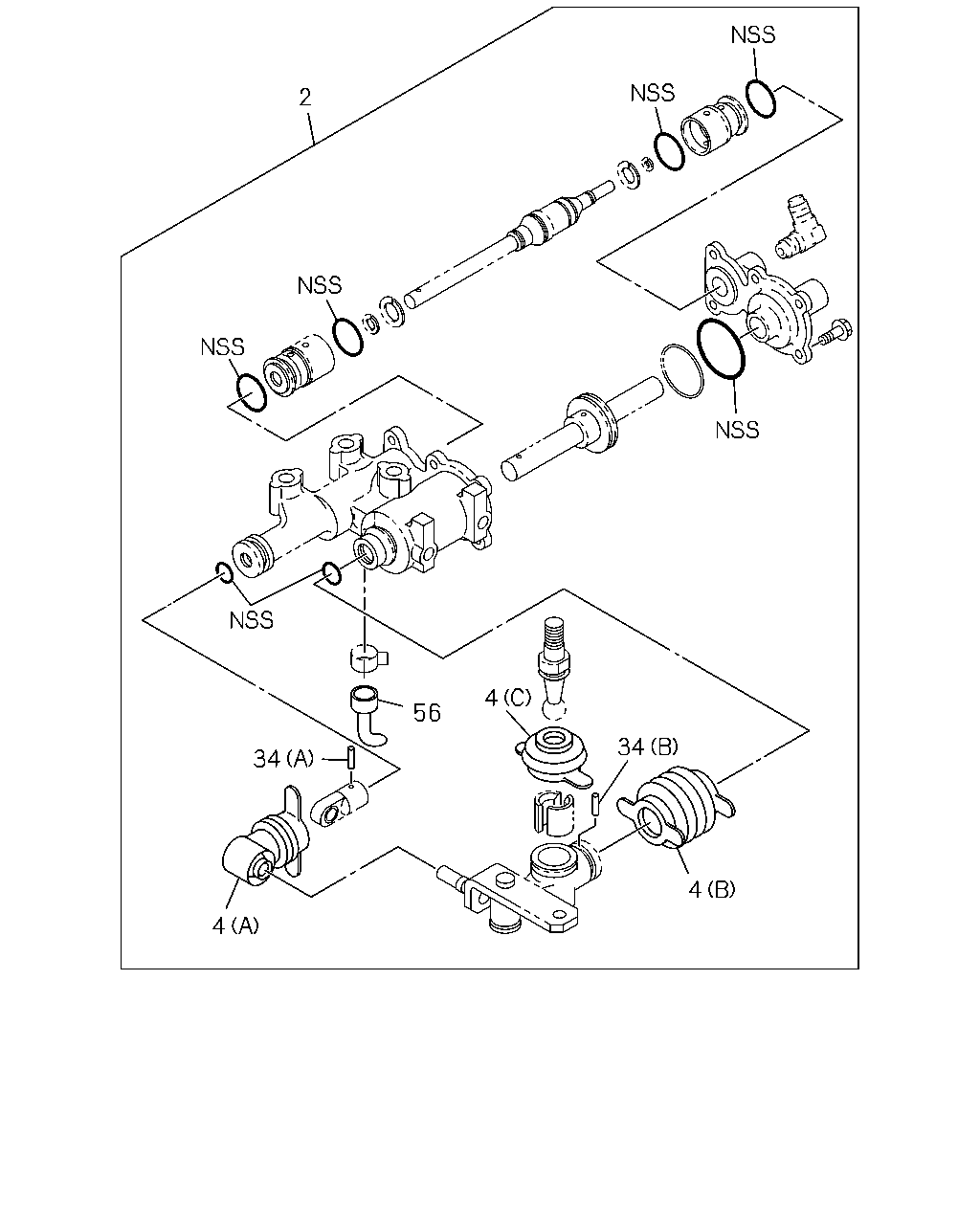

2 4 56 34 34 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-593-0	01	1	9703-9802
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-888-0	01	1	9803-9810
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-028-0	01	1	9811-0004
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	0005-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	9703-9802
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	9803-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-571-0	01	1	9703-9802
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	9803-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	9803-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-575-0	01	1	9703-9802
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-845-0	01	1	9803-9810
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	9811-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	9803-
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-570-0	01	1	9703-9802
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	9803-

2 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-593-0	01	1	9703-9802
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-888-0	01	1	9803-9810
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-028-0	01	1	9811-0004
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	0005-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-575-0	01	1	9703-9802
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-845-0	01	1	9803-9810
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	9811-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	9803-

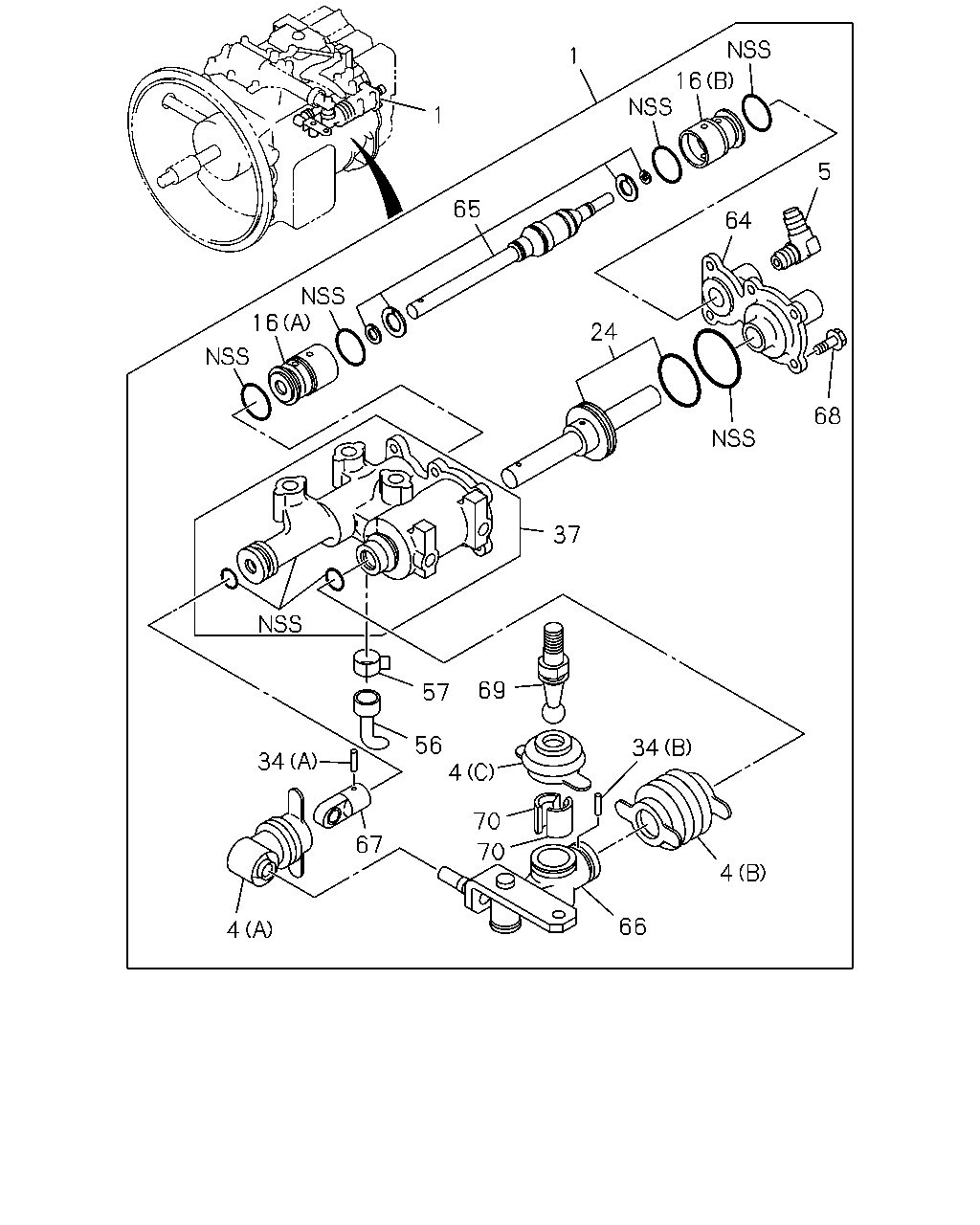

1 16 1 65 64 16 24 68 37 69 57 56 4 34 34 70 67 70 4 66 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-127-0	01	1	9703-9802
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-156-2	01	1	9803-9810
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-233-3	01	1	9811-0705
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	8-98022-843-0	01	1	0706-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	9703-9802
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	9803-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-571-0	01	1	9703-9802
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	9803-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	9803-
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-585-0	02	1	9703-9802
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-838-1	01	1	9803-0705
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	8-97388-032-0	01	1	0706-
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-839-1	01	1	9803-0705
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	8-97388-033-0	01	1	0706-
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-578-0	01	1	9703-9802
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	9803-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-575-0	01	1	9703-9802
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-845-0	01	1	9803-9810
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	9811-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	9803-
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-574-0	01	1	9703-9802
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-831-1	01	1	9803-9810
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	9811-
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-570-0	01	1	9703-9802
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	9803-
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-569-0	01	1	9703-9802
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-849-0	01	1	9803-
64	COVER; HOUSING ASSISTOR SHIFT CONTROL<WX8>	1-33739-832-2	01	1	9803-9810
64	COVER; HOUSING ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	9811-
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-833-2	01	1	9803-9810
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-971-0	01	1	9811-0705
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	8-97388-029-0	01	1	0706-
66	JOINT ASM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-834-0	01	1	9803-9810
66	JOINT ASM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	9811-
67	JOINT; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-835-0	01	1	9803-9810
67	JOINT; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-973-0	01	1	9811-
68	BOLT; COVER ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE	1-33739-842-0	06	1	9803-
69	STUD; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-846-0	01	1	9803-
70	SEAT; BALL STUD ASSISTOR SHIFT CONTROL<WX8>	1-33659-118-0	02	1	9803-

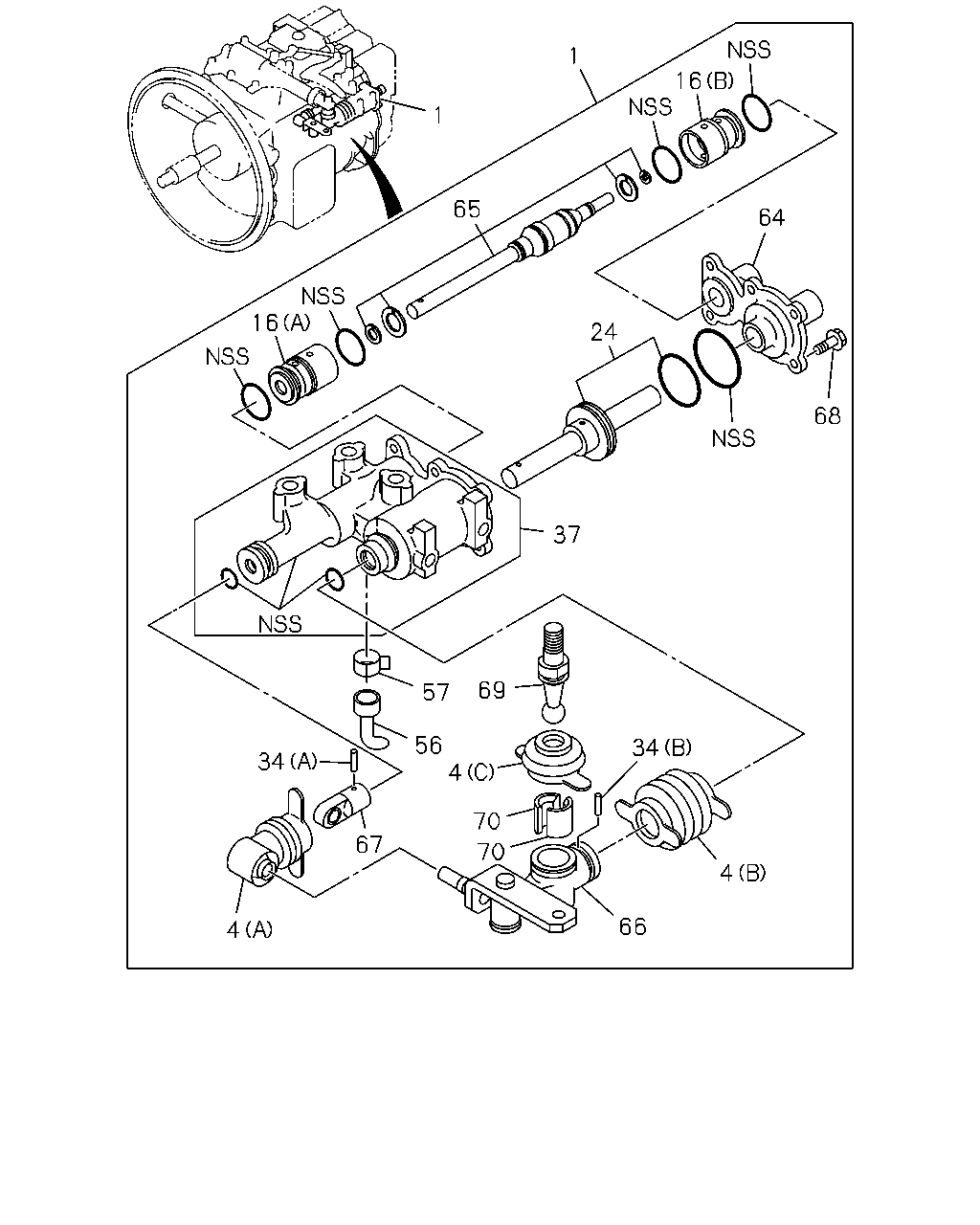

1 16 1 5 65 64 16 24 68 37 69 57 56 4 34 34 70 67 70 4 66 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-127-0	01	1	9703-9802
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-156-2	01	1	9803-9810
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-233-3	01	1	9811-0705
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	8-98022-843-0	01	1	0706-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	9703-9802
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	9803-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-571-0	01	1	9703-9802
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	9803-
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	9803-
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-017-0	01	1	9703-9802
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	9-09224-306-2	01	1	9811-0705
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	0-92124-306-0	01	1	0706-
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-585-0	02	1	9703-9802
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-838-1	01	1	9803-0705
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	8-97388-032-0	01	1	0706-
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-839-1	01	1	9803-0705
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	8-97388-033-0	01	1	0706-
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-578-0	01	1	9703-9802
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	9803-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-575-0	01	1	9703-9802
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-845-0	01	1	9803-9810
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	9811-
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	9803-
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-574-0	01	1	9703-9802
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-831-1	01	1	9803-9810
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	9811-
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-570-0	01	1	9703-9802
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	9803-
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-569-0	01	1	9703-9802
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-849-0	01	1	9803-
64	COVER; HOUSING ASSISTOR SHIFT CONTROL<WX8>	1-33739-832-2	01	1	9803-9810
64	COVER; HOUSING ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	9811-
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-833-2	01	1	9803-9810
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-971-0	01	1	9811-0705
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	8-97388-029-0	01	1	0706-
66	JOINT ASM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-834-0	01	1	9803-9810
66	JOINT ASM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	9811-
67	JOINT; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-835-0	01	1	9803-9810
67	JOINT; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-973-0	01	1	9811-
68	BOLT; COVER ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE	1-33739-842-0	06	1	9803-
69	STUD; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-846-0	01	1	9803-
70	SEAT; BALL STUD ASSISTOR SHIFT CONTROL<WX8>	1-33659-118-0	02	1	9803-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
