Sayfa 2-37 - Isuzu EPC

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#38281) — 219 parça

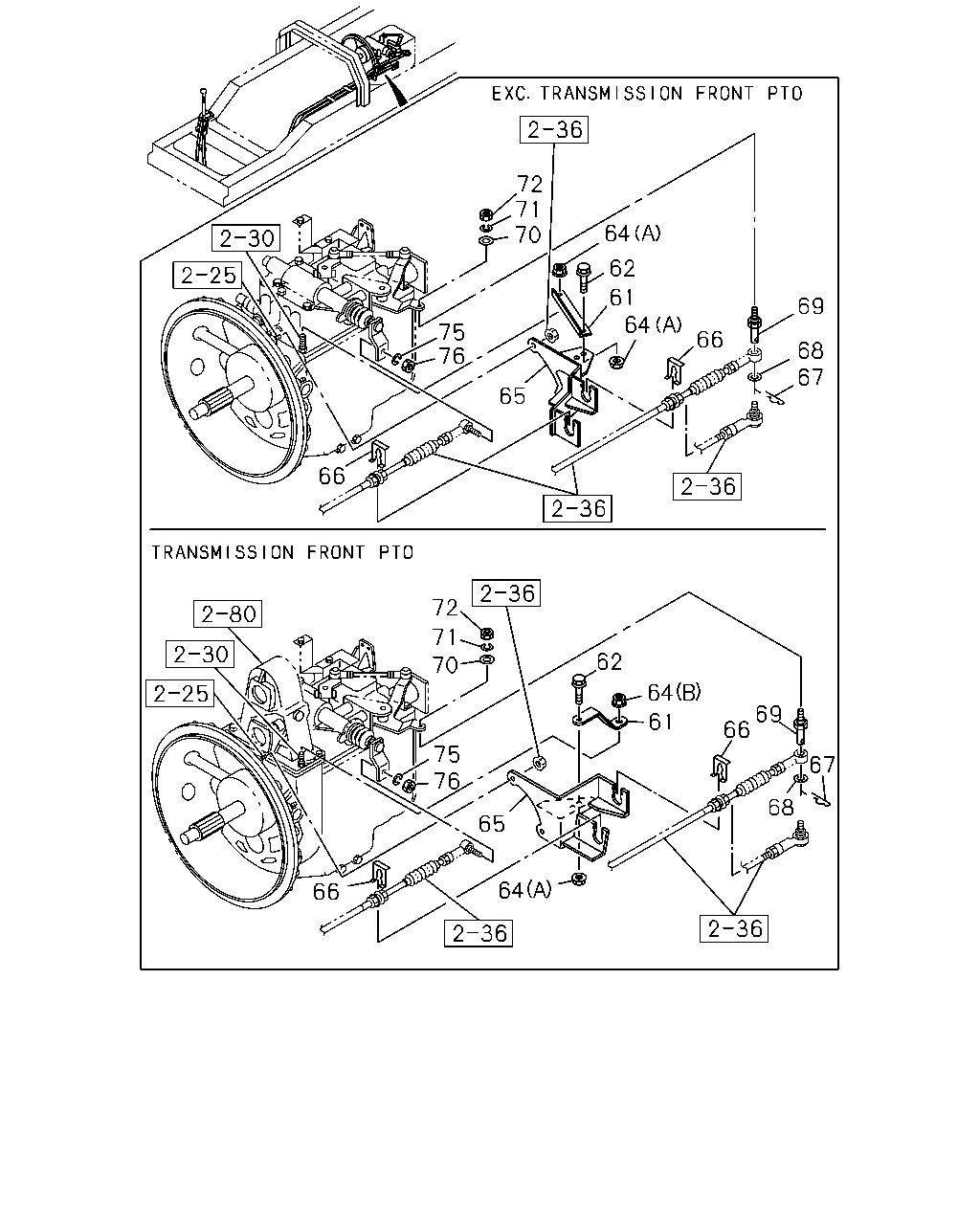

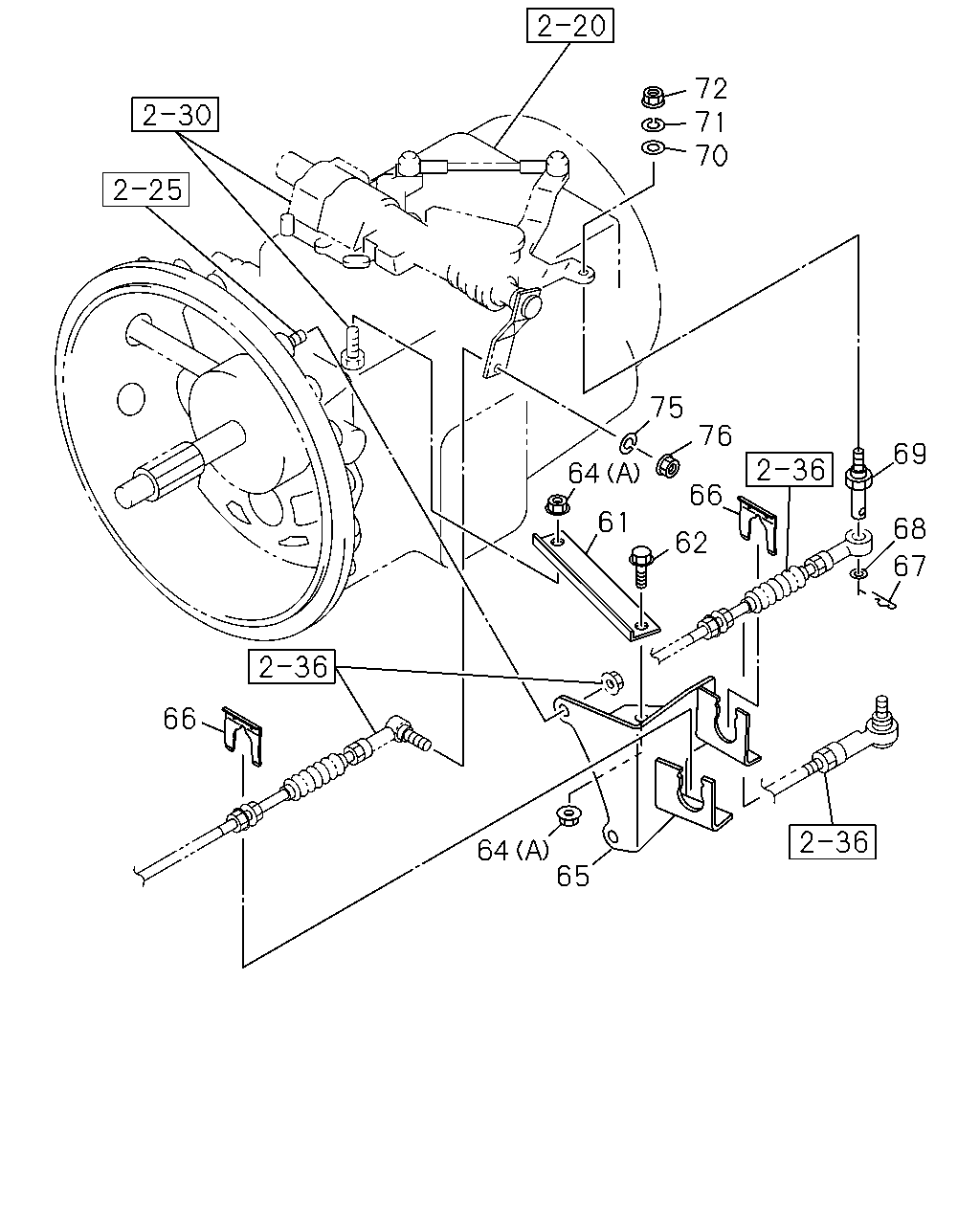

72 71 70 64 62 61 64 69 75 76 66 68 67 65 66 72 71 62 70 64 69 66 61 75 76 67 68 65 64 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
61	STAY; BRKT,TRANS CONT TRANSMISSION FRONT PTO(RC2)	1-33657-540-0	01	1	9510-9808	●	●
61	STAY; BRKT,TRANS CONT TRANSMISSION FRONT PTO(RC2)	1-33657-719-0	01	1	9809-0004	●	●
61	STAY; BRKT,TRANS CONT EXC. TRANSMISSION FRONT PTO(RC2)	1-33657-267-0	01	1	9510-9702	●	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	9510-9702			●
61	STAY; BRKT,TRANS CONT EXC. TRANSMISSION FRONT PTO(RC2)	1-33657-267-0	01	1	9703-0004	●	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	9703-0004			●
61	STAY; BRKT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	9703-0004				●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	0005-	●		●
61	STAY; BRKT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	0005-				●
61	STAY; BRKT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-349-0	01	1	9703-				●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9803-9804	●	●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X25 FLANGE	0-28681-025-0	01	1	9803-9804				●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	9805-0512	●	●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28681-030-0	01	1	9805-0512				●
62	BOLT; STAY M10X30 FLANGE	0-28651-030-0	01	1	0601-	●	●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	01	1	0601-				●
62	BOLT; STAY M10X20 FLANGE	0-28681-020-0	01	1	9510-9605	●	●	●	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9606-9802	●	●	●	●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X25 FLANGE	0-28681-025-0	02	1	9803-9804				●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28681-030-0	02	1	9805-0512				●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	02	1	0601-				●
64	NUT; STAY TRANSMISSION FRONT PTO(RC2) (A)	0-91150-110-0	01	1	9510-9605	●	●
64	NUT; STAY TRANSMISSION FRONT PTO(RC2) (A) M10 FLANGE	0-91150-210-0	01	1	9606-0004	●	●
64	NUT; STAY TRANSMISSION FRONT PTO(RC2) (B) M12 FLANGE	0-91150-212-0	01	1	9510-0004	●	●
64	NUT; STAY EXC. TRANSMISSION FRONT PTO(RC2) (A)	0-91150-110-0	02	1	9510-9605	●	●
64	NUT; STAY (A)	0-91150-110-0	02	1	9510-9605			●
64	NUT; STAY EXC. TRANSMISSION FRONT PTO(RC2) (A) M10 FLANGE	0-91150-210-0	02	1	9606-0004	●	●
64	NUT; STAY (A) M10 FLANGE	0-91150-210-0	02	1	9606-0004			●	●
64	NUT; STAY (A) M10 FLANGE	0-91150-210-0	02	1	0005-0602	●		●	●
64	NUT; STAY (A) M10 FLANGE	0-91180-210-0	02	1	0603-	●		●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT TRANSMISSION FRONT PTO(RC2)	1-33657-622-0	01	1	9510-0004	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT EXC. TRANSMISSION FRONT PTO(RC2)	1-33657-619-0	01	1	9510-0004	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-619-0	01	1	9510-0004			●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-619-0	01	1	0005-	●		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-553-2	01	1	9703-9802				●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-691-1	01	1	9803-				●
65	BRACKET; SHIFT TO SELECT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-534-2	01	1	9703-				●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	9510-0004	●	●	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0005-	●		●	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	9510-9802	●	●	●	●
68	WASHER; PL,TRANS CONT,SELECT ID=8.4 OD=18	9-09164-608-0	01	1	9510-9702	●	●	●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	9510-9802	●	●	●	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	9510-9802	●	●	●	●
71	WASHER; LK,TRANS CONT,SELECT ID=8.2	9-09150-508-0	01	1	9510-9702	●	●	●	●
72	NUT; TRANS CONT,SELECT M8	9-09110-408-0	01	1	9510-9609	●	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	9610-0004	●	●	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	0005-	●		●	●
75	WASHER; LK,BALL JOINT,SELECT WIRE ID=10.2	9-09150-510-0	01	1	9510-9802	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M10	9-09110-510-0	01	1	9510-9802	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	9803-0004	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	0005-	●		●	●

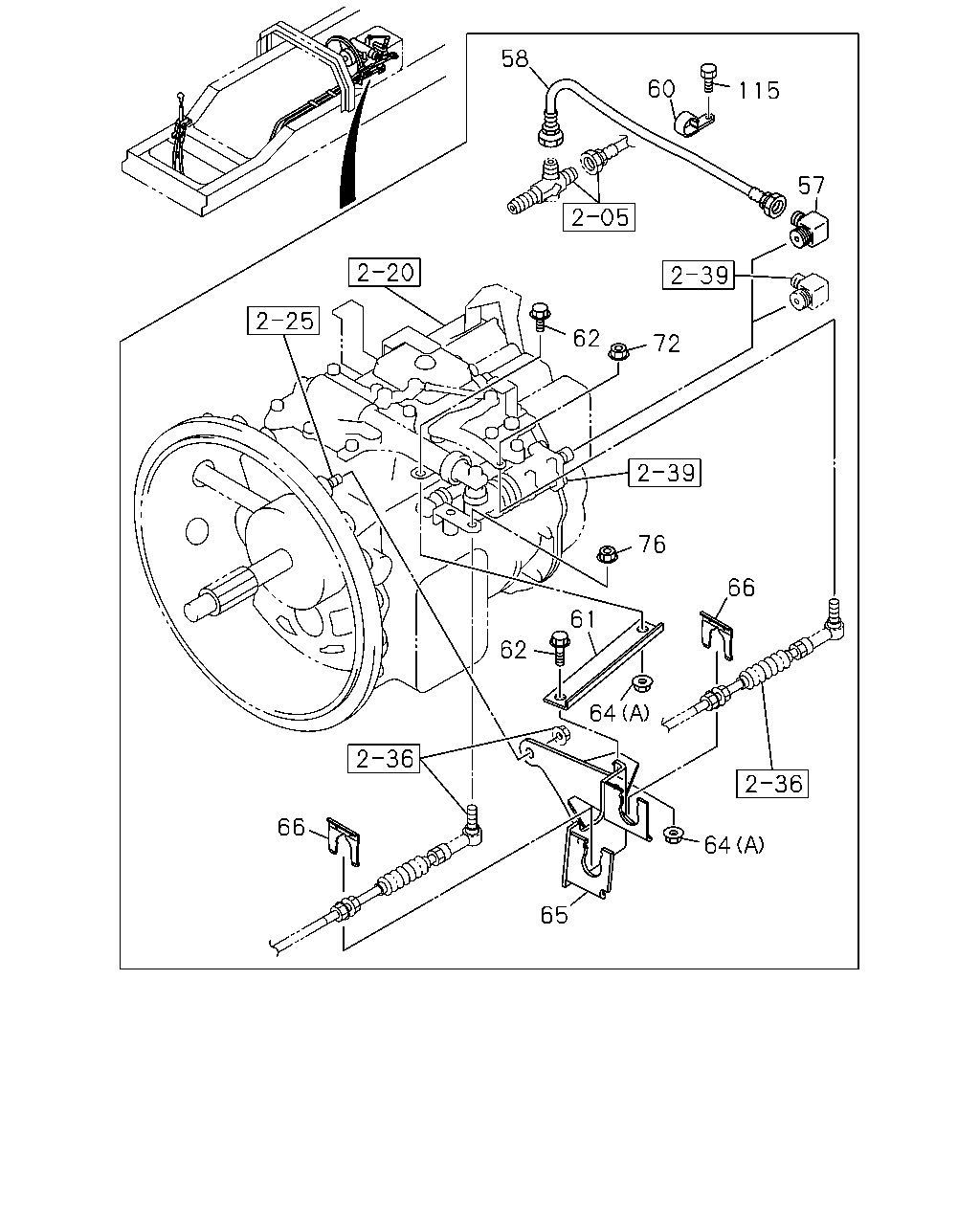

58 60 115 57 62 72 76 66 61 62 64 66 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8>	1-09660-704-0	01	1	9703-9802				●
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	9-09224-306-2	01	1	9803-9902				●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> L=820	1-09363-565-1	01	1	9703-9802				●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> L=740	1-09363-675-0	01	1	9803-				●
60	CLIP; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20	9-09525-235-0	02	1	9703-0606				●
60	CLIP; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20	0-95235-235-0	02	1	0607-				●
61	STAY; BRKT,TRANS CONT TRANSMISSION FRONT PTO(RC2)	1-33657-540-0	01	1	9510-9808	●	●
61	STAY; BRKT,TRANS CONT TRANSMISSION FRONT PTO(RC2)	1-33657-719-0	01	1	9809-0004	●	●
61	STAY; BRKT,TRANS CONT EXC. TRANSMISSION FRONT PTO(RC2)	1-33657-267-0	01	1	9510-9702	●	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	9510-9702			●
61	STAY; BRKT,TRANS CONT EXC. TRANSMISSION FRONT PTO(RC2)	1-33657-267-0	01	1	9703-0004	●	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	9703-0004			●
61	STAY; BRKT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	9703-0004				●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	0005-	●		●
61	STAY; BRKT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	0005-				●
61	STAY; BRKT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-349-0	01	1	9703-				●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9803-9804	●	●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X25 FLANGE	0-28681-025-0	01	1	9803-9804				●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	9805-0512	●	●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28681-030-0	01	1	9805-0512				●
62	BOLT; STAY M10X30 FLANGE	0-28651-030-0	01	1	0601-	●	●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	01	1	0601-				●
62	BOLT; STAY M10X20 FLANGE	0-28681-020-0	01	1	9510-9605	●	●	●	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9606-9802	●	●	●	●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X25 FLANGE	0-28681-025-0	02	1	9803-9804				●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28681-030-0	02	1	9805-0512				●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	02	1	0601-				●
64	NUT; STAY TRANSMISSION FRONT PTO(RC2) (A)	0-91150-110-0	01	1	9510-9605	●	●
64	NUT; STAY TRANSMISSION FRONT PTO(RC2) (A) M10 FLANGE	0-91150-210-0	01	1	9606-0004	●	●
64	NUT; STAY TRANSMISSION FRONT PTO(RC2) (B) M12 FLANGE	0-91150-212-0	01	1	9510-0004	●	●
64	NUT; STAY EXC. TRANSMISSION FRONT PTO(RC2) (A)	0-91150-110-0	02	1	9510-9605	●	●
64	NUT; STAY (A)	0-91150-110-0	02	1	9510-9605			●
64	NUT; STAY EXC. TRANSMISSION FRONT PTO(RC2) (A) M10 FLANGE	0-91150-210-0	02	1	9606-0004	●	●
64	NUT; STAY (A) M10 FLANGE	0-91150-210-0	02	1	9606-0004			●	●
64	NUT; STAY (A) M10 FLANGE	0-91150-210-0	02	1	0005-0602	●		●	●
64	NUT; STAY (A) M10 FLANGE	0-91180-210-0	02	1	0603-	●		●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT TRANSMISSION FRONT PTO(RC2)	1-33657-622-0	01	1	9510-0004	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT EXC. TRANSMISSION FRONT PTO(RC2)	1-33657-619-0	01	1	9510-0004	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-619-0	01	1	9510-0004			●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-619-0	01	1	0005-	●		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-553-2	01	1	9703-9802				●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-691-1	01	1	9803-				●
65	BRACKET; SHIFT TO SELECT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-534-2	01	1	9703-				●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	9510-0004	●	●	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0005-	●		●	●
72	NUT; TRANS CONT,SELECT M8	9-09110-408-0	01	1	9510-9609	●	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	9610-0004	●	●	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	0005-	●		●	●
76	NUT; BALL JOINT,SELECT WIRE M10	9-09110-510-0	01	1	9510-9802	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	9803-0004	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	0005-	●		●	●
115	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28080-816-0	02	1	9703-9703				●
115	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28680-820-0	02	1	9704-9812				●
115	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28080-816-0	02	1	9901-0512				●
115	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	02	1	0601-				●

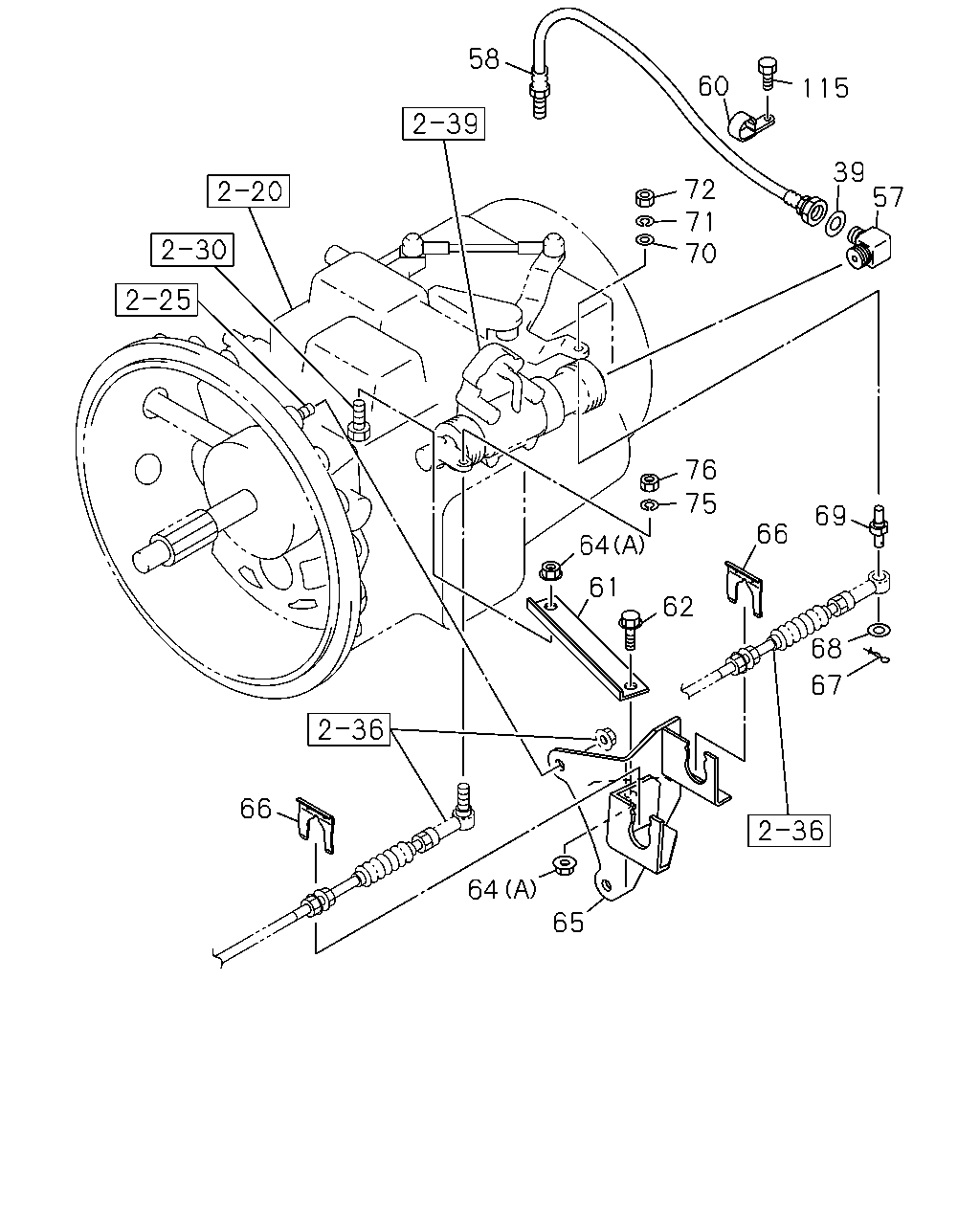

58 60 115 39 57 72 71 70 76 75 69 66 64 61 62 68 67 66 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
39	GASKET; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	02	1	9703-9802				●
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8>	1-09660-704-0	01	1	9703-9802				●
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	9-09224-306-2	01	1	9803-9902				●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> L=820	1-09363-565-1	01	1	9703-9802				●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> L=740	1-09363-675-0	01	1	9803-				●
60	CLIP; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20	9-09525-235-0	02	1	9703-0606				●
60	CLIP; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20	0-95235-235-0	02	1	0607-				●
61	STAY; BRKT,TRANS CONT TRANSMISSION FRONT PTO(RC2)	1-33657-540-0	01	1	9510-9808	●	●
61	STAY; BRKT,TRANS CONT TRANSMISSION FRONT PTO(RC2)	1-33657-719-0	01	1	9809-0004	●	●
61	STAY; BRKT,TRANS CONT EXC. TRANSMISSION FRONT PTO(RC2)	1-33657-267-0	01	1	9510-9702	●	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	9510-9702			●
61	STAY; BRKT,TRANS CONT EXC. TRANSMISSION FRONT PTO(RC2)	1-33657-267-0	01	1	9703-0004	●	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	9703-0004			●
61	STAY; BRKT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	9703-0004				●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	0005-	●		●
61	STAY; BRKT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	0005-				●
61	STAY; BRKT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-349-0	01	1	9703-				●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9803-9804	●	●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X25 FLANGE	0-28681-025-0	01	1	9803-9804				●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	9805-0512	●	●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28681-030-0	01	1	9805-0512				●
62	BOLT; STAY M10X30 FLANGE	0-28651-030-0	01	1	0601-	●	●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	01	1	0601-				●
62	BOLT; STAY M10X20 FLANGE	0-28681-020-0	01	1	9510-9605	●	●	●	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9606-9802	●	●	●	●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X25 FLANGE	0-28681-025-0	02	1	9803-9804				●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28681-030-0	02	1	9805-0512				●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	02	1	0601-				●
64	NUT; STAY TRANSMISSION FRONT PTO(RC2) (A)	0-91150-110-0	01	1	9510-9605	●	●
64	NUT; STAY TRANSMISSION FRONT PTO(RC2) (A) M10 FLANGE	0-91150-210-0	01	1	9606-0004	●	●
64	NUT; STAY TRANSMISSION FRONT PTO(RC2) (B) M12 FLANGE	0-91150-212-0	01	1	9510-0004	●	●
64	NUT; STAY EXC. TRANSMISSION FRONT PTO(RC2) (A)	0-91150-110-0	02	1	9510-9605	●	●
64	NUT; STAY (A)	0-91150-110-0	02	1	9510-9605			●
64	NUT; STAY EXC. TRANSMISSION FRONT PTO(RC2) (A) M10 FLANGE	0-91150-210-0	02	1	9606-0004	●	●
64	NUT; STAY (A) M10 FLANGE	0-91150-210-0	02	1	9606-0004			●	●
64	NUT; STAY (A) M10 FLANGE	0-91150-210-0	02	1	0005-0602	●		●	●
64	NUT; STAY (A) M10 FLANGE	0-91180-210-0	02	1	0603-	●		●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT TRANSMISSION FRONT PTO(RC2)	1-33657-622-0	01	1	9510-0004	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT EXC. TRANSMISSION FRONT PTO(RC2)	1-33657-619-0	01	1	9510-0004	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-619-0	01	1	9510-0004			●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-619-0	01	1	0005-	●		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-553-2	01	1	9703-9802				●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-691-1	01	1	9803-				●
65	BRACKET; SHIFT TO SELECT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-534-2	01	1	9703-				●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	9510-0004	●	●	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0005-	●		●	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	9510-9802	●	●	●	●
68	WASHER; PL,TRANS CONT,SELECT ID=8.4 OD=18	9-09164-608-0	01	1	9510-9702	●	●	●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	9510-9802	●	●	●	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	9510-9802	●	●	●	●
71	WASHER; LK,TRANS CONT,SELECT ID=8.2	9-09150-508-0	01	1	9510-9702	●	●	●	●
72	NUT; TRANS CONT,SELECT M8	9-09110-408-0	01	1	9510-9609	●	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	9610-0004	●	●	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	0005-	●		●	●
75	WASHER; LK,BALL JOINT,SELECT WIRE ID=10.2	9-09150-510-0	01	1	9510-9802	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M10	9-09110-510-0	01	1	9510-9802	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	9803-0004	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	0005-	●		●	●
115	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28080-816-0	02	1	9703-9703				●
115	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28680-820-0	02	1	9704-9812				●
115	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28080-816-0	02	1	9901-0512				●
115	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	02	1	0601-				●

72 71 70 75 76 69 64 66 61 68 62 67 66 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
61	STAY; BRKT,TRANS CONT TRANSMISSION FRONT PTO(RC2)	1-33657-540-0	01	1	9510-9808	●	●
61	STAY; BRKT,TRANS CONT TRANSMISSION FRONT PTO(RC2)	1-33657-719-0	01	1	9809-0004	●	●
61	STAY; BRKT,TRANS CONT EXC. TRANSMISSION FRONT PTO(RC2)	1-33657-267-0	01	1	9510-9702	●	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	9510-9702			●
61	STAY; BRKT,TRANS CONT EXC. TRANSMISSION FRONT PTO(RC2)	1-33657-267-0	01	1	9703-0004	●	●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	9703-0004			●
61	STAY; BRKT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	9703-0004				●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	0005-	●		●
61	STAY; BRKT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	0005-				●
61	STAY; BRKT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-349-0	01	1	9703-				●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9803-9804	●	●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X25 FLANGE	0-28681-025-0	01	1	9803-9804				●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	9805-0512	●	●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28681-030-0	01	1	9805-0512				●
62	BOLT; STAY M10X30 FLANGE	0-28651-030-0	01	1	0601-	●	●	●
62	BOLT; STAY EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	01	1	0601-				●
62	BOLT; STAY M10X20 FLANGE	0-28681-020-0	01	1	9510-9605	●	●	●	●
62	BOLT; STAY M10X25 FLANGE	0-28681-025-0	01	1	9606-9802	●	●	●	●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X25 FLANGE	0-28681-025-0	02	1	9803-9804				●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28681-030-0	02	1	9805-0512				●
62	BOLT; STAY ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	02	1	0601-				●
64	NUT; STAY TRANSMISSION FRONT PTO(RC2) (A)	0-91150-110-0	01	1	9510-9605	●	●
64	NUT; STAY TRANSMISSION FRONT PTO(RC2) (A) M10 FLANGE	0-91150-210-0	01	1	9606-0004	●	●
64	NUT; STAY TRANSMISSION FRONT PTO(RC2) (B) M12 FLANGE	0-91150-212-0	01	1	9510-0004	●	●
64	NUT; STAY EXC. TRANSMISSION FRONT PTO(RC2) (A)	0-91150-110-0	02	1	9510-9605	●	●
64	NUT; STAY (A)	0-91150-110-0	02	1	9510-9605			●
64	NUT; STAY EXC. TRANSMISSION FRONT PTO(RC2) (A) M10 FLANGE	0-91150-210-0	02	1	9606-0004	●	●
64	NUT; STAY (A) M10 FLANGE	0-91150-210-0	02	1	9606-0004			●	●
64	NUT; STAY (A) M10 FLANGE	0-91150-210-0	02	1	0005-0602	●		●	●
64	NUT; STAY (A) M10 FLANGE	0-91180-210-0	02	1	0603-	●		●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT TRANSMISSION FRONT PTO(RC2)	1-33657-622-0	01	1	9510-0004	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT EXC. TRANSMISSION FRONT PTO(RC2)	1-33657-619-0	01	1	9510-0004	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-619-0	01	1	9510-0004			●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-619-0	01	1	0005-	●		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-553-2	01	1	9703-9802				●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8>	1-33657-691-1	01	1	9803-				●
65	BRACKET; SHIFT TO SELECT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-534-2	01	1	9703-				●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	9510-0004	●	●	●	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0005-	●		●	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	9510-9802	●	●	●	●
68	WASHER; PL,TRANS CONT,SELECT ID=8.4 OD=18	9-09164-608-0	01	1	9510-9702	●	●	●	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	9510-9802	●	●	●	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	9-09164-608-0	01	1	9510-9802	●	●	●	●
71	WASHER; LK,TRANS CONT,SELECT ID=8.2	9-09150-508-0	01	1	9510-9702	●	●	●	●
72	NUT; TRANS CONT,SELECT M8	9-09110-408-0	01	1	9510-9609	●	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	9610-0004	●	●	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	0005-	●		●	●
75	WASHER; LK,BALL JOINT,SELECT WIRE ID=10.2	9-09150-510-0	01	1	9510-9802	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M10	9-09110-510-0	01	1	9510-9802	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	9803-0004	●	●	●	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	0005-	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
