2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#38280) — 82 parça

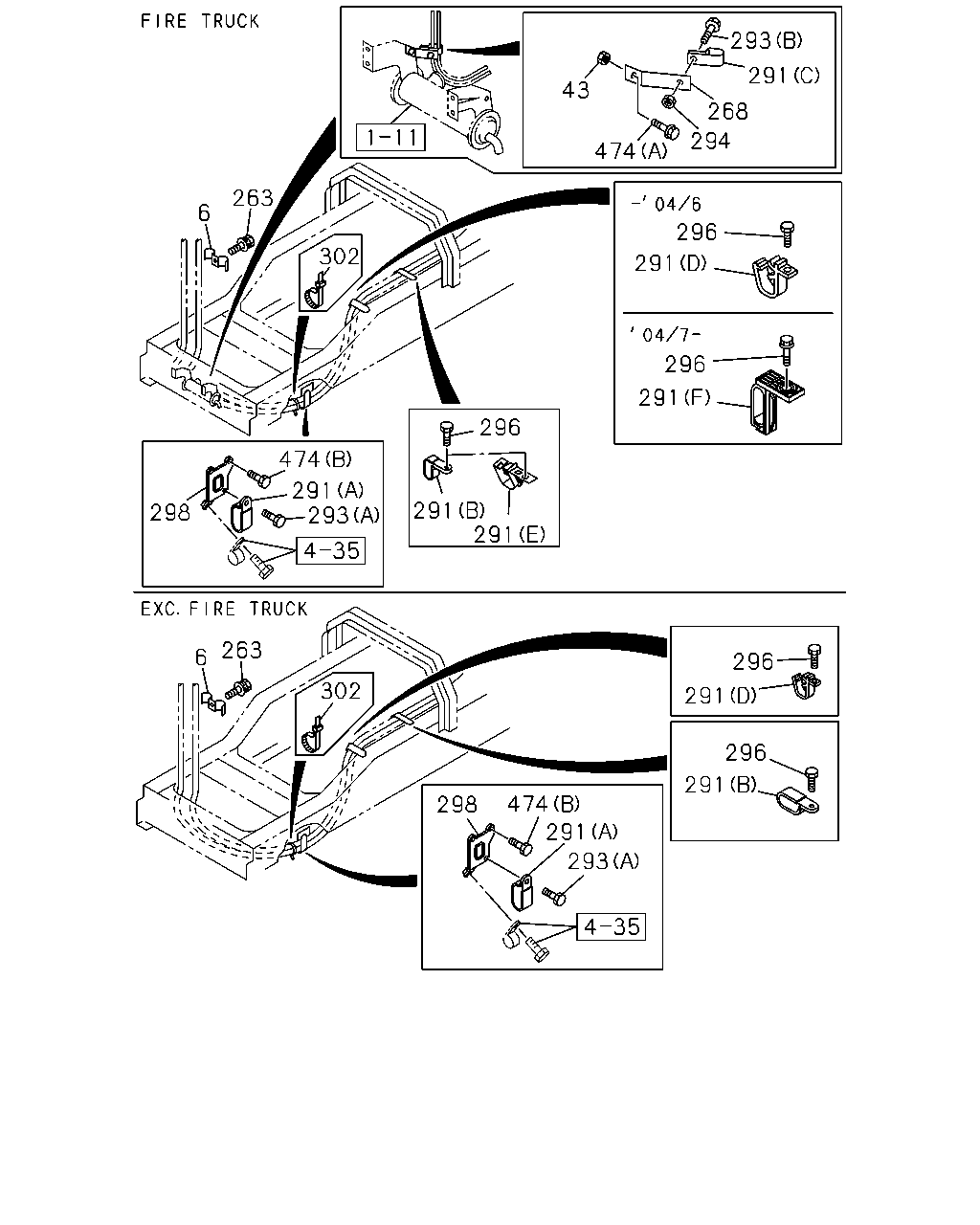

293 291 43 268 294 474 263 6 296 302 291 296 291 296 474 291 293 291 291 298 263 6 296 302 291 296 291 474 291 298 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9510-0004	●	●	●	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0005-	●	●	●
43	NUT; BRKT FIRE TRUCK(RA9) M8	9-09110-408-0	01	1	9510-9606		●		●
43	NUT; BRKT FIRE TRUCK(RA9) M8 FLANGE	0-91150-108-0	01	1	9607-0004		●		●
263	BOLT; CLIP,TRANS CONT WIRE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-9812	●	●	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9901-0004	●	●	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0005-	●	●	●
268	BRACKET; LINK ROD FIRE TRUCK(RA9)	1-47477-648-0	01	1	9510-0004		●		●
291	CLIP; SHIFT TO SELECT,FRAME (D) ID=10 & 10 M8	1-09701-220-0	01	1	9510-0004	●	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (D) ID=10 & 10 M8	1-09701-220-0	01	1	0005-0406	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (F)	1-09701-307-2	01	1	0407-	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	9-09535-026-0	01	1	9510-0004	●	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	9-09535-026-0	01	1	0005-0606	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	01	1	0607-	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B)	1-09700-621-2	01	1	9510-9602	●	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-245-0	01	1	9603-9701	●	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (E)	1-09701-258-0	01	1	9702-9702	●	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-245-0	01	1	9703-0004	●	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-245-0	01	1	0005-0506	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-312-0	01	1	0507-	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME FIRE TRUCK(RA9) (C) ID=24X2 L=35	1-09701-121-0	01	1	9510-0004		●		●
293	BOLT; CLIP,SHIFT TO SELECT (A) M8X16 FLANGE	0-28080-816-0	01	1	9510-0004	●	●	●	●
293	BOLT; CLIP,SHIFT TO SELECT (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●	●	●
293	BOLT; CLIP,SHIFT TO SELECT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●
293	BOLT; CLIP,SHIFT TO SELECT FIRE TRUCK(RA9) (B) M8X25 FLANGE	0-28680-825-0	01	1	9510-0004		●		●
294	NUT; CLIP FIRE TRUCK(RA9) M8	9-09110-408-0	01	1	9510-9606		●		●
294	NUT; CLIP FIRE TRUCK(RA9) M8 FLANGE	0-91150-108-0	01	1	9607-0004		●		●
296	BOLT; CLIP,SHIFT & SELECT M8X25 FLANGE	0-28680-825-0	02	1	9510-9610	●	●	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28080-820-0	02	1	9611-0004	●	●	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28080-820-0	02	1	0005-0512	●	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●	●
298	BRACKET	1-82659-149-0	01	1	9510-0004	●	●	●	●
298	BRACKET	1-82659-149-0	01	1	0005-	●	●	●
302	CLIP; BAND L=300	1-09707-001-1	01	1	9510-0004	●	●	●	●
302	CLIP; BAND L=300	1-09707-001-1	01	1	0005-	●	●	●
474	BOLT; BRKT (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9510-0004	●	●	●	●
474	BOLT; BRKT (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0005-	●	●	●
474	BOLT; BRKT FIRE TRUCK(RA9) (A) M8X25 FLANGE	0-28680-825-0	01	1	9510-0004		●		●

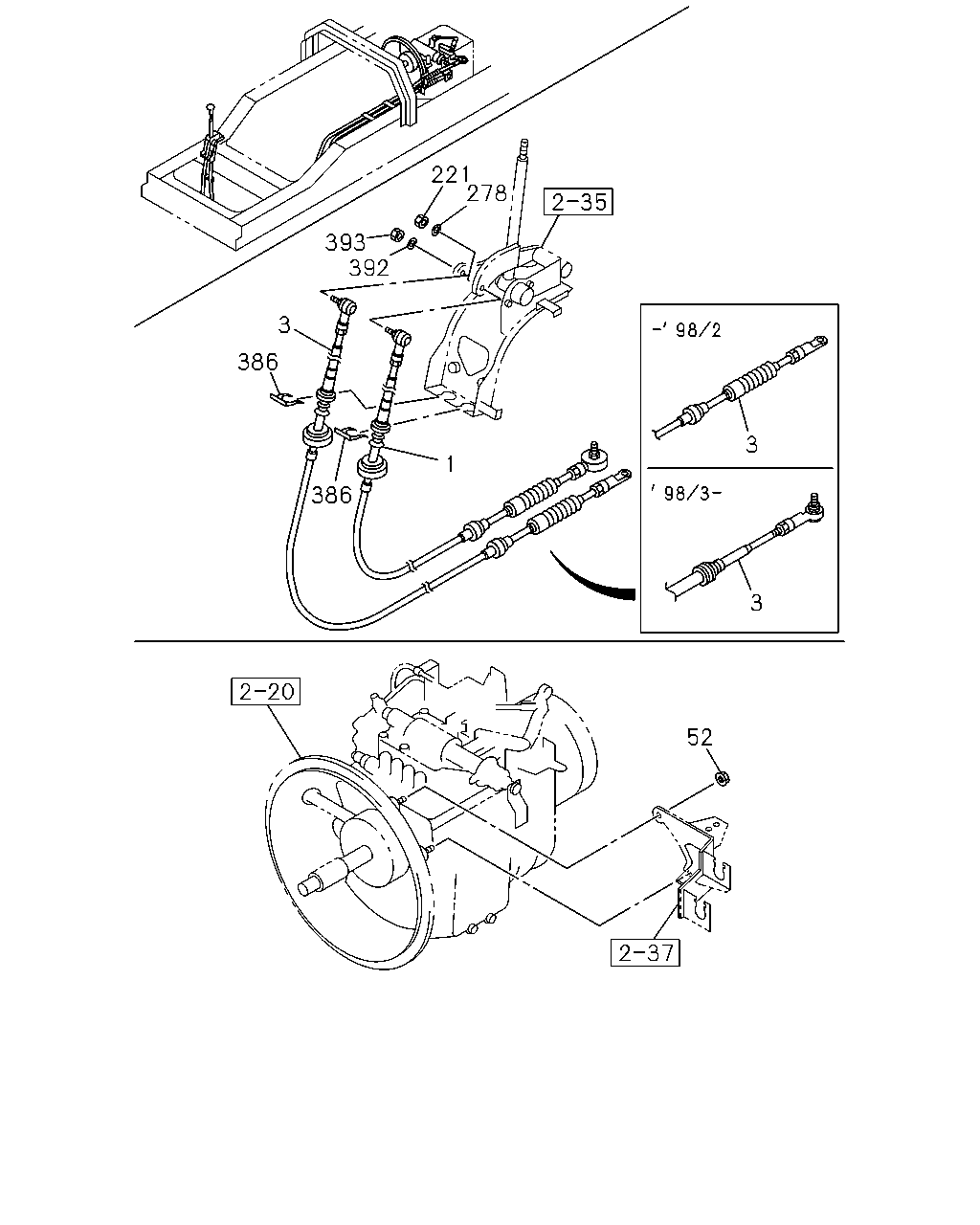

221 278 393 392 3 386 3 1 386 3 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CABLE; SHIFT,TRANS CONT EXC. TRANSMISSION FRONT PTO(RC2) L=3321	1-33670-781-0	01	1	9510-9708		●		●
1	CABLE; SHIFT,TRANS CONT L=3321	1-33670-781-0	01	1	9510-9708			●
1	CABLE; SHIFT,TRANS CONT EXC. TRANSMISSION FRONT PTO(RC2) L=3321	1-33670-809-0	01	1	9709-9802		●		●
1	CABLE; SHIFT,TRANS CONT L=3321	1-33670-809-0	01	1	9709-9802			●
1	CABLE; SHIFT,TRANS CONT EXC. TRANSMISSION FRONT PTO(RC2) L=3320	1-33671-123-0	01	1	9803-0004		●		●
1	CABLE; SHIFT,TRANS CONT L=3320	1-33671-123-0	01	1	9803-0004			●
1	CABLE; SHIFT,TRANS CONT L=3320	1-33671-123-0	01	1	0005-		●	●
1	CABLE; SHIFT,TRANS CONT TRANSMISSION FRONT PTO(RC2) L=3511	1-33670-787-0	01	1	9510-9802		●		●
1	CABLE; SHIFT,TRANS CONT TRANSMISSION FRONT PTO(RC2) L=3510	1-33671-126-1	01	1	9803-0004		●		●
1	CABLE; SHIFT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> L=3297	1-33670-788-0	01	1	9703-9802	●
1	CABLE; SHIFT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> L=3385	1-33671-135-0	01	1	9803-	●
1	CABLE; SHIFT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8> L=3424	1-33670-790-0	01	1	9703-9802	●
1	CABLE; SHIFT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8> L=3425	1-33671-127-0	01	1	9803-	●
3	CABLE; SELECT,TRANS CONT EXC. TRANSMISSION FRONT PTO(RC2) L=3409	1-33670-782-1	01	1	9510-9708		●		●
3	CABLE; SELECT,TRANS CONT L=3409	1-33670-782-1	01	1	9510-9708			●
3	CABLE; SELECT,TRANS CONT EXC. TRANSMISSION FRONT PTO(RC2) L=3409	1-33670-810-1	01	1	9709-9802		●		●
3	CABLE; SELECT,TRANS CONT L=3409	1-33670-810-1	01	1	9709-9802			●
3	CABLE; SELECT,TRANS CONT EXC. TRANSMISSION FRONT PTO(RC2) L=3410	1-33671-130-0	01	1	9803-0004		●		●
3	CABLE; SELECT,TRANS CONT L=3410	1-33671-130-0	01	1	9803-0004			●
3	CABLE; SELECT,TRANS CONT L=3410	1-33671-130-0	01	1	0005-		●	●
3	CABLE; SELECT,TRANS CONT TRANSMISSION FRONT PTO(RC2) L=3664	1-33670-794-1	01	1	9510-9802		●		●
3	CABLE; SELECT,TRANS CONT TRANSMISSION FRONT PTO(RC2) L=3665	1-33671-132-1	01	1	9803-0004		●		●
3	CABLE; SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> L=3504	1-33670-795-1	01	1	9703-9708	●
3	CABLE; SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> L=3504	1-33670-798-1	01	1	9709-9802	●
3	CABLE; SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> L=3465	1-33671-136-0	01	1	9803-	●
3	CABLE; SELECT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8> L=3504	1-33670-798-1	01	1	9703-9704	●
3	CABLE; SELECT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8> L=3486	1-33670-797-1	01	1	9705-9802	●
3	CABLE; SELECT,TRANS CONT EXC. ASSISTOR SHIFT CONTROL<WX8> L=3485	1-33671-133-0	01	1	9803-	●
52	NUT; BRKT	0-91150-110-0	02	1	9510-9605	●	●	●	●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9606-0004	●	●	●	●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0602	●	●	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
221	NUT; SHIFT WIRE TO LEVER M8	9-09110-408-0	01	1	9510-9802	●	●	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	9803-0004	●	●	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0005-1011	●	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1012-	●	●	●
278	WASHER; LK,SHIFT WIRE ID=8.2	9-09150-508-0	01	1	9510-9802	●	●	●	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	9510-0004	●	●	●	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	0005-	●	●	●
392	WASHER; LK,SELECT CABLE,CAB ID=8.2	9-09150-508-0	01	1	9510-9802	●	●	●	●
393	NUT; SELECT CABLE,CAB M8	9-09110-408-0	01	1	9510-9802	●	●	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	9803-0004	●	●	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0005-1011	●	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-062-1	01	1	1012-	●	●	●
