Sayfa 2-26 - Isuzu EPC

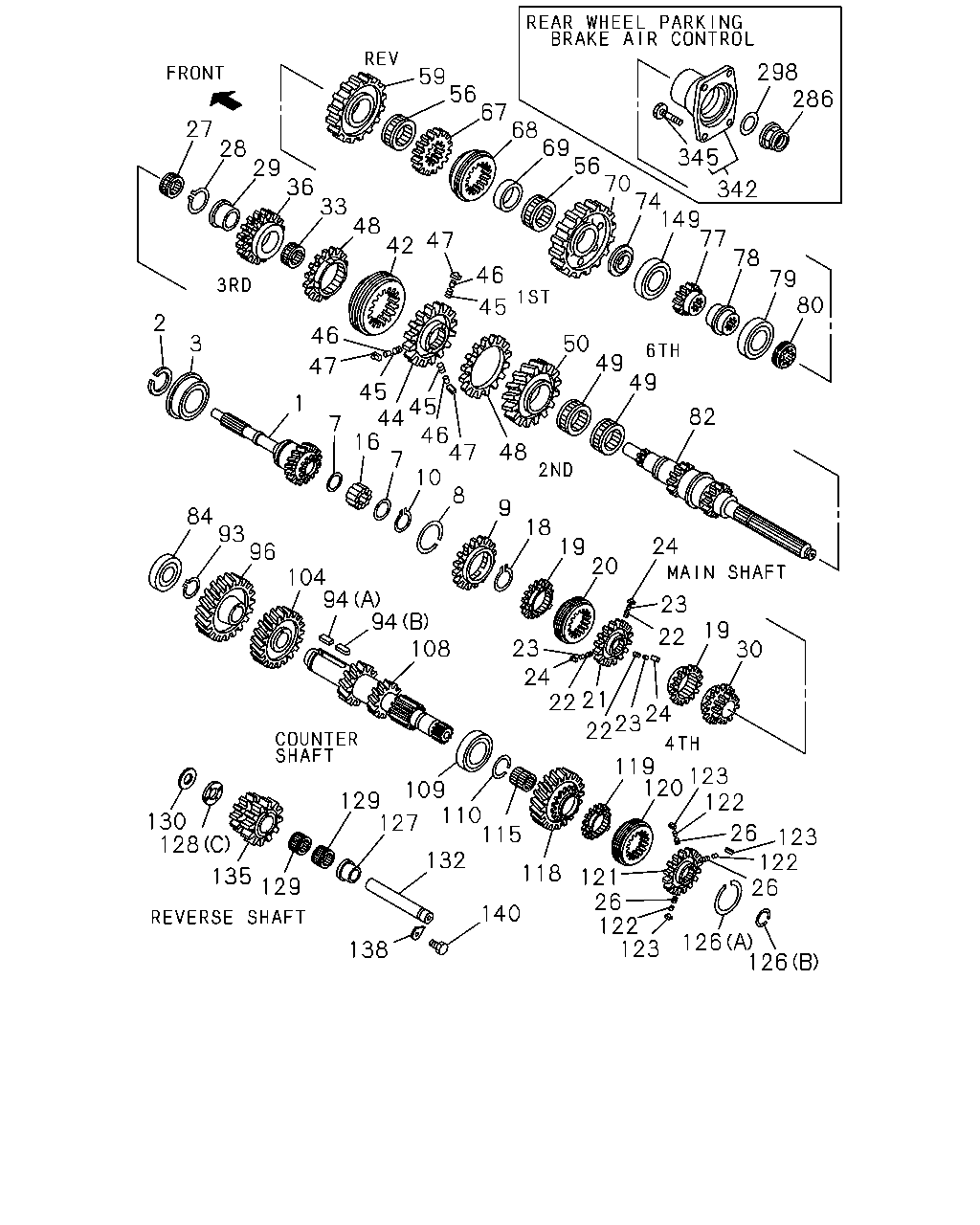

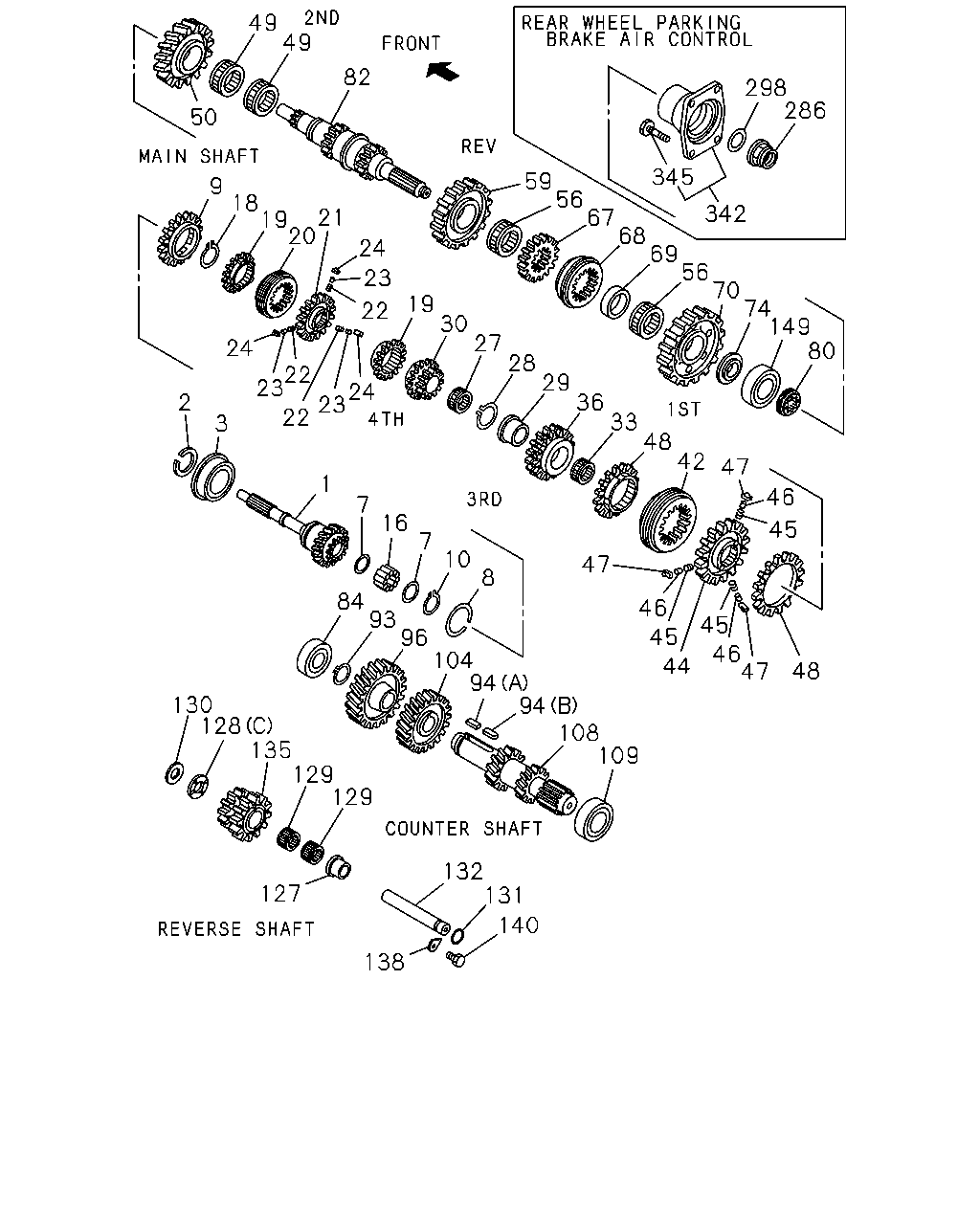

2-26 — MANUAL TRANSMISSION GEAR (#38277) — 675 parça

49 49 82 298 286 50 345 59 56 67 68 69 56 70 74 149 80 9 18 19 21 20 342 24 23 19 30 27 28 29 36 33 48 42 22 24 22 23 24 23 22 2 3 47 1 46 7 16 45 7 10 47 8 84 93 96 104 94 46 45 45 46 47 44 48 94 108 109 130 128 135 129 129 132 131 127 140 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; TOP GEAR,TRANS AIR ASSIST CLUTCH<PK1> Z=20	1-33211-888-0	01	1	9510-9701	●
1	SHAFT; TOP GEAR,TRANS AIR ASSIST CLUTCH<PK1> TRANSMISSION FRONT PTO(RC2) Z=20	1-33211-888-0	01	1	9702-9802	●
1	SHAFT; TOP GEAR,TRANS AIR ASSIST CLUTCH<PK1> Z=20	1-33211-888-0	01	1	9803-0004	●
1	SHAFT; TOP GEAR,TRANS EXC. AIR ASSIST CLUTCH<PK1> Z=20	1-33211-827-0	01	1	9510-9701	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	9510-9701		●
1	SHAFT; TOP GEAR,TRANS EXC. AIR ASSIST CLUTCH<PK1> Z=20	1-33211-827-0	01	1	9702-9802	●
1	SHAFT; TOP GEAR,TRANS AIR ASSIST CLUTCH<PK1> EXC. TRANSMISSION FRONT PTO(RC2) Z=20	1-33211-827-0	01	1	9702-9802	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	9702-9802		●
1	SHAFT; TOP GEAR,TRANS EXC. AIR ASSIST CLUTCH<PK1> Z=20	1-33211-827-0	01	1	9803-0004	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	9803-0004		●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	0005-	●	●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-898-0	01	1	9510-0004			●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9703-0006				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-985-0	01	1	0007-				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9510-0004	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0005-	●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9510-0004	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0005-	●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9510-0004	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0005-	●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9510-0004	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0005-	●	●		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9510-9909	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0004	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	0005-0502	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-282-0	01	1	0503-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9703-				●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9510-0004	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	0005-	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9703-				●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9510-0004	●	●	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0005-	●	●		●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	9510-0004	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	0005-	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9703-				●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9510-0004	●	●	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	0005-	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9703-				●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9510-9810	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	9811-0004	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	0005-	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9510-9810	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	9811-0004	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	0005-	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-008-2	14	1	9510-9810	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-023-0	14	1	9811-0004	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-023-0	14	1	0005-	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9703-				●
18	RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	9510-0004	●	●	●
18	RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	0005-	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9703-				●
19	RING; BLOCK,4TH & 5TH Z=45	1-33265-414-0	02	1	9510-0004	●	●	●
19	RING; BLOCK,4TH & 5TH Z=45	1-33265-414-0	02	1	0005-	●	●
20	SLEEVE	1-33262-167-0	01	1	9510-0004	●	●	●
20	SLEEVE	1-33262-167-0	01	1	0005-	●	●
21	HUB; CLU,4TH & 5TH	1-33261-210-0	01	1	9510-9811	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-258-0	01	1	9812-0004	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-258-0	01	1	0005-	●	●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9510-0004	●	●	●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	0005-	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9703-				●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-0004	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0005-	●	●		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-0004	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0005-	●	●		●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	9510-0004	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	0005-	●	●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	9510-0004	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	0005-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9703-				●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	9510-0004	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	0005-	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9703-				●
29	COLLAR; 3RD GEAR	1-33234-076-0	01	1	9510-0004	●	●	●
29	COLLAR; 3RD GEAR	1-33234-076-0	01	1	0005-	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	9510-0004	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	0005-	●	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9703-				●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-370-0	01	1	9510-0004	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-370-0	01	1	0005-	●	●
33	BEARING; NEEDLE,3RD GEAR JTEKT	1-09811-387-1	01	1	9510-0004	●	●	●
33	BEARING; NEEDLE,3RD GEAR JTEKT	1-09811-387-1	01	1	0005-	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-414-0	01	1	9712-0004	●	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-414-0	01	1	0005-	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	9510-0004	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	0005-	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9703-				●
42	SLEEVE Z=45	1-33262-162-0	01	1	9510-0004	●	●	●
42	SLEEVE Z=45	1-33262-162-0	01	1	0005-	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9703-				●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-193-0	01	1	9510-0004	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-193-0	01	1	0005-	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9510-0004	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	0005-	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9703-				●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-0004	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0005-	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9703-				●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-0004	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0005-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9703-				●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9510-0004	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	0005-	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-371-0	02	1	9510-0004	●	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-371-0	02	1	0005-	●	●
49	BEARING; NEEDLE,2ND GEAR JTEKT	1-09811-373-0	02	1	9510-0004	●	●	●
49	BEARING; NEEDLE,2ND GEAR JTEKT	1-09811-373-0	02	1	0005-	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	9510-0004	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	0005-	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9703-				●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	9510-0004	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	0005-	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-387-1	02	1	9510-0004	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-387-1	02	1	0005-	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	9712-0004	●	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	0005-	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9703-				●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9510-0004	●	●	●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	0005-	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9703-				●
67	HUB; CLU,1ST TO REV	1-33261-192-0	01	1	9510-0004	●	●	●
67	HUB; CLU,1ST TO REV	1-33261-192-0	01	1	0005-	●	●
68	SLEEVE; 1ST TO REV	1-33262-175-1	01	1	9510-0004	●	●	●
68	SLEEVE; 1ST TO REV	1-33262-175-1	01	1	0005-	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-073-0	01	1	9510-0004	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-073-0	01	1	0005-	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9510-0004	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	0005-	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9703-				●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	9510-0004	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	0005-	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9703-				●
80	GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	9510-0004	●	●	●
80	GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	0005-	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9703-				●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-262-0	01	1	9510-9909	●		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	9910-0004	●		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	0005-	●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-263-0	01	1	9510-9909		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-312-0	01	1	9910-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9703-				●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	9510-0004	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	0005-	●	●
84	BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-210-0	01	1	9510-0004	●	●	●
84	BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-210-0	01	1	0005-	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9703-				●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	9510-0004	●	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	0005-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9703-				●
94	KEY; FEATHER,COUNTER SHAFT (B) L=41	1-09735-021-0	01	1	9510-0004	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=41	1-09735-021-0	01	1	0005-	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	01	1	9510-0004	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	01	1	0005-	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9703-				●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9703-				●
96	GEAR; COUNTER DRIVE Z=38	1-33331-222-0	01	1	9510-	●	●
96	GEAR; COUNTER DRIVE Z=37	1-33331-235-0	01	1	9510-0004			●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9703-				●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	9510-0004	●	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	0005-	●	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9703-9805				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9806-1302				●
104	GEAR; 4TH,COUNTER Z=33	8-98240-187-0	01	1	1303-				●
108	SHAFT; COUNTER Z=28-22-14	1-33311-283-0	01	1	9510-9601	●		●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	9602-0004	●		●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	0005-	●
108	SHAFT; COUNTER Z=28-22-14	1-33311-281-0	01	1	9510-9601		●
108	SHAFT; COUNTER Z=28-22-14	1-33311-286-0	01	1	9602-1311		●
108	SHAFT; COUNTER Z=28-22-14	8-98246-783-0	01	1	1312-		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9703-				●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	9510-0004	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	0005-	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-212-0	01	1	9510-0004	●	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-212-0	01	1	0005-	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9703-				●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9703-				●
127	COLLAR; THRUST,REV SHAFT	1-33363-029-0	01	1	9510-0004	●	●	●
127	COLLAR; THRUST,REV SHAFT	1-33363-029-0	01	1	0005-	●	●
128	WASHER; THRUST,REV SHAFT (C) D=62 T=6.0	1-33363-028-0	01	1	9510-0004	●	●	●
128	WASHER; THRUST,REV SHAFT (C) D=62 T=6.0	1-33363-028-0	01	1	0005-	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9703-				●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9703-				●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9510-0004	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	0005-	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	9510-0004	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	0005-	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9703-				●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9703-				●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	9510-0004	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	0005-	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9703-				●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9510-0004	●		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0005-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9703-				●
132	SHAFT; REV L=158	1-33351-022-1	01	1	9510-0004	●		●
132	SHAFT; REV L=158	1-33351-022-1	01	1	0005-	●
132	SHAFT; REV	1-33351-023-1	01	1	9510-		●
132	SHAFT; REV	1-33351-017-0	01	1	9703-				●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9510-0004	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	0005-	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9703-				●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9510-0004	●	●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0005-	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9510-0004	●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0005-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-215-0	01	1	9510-0004	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-215-0	01	1	0005-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR JTEKT	1-09810-216-0	01	1	9510-0004	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR JTEKT	1-09810-216-0	01	1	0005-	●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M30 FLANGE	1-09449-066-1	01	1	9510-9909	●	●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE DRUM 8.5"(B1S) M33 FLANGE	1-09449-077-0	01	1	9910-0004	●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M33 FLANGE	1-09449-077-0	01	1	0005-	●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	1-09449-063-0	01	1	0011-0805				●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	8-98014-140-0	01	1	0806-				●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=35.7 T=5	1-09623-379-0	01	1	9510-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	0011-				●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-356-0	01	1	9510-	●	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-297-1	01	1	0011-				●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	1-09046-003-0	04	1	9510-0707	●	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	0708-	●	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X51 W/MARK	1-46219-086-0	04	1	0011-				●

322 37 38 39 28 172 70 298 286 56 57 58 59 56 60 74 75 80 345 46 47 342 121 11 45 13 14 15 18 22 24 23 124 43 17 27 27 37 30 34 42 34 36 82 50 1 2 16 8 3 84 93 96 97 104 7 7 94 94 94 94 108 109 105 9 10 11 12 130 128 135 129 129 128 131 132 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; TOP GEAR,TRANS AIR ASSIST CLUTCH<PK1> Z=20	1-33211-888-0	01	1	9510-9701	●
1	SHAFT; TOP GEAR,TRANS AIR ASSIST CLUTCH<PK1> TRANSMISSION FRONT PTO(RC2) Z=20	1-33211-888-0	01	1	9702-9802	●
1	SHAFT; TOP GEAR,TRANS AIR ASSIST CLUTCH<PK1> Z=20	1-33211-888-0	01	1	9803-0004	●
1	SHAFT; TOP GEAR,TRANS EXC. AIR ASSIST CLUTCH<PK1> Z=20	1-33211-827-0	01	1	9510-9701	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	9510-9701		●
1	SHAFT; TOP GEAR,TRANS EXC. AIR ASSIST CLUTCH<PK1> Z=20	1-33211-827-0	01	1	9702-9802	●
1	SHAFT; TOP GEAR,TRANS AIR ASSIST CLUTCH<PK1> EXC. TRANSMISSION FRONT PTO(RC2) Z=20	1-33211-827-0	01	1	9702-9802	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	9702-9802		●
1	SHAFT; TOP GEAR,TRANS EXC. AIR ASSIST CLUTCH<PK1> Z=20	1-33211-827-0	01	1	9803-0004	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	9803-0004		●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	0005-	●	●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-898-0	01	1	9510-0004			●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9703-0006				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-985-0	01	1	0007-				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9510-0004	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0005-	●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9510-0004	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0005-	●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9510-0004	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0005-	●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9510-0004	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0005-	●	●		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9510-9909	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0004	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	0005-0502	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-282-0	01	1	0503-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9703-				●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9510-0004	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	0005-	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9703-				●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9510-0004	●	●	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0005-	●	●		●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	9510-0004	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	0005-	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9703-				●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9510-0004	●	●	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	0005-	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9703-				●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9703-				●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9703-				●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9703-9908				●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-711-0	01	1	9909-				●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9703-				●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9703-				●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9510-9810	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	9811-0004	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	0005-	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9510-9810	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	9811-0004	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	0005-	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-008-2	14	1	9510-9810	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-023-0	14	1	9811-0004	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-023-0	14	1	0005-	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9703-				●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9703-				●
18	RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	9510-0004	●	●	●
18	RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	0005-	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9703-				●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9510-0004	●	●	●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	0005-	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9703-				●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-0004	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0005-	●	●		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-0004	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0005-	●	●		●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	9510-0004	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	0005-	●	●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	9510-0004	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	0005-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9703-				●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	9510-0004	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	0005-	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9703-				●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	9510-0004	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	0005-	●	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9703-				●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9703-0312				●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-				●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	9510-0004	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	0005-	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9703-				●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	9703-				●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9703-				●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9703-0312				●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-				●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9703-				●
42	SLEEVE Z=45	1-33262-162-0	01	1	9510-0004	●	●	●
42	SLEEVE Z=45	1-33262-162-0	01	1	0005-	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9703-				●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9703-				●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9510-0004	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	0005-	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9703-				●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-0004	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0005-	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9703-				●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-0004	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0005-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9703-				●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	9510-0004	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	0005-	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9703-				●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	9510-0004	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	0005-	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-387-1	02	1	9510-0004	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-387-1	02	1	0005-	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	9712-0004	●	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	0005-	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9703-				●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9703-				●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9703-				●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9510-0004	●	●	●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	0005-	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9703-				●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9703-0009				●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0010-				●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9510-0004	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	0005-	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9703-				●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	9510-0004	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	0005-	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9703-				●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9703-				●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9703-				●
80	GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	9510-0004	●	●	●
80	GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	0005-	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9703-				●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-262-0	01	1	9510-9909	●		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	9910-0004	●		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	0005-	●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-263-0	01	1	9510-9909		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-312-0	01	1	9910-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9703-				●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	9510-0004	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	0005-	●	●
84	BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-210-0	01	1	9510-0004	●	●	●
84	BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-210-0	01	1	0005-	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9703-				●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	9510-0004	●	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	0005-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9703-				●
94	KEY; FEATHER,COUNTER SHAFT (B) L=41	1-09735-021-0	01	1	9510-0004	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=41	1-09735-021-0	01	1	0005-	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	01	1	9510-0004	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	01	1	0005-	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9703-				●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9703-				●
96	GEAR; COUNTER DRIVE Z=38	1-33331-222-0	01	1	9510-	●	●
96	GEAR; COUNTER DRIVE Z=37	1-33331-235-0	01	1	9510-0004			●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9703-				●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9703-				●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	9510-0004	●	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	0005-	●	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9703-9805				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9806-1302				●
104	GEAR; 4TH,COUNTER Z=33	8-98240-187-0	01	1	1303-				●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9703-9805				●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9806-1311				●
105	GEAR; 3RD,COUNTER Z=27	8-98256-802-0	01	1	1312-				●
108	SHAFT; COUNTER Z=28-22-14	1-33311-283-0	01	1	9510-9601	●		●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	9602-0004	●		●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	0005-	●
108	SHAFT; COUNTER Z=28-22-14	1-33311-281-0	01	1	9510-9601		●
108	SHAFT; COUNTER Z=28-22-14	1-33311-286-0	01	1	9602-1311		●
108	SHAFT; COUNTER Z=28-22-14	8-98246-783-0	01	1	1312-		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9703-				●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	9510-0004	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	0005-	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-212-0	01	1	9510-0004	●	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-212-0	01	1	0005-	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9703-				●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9703-				●
110	RING; SNAP,COUNTER BRG ID=41.9	1-09588-075-1	01	1	9510-		●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9703-				●
121	HUB; CLU,6TH	1-33261-143-1	01	1	9510-		●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9703-0212				●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-				●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9703-				●
128	WASHER; THRUST,REV SHAFT (C) D=62 T=6.0	1-33363-028-0	01	1	9510-0004	●	●	●
128	WASHER; THRUST,REV SHAFT (C) D=62 T=6.0	1-33363-028-0	01	1	0005-	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9703-				●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9703-				●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9510-0004	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	0005-	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	9510-0004	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	0005-	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9703-				●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9703-				●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	9510-0004	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	0005-	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9703-				●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9510-0004	●		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0005-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9703-				●
132	SHAFT; REV L=158	1-33351-022-1	01	1	9510-0004	●		●
132	SHAFT; REV L=158	1-33351-022-1	01	1	0005-	●
132	SHAFT; REV	1-33351-023-1	01	1	9510-		●
132	SHAFT; REV	1-33351-017-0	01	1	9703-				●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9510-0004	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	0005-	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9703-				●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9703-				●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M30 FLANGE	1-09449-066-1	01	1	9510-9909	●	●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE DRUM 8.5"(B1S) M33 FLANGE	1-09449-077-0	01	1	9910-0004	●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M33 FLANGE	1-09449-077-0	01	1	0005-	●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	1-09449-063-0	01	1	0011-0805				●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	8-98014-140-0	01	1	0806-				●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=35.7 T=5	1-09623-379-0	01	1	9510-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	0011-				●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9703-				●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-356-0	01	1	9510-	●	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-297-1	01	1	0011-				●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	1-09046-003-0	04	1	9510-0707	●	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	0708-	●	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X51 W/MARK	1-46219-086-0	04	1	0011-				●

298 286 59 56 67 68 69 56 70 74 149 77 78 79 80 27 28 29 36 33 48 42 345 342 47 46 45 2 46 3 50 49 49 47 45 45 44 16 1 82 7 46 47 10 48 7 8 9 84 93 96 18 24 19 20 104 94 94 108 23 19 30 22 23 24 22 21 24 23 22 119 123 120 122 109 110 115 129 127 130 128 26 123 122 26 132 118 135 121 26 122 123 129 140 126 126 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; TOP GEAR,TRANS AIR ASSIST CLUTCH<PK1> Z=20	1-33211-888-0	01	1	9510-9701	●
1	SHAFT; TOP GEAR,TRANS AIR ASSIST CLUTCH<PK1> TRANSMISSION FRONT PTO(RC2) Z=20	1-33211-888-0	01	1	9702-9802	●
1	SHAFT; TOP GEAR,TRANS AIR ASSIST CLUTCH<PK1> Z=20	1-33211-888-0	01	1	9803-0004	●
1	SHAFT; TOP GEAR,TRANS EXC. AIR ASSIST CLUTCH<PK1> Z=20	1-33211-827-0	01	1	9510-9701	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	9510-9701		●
1	SHAFT; TOP GEAR,TRANS EXC. AIR ASSIST CLUTCH<PK1> Z=20	1-33211-827-0	01	1	9702-9802	●
1	SHAFT; TOP GEAR,TRANS AIR ASSIST CLUTCH<PK1> EXC. TRANSMISSION FRONT PTO(RC2) Z=20	1-33211-827-0	01	1	9702-9802	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	9702-9802		●
1	SHAFT; TOP GEAR,TRANS EXC. AIR ASSIST CLUTCH<PK1> Z=20	1-33211-827-0	01	1	9803-0004	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	9803-0004		●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-827-0	01	1	0005-	●	●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-898-0	01	1	9510-0004			●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9703-0006				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-985-0	01	1	0007-				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9510-0004	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0005-	●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9510-0004	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0005-	●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9510-0004	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0005-	●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9510-0004	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0005-	●	●		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9510-9909	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0004	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	0005-0502	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-282-0	01	1	0503-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9703-				●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9510-0004	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	0005-	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9703-				●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9510-0004	●	●	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0005-	●	●		●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	9510-0004	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	0005-	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9703-				●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9510-0004	●	●	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	0005-	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9703-				●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9510-9810	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	9811-0004	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	0005-	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9510-9810	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	9811-0004	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	0005-	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-008-2	14	1	9510-9810	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-023-0	14	1	9811-0004	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-023-0	14	1	0005-	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9703-				●
18	RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	9510-0004	●	●	●
18	RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	0005-	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9703-				●
19	RING; BLOCK,4TH & 5TH Z=45	1-33265-414-0	02	1	9510-0004	●	●	●
19	RING; BLOCK,4TH & 5TH Z=45	1-33265-414-0	02	1	0005-	●	●
20	SLEEVE	1-33262-167-0	01	1	9510-0004	●	●	●
20	SLEEVE	1-33262-167-0	01	1	0005-	●	●
21	HUB; CLU,4TH & 5TH	1-33261-210-0	01	1	9510-9811	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-258-0	01	1	9812-0004	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-258-0	01	1	0005-	●	●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9510-0004	●	●	●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	0005-	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9703-				●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-0004	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0005-	●	●		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-0004	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0005-	●	●		●
26	SPRING; BLOCK,INSERT	1-09580-373-0	03	1	9510-		●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	9510-0004	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	0005-	●	●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	9510-0004	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	0005-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9703-				●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	9510-0004	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	0005-	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9703-				●
29	COLLAR; 3RD GEAR	1-33234-076-0	01	1	9510-0004	●	●	●
29	COLLAR; 3RD GEAR	1-33234-076-0	01	1	0005-	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	9510-0004	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	0005-	●	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9703-				●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-370-0	01	1	9510-0004	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-370-0	01	1	0005-	●	●
33	BEARING; NEEDLE,3RD GEAR JTEKT	1-09811-387-1	01	1	9510-0004	●	●	●
33	BEARING; NEEDLE,3RD GEAR JTEKT	1-09811-387-1	01	1	0005-	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-414-0	01	1	9712-0004	●	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-414-0	01	1	0005-	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	9510-0004	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	0005-	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9703-				●
42	SLEEVE Z=45	1-33262-162-0	01	1	9510-0004	●	●	●
42	SLEEVE Z=45	1-33262-162-0	01	1	0005-	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9703-				●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-193-0	01	1	9510-0004	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-193-0	01	1	0005-	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9510-0004	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	0005-	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9703-				●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-0004	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0005-	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9703-				●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-0004	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0005-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9703-				●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9510-0004	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	0005-	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-371-0	02	1	9510-0004	●	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-371-0	02	1	0005-	●	●
49	BEARING; NEEDLE,2ND GEAR JTEKT	1-09811-373-0	02	1	9510-0004	●	●	●
49	BEARING; NEEDLE,2ND GEAR JTEKT	1-09811-373-0	02	1	0005-	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	9510-0004	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	0005-	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9703-				●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	9510-0004	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	0005-	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-387-1	02	1	9510-0004	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-387-1	02	1	0005-	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	9712-0004	●	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	0005-	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9703-				●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9510-0004	●	●	●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	0005-	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9703-				●
67	HUB; CLU,1ST TO REV	1-33261-192-0	01	1	9510-0004	●	●	●
67	HUB; CLU,1ST TO REV	1-33261-192-0	01	1	0005-	●	●
68	SLEEVE; 1ST TO REV	1-33262-175-1	01	1	9510-0004	●	●	●
68	SLEEVE; 1ST TO REV	1-33262-175-1	01	1	0005-	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-073-0	01	1	9510-0004	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-073-0	01	1	0005-	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9510-0004	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	0005-	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9703-				●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	9510-0004	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	0005-	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9703-				●
77	GEAR; 6TH,MAINSHAFT Z=17	1-33253-543-0	01	1	9510-		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-099-0	01	1	9510-		●
79	BEARING; BALL,MAINSHAFT NSK	1-09800-019-0	01	1	9510-9902		●
79	BEARING; BALL,MAINSHAFT NSK	1-09800-287-0	01	1	9903-		●
79	BEARING; BALL,MAINSHAFT JTEKT	1-09800-120-1	01	1	9510-		●
80	GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	9510-0004	●	●	●
80	GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	0005-	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9703-				●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-262-0	01	1	9510-9909	●		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	9910-0004	●		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	0005-	●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-263-0	01	1	9510-9909		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-312-0	01	1	9910-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9703-				●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	9510-0004	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	0005-	●	●
84	BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-210-0	01	1	9510-0004	●	●	●
84	BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-210-0	01	1	0005-	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9703-				●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	9510-0004	●	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	0005-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9703-				●
94	KEY; FEATHER,COUNTER SHAFT (B) L=41	1-09735-021-0	01	1	9510-0004	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=41	1-09735-021-0	01	1	0005-	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	01	1	9510-0004	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	01	1	0005-	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9703-				●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9703-				●
96	GEAR; COUNTER DRIVE Z=38	1-33331-222-0	01	1	9510-	●	●
96	GEAR; COUNTER DRIVE Z=37	1-33331-235-0	01	1	9510-0004			●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9703-				●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	9510-0004	●	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	0005-	●	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9703-9805				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9806-1302				●
104	GEAR; 4TH,COUNTER Z=33	8-98240-187-0	01	1	1303-				●
108	SHAFT; COUNTER Z=28-22-14	1-33311-283-0	01	1	9510-9601	●		●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	9602-0004	●		●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	0005-	●
108	SHAFT; COUNTER Z=28-22-14	1-33311-281-0	01	1	9510-9601		●
108	SHAFT; COUNTER Z=28-22-14	1-33311-286-0	01	1	9602-1311		●
108	SHAFT; COUNTER Z=28-22-14	8-98246-783-0	01	1	1312-		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9703-				●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	9510-0004	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	0005-	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-212-0	01	1	9510-0004	●	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-212-0	01	1	0005-	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9703-				●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9703-				●
110	RING; SNAP,COUNTER BRG ID=41.9	1-09588-075-1	01	1	9510-		●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9703-				●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-267-0	01	1	9510-		●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-268-0	01	1	9510-		●
115	BEARING; NEEDLE,6TH,COUNTER JTEKT	1-09811-269-0	01	1	9510-		●
118	GEAR; 6TH,COUNTER Z=41	1-33338-273-0	01	1	9510-		●
119	RING; BLOCK,6TH SYN Z=39	1-33265-408-0	01	1	9510-		●
120	SLEEVE	1-33262-095-0	01	1	9510-		●
121	HUB; CLU,6TH	1-33261-143-1	01	1	9510-		●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9703-0212				●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-				●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-		●
123	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-		●
126	RING; SNAP,CLU HUB (A) OD=100 T=2	1-09587-032-0	01	1	9510-		●
126	RING; SNAP,CLU HUB (B) ID=46.3 T=1.75	1-09588-121-1	01	1	9510-		●
127	COLLAR; THRUST,REV SHAFT	1-33363-029-0	01	1	9510-0004	●	●	●
127	COLLAR; THRUST,REV SHAFT	1-33363-029-0	01	1	0005-	●	●
128	WASHER; THRUST,REV SHAFT (C) D=62 T=6.0	1-33363-028-0	01	1	9510-0004	●	●	●
128	WASHER; THRUST,REV SHAFT (C) D=62 T=6.0	1-33363-028-0	01	1	0005-	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9703-				●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9703-				●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9510-0004	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	0005-	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	9510-0004	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	0005-	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9703-				●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9703-				●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	9510-0004	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	0005-	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9703-				●
132	SHAFT; REV L=158	1-33351-022-1	01	1	9510-0004	●		●
132	SHAFT; REV L=158	1-33351-022-1	01	1	0005-	●
132	SHAFT; REV	1-33351-023-1	01	1	9510-		●
132	SHAFT; REV	1-33351-017-0	01	1	9703-				●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9510-0004	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	0005-	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9703-				●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9510-0004	●	●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0005-	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9510-0004	●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0005-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-215-0	01	1	9510-0004	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-215-0	01	1	0005-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR JTEKT	1-09810-216-0	01	1	9510-0004	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR JTEKT	1-09810-216-0	01	1	0005-	●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M30 FLANGE	1-09449-066-1	01	1	9510-9909	●	●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE DRUM 8.5"(B1S) M33 FLANGE	1-09449-077-0	01	1	9910-0004	●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M33 FLANGE	1-09449-077-0	01	1	0005-	●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	1-09449-063-0	01	1	0011-0805				●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	8-98014-140-0	01	1	0806-				●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=35.7 T=5	1-09623-379-0	01	1	9510-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	0011-				●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-356-0	01	1	9510-	●	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-297-1	01	1	0011-				●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	1-09046-003-0	04	1	9510-0707	●	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	0708-	●	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X51 W/MARK	1-46219-086-0	04	1	0011-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
