2-25 — SPEEDOMETER DRIVEN GEAR (#38276) — 100 parça

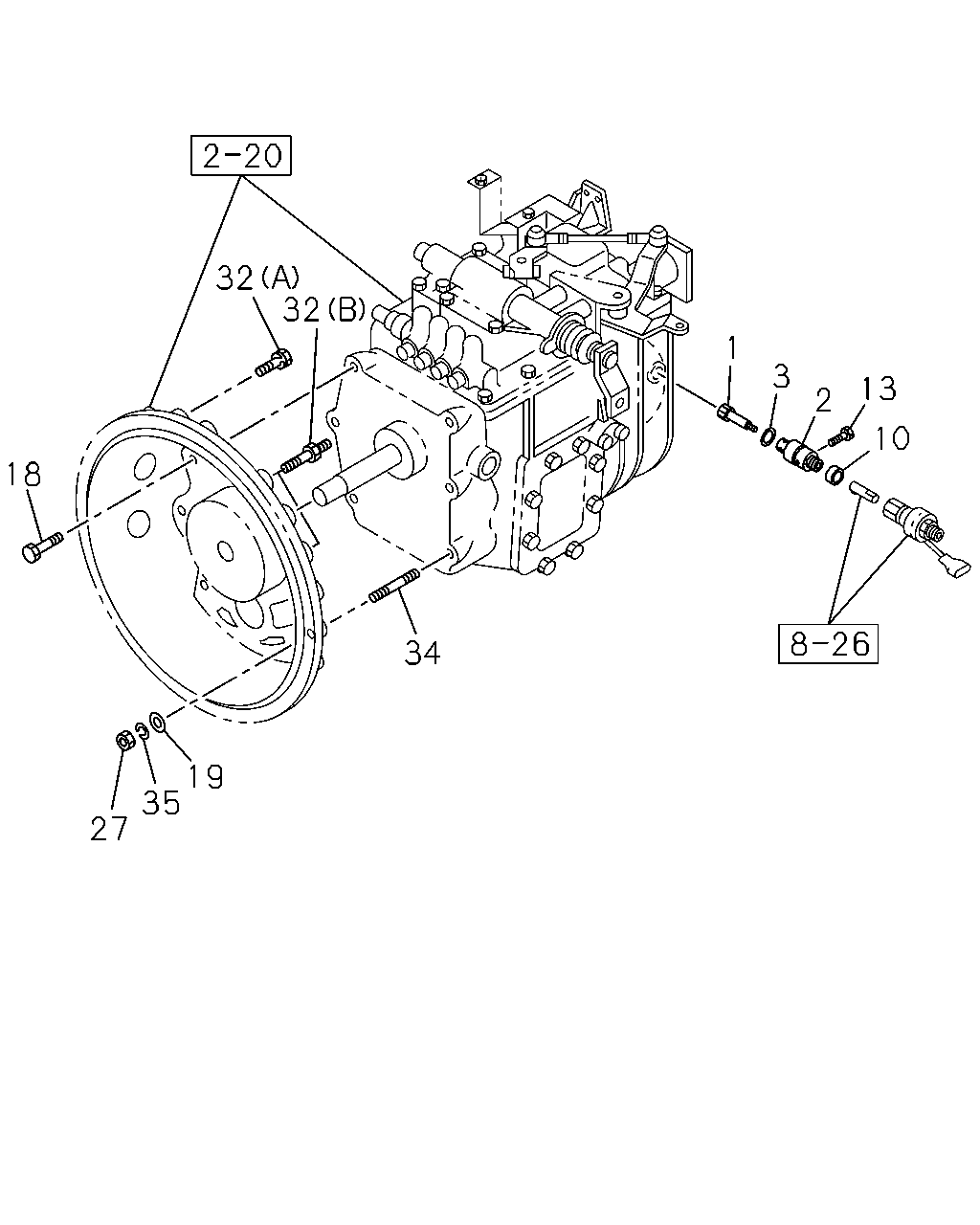

çizim 151647
32 32 1 3 13 2 10 18 34 19 35 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GEAR; DRIVEN,SPD
Z=18 		1-33372-121-4 01 1 9510-0004 ● ● ●
1 GEAR; DRIVEN,SPD
Z=18 		1-33372-121-4 01 1 0005- ● ●
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 9703- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-039-1 01 1 9510-0004 ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-039-1 01 1 0005- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 9703- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-370-0 01 1 9510-0004 ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-370-0 01 1 0005- ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 9703- ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 9510-0004 ● ● ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 0005- ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9510-0004 ● ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 0005-0805 ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0806- ● ● ●
18 BOLT; CLU HSG TO TRANS
M14X40 W/LK&PL WASHER 		0-50151-440-0 05 1 9510-0004 ● ● ●
18 BOLT; CLU HSG TO TRANS
M14X40 W/LK&PL WASHER 		0-50151-440-0 05 1 0005-0512 ● ●
18 BOLT; CLU HSG TO TRANS
M14X40 W/LK&PL WASHER 		0-50651-440-0 05 1 0601- ● ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50151-640-0 06 1 9703-0512 ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50651-640-0 06 1 0601- ●
19 WASHER; PL,CLU HSG TO TRANS
ID=15 		9-09160-514-0 01 1 9510-0004 ● ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=15 		9-09160-514-0 01 1 0005-0605 ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=15 		0-91610-514-0 01 1 0606- ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 		9-09160-516-0 02 1 9703-0605 ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 OD=30 		0-91610-516-0 02 1 0606- ●
27 NUT; CLU HSG TO TRANS
EXC. AIR ASSIST CLUTCH<PK1> M14 		9-99110-514-0 01 1 9510-0004 ●
27 NUT; CLU HSG TO TRANS
M14 		9-99110-514-0 01 1 9510-0004 ●
27 NUT; CLU HSG TO TRANS
M14 		9-99110-514-0 01 1 0005-0512 ● ●
27 NUT; CLU HSG TO TRANS
M14 		0-91110-514-0 01 1 0601- ● ●
27 NUT; CLU HSG TO TRANS
M16 		9-99110-516-0 02 1 9703-0512 ●
27 NUT; CLU HSG TO TRANS
M16 		0-91110-516-0 02 1 0601- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> (A) M10X30 FLANGE 		0-28781-030-0 09 1 9803-0004 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X30 W/LK&PL WASHER 		0-50151-030-0 10 1 9510-9606 ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X30 FLANGE 		0-28781-030-0 10 1 9607-9802 ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> (A) M10X30 FLANGE 		0-28781-030-0 10 1 9803-0004 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
EXC. TRANSMISSION FRONT PTO(RC2) (A) M10X30 FLANGE 		0-28781-030-0 10 1 9803-0004 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X30 FLANGE 		0-28781-030-0 10 1 9803-0004 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X30 FLANGE 		0-28781-030-0 10 1 0005-0512 ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X30 FLANGE 		0-28751-030-0 10 1 0601- ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X20,M10X26 L=56 		1-09049-014-1 02 1 9510-0004 ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X20,M10X26 L=56 		1-09049-014-1 02 1 0005-0805 ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X20,M10X26 L=56 		8-98010-334-0 02 1 0806- ● ● ●
34 STUD; CLU HSG
EXC. AIR ASSIST CLUTCH<PK1> M14X39 L=57 		1-09302-145-1 01 1 9510-0004 ●
34 STUD; CLU HSG
M14X39 L=57 		1-09302-145-1 01 1 9510-0004 ●
34 STUD; CLU HSG
M14X39 L=57 		1-09302-145-1 01 1 0005- ● ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 9703- ●
35 WASHER; LK,CLU HSG TO TRANS
ID=14.2 		9-09150-514-0 01 1 9510-0004 ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=14.2 		9-09150-514-0 01 1 0005-0603 ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 02 1 9703-0603 ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		0-91510-516-0 02 1 0604- ●

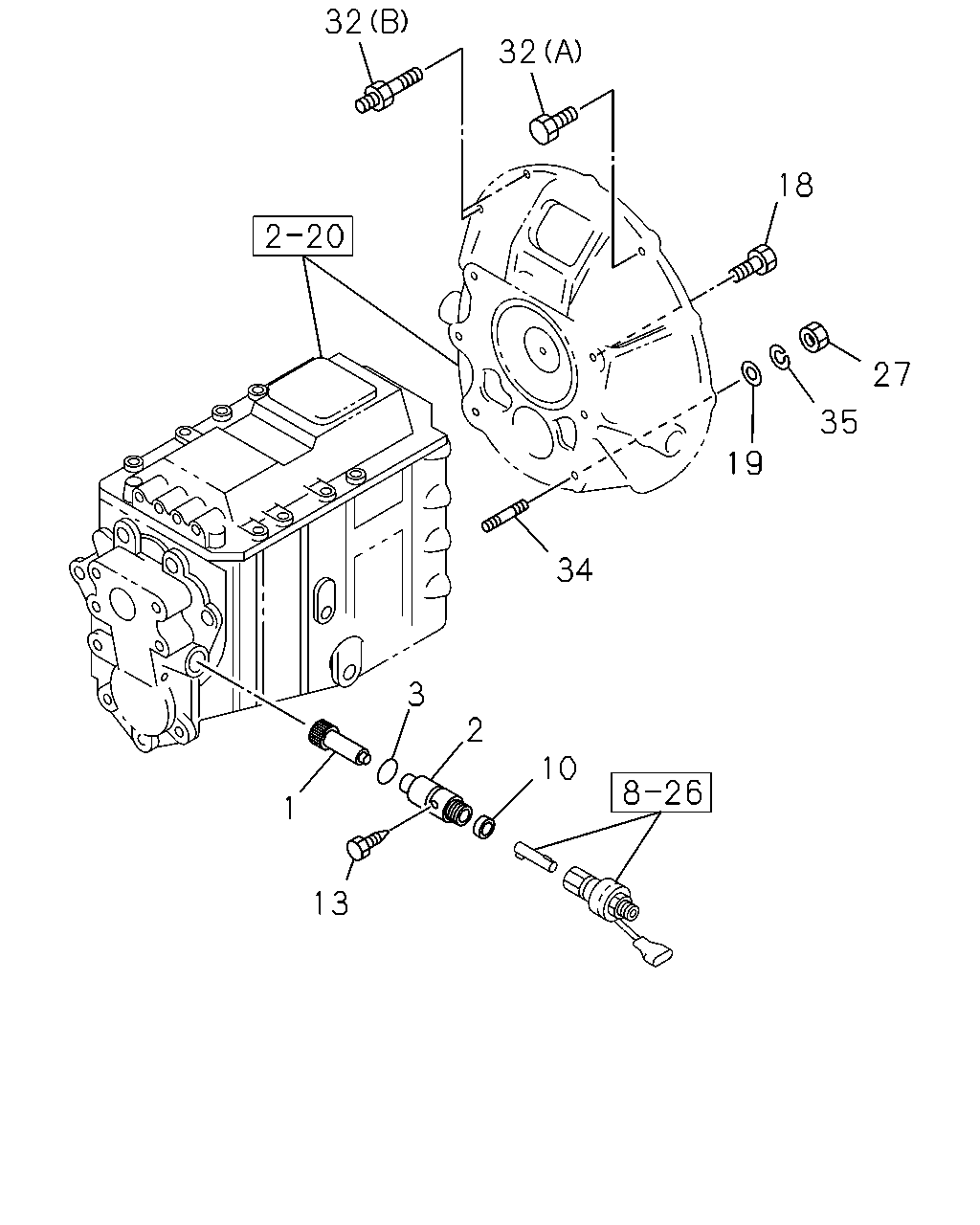

çizim 151662
32 32 18 27 35 19 34 3 2 10 1 13
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GEAR; DRIVEN,SPD
Z=18 		1-33372-121-4 01 1 9510-0004 ● ● ●
1 GEAR; DRIVEN,SPD
Z=18 		1-33372-121-4 01 1 0005- ● ●
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 9703- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-039-1 01 1 9510-0004 ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-039-1 01 1 0005- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 9703- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-370-0 01 1 9510-0004 ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-370-0 01 1 0005- ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 9703- ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 9510-0004 ● ● ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 0005- ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9510-0004 ● ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 0005-0805 ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0806- ● ● ●
18 BOLT; CLU HSG TO TRANS
M14X40 W/LK&PL WASHER 		0-50151-440-0 05 1 9510-0004 ● ● ●
18 BOLT; CLU HSG TO TRANS
M14X40 W/LK&PL WASHER 		0-50151-440-0 05 1 0005-0512 ● ●
18 BOLT; CLU HSG TO TRANS
M14X40 W/LK&PL WASHER 		0-50651-440-0 05 1 0601- ● ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50151-640-0 06 1 9703-0512 ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50651-640-0 06 1 0601- ●
19 WASHER; PL,CLU HSG TO TRANS
ID=15 		9-09160-514-0 01 1 9510-0004 ● ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=15 		9-09160-514-0 01 1 0005-0605 ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=15 		0-91610-514-0 01 1 0606- ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 		9-09160-516-0 02 1 9703-0605 ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 OD=30 		0-91610-516-0 02 1 0606- ●
27 NUT; CLU HSG TO TRANS
EXC. AIR ASSIST CLUTCH<PK1> M14 		9-99110-514-0 01 1 9510-0004 ●
27 NUT; CLU HSG TO TRANS
M14 		9-99110-514-0 01 1 9510-0004 ●
27 NUT; CLU HSG TO TRANS
M14 		9-99110-514-0 01 1 0005-0512 ● ●
27 NUT; CLU HSG TO TRANS
M14 		0-91110-514-0 01 1 0601- ● ●
27 NUT; CLU HSG TO TRANS
M16 		9-99110-516-0 02 1 9703-0512 ●
27 NUT; CLU HSG TO TRANS
M16 		0-91110-516-0 02 1 0601- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> (A) M10X30 FLANGE 		0-28781-030-0 09 1 9803-0004 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X30 W/LK&PL WASHER 		0-50151-030-0 10 1 9510-9606 ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X30 FLANGE 		0-28781-030-0 10 1 9607-9802 ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> (A) M10X30 FLANGE 		0-28781-030-0 10 1 9803-0004 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
EXC. TRANSMISSION FRONT PTO(RC2) (A) M10X30 FLANGE 		0-28781-030-0 10 1 9803-0004 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X30 FLANGE 		0-28781-030-0 10 1 9803-0004 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X30 FLANGE 		0-28781-030-0 10 1 0005-0512 ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X30 FLANGE 		0-28751-030-0 10 1 0601- ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X20,M10X26 L=56 		1-09049-014-1 02 1 9510-0004 ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X20,M10X26 L=56 		1-09049-014-1 02 1 0005-0805 ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X20,M10X26 L=56 		8-98010-334-0 02 1 0806- ● ● ●
34 STUD; CLU HSG
EXC. AIR ASSIST CLUTCH<PK1> M14X39 L=57 		1-09302-145-1 01 1 9510-0004 ●
34 STUD; CLU HSG
M14X39 L=57 		1-09302-145-1 01 1 9510-0004 ●
34 STUD; CLU HSG
M14X39 L=57 		1-09302-145-1 01 1 0005- ● ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 9703- ●
35 WASHER; LK,CLU HSG TO TRANS
ID=14.2 		9-09150-514-0 01 1 9510-0004 ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=14.2 		9-09150-514-0 01 1 0005-0603 ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 02 1 9703-0603 ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		0-91510-516-0 02 1 0604- ●
