2-20 — MANUAL TRANSMISSION ASM AND CASE (#38275) — 289 parça

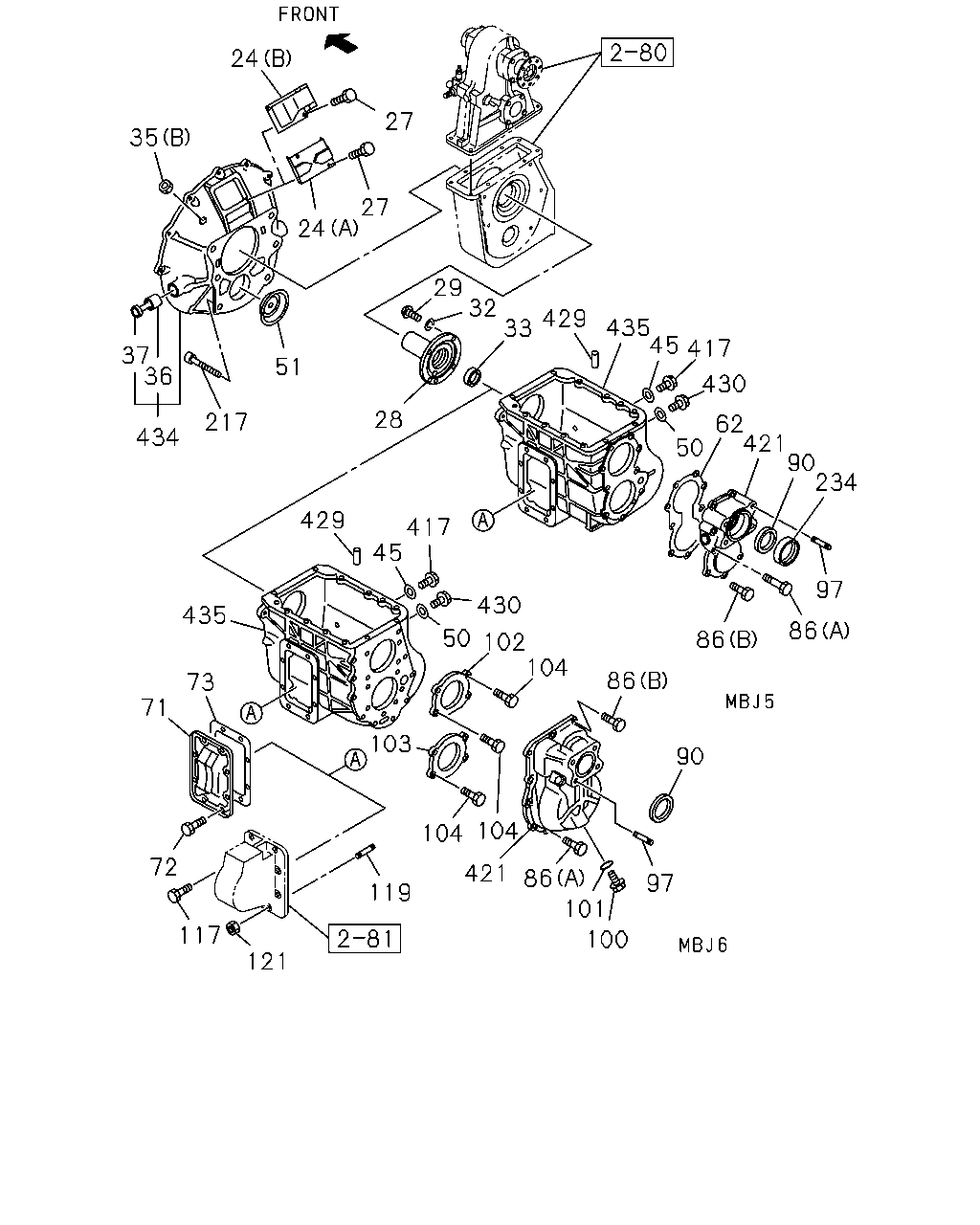

24 27 35 27 24 29 32 429 33 435 45 417 37 36 51 430 28 217 62 421 90 234 434 50 429 417 45 97 103 430 435 86 50 86 102 104 86 73 71 90 104 104 72 421 86 97 119 101 117 100 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	COVER; CHECK HOLE,DUST (A)	1-31131-027-0	01	1	9510-9807	●	●	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	9808-0004	●	●	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	0005-1410	●	●	●
24	COVER; CHECK HOLE,DUST (B)	8-98284-107-0	01	1	1411-	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9510-0004	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	0005-0104	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-134-1	01	1	9510-0004		●	●	●
28	COVER; FRT,TRANS CASE	1-33121-134-1	01	1	0005-		●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9703-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9510-0004	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	0005-0805	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9510-0004	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0005-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	9510-0004		●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	0005-		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9703-	●
35	GROMMET; CLU HSG (B) OD=31	9-09575-796-0	01	1	9510-0004	●	●	●	●
35	GROMMET; CLU HSG (B) OD=31	9-09575-796-0	01	1	0005-	●	●	●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	9803-	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9510-0004	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0005-	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9510-0004	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0005-	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9510-0004	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0005-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9510-0004	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0005-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	9510-0004		●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-1	01	1	0005-		●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9703-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9510-0004		●		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	0005-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9703-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-028-0	01	1	9510-0004		●	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-028-0	01	1	0005-		●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9703-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION FRONT PTO(RC2),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9510-9609		●	●
72	BOLT; SIDE COVER TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> M10X16 FLANGE	0-28181-016-0	08	1	9510-9609				●
72	BOLT; SIDE COVER TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> M10X16 FLANGE	0-28181-016-0	08	1	9610-9702		●		●
72	BOLT; SIDE COVER EXC. TRANSMISSION FRONT PTO(RC2),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9610-9702		●	●
72	BOLT; SIDE COVER TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> M10X16 FLANGE	0-28181-016-0	08	1	9703-0004		●		●
72	BOLT; SIDE COVER EXC. TRANSMISSION FRONT PTO(RC2),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9703-0004	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	0005-0512	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0601-	●	●	●
72	BOLT; SIDE COVER TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6> M10X16 FLANGE	0-28181-016-0	06	1	9510-9510		●		●
72	BOLT; SIDE COVER AIR ASSIST CLUTCH<PK1> TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6> M10X16 FLANGE	0-28181-016-0	06	1	9511-0004		●		●
72	BOLT; SIDE COVER TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6> M10X28 FLANGE	0-28181-028-0	02	1	9510-9510		●		●
72	BOLT; SIDE COVER AIR ASSIST CLUTCH<PK1> TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6> M10X28 FLANGE	0-28181-028-0	02	1	9511-0004		●		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9510-0004	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0005-	●	●	●
86	BOLT; RR COVER (B) M10X25	1-09044-080-0	07	1	9510-0004		●		●
86	BOLT; RR COVER (B) M10X25	1-09044-080-0	07	1	0005-		●
86	BOLT; RR COVER (A) M10X55	1-09044-083-0	02	1	9510-0004		●		●
86	BOLT; RR COVER (A) M10X55	1-09044-083-0	02	1	0005-		●
86	BOLT; RR COVER (A) M10X25	1-09044-080-0	08	1	9510-			●
86	BOLT; RR COVER EXC. PARKING BRAKE DRUM 8.5"(B1S) (B) M10X50 FLANGE	1-09044-081-0	03	1	9510-9802			●
86	BOLT; RR COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X50 FLANGE	1-09044-081-0	03	1	9803-			●
86	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X55	1-09044-083-0	03	1	9510-			●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9703-	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9703-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9510-0004		●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	0005-		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). JTEKT	1-09625-522-0	01	1	9510-9710		●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9703-	●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	9510-0004		●	●	●
97	STUD; PARKING BRK M14X22.5 L=42.5	8-97365-445-0	01	1	0005-		●	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22.5 L=42.5	1-09302-138-1	03	1	9510-9708			●
97	STUD; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S) M14X22.5 L=42.5	1-09302-138-1	03	1	9709-9802			●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22.5 L=42.5	1-09302-138-1	03	1	9803-0604			●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22.5 L=42.5	8-97365-445-0	03	1	0605-			●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	03	1	9703-0004	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 L=49	1-09302-099-1	03	1	0005-	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	9703-	●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	9510-			●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9510-			●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-050-0	01	1	9510-			●
103	RETAINER; BRG	1-33151-051-0	01	1	9510-			●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9510-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9510-0004	●	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	0005-0805	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0806-	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9510-0004	●	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	0005-0604	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0605-	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9510-0004	●	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	0005-0602	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
217	BOLT; CLU HSG TO FRT PTO AIR ASSIST CLUTCH<PK1>	1-09020-034-0	01	1	9510-0004		●
217	BOLT; CLU HSG TO FRT PTO	1-09020-034-0	01	1	9510-0004				●
234	COVER; OIL SEAL	1-33139-001-1	01	1	9510-0004		●		●
234	COVER; OIL SEAL	1-33139-001-1	01	1	0005-		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9510-9802	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9803-0004	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	0005-0201	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●	●
421	COVER; RR,TRANS	1-33131-058-5	01	1	9510-0004		●		●
421	COVER; RR,TRANS	1-33131-058-5	01	1	0005-		●
421	COVER; RR,TRANS	1-33131-173-2	01	1	9510-			●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9703-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9510-0004	●	●	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0005-	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9510-0004	●	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0005-	●	●	●
434	HOUSING; CLU	1-31110-154-1	01	1	9510-0004		●	●	●
434	HOUSING; CLU	1-31110-154-1	01	1	0005-0203		●	●
434	HOUSING; CLU	1-31110-207-0	01	1	0204-		●	●
434	HOUSING; CLU	1-31110-169-0	01	1	9703-	●
435	CASE; TRANS	1-33111-239-1	01	1	9510-0004		●		●
435	CASE; TRANS	1-33111-239-1	01	1	0005-0112		●
435	CASE; TRANS	1-33111-318-0	01	1	0201-0303		●
435	CASE; TRANS	1-33111-340-0	01	1	0304-		●
435	CASE; TRANS	1-33111-252-1	01	1	9510-			●
435	CASE; TRANS	1-33111-235-0	01	1	9703-0201	●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0303	●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406	●
435	CASE; TRANS	8-97381-568-0	01	1	0407-0802	●

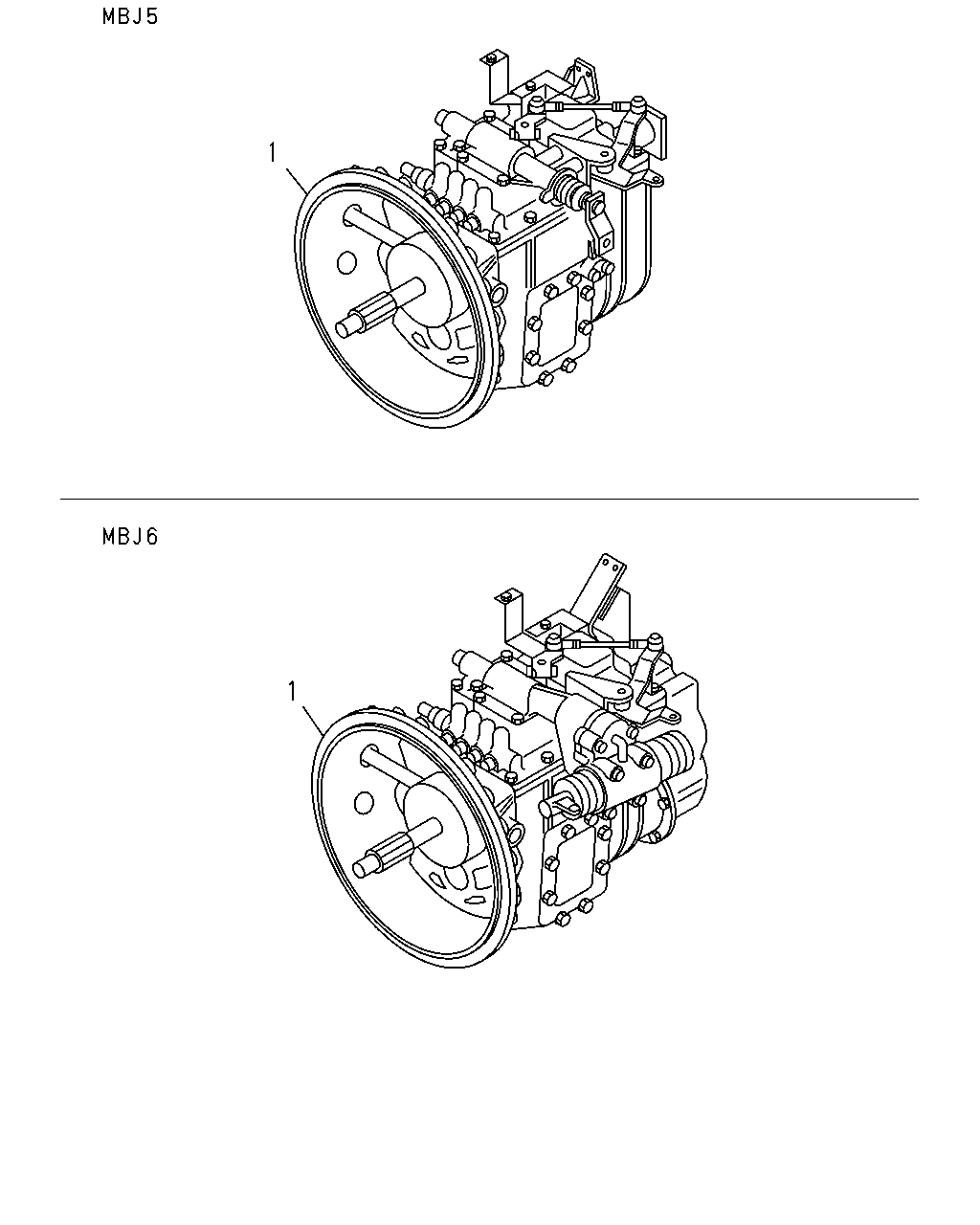

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL AIR ASSIST CLUTCH<PK1> PTO CONTROL<SV6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-884-0	01	1	9511-9802		●
1	TRANSMISSION ASM; MANUAL AIR ASSIST CLUTCH<PK1> PTO CONTROL<SV6> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-528-0	01	1	9803-0004		●
1	TRANSMISSION ASM; MANUAL AIR ASSIST CLUTCH<PK1> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION FRONT PTO(RC2),TRANSMISSION SIDE PTOWO/LEVER(SH5),PTO CONTROL<SV6>	1-33041-655-0	01	1	9709-9802		●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AIR ASSIST CLUTCH<PK1>	1-33041-524-0	01	1	9803-0004		●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33041-524-0	01	1	0005-		●
1	TRANSMISSION ASM; MANUAL AIR ASSIST CLUTCH<PK1> TRANSMISSION FRONT PTO(RC2) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	1-33040-885-0	01	1	9511-9802		●
1	TRANSMISSION ASM; MANUAL AIR ASSIST CLUTCH<PK1> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	1-33041-529-0	01	1	9803-0004		●
1	TRANSMISSION ASM; MANUAL AIR ASSIST CLUTCH<PK1> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33040-886-0	01	1	9511-9802		●
1	TRANSMISSION ASM; MANUAL AIR ASSIST CLUTCH<PK1> TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-530-0	01	1	9803-0004		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33040-409-0	01	1	9510-9802		●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AIR ASSIST CLUTCH<PK1>,TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	1-33040-407-0	01	1	9510-9802		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR ASSIST CLUTCH<PK1>	1-33041-526-0	01	1	9803-0004		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33041-526-0	01	1	0005-		●
1	TRANSMISSION ASM; MANUAL PTO CONTROL<SV6> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-419-0	01	1	9510-9802				●
1	TRANSMISSION ASM; MANUAL PTO CONTROL<SV6> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-531-0	01	1	9803-0004				●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-421-0	01	1	9510-9802				●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-533-0	01	1	9803-0004				●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	1-33040-420-0	01	1	9510-9802				●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	1-33041-532-0	01	1	9803-0004				●
1	TRANSMISSION ASM; MANUAL AIR ASSIST CLUTCH<PK1>	1-33041-653-0	01	1	9803-			●
1	TRANSMISSION ASM; MANUAL AIR ASSIST CLUTCH<PK1> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33041-653-0	01	1	9709-9802			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR ASSIST CLUTCH<PK1>	1-33040-417-0	01	1	9510-9802			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33041-546-0	01	1	9803-			●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AIR ASSIST CLUTCH<PK1>	1-33040-415-0	01	1	9510-9802			●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33041-544-0	01	1	9803-			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8>	1-33041-498-0	01	1	9703-9802	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33041-556-0	01	1	9803-	●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33041-500-0	01	1	9703-9802	●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	1-33041-558-0	01	1	9803-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33041-562-0	01	1	0011-	●

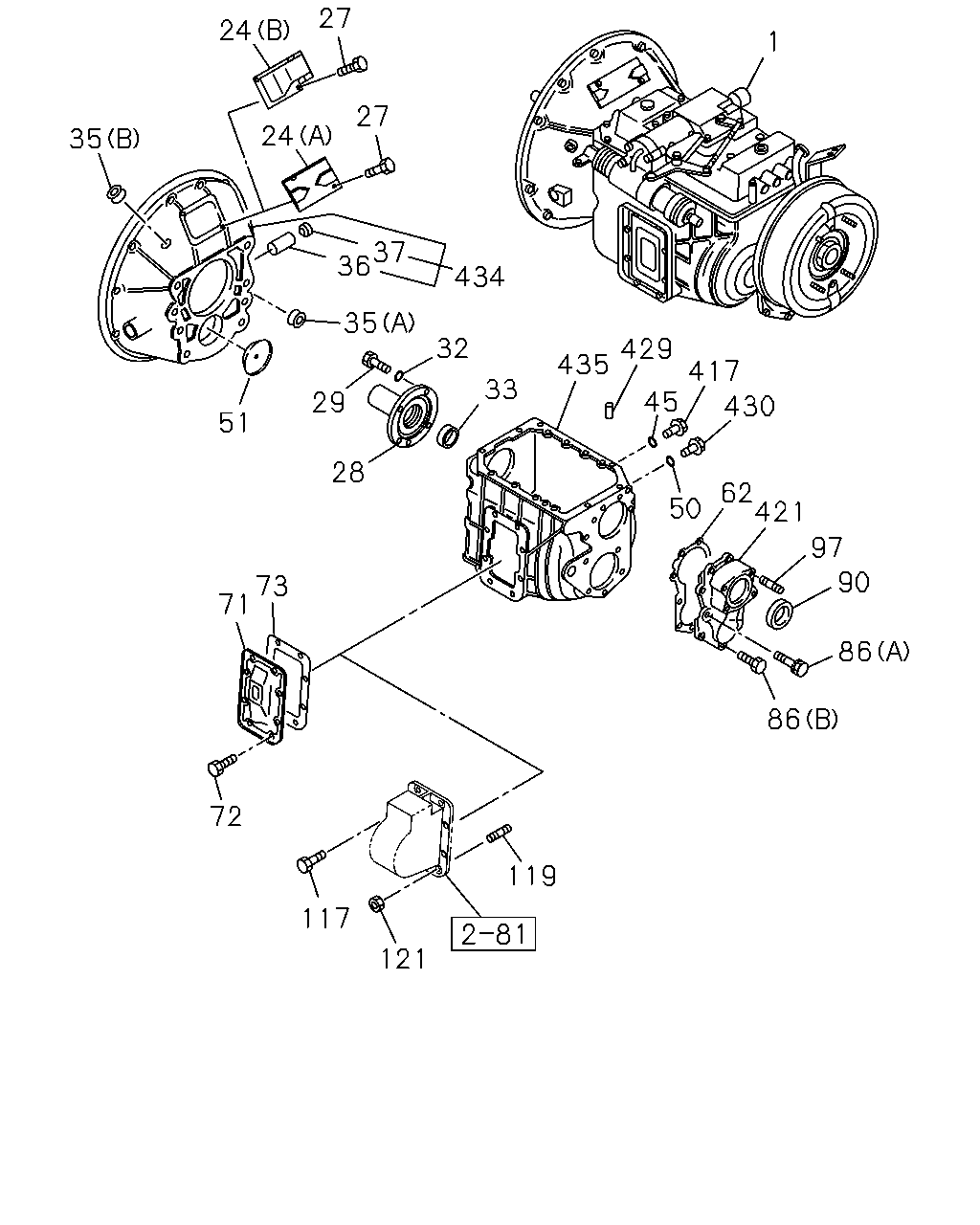

27 24 1 27 24 35 37 36 434 35 32 429 435 417 45 33 29 430 51 28 62 421 50 97 90 73 71 86 86 72 119 117 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL AIR ASSIST CLUTCH<PK1> PTO CONTROL<SV6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-884-0	01	1	9511-9802		●
1	TRANSMISSION ASM; MANUAL AIR ASSIST CLUTCH<PK1> PTO CONTROL<SV6> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-528-0	01	1	9803-0004		●
1	TRANSMISSION ASM; MANUAL AIR ASSIST CLUTCH<PK1> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION FRONT PTO(RC2),TRANSMISSION SIDE PTOWO/LEVER(SH5),PTO CONTROL<SV6>	1-33041-655-0	01	1	9709-9802		●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AIR ASSIST CLUTCH<PK1>	1-33041-524-0	01	1	9803-0004		●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33041-524-0	01	1	0005-		●
1	TRANSMISSION ASM; MANUAL AIR ASSIST CLUTCH<PK1> TRANSMISSION FRONT PTO(RC2) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	1-33040-885-0	01	1	9511-9802		●
1	TRANSMISSION ASM; MANUAL AIR ASSIST CLUTCH<PK1> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	1-33041-529-0	01	1	9803-0004		●
1	TRANSMISSION ASM; MANUAL AIR ASSIST CLUTCH<PK1> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33040-886-0	01	1	9511-9802		●
1	TRANSMISSION ASM; MANUAL AIR ASSIST CLUTCH<PK1> TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-530-0	01	1	9803-0004		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33040-409-0	01	1	9510-9802		●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AIR ASSIST CLUTCH<PK1>,TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	1-33040-407-0	01	1	9510-9802		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR ASSIST CLUTCH<PK1>	1-33041-526-0	01	1	9803-0004		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33041-526-0	01	1	0005-		●
1	TRANSMISSION ASM; MANUAL PTO CONTROL<SV6> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-419-0	01	1	9510-9802				●
1	TRANSMISSION ASM; MANUAL PTO CONTROL<SV6> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-531-0	01	1	9803-0004				●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-421-0	01	1	9510-9802				●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-533-0	01	1	9803-0004				●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	1-33040-420-0	01	1	9510-9802				●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	1-33041-532-0	01	1	9803-0004				●
1	TRANSMISSION ASM; MANUAL AIR ASSIST CLUTCH<PK1>	1-33041-653-0	01	1	9803-			●
1	TRANSMISSION ASM; MANUAL AIR ASSIST CLUTCH<PK1> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33041-653-0	01	1	9709-9802			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR ASSIST CLUTCH<PK1>	1-33040-417-0	01	1	9510-9802			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33041-546-0	01	1	9803-			●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AIR ASSIST CLUTCH<PK1>	1-33040-415-0	01	1	9510-9802			●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33041-544-0	01	1	9803-			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8>	1-33041-498-0	01	1	9703-9802	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33041-556-0	01	1	9803-	●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33041-500-0	01	1	9703-9802	●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	1-33041-558-0	01	1	9803-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33041-562-0	01	1	0011-	●
24	COVER; CHECK HOLE,DUST (A)	1-31131-027-0	01	1	9510-9807	●	●	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	9808-0004	●	●	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	0005-1410	●	●	●
24	COVER; CHECK HOLE,DUST (B)	8-98284-107-0	01	1	1411-	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9510-0004	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	0005-0104	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-134-1	01	1	9510-0004		●	●	●
28	COVER; FRT,TRANS CASE	1-33121-134-1	01	1	0005-		●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9703-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9510-0004	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	0005-0805	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9510-0004	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0005-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	9510-0004		●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	0005-		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9703-	●
35	GROMMET; CLU HSG (B) OD=31	9-09575-796-0	01	1	9510-0004	●	●	●	●
35	GROMMET; CLU HSG (B) OD=31	9-09575-796-0	01	1	0005-	●	●	●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	9803-	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9510-0004	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0005-	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9510-0004	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0005-	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9510-0004	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0005-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9510-0004	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0005-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	9510-0004		●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-1	01	1	0005-		●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9703-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9510-0004		●		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	0005-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9703-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-028-0	01	1	9510-0004		●	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-028-0	01	1	0005-		●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9703-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION FRONT PTO(RC2),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9510-9609		●	●
72	BOLT; SIDE COVER TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> M10X16 FLANGE	0-28181-016-0	08	1	9510-9609				●
72	BOLT; SIDE COVER TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> M10X16 FLANGE	0-28181-016-0	08	1	9610-9702		●		●
72	BOLT; SIDE COVER EXC. TRANSMISSION FRONT PTO(RC2),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9610-9702		●	●
72	BOLT; SIDE COVER TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> M10X16 FLANGE	0-28181-016-0	08	1	9703-0004		●		●
72	BOLT; SIDE COVER EXC. TRANSMISSION FRONT PTO(RC2),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9703-0004	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	0005-0512	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0601-	●	●	●
72	BOLT; SIDE COVER TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6> M10X16 FLANGE	0-28181-016-0	06	1	9510-9510		●		●
72	BOLT; SIDE COVER AIR ASSIST CLUTCH<PK1> TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6> M10X16 FLANGE	0-28181-016-0	06	1	9511-0004		●		●
72	BOLT; SIDE COVER TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6> M10X28 FLANGE	0-28181-028-0	02	1	9510-9510		●		●
72	BOLT; SIDE COVER AIR ASSIST CLUTCH<PK1> TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6> M10X28 FLANGE	0-28181-028-0	02	1	9511-0004		●		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9510-0004	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0005-	●	●	●
86	BOLT; RR COVER (B) M10X25	1-09044-080-0	07	1	9510-0004		●		●
86	BOLT; RR COVER (B) M10X25	1-09044-080-0	07	1	0005-		●
86	BOLT; RR COVER (A) M10X55	1-09044-083-0	02	1	9510-0004		●		●
86	BOLT; RR COVER (A) M10X55	1-09044-083-0	02	1	0005-		●
86	BOLT; RR COVER (A) M10X25	1-09044-080-0	08	1	9510-			●
86	BOLT; RR COVER EXC. PARKING BRAKE DRUM 8.5"(B1S) (B) M10X50 FLANGE	1-09044-081-0	03	1	9510-9802			●
86	BOLT; RR COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X50 FLANGE	1-09044-081-0	03	1	9803-			●
86	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X55	1-09044-083-0	03	1	9510-			●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9703-	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9703-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9510-0004		●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	0005-		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). JTEKT	1-09625-522-0	01	1	9510-9710		●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9703-	●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	9510-0004		●	●	●
97	STUD; PARKING BRK M14X22.5 L=42.5	8-97365-445-0	01	1	0005-		●	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22.5 L=42.5	1-09302-138-1	03	1	9510-9708			●
97	STUD; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S) M14X22.5 L=42.5	1-09302-138-1	03	1	9709-9802			●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22.5 L=42.5	1-09302-138-1	03	1	9803-0604			●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22.5 L=42.5	8-97365-445-0	03	1	0605-			●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	03	1	9703-0004	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 L=49	1-09302-099-1	03	1	0005-	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	9703-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9510-0004	●	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	0005-0805	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0806-	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9510-0004	●	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	0005-0604	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0605-	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9510-0004	●	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	0005-0602	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9510-9802	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9803-0004	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	0005-0201	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●	●
421	COVER; RR,TRANS	1-33131-058-5	01	1	9510-0004		●		●
421	COVER; RR,TRANS	1-33131-058-5	01	1	0005-		●
421	COVER; RR,TRANS	1-33131-173-2	01	1	9510-			●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9703-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9510-0004	●	●	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0005-	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9510-0004	●	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0005-	●	●	●
434	HOUSING; CLU	1-31110-154-1	01	1	9510-0004		●	●	●
434	HOUSING; CLU	1-31110-154-1	01	1	0005-0203		●	●
434	HOUSING; CLU	1-31110-207-0	01	1	0204-		●	●
434	HOUSING; CLU	1-31110-169-0	01	1	9703-	●
435	CASE; TRANS	1-33111-239-1	01	1	9510-0004		●		●
435	CASE; TRANS	1-33111-239-1	01	1	0005-0112		●
435	CASE; TRANS	1-33111-318-0	01	1	0201-0303		●
435	CASE; TRANS	1-33111-340-0	01	1	0304-		●
435	CASE; TRANS	1-33111-252-1	01	1	9510-			●
435	CASE; TRANS	1-33111-235-0	01	1	9703-0201	●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0303	●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406	●
435	CASE; TRANS	8-97381-568-0	01	1	0407-0802	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
