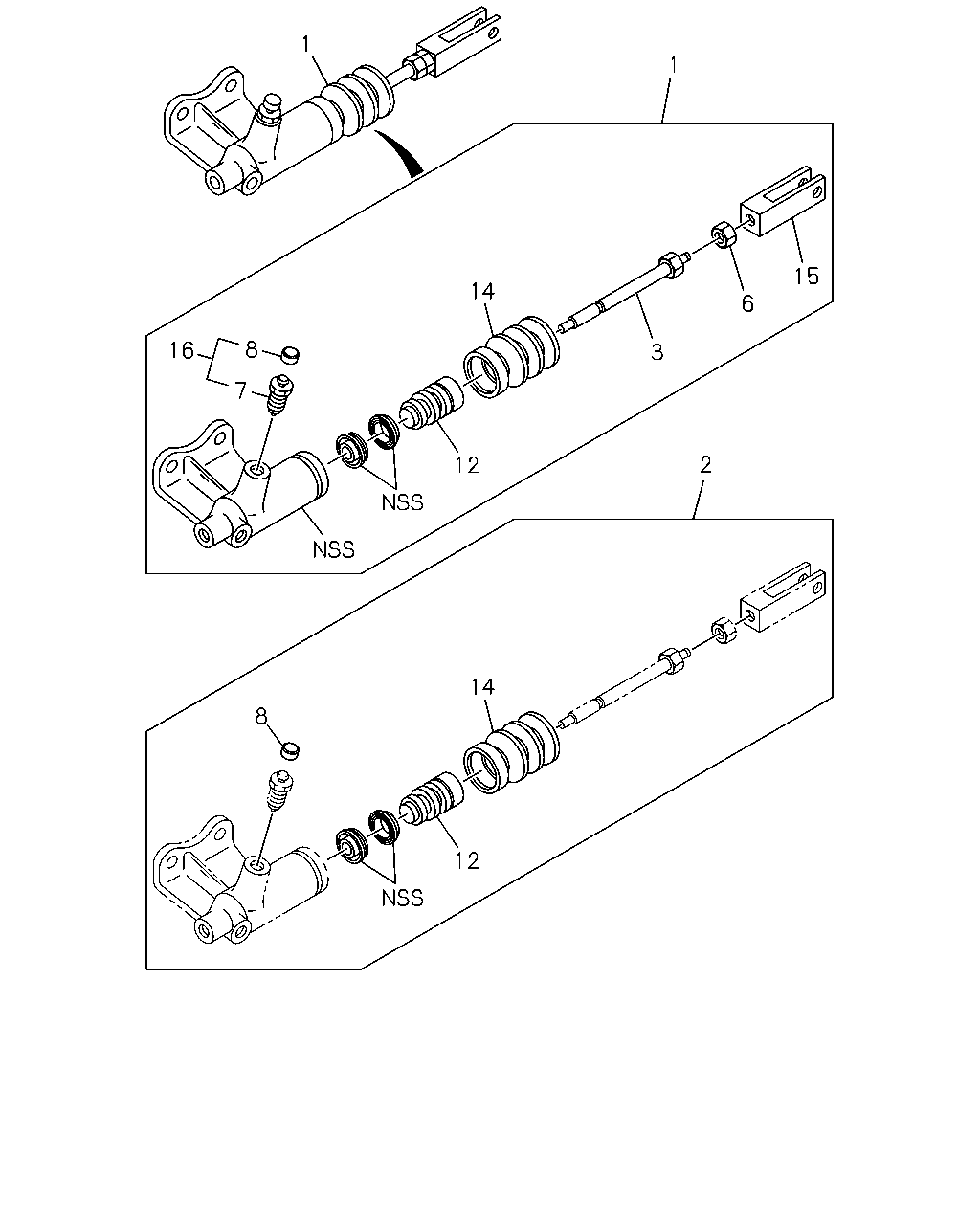

2-06 — CLUTCH SLAVE CYLINDER (#38271) — 32 parça

1 1 15 14 6 8 16 3 7 2 12 14 8 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER; SLAVE,CLU EXC. AIR ASSIST CLUTCH<PK1>	1-47570-050-2	01	1	9510-9701	●
1	CYLINDER; SLAVE,CLU	1-47570-050-2	01	1	9510-9701		●
1	CYLINDER; SLAVE,CLU EXC. AIR ASSIST CLUTCH<PK1>	1-47570-050-3	01	1	9702-	●	●
2	REPAIR KIT; CLU SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1>	1-87830-533-0	01	1	9510-9701	●
2	REPAIR KIT; CLU SLAVE CYL	1-87830-533-0	01	1	9510-9701		●
2	REPAIR KIT; CLU SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1>	1-87830-533-1	01	1	9702-	●	●
3	ROD; PUSH,SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1>	1-47573-005-0	01	1	9510-9701	●
3	ROD; PUSH,SLAVE CYL	1-47573-005-0	01	1	9510-9701		●
3	ROD; PUSH,SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1>	1-47573-005-0	01	1	9702-	●	●
6	NUT; LK,ROD END EXC. AIR ASSIST CLUTCH<PK1> M10	9-09111-410-0	01	1	9510-9701	●
6	NUT; LK,ROD END M10	9-09111-410-0	01	1	9510-9701		●
6	NUT; LK,ROD END EXC. AIR ASSIST CLUTCH<PK1> M10	9-09111-410-0	01	1	9702-0512	●	●
6	NUT; LK,ROD END EXC. AIR ASSIST CLUTCH<PK1> M10	0-91111-510-0	01	1	0601-	●	●
7	SCREW; BLEEDER,SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1>	1-47615-019-0	01	1	9510-9701	●
7	SCREW; BLEEDER,SLAVE CYL	1-47615-019-0	01	1	9510-9701		●
7	SCREW; BLEEDER,SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1>	1-47615-019-0	01	1	9702-	●	●
8	CAP; BLEEDER,SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1> OD=9.5	9-47619-005-0	01	1	9510-9701	●
8	CAP; BLEEDER,SLAVE CYL OD=9.5	9-47619-005-0	01	1	9510-9701		●
8	CAP; BLEEDER,SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1> OD=9.5	9-47619-005-0	01	1	9702-1209	●	●
8	CAP; BLEEDER,SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1> OD=10	8-97940-638-0	01	1	1210-	●	●
12	PISTON; SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1>	1-47572-006-0	01	1	9510-9701	●
12	PISTON; SLAVE CYL	1-47572-006-0	01	1	9510-9701		●
12	PISTON; SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1>	1-47572-006-0	01	1	9702-	●	●
14	BOOT; SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1>	1-47579-048-0	01	1	9510-9701	●
14	BOOT; SLAVE CYL	1-47579-048-0	01	1	9510-9701		●
14	BOOT; SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1>	1-47579-048-0	01	1	9702-	●	●
15	JOINT; JAW,SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1>	1-47579-014-1	01	1	9510-9701	●
15	JOINT; JAW,SLAVE CYL	1-47579-014-1	01	1	9510-9701		●
15	JOINT; JAW,SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1>	1-47579-014-1	01	1	9702-	●	●
16	VALVE; SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1>	9-48410-037-0	01	1	9510-9701	●
16	VALVE; SLAVE CYL	9-48410-037-0	01	1	9510-9701		●
16	VALVE; SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1>	9-48410-037-0	01	1	9702-	●	●
