Sayfa 2-01 - Isuzu EPC

2-01 — CLUTCH (#38268) — 276 parça

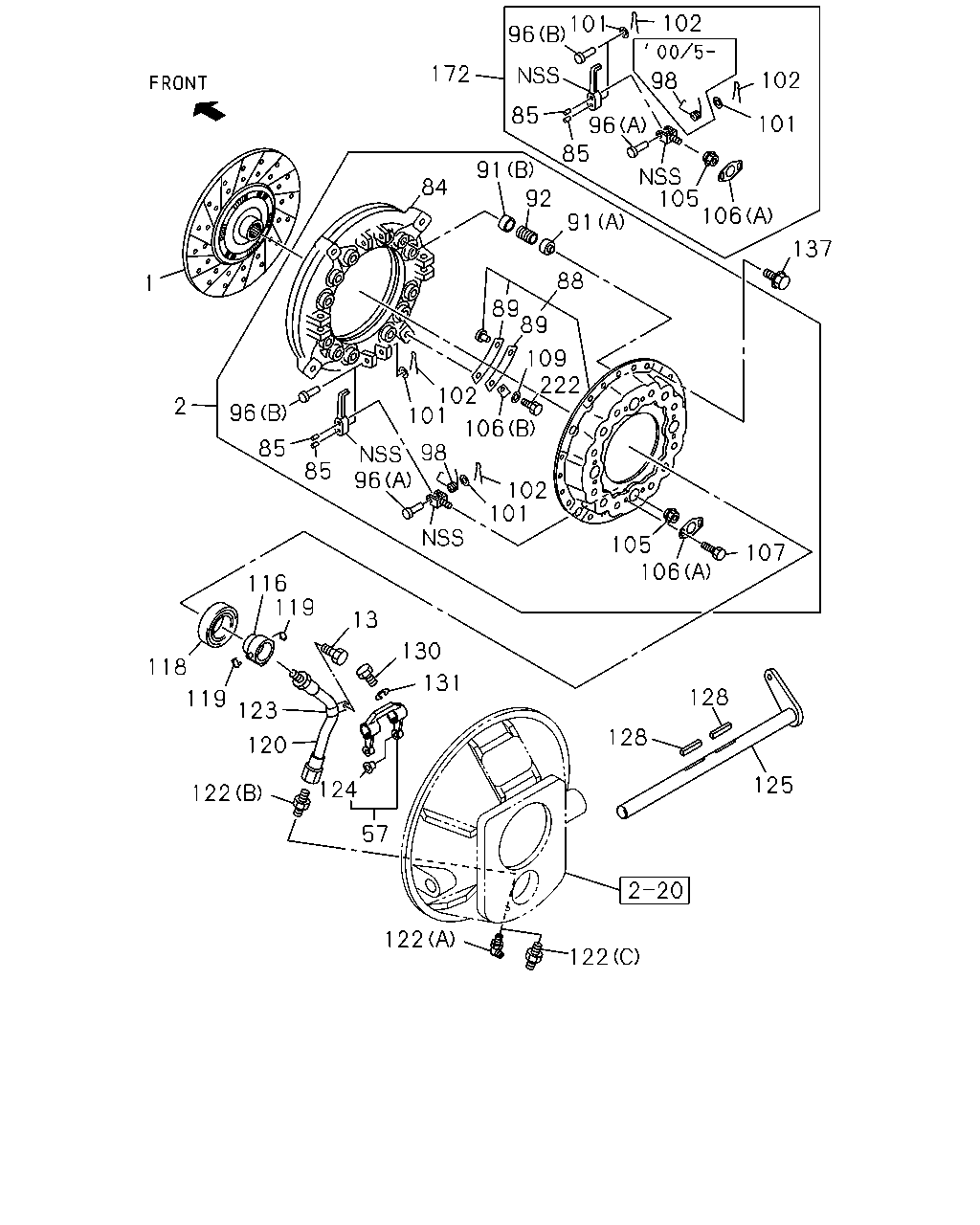

102 101 96 172 102 98 96 85 85 101 91 92 105 106 84 91 137 88 1 89 89 109 222 102 101 2 96 106 96 85 85 102 101 105 106 107 116 119 13 130 118 131 128 119 123 128 120 124 125 122 57 122 122 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	9510-0004	●	●	●	●
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	0005-0105	●	●	●
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	0106-	●	●	●
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-139-0	01	1	0106-	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-291-0	01	1	9510-0109		●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-364-2	01	1	0110-1005		●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-447-0	01	1	1006-		●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-304-0	01	1	9711-0004	●			●
2	PLATE ASM; PRESSURE,CLU	1-31220-304-0	01	1	0005-0109	●
2	PLATE ASM; PRESSURE,CLU	1-31220-365-2	01	1	0110-	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-144-0	01	1	1006-		●	●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9703-0512	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	9510-0004	●	●	●	●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	0005-	●	●	●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	9510-0004	●	●	●	●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	0005-	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9510-0004	●	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0005-	●	●	●
88	COVER SUB ASM; CLU	1-31211-036-0	01	1	9510-0004	●	●	●	●
88	COVER SUB ASM; CLU	1-31211-036-0	01	1	0005-	●	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	9510-0004	●	●	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	0005-	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1006-	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1006-	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9510-0004	●	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0005-1005	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	08	1	1006-		●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9510-0004	●	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0005-1005	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	08	1	1006-		●	●
92	SPRING; CLU	1-09580-234-0	12	1	9510-0308		●	●
92	SPRING; CLU	1-31214-088-0	12	1	0309-1005		●	●
92	SPRING; CLU	1-31214-060-0	08	1	1006-		●	●
92	SPRING; CLU	1-31214-038-0	12	1	9711-0004	●			●
92	SPRING; CLU	1-31214-038-0	12	1	0005-0109	●
92	SPRING; CLU	1-31214-064-0	12	1	0110-	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9510-0004	●	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0005-	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	9510-0004	●	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0005-	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9510-0004	●	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0005-	●	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9510-0004	●	●	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0005-	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9510-0004	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0005-	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9510-0004	●	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	0005-0109	●	●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308	●	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-	●	●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	9510-0004	●	●	●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	0005-0109	●	●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	0110-		●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	9510-0004	●	●	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0005-	●	●	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	0110-	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9510-0004	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0005-0308	●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-	●	●	●
109	WASHER; LK,STRAP ID=10.2	9-09150-510-0	04	1	9510-0004	●	●	●	●
109	WASHER; LK,STRAP ID=10.2	9-09150-510-0	04	1	0005-0603	●	●	●
109	WASHER; LK,STRAP ID=10.2	0-91510-510-0	04	1	0604-	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-070-2	01	1	9510-0004		●	●	●
116	BLOCK; SHIFT,CLU	1-31321-070-3	01	1	0005-		●	●
116	BLOCK; SHIFT,CLU	1-31321-052-3	01	1	9703-	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9510-0004	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	0005-0111	●	●	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-	●	●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-148-0	01	1	0112-	●	●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9510-0004	●	●	●	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	0005-	●	●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9510-0004	●	●	●	●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	0005-	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=170	1-09364-869-0	01	1	9510-0004		●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=170	1-09364-869-0	01	1	0005-		●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9703-0003	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9510-0004		●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0005-0512		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	9510-0004	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0005-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 STRAIGHT	9-09031-010-0	01	1	9703-0512	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9703-0606	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0005-	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9510-0004	●	●	●	●
125	SHAFT; CLU	1-31342-273-0	01	1	9510-9803		●	●	●
125	SHAFT; CLU AIR ASSIST CLUTCH<PK1>	1-31342-273-0	01	1	9804-0004		●	●
125	SHAFT; CLU	1-31342-273-0	01	1	9804-0004				●
125	SHAFT; CLU AIR ASSIST CLUTCH<PK1>	1-31342-273-0	01	1	0005-			●
125	SHAFT; CLU EXC. AIR ASSIST CLUTCH<PK1>	1-31342-299-0	01	1	9804-		●	●
125	SHAFT; CLU	1-31342-169-1	01	1	9703-	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9510-0004	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0005-	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9510-0004	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0005-0512	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9510-0004	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0005-0603	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9510-0004	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0005-0403	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	24	1	0404-0512	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0601-0601	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0601-0601	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-902-1	01	1	0005-0306	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-173-1	01	1	0307-	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-620-0	01	1	9510-0004	●	●	●	●
222	BOLT; STRAP M10X26 HEX SOCKET	1-09040-101-0	04	1	9510-0004	●	●	●	●
222	BOLT; STRAP M10X26 HEX SOCKET	1-09040-101-0	04	1	0005-0109	●	●	●
222	BOLT; STRAP	1-31239-059-0	04	1	0110-	●	●	●

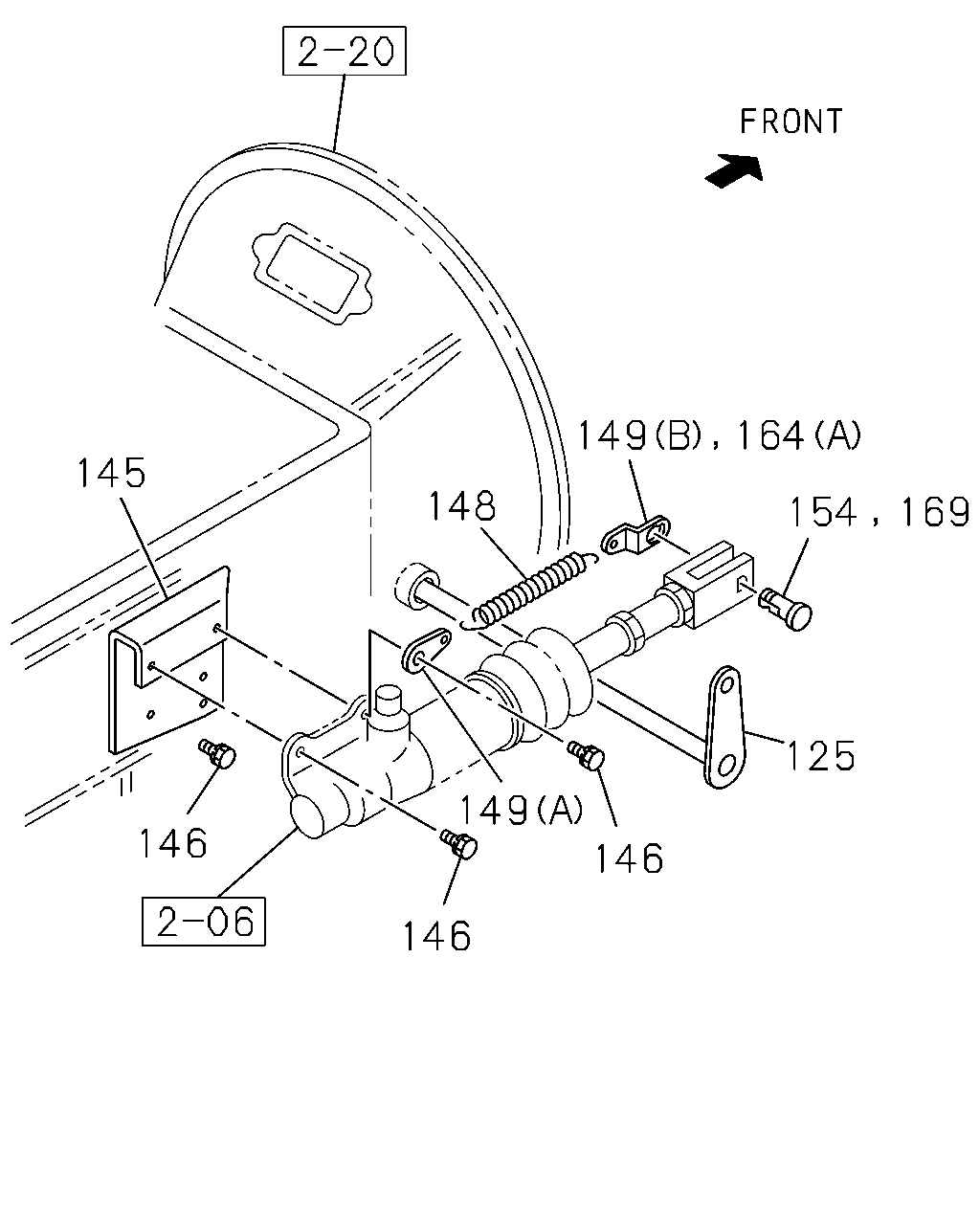

149 164 145 148 154 169 125 149 146 146 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
125	SHAFT; CLU	1-31342-273-0	01	1	9510-9803		●	●	●
125	SHAFT; CLU AIR ASSIST CLUTCH<PK1>	1-31342-273-0	01	1	9804-0004		●	●
125	SHAFT; CLU	1-31342-273-0	01	1	9804-0004				●
125	SHAFT; CLU AIR ASSIST CLUTCH<PK1>	1-31342-273-0	01	1	0005-			●
125	SHAFT; CLU EXC. AIR ASSIST CLUTCH<PK1>	1-31342-299-0	01	1	9804-		●	●
125	SHAFT; CLU	1-31342-169-1	01	1	9703-	●
145	BRACKET; SLAVE CYL,OIL CLU EXC. AIR ASSIST CLUTCH<PK1>	1-47579-054-0	01	1	9510-9701		●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-054-0	01	1	9510-9701			●
145	BRACKET; SLAVE CYL,OIL CLU EXC. AIR ASSIST CLUTCH<PK1>	1-47579-054-0	01	1	9702-9803		●	●
145	BRACKET; SLAVE CYL,OIL CLU EXC. AIR ASSIST CLUTCH<PK1>	1-47579-059-0	01	1	9804-		●	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. AIR ASSIST CLUTCH<PK1> M10X25 FLANGE	0-28181-025-0	04	1	9510-9701		●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	9510-9701			●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. AIR ASSIST CLUTCH<PK1> M10X25 FLANGE	0-28181-025-0	04	1	9702-0512		●	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. AIR ASSIST CLUTCH<PK1> M10X25 FLANGE	0-28151-025-0	04	1	0601-		●	●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> L=241	1-09583-226-0	01	1	9510-9701		●
148	SPRING; CLU RETURN L=241	1-09583-226-0	01	1	9510-9701				●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> TRANSMISSION FRONT PTO(RC2) L=241	1-09583-226-0	01	1	9702-9802		●
148	SPRING; CLU RETURN L=241	1-09583-226-0	01	1	9702-9802				●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> L=241	1-09583-226-0	01	1	9803-0004		●
148	SPRING; CLU RETURN L=241	1-09583-226-0	01	1	9803-0004				●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> EXC. TRANSMISSION FRONT PTO(RC2) L=137.7	1-09583-284-0	01	1	9702-9710		●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> L=137.7	1-09583-284-0	01	1	9702-9710			●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> EXC. TRANSMISSION FRONT PTO(RC2) L=135	1-09583-305-0	01	1	9711-9802		●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> L=135	1-09583-305-0	01	1	9711-9802			●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> L=135	1-09583-305-0	01	1	9803-			●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9803-	●
148	SPRING; CLU RETURN EXC. AIR ASSIST CLUTCH<PK1>	1-09583-249-0	01	1	9510-9701		●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9510-9701			●
148	SPRING; CLU RETURN EXC. AIR ASSIST CLUTCH<PK1>	1-09583-249-0	01	1	9702-		●	●
148	SPRING; CLU RETURN	9-09942-530-1	01	1	9703-9802	●
149	EYE; SPRING,RETURN SPRING EXC. AIR ASSIST CLUTCH<PK1> (B)	1-31426-019-1	01	1	9510-9701		●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	9510-9701			●
149	EYE; SPRING,RETURN SPRING EXC. AIR ASSIST CLUTCH<PK1> (B)	1-31426-019-1	01	1	9702-		●	●
149	EYE; SPRING,RETURN SPRING EXC. AIR ASSIST CLUTCH<PK1> (A) T=2.3	1-47324-005-1	01	1	9510-9701		●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	9510-9701			●
149	EYE; SPRING,RETURN SPRING EXC. AIR ASSIST CLUTCH<PK1> (A) T=2.3	1-47324-005-1	01	1	9702-		●	●
154	PIN; JAW JOINT EXC. AIR ASSIST CLUTCH<PK1>	1-31424-009-0	01	1	9510-9701		●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9510-9701			●
154	PIN; JAW JOINT EXC. AIR ASSIST CLUTCH<PK1>	1-31424-009-0	01	1	9702-		●	●
164	EYE; SPRING AIR ASSIST CLUTCH<PK1> EXC. TRANSMISSION FRONT PTO(RC2) (C)	1-31426-041-0	01	1	9709-9802		●
164	EYE; SPRING AIR ASSIST CLUTCH<PK1> (C)	1-31426-041-0	01	1	9709-9802			●
164	EYE; SPRING AIR ASSIST CLUTCH<PK1> (A)	1-31426-019-1	01	1	9803-0004		●
164	EYE; SPRING (A)	1-31426-019-1	01	1	9803-0004				●
164	EYE; SPRING (A)	1-31426-019-1	01	1	9510-9802	●			●
164	EYE; SPRING AIR ASSIST CLUTCH<PK1> (C)	1-31426-041-0	01	1	9803-			●
164	EYE; SPRING (C)	1-31426-041-0	01	1	9803-	●
164	EYE; SPRING (B) L=85	1-47477-788-0	01	1	9703-9802	●
164	EYE; SPRING (D)	1-47477-789-0	01	1	9803-	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	9510-0004	●	●	●	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0005-	●	●	●

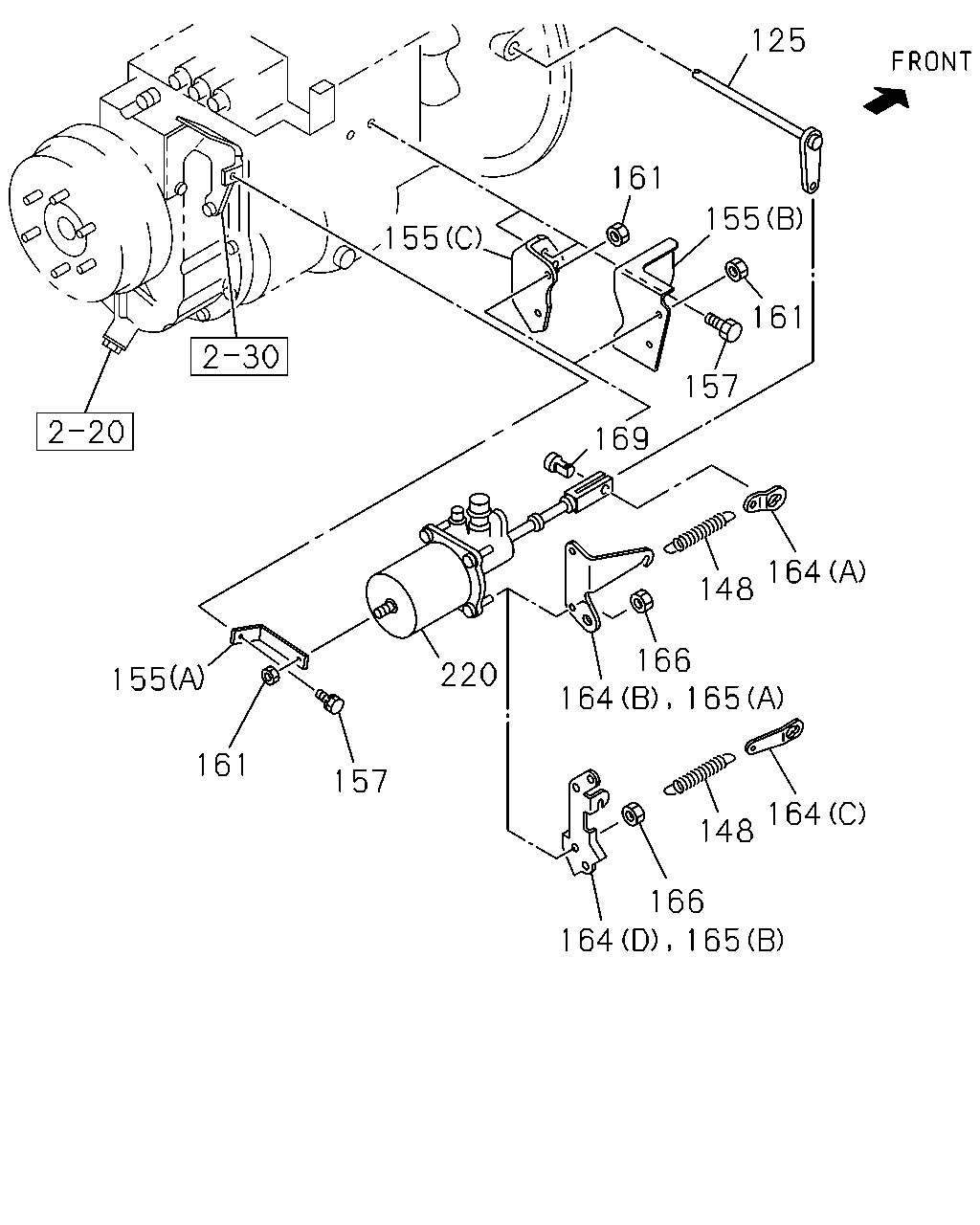

125 161 155 155 161 157 169 164 148 166 164 165 220 155 161 157 164 148 166 164 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
125	SHAFT; CLU	1-31342-273-0	01	1	9510-9803		●	●	●
125	SHAFT; CLU AIR ASSIST CLUTCH<PK1>	1-31342-273-0	01	1	9804-0004		●	●
125	SHAFT; CLU	1-31342-273-0	01	1	9804-0004				●
125	SHAFT; CLU AIR ASSIST CLUTCH<PK1>	1-31342-273-0	01	1	0005-			●
125	SHAFT; CLU EXC. AIR ASSIST CLUTCH<PK1>	1-31342-299-0	01	1	9804-		●	●
125	SHAFT; CLU	1-31342-169-1	01	1	9703-	●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> L=241	1-09583-226-0	01	1	9510-9701		●
148	SPRING; CLU RETURN L=241	1-09583-226-0	01	1	9510-9701				●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> TRANSMISSION FRONT PTO(RC2) L=241	1-09583-226-0	01	1	9702-9802		●
148	SPRING; CLU RETURN L=241	1-09583-226-0	01	1	9702-9802				●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> L=241	1-09583-226-0	01	1	9803-0004		●
148	SPRING; CLU RETURN L=241	1-09583-226-0	01	1	9803-0004				●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> EXC. TRANSMISSION FRONT PTO(RC2) L=137.7	1-09583-284-0	01	1	9702-9710		●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> L=137.7	1-09583-284-0	01	1	9702-9710			●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> EXC. TRANSMISSION FRONT PTO(RC2) L=135	1-09583-305-0	01	1	9711-9802		●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> L=135	1-09583-305-0	01	1	9711-9802			●
148	SPRING; CLU RETURN AIR ASSIST CLUTCH<PK1> L=135	1-09583-305-0	01	1	9803-			●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9803-	●
148	SPRING; CLU RETURN EXC. AIR ASSIST CLUTCH<PK1>	1-09583-249-0	01	1	9510-9701		●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9510-9701			●
148	SPRING; CLU RETURN EXC. AIR ASSIST CLUTCH<PK1>	1-09583-249-0	01	1	9702-		●	●
148	SPRING; CLU RETURN	9-09942-530-1	01	1	9703-9802	●
155	BRACKET; MINIPACK AIR ASSIST CLUTCH<PK1> (A)	1-31429-353-0	01	1	9510-9708		●
155	BRACKET; MINIPACK (A)	1-31429-353-0	01	1	9510-9708				●
155	BRACKET; MINIPACK AIR ASSIST CLUTCH<PK1> (A)	1-31429-353-0	01	1	9709-0004		●	●
155	BRACKET; MINIPACK (A)	1-31429-353-0	01	1	9709-0004				●
155	BRACKET; MINIPACK AIR ASSIST CLUTCH<PK1> (A)	1-31429-353-0	01	1	0005-			●
155	BRACKET; MINIPACK AIR ASSIST CLUTCH<PK1> (B)	1-31429-359-0	01	1	9510-9701		●
155	BRACKET; MINIPACK (B)	1-31429-359-0	01	1	9510-9701				●
155	BRACKET; MINIPACK AIR ASSIST CLUTCH<PK1> TRANSMISSION FRONT PTO(RC2) (B)	1-31429-359-0	01	1	9702-9802		●
155	BRACKET; MINIPACK (B)	1-31429-359-0	01	1	9702-9802				●
155	BRACKET; MINIPACK AIR ASSIST CLUTCH<PK1> (B)	1-31429-359-0	01	1	9803-0004		●
155	BRACKET; MINIPACK (B)	1-31429-359-0	01	1	9803-0004				●
155	BRACKET; MINIPACK AIR ASSIST CLUTCH<PK1> EXC. TRANSMISSION FRONT PTO(RC2) (C)	1-31429-352-0	01	1	9702-9802		●
155	BRACKET; MINIPACK AIR ASSIST CLUTCH<PK1> (C)	1-31429-352-0	01	1	9702-9802			●
155	BRACKET; MINIPACK AIR ASSIST CLUTCH<PK1> (C)	1-31429-352-0	01	1	9803-			●
155	BRACKET; MINIPACK (B)	1-31429-175-2	01	1	9703-	●
155	BRACKET; MINIPACK (A)	1-31429-176-0	01	1	9703-	●
157	BOLT; BRKT AIR ASSIST CLUTCH<PK1> M10X18 FLANGE	0-28181-018-0	03	1	9510-9604		●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9510-9604				●
157	BOLT; BRKT AIR ASSIST CLUTCH<PK1> M10X18 FLANGE	0-28181-018-0	02	1	9605-9708		●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	02	1	9605-9708				●
157	BOLT; BRKT AIR ASSIST CLUTCH<PK1> M10X18 FLANGE	0-28181-018-0	02	1	9709-0004		●	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	02	1	9709-0004				●
157	BOLT; BRKT AIR ASSIST CLUTCH<PK1> M10X18 FLANGE	0-28181-018-0	02	1	0005-			●
157	BOLT; BRKT AIR ASSIST CLUTCH<PK1> M10X25 FLANGE	0-28181-025-0	01	1	9605-9708		●
157	BOLT; BRKT M10X25 FLANGE	0-28181-025-0	01	1	9605-9708				●
157	BOLT; BRKT AIR ASSIST CLUTCH<PK1> M10X25 FLANGE	0-28181-025-0	01	1	9709-0004		●	●
157	BOLT; BRKT M10X25 FLANGE	0-28181-025-0	01	1	9709-0004				●
157	BOLT; BRKT AIR ASSIST CLUTCH<PK1> M10X25 FLANGE	0-28181-025-0	01	1	0005-0512			●
157	BOLT; BRKT AIR ASSIST CLUTCH<PK1> M10X25 FLANGE	0-28151-025-0	01	1	0601-			●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9703-	●
161	NUT; BRKT AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-208-0	03	1	9510-9702		●
161	NUT; BRKT M8 FLANGE	0-91150-208-0	03	1	9510-9702				●
161	NUT; BRKT AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-208-0	03	1	9703-9708		●
161	NUT; BRKT M8 FLANGE	0-91150-208-0	03	1	9703-9708	●			●
161	NUT; BRKT AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-208-0	03	1	9709-0004		●	●
161	NUT; BRKT M8 FLANGE	0-91150-208-0	03	1	9709-0004	●			●
161	NUT; BRKT AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-208-0	03	1	0005-0602			●
161	NUT; BRKT M8 FLANGE	0-91150-208-0	03	1	0005-0602	●
161	NUT; BRKT AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-208-0	03	1	0603-			●
161	NUT; BRKT M8 FLANGE	0-91180-208-0	03	1	0603-	●
164	EYE; SPRING AIR ASSIST CLUTCH<PK1> EXC. TRANSMISSION FRONT PTO(RC2) (C)	1-31426-041-0	01	1	9709-9802		●
164	EYE; SPRING AIR ASSIST CLUTCH<PK1> (C)	1-31426-041-0	01	1	9709-9802			●
164	EYE; SPRING AIR ASSIST CLUTCH<PK1> (A)	1-31426-019-1	01	1	9803-0004		●
164	EYE; SPRING (A)	1-31426-019-1	01	1	9803-0004				●
164	EYE; SPRING (A)	1-31426-019-1	01	1	9510-9802	●			●
164	EYE; SPRING AIR ASSIST CLUTCH<PK1> (C)	1-31426-041-0	01	1	9803-			●
164	EYE; SPRING (C)	1-31426-041-0	01	1	9803-	●
164	EYE; SPRING (B) L=85	1-47477-788-0	01	1	9703-9802	●
164	EYE; SPRING (D)	1-47477-789-0	01	1	9803-	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE AIR ASSIST CLUTCH<PK1> (A) L=85	1-47476-574-0	01	1	9510-9603		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE (A) L=85	1-47476-574-0	01	1	9510-9603				●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE AIR ASSIST CLUTCH<PK1> (A) L=85	1-47477-788-0	01	1	9604-0004		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE (A) L=85	1-47477-788-0	01	1	9604-0004				●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE AIR ASSIST CLUTCH<PK1> EXC. TRANSMISSION FRONT PTO(RC2) (B)	1-47477-789-0	01	1	9709-9802		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE AIR ASSIST CLUTCH<PK1> (B)	1-47477-789-0	01	1	9709-9802			●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE AIR ASSIST CLUTCH<PK1> (B)	1-47477-789-0	01	1	9803-			●
166	NUT; SPRING EYE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-208-0	02	1	9510-9702		●
166	NUT; SPRING EYE M8 FLANGE	0-91150-208-0	02	1	9510-9702				●
166	NUT; SPRING EYE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-208-0	02	1	9703-9708		●
166	NUT; SPRING EYE M8 FLANGE	0-91150-208-0	02	1	9703-9708	●			●
166	NUT; SPRING EYE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-208-0	02	1	9709-0004		●	●
166	NUT; SPRING EYE M8 FLANGE	0-91150-208-0	02	1	9709-0004	●			●
166	NUT; SPRING EYE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-208-0	02	1	0005-0602			●
166	NUT; SPRING EYE M8 FLANGE	0-91150-208-0	02	1	0005-0602	●
166	NUT; SPRING EYE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91180-208-0	02	1	0603-			●
166	NUT; SPRING EYE M8 FLANGE	0-91180-208-0	02	1	0603-	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	9510-0004	●	●	●	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0005-	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. AIR ASSIST CLUTCH<PK1>	1-31800-389-0	01	1	9510-9701		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-389-0	01	1	9510-9701				●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. AIR ASSIST CLUTCH<PK1> TRANSMISSION FRONT PTO(RC2)	1-31800-389-0	01	1	9702-9802		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-389-0	01	1	9702-9802				●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. AIR ASSIST CLUTCH<PK1>	1-31800-389-0	01	1	9803-0004		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-389-0	01	1	9803-0004				●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. AIR ASSIST CLUTCH<PK1> EXC. TRANSMISSION FRONT PTO(RC2)	1-31800-388-0	01	1	9702-9802		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. AIR ASSIST CLUTCH<PK1>	1-31800-388-0	01	1	9702-9802			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. AIR ASSIST CLUTCH<PK1>	1-31800-388-3	01	1	9803-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-383-3	01	1	9703-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. AIR ASSIST CLUTCH<PK1> BEST VALUE PARTS	1-87610-083-0	01	1	9510-9701		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-083-0	01	1	9510-9701				●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. AIR ASSIST CLUTCH<PK1> TRANSMISSION FRONT PTO(RC2) BEST VALUE PARTS	1-87610-083-0	01	1	9702-9802		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-083-0	01	1	9702-9802				●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. AIR ASSIST CLUTCH<PK1> BEST VALUE PARTS	1-87610-083-0	01	1	9803-0004		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-083-0	01	1	9803-0004				●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. AIR ASSIST CLUTCH<PK1> EXC. TRANSMISSION FRONT PTO(RC2) BEST VALUE PARTS	1-87610-083-0	01	1	9702-9802		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. AIR ASSIST CLUTCH<PK1> BEST VALUE PARTS	1-87610-083-0	01	1	9702-9802			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. AIR ASSIST CLUTCH<PK1> BEST VALUE PARTS	1-87610-083-0	01	1	9803-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-083-0	01	1	9703-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
