1-50 — EXHAUST PIPE AND SILENCER (#38265) — 747 parça
çizim 151622
1 476 475 475 476 36 36 34 36 34 34 36 1 17 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK> EURO2 SPECIFICATION<THN> 		1-22123-315-0 01 1 0305- ●
1 PIPE; EXH 1-22122-733-1 01 1 9510-0004 ● ●
1 PIPE; EXH 1-22122-733-2 01 1 0005- ●
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> 		1-22122-382-1 01 1 9510-0004 ● ●
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-382-1 01 1 0005- ● ●
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK> EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-22122-382-1 01 1 0005- ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> 		1-22122-650-1 01 1 9510-0004 ● ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-650-1 01 1 0005-0010 ● ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-650-1 01 1 0011-0105 ● ●
1 PIPE; EXH
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-22122-650-1 01 1 0011-0105 ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-650-1 01 1 0106- ● ●
1 PIPE; EXH 1-22122-929-1 01 1 9710-9805 ●
1 PIPE; EXH
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22122-929-3 01 1 9806- ●
1 PIPE; EXH
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22123-166-3 01 1 9806- ●
1 PIPE; EXH
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-22123-495-0 01 1 0106- ●
1 PIPE; EXH
EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22123-316-0 01 1 0305- ●
5 PROTECTOR; HEAT
PARKING BRAKE DRUM 8.5"(B1S) 		1-33659-182-1 01 1 9510-9701 ● ● ● ●
5 PROTECTOR; HEAT
PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) 		1-33659-182-1 01 1 9702- ● ● ● ● ● ●
17 BOLT; EXH PIPE
KD PREPARATORY PACK<6HF> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M12X35 FLANGE 		0-28051-235-0 04 1 1204- ● ●
17 BOLT; EXH PIPE
(A) M12X110 		1-09000-290-0 01 1 9510-0004 ● ● ●
17 BOLT; EXH PIPE
(A) M12X110 		1-09000-290-0 01 1 0005-0401 ● ●
17 BOLT; EXH PIPE
(A) M12X120 		1-09000-293-0 01 1 0402- ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9510-0004 ● ● ● ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 0005-0410 ● ● ● ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411- ● ● ● ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 03 1 9510-0004 ● ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 03 1 0005- ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 9510-0004 ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 0005- ● ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-0 02 1 9510-0004 ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-0 02 1 0005-0105 ● ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-0 02 1 0106-0305 ● ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-1 02 1 0306- ● ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=112 		1-22119-294-1 01 1 0005- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=112 		1-22119-294-0 01 1 9510-0004 ● ● ●
476 SPRING; VIBNON,EXH PIPE 1-09583-298-0 02 1 9510-0004 ● ●
476 SPRING; VIBNON,EXH PIPE 1-09583-298-0 02 1 0005- ● ● ●
476 SPRING; VIBNON,EXH PIPE 8-94141-851-0 02 1 0005- ● ●
476 SPRING; VIBNON,EXH PIPE 8-94141-851-0 02 1 9510-0004 ● ● ●

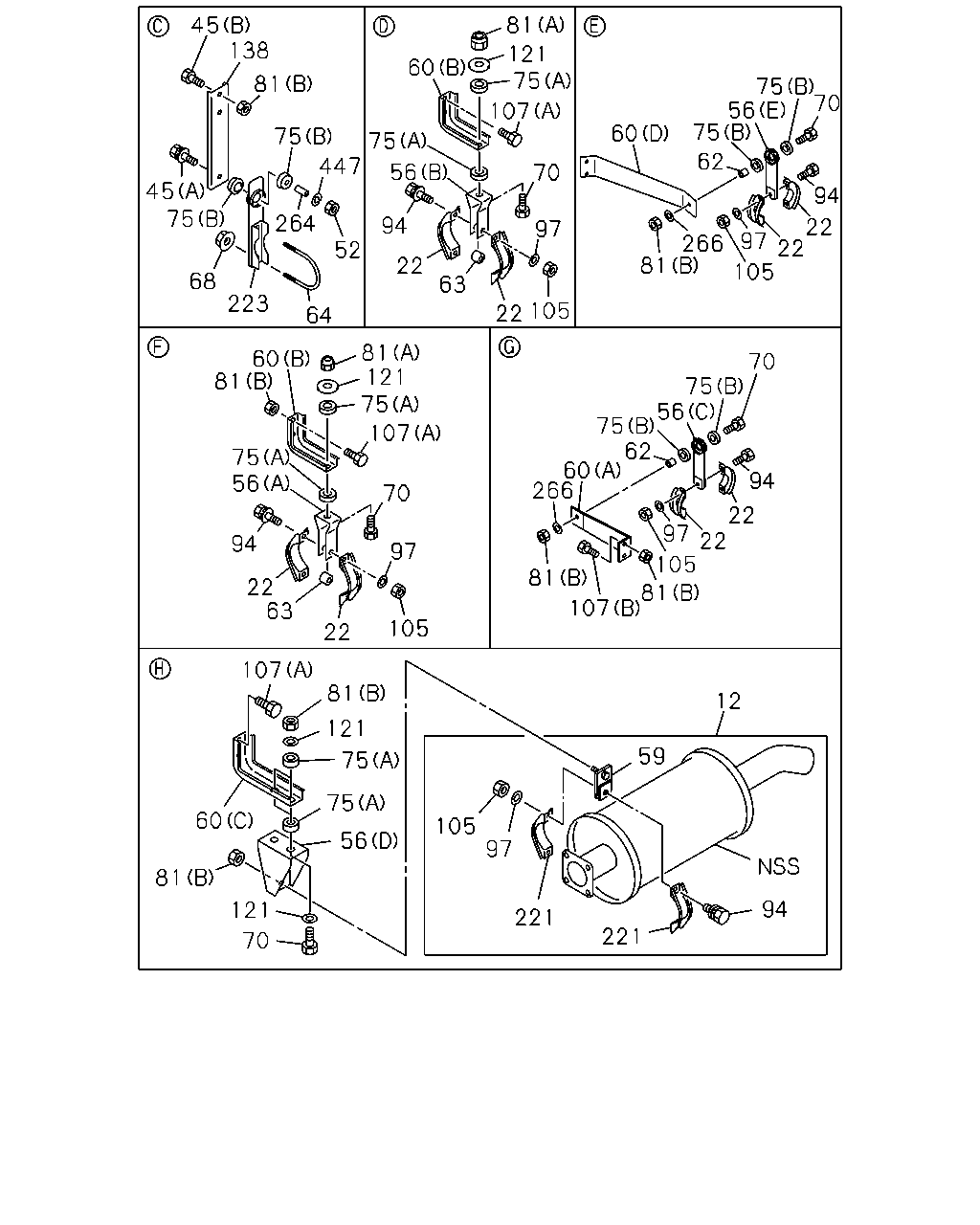

çizim 151629
81 45 138 121 75 60 81 75 70 56 75 107 60 75 75 447 62 56 70 45 75 94 266 81 264 94 22 22 105 97 97 52 22 68 63 223 22 105 64 81 121 75 60 81 70 75 56 75 62 107 75 56 60 266 94 70 22 22 105 81 107 97 94 97 81 22 63 105 22 107 81 12 121 59 75 75 60 105 56 97 81 94 121 221 221 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 SILENCER ASM; EXH
ANTI NOISE EQUIPMENT ECE<SLK> SAUDI ARABIA EQUIPMENT(WH1) 		1-22141-074-0 01 1 0211- ●
12 SILENCER ASM; EXH 1-22140-723-1 01 1 9510-9805 ● ●
12 SILENCER ASM; EXH 1-22140-723-1 01 1 9806-0004 ● ●
12 SILENCER ASM; EXH
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22140-723-1 01 1 9806-0004 ●
12 SILENCER ASM; EXH 1-22140-723-2 01 1 0005- ●
12 SILENCER ASM; EXH
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22140-723-2 01 1 0005- ●
12 SILENCER ASM; EXH 1-22140-752-0 01 1 9510-9807 ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 9808-0004 ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 0005-0010 ● ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 0011-0205 ● ●
12 SILENCER ASM; EXH
EXC. EURO2 SPECIFICATION<THN> 		1-22140-873-0 01 1 0011-0205 ●
12 SILENCER ASM; EXH 1-22140-880-0 01 1 0206-0210 ● ●
12 SILENCER ASM; EXH
EXC. EURO2 SPECIFICATION<THN> 		1-22140-880-0 01 1 0206-0210 ●
12 SILENCER ASM; EXH
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-22140-880-0 01 1 0211- ● ●
12 SILENCER ASM; EXH
EXC. EURO2 SPECIFICATION<THN> 		1-22140-880-0 01 1 0211- ●
12 SILENCER ASM; EXH 1-22140-846-3 01 1 9710-9805 ●
12 SILENCER ASM; EXH
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22140-846-4 01 1 9806- ●
22 CLAMP; EXH PIPE
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> ID=80-84 		1-22133-233-0 04 1 0310- ● ● ●
22 CLAMP; EXH PIPE
REAR ID=94-98 		1-22133-237-0 02 1 9510-9612 ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9510-9805 ● ● ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9510-9805 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9510-9805 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9806-0004 ● ● ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9806-0004 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9806-0004 ● ●
22 CLAMP; EXH PIPE
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> ID=80-84 		1-22133-233-0 02 1 9806-0004 ●
22 CLAMP; EXH PIPE
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> ID=80-84 		1-22133-233-0 02 1 0005-0309 ● ● ● ● ● ●
22 CLAMP; EXH PIPE
EXC. EURO2 SPECIFICATION<THN> ID=80-84 		1-22133-233-0 02 1 0005-0309 ● ● ● ● ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0005-0309 ● ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0005-0309 ● ● ●
22 CLAMP; EXH PIPE
EXC. EURO2 SPECIFICATION<THN> ID=80-84 		1-22133-233-0 02 1 0005-0309 ●
22 CLAMP; EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> ID=80-84 		1-22133-233-0 02 1 0310- ● ● ●
22 CLAMP; EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> ID=80-84 		1-22133-233-0 02 1 0310- ● ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0310- ● ● ●
22 CLAMP; EXH PIPE
EXC. EURO2 SPECIFICATION<THN> ID=80-84 		1-22133-233-0 02 1 0310- ●
22 CLAMP; EXH PIPE
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> ID=80-84 		1-22133-233-0 02 1 0310- ●
22 CLAMP; EXH PIPE
EURO2 SPECIFICATION<THN> ID=80-84 		1-22133-233-0 02 1 0310- ●
22 CLAMP; EXH PIPE
REAR ID=94-98 		1-22133-237-0 02 1 9701-9805 ● ● ●
22 CLAMP; EXH PIPE
REAR ID=94-98 		1-22133-237-0 02 1 9806-0004 ● ● ●
22 CLAMP; EXH PIPE
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> REAR ID=94-98 		1-22133-237-0 02 1 9806-0004 ●
22 CLAMP; EXH PIPE
REAR ID=94-98 		1-22133-237-0 02 1 0005- ● ●
22 CLAMP; EXH PIPE
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> REAR ID=94-98 		1-22133-237-0 02 1 0005- ●
45 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) M10X50 FLANGE 		0-28081-050-0 01 1 9806-0512 ●
45 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) M10X50 FLANGE 		0-28051-050-0 01 1 0601- ●
45 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X25 FLANGE 		0-28681-025-0 02 1 9806-0512 ●
45 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
52 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10 FLANGE 		0-91150-210-0 01 1 9806-0602 ●
52 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10 FLANGE 		0-91180-210-0 01 1 0603- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (C) L=254 		1-22131-527-1 01 1 0005- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> (A) H=125 		1-22139-048-0 01 1 0310- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> (A) H=135 		1-22139-054-0 01 1 0310- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-082-0 01 1 9510-9612 ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-082-0 01 1 9510-9612 ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-082-0 01 1 9701-9709 ● ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-082-0 01 1 9701-9709 ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-082-0 01 1 9710-9805 ● ● ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-082-0 01 1 9710-9805 ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-082-0 01 1 9806-0004 ● ● ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-082-0 01 1 9806-0004 ● ●
56 BRACKET; CLAMP,EXH PIPE
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) 		1-22139-082-0 01 1 9806-0004 ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-082-0 01 1 0005-0309 ● ● ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-082-0 01 1 0005-0309 ● ●
56 BRACKET; CLAMP,EXH PIPE
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) 		1-22139-082-0 01 1 0005-0309 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) 		1-22139-082-0 01 1 0310- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-22139-082-0 01 1 0310- ●
56 BRACKET; CLAMP,EXH PIPE
EXC. EURO2 SPECIFICATION<THN> (A) 		1-22139-082-0 01 1 0310- ●
56 BRACKET; CLAMP,EXH PIPE
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> (A) 		1-22139-082-0 01 1 0310- ●
56 BRACKET; CLAMP,EXH PIPE
EURO2 SPECIFICATION<THN> (A) 		1-22139-082-0 01 1 0310- ●
56 BRACKET; CLAMP,EXH PIPE
(B) H=119 		1-22139-060-0 01 1 9510-0004 ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) H=119 		1-22139-060-0 01 1 0005-0309 ● ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (B) H=119 		1-22139-060-0 01 1 0310- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
EURO2 SPECIFICATION<THN> (B) H=119 		1-22139-060-0 01 1 0310- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (C) 		1-22131-528-1 01 1 9510-0004 ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (C) 		1-22131-528-1 01 1 0005- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (C) L=254 		1-22131-527-1 01 1 9510-0004 ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22139-114-1 01 1 9710-9805 ●
56 BRACKET; CLAMP,EXH PIPE
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (D) 		1-22139-114-1 01 1 9806-0205 ●
56 BRACKET; CLAMP,EXH PIPE
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (D) 		1-22139-197-0 01 1 0206- ●
56 BRACKET; CLAMP,EXH PIPE
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E) L=141 		1-22131-526-1 01 1 9806- ●
59 BRACKET; EXH SILENCER,FRT 1-22139-098-0 01 1 9710-9805 ●
59 BRACKET; EXH SILENCER,FRT
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22139-098-0 01 1 9806- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) 		1-22131-514-0 01 1 0005- ● ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (B) 		1-22151-679-1 01 1 0310- ● ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (B) 		1-22151-679-1 01 1 0310- ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-1 01 1 0310- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-1 01 1 0310- ●
60 BRACKET; FRAME TO BRKT
EURO2 SPECIFICATION<THN> (B) 		1-22151-679-1 01 1 0310- ● ●
60 BRACKET; FRAME TO BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> (B) 		1-22151-679-1 01 1 0310- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 02 1 9510-9609 ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 9610-9612 ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 9610-9612 ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 9701-9701 ● ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 9701-9701 ● ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 02 1 9702-9709 ● ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 9710-9805 ● ● ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 9710-9805 ● ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 9806-0004 ● ● ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 9806-0004 ● ● ● ●
60 BRACKET; FRAME TO BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) 		1-22151-679-0 01 1 9806-0004 ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 0005-0309 ● ● ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 0005-0309 ● ● ● ●
60 BRACKET; FRAME TO BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) 		1-22151-679-0 01 1 0005-0309 ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 0005-0309 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> (B) 		1-22151-679-1 02 1 0310- ● ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (A) 		1-22131-435-1 01 1 9510-0004 ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (A) 		1-22131-435-1 01 1 0005- ● ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) 		1-22131-514-0 01 1 9510-0004 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		1-22151-691-0 01 1 9710-9805 ●
60 BRACKET; FRAME TO BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) 		1-22151-691-0 01 1 9806- ●
60 BRACKET; FRAME TO BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (D) 		1-22131-741-0 01 1 9806- ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 9510-9805 ● ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 9806-0004 ● ●
62 TUBE; DIST,BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> L=22 		9-22159-024-0 01 1 9806-0004 ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 0005- ● ● ●
62 TUBE; DIST,BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> L=22 		9-22159-024-0 01 1 0005- ●
63 TUBE; DIST,BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> L=11 		1-22139-026-0 02 1 0310- ● ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 02 1 9510-9612 ● ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 02 1 9701-9709 ● ● ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9710-9805 ● ● ● ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9710-9805 ● ● ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9806-0004 ● ● ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9806-0004 ● ● ● ●
63 TUBE; DIST,BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> L=11 		1-22139-026-0 01 1 9806-0004 ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0005-0309 ● ● ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0005-0309 ● ● ● ●
63 TUBE; DIST,BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> L=11 		1-22139-026-0 01 1 0005-0309 ●
63 TUBE; DIST,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> L=11 		1-22139-026-0 01 1 0310- ● ● ●
63 TUBE; DIST,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> L=11 		1-22139-026-0 01 1 0310- ● ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0310- ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0310- ●
63 TUBE; DIST,BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> L=11 		1-22139-026-0 01 1 0310- ●
63 TUBE; DIST,BRKT
EURO2 SPECIFICATION<THN> L=11 		1-22139-026-0 01 1 0310- ●
63 TUBE; DIST,BRKT
L=8.5 		1-22139-057-0 01 1 9710- ●
64 U-BOLT; EXH PIPE,RR
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22139-033-1 01 1 9806-1105 ●
64 U-BOLT; EXH PIPE,RR
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22113-101-0 01 1 1106- ●
68 NUT; U BOLT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M8 FLANGE 		0-91150-208-0 02 1 9806-0602 ●
68 NUT; U BOLT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M8 FLANGE 		0-91180-208-0 02 1 0603- ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 02 1 9510-9612 ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 02 1 9701-9709 ● ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9710-9802 ● ● ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9710-9802 ● ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9803-9805 ● ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9803-9805 ● ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9806-9910 ● ● ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9806-9910 ● ● ● ●
70 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10X50 		0-10806-050-0 01 1 9806-9910 ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9911-0002 ● ● ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9911-0002 ● ● ●
70 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10X50 		0-10806-050-0 01 1 9911-0002 ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0003-0004 ● ● ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0003-0004 ● ● ● ●
70 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10X50 		0-10806-050-0 01 1 0003-0004 ●
70 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 01 1 0005-0204 ● ● ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0005-0204 ● ● ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0005-0204 ● ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0005-0204 ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0205-0309 ● ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0205-0309 ● ● ● ●
70 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10X50 		0-10806-050-0 01 1 0205-0309 ●
70 BOLT; BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 02 1 0310-0512 ● ● ●
70 BOLT; BRKT
EURO2 SPECIFICATION<THN> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10X50 		0-10806-050-0 02 1 0310-0512 ●
70 BOLT; BRKT
EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 02 1 0310-0512 ●
70 BOLT; BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> M10X50 		0-10856-050-0 02 1 0601- ● ● ●
70 BOLT; BRKT
EURO2 SPECIFICATION<THN> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10X50 		0-10856-050-0 02 1 0601- ●
70 BOLT; BRKT
EURO2 SPECIFICATION<THN> M10X50 		0-10856-050-0 02 1 0601- ●
70 BOLT; BRKT
M10X60 FLANGE 		0-28081-060-0 01 1 9610-9705 ● ●
70 BOLT; BRKT
M10X55 		0-10806-055-0 01 1 9706-9805 ● ●
70 BOLT; BRKT
M10X55 		0-10806-055-0 01 1 9806-0004 ● ●
70 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10X55 		0-10806-055-0 01 1 9806-0004 ●
70 BOLT; BRKT
M10X55 		0-10806-055-0 01 1 0005-0204 ● ● ●
70 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10X55 		0-10806-055-0 01 1 0005-0204 ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10X60 FLANGE 		0-28081-060-0 01 1 9607-9609 ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 02 1 9710-9802 ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 03 1 9803-9805 ●
70 BOLT; BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10X50 		0-10806-050-0 02 1 9806-0309 ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0310-0512 ● ● ● ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 01 1 0310-0512 ● ● ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 01 1 0310-0512 ● ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0310-0512 ●
70 BOLT; BRKT
EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 01 1 0310-0512 ● ●
70 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 01 1 0310-0512 ●
70 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 01 1 0310-0512 ●
70 BOLT; BRKT
M10X50 		0-10856-050-0 01 1 0601- ● ● ● ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10X50 		0-10856-050-0 01 1 0601- ● ● ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10X50 		0-10856-050-0 01 1 0601- ● ● ●
70 BOLT; BRKT
M10X50 		0-10856-050-0 01 1 0601- ●
70 BOLT; BRKT
EURO2 SPECIFICATION<THN> M10X50 		0-10856-050-0 01 1 0601- ● ●
70 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> M10X50 		0-10856-050-0 01 1 0601- ●
70 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> M10X50 		0-10856-050-0 01 1 0601- ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B) OD=40 		1-22159-193-0 02 1 0005- ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 04 1 9510-9701 ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 04 1 9702-9709 ● ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9710-9802 ● ● ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9710-9802 ● ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9803-9805 ● ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9803-9805 ● ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9806-0004 ● ● ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9806-0004 ● ● ● ●
75 RUBBER; SUPPORT,BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) OD=30 		1-22159-106-1 02 1 9806-0004 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0005-0309 ● ● ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0005-0309 ● ● ● ●
75 RUBBER; SUPPORT,BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) OD=30 		1-22159-106-1 02 1 0005-0309 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0005-0309 ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> (A) OD=30 		1-22159-106-1 04 1 0310- ● ● ●
75 RUBBER; SUPPORT,BRKT
EURO2 SPECIFICATION<THN> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) OD=30 		1-22159-106-1 04 1 0310- ●
75 RUBBER; SUPPORT,BRKT
EURO2 SPECIFICATION<THN> (A) OD=30 		1-22159-106-1 04 1 0310- ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 3700MM(37W) (B) OD=40 		1-22159-094-0 02 1 9510-0004 ● ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 3700MM(37W) (B) OD=40 		1-22159-094-0 02 1 0005- ● ● ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B) OD=40 		1-22159-193-0 02 1 9510-0004 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 04 1 9710-9802 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 06 1 9803-9805 ●
75 RUBBER; SUPPORT,BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) OD=30 		1-22159-106-1 04 1 9806-0309 ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) OD=30 		1-22159-106-1 02 1 0310- ● ● ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) OD=30 		1-22159-106-1 02 1 0310- ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0310- ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0310- ●
75 RUBBER; SUPPORT,BRKT
EURO2 SPECIFICATION<THN> (A) OD=30 		1-22159-106-1 02 1 0310- ● ●
75 RUBBER; SUPPORT,BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> (A) OD=30 		1-22159-106-1 02 1 0310- ●
75 RUBBER; SUPPORT,BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) OD=40 		1-22159-094-0 04 1 9806- ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 9510-9612 ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 9701-9709 ● ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9710-9802 ● ● ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9710-9802 ● ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9803-9805 ● ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9803-9805 ● ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9806-0004 ● ● ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9806-0004 ● ● ● ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) M10 LOCK NUT 		9-09131-510-0 01 1 9806-0004 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0309 ● ● ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0309 ● ● ● ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0309 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0309 ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 02 1 0310-0603 ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) M10 LOCK NUT 		9-09131-510-0 02 1 0310-0603 ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 02 1 0310-0603 ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ●
81 NUT; BRKT
(B) M10 		9-09110-510-0 01 1 9510-9606 ● ●
81 NUT; BRKT
(B) M10 		9-09110-510-0 02 1 9510-9606 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9607-9805 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9806-0004 ● ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 FLANGE 		0-91150-210-0 02 1 9806-0004 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0005-0403 ● ● ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 FLANGE 		0-91150-210-0 02 1 0005-0403 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0404-0404 ● ● ● ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0404-0404 ● ● ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 02 1 0404-0404 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0405-0602 ● ● ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 FLANGE 		0-91150-210-0 02 1 0405-0602 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) (B) M10 		9-09110-510-0 01 1 9607-9609 ● ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B) M10 FLANGE 		0-91150-210-0 01 1 9607-9609 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 9610-9709 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 9710-9802 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 01 1 9710-9802 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 9803-9805 ● ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 9806-0004 ● ●
81 NUT; BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 FLANGE 		0-91150-210-0 01 1 9806-0004 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0005-0204 ● ● ●
81 NUT; BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 FLANGE 		0-91150-210-0 01 1 0005-0204 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0205-0205 ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 01 1 0205-0205 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0206-0602 ● ● ● ● ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0206-0602 ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 01 1 0206-0602 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ● ● ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
81 NUT; BRKT
(C) M12 FLANGE 		0-91150-212-0 04 1 9710-9802 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 9710-9802 ●
81 NUT; BRKT
(C) M12 FLANGE 		0-91150-212-0 04 1 9803-9805 ●
81 NUT; BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M12 FLANGE 		0-91150-212-0 04 1 9806-0602 ●
81 NUT; BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M12 FLANGE 		0-91180-212-0 04 1 0603- ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 03 1 9803-9805 ●
81 NUT; BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) M10 LOCK NUT 		9-09131-510-0 02 1 9806-0309 ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ● ● ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ● ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ● ● ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ● ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 		9-09110-510-0 01 1 9806-0204 ●
94 BOLT; CLAMP
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0310-0805 ● ● ●
94 BOLT; CLAMP
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806- ● ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9609 ● ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9609 ● ● ●
94 BOLT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10X40 FLANGE 		0-28681-040-0 02 1 9607-9609 ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9610-9612 ● ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9610-9612 ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9610-9612 ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9701-9705 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 9701-9705 ● ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-9709 ● ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-9709 ● ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-9709 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9710-9802 ● ● ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9710-9802 ● ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9710-9802 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9803-9805 ● ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9803-9805 ● ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9803-9805 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9806-9910 ● ● ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9806-9910 ● ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9806-9910 ● ●
94 BOLT; CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9806-9910 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9911-0004 ● ● ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9911-0004 ● ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9911-0004 ●
94 BOLT; CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9911-0004 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0110 ● ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0110 ● ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0110 ● ● ●
94 BOLT; CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0110 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0111-0309 ● ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0111-0309 ● ● ● ●
94 BOLT; CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0111-0309 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0310-0805 ● ● ● ●
94 BOLT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0310-0805 ● ● ●
94 BOLT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0310-0805 ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0310-0805 ●
94 BOLT; CLAMP
EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0310-0805 ● ●
94 BOLT; CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0310-0805 ●
94 BOLT; CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0310-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ● ● ●
94 BOLT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ● ●
94 BOLT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ●
94 BOLT; CLAMP
EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ●
94 BOLT; CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ●
94 BOLT; CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 9803-9805 ●
94 BOLT; CLAMP
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10X40 FLANGE 		0-28681-040-0 02 1 0111-0512 ●
94 BOLT; CLAMP
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10X40 FLANGE 		0-28651-040-0 02 1 0601- ●
97 WASHER; PL,CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) ID=10.5 		9-09164-510-0 04 1 0005-0309 ● ● ●
97 WASHER; PL,CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) ID=10.5 		9-09164-510-0 04 1 0310-0812 ● ● ●
97 WASHER; PL,CLAMP
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 04 1 0310-0812 ● ● ●
97 WASHER; PL,CLAMP
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 04 1 0901- ● ● ●
97 WASHER; PL,CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B) ID=10.5 		0-91614-510-0 02 1 0901-0907 ● ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9510-9606 ● ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 04 1 9701-9705 ● ● ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9706-9709 ● ● ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9706-9709 ● ● ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9706-9709 ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9710-9802 ● ● ● ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9710-9802 ● ● ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9710-9802 ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9803-9805 ● ● ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9803-9805 ● ● ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9803-9805 ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9806-9910 ● ● ● ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9806-9910 ● ● ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9806-9910 ● ●
97 WASHER; PL,CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) ID=10.5 		9-09164-510-0 02 1 9806-9910 ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9911-0004 ● ● ● ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9911-0004 ● ● ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9911-0004 ●
97 WASHER; PL,CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) ID=10.5 		9-09164-510-0 02 1 9911-0004 ●
97 WASHER; PL,CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0005-0110 ● ● ● ● ● ●
97 WASHER; PL,CLAMP
EXC. EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0005-0110 ● ● ● ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 0005-0110 ● ● ● ●
97 WASHER; PL,CLAMP
WHEEL BASE 3700MM(37W) (A) ID=10.5 		9-09164-510-0 02 1 0005-0110 ● ● ●
97 WASHER; PL,CLAMP
EXC. EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0005-0110 ●
97 WASHER; PL,CLAMP
EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0005-0110 ●
97 WASHER; PL,CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0111-0309 ● ● ● ● ● ●
97 WASHER; PL,CLAMP
EXC. EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0111-0309 ● ● ● ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 0111-0309 ● ● ● ●
97 WASHER; PL,CLAMP
WHEEL BASE 3700MM(37W) (A) ID=10.5 		9-09164-510-0 02 1 0111-0309 ● ● ●
97 WASHER; PL,CLAMP
EXC. EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0111-0309 ● ●
97 WASHER; PL,CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0111-0309 ●
97 WASHER; PL,CLAMP
WHEEL BASE 3700MM(37W) (A) ID=10.5 		9-09164-510-0 02 1 0310-0812 ● ● ●
97 WASHER; PL,CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0310-0812 ● ● ●
97 WASHER; PL,CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0310-0812 ● ● ●
97 WASHER; PL,CLAMP
EXC. EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0310-0812 ●
97 WASHER; PL,CLAMP
EXC. EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0310-0812 ●
97 WASHER; PL,CLAMP
EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0310-0812 ● ●
97 WASHER; PL,CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0310-0812 ●
97 WASHER; PL,CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0310-0812 ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 0901- ● ● ● ●
97 WASHER; PL,CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0901- ● ● ●
97 WASHER; PL,CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0901- ● ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 0901- ●
97 WASHER; PL,CLAMP
EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0901- ● ●
97 WASHER; PL,CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0901- ●
97 WASHER; PL,CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> (A) ID=10.5 		9-09164-510-0 02 1 0901- ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 04 1 9803-9805 ●
105 NUT; CLAMP
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 04 1 0310-0512 ● ● ●
105 NUT; CLAMP
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> M10 		0-91110-510-0 04 1 0601- ● ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9607-9609 ● ● ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9607-9609 ● ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10 FLANGE 		0-91150-210-0 02 1 9607-9609 ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9610-9612 ● ● ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9610-9612 ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9610-9612 ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9701-0004 ● ●
105 NUT; CLAMP
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91150-210-0 02 1 0005-0110 ● ● ●
105 NUT; CLAMP
MLD6B M/T(X5P),MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A) TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE 		0-91150-210-0 02 1 0111-0204 ● ● ● ● ● ●
105 NUT; CLAMP
MLD6B M/T(X5P),MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A) TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE 		0-91150-210-0 02 1 0111-0204 ● ● ● ● ● ●
105 NUT; CLAMP
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10 FLANGE 		0-91150-210-0 02 1 0205-0602 ●
105 NUT; CLAMP
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10 FLANGE 		0-91180-210-0 02 1 0603- ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 9701-9709 ● ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9710-9802 ● ● ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9710-9802 ● ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9510-9606 ● ●
105 NUT; CLAMP
WHEEL BASE 3700MM(37W) M10 		9-09110-510-0 02 1 9607-9609 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9803-9805 ● ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9803-9805 ● ● ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10 		9-09110-510-0 02 1 9803-9805 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9806-9910 ● ● ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9806-9910 ● ● ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10 		9-09110-510-0 02 1 9806-9910 ● ●
105 NUT; CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10 		9-09110-510-0 02 1 9806-9910 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9911-0004 ● ● ● ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10 		9-09110-510-0 02 1 9911-0004 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9911-0004 ● ● ●
105 NUT; CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10 		9-09110-510-0 02 1 9911-0004 ●
105 NUT; CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 02 1 0005-0110 ● ● ● ● ● ●
105 NUT; CLAMP
EXC. EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 02 1 0005-0110 ● ● ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0005-0110 ● ● ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10 		9-09110-510-0 02 1 0005-0110 ● ● ●
105 NUT; CLAMP
EXC. EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 02 1 0005-0110 ●
105 NUT; CLAMP
EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 02 1 0005-0110 ●
105 NUT; CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 02 1 0111-0204 ● ● ● ● ● ●
105 NUT; CLAMP
EXC. EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 02 1 0111-0204 ● ● ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0111-0204 ● ● ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10 		9-09110-510-0 02 1 0111-0204 ● ● ●
105 NUT; CLAMP
EXC. EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 02 1 0111-0204 ● ●
105 NUT; CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 02 1 0111-0204 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0205-0309 ● ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0205-0309 ● ● ● ●
105 NUT; CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10 		9-09110-510-0 02 1 0205-0309 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0310-0512 ● ● ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 02 1 0310-0512 ● ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 02 1 0310-0512 ● ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0310-0512 ●
105 NUT; CLAMP
EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 02 1 0310-0512 ● ●
105 NUT; CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 02 1 0310-0512 ●
105 NUT; CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 02 1 0310-0512 ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601- ● ● ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10 		0-91110-510-0 02 1 0601- ● ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> M10 		0-91110-510-0 02 1 0601- ● ● ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601- ●
105 NUT; CLAMP
EURO2 SPECIFICATION<THN> M10 		0-91110-510-0 02 1 0601- ● ●
105 NUT; CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> M10 		0-91110-510-0 02 1 0601- ●
105 NUT; CLAMP
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> M10 		0-91110-510-0 02 1 0601- ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 9803-9805 ●
107 BOLT; BRKT
(A) M10X25 FLANGE 		0-28081-025-0 04 1 9510-9606 ● ● ●
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 9607-0004 ● ● ● ● ●
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 0005-0512 ● ● ● ● ●
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ● ● ● ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28081-030-0 02 1 9510-9606 ● ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 02 1 9607-0004 ● ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 02 1 0005-0512 ● ● ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 02 1 9510-9612 ● ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 02 1 9701-9709 ● ● ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9710-9802 ● ● ● ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9710-9802 ● ● ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9803-9805 ● ● ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9803-9805 ● ● ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9806-0004 ● ● ● ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9806-0004 ● ● ● ●
121 WASHER; PL,BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> ID=10.5 OD=32 		9-09164-810-0 01 1 9806-0004 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0309 ● ● ● ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0309 ● ● ● ●
121 WASHER; PL,BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0309 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0005-0309 ●
121 WASHER; PL,BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		9-09164-810-0 02 1 0310-0605 ● ● ●
121 WASHER; PL,BRKT
EURO2 SPECIFICATION<THN> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> ID=10.5 OD=32 		9-09164-810-0 02 1 0310-0605 ●
121 WASHER; PL,BRKT
EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		9-09164-810-0 02 1 0310-0605 ●
121 WASHER; PL,BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		0-91614-810-0 02 1 0606- ● ● ●
121 WASHER; PL,BRKT
EURO2 SPECIFICATION<THN> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> ID=10.5 OD=32 		0-91614-810-0 02 1 0606- ●
121 WASHER; PL,BRKT
EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		0-91614-810-0 02 1 0606- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 02 1 9710-9802 ●
121 WASHER; PL,BRKT
ID=10.5 OD=18 		9-09160-510-0 01 1 9710-9805 ●
121 WASHER; PL,BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> ID=10.5 OD=18 		9-09160-510-0 01 1 9806-0205 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 03 1 9803-9805 ●
121 WASHER; PL,BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> ID=10.5 OD=32 		9-09164-810-0 02 1 9806-0309 ●
121 WASHER; PL,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		9-09164-810-0 01 1 0310-0605 ● ● ●
121 WASHER; PL,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		9-09164-810-0 01 1 0310-0605 ● ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0310-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0310-0605 ●
121 WASHER; PL,BRKT
EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		9-09164-810-0 01 1 0310-0605 ● ●
121 WASHER; PL,BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		9-09164-810-0 01 1 0310-0605 ●
121 WASHER; PL,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ● ● ●
121 WASHER; PL,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ● ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
121 WASHER; PL,BRKT
EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ● ●
121 WASHER; PL,BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
138 STAY; EXH PIPE
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22131-816-0 01 1 9806- ●
221 CLAMP; EXH SILENCER
ID=80-84 		1-22133-233-0 02 1 9710-9805 ●
221 CLAMP; EXH SILENCER
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> ID=80-84 		1-22133-233-0 02 1 9806- ●
223 BRACKET; EXH PIPE
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22131-750-0 01 1 9806- ●
264 TUBE; DIST,SUPPORT RUBBER
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> L=22 		9-22159-024-0 01 1 9806- ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9706-9805 ● ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9806-0004 ● ●
266 WASHER; LK,BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> ID=10.2 		9-09150-510-0 01 1 9806-0004 ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 0005-0204 ● ● ●
266 WASHER; LK,BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> ID=10.2 		9-09150-510-0 01 1 0005-0204 ●
447 WASHER; LK,BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> ID=10.2 		9-09150-510-0 02 1 9806-0603 ●
447 WASHER; LK,BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> ID=10.2 		0-91510-510-0 02 1 0604- ●

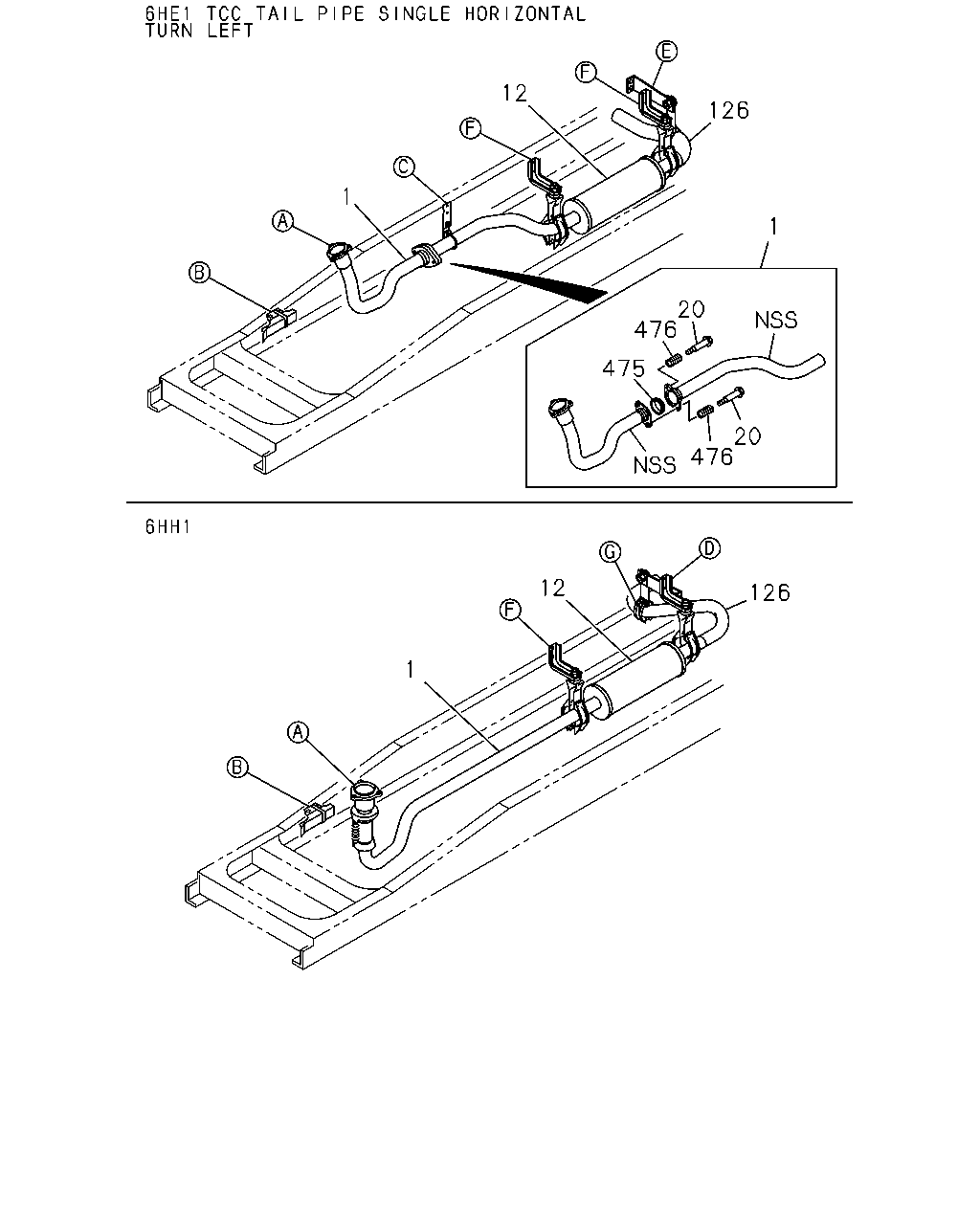

çizim 151636
12 126 1 1 20 476 475 20 476 12 126 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK> EURO2 SPECIFICATION<THN> 		1-22123-315-0 01 1 0305- ●
1 PIPE; EXH 1-22122-733-1 01 1 9510-0004 ● ●
1 PIPE; EXH 1-22122-733-2 01 1 0005- ●
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> 		1-22122-382-1 01 1 9510-0004 ● ●
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-382-1 01 1 0005- ● ●
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK> EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-22122-382-1 01 1 0005- ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> 		1-22122-650-1 01 1 9510-0004 ● ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-650-1 01 1 0005-0010 ● ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-650-1 01 1 0011-0105 ● ●
1 PIPE; EXH
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-22122-650-1 01 1 0011-0105 ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-650-1 01 1 0106- ● ●
1 PIPE; EXH 1-22122-929-1 01 1 9710-9805 ●
1 PIPE; EXH
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22122-929-3 01 1 9806- ●
1 PIPE; EXH
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22123-166-3 01 1 9806- ●
1 PIPE; EXH
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-22123-495-0 01 1 0106- ●
1 PIPE; EXH
EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22123-316-0 01 1 0305- ●
12 SILENCER ASM; EXH
ANTI NOISE EQUIPMENT ECE<SLK> SAUDI ARABIA EQUIPMENT(WH1) 		1-22141-074-0 01 1 0211- ●
12 SILENCER ASM; EXH 1-22140-723-1 01 1 9510-9805 ● ●
12 SILENCER ASM; EXH 1-22140-723-1 01 1 9806-0004 ● ●
12 SILENCER ASM; EXH
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22140-723-1 01 1 9806-0004 ●
12 SILENCER ASM; EXH 1-22140-723-2 01 1 0005- ●
12 SILENCER ASM; EXH
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22140-723-2 01 1 0005- ●
12 SILENCER ASM; EXH 1-22140-752-0 01 1 9510-9807 ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 9808-0004 ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 0005-0010 ● ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 0011-0205 ● ●
12 SILENCER ASM; EXH
EXC. EURO2 SPECIFICATION<THN> 		1-22140-873-0 01 1 0011-0205 ●
12 SILENCER ASM; EXH 1-22140-880-0 01 1 0206-0210 ● ●
12 SILENCER ASM; EXH
EXC. EURO2 SPECIFICATION<THN> 		1-22140-880-0 01 1 0206-0210 ●
12 SILENCER ASM; EXH
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-22140-880-0 01 1 0211- ● ●
12 SILENCER ASM; EXH
EXC. EURO2 SPECIFICATION<THN> 		1-22140-880-0 01 1 0211- ●
12 SILENCER ASM; EXH 1-22140-846-3 01 1 9710-9805 ●
12 SILENCER ASM; EXH
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22140-846-4 01 1 9806- ●
20 BOLT; FLANGE,EXH PIPE
M10X51.4 		8-94436-943-0 02 1 0005-0412 ● ●
20 BOLT; FLANGE,EXH PIPE
M10X49.8 		8-97039-586-0 02 1 0501- ● ●
20 BOLT; FLANGE,EXH PIPE
M10X51.4 		8-94436-943-0 02 1 9510-0004 ● ● ●
126 PIPE; EXH,RR
OD=94 		1-22126-059-0 01 1 9510-0004 ● ●
126 PIPE; EXH,RR
OD=94 		1-22126-059-0 01 1 0005-0009 ●
126 PIPE; EXH,RR
OD=94 		1-22126-331-0 01 1 0010- ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) 		1-22126-148-0 01 1 9510-0004 ● ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) 		1-22126-148-0 01 1 0005- ● ● ●
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) 		1-22126-119-1 01 1 9510-0004 ● ●
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) 		1-22126-119-1 01 1 0005- ● ● ●
126 PIPE; EXH,RR
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22126-280-0 01 1 9806- ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-0 02 1 9510-0004 ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-0 02 1 0005-0105 ● ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-0 02 1 0106-0305 ● ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-1 02 1 0306- ● ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=112 		1-22119-294-1 01 1 0005- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=112 		1-22119-294-0 01 1 9510-0004 ● ● ●
476 SPRING; VIBNON,EXH PIPE 1-09583-298-0 02 1 9510-0004 ● ●
476 SPRING; VIBNON,EXH PIPE 1-09583-298-0 02 1 0005- ● ● ●
476 SPRING; VIBNON,EXH PIPE 8-94141-851-0 02 1 0005- ● ●
476 SPRING; VIBNON,EXH PIPE 8-94141-851-0 02 1 9510-0004 ● ● ●
çizim 151641
1 1 20 476 475 20 476 126 12 14 12 1 1 506 17 81 20 476 475 20 476
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK> EURO2 SPECIFICATION<THN> 		1-22123-315-0 01 1 0305- ●
1 PIPE; EXH 1-22122-733-1 01 1 9510-0004 ● ●
1 PIPE; EXH 1-22122-733-2 01 1 0005- ●
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> 		1-22122-382-1 01 1 9510-0004 ● ●
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-382-1 01 1 0005- ● ●
1 PIPE; EXH
ANTI NOISE EQUIPMENT ECE<SLK> EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-22122-382-1 01 1 0005- ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> 		1-22122-650-1 01 1 9510-0004 ● ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-650-1 01 1 0005-0010 ● ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-650-1 01 1 0011-0105 ● ●
1 PIPE; EXH
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-22122-650-1 01 1 0011-0105 ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22122-650-1 01 1 0106- ● ●
1 PIPE; EXH 1-22122-929-1 01 1 9710-9805 ●
1 PIPE; EXH
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22122-929-3 01 1 9806- ●
1 PIPE; EXH
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22123-166-3 01 1 9806- ●
1 PIPE; EXH
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-22123-495-0 01 1 0106- ●
1 PIPE; EXH
EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-22123-316-0 01 1 0305- ●
12 SILENCER ASM; EXH
ANTI NOISE EQUIPMENT ECE<SLK> SAUDI ARABIA EQUIPMENT(WH1) 		1-22141-074-0 01 1 0211- ●
12 SILENCER ASM; EXH 1-22140-723-1 01 1 9510-9805 ● ●
12 SILENCER ASM; EXH 1-22140-723-1 01 1 9806-0004 ● ●
12 SILENCER ASM; EXH
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22140-723-1 01 1 9806-0004 ●
12 SILENCER ASM; EXH 1-22140-723-2 01 1 0005- ●
12 SILENCER ASM; EXH
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22140-723-2 01 1 0005- ●
12 SILENCER ASM; EXH 1-22140-752-0 01 1 9510-9807 ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 9808-0004 ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 0005-0010 ● ● ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 0011-0205 ● ●
12 SILENCER ASM; EXH
EXC. EURO2 SPECIFICATION<THN> 		1-22140-873-0 01 1 0011-0205 ●
12 SILENCER ASM; EXH 1-22140-880-0 01 1 0206-0210 ● ●
12 SILENCER ASM; EXH
EXC. EURO2 SPECIFICATION<THN> 		1-22140-880-0 01 1 0206-0210 ●
12 SILENCER ASM; EXH
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-22140-880-0 01 1 0211- ● ●
12 SILENCER ASM; EXH
EXC. EURO2 SPECIFICATION<THN> 		1-22140-880-0 01 1 0211- ●
12 SILENCER ASM; EXH 1-22140-846-3 01 1 9710-9805 ●
12 SILENCER ASM; EXH
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22140-846-4 01 1 9806- ●
14 GASKET; SILENCER TO EXH PIPE
ID=87 		8-94394-391-0 01 1 9710-9805 ●
14 GASKET; SILENCER TO EXH PIPE
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> ID=87 		8-94394-391-0 01 1 9806- ●
17 BOLT; EXH PIPE
KD PREPARATORY PACK<6HF> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M12X35 FLANGE 		0-28051-235-0 04 1 1204- ● ●
17 BOLT; EXH PIPE
(A) M12X110 		1-09000-290-0 01 1 9510-0004 ● ● ●
17 BOLT; EXH PIPE
(A) M12X110 		1-09000-290-0 01 1 0005-0401 ● ●
17 BOLT; EXH PIPE
(A) M12X120 		1-09000-293-0 01 1 0402- ● ●
20 BOLT; FLANGE,EXH PIPE
M10X51.4 		8-94436-943-0 02 1 0005-0412 ● ●
20 BOLT; FLANGE,EXH PIPE
M10X49.8 		8-97039-586-0 02 1 0501- ● ●
20 BOLT; FLANGE,EXH PIPE
M10X51.4 		8-94436-943-0 02 1 9510-0004 ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 9510-9612 ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 9701-9709 ● ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9710-9802 ● ● ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9710-9802 ● ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9803-9805 ● ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9803-9805 ● ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9806-0004 ● ● ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9806-0004 ● ● ● ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) M10 LOCK NUT 		9-09131-510-0 01 1 9806-0004 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0309 ● ● ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0309 ● ● ● ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0309 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0005-0309 ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 02 1 0310-0603 ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) M10 LOCK NUT 		9-09131-510-0 02 1 0310-0603 ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 02 1 0310-0603 ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ●
81 NUT; BRKT
(B) M10 		9-09110-510-0 01 1 9510-9606 ● ●
81 NUT; BRKT
(B) M10 		9-09110-510-0 02 1 9510-9606 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9607-9805 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9806-0004 ● ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 FLANGE 		0-91150-210-0 02 1 9806-0004 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0005-0403 ● ● ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 FLANGE 		0-91150-210-0 02 1 0005-0403 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0404-0404 ● ● ● ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0404-0404 ● ● ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 02 1 0404-0404 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0405-0602 ● ● ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 FLANGE 		0-91150-210-0 02 1 0405-0602 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) (B) M10 		9-09110-510-0 01 1 9607-9609 ● ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B) M10 FLANGE 		0-91150-210-0 01 1 9607-9609 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 9610-9709 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 9710-9802 ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 01 1 9710-9802 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 9803-9805 ● ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 9806-0004 ● ●
81 NUT; BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 FLANGE 		0-91150-210-0 01 1 9806-0004 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0005-0204 ● ● ●
81 NUT; BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 FLANGE 		0-91150-210-0 01 1 0005-0204 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0205-0205 ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 01 1 0205-0205 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0206-0602 ● ● ● ● ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0206-0602 ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 01 1 0206-0602 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ● ● ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
81 NUT; BRKT
(C) M12 FLANGE 		0-91150-212-0 04 1 9710-9802 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 9710-9802 ●
81 NUT; BRKT
(C) M12 FLANGE 		0-91150-212-0 04 1 9803-9805 ●
81 NUT; BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M12 FLANGE 		0-91150-212-0 04 1 9806-0602 ●
81 NUT; BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M12 FLANGE 		0-91180-212-0 04 1 0603- ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 03 1 9803-9805 ●
81 NUT; BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) M10 LOCK NUT 		9-09131-510-0 02 1 9806-0309 ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ● ● ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ● ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ● ● ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ● ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
(A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ● ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 		9-09110-510-0 01 1 9806-0204 ●
126 PIPE; EXH,RR
OD=94 		1-22126-059-0 01 1 9510-0004 ● ●
126 PIPE; EXH,RR
OD=94 		1-22126-059-0 01 1 0005-0009 ●
126 PIPE; EXH,RR
OD=94 		1-22126-331-0 01 1 0010- ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) 		1-22126-148-0 01 1 9510-0004 ● ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) 		1-22126-148-0 01 1 0005- ● ● ●
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) 		1-22126-119-1 01 1 9510-0004 ● ●
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) 		1-22126-119-1 01 1 0005- ● ● ●
126 PIPE; EXH,RR
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22126-280-0 01 1 9806- ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-0 02 1 9510-0004 ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-0 02 1 0005-0105 ● ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-0 02 1 0106-0305 ● ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-1 02 1 0306- ● ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=112 		1-22119-294-1 01 1 0005- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=112 		1-22119-294-0 01 1 9510-0004 ● ● ●
476 SPRING; VIBNON,EXH PIPE 1-09583-298-0 02 1 9510-0004 ● ●
476 SPRING; VIBNON,EXH PIPE 1-09583-298-0 02 1 0005- ● ● ●
476 SPRING; VIBNON,EXH PIPE 8-94141-851-0 02 1 0005- ● ●
476 SPRING; VIBNON,EXH PIPE 8-94141-851-0 02 1 9510-0004 ● ● ●
506 BRACKET; STUD 1-22131-680-0 02 1 9710-9802 ●
506 BRACKET; STUD 1-22131-788-0 02 1 9803-9805 ●
506 BRACKET; STUD
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22131-788-0 02 1 9806-0206 ●
506 BRACKET; STUD
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M12X35 		1-22131-963-0 02 1 0207-1203 ●
506 BRACKET; STUD
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,KD PREPARATORY PACK<6HF> M12X35 		1-22131-963-0 02 1 1204- ● ●
çizim 151908
354 354 126
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
126 PIPE; EXH,RR
OD=94 		1-22126-059-0 01 1 9510-0004 ● ●
126 PIPE; EXH,RR
OD=94 		1-22126-059-0 01 1 0005-0009 ●
126 PIPE; EXH,RR
OD=94 		1-22126-331-0 01 1 0010- ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) 		1-22126-148-0 01 1 9510-0004 ● ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) 		1-22126-148-0 01 1 0005- ● ● ●
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) 		1-22126-119-1 01 1 9510-0004 ● ●
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) 		1-22126-119-1 01 1 0005- ● ● ●
126 PIPE; EXH,RR
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-22126-280-0 01 1 9806- ●
354 CLAMP; HEAT PROTECTOR
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 		1-22119-347-0 02 1 0102- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
