◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10701 - FSR(LHD) EXC.EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶
1-45 — WATER SEDIMENTER; FUEL (#38264) — 72 parça
çizim 151626
1 1 7 9 2 38 5 91 4 35 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9510-9606 ● ● ●
1 SEDIMENTER; FUEL
EXC. FUEL TANK 140L FRAME SIDE<N19> 		1-13200-953-2 01 1 9607-9802 ● ● ● ● ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9803-9805 ● ● ● ● ●
1 SEDIMENTER; FUEL
EXC. FUEL TANK 140L FRAME SIDE<N19> 		1-13200-953-2 01 1 9806-0004 ● ● ● ● ● ●
1 SEDIMENTER; FUEL
EXC. FUEL TANK 140L FRAME SIDE<N19> 		1-13200-953-2 01 1 0005-0006 ● ● ● ● ●
1 SEDIMENTER; FUEL
EXC. FUEL TANK 140L FRAME SIDE<N19> 		1-13201-015-0 01 1 0007-0403 ● ● ● ● ●
1 SEDIMENTER; FUEL
EXC. FUEL TANK 140L FRAME SIDE<N19> 		1-13201-015-1 01 1 0404- ● ● ● ● ●
1 SEDIMENTER; FUEL
FUEL TANK 140L FRAME SIDE<N19> 		1-13200-964-1 01 1 9607-9802 ● ● ● ● ●
1 SEDIMENTER; FUEL
FUEL TANK 140L FRAME SIDE<N19> 		1-13200-964-1 01 1 9806-0004 ● ● ● ● ●
1 SEDIMENTER; FUEL
FUEL TANK 140L FRAME SIDE<N19> 		1-13200-964-1 01 1 0005-0006 ● ● ● ● ●
1 SEDIMENTER; FUEL
FUEL TANK 140L FRAME SIDE<N19> 		1-13201-017-0 01 1 0007-0403 ● ● ● ● ●
1 SEDIMENTER; FUEL
FUEL TANK 140L FRAME SIDE<N19> 		1-13201-017-1 01 1 0404- ● ● ● ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9510-0004 ● ● ● ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 0005-0403 ● ● ● ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 0404- ● ● ● ● ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-176-2 01 1 9510-0004 ● ● ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 9-09920-643-0 01 1 9510-9603 ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9604-0004 ● ● ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 0005-0403 ● ● ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 0404- ● ● ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9510-0004 ● ● ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 0005-0403 ● ● ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 0404- ● ● ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9510-0004 ● ● ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 0005-0403 ● ● ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 0404- ● ● ● ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9510-0004 ● ● ● ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 0005-0403 ● ● ● ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 0404- ● ● ● ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9510-0004 ● ● ● ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 0005-0403 ● ● ● ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 0404- ● ● ● ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9510-0004 ● ● ● ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 0005-0403 ● ● ● ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 0404- ● ● ● ● ●
91 COVER; LWR,SEDIMENTER 1-13212-176-2 01 1 0005-0403 ● ● ● ● ●
91 COVER; LWR,SEDIMENTER 1-13212-176-3 01 1 0404- ● ● ● ● ●

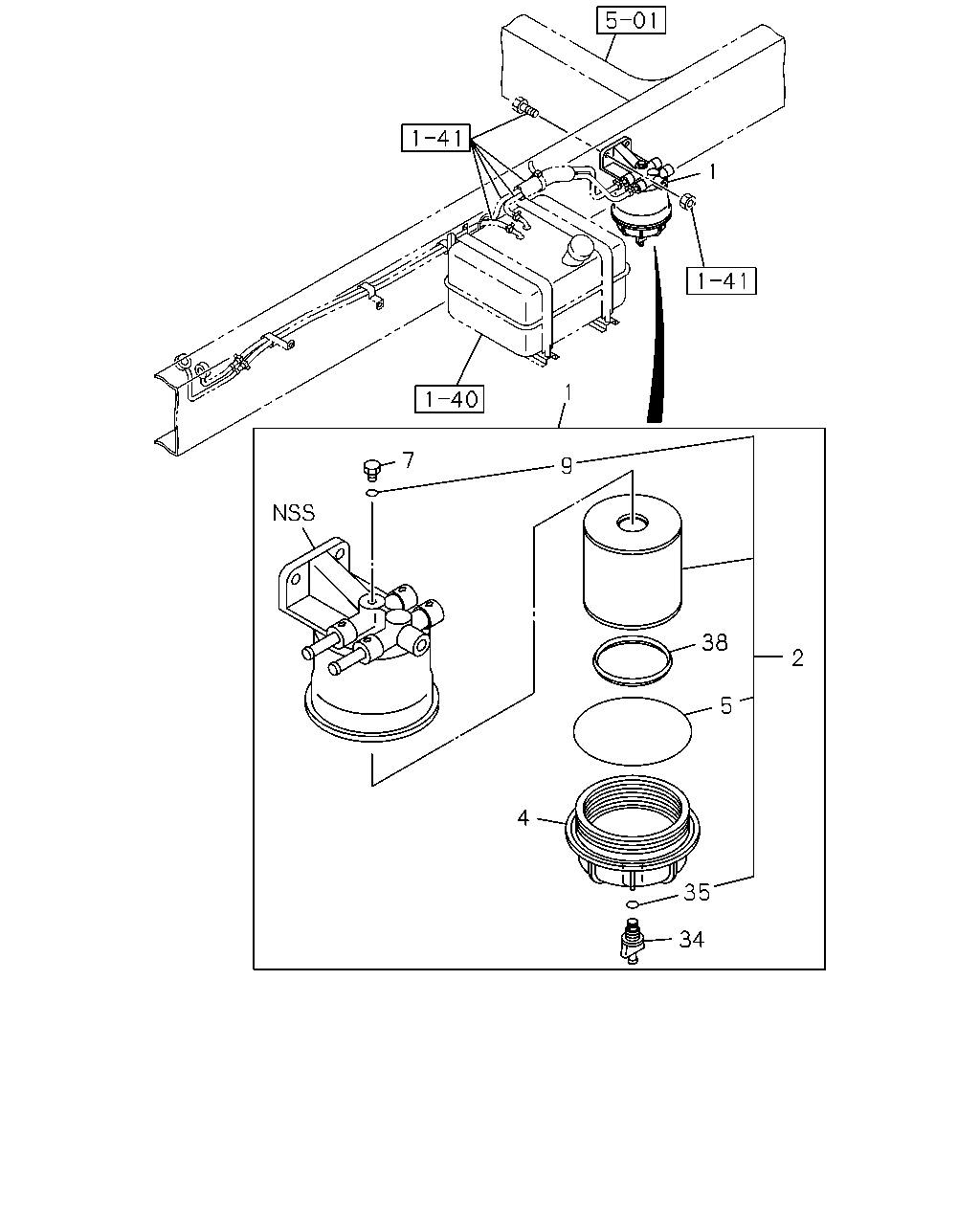

çizim 151627
1 1 7 9 38 2 5 4 35 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9510-9606 ● ● ●
1 SEDIMENTER; FUEL
EXC. FUEL TANK 140L FRAME SIDE<N19> 		1-13200-953-2 01 1 9607-9802 ● ● ● ● ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9803-9805 ● ● ● ● ●
1 SEDIMENTER; FUEL
EXC. FUEL TANK 140L FRAME SIDE<N19> 		1-13200-953-2 01 1 9806-0004 ● ● ● ● ● ●
1 SEDIMENTER; FUEL
EXC. FUEL TANK 140L FRAME SIDE<N19> 		1-13200-953-2 01 1 0005-0006 ● ● ● ● ●
1 SEDIMENTER; FUEL
EXC. FUEL TANK 140L FRAME SIDE<N19> 		1-13201-015-0 01 1 0007-0403 ● ● ● ● ●
1 SEDIMENTER; FUEL
EXC. FUEL TANK 140L FRAME SIDE<N19> 		1-13201-015-1 01 1 0404- ● ● ● ● ●
1 SEDIMENTER; FUEL
FUEL TANK 140L FRAME SIDE<N19> 		1-13200-964-1 01 1 9607-9802 ● ● ● ● ●
1 SEDIMENTER; FUEL
FUEL TANK 140L FRAME SIDE<N19> 		1-13200-964-1 01 1 9806-0004 ● ● ● ● ●
1 SEDIMENTER; FUEL
FUEL TANK 140L FRAME SIDE<N19> 		1-13200-964-1 01 1 0005-0006 ● ● ● ● ●
1 SEDIMENTER; FUEL
FUEL TANK 140L FRAME SIDE<N19> 		1-13201-017-0 01 1 0007-0403 ● ● ● ● ●
1 SEDIMENTER; FUEL
FUEL TANK 140L FRAME SIDE<N19> 		1-13201-017-1 01 1 0404- ● ● ● ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9510-0004 ● ● ● ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 0005-0403 ● ● ● ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 0404- ● ● ● ● ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-176-2 01 1 9510-0004 ● ● ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 9-09920-643-0 01 1 9510-9603 ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9604-0004 ● ● ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 0005-0403 ● ● ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 0404- ● ● ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9510-0004 ● ● ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 0005-0403 ● ● ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 0404- ● ● ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9510-0004 ● ● ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 0005-0403 ● ● ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 0404- ● ● ● ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9510-0004 ● ● ● ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 0005-0403 ● ● ● ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 0404- ● ● ● ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9510-0004 ● ● ● ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 0005-0403 ● ● ● ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 0404- ● ● ● ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9510-0004 ● ● ● ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 0005-0403 ● ● ● ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 0404- ● ● ● ● ●
