◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10701 - FSR(LHD) EXC.EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#38263) — 160 parça

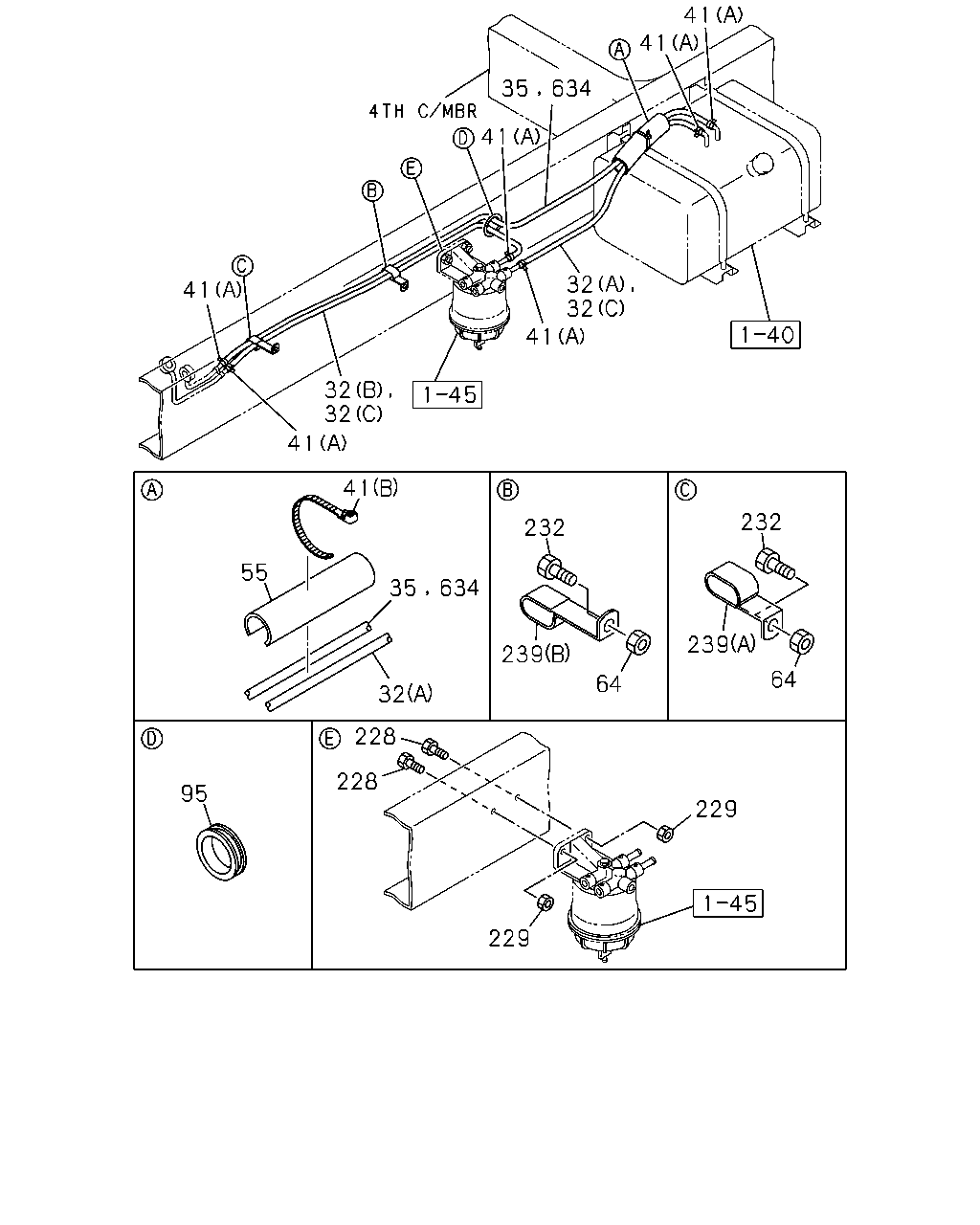

çizim 151624
41 41 35 634 41 32 32 41 41 32 32 41 41 232 232 55 35 634 239 239 64 64 32 228 228 95 229 229
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19> (A) L=540 SERVICED BY L=3000 		0-01260-300-0 01 1 9607-9802 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19> (B) L=1550 SERVICED BY L=3000 		0-01260-300-0 01 1 9607-9802 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19>,TAIWAN EQUIPMENT(WW5) (C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9612 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19>,TAIWAN EQUIPMENT(WW5) (C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9612 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19>,EURO2 SPECIFICATION<THN>,TAIWAN EQUIPMENT(WW5) (C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-0004 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19>,EURO2 SPECIFICATION<THN>,TAIWAN EQUIPMENT(WW5) (C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-0004 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
TAIWAN EQUIPMENT(WW5) (A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9709 ● ●
32 PIPE; DELIVERY,FUEL TANK
TAIWAN EQUIPMENT(WW5) (A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 9710-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 9710-0004 ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0106 ●
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19> (A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0107- ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0107- ●
32 PIPE; DELIVERY,FUEL TANK
TAIWAN EQUIPMENT(WW5) (B) L=1100 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19> (A) L=540 SERVICED BY L=3000 		0-01260-300-0 01 1 9806-0004 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19> (A) L=540 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19> (B) L=1550 SERVICED BY L=3000 		0-01260-300-0 01 1 9806-0004 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19> (B) L=1550 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19>,EURO2 SPECIFICATION<THN> (C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0106 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19>,EURO2 SPECIFICATION<THN> (C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0106 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (B) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9710- ●
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19>,EURO2 SPECIFICATION<THN> (B) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0107- ● ● ● ● ●
35 PIPE; FUEL TANK,RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9606 ● ● ●
35 PIPE; FUEL TANK,RETURN
EXC. FUEL TANK 140L FRAME SIDE<N19> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9607-9709 ● ● ● ●
35 PIPE; FUEL TANK,RETURN
EXC. FUEL TANK 140L FRAME SIDE<N19>,EURO2 SPECIFICATION<THN> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9710-9802 ● ● ● ● ●
35 PIPE; FUEL TANK,RETURN
EXC. EURO2 SPECIFICATION<THN> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9803-9805 ● ● ● ● ●
35 PIPE; FUEL TANK,RETURN
EXC. FUEL TANK 140L FRAME SIDE<N19>,EURO2 SPECIFICATION<THN> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9806-0004 ● ● ● ● ●
35 PIPE; FUEL TANK,RETURN
FUEL TANK 140L FRAME SIDE<N19> L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 9607-9802 ● ● ● ● ●
35 PIPE; FUEL TANK,RETURN
FUEL TANK 140L FRAME SIDE<N19> L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 9806-0004 ● ● ● ● ●
35 PIPE; FUEL TANK,RETURN
EURO2 SPECIFICATION<THN> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 9710-0004 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 9510-0004 ● ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0005- ● ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 9510-0004 ● ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 0005- ● ● ● ● ●
55 COVER; PIPE,FUEL TANK
L=500 		1-09360-690-1 01 1 9510-9606 ● ● ●
55 COVER; PIPE,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19> L=500 		1-09360-690-1 01 1 9607-9802 ● ● ● ● ●
55 COVER; PIPE,FUEL TANK
L=500 		1-09360-677-1 01 1 9803-9805 ● ● ● ● ●
55 COVER; PIPE,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19> L=500 		1-09360-677-1 01 1 9806- ● ● ● ● ● ●
55 COVER; PIPE,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19> L=150 		1-09360-677-1 01 1 9607-9802 ● ● ● ● ●
55 COVER; PIPE,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19> L=150 		1-09360-677-1 01 1 9806-0004 ● ● ● ● ●
55 COVER; PIPE,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19> L=150 		1-09360-677-1 01 1 0005- ● ● ● ● ●
64 NUT; CLIP
M8 		9-09110-408-0 02 1 9510-9606 ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
64 NUT; CLIP
FUEL TANK 140L FRAME SIDE<N19> M8 FLANGE 		0-91150-108-0 01 1 9607-9802 ● ● ● ● ●
64 NUT; CLIP
FUEL TANK 140L FRAME SIDE<N19> M8 FLANGE 		0-91150-108-0 01 1 9806-0004 ● ● ● ● ●
64 NUT; CLIP
FUEL TANK 140L FRAME SIDE<N19> M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ● ● ● ● ●
64 NUT; CLIP
FUEL TANK 140L FRAME SIDE<N19> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9510-0004 ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 0005-0009 ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=28 OD=35 T=17 		9-09956-256-2 01 1 0010- ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
HEAVY DUTY PACKAGE TRUCK<RD2> ID=28 OD=35 T=25 		1-09332-011-1 01 1 0010- ● ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28081-035-0 02 1 9510-9606 ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 9607-0004 ● ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 0005-0512 ● ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28651-040-0 02 1 0601- ● ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 		9-09110-510-0 02 1 9510-9606 ● ● ●
229 NUT; BRKT,FUEL FILTER
EXC. FUEL TANK 140L FRAME SIDE<N19> M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9607-9805 ● ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9806- ● ● ● ● ●
232 BOLT; CLIP,PIPE
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 9607-0004 ● ● ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ● ● ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ● ● ●
232 BOLT; CLIP,PIPE
FUEL TANK 140L FRAME SIDE<N19> M8X30 FLANGE 		0-28680-830-0 01 1 9607-9802 ● ● ● ● ●
232 BOLT; CLIP,PIPE
FUEL TANK 140L FRAME SIDE<N19> M8X30 FLANGE 		0-28680-830-0 01 1 9806-0004 ● ● ● ● ●
232 BOLT; CLIP,PIPE
FUEL TANK 140L FRAME SIDE<N19> M8X30 FLANGE 		0-28680-830-0 01 1 0005-0512 ● ● ● ● ●
232 BOLT; CLIP,PIPE
FUEL TANK 140L FRAME SIDE<N19> M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ● ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9510-9606 ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9607-9802 ● ● ● ● ●
239 CLIP; FUEL PIPE
FUEL TANK 140L FRAME SIDE<N19> (B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9607-9802 ● ● ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9803-9805 ● ● ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9806- ● ● ● ● ● ●
239 CLIP; FUEL PIPE
FUEL TANK 140L FRAME SIDE<N19> (B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9806- ● ● ● ● ● ●
239 CLIP; FUEL PIPE
(A) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9510-9907 ● ● ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 9908-0004 ● ● ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0005- ● ● ● ● ●
634 HOSE; RUBBER RETURN
FUEL TANK 140L FRAME SIDE<N19> L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ● ● ●
634 HOSE; RUBBER RETURN
EURO2 SPECIFICATION<THN> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ●
634 HOSE; RUBBER RETURN
EXC. FUEL TANK 140L FRAME SIDE<N19>,EURO2 SPECIFICATION<THN> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ● ● ●

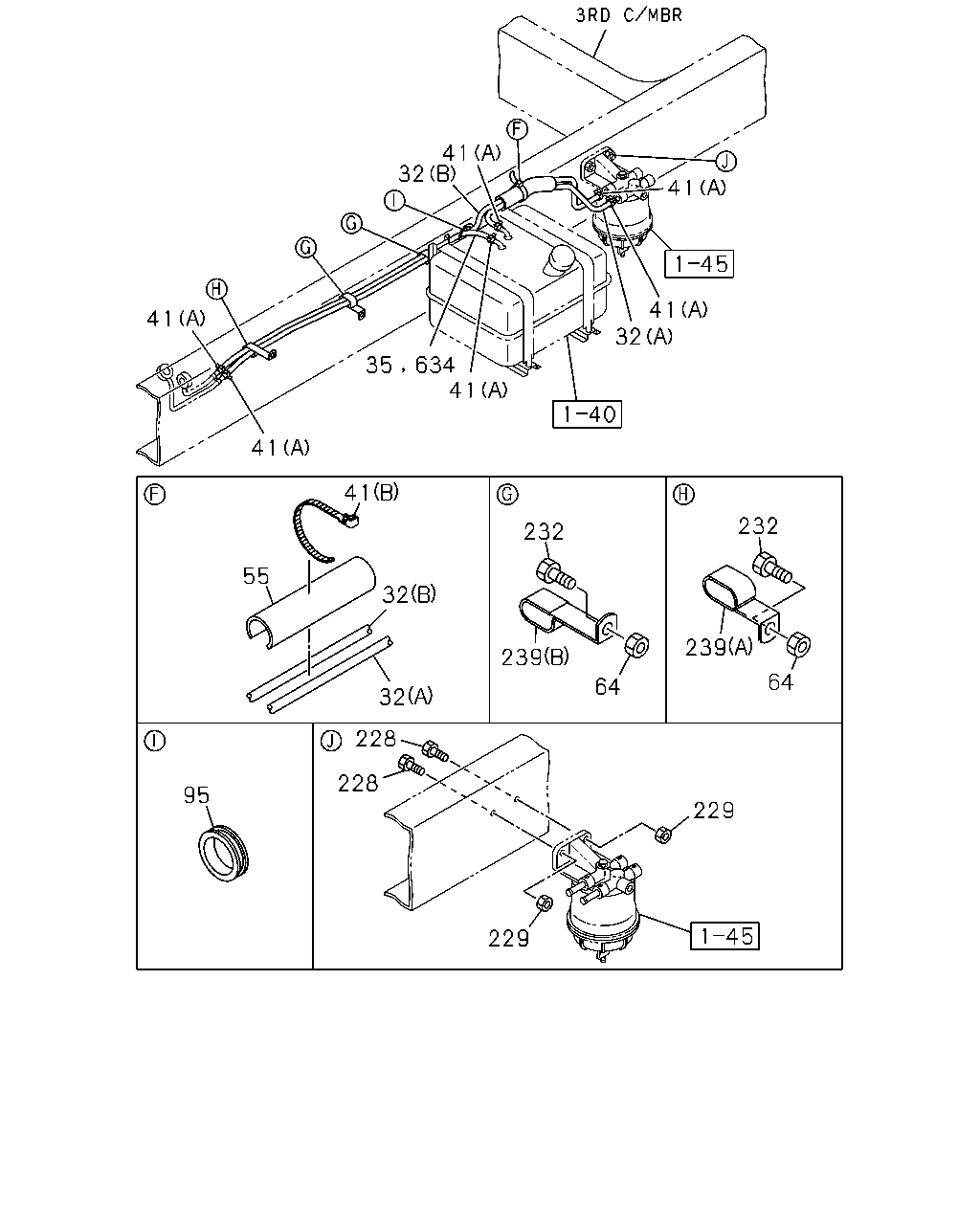

çizim 151633
41 32 41 41 32 41 634 41 35 41 41 232 232 55 32 239 239 64 64 32 228 228 95 229 229
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19> (A) L=540 SERVICED BY L=3000 		0-01260-300-0 01 1 9607-9802 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19> (B) L=1550 SERVICED BY L=3000 		0-01260-300-0 01 1 9607-9802 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19>,TAIWAN EQUIPMENT(WW5) (C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9612 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19>,TAIWAN EQUIPMENT(WW5) (C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9612 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19>,EURO2 SPECIFICATION<THN>,TAIWAN EQUIPMENT(WW5) (C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-0004 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19>,EURO2 SPECIFICATION<THN>,TAIWAN EQUIPMENT(WW5) (C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9701-0004 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
TAIWAN EQUIPMENT(WW5) (A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9709 ● ●
32 PIPE; DELIVERY,FUEL TANK
TAIWAN EQUIPMENT(WW5) (A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 9710-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 9710-0004 ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0106 ●
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19> (A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0107- ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (A) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0107- ●
32 PIPE; DELIVERY,FUEL TANK
TAIWAN EQUIPMENT(WW5) (B) L=1100 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-0004 ● ●
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19> (A) L=540 SERVICED BY L=3000 		0-01260-300-0 01 1 9806-0004 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19> (A) L=540 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19> (B) L=1550 SERVICED BY L=3000 		0-01260-300-0 01 1 9806-0004 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19> (B) L=1550 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19>,EURO2 SPECIFICATION<THN> (C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0106 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19>,EURO2 SPECIFICATION<THN> (C) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0005-0106 ● ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (B) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9710- ●
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19>,EURO2 SPECIFICATION<THN> (B) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0107- ● ● ● ● ●
35 PIPE; FUEL TANK,RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9510-9606 ● ● ●
35 PIPE; FUEL TANK,RETURN
EXC. FUEL TANK 140L FRAME SIDE<N19> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9607-9709 ● ● ● ●
35 PIPE; FUEL TANK,RETURN
EXC. FUEL TANK 140L FRAME SIDE<N19>,EURO2 SPECIFICATION<THN> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9710-9802 ● ● ● ● ●
35 PIPE; FUEL TANK,RETURN
EXC. EURO2 SPECIFICATION<THN> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9803-9805 ● ● ● ● ●
35 PIPE; FUEL TANK,RETURN
EXC. FUEL TANK 140L FRAME SIDE<N19>,EURO2 SPECIFICATION<THN> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9806-0004 ● ● ● ● ●
35 PIPE; FUEL TANK,RETURN
FUEL TANK 140L FRAME SIDE<N19> L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 9607-9802 ● ● ● ● ●
35 PIPE; FUEL TANK,RETURN
FUEL TANK 140L FRAME SIDE<N19> L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 9806-0004 ● ● ● ● ●
35 PIPE; FUEL TANK,RETURN
EURO2 SPECIFICATION<THN> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 9710-0004 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 9510-0004 ● ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 06 1 0005- ● ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 9510-0004 ● ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) L=250 		5-09707-030-1 01 1 0005- ● ● ● ● ●
55 COVER; PIPE,FUEL TANK
L=500 		1-09360-690-1 01 1 9510-9606 ● ● ●
55 COVER; PIPE,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19> L=500 		1-09360-690-1 01 1 9607-9802 ● ● ● ● ●
55 COVER; PIPE,FUEL TANK
L=500 		1-09360-677-1 01 1 9803-9805 ● ● ● ● ●
55 COVER; PIPE,FUEL TANK
EXC. FUEL TANK 140L FRAME SIDE<N19> L=500 		1-09360-677-1 01 1 9806- ● ● ● ● ● ●
55 COVER; PIPE,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19> L=150 		1-09360-677-1 01 1 9607-9802 ● ● ● ● ●
55 COVER; PIPE,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19> L=150 		1-09360-677-1 01 1 9806-0004 ● ● ● ● ●
55 COVER; PIPE,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19> L=150 		1-09360-677-1 01 1 0005- ● ● ● ● ●
64 NUT; CLIP
M8 		9-09110-408-0 02 1 9510-9606 ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
64 NUT; CLIP
FUEL TANK 140L FRAME SIDE<N19> M8 FLANGE 		0-91150-108-0 01 1 9607-9802 ● ● ● ● ●
64 NUT; CLIP
FUEL TANK 140L FRAME SIDE<N19> M8 FLANGE 		0-91150-108-0 01 1 9806-0004 ● ● ● ● ●
64 NUT; CLIP
FUEL TANK 140L FRAME SIDE<N19> M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ● ● ● ● ●
64 NUT; CLIP
FUEL TANK 140L FRAME SIDE<N19> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9510-0004 ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 0005-0009 ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=28 OD=35 T=17 		9-09956-256-2 01 1 0010- ● ● ● ● ●
95 BUSHING; PIPE,FUEL TANK
HEAVY DUTY PACKAGE TRUCK<RD2> ID=28 OD=35 T=25 		1-09332-011-1 01 1 0010- ● ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28081-035-0 02 1 9510-9606 ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 9607-0004 ● ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 0005-0512 ● ● ● ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28651-040-0 02 1 0601- ● ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 		9-09110-510-0 02 1 9510-9606 ● ● ●
229 NUT; BRKT,FUEL FILTER
EXC. FUEL TANK 140L FRAME SIDE<N19> M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9607-9805 ● ● ● ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9806- ● ● ● ● ●
232 BOLT; CLIP,PIPE
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 9607-0004 ● ● ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ● ● ● ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ● ● ●
232 BOLT; CLIP,PIPE
FUEL TANK 140L FRAME SIDE<N19> M8X30 FLANGE 		0-28680-830-0 01 1 9607-9802 ● ● ● ● ●
232 BOLT; CLIP,PIPE
FUEL TANK 140L FRAME SIDE<N19> M8X30 FLANGE 		0-28680-830-0 01 1 9806-0004 ● ● ● ● ●
232 BOLT; CLIP,PIPE
FUEL TANK 140L FRAME SIDE<N19> M8X30 FLANGE 		0-28680-830-0 01 1 0005-0512 ● ● ● ● ●
232 BOLT; CLIP,PIPE
FUEL TANK 140L FRAME SIDE<N19> M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ● ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9510-9606 ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9607-9802 ● ● ● ● ●
239 CLIP; FUEL PIPE
FUEL TANK 140L FRAME SIDE<N19> (B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9607-9802 ● ● ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9803-9805 ● ● ● ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9806- ● ● ● ● ● ●
239 CLIP; FUEL PIPE
FUEL TANK 140L FRAME SIDE<N19> (B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9806- ● ● ● ● ● ●
239 CLIP; FUEL PIPE
(A) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9510-9907 ● ● ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 9908-0004 ● ● ● ● ●
239 CLIP; FUEL PIPE
(A) M13X2 H=20 L=60 		1-09701-280-0 01 1 0005- ● ● ● ● ●
634 HOSE; RUBBER RETURN
FUEL TANK 140L FRAME SIDE<N19> L=1250 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ● ● ●
634 HOSE; RUBBER RETURN
EURO2 SPECIFICATION<THN> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ●
634 HOSE; RUBBER RETURN
EXC. FUEL TANK 140L FRAME SIDE<N19>,EURO2 SPECIFICATION<THN> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0005- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
