◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10701 - FSR(LHD) EXC.EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-35 - CHARGE AIR COOLER ▶
1-35 — CHARGE AIR COOLER (#38261) — 22 parça

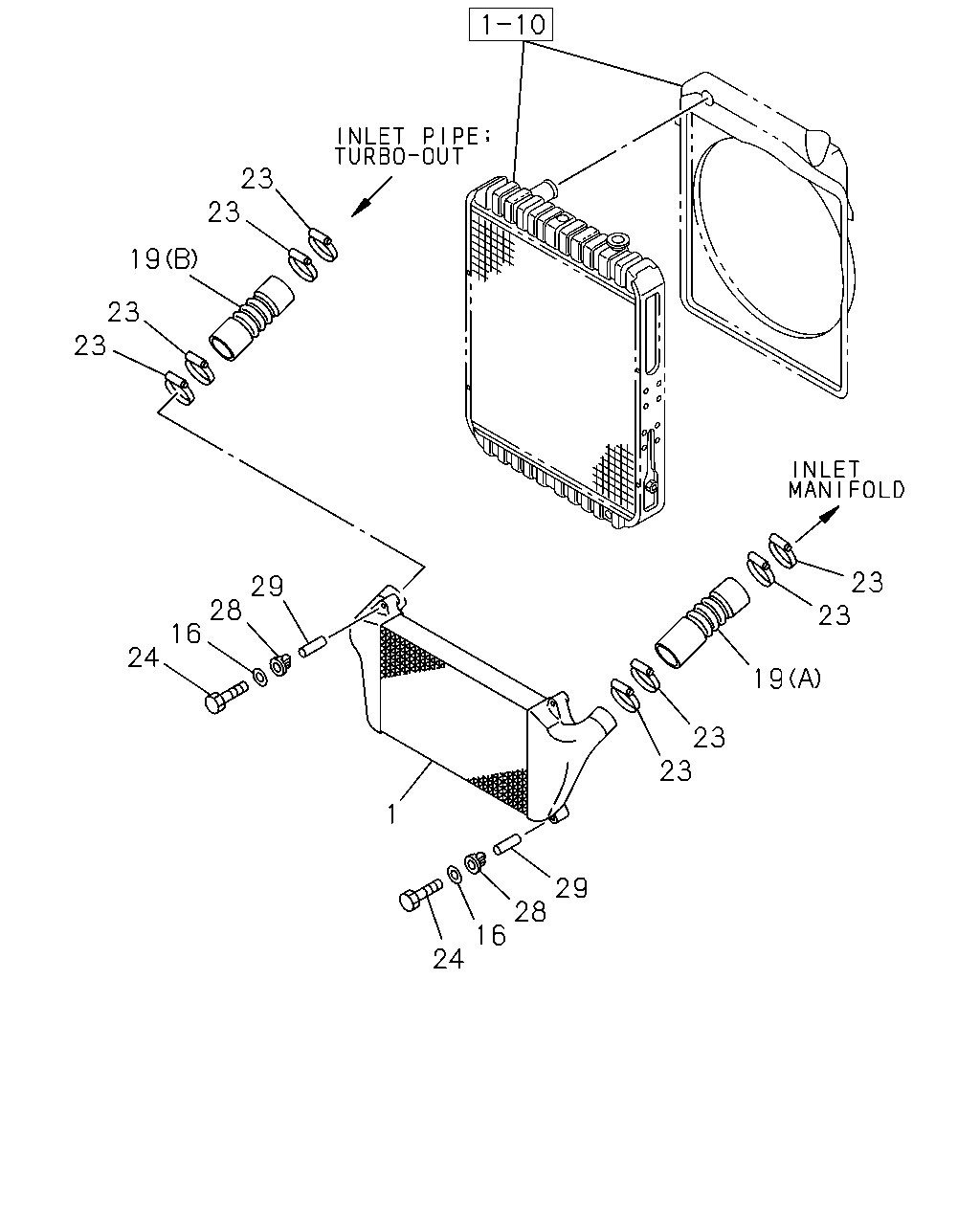

çizim 151637
23 23 19 23 23 23 23 29 28 16 24 19 23 23 1 29 28 16 24
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COOLER; CHARGE AIR 1-14431-041-1 01 1 9510-9609 ●
1 COOLER; CHARGE AIR 1-14431-041-1 01 1 9610-0004 ● ● ●
1 COOLER; CHARGE AIR 1-14431-041-1 01 1 0005-0511 ● ●
1 COOLER; CHARGE AIR 8-98033-144-0 01 1 0512- ● ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 9510-0004 ● ● ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 0005- ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) 		8-94395-022-0 01 1 9510-0004 ● ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) 		8-94395-022-0 01 1 0005- ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) 		8-94395-023-1 01 1 9510-0004 ● ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) 		8-94395-023-1 01 1 0005- ● ●
23 CLIP; HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 08 1 1002- ● ●
23 CLIP; HOSE
ID=58-79 		8-94126-771-0 08 1 9510-0004 ● ● ●
23 CLIP; HOSE
ID=58-79 		8-94126-771-0 08 1 0005-0307 ● ●
23 CLIP; HOSE
ID=58-76 		1-09707-203-0 08 1 0308-0811 ● ●
23 CLIP; HOSE
ID=55-75 		8-98133-349-0 08 1 0812-1001 ● ●
23 CLIP; HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 08 1 1002- ● ●
24 BOLT; COOLER TO RAD
M8X35 FLANGE 		0-28080-835-0 04 1 9510-0004 ● ● ●
24 BOLT; COOLER TO RAD
M8X35 FLANGE 		0-28080-835-0 04 1 0005- ● ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 9510-0004 ● ● ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 0005- ● ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 9510-0004 ● ● ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 0005- ● ●
