◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10701 - FSR(LHD) EXC.EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#38257) — 318 parça

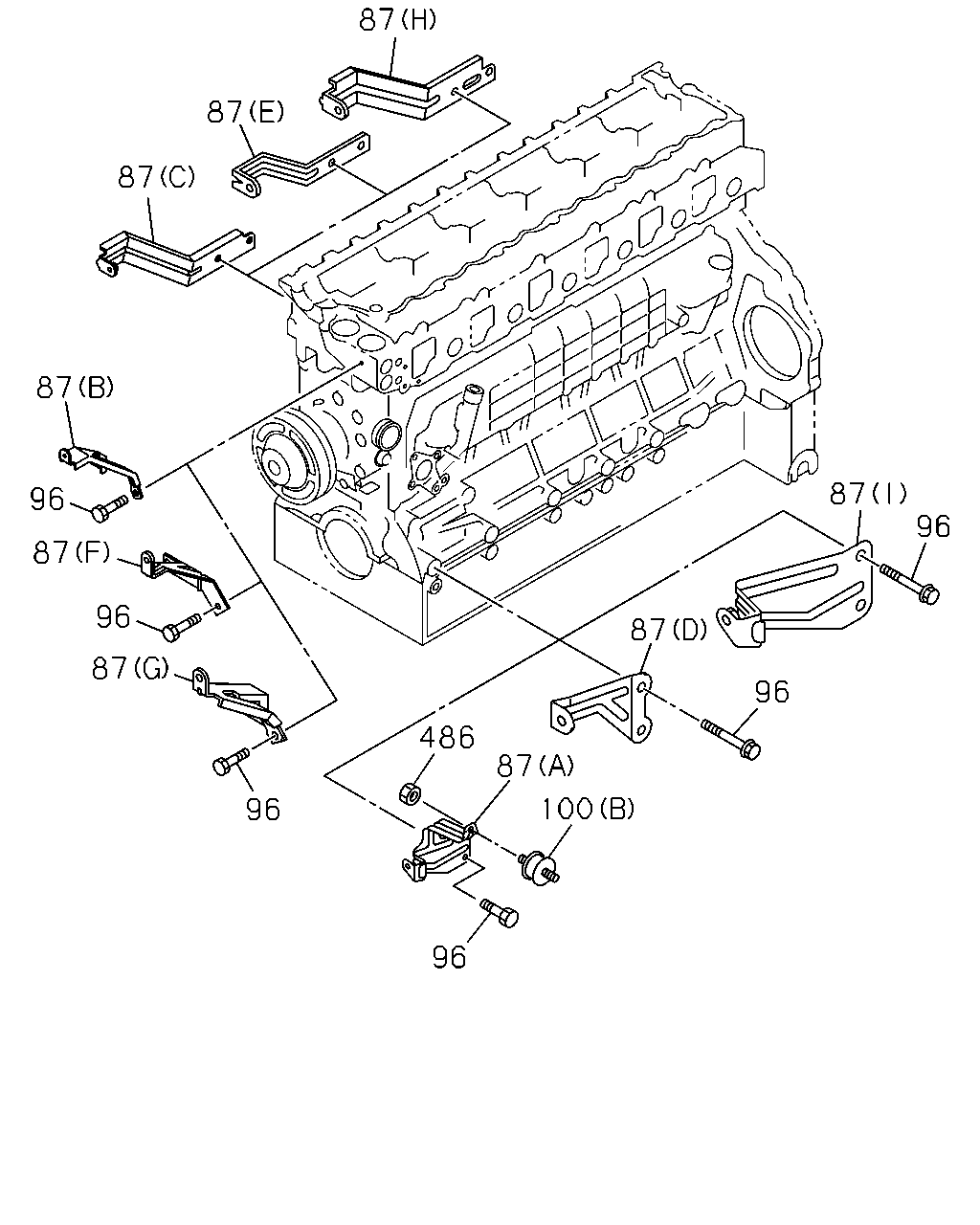

çizim 151607
87 87 87 87 87 96 96 87 96 87 87 96 486 87 100 96 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
87 STAY; FAN GUIDE
CAUTIONS ARABIAN<WJ7> (I) 		8-97601-016-0 01 1 0211- ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 9510-9710 ● ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 9711-9802 ● ● ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9510-9710 ● ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9711-9802 ● ● ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-1 01 1 9510-9710 ● ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-1 01 1 9711-9802 ● ● ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 9803-0004 ● ● ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 0005-0210 ● ●
87 STAY; FAN GUIDE
CAUTIONS ARABIAN<WJ7> (C) 		8-94393-119-2 01 1 0211- ●
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 0211- ● ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9803-0004 ● ● ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 0005-0210 ● ●
87 STAY; FAN GUIDE
CAUTIONS ARABIAN<WJ7> (B) 		8-94393-726-0 01 1 0211- ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 0211- ● ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-2 01 1 9803-0004 ● ● ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-2 01 1 0005- ● ●
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 9510-9802 ● ●
87 STAY; FAN GUIDE
(F) 		8-94396-496-1 01 1 9510-9802 ● ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 9510-9802 ● ●
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 9803-0004 ● ●
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 0005-0208 ● ● ●
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 0209- ● ●
87 STAY; FAN GUIDE
EXC. CAUTIONS ARABIAN<WJ7> (E) 		8-94394-775-0 01 1 0209- ●
87 STAY; FAN GUIDE
(F) 		8-94396-496-1 01 1 9803-0004 ● ●
87 STAY; FAN GUIDE
(F) 		8-94396-496-1 01 1 0005-0208 ● ● ●
87 STAY; FAN GUIDE
(F) 		8-94396-496-1 01 1 0209- ● ●
87 STAY; FAN GUIDE
EXC. CAUTIONS ARABIAN<WJ7> (F) 		8-94396-496-1 01 1 0209- ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 9803-0004 ● ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 0005-0205 ● ● ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 0206- ●
87 STAY; FAN GUIDE
EXC. CAUTIONS ARABIAN<WJ7> (D) 		8-94397-395-1 01 1 0206- ●
87 STAY; FAN GUIDE
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) 		8-94397-395-1 01 1 0206- ●
87 STAY; FAN GUIDE
(G) 		8-94393-776-0 01 1 9710-9710 ●
87 STAY; FAN GUIDE
(H) 		8-94393-777-1 01 1 9710-9710 ●
87 STAY; FAN GUIDE
(A) 		8-94393-778-1 01 1 9710-9710 ●
87 STAY; FAN GUIDE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (D) 		8-94392-394-0 01 1 0011- ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 9510-0004 ● ● ● ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0005-0512 ● ● ● ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ● ● ● ● ●
100 RUBBER; MTG
(A) 		1-09337-027-0 06 1 9510-9603 ● ● ●
100 RUBBER; MTG
(A) 		1-09337-027-0 06 1 9604-9606 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9510-0004 ● ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0005-0910 ● ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9604-9606 ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9607-0004 ● ● ● ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 0005- ● ● ● ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 9510-0004 ● ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●

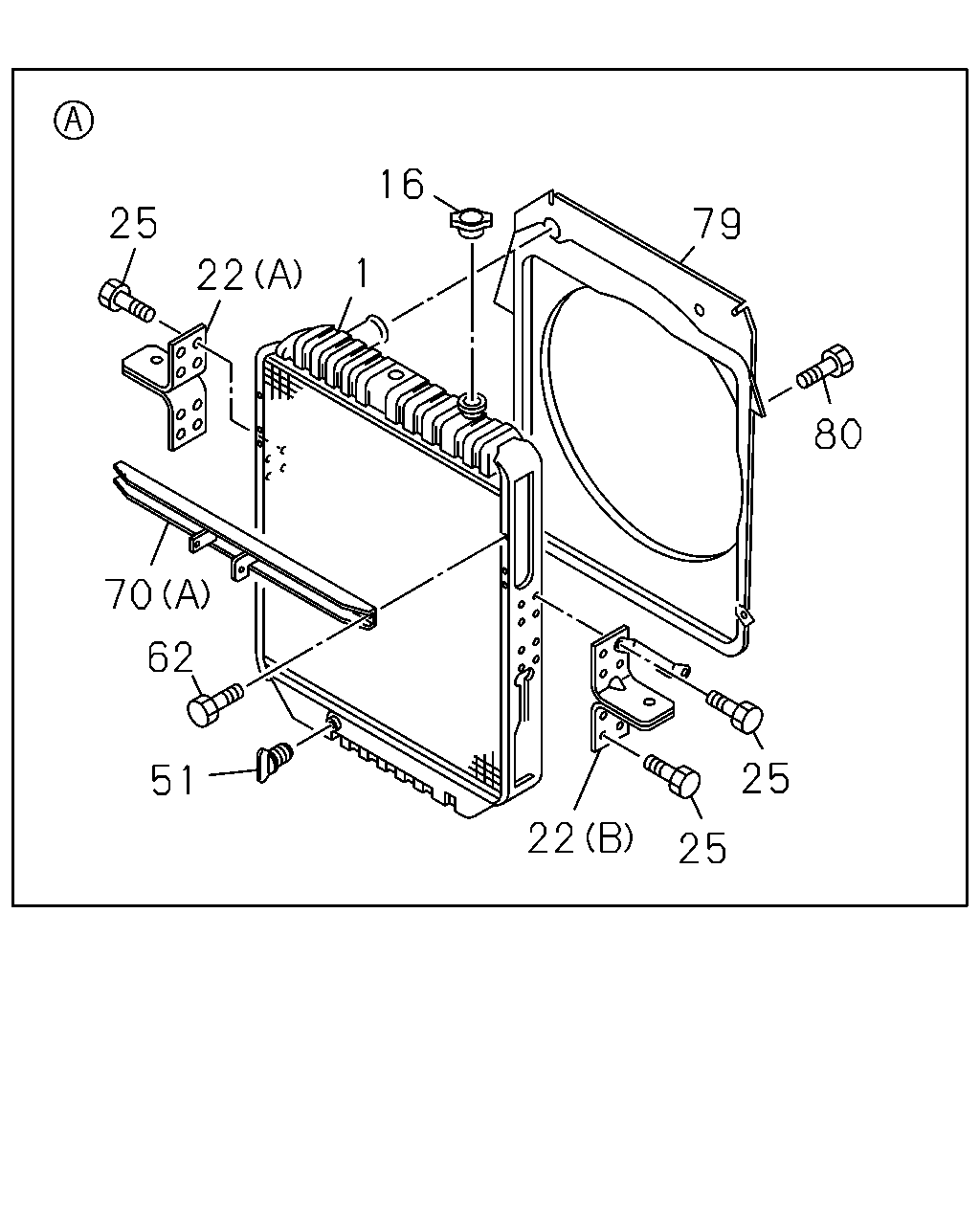

çizim 151611
16 25 79 1 22 80 70 62 25 51 22 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RADIATOR ASM 1-21410-690-1 01 1 9510-9603 ●
1 RADIATOR ASM
FIRE TRUCK(RA9) 		1-21410-690-1 01 1 9604-0004 ● ●
1 RADIATOR ASM
EXC. FIRE TRUCK(RA9) 		1-21410-675-1 01 1 9610-0004 ●
1 RADIATOR ASM 1-21410-675-1 01 1 9610-0004 ● ●
1 RADIATOR ASM 1-21410-675-1 01 1 0005-0010 ● ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-675-1 01 1 0011-0302 ● ● ●
1 RADIATOR ASM 1-21410-675-1 01 1 0011-0302 ● ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-675-1 01 1 0303- ● ● ●
1 RADIATOR ASM 1-21410-675-1 01 1 0303- ● ●
1 RADIATOR ASM 1-21410-674-1 01 1 9510-9603 ● ●
1 RADIATOR ASM 1-21410-674-1 01 1 9604-0004 ●
1 RADIATOR ASM
EXC. FIRE TRUCK(RA9) 		1-21410-674-1 01 1 9604-0004 ●
1 RADIATOR ASM 1-21410-674-1 01 1 0005-0010 ● ● ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05> 		1-21410-674-1 01 1 0011-0302 ● ● ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05> 		1-21410-674-1 01 1 0303- ● ● ●
16 CAP; RAD
CAUTIONS ARABIAN<WJ7> 		1-21450-142-0 01 1 0306-0308 ●
16 CAP; RAD
EXC. RADIATOR HEAVY DUTY<V05> 		1-21450-142-0 01 1 0309-0311 ● ● ●
16 CAP; RAD 1-21450-142-0 01 1 0312- ● ● ● ● ●
16 CAP; RAD 1-21450-053-1 01 1 9510-9609 ● ● ●
16 CAP; RAD 1-21450-053-1 01 1 9610-9704 ● ● ● ●
16 CAP; RAD 1-21450-053-2 01 1 9705-0004 ● ● ● ● ●
16 CAP; RAD 1-21450-053-2 01 1 0005-0302 ● ● ● ● ●
16 CAP; RAD 1-21450-053-1 01 1 0303-0305 ● ● ● ● ●
16 CAP; RAD 1-21450-053-1 01 1 0306-0308 ● ● ● ●
16 CAP; RAD
EXC. CAUTIONS ARABIAN<WJ7> 		1-21450-053-1 01 1 0306-0308 ●
16 CAP; RAD
RADIATOR HEAVY DUTY<V05> 		1-21450-053-2 01 1 0309-0311 ● ● ●
16 CAP; RAD 1-21450-053-2 01 1 0309-0311 ● ●
22 BRACKET; RAD MTG
EXC. FIRE TRUCK(RA9) (B) 		1-21464-521-0 01 1 9610-9704 ●
22 BRACKET; RAD MTG
(B) 		1-21464-521-0 01 1 9610-9704 ●
22 BRACKET; RAD MTG
EXC. FIRE TRUCK(RA9) (B) 		1-21464-548-0 01 1 9705-9910 ●
22 BRACKET; RAD MTG
(B) 		1-21464-548-0 01 1 9705-9910 ● ●
22 BRACKET; RAD MTG
EXC. FIRE TRUCK(RA9) (B) 		1-21464-548-0 01 1 9911-0004 ●
22 BRACKET; RAD MTG
EURO2 SPECIFICATION<THN> (B) 		1-21464-548-0 01 1 9911-0004 ●
22 BRACKET; RAD MTG
(B) 		1-21464-548-0 01 1 9911-0004 ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-548-0 01 1 0005-0010 ● ● ● ● ●
22 BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05> (B) 		1-21464-548-0 01 1 0011-0302 ● ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-548-0 01 1 0011-0302 ● ●
22 BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05> (B) 		1-21464-548-0 01 1 0303- ● ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-548-0 01 1 0303- ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 9510-9609 ● ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 9610-9704 ● ● ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 9705-0004 ● ● ● ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 0005-0302 ● ● ● ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 0303- ● ● ● ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-362-2 01 1 9510-9609 ● ● ●
22 BRACKET; RAD MTG
FIRE TRUCK(RA9) (B) 		1-21464-362-2 01 1 9610-9704 ●
22 BRACKET; RAD MTG
(B) 		1-21464-362-2 01 1 9610-9704 ● ●
22 BRACKET; RAD MTG
FIRE TRUCK(RA9) (B) 		1-21464-544-0 01 1 9705-9910 ●
22 BRACKET; RAD MTG
(B) 		1-21464-544-0 01 1 9705-9910 ● ●
22 BRACKET; RAD MTG
FIRE TRUCK(RA9) (B) 		1-21464-544-0 01 1 9911-0004 ●
22 BRACKET; RAD MTG
(B) 		1-21464-544-0 01 1 9911-0004 ●
22 BRACKET; RAD MTG
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21464-544-0 01 1 9911-0004 ●
22 BRACKET; RAD MTG
RADIATOR HEAVY DUTY<V05> (B) 		1-21464-544-0 01 1 0011-0302 ● ● ●
22 BRACKET; RAD MTG
RADIATOR HEAVY DUTY<V05> (B) 		1-21464-544-0 01 1 0303-0306 ● ● ●
22 BRACKET; RAD MTG
RADIATOR HEAVY DUTY<V05> (B) 		1-21464-544-0 01 1 0307- ● ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 9510-9609 ● ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 9610-9709 ● ● ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 9710-0004 ● ● ● ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0005-0302 ● ● ● ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0303- ● ● ● ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9510-9609 ● ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9610-9704 ● ● ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9705-0004 ● ● ● ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0302 ● ● ● ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0303- ● ● ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9510-9609 ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9610-9704 ● ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9705-0004 ● ● ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0005-0302 ● ● ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0303- ● ● ● ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 9510-9609 ● ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 9610-9709 ● ● ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 9710-0004 ● ● ● ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0005-0302 ● ● ● ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0303- ● ● ● ● ●
70 STAY; RAD
(A) 		1-21522-065-0 01 1 9510-9603 ●
70 STAY; RAD
FIRE TRUCK(RA9) (A) 		1-21522-065-0 01 1 9604-0004 ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 9510-0004 ● ● ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005-0403 ● ● ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0404- ● ● ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9510-9603 ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9604-9609 ●
70 STAY; RAD
EXC. FIRE TRUCK(RA9) (A) 		1-21522-064-0 01 1 9604-9609 ●
70 STAY; RAD
EXC. FIRE TRUCK(RA9) (A) 		1-21522-064-0 01 1 9610-0004 ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9610-0004 ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0005-0302 ● ● ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0303- ● ● ● ● ●
79 GUIDE; FAN,RAD 1-21551-374-1 01 1 9510-9609 ● ● ●
79 GUIDE; FAN,RAD 1-21551-374-1 01 1 9610-9704 ● ● ● ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 9705-0004 ● ● ● ● ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 0005-0302 ● ● ● ● ●
79 GUIDE; FAN,RAD 1-21551-374-4 01 1 0303- ● ● ● ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9510-9609 ● ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9610-9704 ● ● ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9705-0004 ● ● ● ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0005-0302 ● ● ● ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0303- ● ● ● ● ●

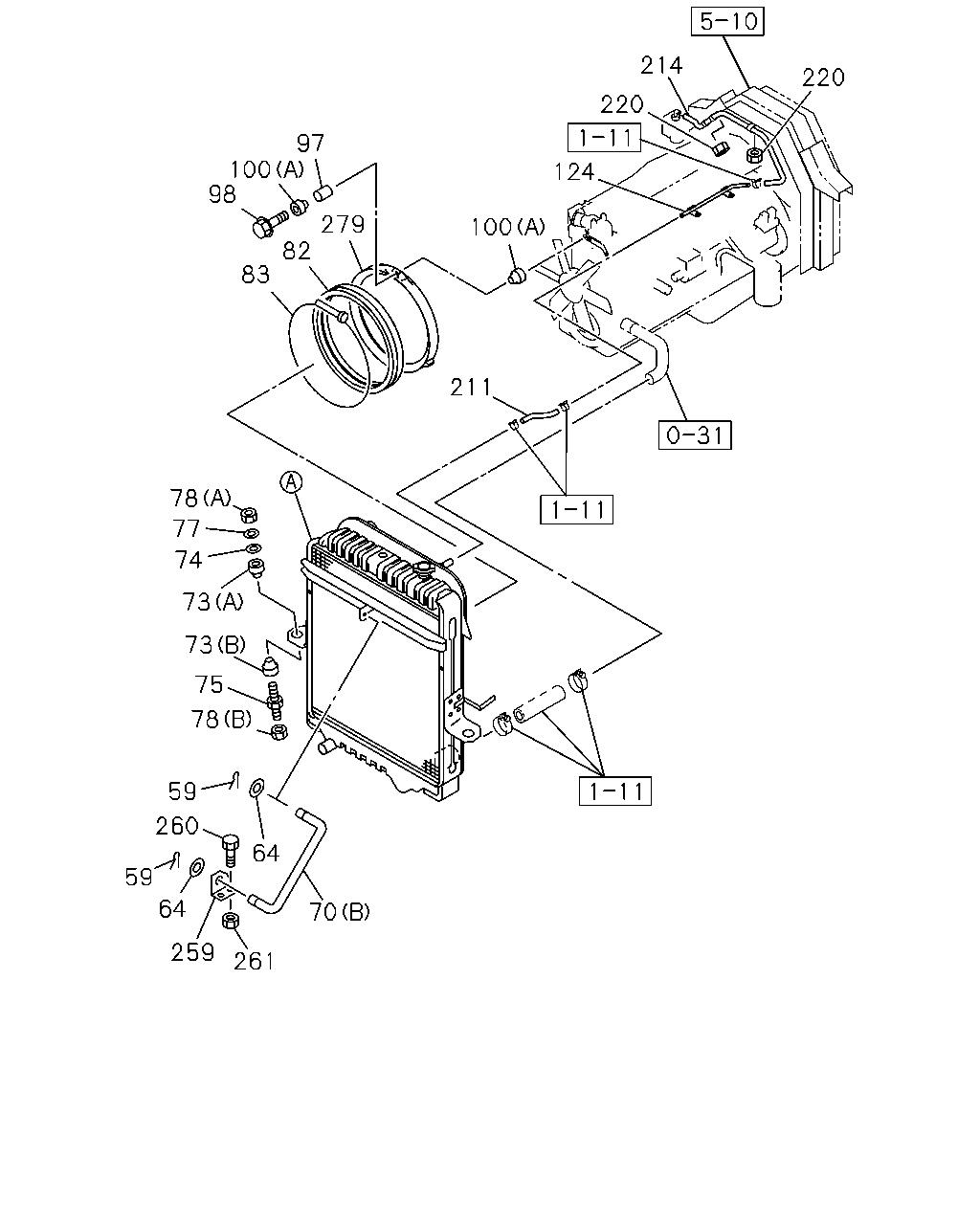

çizim 151614
214 220 220 97 100 98 124 279 82 100 83 211 78 77 74 73 73 75 78 59 260 64 59 64 70 259 261
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
59 PIN; SNAP,STAY 1-09987-158-1 02 1 9510-0004 ● ● ● ● ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 0005-0403 ● ● ● ● ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 0404- ● ● ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 9510-0004 ● ● ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 0005-0403 ● ● ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 0404-0605 ● ● ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ● ● ● ● ●
70 STAY; RAD
(A) 		1-21522-065-0 01 1 9510-9603 ●
70 STAY; RAD
FIRE TRUCK(RA9) (A) 		1-21522-065-0 01 1 9604-0004 ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 9510-0004 ● ● ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005-0403 ● ● ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0404- ● ● ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9510-9603 ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9604-9609 ●
70 STAY; RAD
EXC. FIRE TRUCK(RA9) (A) 		1-21522-064-0 01 1 9604-9609 ●
70 STAY; RAD
EXC. FIRE TRUCK(RA9) (A) 		1-21522-064-0 01 1 9610-0004 ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9610-0004 ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0005-0302 ● ● ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0303- ● ● ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9510-0004 ● ● ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0005-0205 ● ● ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0206- ● ● ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9510-0004 ● ● ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0005- ● ● ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9510-9604 ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9605-0004 ● ● ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0005- ● ● ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9510-0004 ● ● ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0005- ● ● ● ● ●
77 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9510-9702 ● ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9510-0004 ● ● ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0005-0602 ● ● ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9510-0004 ● ● ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0005- ● ● ● ● ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 9510-0004 ● ● ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 0005-0212 ● ●
82 COVER; FAN,RAD
SAUDI ARABIA EQUIPMENT(WH1) 		1-21559-211-0 01 1 0301- ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 0301- ● ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 9510-0004 ● ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 0005-0212 ● ● ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 0301- ● ●
82 COVER; FAN,RAD
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-21559-340-0 01 1 0301- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9510-0004 ● ● ● ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0005- ● ● ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9604-9606 ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9607-0004 ● ● ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0005- ● ● ● ● ●
98 BOLT; RAD FAN GUIDE
M8X25 FLANGE 		0-28080-825-0 03 1 9510-9606 ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9607-0004 ● ● ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0005-0512 ● ● ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ● ● ● ●
100 RUBBER; MTG
(A) 		1-09337-027-0 06 1 9510-9603 ● ● ●
100 RUBBER; MTG
(A) 		1-09337-027-0 06 1 9604-9606 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 9510-0004 ● ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0005-0910 ● ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9604-9606 ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 9607-0004 ● ● ● ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 0005- ● ● ● ● ●
124 PIPE; WATER,TANK TO RAD
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94394-422-0 01 1 9510-0004 ●
124 PIPE; WATER,TANK TO RAD 8-94394-422-0 01 1 9510-0004 ●
124 PIPE; WATER,TANK TO RAD 8-94394-422-0 01 1 0005- ●
124 PIPE; WATER,TANK TO RAD
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-94395-451-1 01 1 9710-0004 ●
124 PIPE; WATER,TANK TO RAD 8-94395-451-1 01 1 9710-0004 ●
124 PIPE; WATER,TANK TO RAD 8-94395-451-1 01 1 0005- ●
124 PIPE; WATER,TANK TO RAD
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> 		8-94394-461-4 01 1 9510-9510 ● ●
124 PIPE; WATER,TANK TO RAD
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT<TDZ> 		8-94394-461-4 01 1 9803-0004 ● ●
124 PIPE; WATER,TANK TO RAD
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-461-4 01 1 0005- ●
124 PIPE; WATER,TANK TO RAD
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> 		8-94394-461-4 01 1 9511-9802 ● ●
124 PIPE; WATER,TANK TO RAD
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> 		8-94396-222-1 01 1 9510-9802 ● ●
124 PIPE; WATER,TANK TO RAD
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT<TDZ> 		8-94396-222-1 01 1 9803-9903 ● ●
124 PIPE; WATER,TANK TO RAD
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT<TDZ>,EURO2 SPECIFICATION<THN> 		8-94396-222-1 01 1 9904-0004 ● ●
124 PIPE; WATER,TANK TO RAD
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-222-2 01 1 0005- ● ●
124 PIPE; WATER,TANK TO RAD
EURO2 SPECIFICATION<THN> 		8-94392-986-0 01 1 9911-0004 ●
124 PIPE; WATER,TANK TO RAD 8-94392-986-0 01 1 0005- ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9802 ● ● ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9802 ● ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9802 ● ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ● ● ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ● ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ● ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=430 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT<TDZ> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0001 ● ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT<TDZ>,EURO2 SPECIFICATION<THN> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 0002-0004 ● ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ● ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=290 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ●
211 HOSE; RAD TO PIPE
EURO2 SPECIFICATION<THN> L=560 SERVICED BY L=3000 		0-03257-300-0 01 1 0002-0004 ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> L=560 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> L=560 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9802 ● ● ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9802 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9702 ● ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9702 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9702 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ● ● ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT<TDZ> CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT<TDZ> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ● ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0007-0109 ● ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0007-0109 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0007-0109 ● ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9703-9802 ● ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> CAB SUSPENSION SEMI FLOATING<SDK> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9703-9802 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9703-9802 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT<TDZ> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9802 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ● ● ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT<TDZ> CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ● ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM ECE REQUIREMENTS<SFV> CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ● ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM ECE REQUIREMENTS<SFV> CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT<TDZ> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9803-0004 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0006 ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 0007-0109 ● ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=1200 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9510-9606 ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 FLANGE 		0-91150-108-0 02 1 9607-9709 ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-9709 ● ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 FLANGE 		0-91150-108-0 02 1 9710-0004 ● ● ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9710-0004 ● ● ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 		9-09110-408-0 02 1 9510-9606 ● ● ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> M8 		9-09110-408-0 03 1 9510-9606 ● ● ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> M8 FLANGE 		0-91150-108-0 03 1 9607-0004 ● ● ● ● ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> M8 FLANGE 		0-91150-108-0 04 1 0005-0602 ● ● ● ● ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ● ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
259 BRACKET; RAD STAY 1-21523-024-0 01 1 9510-0004 ● ● ● ● ●
259 BRACKET; RAD STAY 1-21523-024-0 01 1 0005-0406 ● ● ● ● ●
259 BRACKET; RAD STAY 1-21523-024-0 01 1 0407- ● ● ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9607-0004 ● ● ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0406 ● ● ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0407-0512 ● ● ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ● ●
261 NUT; BRKT
M8 		9-09110-408-0 02 1 9510-9606 ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ● ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0406 ● ● ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0602 ● ● ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
279 BELL MOUTH 8-94394-174-1 01 1 9510-0004 ● ● ●
279 BELL MOUTH 8-94394-174-1 01 1 0005-0212 ● ●
279 BELL MOUTH
SAUDI ARABIA EQUIPMENT(WH1) 		8-94394-174-1 01 1 0301- ●
279 BELL MOUTH 8-94394-174-1 01 1 0301- ● ●
279 BELL MOUTH 8-94394-808-2 01 1 9510-0004 ● ●
279 BELL MOUTH 8-94394-808-2 01 1 0005-0212 ● ● ●
279 BELL MOUTH 8-94394-808-2 01 1 0301- ● ●
279 BELL MOUTH
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		8-94394-808-2 01 1 0301- ●

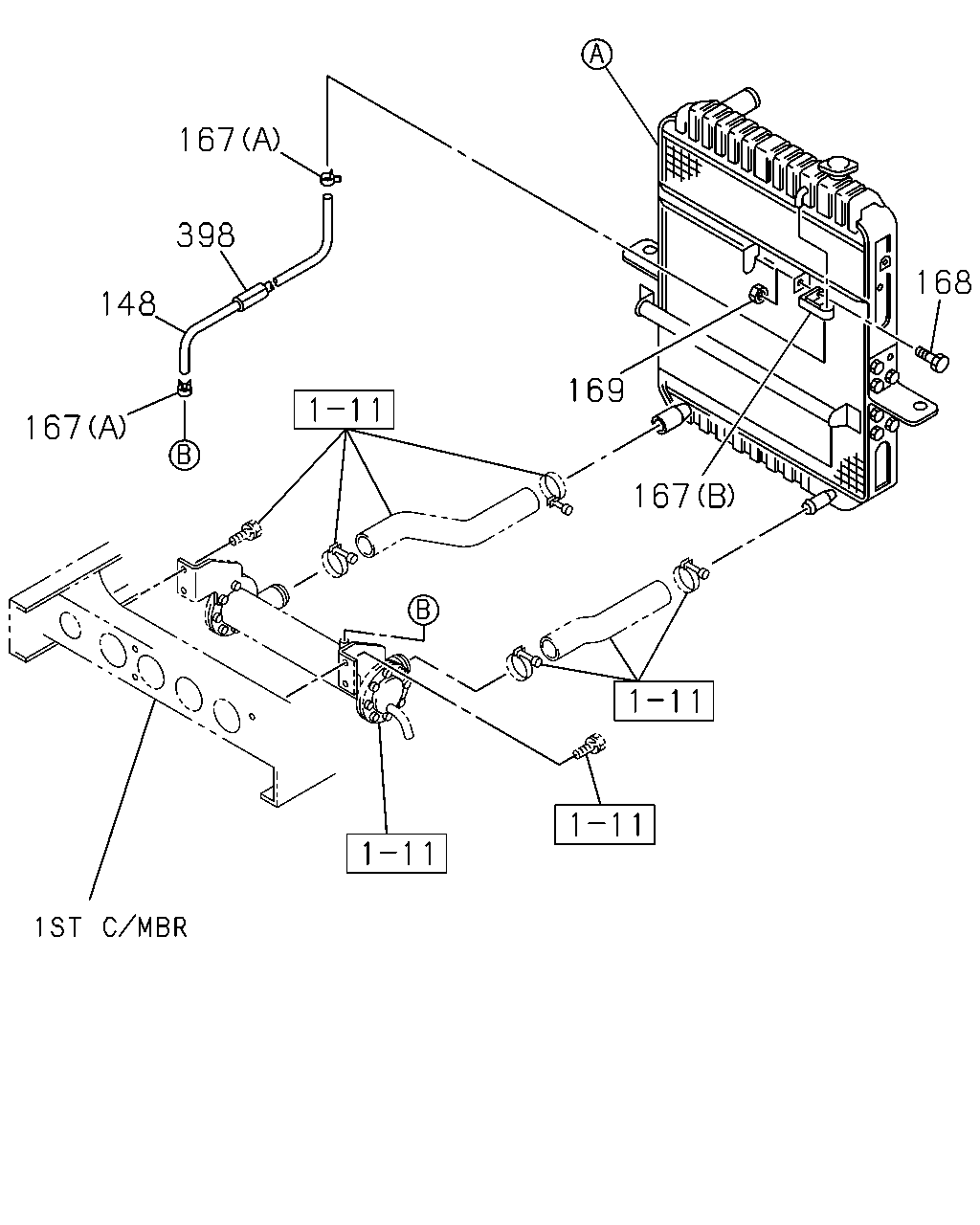

çizim 151615
167 398 168 148 169 167 167
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
148 HOSE; WATER,BYPASS,SUB RAD
FIRE TRUCK(RA9) L=900 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-0004 ● ●
167 CLIP; BYPASS HOSE
FIRE TRUCK(RA9) (B) ID=15 H=24 L=20 		1-09700-606-0 01 1 9510-0004 ● ●
167 CLIP; BYPASS HOSE
FIRE TRUCK(RA9) (A) ID=12 		8-94238-610-0 02 1 9510-0004 ● ●
168 BOLT; CLIP,BYPASS HOSE
FIRE TRUCK(RA9) M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606 ● ●
168 BOLT; CLIP,BYPASS HOSE
FIRE TRUCK(RA9) M8X20 FLANGE 		0-28680-820-0 01 1 9607-0004 ● ●
169 NUT; CLIP,BYPASS HOSE
FIRE TRUCK(RA9) M8 		9-09110-408-0 01 1 9510-9606 ● ●
169 NUT; CLIP,BYPASS HOSE
FIRE TRUCK(RA9) M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ● ●
398 SLEEVE; RUBBER,BYPASS
FIRE TRUCK(RA9) ID=10 OD=14 L=30 		9-09956-682-0 02 1 9510-9807 ● ●
398 SLEEVE; RUBBER,BYPASS
FIRE TRUCK(RA9) ID=17 OD=21 L=40 		1-09337-012-0 02 1 9808-0004 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
