Sayfa 0-84 - Isuzu EPC

0-84 — FEED PUMP; INJECTION PUMP (#38253) — 241 parça

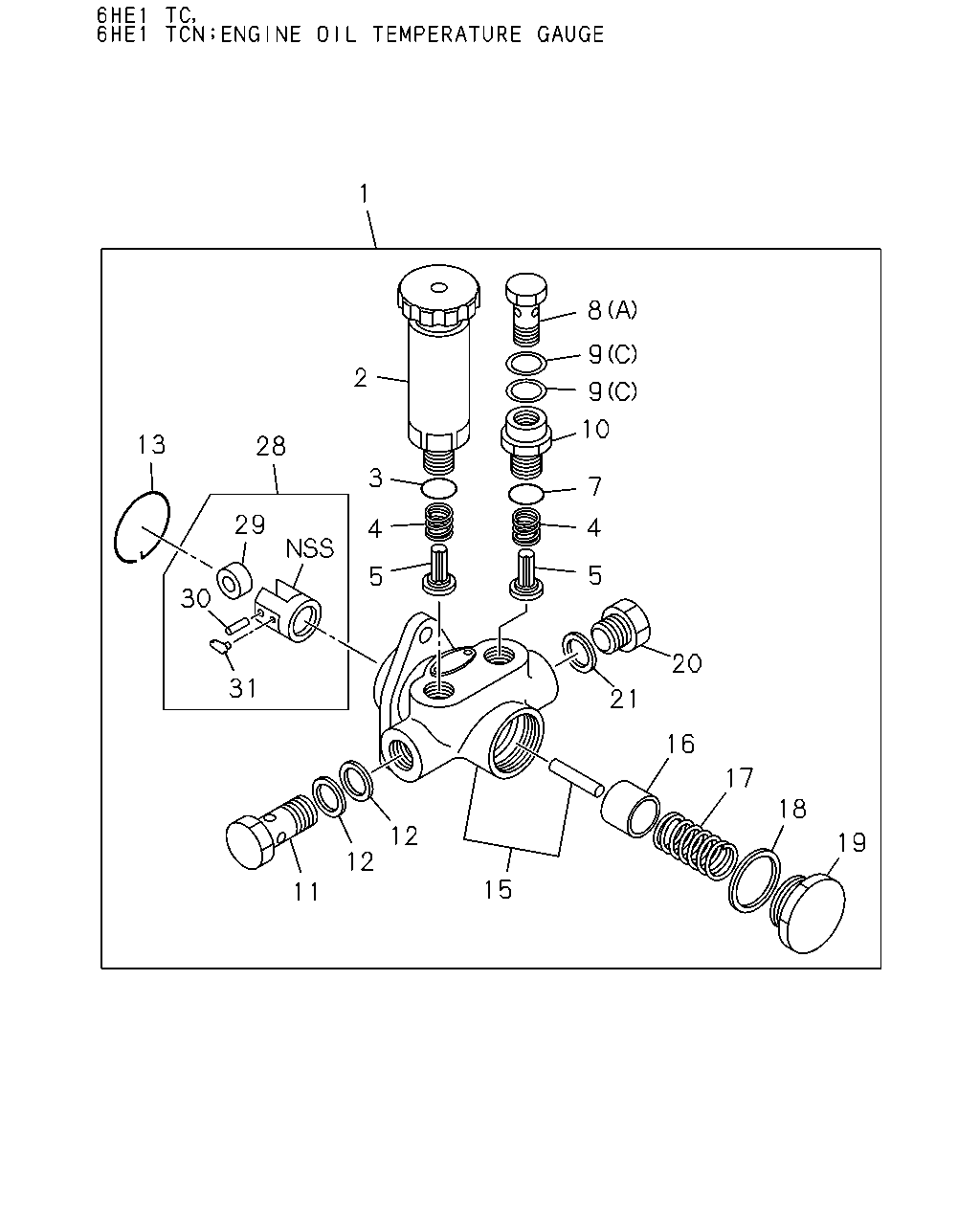

1 8 9 2 9 10 13 28 3 7 29 4 4 30 5 5 20 31 21 16 17 18 12 19 12 15 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	1-15750-113-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15750-140-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, M = 8-94395-904-1, O = 8-97600-180-0	1-15750-148-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2	1-15750-155-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: G = 8-94392-219-3	1-15750-178-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	9-81351-702-0	02	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	9-81351-602-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-19623-016-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	1-19623-016-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (B) ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-051-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (C), M14X30 ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A) ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, G = 8-94392-219-3, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A) ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (C) ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	1-15759-012-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	9-81215-182-1	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	1-15759-003-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-067-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	1-15759-029-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: G = 8-94392-219-3	8-97203-957-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, G = 8-94392-219-3, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0	1-09630-085-0	02	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	1-15759-012-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	9-81355-025-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	1-15751-027-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: H = 8-94392-231-8	1-15751-036-0	01	1	-0503
15	HOUSING; FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15751-036-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: G = 8-94392-219-3	1-15751-043-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: H = 8-94392-231-8	1-15751-049-0	01	1	0504-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15753-005-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	9-81351-302-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: G = 8-94392-219-3	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-004-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: H = 8-94392-231-8	1-15759-004-0	01	1	-0503
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	1-15759-007-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, P = 8-97600-576-1, Q = 8-97602-131-0	9-81215-182-1	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: H = 8-94392-231-8	9-81215-182-1	01	1	-0503
28	TAPPET ASM; FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	1-15754-002-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	1-15759-043-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	9-81351-406-0	01	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	9-81351-416-0	02	1	-

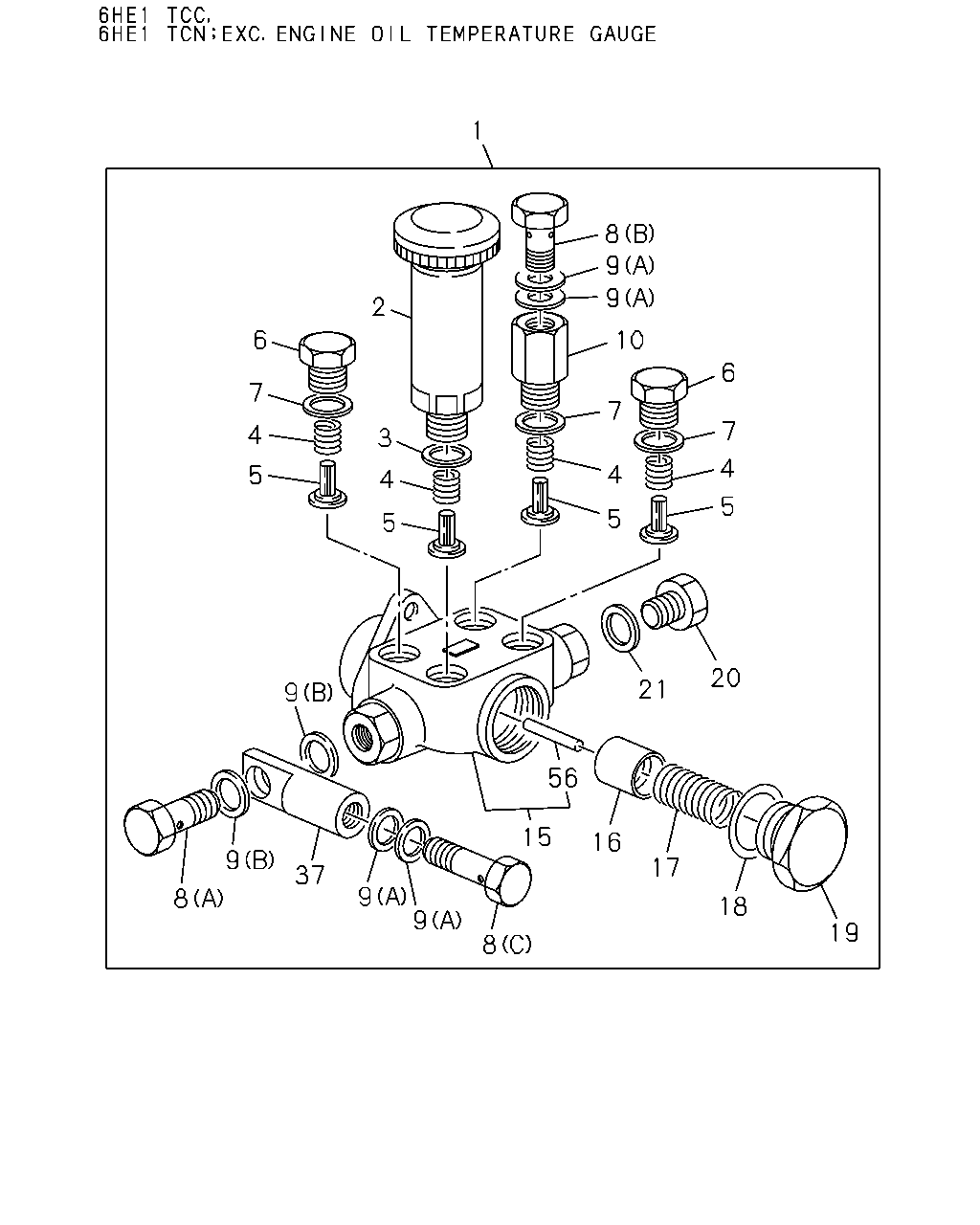

1 8 9 9 2 6 10 6 7 7 7 4 3 4 4 5 4 5 5 5 20 21 9 56 16 15 9 17 37 9 9 8 18 19 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	1-15750-113-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15750-140-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, M = 8-94395-904-1, O = 8-97600-180-0	1-15750-148-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2	1-15750-155-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: G = 8-94392-219-3	1-15750-178-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	9-81351-702-0	02	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	9-81351-602-0	02	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-066-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-19623-016-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	1-19623-016-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (B) ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-051-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (C), M14X30 ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A) ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, G = 8-94392-219-3, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A) ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (C) ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	1-15759-012-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	9-81215-182-1	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	1-15759-003-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-067-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	1-15751-027-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: H = 8-94392-231-8	1-15751-036-0	01	1	-0503
15	HOUSING; FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15751-036-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: G = 8-94392-219-3	1-15751-043-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: H = 8-94392-231-8	1-15751-049-0	01	1	0504-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15753-005-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	9-81351-302-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: G = 8-94392-219-3	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-004-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: H = 8-94392-231-8	1-15759-004-0	01	1	-0503
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	1-15759-007-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, P = 8-97600-576-1, Q = 8-97602-131-0	9-81215-182-1	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: H = 8-94392-231-8	9-81215-182-1	01	1	-0503
37	EYE; FUEL OUTLET,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-050-0	01	1	-
56	PUSH ROD ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-074-0	01	1	-
56	PUSH ROD ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, M = 8-94395-904-1, O = 8-97600-180-0	8-97115-990-0	01	1	-
56	PUSH ROD ASM PART: I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2	8-97115-991-0	01	1	-

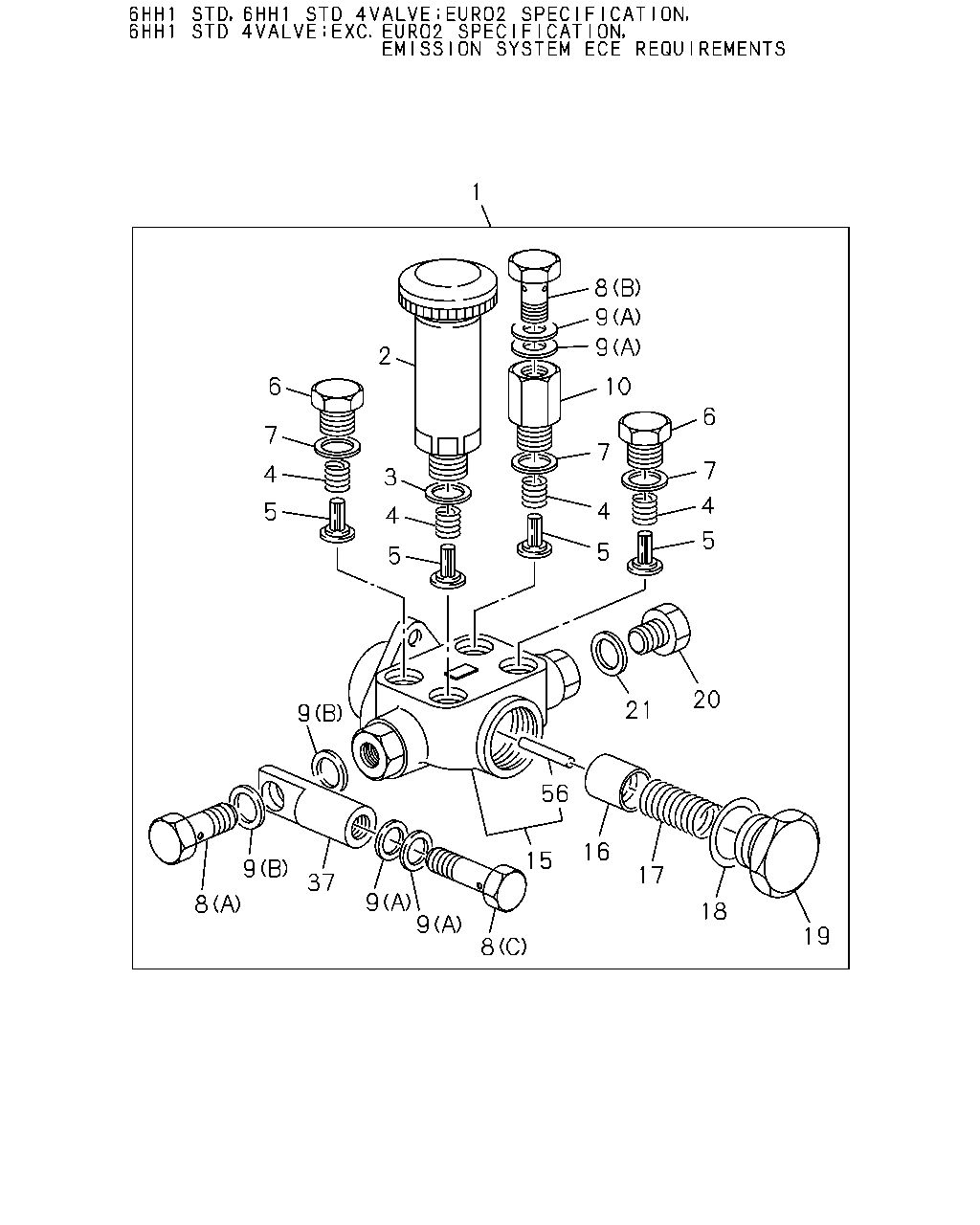

1 8 9 9 2 6 10 6 7 7 7 4 3 4 4 5 4 5 5 5 20 21 9 56 15 16 9 17 37 9 9 8 18 19 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	1-15750-113-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15750-140-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, M = 8-94395-904-1, O = 8-97600-180-0	1-15750-148-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2	1-15750-155-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: G = 8-94392-219-3	1-15750-178-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	9-81351-702-0	02	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	9-81351-602-0	02	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-066-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-19623-016-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	1-19623-016-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (B) ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-051-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (C), M14X30 ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A) ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, G = 8-94392-219-3, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A) ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (C) ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	1-15759-012-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	9-81215-182-1	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	1-15759-003-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-067-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	1-15751-027-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: H = 8-94392-231-8	1-15751-036-0	01	1	-0503
15	HOUSING; FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15751-036-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: G = 8-94392-219-3	1-15751-043-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: H = 8-94392-231-8	1-15751-049-0	01	1	0504-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15753-005-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	9-81351-302-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: G = 8-94392-219-3	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-004-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: H = 8-94392-231-8	1-15759-004-0	01	1	-0503
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	1-15759-007-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, P = 8-97600-576-1, Q = 8-97602-131-0	9-81215-182-1	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: H = 8-94392-231-8	9-81215-182-1	01	1	-0503
37	EYE; FUEL OUTLET,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-050-0	01	1	-
56	PUSH ROD ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-074-0	01	1	-
56	PUSH ROD ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, M = 8-94395-904-1, O = 8-97600-180-0	8-97115-990-0	01	1	-
56	PUSH ROD ASM PART: I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2	8-97115-991-0	01	1	-

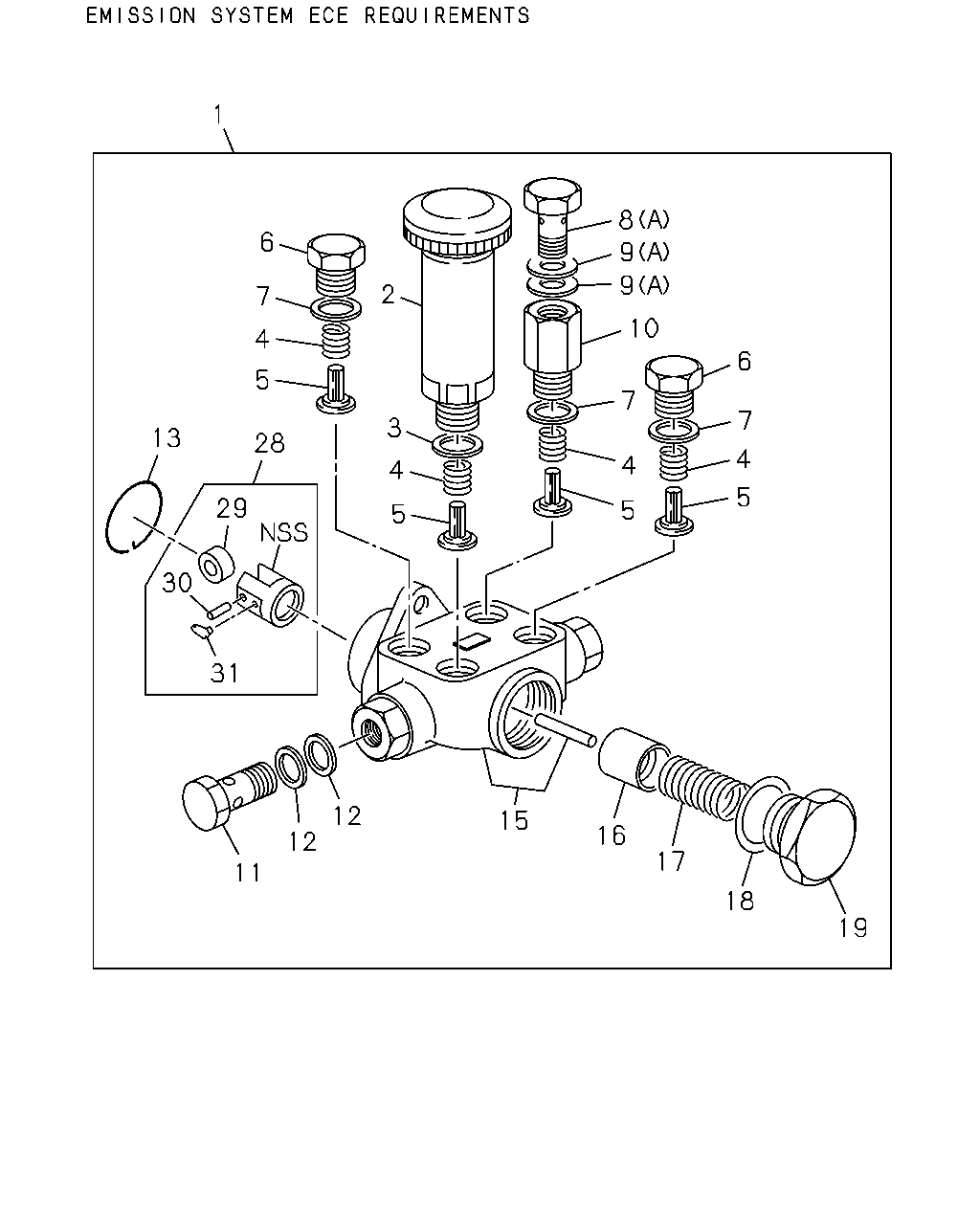

1 8 9 6 9 2 7 10 4 6 5 7 7 3 13 28 4 4 4 5 29 5 5 30 31 12 15 16 12 17 11 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	1-15750-113-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15750-140-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, M = 8-94395-904-1, O = 8-97600-180-0	1-15750-148-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2	1-15750-155-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: G = 8-94392-219-3	1-15750-178-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	9-81351-702-0	02	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	9-81351-602-0	02	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-066-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-19623-016-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	1-19623-016-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (B) ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-051-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (C), M14X30 ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A) ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, G = 8-94392-219-3, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A) ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (C) ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	1-15759-012-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	9-81215-182-1	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	1-15759-003-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-067-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	1-15759-029-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: G = 8-94392-219-3	8-97203-957-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, G = 8-94392-219-3, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0	1-09630-085-0	02	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	1-15759-012-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	9-81355-025-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	1-15751-027-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: H = 8-94392-231-8	1-15751-036-0	01	1	-0503
15	HOUSING; FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15751-036-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: G = 8-94392-219-3	1-15751-043-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: H = 8-94392-231-8	1-15751-049-0	01	1	0504-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15753-005-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	9-81351-302-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: G = 8-94392-219-3	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	8-94171-185-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	1-15754-002-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	1-15759-043-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	9-81351-406-0	01	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	9-81351-416-0	02	1	-

1 8 9 2 9 10 3 7 4 4 5 5 20 21 16 17 15 18 56 12 19 12 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	1-15750-113-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15750-140-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, M = 8-94395-904-1, O = 8-97600-180-0	1-15750-148-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2	1-15750-155-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: G = 8-94392-219-3	1-15750-178-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	9-81351-702-0	02	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	9-81351-602-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-19623-016-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	1-19623-016-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (B) ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-051-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (C), M14X30 ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A) ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, G = 8-94392-219-3, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A) ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (C) ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	1-15759-012-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	9-81215-182-1	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	1-15759-003-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-067-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	1-15759-029-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: G = 8-94392-219-3	8-97203-957-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, G = 8-94392-219-3, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0	1-09630-085-0	02	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	1-15759-012-0	02	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: D = 8-94391-170-1, N = 8-94395-920-3	1-15751-027-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: H = 8-94392-231-8	1-15751-036-0	01	1	-0503
15	HOUSING; FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, P = 8-97600-576-1, Q = 8-97602-131-0	1-15751-036-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: G = 8-94392-219-3	1-15751-043-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: H = 8-94392-231-8	1-15751-049-0	01	1	0504-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15753-005-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	9-81351-302-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: G = 8-94392-219-3	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: D = 8-94391-170-1, G = 8-94392-219-3, N = 8-94395-920-3	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, G = 8-94392-219-3, H = 8-94392-231-8, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, C = 8-94391-109-2, D = 8-94391-170-1, E = 8-94392-008-0, F = 8-94392-009-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-004-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: H = 8-94392-231-8	1-15759-004-0	01	1	-0503
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, D = 8-94391-170-1, I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2, M = 8-94395-904-1, N = 8-94395-920-3, O = 8-97600-180-0	1-15759-007-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, P = 8-97600-576-1, Q = 8-97602-131-0	9-81215-182-1	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: H = 8-94392-231-8	9-81215-182-1	01	1	-0503
56	PUSH ROD ASM PART: C = 8-94391-109-2, E = 8-94392-008-0, F = 8-94392-009-1, H = 8-94392-231-8, P = 8-97600-576-1, Q = 8-97602-131-0	1-15759-074-0	01	1	-
56	PUSH ROD ASM PART: A = 8-94390-081-1, B = 8-94390-929-0, M = 8-94395-904-1, O = 8-97600-180-0	8-97115-990-0	01	1	-
56	PUSH ROD ASM PART: I = 8-94395-812-1, J = 8-94395-813-1, K = 8-94395-901-1, L = 8-94395-902-2	8-97115-991-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
