4-60 — REAR SUSPENSION (#3825) — 82 parça

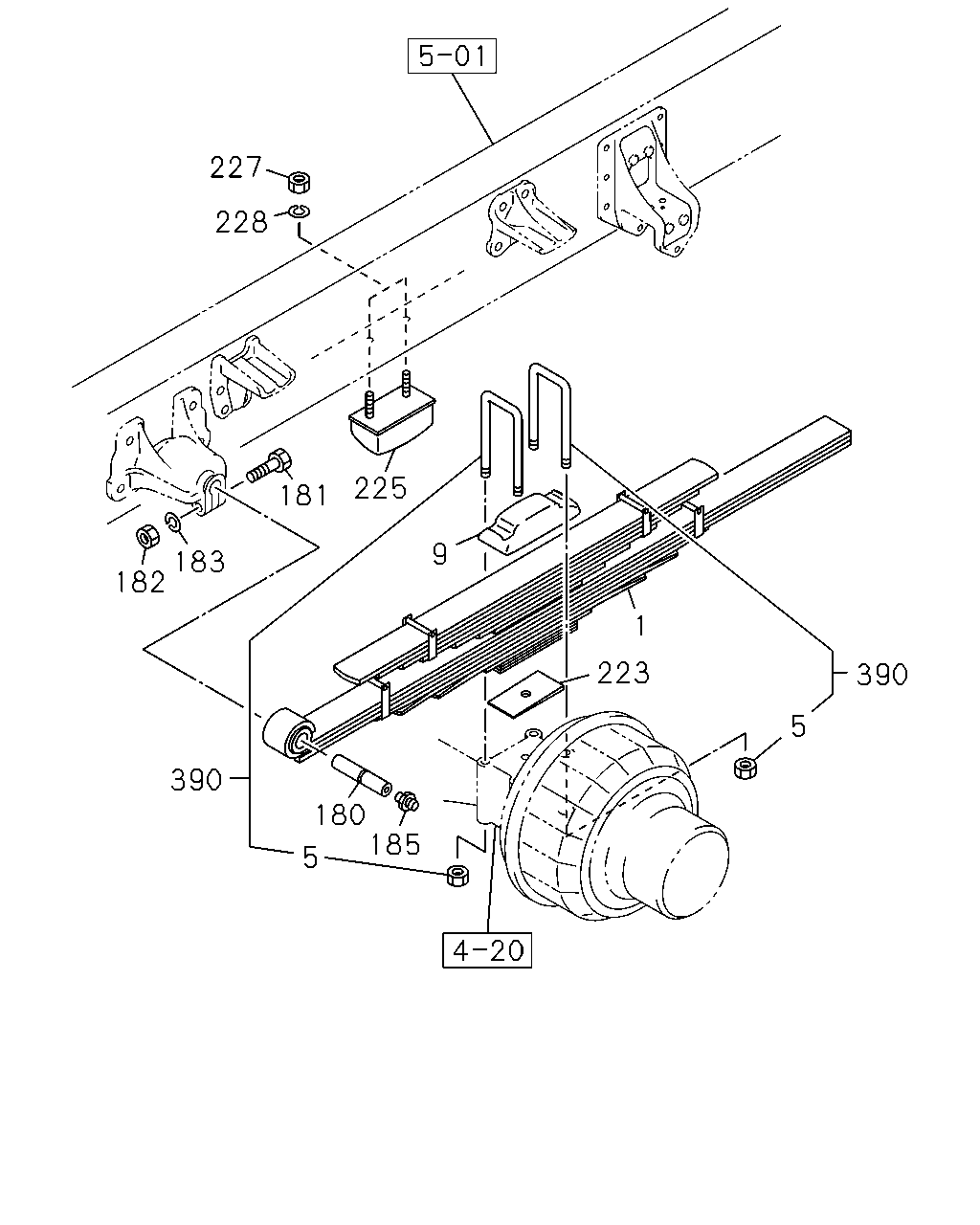

çizim 37351
227 228 225 181 9 183 182 1 223 390 5 390 180 185 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3900MM(39W) SUSPENSION HEAVY DUTY VAR2(F41) 		8-98100-572-0 02 1 0907-0907 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6SD1 TCN ENG(31L) WHEEL BASE 3900MM(39W) SUSPENSION HEAVY DUTY VAR2(F41) 		8-98100-572-0 02 1 0907- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR2(F41) 14-LEAF 		1-51300-522-1 02 1 9601-0906 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR2(F41) 14-LEAF 		1-51300-522-1 02 1 0907-0907 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 3900MM(39W) SUSPENSION HEAVY DUTY VAR2(F41) 14-LEAF 		1-51300-522-1 02 1 0907- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR2(F41) 14-LEAF 		1-51300-522-1 02 1 0907- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY VAR2(F41) 14-LEAF 		1-51300-352-0 02 1 9601- ● ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 9601-0512 ● ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 0601- ● ●
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 9601- ● ●
180 PIN; RR SPR 1-51361-020-0 02 1 9601- ● ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10806-480-0 02 1 9601-0512 ● ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10856-480-0 02 1 0601- ● ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 9601-0512 ● ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 0601- ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 9601-0603 ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 0604- ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9601-0512 ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 3900MM(39W) 		1-51377-369-1 02 1 0907-0907 ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L) WHEEL BASE 3900MM(39W) SUSPENSION HEAVY DUTY VAR2(F41) 		1-51377-369-1 02 1 0907-1312 ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L) WHEEL BASE 3900MM(39W) SUSPENSION HEAVY DUTY VAR2(F41) 		8-98220-149-0 02 1 1401- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) P60 PROP SHAFT(C2M) COLOMBIA EQUIPMENT(WJ2) 		8-98091-873-0 02 1 0708-1212 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6200MM(62W) 		1-51377-367-1 02 1 0701-1407 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6200MM(62W) 		8-98220-148-0 02 1 1408- ●
223 SPACER; U BOLT,RR SPR 1-51377-131-0 02 1 9601-9803 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		1-51377-131-0 02 1 9601-9803 ●
223 SPACER; U BOLT,RR SPR 1-51377-368-1 02 1 9804-0607 ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) 		1-51377-368-1 02 1 9804-0607 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		1-51377-368-1 02 1 9804-0607 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) P60 PROP SHAFT(C2M) 		1-51377-368-1 02 1 9804-0607 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 3900MM(39W) 		1-51377-368-1 02 1 0608-0707 ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) 		1-51377-368-1 02 1 0608-0707 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		1-51377-368-1 02 1 0608-0707 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) P60 PROP SHAFT(C2M) 		1-51377-368-1 02 1 0608-0707 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 3900MM(39W) 		1-51377-368-1 02 1 0708-0906 ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) EXC. P60 PROP SHAFT(C2M) 		1-51377-368-1 02 1 0708-0906 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		1-51377-368-1 02 1 0708-0906 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) P60 PROP SHAFT(C2M) EXC. COLOMBIA EQUIPMENT(WJ2) 		1-51377-368-1 02 1 0708-0906 ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) EXC. P60 PROP SHAFT(C2M) 		1-51377-368-1 02 1 0907-0907 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		1-51377-368-1 02 1 0907-0907 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) P60 PROP SHAFT(C2M) EXC. COLOMBIA EQUIPMENT(WJ2) 		1-51377-368-1 02 1 0907-0907 ●
223 SPACER; U BOLT,RR SPR
6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 3900MM(39W) 		1-51377-368-1 02 1 0907-1212 ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L) WHEEL BASE 3900MM(39W) EXC. SUSPENSION HEAVY DUTY VAR2(F41) 		1-51377-368-1 02 1 0907-1212 ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) EXC. P60 PROP SHAFT(C2M) 		1-51377-368-1 02 1 0907-1212 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		1-51377-368-1 02 1 0907-1212 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) P60 PROP SHAFT(C2M) EXC. COLOMBIA EQUIPMENT(WJ2) 		1-51377-368-1 02 1 0907-1212 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) 		1-51377-344-0 02 1 9601-9803 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) EXC. P46 PROP SHAFT(C4Z) 		1-51377-344-0 02 1 9601-9803 ●
223 SPACER; U BOLT,RR SPR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) P46 PROP SHAFT(C4Z) 		1-51377-371-1 02 1 9804-0607 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5000MM(50W) 		1-51377-371-1 02 1 9804-0607 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) EXC. P46 PROP SHAFT(C4Z) 		1-51377-371-1 02 1 9804-0607 ●
223 SPACER; U BOLT,RR SPR
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) WHEEL BASE 4600MM(46W) P46 PROP SHAFT(C4Z) 		1-51377-371-1 02 1 0608-1212 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5000MM(50W) 		1-51377-371-1 02 1 0608-1212 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) EXC. P46 PROP SHAFT(C4Z) 		1-51377-371-1 02 1 0608-1212 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) P46 PROP SHAFT(C4Z) 		1-51377-327-0 02 1 9601-9803 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) P46 PROP SHAFT(C4Z) 		1-51377-370-0 02 1 9804-1306 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) P46 PROP SHAFT(C4Z) 		8-98220-147-0 02 1 1307- ●
225 RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53366-142-0 02 1 9601-9803 ● ●
225 RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53366-045-0 02 1 9804-0612 ● ●
225 RUBBER; CUSHION,RR SPR
REAR AXLE R130<B5V> 		1-53366-045-1 02 1 0701-0906 ● ●
225 RUBBER; CUSHION,RR SPR
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6200MM(62W) REAR AXLE R130<B5V> 		1-53366-045-1 02 1 0907-0907 ●
225 RUBBER; CUSHION,RR SPR
6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 3900MM(39W) REAR AXLE R130<B5V> 		1-53366-045-1 02 1 0907- ●
225 RUBBER; CUSHION,RR SPR
6SD1 TCN ENG(31L) WHEEL BASE 3900MM(39W) REAR AXLE R130<B5V> EXC. SUSPENSION HEAVY DUTY VAR2(F41) 		1-53366-045-1 02 1 0907- ●
225 RUBBER; CUSHION,RR SPR
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6200MM(62W) REAR AXLE R130<B5V> 		1-53366-045-1 02 1 0907- ●
225 RUBBER; CUSHION,RR SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53366-081-0 02 1 9601-0612 ● ●
225 RUBBER; CUSHION,RR SPR
EXC. REAR AXLE R130<B5V> 		1-53366-081-1 02 1 0701-0906 ● ●
225 RUBBER; CUSHION,RR SPR
EXC. REAR AXLE R130<B5V> 		1-53366-081-1 02 1 0907-0907 ● ●
225 RUBBER; CUSHION,RR SPR
WHEEL BASE 3900MM(39W) REAR AXLE R130<B5V> 		1-53366-081-1 02 1 0907-0907 ●
225 RUBBER; CUSHION,RR SPR
EXC. REAR AXLE R130<B5V> 		1-53366-081-1 02 1 0907- ● ●
225 RUBBER; CUSHION,RR SPR
6SD1 TCN ENG(31L) WHEEL BASE 3900MM(39W) REAR AXLE R130<B5V> SUSPENSION HEAVY DUTY VAR2(F41) 		1-53366-081-1 02 1 0907- ●
227 NUT; CUSHION RUBBER
M12 		9-99110-512-0 04 1 9601-9611 ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 9612-0602 ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
228 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 04 1 9601-9611 ● ●
390 U-BOLT SET; RR SPRING
WHEEL BASE 3900MM(39W) L=470 		1-87870-300-1 04 1 0907-0907 ●
390 U-BOLT SET; RR SPRING
6SD1 TCN ENG(31L) WHEEL BASE 3900MM(39W) SUSPENSION HEAVY DUTY VAR2(F41) L=470 		1-87870-300-1 04 1 0907- ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-4 04 1 9601-0906 ● ●
390 U-BOLT SET; RR SPRING
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6200MM(62W) L=490 		1-87870-036-4 04 1 0907-0907 ●
390 U-BOLT SET; RR SPRING
6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 3900MM(39W) L=490 		1-87870-036-4 04 1 0907- ●
390 U-BOLT SET; RR SPRING
6SD1 TCN ENG(31L) WHEEL BASE 3900MM(39W) EXC. SUSPENSION HEAVY DUTY VAR2(F41) L=490 		1-87870-036-4 04 1 0907- ●
390 U-BOLT SET; RR SPRING
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6200MM(62W) L=490 		1-87870-036-4 04 1 0907- ●
