◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11121 - FRR(LHD) SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#38248) — 240 parça

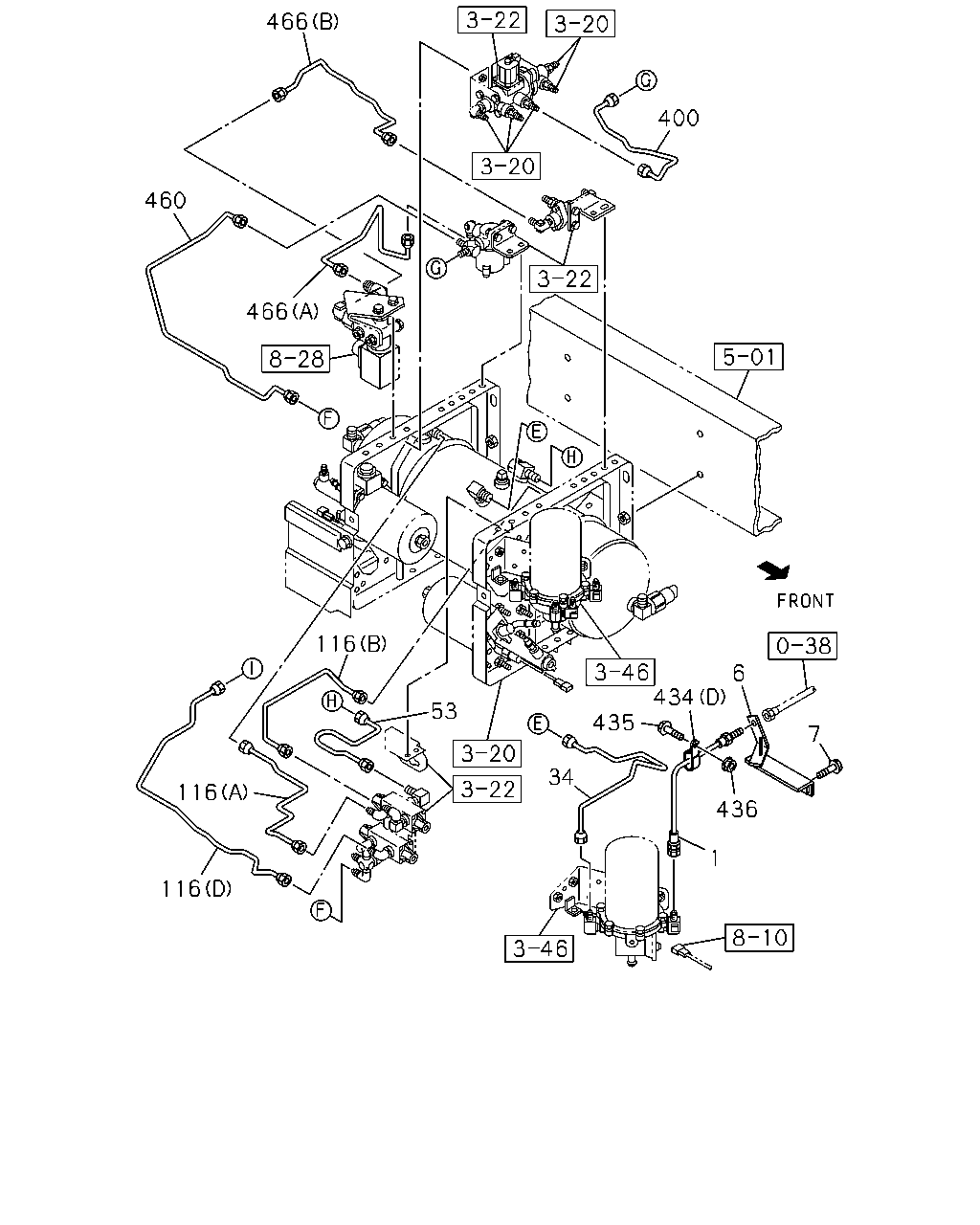

çizim 180986
466 460 466 400 116 116 116 53 435 34 436 434 1 7 6
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 8-98066-976-1 01 1 0809-
6 BRACKET; FLEX HOSE,AIR TANK 8-98066-733-1 01 1 0809-1205
6 BRACKET; FLEX HOSE,AIR TANK 8-98214-081-1 01 1 1206-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0809-
34 PIPE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 0809-
34 PIPE; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 0809-
53 PIPE; AIR,AIR TANK TO VALVE 8-98061-086-0 01 1 0809-
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0809-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0809-1509
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 1510-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 0809-1509
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 1510-
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 0809-
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 0809-
116 PIPE; AIR,PROTECTION VLV
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 0809-
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 1510-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (E) ID=10 & 15 		1-09709-279-1 01 1 1510-
434 CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (F) ID=22 L=32 		1-09700-126-1 01 1 1510-
434 CLIP
WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 02 1 1510-
434 CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 04 1 1510-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0809-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 08 1 0809-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 08 1 0809-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 0809-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 0809-
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 0809-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 0809-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0809-1509
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1510-
435 BOLT; CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8X25 FLANGE 		0-28650-825-0 01 1 1510-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 02 1 0809-0901
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0902-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0809-0901
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 02 1 0809-0901
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902-0902
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902-1509
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0902-1509
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1510-
436 NUT; CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8 FLANGE 		0-91180-108-0 01 1 1510-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1510-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 02 1 0902-0902
460 PIPE; AIR,PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98066-846-0 01 1 1510-
460 PIPE; AIR,PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98066-847-0 01 1 1510-
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800 		1-47428-872-0 01 1 1510-
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 1510-

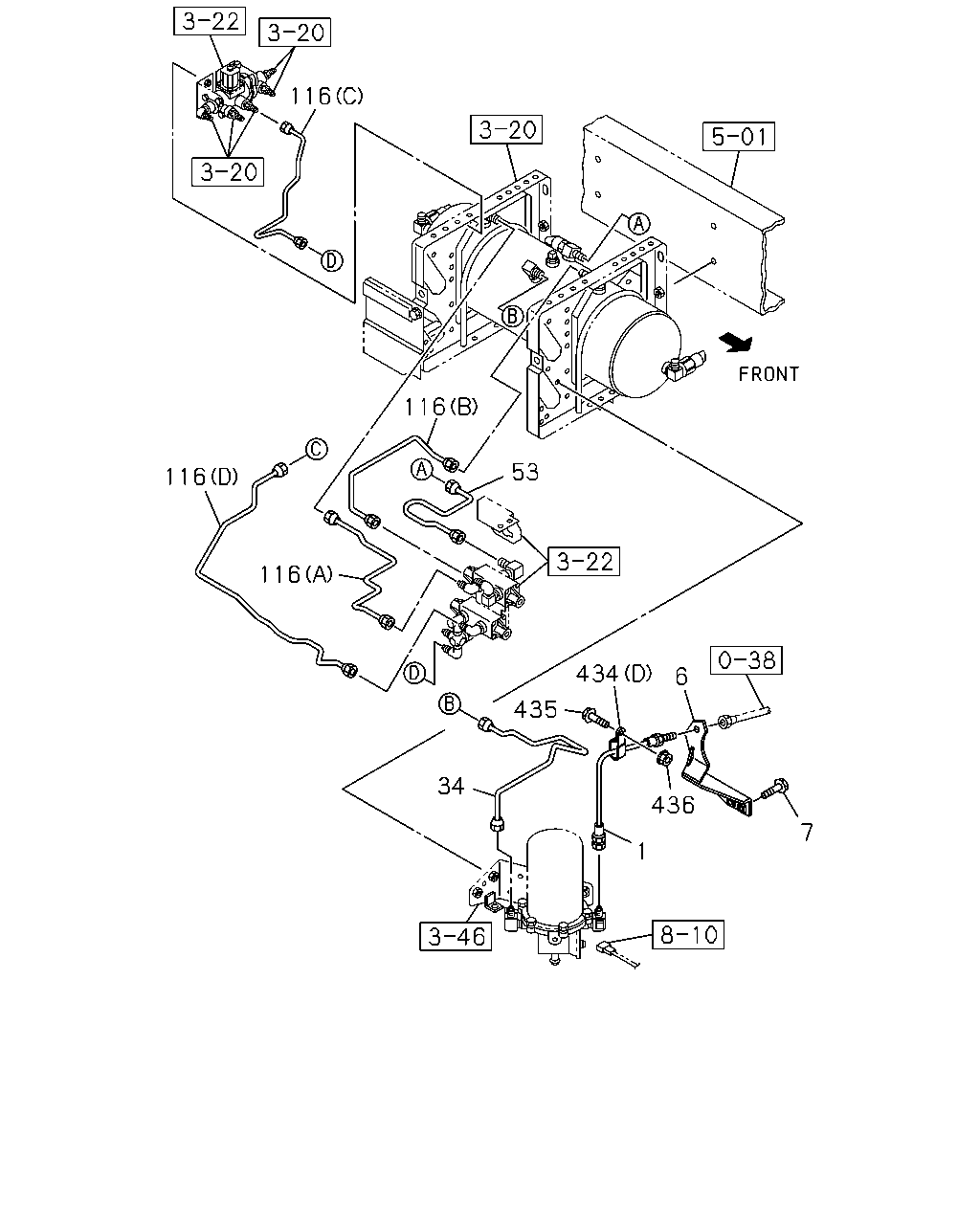

çizim 181129
116 116 53 116 116 6 7 1 434 436 435 34
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 8-98066-976-1 01 1 0809-
6 BRACKET; FLEX HOSE,AIR TANK 8-98066-733-1 01 1 0809-1205
6 BRACKET; FLEX HOSE,AIR TANK 8-98214-081-1 01 1 1206-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0809-
34 PIPE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 0809-
34 PIPE; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 0809-
53 PIPE; AIR,AIR TANK TO VALVE 8-98061-086-0 01 1 0809-
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0809-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0809-1509
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 1510-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 0809-1509
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 1510-
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 0809-
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 0809-
116 PIPE; AIR,PROTECTION VLV
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 0809-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (E) ID=10 & 15 		1-09709-279-1 01 1 1510-
434 CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (F) ID=22 L=32 		1-09700-126-1 01 1 1510-
434 CLIP
WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 02 1 1510-
434 CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 04 1 1510-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0809-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 08 1 0809-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 08 1 0809-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 0809-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 0809-
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 0809-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 0809-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0809-1509
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1510-
435 BOLT; CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8X25 FLANGE 		0-28650-825-0 01 1 1510-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 02 1 0809-0901
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0902-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0809-0901
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 02 1 0809-0901
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902-0902
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902-1509
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0902-1509
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1510-
436 NUT; CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8 FLANGE 		0-91180-108-0 01 1 1510-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1510-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 02 1 0902-0902

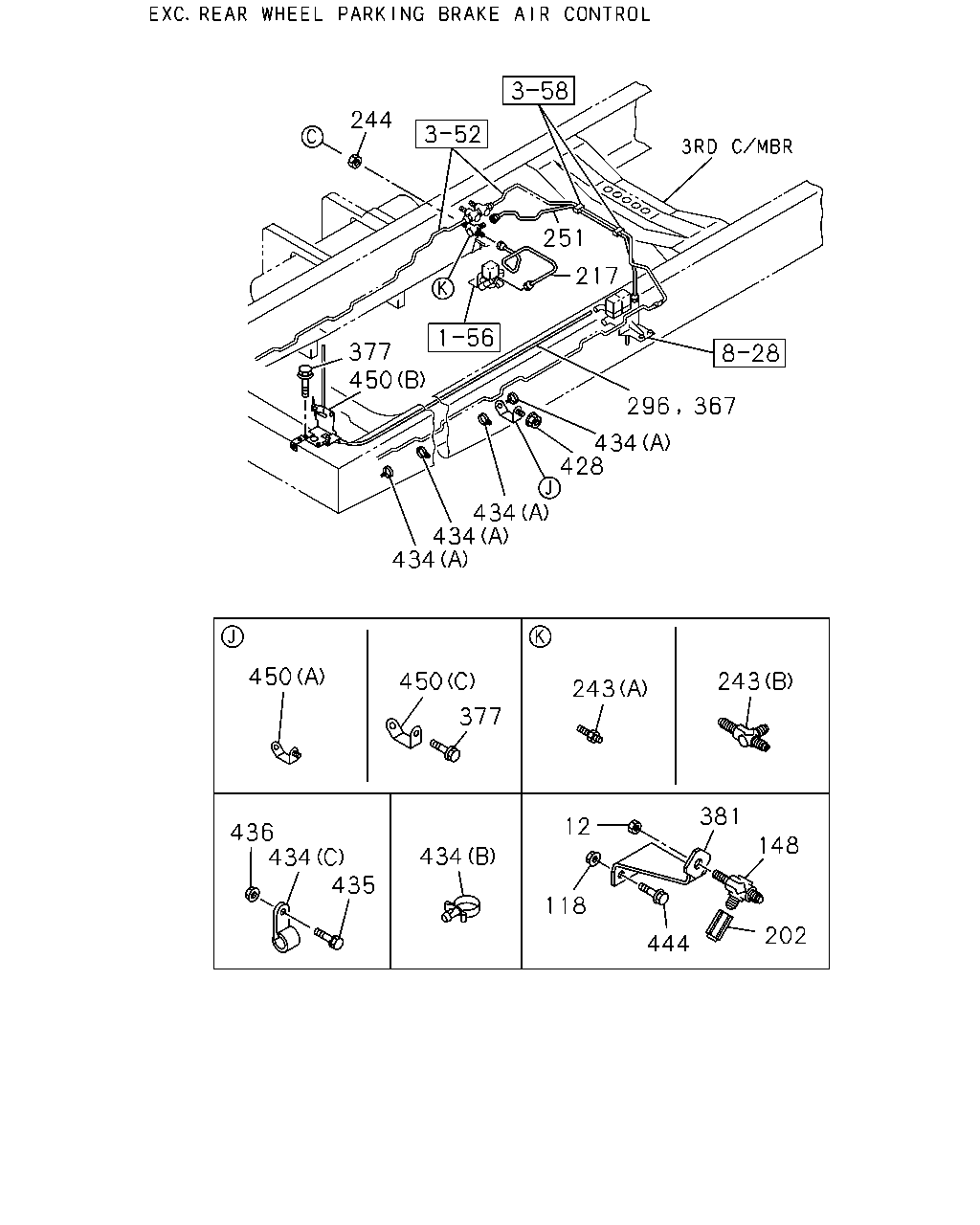

çizim 502426
244 251 217 296 367 434 428 434 434 434 377 450 450 450 243 243 436 434 435 434 12 381 148 202 444 118 377
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 		0-91111-512-0 01 1 0809-
118 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10 FLANGE 		0-91180-210-0 02 1 0809-
148 CONNECTOR; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 2WAY 		1-09654-059-2 01 1 0809-
202 ADAPTER
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0809-
217 PIPE; VAC,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=265 		8-98067-433-0 01 1 0809-1509
217 PIPE; VAC,UNION TO MAG VLV
PTO CONTROL<SV6> L=265 		8-98067-433-0 01 1 0809-1509
217 PIPE; VAC,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ECE(TDV) L=265 		8-98067-433-0 01 1 1510-
217 PIPE; VAC,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. BRAKE REGULATION ECE(TDV) L=265 		8-98067-433-0 01 1 1510-
217 PIPE; VAC,UNION TO MAG VLV
PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=265 		8-98067-433-0 01 1 1510-
217 PIPE; VAC,UNION TO MAG VLV
BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=265 		8-98067-433-0 01 1 1510-
217 PIPE; VAC,UNION TO MAG VLV
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> L=289 		8-98120-102-0 01 1 0809-1509
217 PIPE; VAC,UNION TO MAG VLV
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ECE(TDV) L=289 		8-98120-102-0 01 1 1510-
217 PIPE; VAC,UNION TO MAG VLV
RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6> L=289 		8-98120-102-0 01 1 1510-
243 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (C) M12 ELBOW 		0-92125-206-0 01 1 1510-
243 UNION; AIR PIPE
PTO CONTROL<SV6> (B) M12 3WAY 		0-92138-906-0 01 1 0809-1509
243 UNION; AIR PIPE
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12 3WAY 		0-92138-906-0 01 1 0809-1509
243 UNION; AIR PIPE
PTO CONTROL<SV6> EXC. BRAKE REGULATION ECE(TDV) (B) M12 3WAY 		0-92138-906-0 01 1 1510-
243 UNION; AIR PIPE
BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 3WAY 		0-92138-906-0 01 1 1510-
243 UNION; AIR PIPE
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ECE(TDV) (B) M12 3WAY 		0-92138-906-0 01 1 1510-
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) M12 L=66.5 		0-92113-306-0 01 1 0809-1509
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ECE(TDV) (A) M12 L=66.5 		0-92113-306-0 01 1 1510-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0809-
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=941 SERVICED BY L=1000 		1-47428-814-0 01 1 0809-1509
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> L=941 SERVICED BY L=1000 		1-47428-814-0 01 1 0809-1509
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ECE(TDV) L=941 SERVICED BY L=1000 		1-47428-814-0 01 1 1510-
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. BRAKE REGULATION ECE(TDV) L=941 SERVICED BY L=1000 		1-47428-814-0 01 1 1510-
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=941 SERVICED BY L=1000 		1-47428-814-0 01 1 1510-
251 PIPE; AIR,UNION TO MAG VLV
BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=941 SERVICED BY L=1000 		1-47428-814-0 01 1 1510-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0809-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1510-
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 0809-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0809-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0809-
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10X30 FLANGE 		0-28651-030-0 01 1 1510-
377 BOLT; BRKT FIX
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10X30 FLANGE 		0-28651-030-0 03 1 1510-
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 01 1 0809-
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0809-
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 0809-
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 0809-
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 02 1 0809-
381 BRACKET
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> 		8-98119-700-0 01 1 0809-
428 NUT; BRKT
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10 FLANGE 		0-91180-210-0 01 1 1510-
428 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10 FLANGE 		0-91180-210-0 03 1 1510-
428 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0809-
428 NUT; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0809-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (E) ID=10 & 15 		1-09709-279-1 01 1 1510-
434 CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (F) ID=22 L=32 		1-09700-126-1 01 1 1510-
434 CLIP
WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 02 1 1510-
434 CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 04 1 1510-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0809-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 08 1 0809-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 08 1 0809-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 0809-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 0809-
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 0809-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 0809-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0809-1509
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1510-
435 BOLT; CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8X25 FLANGE 		0-28650-825-0 01 1 1510-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 02 1 0809-0901
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0902-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0809-0901
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 02 1 0809-0901
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902-0902
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902-1509
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0902-1509
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1510-
436 NUT; CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8 FLANGE 		0-91180-108-0 01 1 1510-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1510-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 02 1 0902-0902
444 BOLT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 02 1 0809-
450 BRACKET; CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D) 		8-98100-216-1 01 1 1510-
450 BRACKET; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D) 		8-98100-216-1 03 1 1510-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47477-694-0 01 1 0809-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) 		1-47477-694-0 01 1 0809-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98070-479-0 01 1 0809-1107
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98070-479-0 01 1 0809-1107
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98180-947-0 01 1 1108-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98180-947-0 01 1 1108-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98117-686-0 02 1 0809-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C) 		8-98117-686-0 02 1 0809-

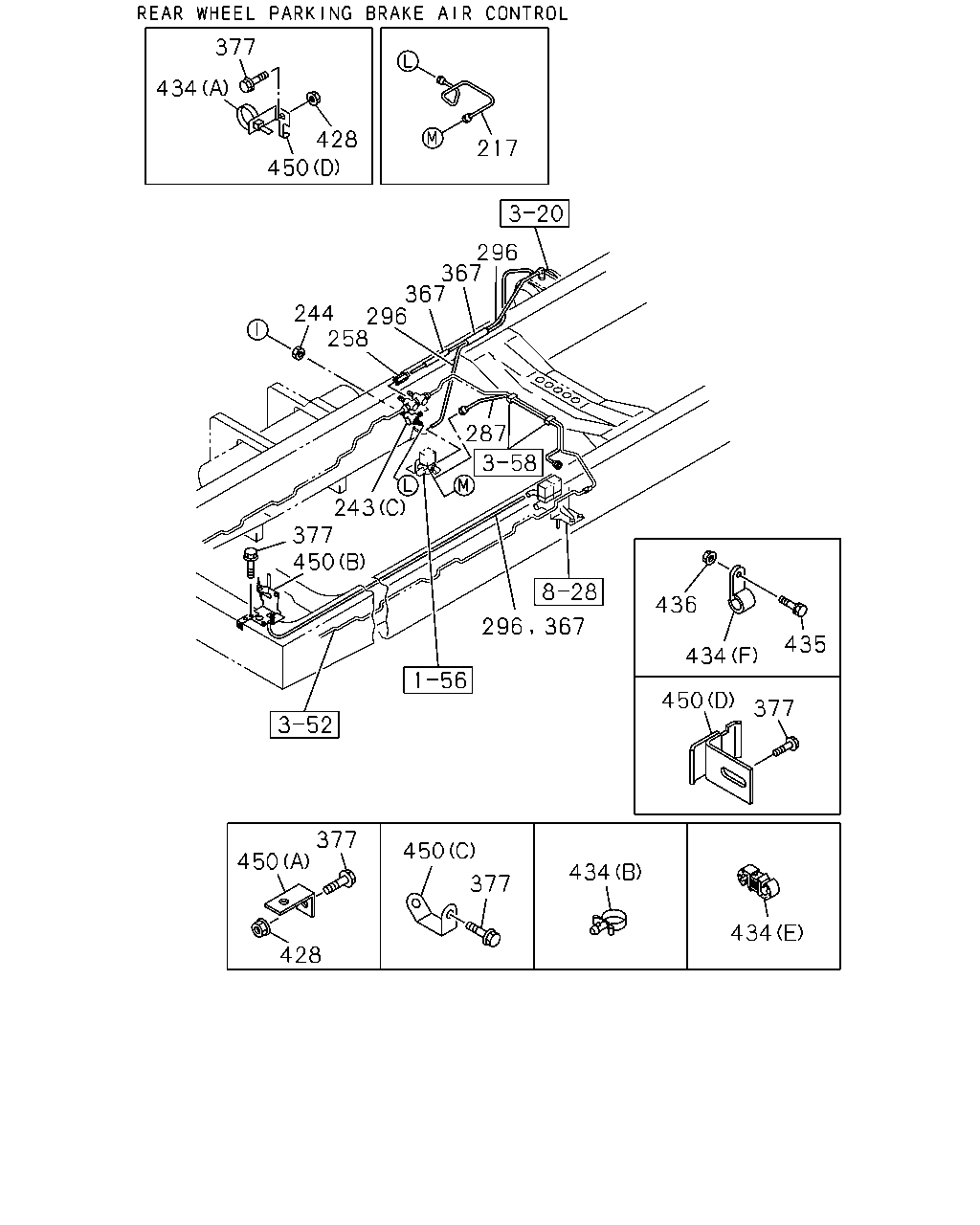

çizim 502498
377 428 217 434 450 296 367 367 296 258 244 287 243 377 450 296 367 436 434 435 450 377 434 434 377 450 377 450 428
BalonParca AdiParca NoAdetTipApplied Date
217 PIPE; VAC,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=265 		8-98067-433-0 01 1 0809-1509
217 PIPE; VAC,UNION TO MAG VLV
PTO CONTROL<SV6> L=265 		8-98067-433-0 01 1 0809-1509
217 PIPE; VAC,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ECE(TDV) L=265 		8-98067-433-0 01 1 1510-
217 PIPE; VAC,UNION TO MAG VLV
PTO CONTROL<SV6> EXC. BRAKE REGULATION ECE(TDV) L=265 		8-98067-433-0 01 1 1510-
217 PIPE; VAC,UNION TO MAG VLV
PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=265 		8-98067-433-0 01 1 1510-
217 PIPE; VAC,UNION TO MAG VLV
BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=265 		8-98067-433-0 01 1 1510-
217 PIPE; VAC,UNION TO MAG VLV
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> L=289 		8-98120-102-0 01 1 0809-1509
217 PIPE; VAC,UNION TO MAG VLV
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ECE(TDV) L=289 		8-98120-102-0 01 1 1510-
217 PIPE; VAC,UNION TO MAG VLV
RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6> L=289 		8-98120-102-0 01 1 1510-
243 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (C) M12 ELBOW 		0-92125-206-0 01 1 1510-
243 UNION; AIR PIPE
PTO CONTROL<SV6> (B) M12 3WAY 		0-92138-906-0 01 1 0809-1509
243 UNION; AIR PIPE
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12 3WAY 		0-92138-906-0 01 1 0809-1509
243 UNION; AIR PIPE
PTO CONTROL<SV6> EXC. BRAKE REGULATION ECE(TDV) (B) M12 3WAY 		0-92138-906-0 01 1 1510-
243 UNION; AIR PIPE
BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 3WAY 		0-92138-906-0 01 1 1510-
243 UNION; AIR PIPE
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ECE(TDV) (B) M12 3WAY 		0-92138-906-0 01 1 1510-
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) M12 L=66.5 		0-92113-306-0 01 1 0809-1509
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ECE(TDV) (A) M12 L=66.5 		0-92113-306-0 01 1 1510-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0809-
258 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1510-
287 PIPE; AIR,MAG VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) L=830 SERVICED BY L=900 		1-47428-813-0 01 1 1510-
287 PIPE; AIR,MAG VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=830 SERVICED BY L=900 		1-47428-813-0 01 1 1510-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0809-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1510-
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 0809-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0809-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0809-
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10X30 FLANGE 		0-28651-030-0 01 1 1510-
377 BOLT; BRKT FIX
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10X30 FLANGE 		0-28651-030-0 03 1 1510-
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 01 1 0809-
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0809-
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 0809-
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 0809-
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 02 1 0809-
428 NUT; BRKT
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10 FLANGE 		0-91180-210-0 01 1 1510-
428 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10 FLANGE 		0-91180-210-0 03 1 1510-
428 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0809-
428 NUT; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0809-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (E) ID=10 & 15 		1-09709-279-1 01 1 1510-
434 CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (F) ID=22 L=32 		1-09700-126-1 01 1 1510-
434 CLIP
WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 02 1 1510-
434 CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 04 1 1510-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0809-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 08 1 0809-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 08 1 0809-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 0809-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) ID=18-24 L=14.5 		1-09709-298-0 02 1 0809-
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 0809-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 0809-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0809-1509
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1510-
435 BOLT; CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8X25 FLANGE 		0-28650-825-0 01 1 1510-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 02 1 0809-0901
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0902-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0809-0901
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 02 1 0809-0901
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902-0902
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902-1509
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0902-1509
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1510-
436 NUT; CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8 FLANGE 		0-91180-108-0 01 1 1510-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1510-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 02 1 0902-0902
450 BRACKET; CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D) 		8-98100-216-1 01 1 1510-
450 BRACKET; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D) 		8-98100-216-1 03 1 1510-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47477-694-0 01 1 0809-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) 		1-47477-694-0 01 1 0809-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98070-479-0 01 1 0809-1107
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98070-479-0 01 1 0809-1107
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98180-947-0 01 1 1108-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98180-947-0 01 1 1108-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98117-686-0 02 1 0809-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C) 		8-98117-686-0 02 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
