Sayfa 3-58 - Isuzu EPC

3-58 — FIXING PARTS; OIL PIPING (#38247) — 47 parça

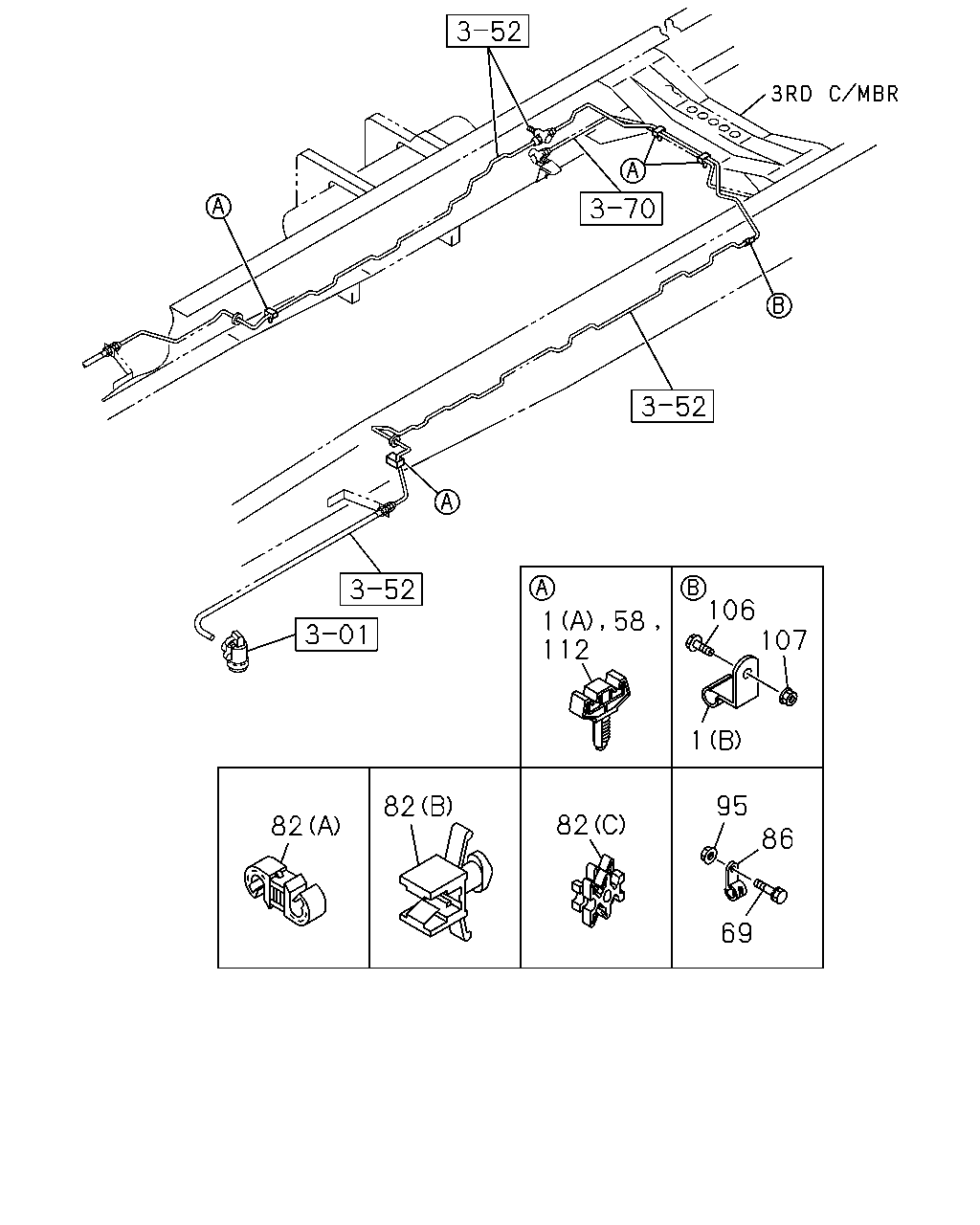

82 82 82 95 86 69 107 106 112 58 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; OIL PIPE TO BODY (A)	8-98012-254-1	03	1	0809-1011
1	CLIP; OIL PIPE TO BODY (A)	8-98012-254-1	03	1	1012-
1	CLIP; OIL PIPE TO BODY (A)	8-98012-254-1	04	1	0809-0909
1	CLIP; OIL PIPE TO BODY (B) ID=6 H=20 L=20	8-98040-714-0	04	1	0910-1011
1	CLIP; OIL PIPE TO BODY (B) ID=6 H=20 L=20	8-98040-714-0	04	1	1012-
1	CLIP; OIL PIPE TO BODY (B) ID=6 H=20 L=20	8-98040-714-0	04	1	0809-0909
1	CLIP; OIL PIPE TO BODY (A)	8-98012-254-1	04	1	0910-
58	CLIP; OIL PIPE	8-98012-254-1	05	1	0809-1011
58	CLIP; OIL PIPE	8-98012-254-1	05	1	1012-
69	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0809-1011
69	BOLT; CLIP EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 FLANGE	0-28050-816-0	02	1	1012-1509
69	BOLT; CLIP EXC. BRAKE ADJUSTER MANUAL<BJR>,VIN MODEL YEAR 2015<VZF> M8X16 FLANGE	0-28050-816-0	02	1	1510-
82	CLIP; OIL PIPE ANTI LOCK BRAKE(JE5) (C) ID=4.7X4	1-09701-304-0	03	1	1510-
82	CLIP; OIL PIPE ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35	1-09709-304-0	03	1	1510-
82	CLIP; OIL PIPE (A) ID=4.76 & 4.76	1-09709-303-0	02	1	0809-1509
82	CLIP; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 4.76	1-09709-303-0	02	1	1510-
82	CLIP; OIL PIPE (A) ID=4.76 & 6.35	1-09709-304-0	04	1	0809-1509
82	CLIP; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35	1-09709-304-0	04	1	1510-
82	CLIP; OIL PIPE (B) ID=4.8X2	8-94316-410-0	01	1	0809-
82	CLIP; OIL PIPE (A) ID=4.76 & 10.0	1-09709-305-0	01	1	0902-1011
82	CLIP; OIL PIPE (A) ID=4.76 & 10.0	1-09709-305-0	01	1	1012-
86	CLIP; OIL PIPE	8-98085-372-0	02	1	0809-1011
86	CLIP; OIL PIPE EXC. BRAKE ADJUSTER MANUAL<BJR>	8-98085-372-0	02	1	1012-1509
86	CLIP; OIL PIPE EXC. BRAKE ADJUSTER MANUAL<BJR>,VIN MODEL YEAR 2015<VZF>	8-98085-372-0	02	1	1510-
95	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0809-0909
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	04	1	0809-1011
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	04	1	1012-
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0809-1011
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	1012-
112	CLIP; OIL PIPE WHEEL BASE 3700MM(37W)	8-98012-254-1	03	1	0809-
112	CLIP; OIL PIPE WHEEL BASE 4300MM(43W)	8-98012-254-1	05	1	0809-
112	CLIP; OIL PIPE WHEEL BASE 4600MM(46W)	8-98012-254-1	06	1	0809-
112	CLIP; OIL PIPE WHEEL BASE 4900MM(49W)	8-98012-254-1	07	1	0809-
112	CLIP; OIL PIPE WHEEL BASE 5300MM(53W)	8-98012-254-1	08	1	0809-

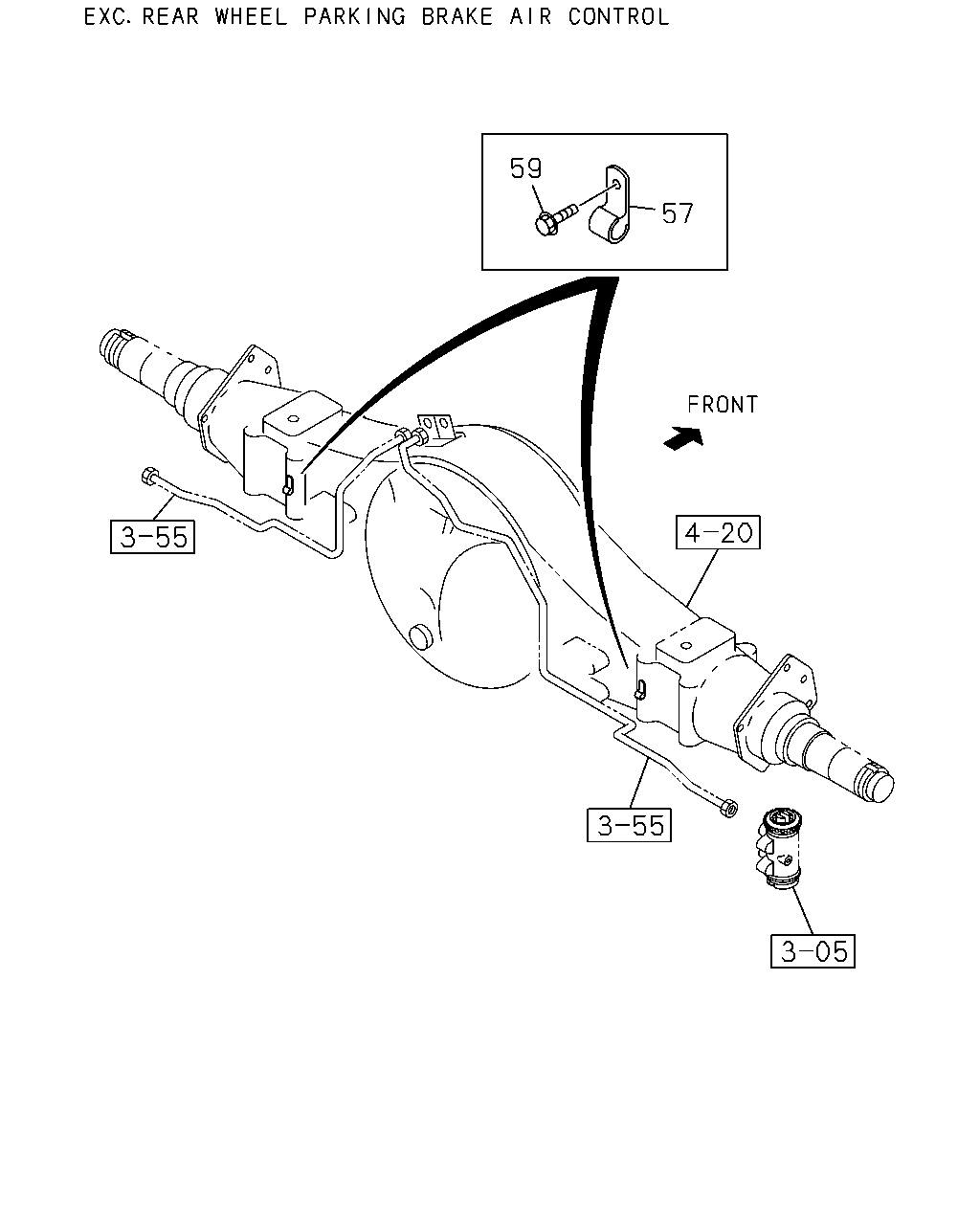

59 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	CLIP; BRK PIPE,RR AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=7 L=20	0-95234-635-0	04	1	1012-
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	02	1	0809-1011
57	CLIP; BRK PIPE,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR> ID=7 L=20	0-95234-635-0	02	1	1012-
59	BOLT; BRK PIPE,RR AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE	0-28050-810-0	04	1	1012-
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28050-810-0	02	1	0809-1011
59	BOLT; BRK PIPE,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR> M8X10 FLANGE	0-28050-810-0	02	1	1012-

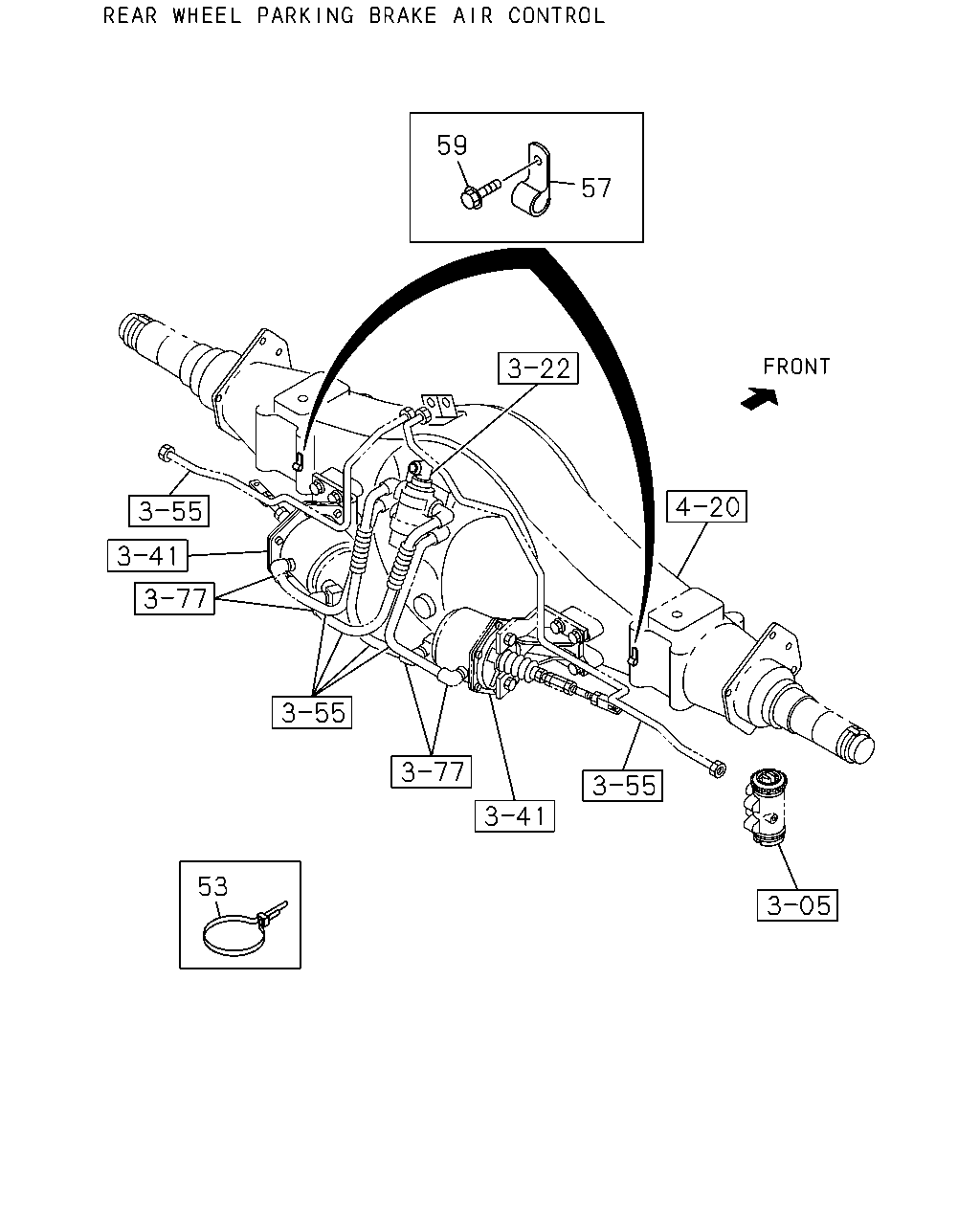

59 57 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	CLIP; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	05	1	0809-
57	CLIP; BRK PIPE,RR AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=7 L=20	0-95234-635-0	04	1	1012-
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	02	1	0809-1011
57	CLIP; BRK PIPE,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR> ID=7 L=20	0-95234-635-0	02	1	1012-
59	BOLT; BRK PIPE,RR AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X10 FLANGE	0-28050-810-0	04	1	1012-
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28050-810-0	02	1	0809-1011
59	BOLT; BRK PIPE,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR> M8X10 FLANGE	0-28050-810-0	02	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
