Sayfa 3-55 - Isuzu EPC

3-55 — BRAKE PIPING; OIL,REAR (#38246) — 306 parça

39 32 33 75 46 5 3 126 39 1 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) L=320	8-98067-397-0	02	1	1510-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) L=350	8-97138-885-0	02	1	1510-
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> L=480	8-98172-789-0	01	1	1012-1509
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=480	8-98172-789-0	01	1	1510-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> L=520	8-98175-918-0	01	1	1012-1509
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=520	8-98175-918-0	01	1	1510-
1	HOSE; FLEX,RR BRK L=485	8-98057-386-1	01	1	0809-1011
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=485	8-98057-386-1	01	1	1012-1509
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) L=485	8-98057-386-1	01	1	1510-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR>	8-98182-778-0	01	1	1012-1509
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5)	8-98182-778-0	01	1	1510-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR>	8-98175-942-0	01	1	1012-1509
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5)	8-98175-942-0	01	1	1510-
3	BRACKET; FLEX HOSE,RR BRK	8-98065-999-2	01	1	0809-1011
3	BRACKET; FLEX HOSE,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	8-98065-999-2	01	1	1012-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0809-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0809-
32	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	02	1	1510-
32	UNION; OIL PIPE M10 STRAIGHT	0-92107-005-0	02	1	0809-0809
32	UNION; OIL PIPE M10 STRAIGHT	0-92107-005-0	01	1	0810-1509
32	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ECE(TDV) (B) RH LINE L=1324	8-98183-307-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ECE(TDV) (B) RH LINE L=1327	8-98183-295-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) LH LINE L=1366	8-98183-306-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1903	8-98183-299-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203	8-98183-301-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2533	8-98183-303-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2863	8-98183-305-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2930	8-98071-250-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2923	8-98183-304-0	01	1	1108-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (A) LH LINE L=1358	8-98071-240-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (A) LH LINE L=1357	8-98183-294-0	01	1	1108-1509
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ECE(TDV) (A) LH LINE L=1357	8-98183-294-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1970	8-98071-244-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1963	8-98183-298-0	01	1	1108-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2270	8-98071-246-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2263	8-98183-300-0	01	1	1108-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2600	8-98071-248-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2593	8-98183-302-0	01	1	1108-
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE(JE5) (B) L=1772	8-98106-486-0	01	1	1510-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> (A) L=2100	8-98175-941-0	01	1	1012-1509
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (A) L=2100	8-98175-941-0	01	1	1510-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> (A) L=2126	8-98182-774-0	01	1	1012-1509
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (A) L=2126	8-98182-774-0	01	1	1510-
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=1710	8-98106-485-0	01	1	0809-1011
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=1710	8-98106-485-0	01	1	1012-
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1510-
46	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	01	1	0809-1509
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1510-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	1510-
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	01	1	0809-1509
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1510-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1510-
126	CLIP; FLEX HOSE	8-97360-054-0	01	1	0809-1509
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1510-

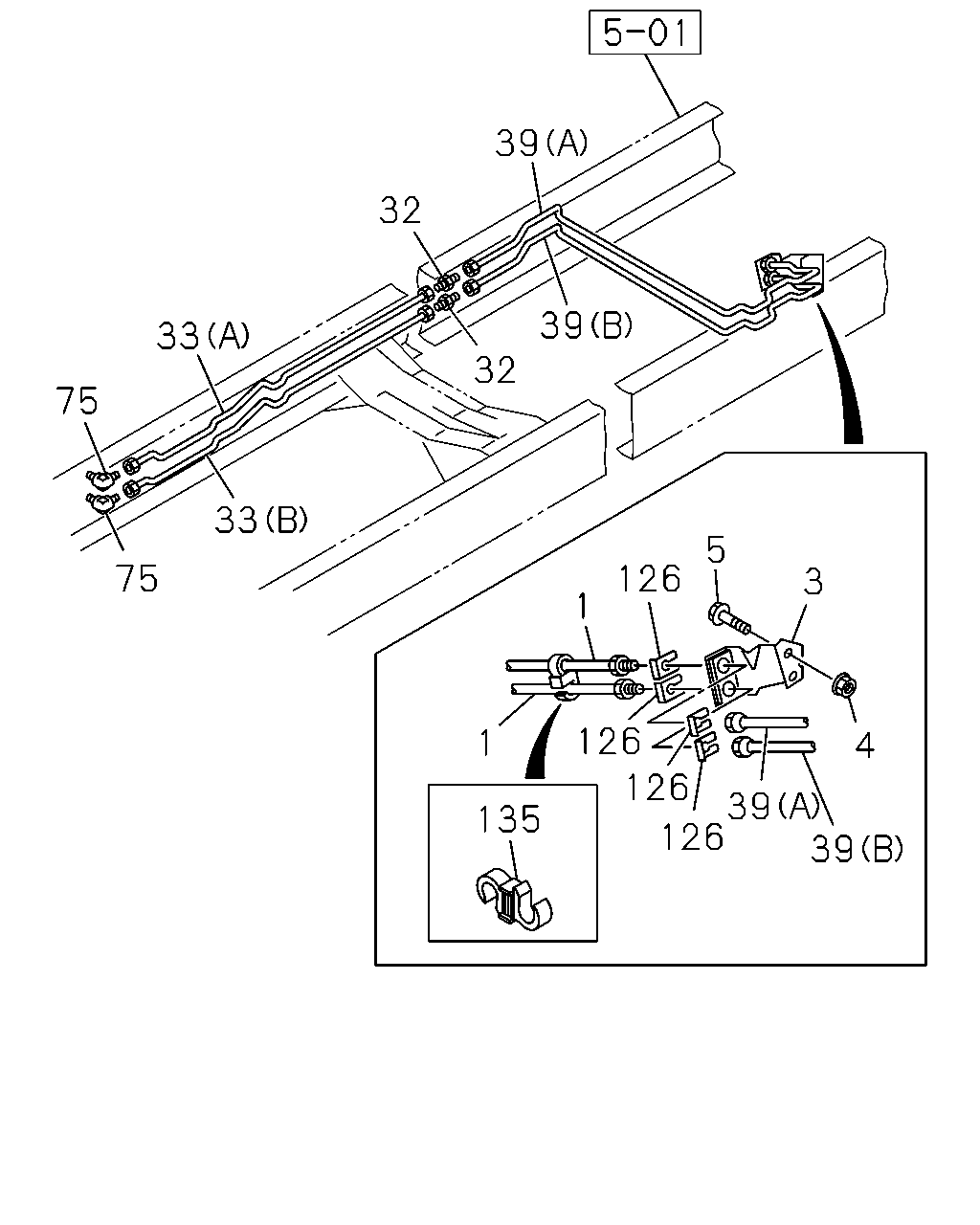

39 32 33 75 32 39 33 75 126 5 3 1 126 126 4 126 39 39 135 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) L=320	8-98067-397-0	02	1	1510-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) L=350	8-97138-885-0	02	1	1510-
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> L=480	8-98172-789-0	01	1	1012-1509
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=480	8-98172-789-0	01	1	1510-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> L=520	8-98175-918-0	01	1	1012-1509
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=520	8-98175-918-0	01	1	1510-
1	HOSE; FLEX,RR BRK L=485	8-98057-386-1	01	1	0809-1011
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=485	8-98057-386-1	01	1	1012-1509
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) L=485	8-98057-386-1	01	1	1510-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR>	8-98182-778-0	01	1	1012-1509
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5)	8-98182-778-0	01	1	1510-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR>	8-98175-942-0	01	1	1012-1509
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5)	8-98175-942-0	01	1	1510-
3	BRACKET; FLEX HOSE,RR BRK	8-98065-999-2	01	1	0809-1011
3	BRACKET; FLEX HOSE,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	8-98065-999-2	01	1	1012-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0809-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0809-
32	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	02	1	1510-
32	UNION; OIL PIPE M10 STRAIGHT	0-92107-005-0	02	1	0809-0809
32	UNION; OIL PIPE M10 STRAIGHT	0-92107-005-0	01	1	0810-1509
32	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ECE(TDV) (B) RH LINE L=1324	8-98183-307-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ECE(TDV) (B) RH LINE L=1327	8-98183-295-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) LH LINE L=1366	8-98183-306-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1903	8-98183-299-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203	8-98183-301-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2533	8-98183-303-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2863	8-98183-305-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2930	8-98071-250-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2923	8-98183-304-0	01	1	1108-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (A) LH LINE L=1358	8-98071-240-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (A) LH LINE L=1357	8-98183-294-0	01	1	1108-1509
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ECE(TDV) (A) LH LINE L=1357	8-98183-294-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1970	8-98071-244-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1963	8-98183-298-0	01	1	1108-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2270	8-98071-246-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2263	8-98183-300-0	01	1	1108-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2600	8-98071-248-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2593	8-98183-302-0	01	1	1108-
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE(JE5) (B) L=1772	8-98106-486-0	01	1	1510-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> (A) L=2100	8-98175-941-0	01	1	1012-1509
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (A) L=2100	8-98175-941-0	01	1	1510-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> (A) L=2126	8-98182-774-0	01	1	1012-1509
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (A) L=2126	8-98182-774-0	01	1	1510-
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=1710	8-98106-485-0	01	1	0809-1011
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=1710	8-98106-485-0	01	1	1012-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	1510-
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	01	1	0809-1509
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1510-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1510-
126	CLIP; FLEX HOSE	8-97360-054-0	01	1	0809-1509
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1510-
135	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5) ID=10 & 10	1-09709-277-1	01	1	1510-

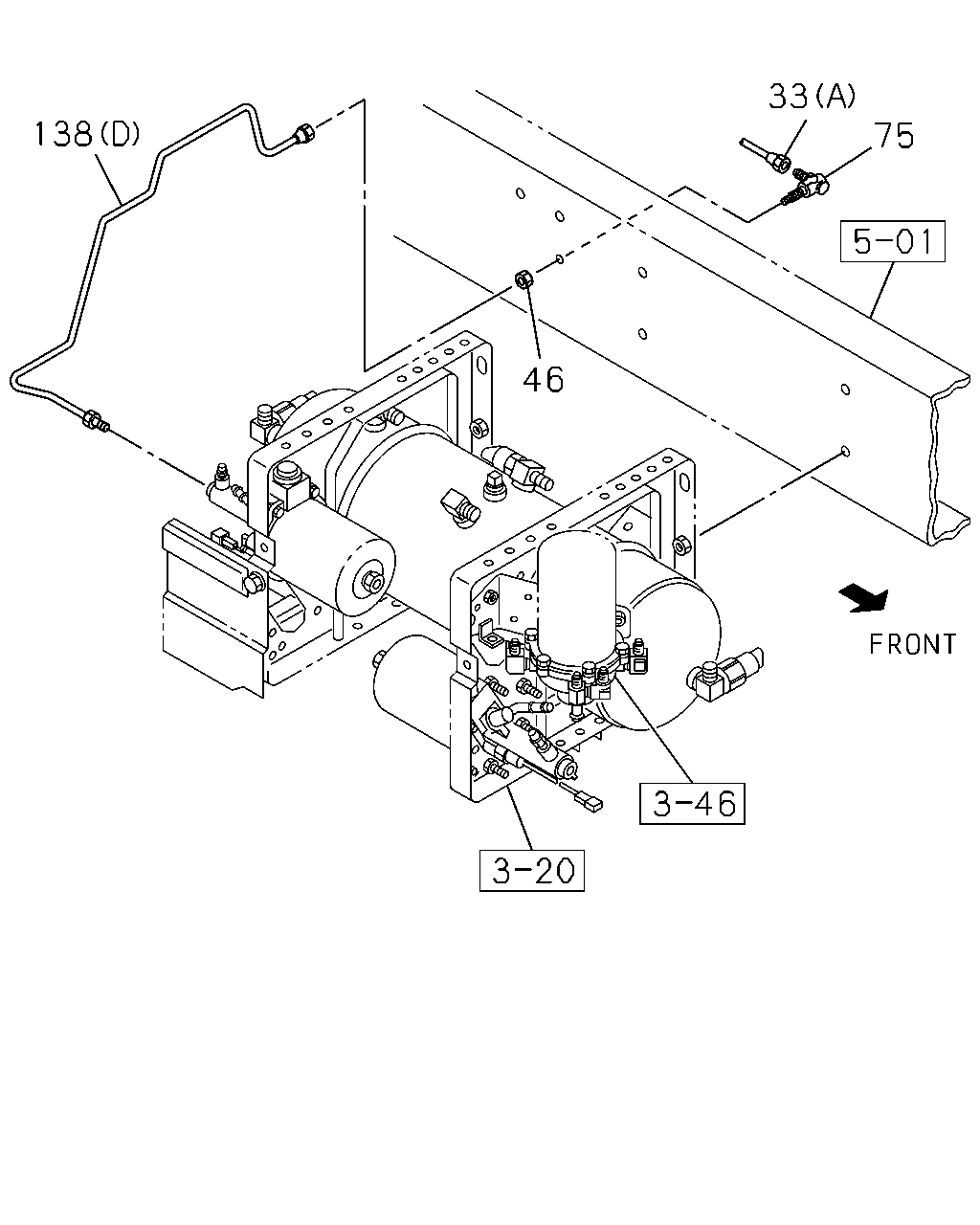

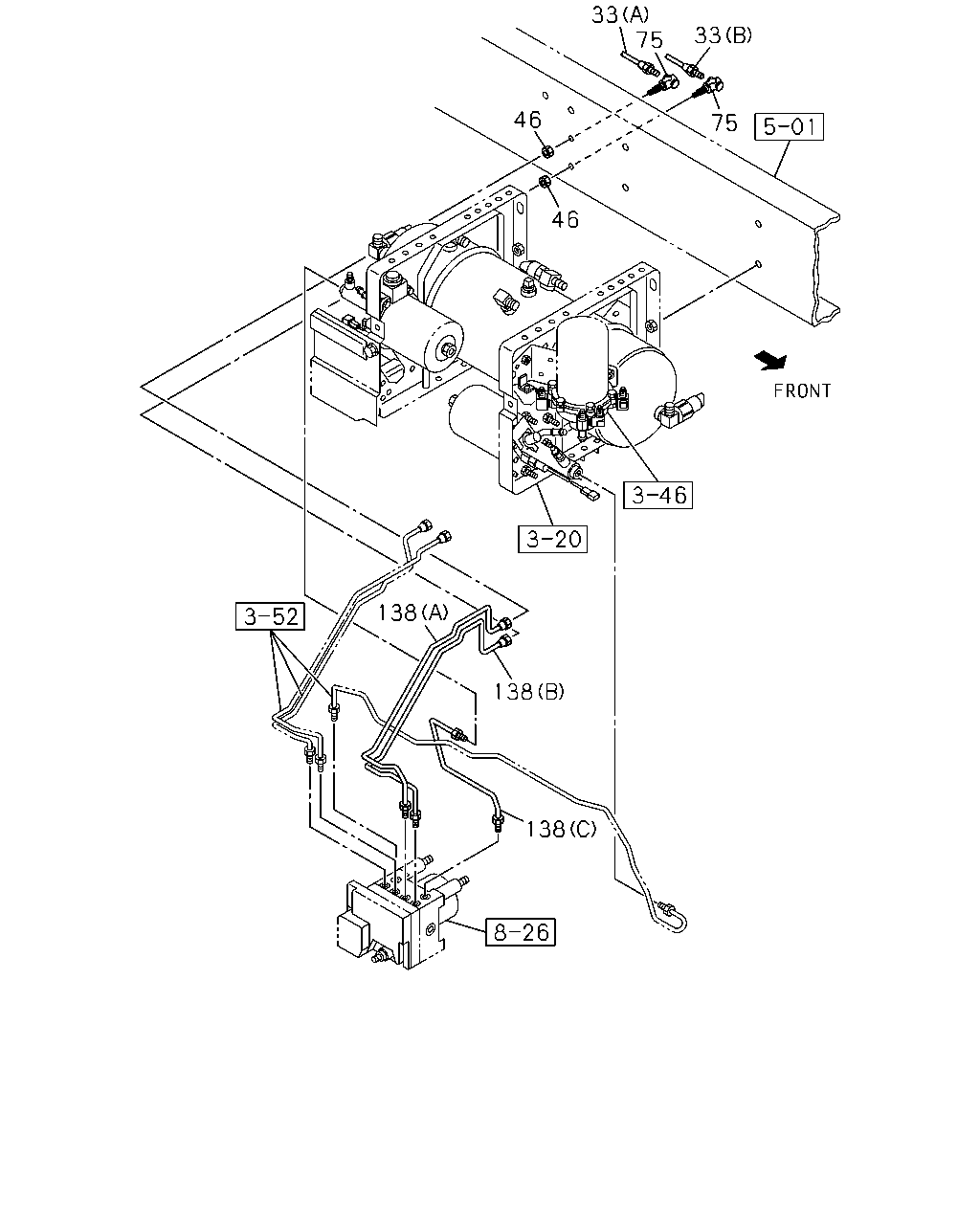

33 75 33 75 46 46 138 138 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ECE(TDV) (B) RH LINE L=1324	8-98183-307-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ECE(TDV) (B) RH LINE L=1327	8-98183-295-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) LH LINE L=1366	8-98183-306-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1903	8-98183-299-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203	8-98183-301-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2533	8-98183-303-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2863	8-98183-305-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2930	8-98071-250-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2923	8-98183-304-0	01	1	1108-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (A) LH LINE L=1358	8-98071-240-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (A) LH LINE L=1357	8-98183-294-0	01	1	1108-1509
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ECE(TDV) (A) LH LINE L=1357	8-98183-294-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1970	8-98071-244-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1963	8-98183-298-0	01	1	1108-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2270	8-98071-246-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2263	8-98183-300-0	01	1	1108-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2600	8-98071-248-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2593	8-98183-302-0	01	1	1108-
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1510-
46	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	01	1	0809-1509
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1510-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	1510-
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	01	1	0809-1509
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=657	8-98012-129-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=703	8-98012-146-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (C) L=296	8-98066-107-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT (D) L=497	8-98108-125-0	01	1	0809-1509
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE(JE5) (D) L=497	8-98108-125-0	01	1	1510-

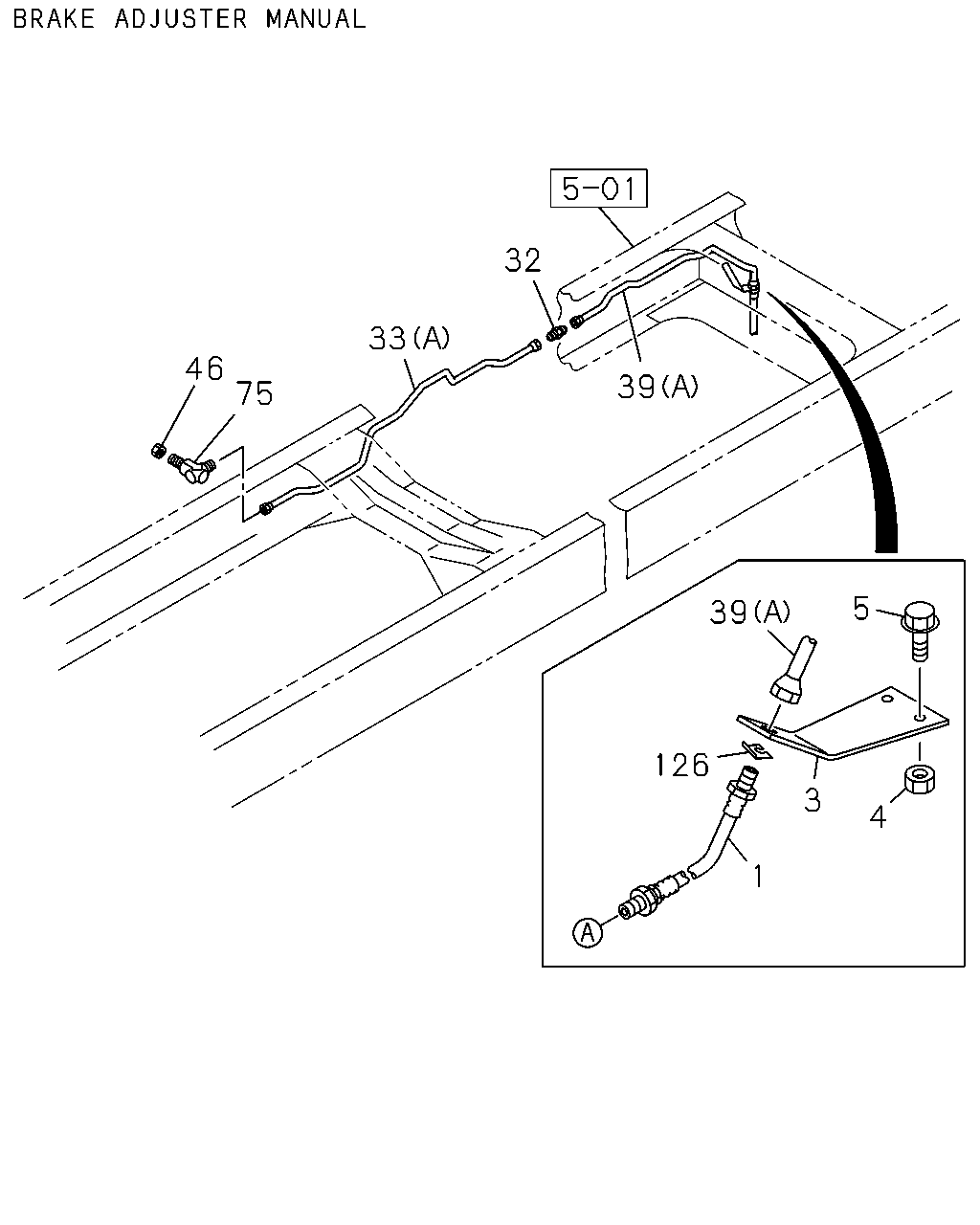

32 33 46 75 39 39 5 126 3 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) L=320	8-98067-397-0	02	1	1510-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) L=350	8-97138-885-0	02	1	1510-
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> L=480	8-98172-789-0	01	1	1012-1509
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=480	8-98172-789-0	01	1	1510-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> L=520	8-98175-918-0	01	1	1012-1509
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=520	8-98175-918-0	01	1	1510-
1	HOSE; FLEX,RR BRK L=485	8-98057-386-1	01	1	0809-1011
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=485	8-98057-386-1	01	1	1012-1509
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) L=485	8-98057-386-1	01	1	1510-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR>	8-98182-778-0	01	1	1012-1509
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5)	8-98182-778-0	01	1	1510-
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR>	8-98175-942-0	01	1	1012-1509
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5)	8-98175-942-0	01	1	1510-
3	BRACKET; FLEX HOSE,RR BRK	8-98065-999-2	01	1	0809-1011
3	BRACKET; FLEX HOSE,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	8-98065-999-2	01	1	1012-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	0809-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0809-
32	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	02	1	1510-
32	UNION; OIL PIPE M10 STRAIGHT	0-92107-005-0	02	1	0809-0809
32	UNION; OIL PIPE M10 STRAIGHT	0-92107-005-0	01	1	0810-1509
32	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ECE(TDV) (B) RH LINE L=1324	8-98183-307-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ECE(TDV) (B) RH LINE L=1327	8-98183-295-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) LH LINE L=1366	8-98183-306-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1903	8-98183-299-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203	8-98183-301-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2533	8-98183-303-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2863	8-98183-305-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2930	8-98071-250-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2923	8-98183-304-0	01	1	1108-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (A) LH LINE L=1358	8-98071-240-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (A) LH LINE L=1357	8-98183-294-0	01	1	1108-1509
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ECE(TDV) (A) LH LINE L=1357	8-98183-294-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1970	8-98071-244-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1963	8-98183-298-0	01	1	1108-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2270	8-98071-246-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2263	8-98183-300-0	01	1	1108-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2600	8-98071-248-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2593	8-98183-302-0	01	1	1108-
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE(JE5) (B) L=1772	8-98106-486-0	01	1	1510-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> (A) L=2100	8-98175-941-0	01	1	1012-1509
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (A) L=2100	8-98175-941-0	01	1	1510-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> (A) L=2126	8-98182-774-0	01	1	1012-1509
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) (A) L=2126	8-98182-774-0	01	1	1510-
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=1710	8-98106-485-0	01	1	0809-1011
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=1710	8-98106-485-0	01	1	1012-
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1510-
46	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	01	1	0809-1509
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1510-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	1510-
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	01	1	0809-1509
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1510-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1510-
126	CLIP; FLEX HOSE	8-97360-054-0	01	1	0809-1509
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1510-

138 33 46 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) BRAKE REGULATION ECE(TDV) (B) RH LINE L=1324	8-98183-307-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ECE(TDV) (B) RH LINE L=1327	8-98183-295-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) LH LINE L=1366	8-98183-306-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=1903	8-98183-299-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2203	8-98183-301-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2533	8-98183-303-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) (B) RH LINE L=2863	8-98183-305-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2930	8-98071-250-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2923	8-98183-304-0	01	1	1108-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (A) LH LINE L=1358	8-98071-240-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (A) LH LINE L=1357	8-98183-294-0	01	1	1108-1509
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. BRAKE REGULATION ECE(TDV) (A) LH LINE L=1357	8-98183-294-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1970	8-98071-244-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) (A) LH LINE L=1963	8-98183-298-0	01	1	1108-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2270	8-98071-246-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2263	8-98183-300-0	01	1	1108-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2600	8-98071-248-0	01	1	0809-1107
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2593	8-98183-302-0	01	1	1108-
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1510-
46	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	01	1	0809-1509
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1510-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	02	1	1510-
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	01	1	0809-1509
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (A) LH LINE L=657	8-98012-129-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (B) RH LINE L=703	8-98012-146-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (C) L=296	8-98066-107-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT (D) L=497	8-98108-125-0	01	1	0809-1509
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE(JE5) (D) L=497	8-98108-125-0	01	1	1510-

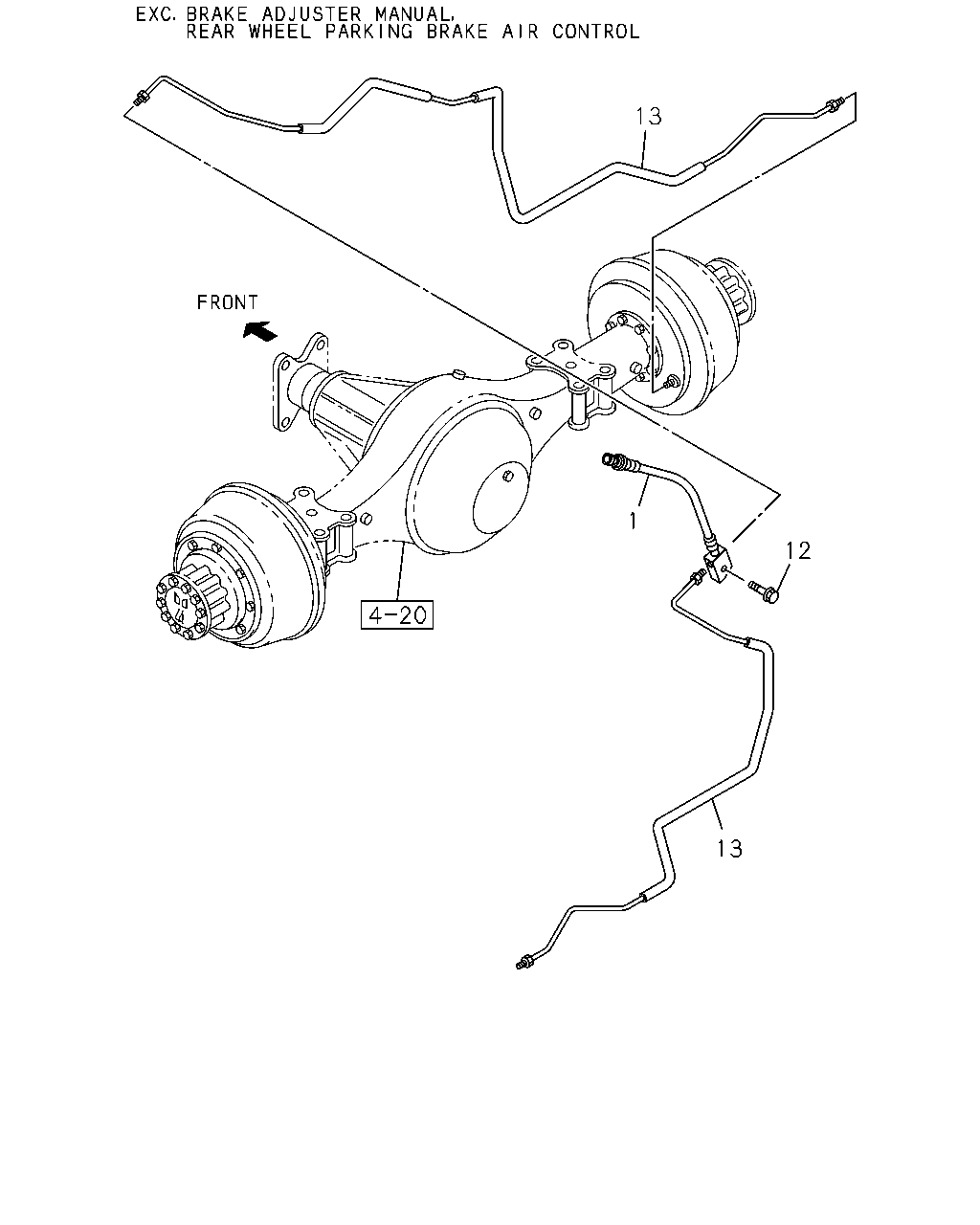

13 12 1 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) L=320	8-98067-397-0	02	1	1510-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) L=350	8-97138-885-0	02	1	1510-
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> L=480	8-98172-789-0	01	1	1012-1509
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=480	8-98172-789-0	01	1	1510-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> L=520	8-98175-918-0	01	1	1012-1509
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=520	8-98175-918-0	01	1	1510-
1	HOSE; FLEX,RR BRK L=485	8-98057-386-1	01	1	0809-1011
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=485	8-98057-386-1	01	1	1012-1509
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) L=485	8-98057-386-1	01	1	1510-
12	BOLT; FLEX HOSE TO RR AXLE M8X35 FLANGE	0-28650-835-0	01	1	0809-1011
12	BOLT; FLEX HOSE TO RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR> M8X35 FLANGE	0-28650-835-0	01	1	1012-1509
12	BOLT; FLEX HOSE TO RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) M8X35 FLANGE	0-28650-835-0	01	1	1510-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98281-557-0	01	1	1510-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98281-558-0	01	1	1510-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98059-741-0	01	1	1510-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98059-742-0	01	1	1510-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98029-679-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98029-680-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE L=675	1-47427-105-0	01	1	1012-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE L=847	1-47427-106-0	01	1	1012-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98107-930-0	01	1	0809-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE L=1030	8-98281-559-0	01	1	1410-1509
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) RH LINE L=1030	8-98281-559-0	01	1	1510-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98107-931-0	01	1	0809-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE L=645	8-98281-560-0	01	1	1410-1509
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) LH LINE L=645	8-98281-560-0	01	1	1510-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE L=1115	8-98071-761-0	01	1	0809-1011
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE L=1115	8-98071-761-0	01	1	1012-1509
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) RH LINE L=1115	8-98071-761-0	01	1	1510-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE L=738	8-98071-762-0	01	1	0809-1011
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE L=738	8-98071-762-0	01	1	1012-1509
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) LH LINE L=738	8-98071-762-0	01	1	1510-

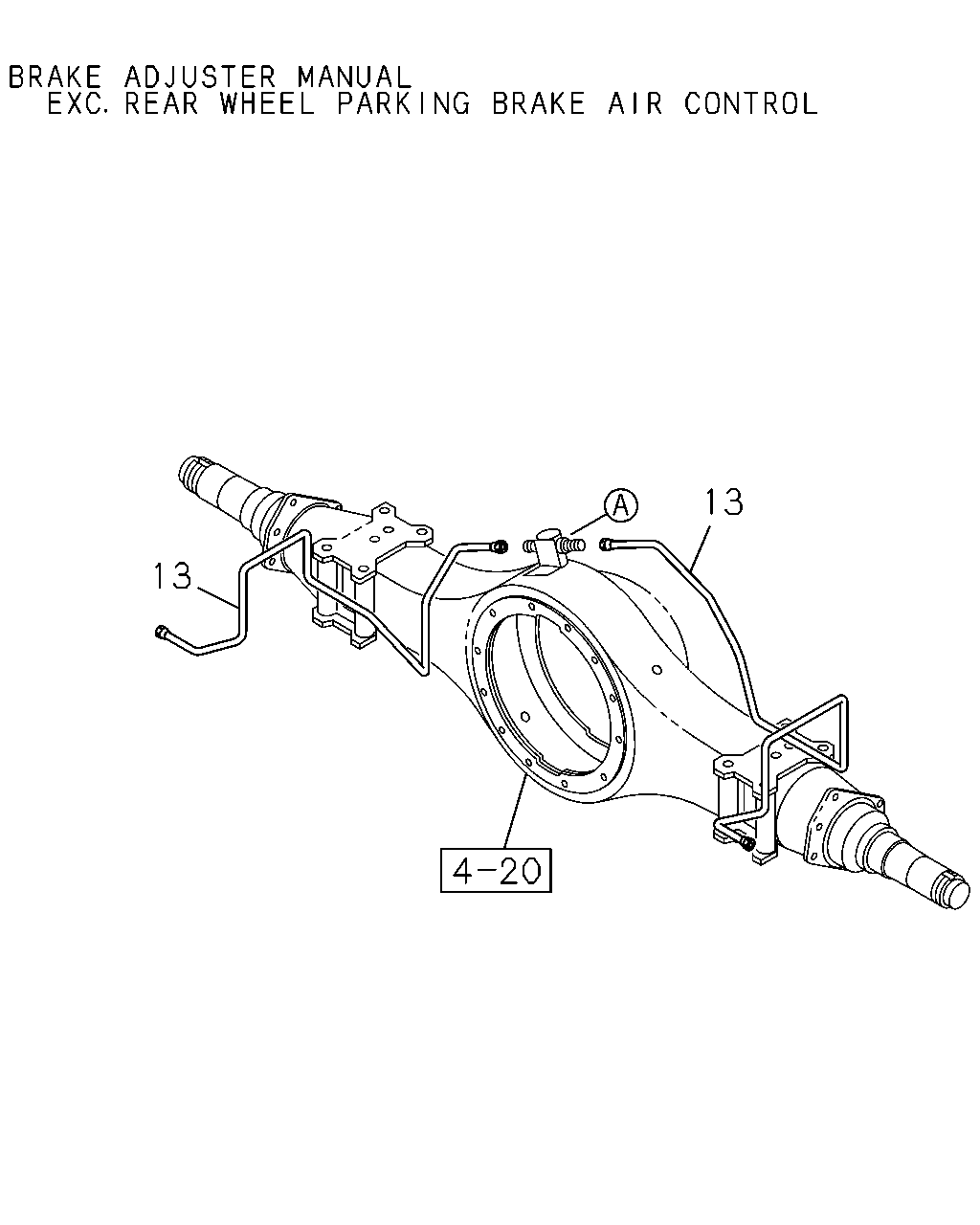

13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98281-557-0	01	1	1510-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98281-558-0	01	1	1510-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98059-741-0	01	1	1510-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98059-742-0	01	1	1510-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98029-679-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98029-680-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE L=675	1-47427-105-0	01	1	1012-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE L=847	1-47427-106-0	01	1	1012-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98107-930-0	01	1	0809-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE L=1030	8-98281-559-0	01	1	1410-1509
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) RH LINE L=1030	8-98281-559-0	01	1	1510-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98107-931-0	01	1	0809-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE L=645	8-98281-560-0	01	1	1410-1509
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) LH LINE L=645	8-98281-560-0	01	1	1510-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE L=1115	8-98071-761-0	01	1	0809-1011
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE L=1115	8-98071-761-0	01	1	1012-1509
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) RH LINE L=1115	8-98071-761-0	01	1	1510-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE L=738	8-98071-762-0	01	1	0809-1011
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE L=738	8-98071-762-0	01	1	1012-1509
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) LH LINE L=738	8-98071-762-0	01	1	1510-

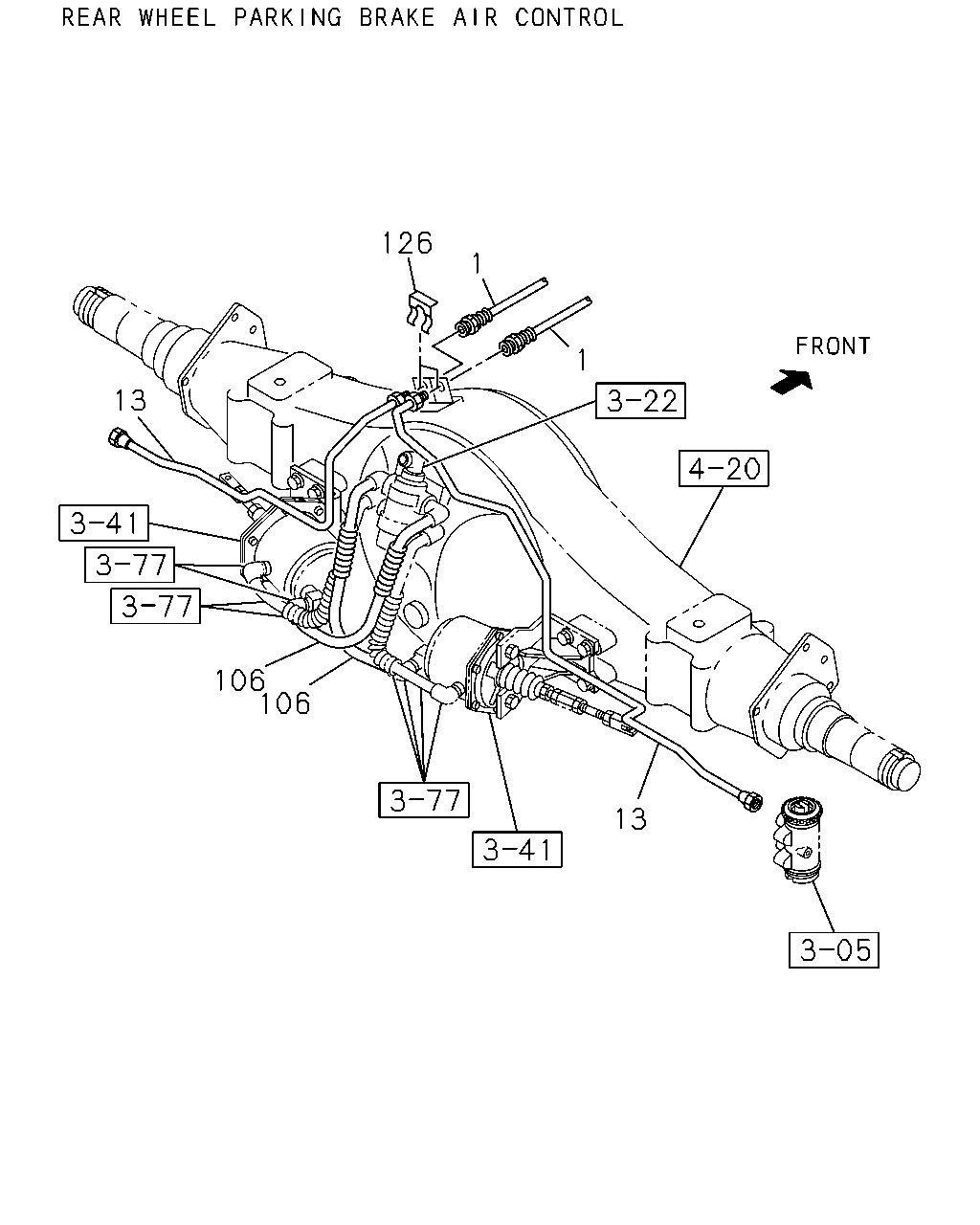

126 13 1 1 106 106 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) L=320	8-98067-397-0	02	1	1510-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) L=350	8-97138-885-0	02	1	1510-
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> L=480	8-98172-789-0	01	1	1012-1509
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=480	8-98172-789-0	01	1	1510-
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> L=520	8-98175-918-0	01	1	1012-1509
1	HOSE; FLEX,RR BRK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE ADJUSTER MANUAL<BJR> EXC. ANTI LOCK BRAKE(JE5) L=520	8-98175-918-0	01	1	1510-
1	HOSE; FLEX,RR BRK L=485	8-98057-386-1	01	1	0809-1011
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=485	8-98057-386-1	01	1	1012-1509
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) L=485	8-98057-386-1	01	1	1510-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98281-557-0	01	1	1510-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98281-558-0	01	1	1510-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98059-741-0	01	1	1510-
13	PIPE; BRK,RR AXLE ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98059-742-0	01	1	1510-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98029-679-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98029-680-0	01	1	1410-1410
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE L=675	1-47427-105-0	01	1	1012-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE L=847	1-47427-106-0	01	1	1012-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98107-930-0	01	1	0809-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE L=1030	8-98281-559-0	01	1	1410-1509
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) RH LINE L=1030	8-98281-559-0	01	1	1510-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98107-931-0	01	1	0809-1409
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE L=645	8-98281-560-0	01	1	1410-1509
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) LH LINE L=645	8-98281-560-0	01	1	1510-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE L=1115	8-98071-761-0	01	1	0809-1011
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE L=1115	8-98071-761-0	01	1	1012-1509
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) RH LINE L=1115	8-98071-761-0	01	1	1510-
13	PIPE; BRK,RR AXLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE L=738	8-98071-762-0	01	1	0809-1011
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE L=738	8-98071-762-0	01	1	1012-1509
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5) LH LINE L=738	8-98071-762-0	01	1	1510-
106	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98061-971-0	02	1	0809-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1510-
126	CLIP; FLEX HOSE	8-97360-054-0	01	1	0809-1509
126	CLIP; FLEX HOSE EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1510-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
