Sayfa 3-46 - Isuzu EPC

3-46 — AIR DRYER (#38244) — 165 parça

2 3 104 68 104 104 104 104 104 65 70 70 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-457-0	01	1	0809-1211
2	REPAIR KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98226-323-0	01	1	1212-
2	REPAIR KIT; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-456-0	01	1	0809-1211
2	REPAIR KIT; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98226-326-0	01	1	1212-1509
2	REPAIR KIT; AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98226-326-0	01	1	1510-
2	REPAIR KIT; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ECE(TDV)	8-98226-326-0	01	1	1510-
3	PISTON KIT; AIR DRYER	1-85576-383-0	01	1	0809-1211
3	PISTON KIT; AIR DRYER	8-98226-322-0	01	1	1212-1509
3	PISTON KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV)	8-98226-322-0	01	1	1510-
3	PISTON KIT; AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98226-322-0	01	1	1510-
3	PISTON KIT; AIR DRYER EXC. BRAKE REGULATION ECE(TDV)	8-98226-322-0	01	1	1510-
4	THERMOSTAT KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-443-0	01	1	0809-1011
4	THERMOSTAT KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-443-0	01	1	1012-1509
4	THERMOSTAT KIT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-443-0	01	1	1510-
4	THERMOSTAT KIT; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-386-0	01	1	0809-1509
4	THERMOSTAT KIT; AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-386-0	01	1	1510-
4	THERMOSTAT KIT; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ECE(TDV)	1-85576-386-0	01	1	1510-
65	BOLT; PURGE VLV	1-48199-517-0	01	1	0809-1509
65	BOLT; PURGE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV)	1-48199-517-0	01	1	1510-
65	BOLT; PURGE VLV ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-517-0	01	1	1510-
65	BOLT; PURGE VLV EXC. BRAKE REGULATION ECE(TDV)	1-48199-517-0	01	1	1510-
68	BODY; VALVE	1-48199-515-0	01	1	0809-1509
68	BODY; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV)	1-48199-515-0	01	1	1510-
68	BODY; VALVE ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-515-0	01	1	1510-
68	BODY; VALVE EXC. BRAKE REGULATION ECE(TDV)	1-48199-515-0	01	1	1510-
70	VALVE; AIR DRYER	1-48199-504-0	01	1	0809-1509
70	VALVE; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV)	1-48199-504-0	01	1	1510-
70	VALVE; AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-504-0	01	1	1510-
70	VALVE; AIR DRYER EXC. BRAKE REGULATION ECE(TDV)	1-48199-504-0	01	1	1510-
104	GASKET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48199-496-0	01	1	1212-1509
104	GASKET ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48199-496-0	01	1	1510-
104	GASKET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ECE(TDV) (B)	1-48199-496-0	01	1	1510-
104	GASKET (A)	1-48199-495-0	01	1	0809-1211
104	GASKET (A)	8-98226-321-0	01	1	1212-1509
104	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) (A)	8-98226-321-0	01	1	1510-
104	GASKET ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98226-321-0	01	1	1510-
104	GASKET EXC. BRAKE REGULATION ECE(TDV) (A)	8-98226-321-0	01	1	1510-
104	GASKET (B)	1-48199-496-0	02	1	0809-1211
104	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48199-496-0	02	1	1212-

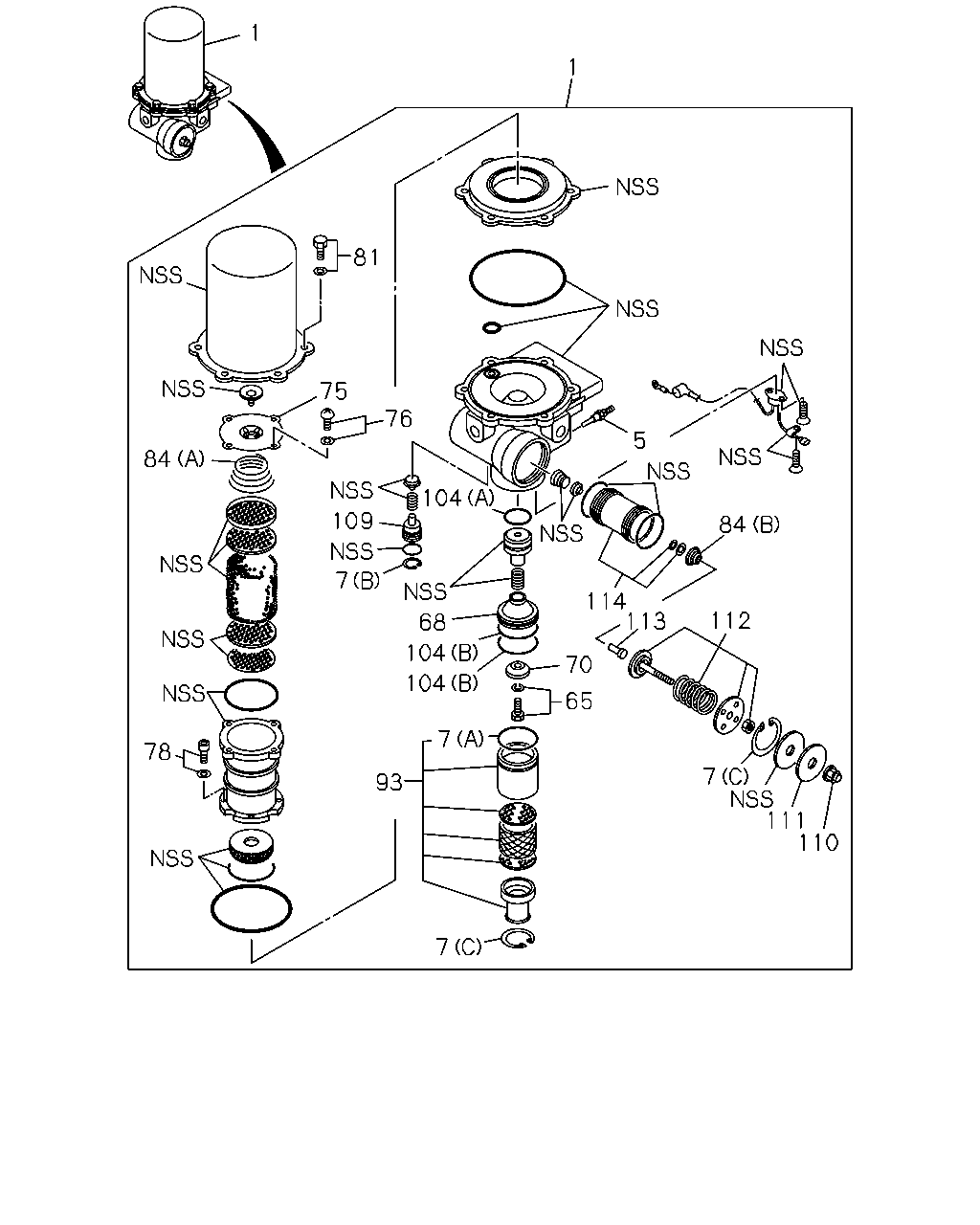

1 1 81 75 76 5 84 104 109 84 7 114 113 112 68 104 70 104 65 7 78 7 111 110 93 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48190-370-2	01	1	0809-1211
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98225-285-0	01	1	1212-
1	DRYER; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48190-369-2	01	1	0809-1211
1	DRYER; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98225-289-0	01	1	1212-1509
1	DRYER; AIR ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98225-289-0	01	1	1510-
1	DRYER; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ECE(TDV)	8-98225-289-0	01	1	1510-
5	HEATER ASM; AIR DRYER	1-48199-530-0	01	1	0809-1509
5	HEATER ASM; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV)	1-48199-530-0	01	1	1510-
5	HEATER ASM; AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-530-0	01	1	1510-
5	HEATER ASM; AIR DRYER EXC. BRAKE REGULATION ECE(TDV)	1-48199-530-0	01	1	1510-
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	0809-1509
7	RING; SNAP,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) (C)	1-48199-520-0	02	1	1510-
7	RING; SNAP,AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-48199-520-0	02	1	1510-
7	RING; SNAP,AIR DRYER EXC. BRAKE REGULATION ECE(TDV) (C)	1-48199-520-0	02	1	1510-
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	0809-1509
7	RING; SNAP,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) (B)	1-48199-529-0	01	1	1510-
7	RING; SNAP,AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48199-529-0	01	1	1510-
7	RING; SNAP,AIR DRYER EXC. BRAKE REGULATION ECE(TDV) (B)	1-48199-529-0	01	1	1510-
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	0809-1509
7	RING; SNAP,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) (A)	1-48199-579-0	01	1	1510-
7	RING; SNAP,AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48199-579-0	01	1	1510-
7	RING; SNAP,AIR DRYER EXC. BRAKE REGULATION ECE(TDV) (A)	1-48199-579-0	01	1	1510-
65	BOLT; PURGE VLV	1-48199-517-0	01	1	0809-1509
65	BOLT; PURGE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV)	1-48199-517-0	01	1	1510-
65	BOLT; PURGE VLV ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-517-0	01	1	1510-
65	BOLT; PURGE VLV EXC. BRAKE REGULATION ECE(TDV)	1-48199-517-0	01	1	1510-
68	BODY; VALVE	1-48199-515-0	01	1	0809-1509
68	BODY; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV)	1-48199-515-0	01	1	1510-
68	BODY; VALVE ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-515-0	01	1	1510-
68	BODY; VALVE EXC. BRAKE REGULATION ECE(TDV)	1-48199-515-0	01	1	1510-
70	VALVE; AIR DRYER	1-48199-504-0	01	1	0809-1509
70	VALVE; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV)	1-48199-504-0	01	1	1510-
70	VALVE; AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-504-0	01	1	1510-
70	VALVE; AIR DRYER EXC. BRAKE REGULATION ECE(TDV)	1-48199-504-0	01	1	1510-
75	COVER; CASE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-427-0	01	1	0809-1011
75	COVER; CASE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-427-0	01	1	1012-1509
75	COVER; CASE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-427-0	01	1	1510-
75	COVER; CASE,AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-395-0	01	1	0809-1509
75	COVER; CASE,AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-395-0	01	1	1510-
75	COVER; CASE,AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ECE(TDV)	1-48199-395-0	01	1	1510-
76	BOLT; COVER,AIR DRYER	1-48199-412-0	04	1	0809-1509
76	BOLT; COVER,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV)	1-48199-412-0	04	1	1510-
76	BOLT; COVER,AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-412-0	04	1	1510-
76	BOLT; COVER,AIR DRYER EXC. BRAKE REGULATION ECE(TDV)	1-48199-412-0	04	1	1510-
78	BOLT; OIL FILTER,AIR DRYER	1-48199-417-0	04	1	0809-1509
78	BOLT; OIL FILTER,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV)	1-48199-417-0	04	1	1510-
78	BOLT; OIL FILTER,AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-417-0	04	1	1510-
78	BOLT; OIL FILTER,AIR DRYER EXC. BRAKE REGULATION ECE(TDV)	1-48199-417-0	04	1	1510-
81	BOLT; CASE,AIR DRYER	1-48199-436-0	06	1	0809-1509
81	BOLT; CASE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV)	1-48199-436-0	06	1	1510-
81	BOLT; CASE,AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-436-0	06	1	1510-
81	BOLT; CASE,AIR DRYER EXC. BRAKE REGULATION ECE(TDV)	1-48199-436-0	06	1	1510-
84	SPRING; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48199-425-0	01	1	0809-1011
84	SPRING; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48199-425-0	01	1	1012-1509
84	SPRING; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48199-425-0	01	1	1510-
84	SPRING; AIR DRYER (B)	1-48199-523-0	01	1	0809-1509
84	SPRING; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) (B)	1-48199-523-0	01	1	1510-
84	SPRING; AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48199-523-0	01	1	1510-
84	SPRING; AIR DRYER EXC. BRAKE REGULATION ECE(TDV) (B)	1-48199-523-0	01	1	1510-
84	SPRING; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48199-396-0	01	1	0809-1509
84	SPRING; AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48199-396-0	01	1	1510-
84	SPRING; AIR DRYER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ECE(TDV) (A)	1-48199-396-0	01	1	1510-
93	SILENCER; AIR DRYER	1-48199-619-0	01	1	0809-1509
93	SILENCER; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV)	1-48199-619-0	01	1	1510-
93	SILENCER; AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-619-0	01	1	1510-
93	SILENCER; AIR DRYER EXC. BRAKE REGULATION ECE(TDV)	1-48199-619-0	01	1	1510-
104	GASKET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48199-496-0	01	1	1212-1509
104	GASKET ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48199-496-0	01	1	1510-
104	GASKET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ECE(TDV) (B)	1-48199-496-0	01	1	1510-
104	GASKET (A)	1-48199-495-0	01	1	0809-1211
104	GASKET (A)	8-98226-321-0	01	1	1212-1509
104	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) (A)	8-98226-321-0	01	1	1510-
104	GASKET ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98226-321-0	01	1	1510-
104	GASKET EXC. BRAKE REGULATION ECE(TDV) (A)	8-98226-321-0	01	1	1510-
104	GASKET (B)	1-48199-496-0	02	1	0809-1211
104	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48199-496-0	02	1	1212-
109	STOPPER; CHECK VALVE	1-48199-539-0	01	1	0809-1509
109	STOPPER; CHECK VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV)	1-48199-539-0	01	1	1510-
109	STOPPER; CHECK VALVE ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-539-0	01	1	1510-
109	STOPPER; CHECK VALVE EXC. BRAKE REGULATION ECE(TDV)	1-48199-539-0	01	1	1510-
110	NUT; CAP	1-48199-527-0	01	1	0809-1509
110	NUT; CAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV)	1-48199-527-0	01	1	1510-
110	NUT; CAP ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-527-0	01	1	1510-
110	NUT; CAP EXC. BRAKE REGULATION ECE(TDV)	1-48199-527-0	01	1	1510-
111	PLATE; GOVERNOR	1-48199-526-0	01	1	0809-1509
111	PLATE; GOVERNOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV)	1-48199-526-0	01	1	1510-
111	PLATE; GOVERNOR ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-526-0	01	1	1510-
111	PLATE; GOVERNOR EXC. BRAKE REGULATION ECE(TDV)	1-48199-526-0	01	1	1510-
112	SCREW & SPRING ASM; AIR DRYER	1-48199-524-0	01	1	0809-1509
112	SCREW & SPRING ASM; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV)	1-48199-524-0	01	1	1510-
112	SCREW & SPRING ASM; AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-524-0	01	1	1510-
112	SCREW & SPRING ASM; AIR DRYER EXC. BRAKE REGULATION ECE(TDV)	1-48199-524-0	01	1	1510-
113	STEM; EXHAUST	1-48199-522-0	01	1	0809-1509
113	STEM; EXHAUST REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV)	1-48199-522-0	01	1	1510-
113	STEM; EXHAUST ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-522-0	01	1	1510-
113	STEM; EXHAUST EXC. BRAKE REGULATION ECE(TDV)	1-48199-522-0	01	1	1510-
114	PISTON ASM; GOVERNOR	1-48199-521-0	01	1	0809-1509
114	PISTON ASM; GOVERNOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV)	1-48199-521-0	01	1	1510-
114	PISTON ASM; GOVERNOR ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48199-521-0	01	1	1510-
114	PISTON ASM; GOVERNOR EXC. BRAKE REGULATION ECE(TDV)	1-48199-521-0	01	1	1510-

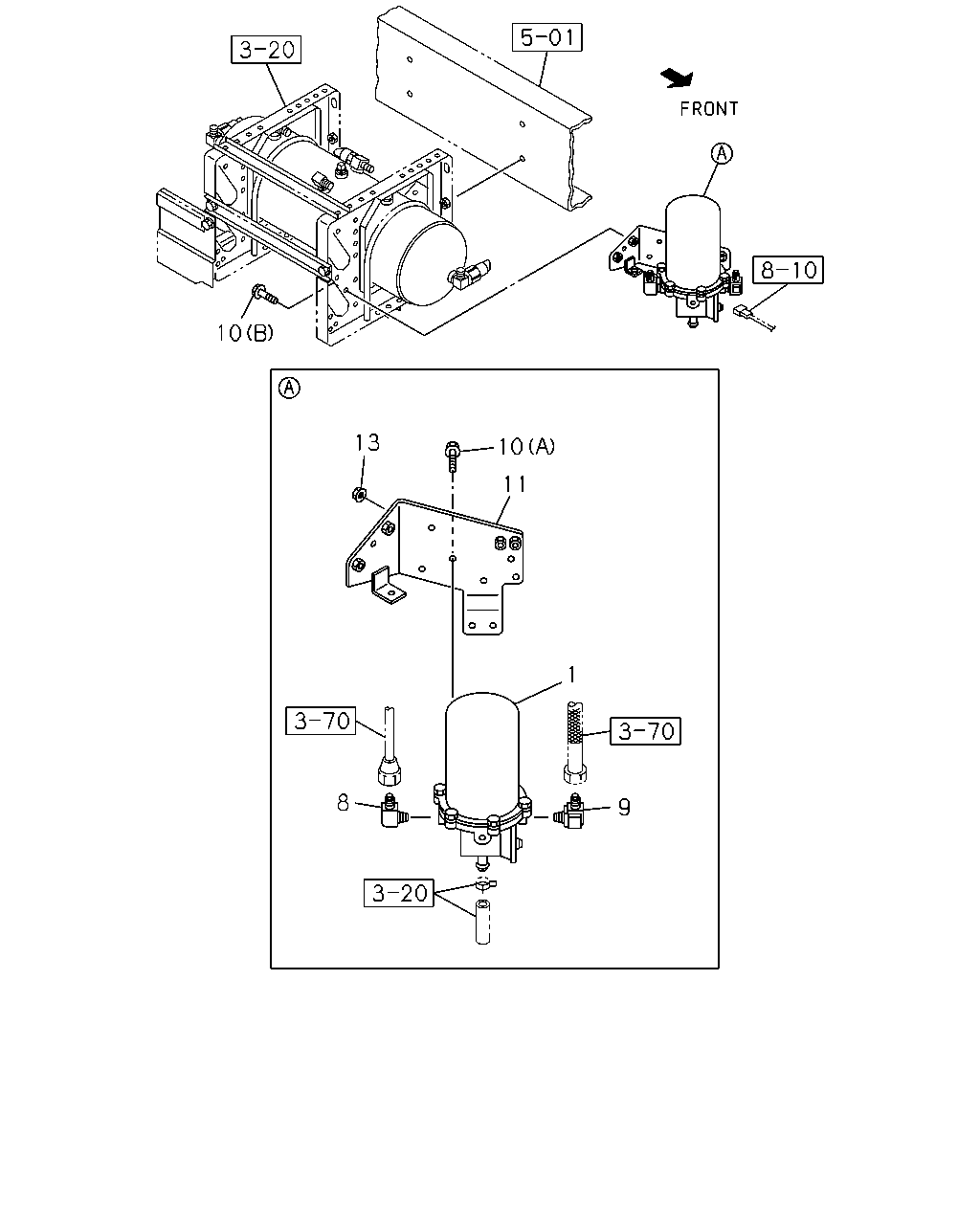

10 13 10 11 1 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48190-370-2	01	1	0809-1211
1	DRYER; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98225-285-0	01	1	1212-
1	DRYER; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48190-369-2	01	1	0809-1211
1	DRYER; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98225-289-0	01	1	1212-1509
1	DRYER; AIR ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98225-289-0	01	1	1510-
1	DRYER; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ECE(TDV)	8-98225-289-0	01	1	1510-
8	CONNECTOR; OUT,AIR DRYER TIRE INFLATOR DEVICE<SG4>	1-09656-676-0	01	1	0809-1509
8	CONNECTOR; OUT,AIR DRYER TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ECE(TDV)	1-09656-676-0	01	1	1510-
8	CONNECTOR; OUT,AIR DRYER EXC. TIRE INFLATOR DEVICE<SG4> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0809-1509
8	CONNECTOR; OUT,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1510-
8	CONNECTOR; OUT,AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1510-
8	CONNECTOR; OUT,AIR DRYER EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ECE(TDV) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	1510-
9	CONNECTOR; PIPE,AIR DRYER M22 & PT1/2 ELBOW	0-92134-315-0	01	1	0809-1509
9	CONNECTOR; PIPE,AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1510-
9	CONNECTOR; PIPE,AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1510-
9	CONNECTOR; PIPE,AIR DRYER EXC. BRAKE REGULATION ECE(TDV) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1510-
10	BOLT; AIR DRYER (B) M8X20 FLANGE	0-28050-820-0	02	1	0809-
10	BOLT; AIR DRYER (A) M10X25 FLANGE	0-28051-025-0	03	1	0809-1509
10	BOLT; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) (A) M10X25 FLANGE	0-28051-025-0	03	1	1510-
10	BOLT; AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X25 FLANGE	0-28051-025-0	03	1	1510-
10	BOLT; AIR DRYER EXC. BRAKE REGULATION ECE(TDV) (A) M10X25 FLANGE	0-28051-025-0	03	1	1510-
11	BRACKET; AIR DRYER	8-98044-548-4	01	1	0809-1509
11	BRACKET; AIR DRYER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV)	8-98044-548-4	01	1	1510-
11	BRACKET; AIR DRYER ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98044-548-4	01	1	1510-
11	BRACKET; AIR DRYER EXC. BRAKE REGULATION ECE(TDV)	8-98044-548-4	01	1	1510-
13	NUT; AIR DRYER M8 FLANGE	0-91180-108-0	02	1	0809-
