Sayfa 3-20 - Isuzu EPC

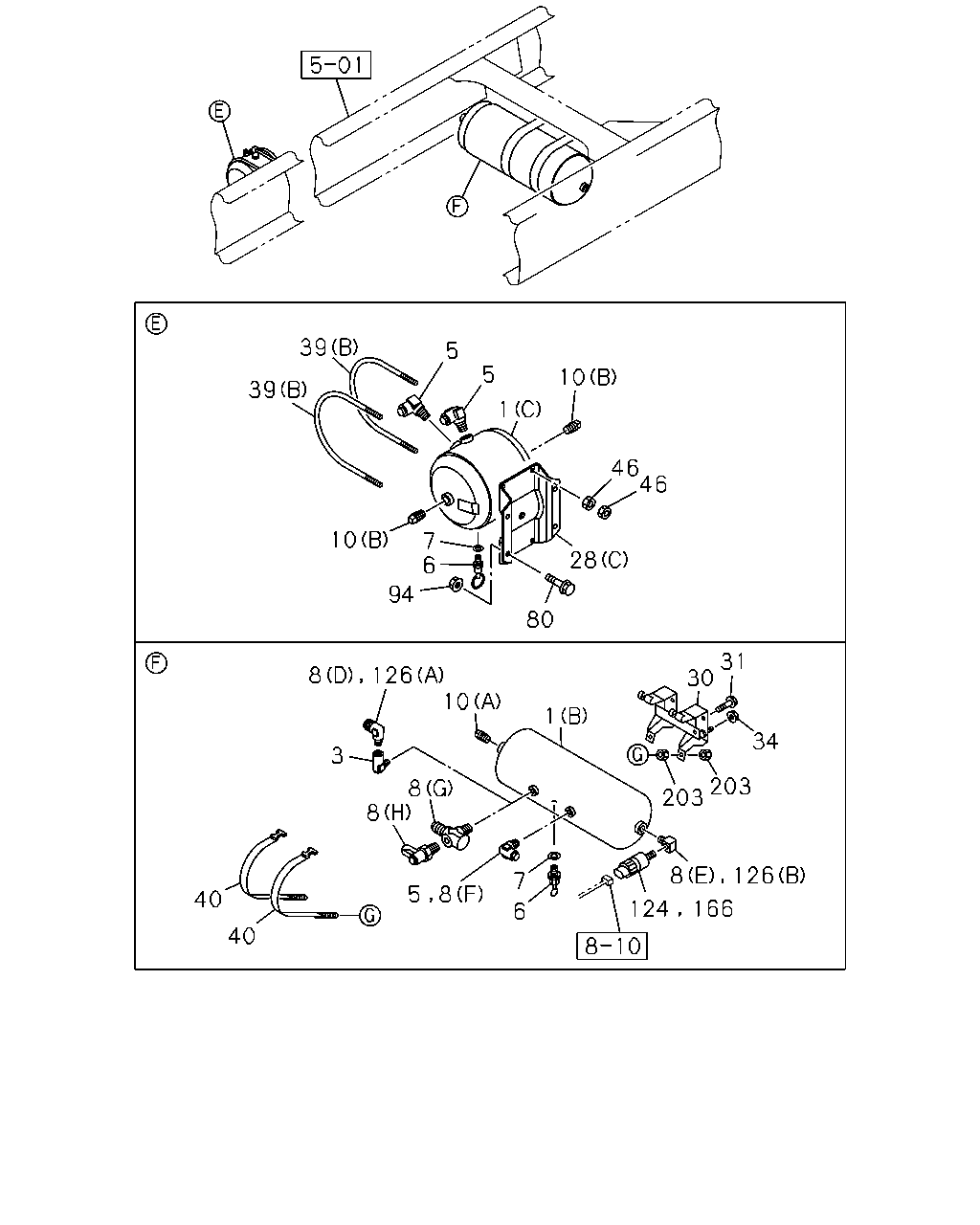

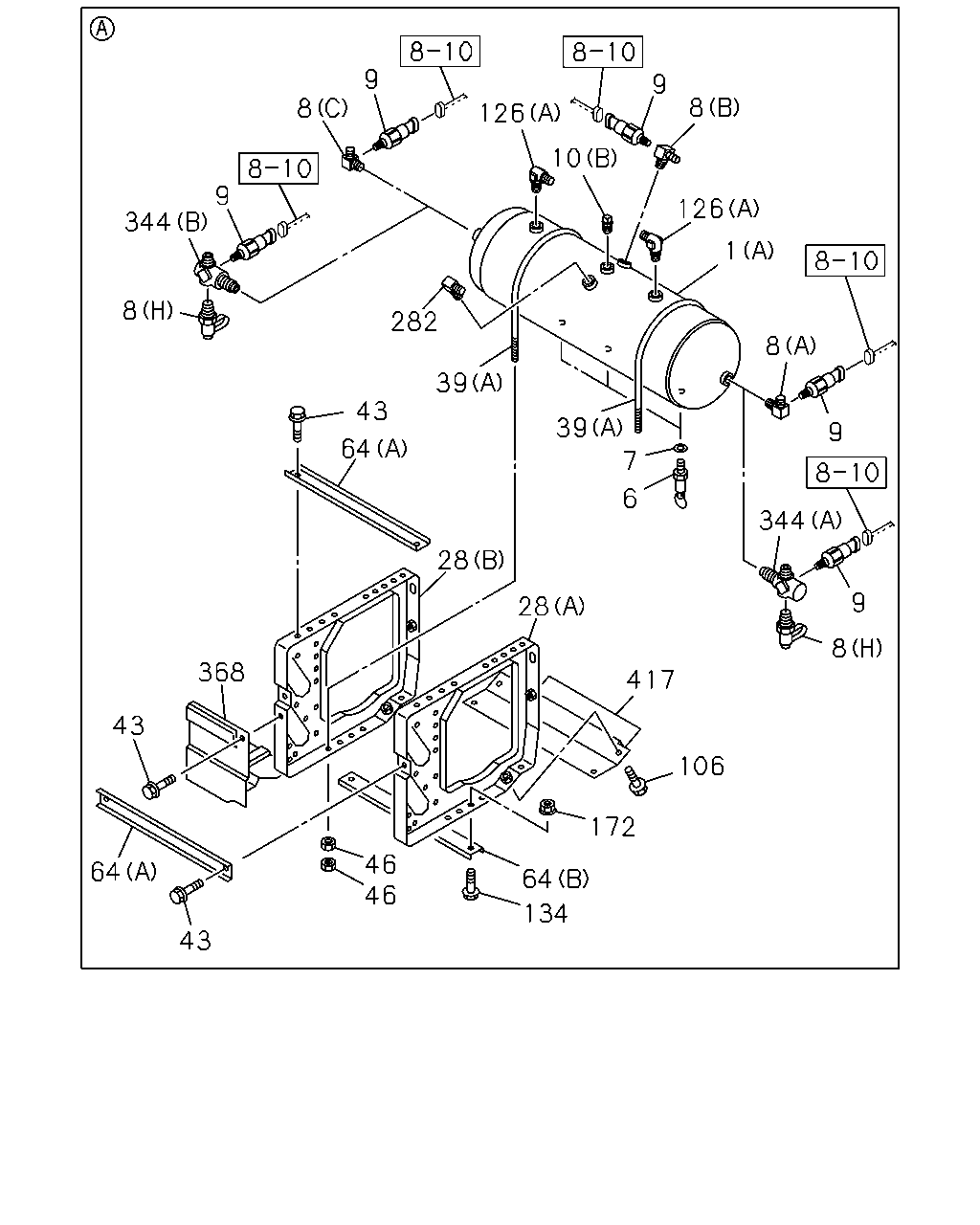

3-20 — AIR TANK (#38238) — 282 parça

39 39 5 1 5 10 10 94 80 28 46 7 6 46 30 1 10 31 126 8 3 8 203 8 124 126 166 203 5 8 34 40 40 7 6 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR ECUADOR EQUIPMENT(E46) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2015<VZF> (C)	8-98081-870-1	01	1	1510-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-659-0	01	1	0809-1101
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1102-1308
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE) (B)	8-98166-972-0	01	1	1309-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (B)	8-98166-972-0	01	1	1309-
1	TANK ASM; AIR (A)	8-98018-785-3	01	1	0809-1308
1	TANK ASM; AIR ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (A)	8-98018-785-3	01	1	1309-
1	TANK ASM; AIR EXC. BRAKE REGULATION ECE VAR.2(NBE) (A)	8-98018-785-3	01	1	1309-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48320-031-1	01	1	0809-1308
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE)	1-48320-031-1	01	1	1309-1509
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE)	1-48320-031-1	01	1	1309-1509
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE),BRAKE REGULATION ECE(TDV)	1-48320-031-1	01	1	1510-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE)	1-48320-031-1	01	1	1510-
5	UNION; AIR TANK ECUADOR EQUIPMENT(E46) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2015<VZF> DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1510-
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0809-1101
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0809-1308
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE)	1-48312-015-0	01	1	1309-1509
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE)	1-48312-015-0	01	1	1309-1509
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE)	1-48312-015-0	01	1	1510-
6	COCK; DRAIN,AIR TANK ECUADOR EQUIPMENT(E46) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2015<VZF>	1-48312-015-0	01	1	1510-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE)	1-48312-015-0	01	1	1510-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0809-1308
6	COCK; DRAIN,AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE)	1-48312-015-0	03	1	1309-
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE)	1-48312-015-0	03	1	1309-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0809-1308
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE) ID=14	1-09630-145-0	01	1	1309-1509
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) ID=14	1-09630-145-0	01	1	1309-1509
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) ID=14	1-09630-145-0	01	1	1510-
7	GASKET; DRAIN COCK ECUADOR EQUIPMENT(E46) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2015<VZF> ID=14	1-09630-145-0	01	1	1510-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE) ID=14	1-09630-145-0	01	1	1510-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0809-1308
7	GASKET; DRAIN COCK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) ID=14	1-09630-145-0	03	1	1309-
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ECE VAR.2(NBE) ID=14	1-09630-145-0	03	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (G) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (H) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1510-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE(TDV) (H) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-1308
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE) (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1309-1509
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1309-1509
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE),BRAKE REGULATION ECE(TDV) (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1102-1308
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1102-1308
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1309-
8	CONNECTOR; AIR TANK (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0809-1308
8	CONNECTOR; AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1309-1509
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1309-1509
8	CONNECTOR; AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1510-
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE),BRAKE REGULATION ECE(TDV) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1510-
8	CONNECTOR; AIR TANK (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0809-1308
8	CONNECTOR; AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1309-1509
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1309-1509
8	CONNECTOR; AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1510-
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE),BRAKE REGULATION ECE(TDV) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1510-
8	CONNECTOR; AIR TANK (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	0809-1308
8	CONNECTOR; AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1309-
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE) (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1309-
10	PLUG; AIR TANK ECUADOR EQUIPMENT(E46) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2015<VZF> (B) PT3/8	9-09204-517-0	02	1	1510-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/4	9-09204-526-0	01	1	0809-1101
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0809-1101
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	1102-1308
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1102-1308
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE) (B) PT3/8	9-09204-517-0	01	1	1309-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (B) PT3/8	9-09204-517-0	01	1	1309-
10	PLUG; AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (B) PT3/8	9-09204-517-0	01	1	1309-
10	PLUG; AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE) (B) PT3/8	9-09204-517-0	01	1	1309-
28	BRACKET; AIR TANK ECUADOR EQUIPMENT(E46) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2015<VZF> (C)	8-98100-165-3	01	1	1510-
28	BRACKET; AIR TANK (A)	8-98021-918-5	01	1	0809-1308
28	BRACKET; AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (A)	8-98021-918-5	01	1	1309-
28	BRACKET; AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE) (A)	8-98021-918-5	01	1	1309-
28	BRACKET; AIR TANK (B)	8-98044-509-5	01	1	0809-1308
28	BRACKET; AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (B)	8-98044-509-5	01	1	1309-
28	BRACKET; AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE) (B)	8-98044-509-5	01	1	1309-
30	BRACKET; AIR TANK,SUB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-894-1	01	1	0809-1308
30	BRACKET; AIR TANK,SUB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE)	1-48317-894-1	01	1	1309-
30	BRACKET; AIR TANK,SUB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE)	1-48317-894-1	01	1	1309-
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	0809-
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0809-
39	U-BOLT; AIR TANK ECUADOR EQUIPMENT(E46) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2015<VZF> (B) L=210	1-48317-458-1	02	1	1510-
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	0809-1308
39	U-BOLT; AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (A)	8-98022-041-0	02	1	1309-
39	U-BOLT; AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE) (A)	8-98022-041-0	02	1	1309-
40	BAND ASM; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-893-1	02	1	0809-1308
40	BAND ASM; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE)	1-48317-893-1	02	1	1309-
40	BAND ASM; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE)	1-48317-893-1	02	1	1309-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0809-1308
46	NUT; U-BOLT ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) M8	0-91110-508-0	08	1	1309-1509
46	NUT; U-BOLT EXC. BRAKE REGULATION ECE VAR.2(NBE) M8	0-91110-508-0	08	1	1309-1509
46	NUT; U-BOLT ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) M8	0-91110-508-0	08	1	1510-
46	NUT; U-BOLT ECUADOR EQUIPMENT(E46) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2015<VZF> M8	0-91110-508-0	08	1	1510-
46	NUT; U-BOLT EXC. BRAKE REGULATION ECE VAR.2(NBE) M8	0-91110-508-0	08	1	1510-
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10X30 FLANGE	0-28651-030-0	03	1	1510-
94	NUT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10 FLANGE	0-91180-210-0	04	1	1510-
124	SWITCH; AIR PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) STAMP 6.5	8-97609-252-0	01	1	1309-
124	SWITCH; AIR PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	1102-1308
124	SWITCH; AIR PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE) STAMP 5.5	8-97609-249-0	01	1	1309-
126	CONNECTOR; ELBOW ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1309-
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE VAR.2(NBE) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1309-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	03	1	0809-1308
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1309-1509
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	0809-1101
203	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	04	1	0809-1308
203	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE) M8	0-91110-508-0	04	1	1309-
203	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) M8	0-91110-508-0	04	1	1309-

9 9 9 282 7 9 6 368 43 43 46 46 134 417 106 172 43 9 8 126 8 10 126 8 1 344 8 28 28 64 344 8 64 64 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR ECUADOR EQUIPMENT(E46) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2015<VZF> (C)	8-98081-870-1	01	1	1510-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-659-0	01	1	0809-1101
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1102-1308
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE) (B)	8-98166-972-0	01	1	1309-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (B)	8-98166-972-0	01	1	1309-
1	TANK ASM; AIR (A)	8-98018-785-3	01	1	0809-1308
1	TANK ASM; AIR ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (A)	8-98018-785-3	01	1	1309-
1	TANK ASM; AIR EXC. BRAKE REGULATION ECE VAR.2(NBE) (A)	8-98018-785-3	01	1	1309-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0809-1308
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE)	1-48312-015-0	01	1	1309-1509
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE)	1-48312-015-0	01	1	1309-1509
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE)	1-48312-015-0	01	1	1510-
6	COCK; DRAIN,AIR TANK ECUADOR EQUIPMENT(E46) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2015<VZF>	1-48312-015-0	01	1	1510-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE)	1-48312-015-0	01	1	1510-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0809-1308
6	COCK; DRAIN,AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE)	1-48312-015-0	03	1	1309-
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE)	1-48312-015-0	03	1	1309-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0809-1308
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE) ID=14	1-09630-145-0	01	1	1309-1509
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) ID=14	1-09630-145-0	01	1	1309-1509
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) ID=14	1-09630-145-0	01	1	1510-
7	GASKET; DRAIN COCK ECUADOR EQUIPMENT(E46) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2015<VZF> ID=14	1-09630-145-0	01	1	1510-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE) ID=14	1-09630-145-0	01	1	1510-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0809-1308
7	GASKET; DRAIN COCK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) ID=14	1-09630-145-0	03	1	1309-
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ECE VAR.2(NBE) ID=14	1-09630-145-0	03	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (G) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (H) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1510-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE(TDV) (H) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-1308
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE) (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1309-1509
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1309-1509
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE),BRAKE REGULATION ECE(TDV) (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1102-1308
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1102-1308
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1309-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1309-
8	CONNECTOR; AIR TANK (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0809-1308
8	CONNECTOR; AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1309-1509
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1309-1509
8	CONNECTOR; AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1510-
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE),BRAKE REGULATION ECE(TDV) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1510-
8	CONNECTOR; AIR TANK (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0809-1308
8	CONNECTOR; AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1309-1509
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1309-1509
8	CONNECTOR; AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1510-
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE),BRAKE REGULATION ECE(TDV) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1510-
8	CONNECTOR; AIR TANK (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	0809-1308
8	CONNECTOR; AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1309-
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE) (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	1309-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) STAMP 6.5	8-97609-252-0	03	1	1309-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	03	1	0809-1308
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE) STAMP 5.5	8-97609-249-0	03	1	1309-
10	PLUG; AIR TANK ECUADOR EQUIPMENT(E46) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2015<VZF> (B) PT3/8	9-09204-517-0	02	1	1510-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/4	9-09204-526-0	01	1	0809-1101
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0809-1101
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	1102-1308
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1102-1308
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE VAR.2(NBE) (B) PT3/8	9-09204-517-0	01	1	1309-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (B) PT3/8	9-09204-517-0	01	1	1309-
10	PLUG; AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (B) PT3/8	9-09204-517-0	01	1	1309-
10	PLUG; AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE) (B) PT3/8	9-09204-517-0	01	1	1309-
28	BRACKET; AIR TANK ECUADOR EQUIPMENT(E46) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2015<VZF> (C)	8-98100-165-3	01	1	1510-
28	BRACKET; AIR TANK (A)	8-98021-918-5	01	1	0809-1308
28	BRACKET; AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (A)	8-98021-918-5	01	1	1309-
28	BRACKET; AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE) (A)	8-98021-918-5	01	1	1309-
28	BRACKET; AIR TANK (B)	8-98044-509-5	01	1	0809-1308
28	BRACKET; AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (B)	8-98044-509-5	01	1	1309-
28	BRACKET; AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE) (B)	8-98044-509-5	01	1	1309-
39	U-BOLT; AIR TANK ECUADOR EQUIPMENT(E46) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2015<VZF> (B) L=210	1-48317-458-1	02	1	1510-
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	0809-1308
39	U-BOLT; AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (A)	8-98022-041-0	02	1	1309-
39	U-BOLT; AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE) (A)	8-98022-041-0	02	1	1309-
43	BOLT; STAY,AIR TANK,MAIN M8X16 FLANGE	0-28050-816-0	06	1	0809-1308
43	BOLT; STAY,AIR TANK,MAIN ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) M8X16 FLANGE	0-28050-816-0	06	1	1309-
43	BOLT; STAY,AIR TANK,MAIN EXC. BRAKE REGULATION ECE VAR.2(NBE) M8X16 FLANGE	0-28050-816-0	06	1	1309-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0809-1308
46	NUT; U-BOLT ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) M8	0-91110-508-0	08	1	1309-1509
46	NUT; U-BOLT EXC. BRAKE REGULATION ECE VAR.2(NBE) M8	0-91110-508-0	08	1	1309-1509
46	NUT; U-BOLT ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) M8	0-91110-508-0	08	1	1510-
46	NUT; U-BOLT ECUADOR EQUIPMENT(E46) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2015<VZF> M8	0-91110-508-0	08	1	1510-
46	NUT; U-BOLT EXC. BRAKE REGULATION ECE VAR.2(NBE) M8	0-91110-508-0	08	1	1510-
64	STAY; AIR TANK,MAIN (A)	8-98044-510-3	02	1	0809-1308
64	STAY; AIR TANK,MAIN ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (A)	8-98044-510-3	02	1	1309-
64	STAY; AIR TANK,MAIN EXC. BRAKE REGULATION ECE VAR.2(NBE) (A)	8-98044-510-3	02	1	1309-
64	STAY; AIR TANK,MAIN (B)	8-98044-511-2	01	1	0809-1308
64	STAY; AIR TANK,MAIN ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (B)	8-98044-511-2	01	1	1309-
64	STAY; AIR TANK,MAIN EXC. BRAKE REGULATION ECE VAR.2(NBE) (B)	8-98044-511-2	01	1	1309-
106	BOLT; COVER M8X16 FLANGE	0-28050-816-0	04	1	0809-1308
106	BOLT; COVER ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) M8X16 FLANGE	0-28050-816-0	04	1	1309-
106	BOLT; COVER EXC. BRAKE REGULATION ECE VAR.2(NBE) M8X16 FLANGE	0-28050-816-0	04	1	1309-
126	CONNECTOR; ELBOW ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1309-
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE VAR.2(NBE) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1309-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	03	1	0809-1308
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1309-1509
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
134	BOLT; COVER FIX M8X16 FLANGE	0-28050-816-0	04	1	0809-1308
134	BOLT; COVER FIX ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) M8X16 FLANGE	0-28050-816-0	04	1	1309-
134	BOLT; COVER FIX EXC. BRAKE REGULATION ECE VAR.2(NBE) M8X16 FLANGE	0-28050-816-0	04	1	1309-
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91180-108-0	02	1	0809-1308
172	NUT; STAY,AIR TANK,MAIN ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) M8 FLANGE	0-91180-108-0	02	1	1309-
172	NUT; STAY,AIR TANK,MAIN EXC. BRAKE REGULATION ECE VAR.2(NBE) M8 FLANGE	0-91180-108-0	02	1	1309-
282	UNION; 2 WAY M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0809-1308
282	UNION; 2 WAY ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1309-
282	UNION; 2 WAY EXC. BRAKE REGULATION ECE VAR.2(NBE) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1309-
344	CONNECTOR; 4WAY BRAKE REGULATION ECE(TDV) (A)	1-09656-726-0	01	1	1510-
344	CONNECTOR; 4WAY BRAKE REGULATION ECE(TDV) (B)	1-09656-767-0	01	1	1510-
368	COVER; AIR TANK	8-98061-625-3	01	1	0809-1308
368	COVER; AIR TANK ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE)	8-98061-625-3	01	1	1309-
368	COVER; AIR TANK EXC. BRAKE REGULATION ECE VAR.2(NBE)	8-98061-625-3	01	1	1309-
417	COVER; HARNESS	8-98111-401-0	01	1	0809-1308
417	COVER; HARNESS ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE)	8-98111-401-0	01	1	1309-
417	COVER; HARNESS EXC. BRAKE REGULATION ECE VAR.2(NBE)	8-98111-401-0	01	1	1309-

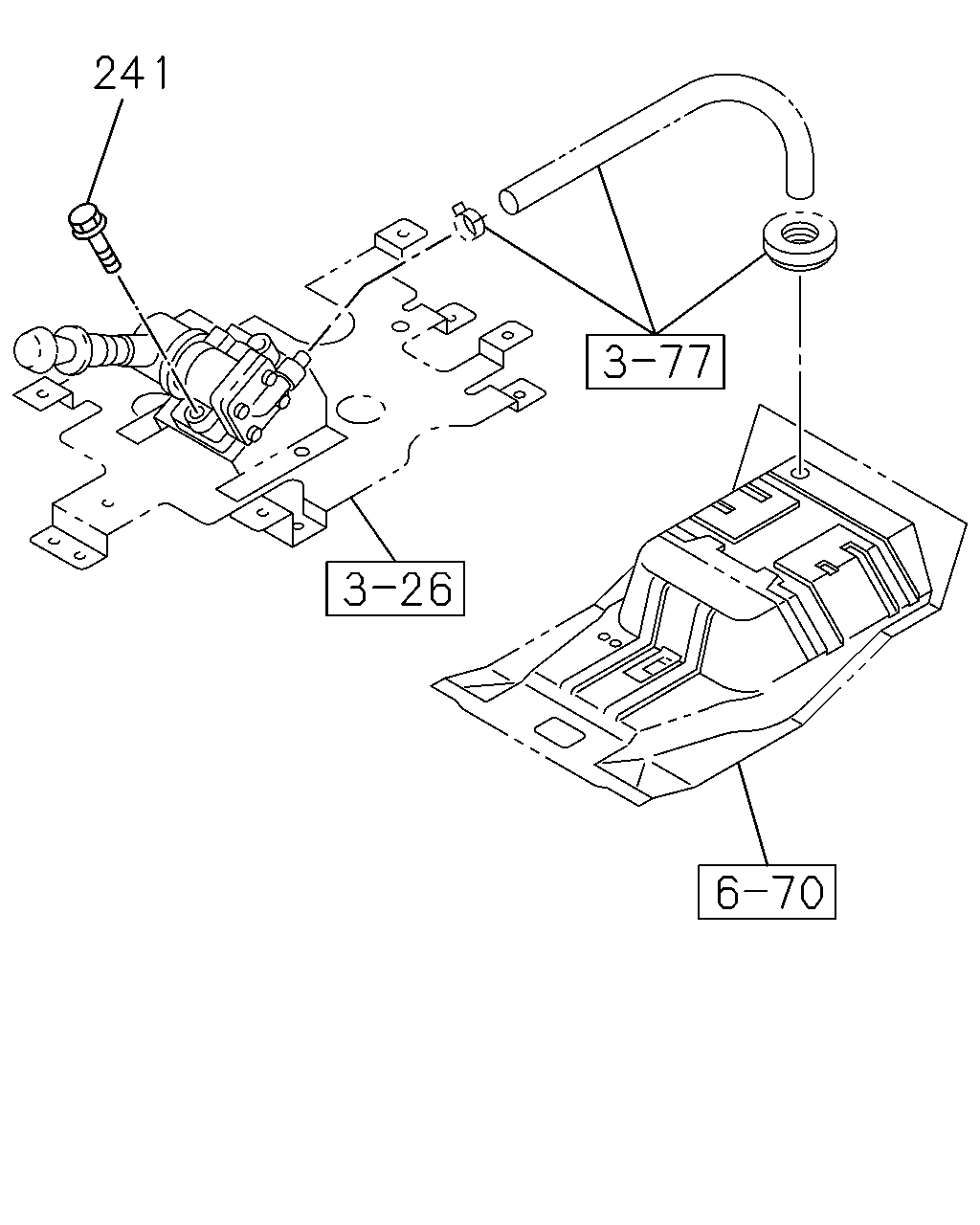

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	0809-

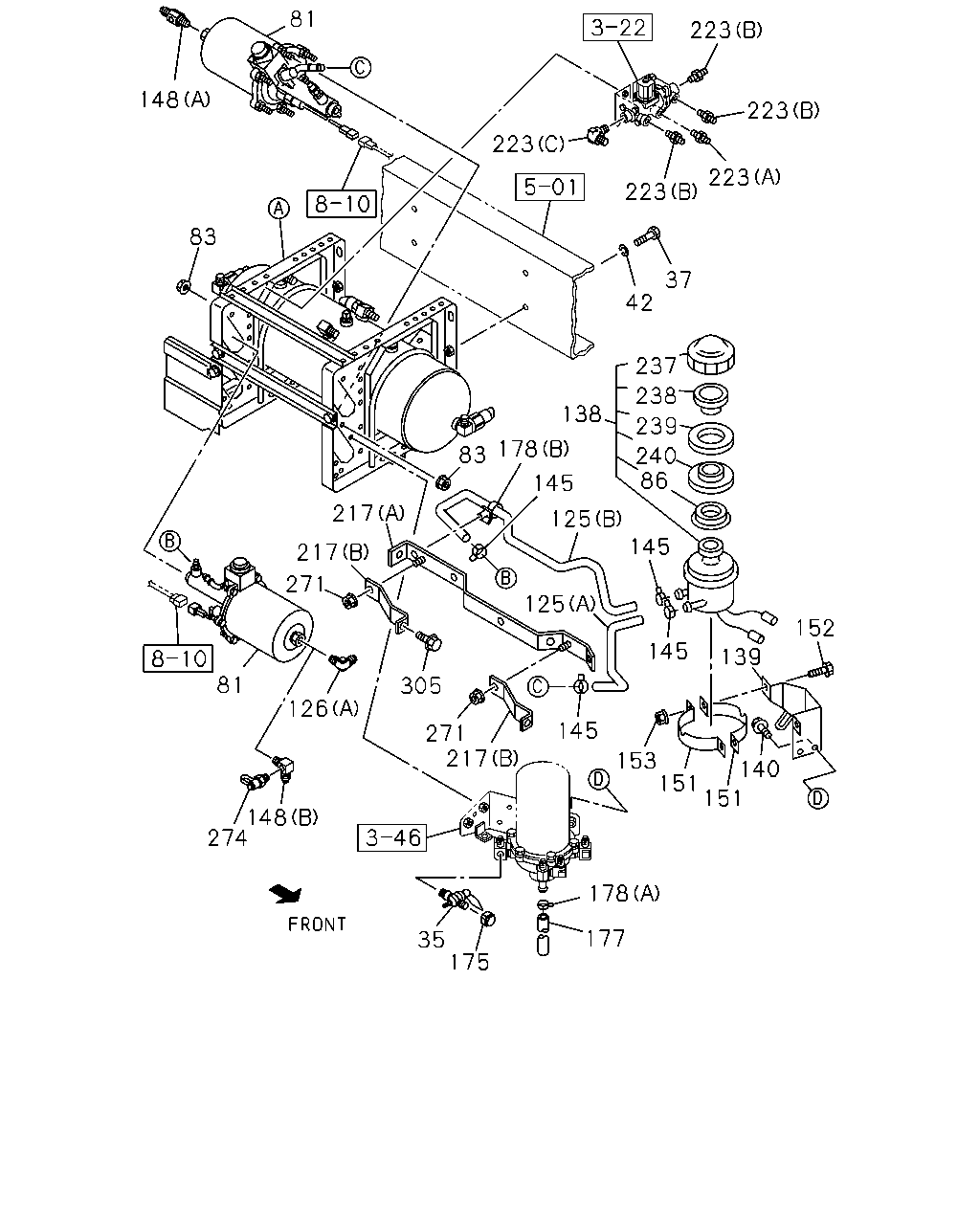

81 223 223 223 223 223 83 148 83 178 138 37 42 237 238 239 240 86 125 145 145 125 217 217 271 81 126 305 271 217 145 145 139 152 153 151 151 140 148 274 35 175 177 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0809-1509
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ECE(TDV)	1-09680-099-0	01	1	1510-
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	04	1	0809-
42	WASHER; PL ID=12.5 OD=32	0-91614-712-0	04	1	0809-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-777-0	02	1	0809-0905
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-826-0	02	1	0906-
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	09	1	0809-
86	SEAL; DUST	1-47529-019-0	01	1	0809-
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98051-217-0	01	1	0809-
125	HOSE; OIL TANK TO AIR MASTER (B)	8-98051-218-1	01	1	0809-
126	CONNECTOR; ELBOW ECUADOR COUNTRY(CX3) BRAKE REGULATION ECE VAR.2(NBE) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1309-
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE VAR.2(NBE) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1309-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	03	1	0809-1308
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1309-1509
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
138	TANK ASM; OIL,AIR MASTER BRAKE REGULATION ECE(TDV)	1-47530-186-0	01	1	1510-
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0809-1509
138	TANK ASM; OIL,AIR MASTER EXC. BRAKE REGULATION ECE(TDV)	1-47530-185-1	01	1	1510-
139	BRACKET; OIL TANK	8-98051-105-0	01	1	0809-
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0809-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0809-
148	CONNECTOR; AIR MASTER BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	1510-
148	CONNECTOR; AIR MASTER BRAKE REGULATION ECE(TDV) (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1510-
148	CONNECTOR; AIR MASTER (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0809-1509
148	CONNECTOR; AIR MASTER EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1510-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0809-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0809-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0809-
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0809-1509
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ECE(TDV)	9-48319-102-0	01	1	1510-
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0809-1509
177	HOSE; RUBBER,DRAIN REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1510-
177	HOSE; RUBBER,DRAIN ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1510-
177	HOSE; RUBBER,DRAIN EXC. BRAKE REGULATION ECE(TDV) L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1510-
178	CLIP; HOSE (B) ID=13-18 L=14.5	1-09709-290-0	08	1	0809-
178	CLIP; HOSE (A) ID=21	8-94242-034-0	01	1	0809-1509
178	CLIP; HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) (A) ID=21	8-94242-034-0	01	1	1510-
178	CLIP; HOSE ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=21	8-94242-034-0	01	1	1510-
178	CLIP; HOSE EXC. BRAKE REGULATION ECE(TDV) (A) ID=21	8-94242-034-0	01	1	1510-
217	BRACKET; RUBBER HOSE (A)	8-98082-871-0	01	1	0809-
217	BRACKET; RUBBER HOSE (B)	8-98085-273-1	02	1	0809-
223	UNION H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0809-
223	UNION H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	0809-
223	UNION H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-
237	CAP; OIL TANK	1-47525-030-0	01	1	0809-
238	PLATE; BAFFLE	1-47529-022-0	01	1	0809-
239	FILTER; DUST	1-47529-017-0	01	1	0809-
240	HOLDER; FILTER	1-47529-018-0	01	1	0809-
271	NUT; BRKT,HOSE M8 FLANGE	0-91180-108-0	02	1	0809-
274	CONNECTOR; VLV BRAKE REGULATION ECE(TDV) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1510-
305	BOLT; BRKT,HOSE M8X16 FLANGE	0-28050-816-0	01	1	0809-1008

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
