Sayfa 3-08 - Isuzu EPC

3-08 — PARKING BRAKE (#38235) — 136 parça

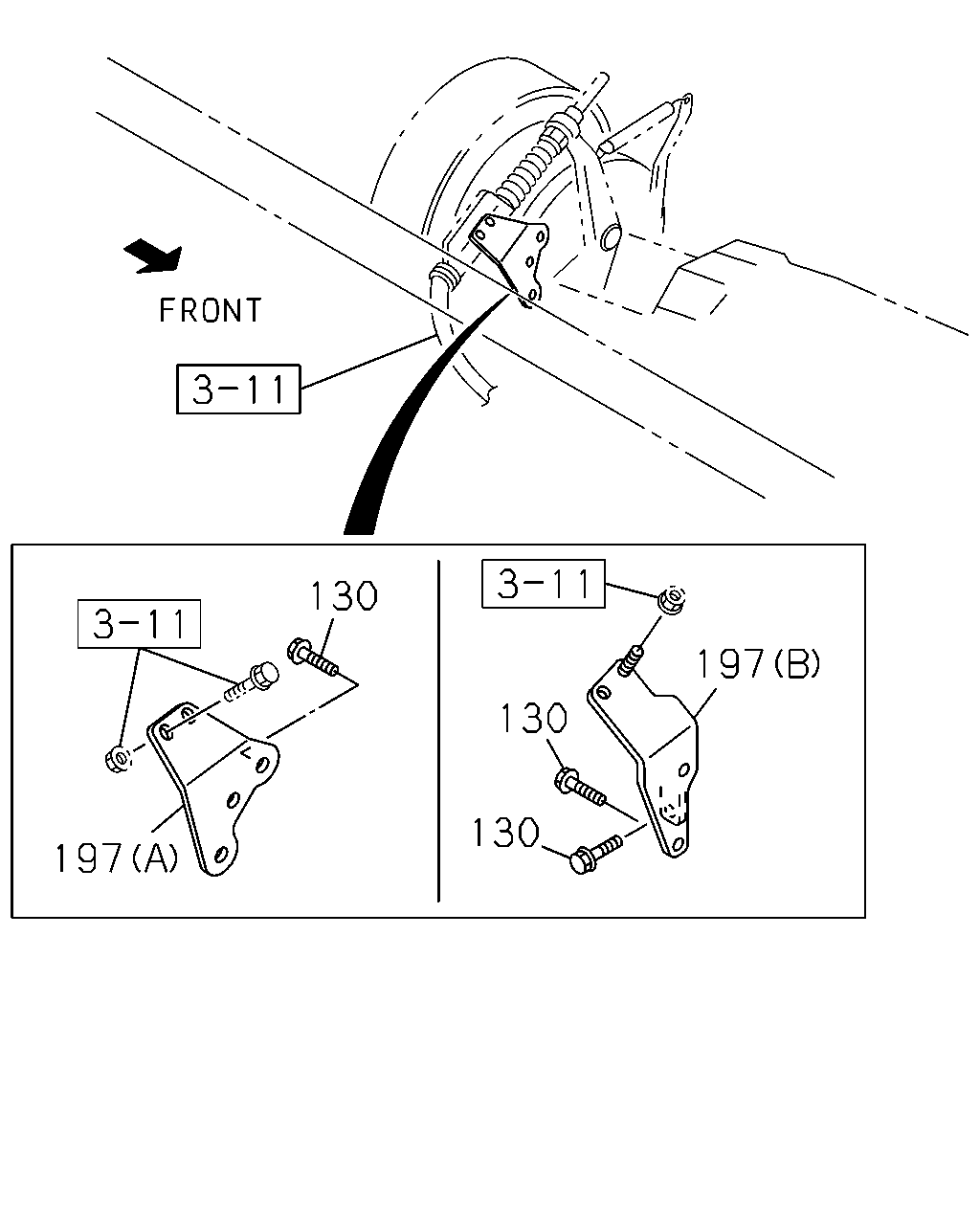

130 197 130 130 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
130	BOLT; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28151-025-0	03	1	1012-	●
130	BOLT; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28751-025-0	03	1	0809-0906		●
130	BOLT; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28751-025-0	03	1	0907-		●	●
197	BRACKET; CENTER BRAKE CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98170-963-2	01	1	1012-	●
197	BRACKET; CENTER BRAKE CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98020-897-1	01	1	0809-0906		●
197	BRACKET; CENTER BRAKE CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98020-897-1	01	1	0907-		●	●

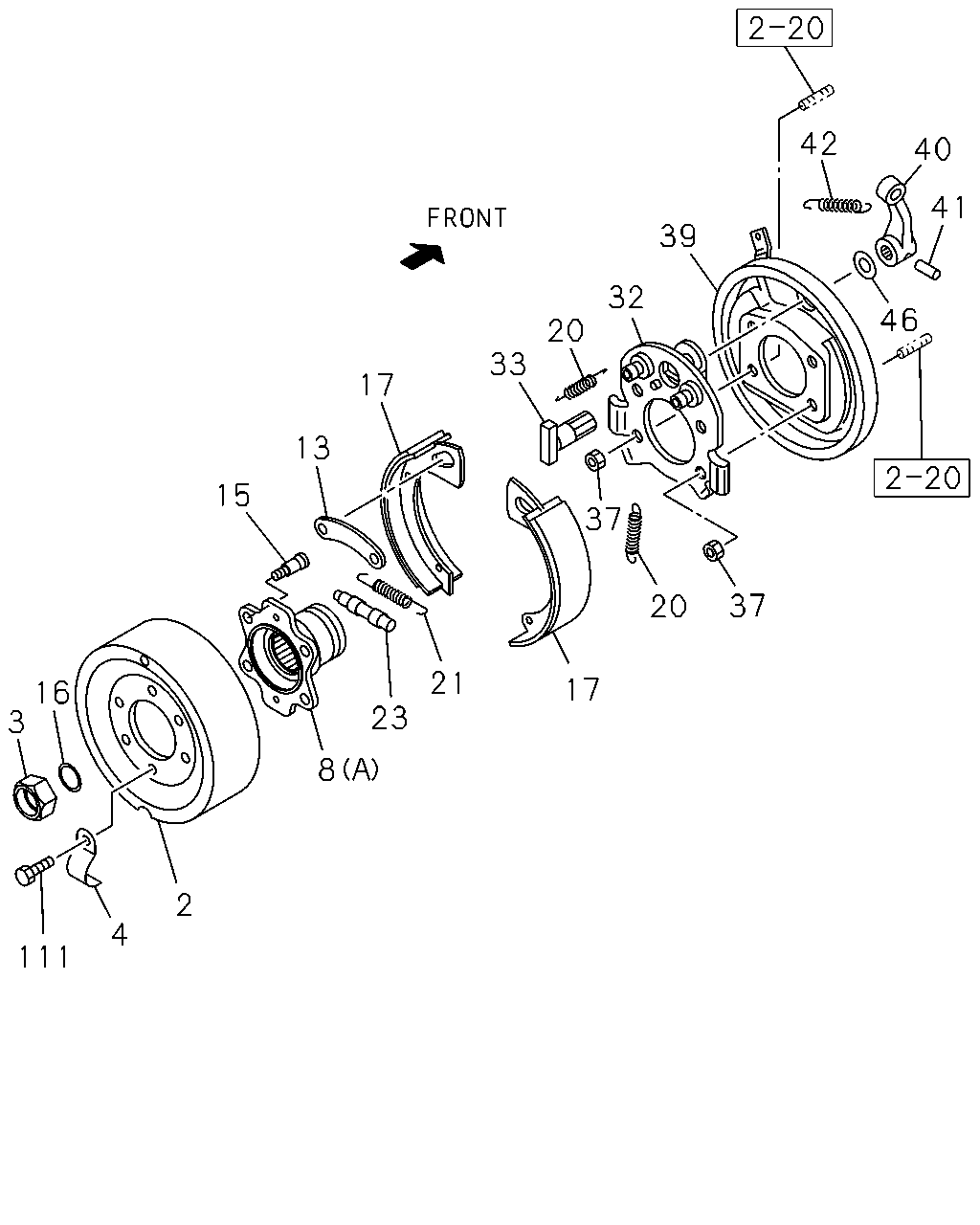

42 40 41 39 32 46 20 33 17 13 15 37 37 20 21 17 16 3 23 8 2 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	DRUM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46211-020-0	01	1	0809-0906		●		●
2	DRUM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46211-020-0	01	1	0907-1011		●	●	●
2	DRUM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46211-020-1	01	1	1012-		●	●	●
2	DRUM; PARKING BRK	1-46211-020-1	01	1	1012-	●
3	NUT; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	8-98014-140-0	01	1	0809-				●
4	COVER; ADJ HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46219-018-0	02	1	0809-				●
8	FLANGE; PARKING BRK (B)	8-98171-007-0	01	1	1012-	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98153-194-0	01	1	1001-1002		●	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98153-194-0	01	1	1003-		●	●	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-37243-236-0	01	1	0809-0906		●		●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-37243-236-0	01	1	0907-0912		●	●	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-37243-236-0	01	1	1001-1002				●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-003-0	01	1	0809-0906		●		●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-003-0	01	1	0907-1011		●	●	●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-003-0	01	1	1012-	●	●	●	●
15	BOLT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	0809-				●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	0809-				●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-029-0	02	1	0809-0906		●		●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-029-0	02	1	0907-1011		●	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-029-0	02	1	1012-	●	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-567-1	02	1	0809-0906		●		●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-567-1	02	1	0907-1011		●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-567-1	02	1	1012-	●	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-268-0	01	1	0809-0906		●		●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-268-0	01	1	0907-1011		●	●	●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-268-0	01	1	1012-	●	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46240-008-0	01	1	0809-0906		●		●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46240-008-0	01	1	0907-1011		●	●	●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46240-008-0	01	1	1012-	●	●	●	●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-023-0	01	1	0809-0906		●		●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-023-0	01	1	0907-1011		●	●	●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-023-0	01	1	1012-	●	●	●	●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-070-0	01	1	0809-0906		●		●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-070-0	01	1	0907-1011		●	●	●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-070-0	01	1	1012-	●	●	●	●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	8-97365-444-0	04	1	0809-0906		●		●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	8-97365-444-0	04	1	0907-1011		●	●	●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	8-97365-444-0	04	1	1012-	●	●	●	●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-115-0	01	1	1012-	●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-111-0	01	1	0809-0906		●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-111-0	01	1	0907-		●	●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-019-0	01	1	0809-				●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-057-0	01	1	1012-	●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-052-0	01	1	0809-0906		●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-052-0	01	1	0907-		●	●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-043-0	01	1	0809-				●
41	PIN; KNOCK,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09878-594-0	01	1	0809-0906		●		●
41	PIN; KNOCK,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09878-594-0	01	1	0907-1011		●	●	●
41	PIN; KNOCK,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09878-594-0	01	1	1012-	●	●	●	●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-592-0	01	1	0809-0906		●		●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-592-0	01	1	0907-1011		●	●	●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-592-0	01	1	1012-	●	●	●	●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-367-0	01	1	0809-0906		●		●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-367-0	01	1	0907-1011		●	●	●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-367-0	01	1	1012-	●	●	●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50740-820-0	02	1	0809-0906		●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50740-820-0	02	1	0907-1009		●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50740-820-0	02	1	1010-		●	●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0809-0906				●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-1009				●

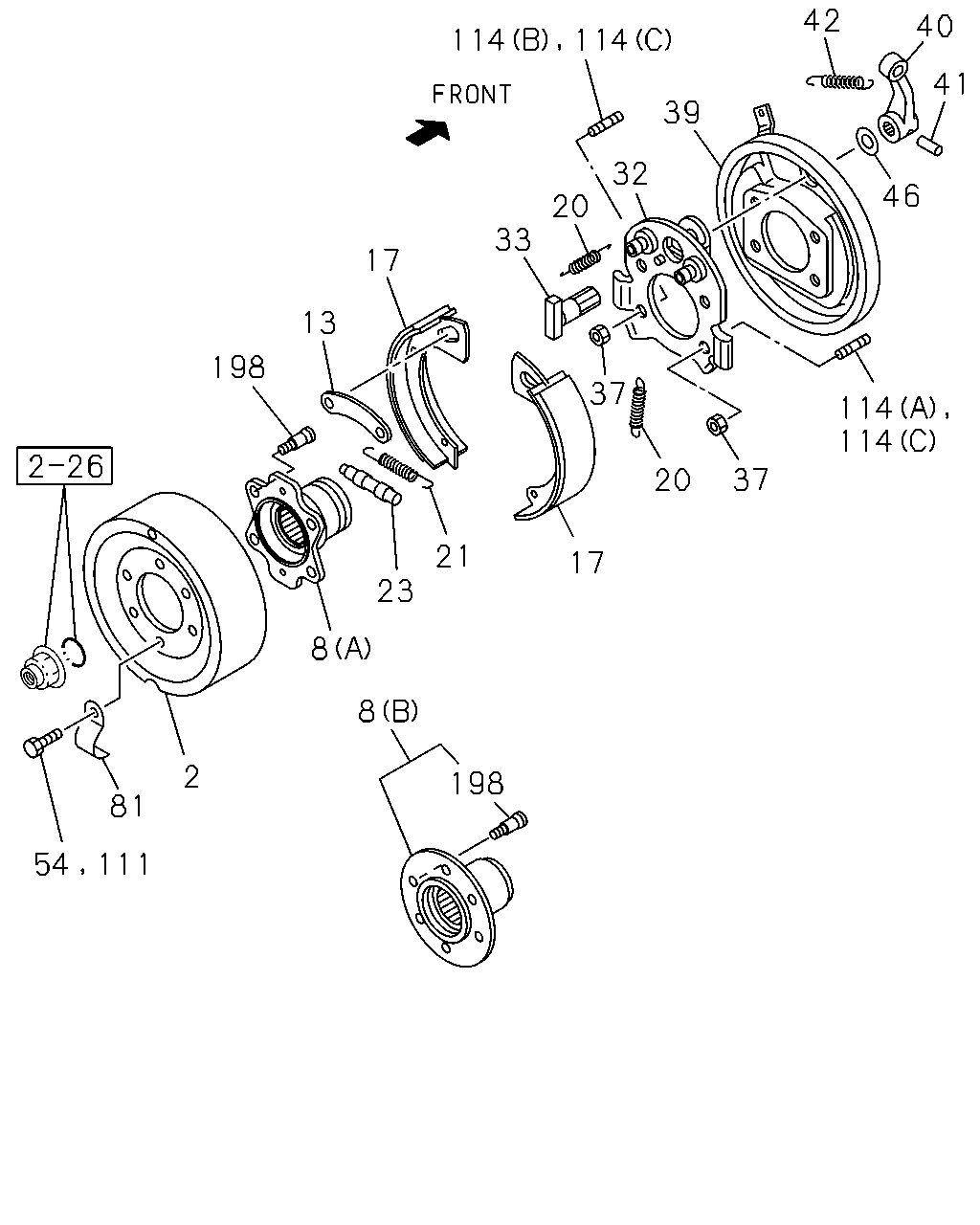

42 40 114 114 41 39 32 46 20 33 17 13 198 37 114 114 37 20 21 17 23 8 8 2 198 81 54 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	DRUM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46211-020-0	01	1	0809-0906		●		●
2	DRUM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46211-020-0	01	1	0907-1011		●	●	●
2	DRUM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46211-020-1	01	1	1012-		●	●	●
2	DRUM; PARKING BRK	1-46211-020-1	01	1	1012-	●
8	FLANGE; PARKING BRK (B)	8-98171-007-0	01	1	1012-	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98153-194-0	01	1	1001-1002		●	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98153-194-0	01	1	1003-		●	●	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-37243-236-0	01	1	0809-0906		●		●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-37243-236-0	01	1	0907-0912		●	●	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-37243-236-0	01	1	1001-1002				●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-003-0	01	1	0809-0906		●		●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-003-0	01	1	0907-1011		●	●	●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-003-0	01	1	1012-	●	●	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-029-0	02	1	0809-0906		●		●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-029-0	02	1	0907-1011		●	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-029-0	02	1	1012-	●	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-567-1	02	1	0809-0906		●		●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-567-1	02	1	0907-1011		●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-567-1	02	1	1012-	●	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-268-0	01	1	0809-0906		●		●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-268-0	01	1	0907-1011		●	●	●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-268-0	01	1	1012-	●	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46240-008-0	01	1	0809-0906		●		●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46240-008-0	01	1	0907-1011		●	●	●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46240-008-0	01	1	1012-	●	●	●	●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-023-0	01	1	0809-0906		●		●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-023-0	01	1	0907-1011		●	●	●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-023-0	01	1	1012-	●	●	●	●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-070-0	01	1	0809-0906		●		●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-070-0	01	1	0907-1011		●	●	●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-070-0	01	1	1012-	●	●	●	●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	8-97365-444-0	04	1	0809-0906		●		●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	8-97365-444-0	04	1	0907-1011		●	●	●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	8-97365-444-0	04	1	1012-	●	●	●	●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-115-0	01	1	1012-	●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-111-0	01	1	0809-0906		●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-111-0	01	1	0907-		●	●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-019-0	01	1	0809-				●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-057-0	01	1	1012-	●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-052-0	01	1	0809-0906		●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-052-0	01	1	0907-		●	●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-043-0	01	1	0809-				●
41	PIN; KNOCK,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09878-594-0	01	1	0809-0906		●		●
41	PIN; KNOCK,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09878-594-0	01	1	0907-1011		●	●	●
41	PIN; KNOCK,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09878-594-0	01	1	1012-	●	●	●	●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-592-0	01	1	0809-0906		●		●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-592-0	01	1	0907-1011		●	●	●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-592-0	01	1	1012-	●	●	●	●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-367-0	01	1	0809-0906		●		●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-367-0	01	1	0907-1011		●	●	●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-367-0	01	1	1012-	●	●	●	●
54	BOLT; COVER M8X20 W/LK WASHER	0-50740-820-0	02	1	1012-	●
81	COVER; CHECK HOLE,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46219-018-0	02	1	0809-0906		●
81	COVER; CHECK HOLE,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46219-018-0	02	1	0907-1011		●	●
81	COVER; CHECK HOLE,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46219-018-0	02	1	1012-		●	●
81	COVER; CHECK HOLE,PARKING BRK	1-46219-018-0	02	1	1012-	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50740-820-0	02	1	0809-0906		●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50740-820-0	02	1	0907-1009		●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50740-820-0	02	1	1010-		●	●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0809-0906				●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-1009				●
114	STUD; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14X22.5 L=42.5	8-97365-445-0	04	1	1012-	●
114	STUD; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0809-0906		●
114	STUD; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0907-		●	●
114	STUD; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906		●
114	STUD; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-		●	●
198	BOLT; KNURL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	0809-0906		●
198	BOLT; KNURL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	0907-1011		●	●
198	BOLT; KNURL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	1012-		●	●
198	BOLT; KNURL M14X43 KNURL	8-98014-003-0	04	1	1012-	●
