2-05 — CLUTCH PIPING (#38219) — 80 parça

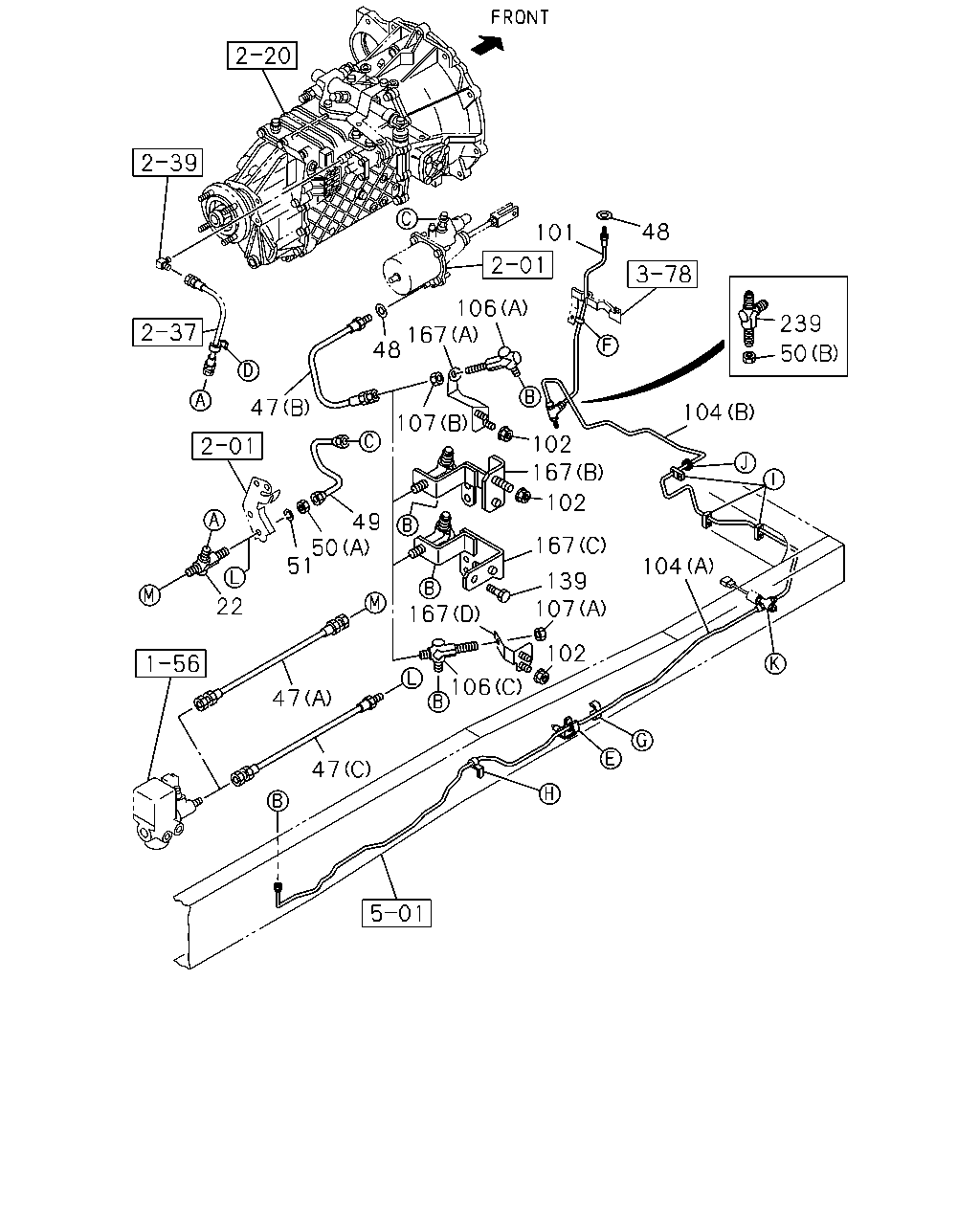

çizim 180915
48 101 106 167 48 239 50 47 104 107 102 167 102 49 50 51 167 104 139 107 167 22 102 106 47 47
BalonParca AdiParca NoAdetTipApplied Date
22 UNION; CLU PIPE
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 0809-
47 HOSE; FLEX,CLU CONT
MZZ6W M/T(RSA) (B) L=440 		8-98072-346-0 01 1 1012-
47 HOSE; FLEX,CLU CONT
MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8> (A) L=720 		1-09363-970-0 01 1 1012-
47 HOSE; FLEX,CLU CONT
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=720 		1-09363-801-0 01 1 1012-
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) (B) L=390 		8-98080-980-0 01 1 0809-0906
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=390 		8-98080-980-0 01 1 0907-
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=660 		1-09363-971-0 01 1 0809-1011
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6S M/T(X7W) ASSISTOR SHIFT CONTROL<WX8> (A) L=660 		1-09363-971-0 01 1 1012-
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=740 		1-09363-674-0 01 1 0809-1011
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6S M/T(X7W) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=740 		1-09363-674-0 01 1 1012-
47 HOSE; FLEX,CLU CONT
MLD6S M/T(X7W) (B) L=550 		8-98122-509-0 01 1 0809-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0809-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> L=207 		1-49124-782-0 01 1 1012-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=204 		1-49117-400-0 01 1 0809-1011
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
4HK1-TCS ENG(RJS) L=204 		1-49117-400-0 01 1 1012-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0809-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0809-1006
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0809-1006
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 		0-91111-512-0 01 1 1007-1009
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1007-1009
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1010-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1010-
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 0809-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=510 		8-98059-811-0 01 1 0809-
102 NUT; FLEX HOSE,CLU CONT
MZX6P M/T(RSW) M10 FLANGE 		0-91180-210-0 02 1 0809-0906
102 NUT; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) M10 FLANGE 		0-91180-210-0 02 1 0907-1011
102 NUT; FLEX HOSE,CLU CONT
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) M10 FLANGE 		0-91180-210-0 02 1 1012-
102 NUT; FLEX HOSE,CLU CONT
MLD6S M/T(X7W) M10 FLANGE 		0-91180-210-0 01 1 0809-0809
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZZ6W M/T(RSA) (A) L=2683 		8-98162-742-1 01 1 1012-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZX6P M/T(RSW) (A) L=2039 		8-98078-086-1 01 1 0809-0906
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) L=2039 		8-98078-086-1 01 1 0907-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6S M/T(X7W) (A) L=2214 		8-98115-607-1 01 1 0809-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1684 SERVICED BY L=1700 		1-47428-737-0 01 1 0809-
106 UNION; OIL PIPE
4HK1-TCC ENG(RDV) (C) M12 2WAY 		1-09654-059-2 01 1 1012-
106 UNION; OIL PIPE
MZX6P M/T(RSW) (A) M12 ELBOW 		0-92125-206-0 01 1 0809-0906
106 UNION; OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) M12 ELBOW 		0-92125-206-0 01 1 0907-
106 UNION; OIL PIPE
(B) M12 3WAY 		8-98051-113-0 01 1 0809-0910
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> (B) M12 3WAY 		8-98051-113-0 01 1 0911-
107 NUT; UNION,OIL PIPE
4HK1-TCC ENG(RDV) (A) M12 		0-91111-512-0 01 1 1012-
107 NUT; UNION,OIL PIPE
MZX6P M/T(RSW) (B) M12 		9-09840-280-0 01 1 0809-0906
107 NUT; UNION,OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) M12 		9-09840-280-0 01 1 0907-
139 BOLT; BRKT
MLD6S M/T(X7W) M10X30 FLANGE 		0-28051-030-0 01 1 0810-
167 BRACKET; UNION
MZZ6W M/T(RSA) (D) 		8-98086-811-1 01 1 1012-
167 BRACKET; UNION
MZX6P M/T(RSW) (A) 		8-98078-147-0 01 1 0809-0906
167 BRACKET; UNION
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98078-147-0 01 1 0907-
167 BRACKET; UNION
MLD6S M/T(X7W) (B) 		8-98128-622-0 01 1 0809-0809
167 BRACKET; UNION
MLD6S M/T(X7W) (C) 		8-98132-086-0 01 1 0810-
239 UNION; CLU HOSE
M12 2WAY 		1-09654-059-2 01 1 0809-
çizim 181082
16 28 16 28 207 180 16 28 23 50 104 207 106 184
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
MLD6S M/T(X7W) (C) ID=11 H=45 L=25 		1-09700-866-0 01 1 0809-
16 CLIP; FLEX HOSE
(B) ID=18 L=28 		1-09701-067-0 01 1 0809-
16 CLIP; FLEX HOSE
(A) ID=10 & 12 		1-09709-278-1 01 1 0809-0901
16 CLIP; FLEX HOSE
MZX6P M/T(RSW) (A) ID=10 & 12 		1-09709-278-1 01 1 0902-0906
16 CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) ID=10 & 12 		1-09709-278-1 01 1 0907-1011
16 CLIP; FLEX HOSE
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) ID=10 & 12 		1-09709-278-1 01 1 1012-
16 CLIP; FLEX HOSE
MLD6S M/T(X7W) (A) ID=10 & 12 		1-09709-278-1 02 1 0902-
23 GROMMET; CLU PIPE
4HK1-TCS ENG(RJS) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0809-0901
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 01 1 0809-
28 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 03 1 0809-
28 CLIP; OIL PIPE
(C) 		8-98012-254-1 04 1 0809-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0809-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0809-1006
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0809-1006
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 		0-91111-512-0 01 1 1007-1009
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1007-1009
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1010-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1010-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZZ6W M/T(RSA) (A) L=2683 		8-98162-742-1 01 1 1012-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZX6P M/T(RSW) (A) L=2039 		8-98078-086-1 01 1 0809-0906
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) L=2039 		8-98078-086-1 01 1 0907-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6S M/T(X7W) (A) L=2214 		8-98115-607-1 01 1 0809-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1684 SERVICED BY L=1700 		1-47428-737-0 01 1 0809-
106 UNION; OIL PIPE
4HK1-TCC ENG(RDV) (C) M12 2WAY 		1-09654-059-2 01 1 1012-
106 UNION; OIL PIPE
MZX6P M/T(RSW) (A) M12 ELBOW 		0-92125-206-0 01 1 0809-0906
106 UNION; OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) M12 ELBOW 		0-92125-206-0 01 1 0907-
106 UNION; OIL PIPE
(B) M12 3WAY 		8-98051-113-0 01 1 0809-0910
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> (B) M12 3WAY 		8-98051-113-0 01 1 0911-
180 PLUG; PIPE
EXC. H.S.A SYSTEM<6EP> 		9-09204-510-0 01 1 0809-0910
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP> 		8-98150-865-0 01 1 0911-
207 BOLT; CLIP
MLD6S M/T(X7W) M8X25 FLANGE 		0-28650-825-0 01 1 0809-
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809-
